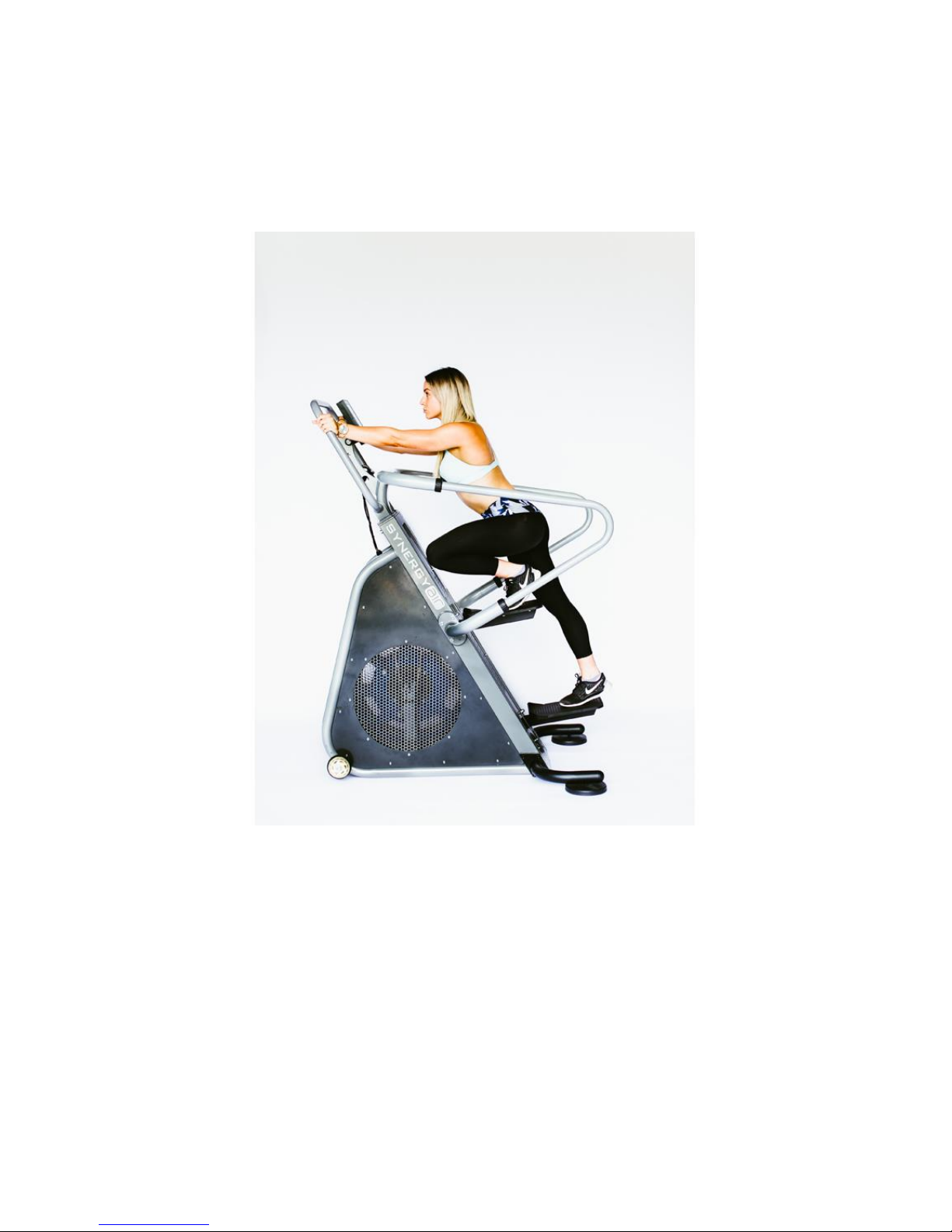

Synergy Air Power Climber User manual

Synergy Air Power Climber
SYN-APCL
User Manual
Ver. 1.2

CONTENTS
1. Before You Start ........................................................................................................................3
Safety Instructions......................................................................................................................................3
DANGER...........................................................................................................................................................3
ATTENTION ...................................................................................................................................................4
WARNING .......................................................................................................................................................4
2. Installation and Assembly .....................................................................................................6
Technical Specifications ...........................................................................................................................6
Environmental Specifications.................................................................................................................6
3. In Service Maintenance...........................................................................................................6
Section Identification.................................................................................................................................6
Regular Maintenance.................................................................................................................................7
Weekly Maintenance..................................................................................................................................7
Six Monthly Maintenance .........................................................................................................................7
4. How to Use the Synergy Air Power Climber ......................................................................8
Lower Body Climbing.................................................................................................................................8
Synergy Air Duty of Care Acknowledgement ....................................................................................9

1. Before You Start
The following safety sign is affixed to the Synergy Air Power Climber.
*Please read the following safety instructions, precautions and information before operating the
Synergy Air Power Climber. Failure to adhere to the following will void warranty.
Safety Instructions
•The owner of this equipment must inform all users of the safety precautions and the methods
of correct usage.
•Always operate the equipment in accordance with the instructions
•The Synergy Air Power Climber must remain vertical when installed ensuring a clearance of
at least 1m/40” to the rear of the machine.
•The equipment must be installed indoors in a location free of moisture and dust.
•The product must be correctly assembled and tested before operation.
•Children under the age of 12 are not to use the machine.
•Pets are not to use the machine.
•The maximum weight supported by the Synergy Air Power Climber is 180kg/396lbs.
•Only one user at a time is permitted to use the Synergy Air Power Climber.
•The user is to wear appropriate clothing and shoes whilst using the Synergy Air Power Climber.
Baggy or loose clothes will catch on the equipment and must be avoided.
•Do not spill food or drink on the product.
•Regularly check operation and components parts of the machine. Securely tighten any loose
fittings or connections.
DANGER
•Do not wet the surface of the Synergy Air Power Climber with any liquids. Cleaning involves
only the use of a fine mist sprayer or a damp cloth.
•Any liquid container in proximity to the Synergy Air Power Climber must have a tight fitting
cap or lid. Do not use the Synergy Air Power Climber if a liquid has been spilt on any surface.
•If the operation of the Synergy Air Power Climber, does not feel correct, or a hazard is
suspected, do not attempt to repair the Synergy Air Power Climber. Contact your service

agent.
ATTENTION
Please consult your physician before commencing any exercise program.
Permission must be obtained from a health professional for any of the following health conditions of
the user:
•pregnancy,
•heart disease,
•high blood pressure,
•diabetes,
•chronic respiratory disease,
•high cholesterol,
•cigarette related or other chronic disease,
•physical disability.
Stop exercising immediately if dizziness, chest pain, nausea or other health abnormality is felt during
exercise. Please consult your physician before continuing the exercise.
Any repair or maintenance work must be conducted by a qualified engineer or recognized service
agent.
WARNING
The Synergy Air Power Climber is user powered. The user controls the speed of the movement.
There is no emergency stop function in the Synergy Air Power Climber.
Every user must become familiar with the mechanism and functions before using the Synergy Air
Power Climber.
Ensure entry to the Synergy Air Power Climber is via the rear, gripping the handles when embarking
or disembarking the Synergy Air Power Climber.
The Synergy Air Power Climber must be installed vertically on a hard, level surface.
Keep hands away from all moving surfaces and components.
Do not allow a towel or clothing to become caught in the moving surface of the Synergy Air Power
Climber. Shoelaces must be enclosed and short enough not to touch the foot pedals. Do not use high
heels, or shoes with leather soles.
Always use the handles when embarking or disembarking the Synergy Air Power Climber.
Examine the Synergy Air Power Climber regularly for safe operation. Repair any problem immediately
it is identified. Implement a regular maintenance plan for the Synergy Power Climber at minimum
quarterly intervals.

Do not attempt to change the Transmission Control while the foot plates or hand
grips are stationary. Only adjust the Transmission Control while the foot plates
or hand grips are moving as noted in the attached graphic.

2. Installation and Assembly
Technical Specifications
The Synergy Air Power Climber does not require any electrical wall outlet.
The Synergy Air Power Climber is a non-motorized product.
The Synergy Air Power Climber uses patented Continuously Variable Transmission (CVT) and air
turbine to provide resistance.
Dimensions: 125cm(H) x 90cm (W) x 125cm(L)
49” x 30” x 35”
Environmental Specifications
•Operating conditions: temperature 10℃~ 40℃/ 50OF ~ 104OF Humidity 20% ~ 95%
•Transport and storage conditions: temperature -18℃~ 49℃/ -1OF ~ 120OF. Humidity 20-
95%
3. In Service Maintenance
Section Identification
No
Description
QTY
1
Left footrest
1
2
Right footrest
1
3
Main body assembly
1
4
Footplate
1
5
Console
1
6
Top Handrail
1

Table 1: Synergy Air Power Climber, Section Identification
Regular Maintenance
Periodic cleaning and inspection of the condition of the lubrication will keep the Synergy Air Power
Climber in optimal condition.
The following is the recommended maintenance schedule. In environments with severe pollution, the
frequency of inspections and maintenance should be increased.
Figure 1: View of Synergy Air Power Climber
Weekly Maintenance
Clean the frame and plastic surfaces with a soft cloth or brush. Do not use abrasive cleaning
materials or brushes.
Protect all metal surfaces with Lanolin Spray. Spray onto a cloth and wipe surfaces. Note-
Do not apply Lanoline to handles and/or Foot plates
Clean the console with a soft cloth.
Six Monthly Maintenance
Remove the metal side covers and check the tightness state of the frame bolts and nuts.
Check the bearings and wear condition of all chains and sprockets

4. How to Use the Synergy Air Power Climber
Lower Body Climbing
•Place one foot on the corresponding foot plate (1)
•As you place your weight on the footplate grip the handle (2) for balance
•Slowly move the footrests to generate speed. Whilst doing so the Continuously Variable
Transmission (CVT) (3) can be rotated to vary resistance as deemed necessary.
1
3
2

PLEASE NOTE- the Continuously Variable Transmission (CVT) must only
be adjusted whilst the machine is in motion. Attempting to adjust the
Continuously Variable Transmission (CVT) whilst the machine is
stationary may damage the mechanism and void warranty.
Synergy Air Duty of Care Acknowledgement
DUTY OF CARE ACKNOWLEDGEMENT: I acknowledge & understand that the
fitness equipment being supplied to our Facility must be used correctly and that incorrect use orusingexcessive
weight relative to the capability of the user can easily result in injury. Accordingly, as part of our 'Duty of Care', I understand that
it is our responsibility to ensure:
1. That all equipment users, prior to using the equipment must receive a comprehensive induction, by a qualified fitness
professional, in the correct use and safe operation of the fitness equipment. As part of the equipment induction process, we
must ensure that patrons are made aware of the safety 'Warning' labels on each machine and that reference is made to the
exercise Instructional Placards' fitted to Strength pin loaded machines.
2. It is understood that many of the machines, racks & benches can be used for a wide range of variable exercise options,
making it impossible to provide an instructional placard for every exercise option & variant. Accordingly, the equipment
purchaser acknowledges that it is the responsibility of the exercise facility to instruct and supervise users in the safe, correct and
appropriate use of these machines.
PLEASE NOTE - Any piece of fitness equipment is capable of being pulled over if used incorrectly. It is the buyer's
responsibility to determine if they wish to fix the equipment to the floor.
© 2015 SYNERGY PHYSICAL CONDITIONING SYSTEMS Pty. Ltd.
NOTE: Synergy Physical Conditioning Systems reserve the right to change
the specification without notice.
