Synergy Power tower User manual

Synergy Air Power Tower
SYN-APT
User Manual
Version: 1.2

pg. 2
CONTENTS
Before You Start ..........................................................................3
Safety Instructions..........................................................................3
DANGER ..............................................................................................4
ATTENTION.......................................................................................4
WARNING........................................................................................... 5
Installation and Assembly .......................................................6
Technical Specifications...............................................................6
Environmental Specifications ....................................................7
In Service Maintenance.............................................................7
Section Identification ....................................................................7
Regular Maintenance.....................................................................7
Weekly Maintenance .....................................................................8
Six Monthly Maintenance.............................................................8
How to Use the Synergy Air Power Tower........................ 10
Total Body Climbing.................................................................... 10
Lower Body Climbing ................................................................. 11
Hang Pull Push Press .................................................................. 12
Chest Press Bent Pull.................................................................. 13
Deadlift Pushdown ...................................................................... 14
Synergy Air Duty of Care Acknowledgement ..................... 16

pg. 3
Before You Start
The following safety sign is affixed to the Synergy Air Power Tower.
*Please read the following safety instructions, precautions and
information before operating the Synergy Air Power Tower. Failure
to adhere to the following will void warranty.
Safety Instructions
•The owner of this equipment must inform all users of the
safety precautions and the methods of correct usage.
•Always operate the equipment in accordance with the
instructions
•The Synergy Air Power Tower must remain vertical when
installed ensuring a clearance of at least 1m/40” to the rear of
the machine.
•The equipment must be installed indoors in a location free of
moisture and dust.
•The product must be correctly assembled and tested before
operation.
•Children under the age of 12 are not to use the machine.
•Pets are not to use the machine.
•The maximum weight supported by the Synergy Air Power
Tower is 180kg/396lbs.
•Only one user at a time is permitted to use the Synergy Air
Power Tower.

pg. 4
•The user is to wear appropriate clothing and shoes whilst using
the Synergy Air Power Tower. Baggy or loose clothes will catch
on the equipment and must be avoided.
•Do not spill food or drink on the product.
•Regularly check operation and components parts of the
machine. Securely tighten any loose fittings or connections.
DANGER
•Do not wet the surface of the Synergy Air Power Tower with
any liquids. Cleaning involves only the use of a fine mist
sprayer or a damp cloth.
•Any liquid container in proximity to the Synergy Air Power
Tower must have a tight-fitting cap or lid. Do not use the
Synergy Air Power Tower if a liquid has been spilt on any
surface.
•If the operation of the Synergy Air Power Tower, does not
feel correct, or a hazard is suspected, do not attempt to
repair the Synergy Air Power Tower. Contact your service
agent.
ATTENTION
Please consult your physician before commencing any exercise
program.
Permission must be obtained from a health professional for any of
the following health conditions of the user:
•pregnancy,
•heart disease,
•high blood pressure,
•diabetes,
•chronic respiratory disease,
•high cholesterol,
•cigarette related or other chronic disease,

pg. 5
•physical disability.
Stop exercising immediately if dizziness, chest pain, nausea or
other health abnormality is felt during exercise. Please consult your
physician before continuing the exercise.
Any repair or maintenance work must be conducted by a qualified
engineer or recognized service agent.
WARNING
The Synergy Air Power Tower is user powered. The user controls
the speed of the movement.
There is no emergency stop function in the Synergy Air Power
Tower.
Every user must become familiar with the mechanism and functions
before using the Synergy Air Power Tower.
Ensure entry to the Synergy Air Power Tower is via the rear,
gripping the handles when embarking or disembarking the Synergy
Air Power Tower.
The Synergy Air Power Tower must be installed vertically on a hard,
level surface.
Keep hands away from all moving surfaces and components.
Do not allow a towel or clothing to become caught in the moving
surface of the Synergy Air Power Tower. Shoelaces must be
enclosed and short enough not to touch the footrests. Do not use
high heels, or shoes with leather soles.
Always use the handles when embarking or disembarking the
Synergy Air Power Tower.
Examine the Synergy Air Power Tower regularly for safe operation.
Repair any problem immediately it is identified. Implement a
regular maintenance plan for the Synergy Power Tower at minimum
quarterly intervals.

pg. 6
Installation and Assembly
Technical Specifications
The Synergy Air Power Tower does not require any electrical wall
outlet.
The Synergy Air Power Tower is a non-motorized product.
The Synergy Air Power Tower uses patented Continuously Variable
Transmission (CVT) and air turbine to provide resistance.
Dimensions: 1161mm L x 864 mm W x 2358mm H
45” x 34” x 92.8”

pg. 7
Environmental Specifications
•Operating conditions: temperature 10℃~ 40℃/ 50OF ~
104OF Humidity 20% ~ 95%
•Transport and storage conditions: temperature -18℃~ 49℃
/ -1OF ~ 120OF. Humidity 20-95%
In Service Maintenance
Section Identification
No
Description
QTY
1
Left handle
1
2
Right handle
1
3
Main body assembly
1
4
Footplate
1
5
Console
1
6
Left footrest
1
7
Right footrest
1
Table 1: Synergy Air Power Tower, Section Identification
Regular Maintenance
Periodic cleaning and inspection, and lubrication will keep the
Synergy Air Power Tower in optimal condition.
The following is the recommended maintenance schedule. In
environments with severe pollution, the frequency of inspections
and maintenance should be increased.

pg. 8
Weekly Maintenance
Clean the frame and plastic surfaces with a soft cloth or brush. Do
not use abrasive cleaning materials or brushes.
Protect all metal surfaces with Lanolin Spray. Spray onto a cloth
and wipe surfaces. Note- Do not apply Lanoline to handles and/or
Foot plates
Clean the console with a soft cloth.
Six Monthly Maintenance
Remove the side covers and check the tension of the frame bolts
and nuts.
Check the bearings and wear condition of all cables, chains and
sprockets.

pg. 9

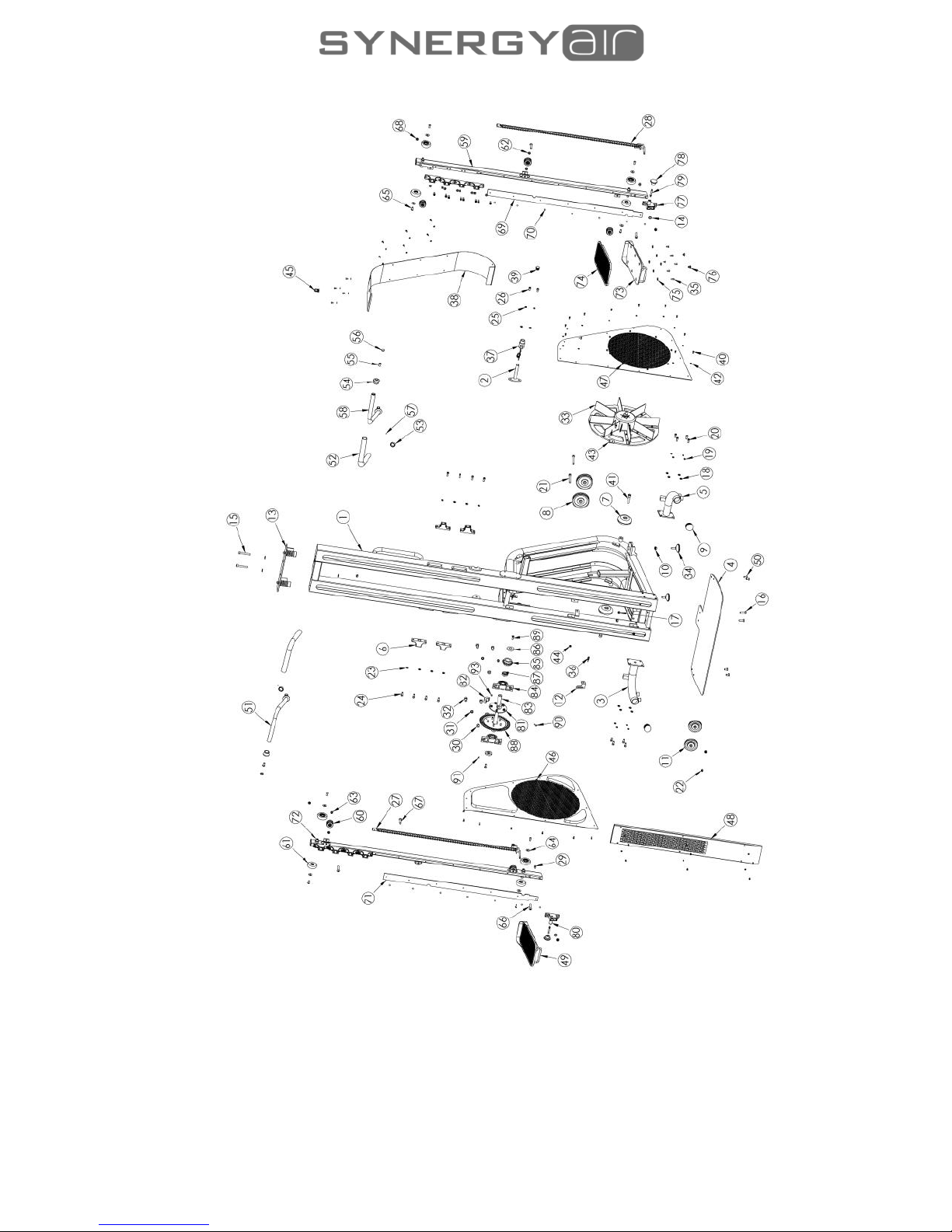

Figure 1: Exploded view of Synergy Air Power Tower

pg. 10
How to Use the Synergy Air Power Tower
Total Body Climbing
•Place one foot on the corresponding footrest (1)
•As you place your weight on the footrest reach up and grab
the fixed handrails (3) or adjustable handles (2) for balance
•Once both feet are on the footrests adjust the handle height
(2) to suit. Ensure only one handle is removed and
relocated at a time whilst holding the other for balance.
•Slowly move the footrest and handles to generate speed.
Whilst doing so the Continuously Variable Transmission
(CVT) (4) can be rotated to vary resistance as deemed
necessary.
PLEASE NOTE- the Continuously Variable Transmission (CVT) must
only be adjusted whilst the machine is in motion. Attempting to
adjust the Continuously Variable Transmission (CVT) whilst the
machine is stationary may damage the mechanism and void
warranty.
1
2
4
3

pg. 11
Lower Body Climbing
•Place one foot on the corresponding footrest (1)
•As you place your weight on the footrest reach up and grab
the handrail (3) or the adjustable handrails (2) for balance
•Once both feet are on the footrests, the adjustable
handrails (2) can be removed and stored in the brackets on
the side. Ensure only one handle is removed and relocated
at a time whilst holding the other for balance.
•Slowly move the footrests to generate speed. Whilst doing
so the Continuously Variable Transmission (CVT) (4) can
be rotated to vary resistance as deemed necessary.
PLEASE NOTE- the Continuously Variable Transmission (CVT) must
only be adjusted whilst the machine is in motion. Attempting to
adjust the Continuously Variable Transmission (CVT) whilst the
machine is stationary may damage the mechanism and void
warranty.
1
3
4
2

pg. 12
Hang Pull Push Press
•Remove footrests and place on storage pins (1)
•Adjust the handle height (2) to suit.
•Slowly move the handles to generate speed. Whilst doing
so the Continuously Variable Transmission (CVT) (4) can
be rotated to vary resistance as deemed necessary.
PLEASE NOTE- the Continuously Variable Transmission (CVT) must
only be adjusted whilst the machine is in motion. Attempting to
adjust the Continuously Variable Transmission (CVT) whilst the
machine is stationary may damage the mechanism and void
warranty.
1
2
4

pg. 13
Chest Press Bent Pull
•Remove footrests (2) and place on storage pins (1)
•Remove the adjustable handlebars (3) and place them in
the foot position (2).
•Slowly move the handles to generate speed. Whilst doing
so the Continuously Variable Transmission (CVT) (4) can
be rotated to vary resistance as deemed necessary.
PLEASE NOTE- the Continuously Variable Transmission (CVT) must
only be adjusted whilst the machine is in motion. Attempting to
adjust the Continuously Variable Transmission (CVT) whilst the
machine is stationary may damage the mechanism and void
warranty.
To view Video of Synergy Air Power Tower, see QR CODE shown
in Section 5
2
1
4
3

pg. 14

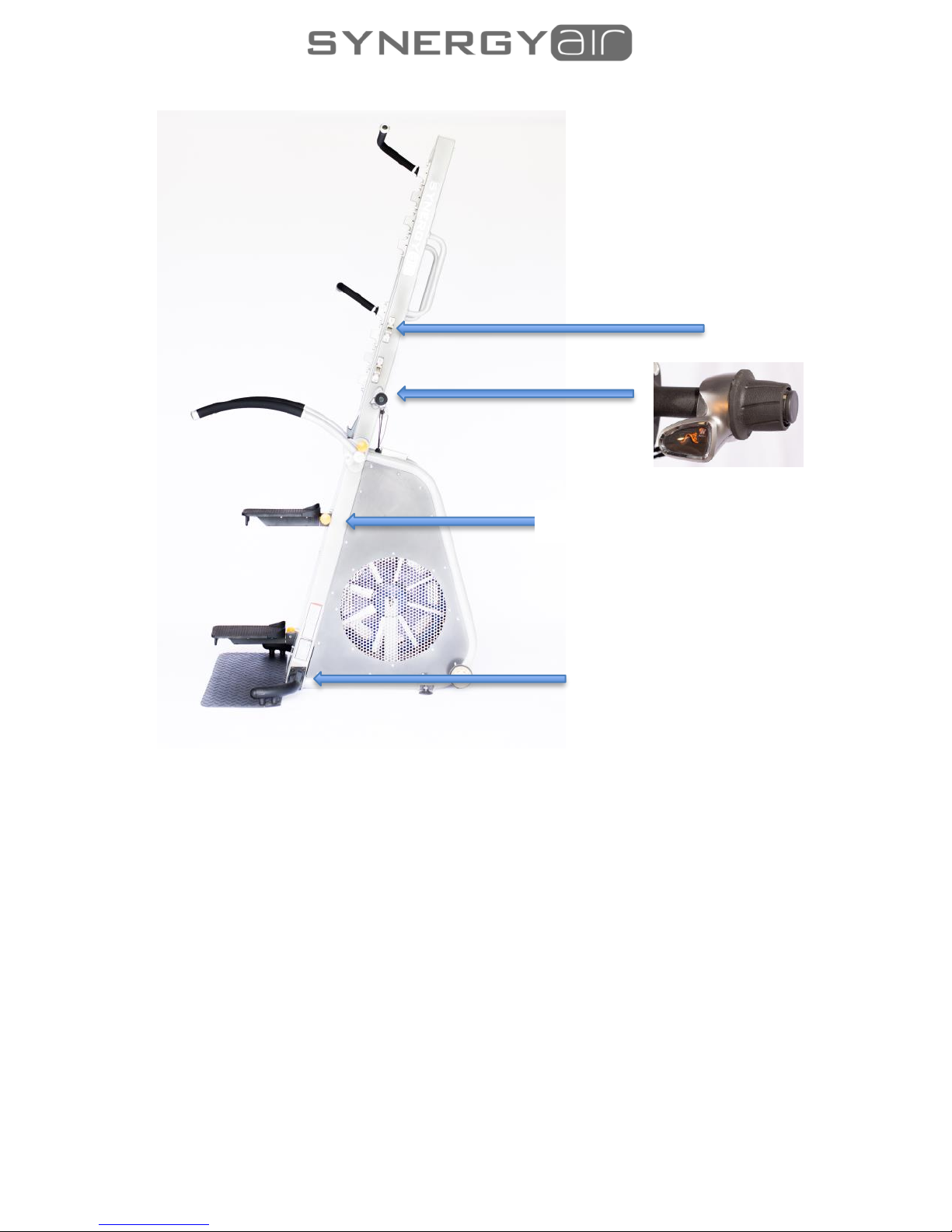

Deadlift Pushdown
•Remove footrests and place on storage pins (1)
•Remove one adjustable handlebar and place in storage pin
(4). Place the other adjustable handlebar in the opposite
foot position (2)
•Slowly move the handle to generate speed. Whilst doing so
the Continuously Variable Transmission (CVT) (3) can be
rotated to vary resistance as deemed necessary.
PLEASE NOTE- the Continuously Variable Transmission (CVT) must
only be adjusted whilst the machine is in motion. Attempting to
adjust the Continuously Variable Transmission (CVT) whilst the
machine is stationary may damage the mechanism and void
warranty.
1
2
4
3

pg. 15

pg. 16
Synergy Air Duty of Care Acknowledgement
DUTY OF CARE ACKNOWLEDGEMENT: I
acknowledge & understand that the fitness equipment
being supplied to our Facility must be used correctly and that incorrect use or
using excessive weight relative to the capability of the user can easily result in injury.
Accordingly, as part of our 'Duty of Care', I understand that it is our responsibility to
ensure:
1. That all equipment users, prior to using the equipment must receive a
comprehensive induction, by a qualified fitness professional, in the correct use and
safe operation of the fitness equipment. As part of the equipment induction process,
we must ensure that patrons are made aware of the safety 'Warning' labels on each
machine and that reference is made to the exercise Instructional Placards' fitted to
Strength pin loaded machines.
2. It is understood that many of the machines, racks & benches can be used for a
wide range of variable exercise options, making it impossible to provide an
instructional placard for every exercise option & variant. Accordingly, the equipment
purchaser acknowledges that it is the responsibility of the exercise facility to instruct
and supervise users in the safe, correct and appropriate use of these machines.
PLEASE NOTE - Any piece of fitness equipment is capable of being pulled over if
used incorrectly. It is the buyer's responsibility to determine if they wish to fix the
equipment to the floor.
© 2017 SYNERGY PHYSICAL CONDITIONING SYSTEMS Pty. Ltd.
NOTE: Synergy Physical Conditioning Systems reserve the right to
change the specification without notice.
