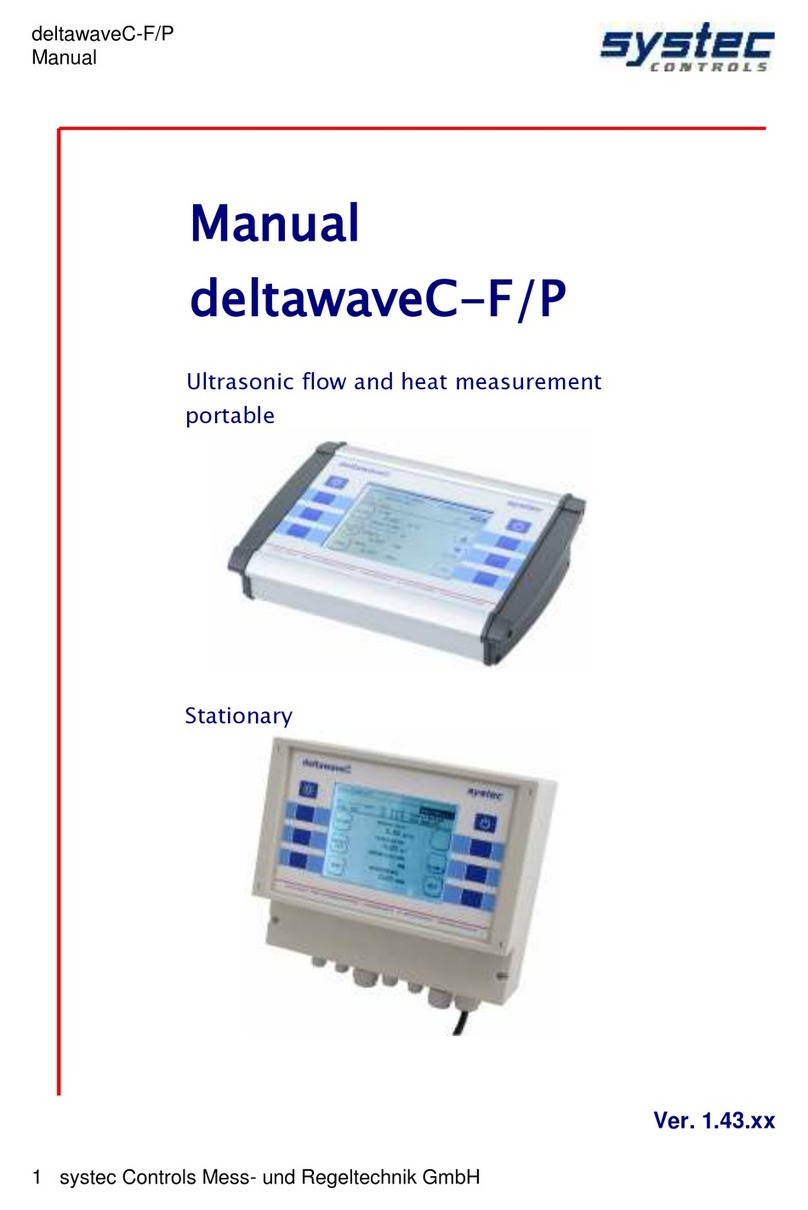

Systec Controls deltawaveC-F User manual

deltawaveC-F/P
Manual
1systec Controls Mess- und Regeltechnik GmbH 14.02.2023
Manual
deltawaveC-F/P
Ultrasonic flow and heat measurement
portable
Stationary
Ver. 3.0.0 and higher

deltawaveC-F/P
Manual
2systec Controls Mess- und Regeltechnik GmbH 14.02.2023
Table of content
Table of content........................................................................................................2
1Preamble...........................................................................................................5
2About this manual..............................................................................................6
3deltawaveC-F/P & components .........................................................................7
3.1 Approvals / EMC....................................................................................7
3.2 Scope of delivery deltawaveC-F / P basic package...............................8
3.3 Transducer.............................................................................................9
3.4 Safety instructions ...............................................................................10
3.5 Important instructions for the use of deltawaveC-P .............................10
4Measuring principle..........................................................................................11
4.1 2-channel device applications..............................................................13
5deltawaveC-F/P Interfaces ..............................................................................14
5.1 Overview deltawaveC-P ......................................................................14
5.2 Overview deltawaveC-F.......................................................................15
5.3 Connection notes.................................................................................16
6Operating.........................................................................................................17
6.1 Control Buttons....................................................................................17
6.2 How to navigate...................................................................................17
6.3 Select measurement channel ..............................................................17
7First Start.........................................................................................................18
7.1.1 Adjustment of the display language ................................................18
7.1.2 Navigation in main menu ................................................................18
7.1.3 Setting time and date......................................................................19
8Preparing for measurement deltawaveC-F/P...................................................20
8.1 Preparation of the measurement / installation location ........................21
8.1.1 Inlet and outlet distances ................................................................21
8.1.2 Basic principles for ultrasonic transducer assembly........................22
8.1.3 Ultrasonic sensor Mounting on horizontal pipelines........................23
8.1.4 Ultrasonic transducer on uneven surfaces......................................24
8.2 Fundamentals of parameterization ......................................................24
8.3 Parameterization with the Quick Setup................................................26
8.4 Sensor assembly / Sensor distance.....................................................28
8.4.1 Structure of ultrasonic transducers .................................................28
8.4.2 Mounting ultrasonic transducer.......................................................29
8.4.3 Selection of transducer types..........................................................30
8.4.4 Selection of mounting options.........................................................30
8.4.5 Selection mounting rail....................................................................31
8.4.6 Selection coupling media................................................................32
8.4.7 Transducer mounting......................................................................33
8.4.8 Mounting of the Transducer in V-Mode or W-Mode........................33
8.4.8.1 Mounting permanently installed.............................................35
8.4.8.2 Mounting portable..................................................................36
8.4.9 Mounting the ultrasonic transducers based on the Z method .........38
8.4.10 Mounting transducer with two mounting rails..................................40

deltawaveC-F/P
Manual
3systec Controls Mess- und Regeltechnik GmbH 14.02.2023
8.4.10.1 Mounting Z-mode with two rails.............................................40
8.4.10.2 Mounting at large distances...................................................41
8.4.11 Mounting the ultrasonic transducers at two crossed measuring paths
........................................................................................................42
8.5 Alternative sensor distance..................................................................42
8.6 Zero Setting.........................................................................................43
8.7 Signal optimisation...............................................................................45
8.7.1 Open signal optimisation.................................................................45
8.7.2 Functionality Signal Optimisation....................................................45
8.7.3 Gain-Optimization...........................................................................46
8.7.4 Zero-Optimization ...........................................................................46
9Heat measurement..........................................................................................47
9.1 Introduction..........................................................................................47
9.2 Installing the Pt100..............................................................................48
9.3 Parameterization of the Pt100 for the heat quantity measurement......49
10 Measuring windows deltawaveC-F/P........................................................50
10.1 Headline ..............................................................................................50
10.2 Measuring window "Flow 1".................................................................51
10.3 Measuring window "Flow 2".................................................................52
10.4 The measuring window "heat quantity"................................................53
10.5 Password protection............................................................................54
10.6 The measurement windows of the 2-channel deltawaveC-F...............55
11 The main menu (complete menu).............................................................56
11.1 Loading, saving and managing parameter data...................................56
11.2 The pipe parameters............................................................................58
11.3 The Fluid Setup ...................................................................................59
11.4 The Transducer Setup.........................................................................60
11.5 Parameterization of the inputs and outputs .........................................61
11.5.1 Parameterization of the 4-20mA outputs.........................................61
11.5.2 Parameterization of the relay..........................................................64
11.5.3 Parameterization of the pulse output ..............................................65
11.5.4 Impulse-Overflow-Error; IOE...........................................................66
11.6 Serial communication, Modbus, MBUS & Logger................................66
11.6.1 Serial data transmission..................................................................66
11.6.2 Modbus...........................................................................................68
11.6.3 MBus...............................................................................................69
11.6.4 The Data Logger.............................................................................70
11.6.4.1 Activation of the data logger:.................................................70
11.6.4.2 Administration and structure of log data................................71
11.6.4.3 Starting a time-controlled data record....................................72
11.6.4.4 Cancelling a time-controlled data record...............................73
11.6.4.5 Quick-Logger.........................................................................74
11.6.4.6 WakeUp-Logger....................................................................74
11.6.4.7 Energy saving mode..............................................................75
11.7 Systems Settings.................................................................................75
11.7.1 Editing the time and date ................................................................76

deltawaveC-F/P
Manual
4systec Controls Mess- und Regeltechnik GmbH 14.02.2023
11.7.2 Changing the indicator light.............................................................76
11.7.3 Changing the menu language.........................................................77
11.7.4 System test.....................................................................................77
11.7.5 System information.........................................................................78
11.7.6 System Reset..................................................................................78
11.8 Unit selection.......................................................................................79
11.9 Calibration ...........................................................................................80
11.9.1 Flow-Offset......................................................................................80
11.9.2 Matching the Pt100.........................................................................80
11.9.3 Pt100 Offset....................................................................................80
11.9.4 Parameterization of a flow velocity characteristic............................81
11.9.5 Temperature compensation............................................................81
11.9.6 Calibration of analogue outputs ......................................................82
11.10 Miscellaneous Parameters ..................................................................83
11.10.1 Damping & Burnout.........................................................................83
11.10.2 Cut off Flow.....................................................................................84
11.10.3 Zero ................................................................................................84
11.10.4 The totalizer (counters)...................................................................85
11.10.5 Pipe roughness...............................................................................86
11.10.6 Sensor test......................................................................................86
12 Additional information about the hardware...............................................88
12.1 Hardware and Software Reset.............................................................88
12.2 Data export and import........................................................................89
13 Pulse outputs active/passive ....................................................................90
13.1 RS232 / RS485 Interfaces...................................................................91
14 Tips and Tricks.........................................................................................92
14.1 Measuring mixed fluids........................................................................92
14.2 Measuring unknown fluids ...................................................................94
15 Troubleshooting........................................................................................96
15.1 The Oscilloscope Window ...................................................................97
15.2 Signal analysis.....................................................................................98
15.2.1 Signal-to-noise ratio (SNR).............................................................99
15.2.2 Signal sharpness ..........................................................................101
15.2.3 Signal decoupling on small pipelines............................................102
15.2.4 The Auto window function / AFC-Technology...............................103
15.3 The diagnosis window of the deltawaveC-F/P...................................105
15.4 What to do if the pipe is not fully filled?..............................................106
Appendix A –Material data...................................................................................107
Appendix B –Technical data................................................................................110
Appendix C –Modbus register overview ..............................................................112
Appendix D –Transducer type overview ..............................................................114
Appendix E –Mounting equipment and accessories............................................116

deltawaveC-F/P
Manual
5systec Controls Mess- und Regeltechnik GmbH 14.02.2023
1 Preamble
Welcome to the team of deltawaveC-F/P users and many thanks for using
an ultrasonic clamp-on flowmeter from systec Controls GmbH Germany.
deltawaveC-F/P was developed based on the KISS principle –“keep it safe
and simple”.
That means maximum user friendliness paired with optimal and accurate
measurements.
Our aim is to fulfil these aspirations both now and in the future. Our
strength lies in continually improving and optimising our products and we
want you to be part of this.
deltawaveC-F/P is an important product for us and not just one product on
a long list of others.
Thanks to your competent and constructive suggestions you have helped
to co-create deltawaveC and contribute to its success.
Please don´t hesitate to share your expert knowledge about deltawaveC-
F/P with us.
We wish you all the best and great success with using deltawaveC-
F/P!

deltawaveC-F/P
Manual
6systec Controls Mess- und Regeltechnik GmbH 14.02.2023
2 About this manual
You don't have much time for reading? Use the beacon!
Next to the chapters you will find red, orange or green dots. They will help you
to find a quick introduction to the deltawaveC-F/P
Newcomer?
You have never worked with an ultrasonic meter before?
Start at the first chapter. You will receive a step-by-step introduction to
ultrasonic measuring technology.
Advanced?
You have occasionally used ultrasonic measuring equipment?
Start with chapter 10.1.3 "Quick setup"
Start with the chapters that are marked with an orange spot. You may also
want to continue reading the chapters with the green spot.
Professional?
You already have professional knowledge of ultrasonic measuring
systems?

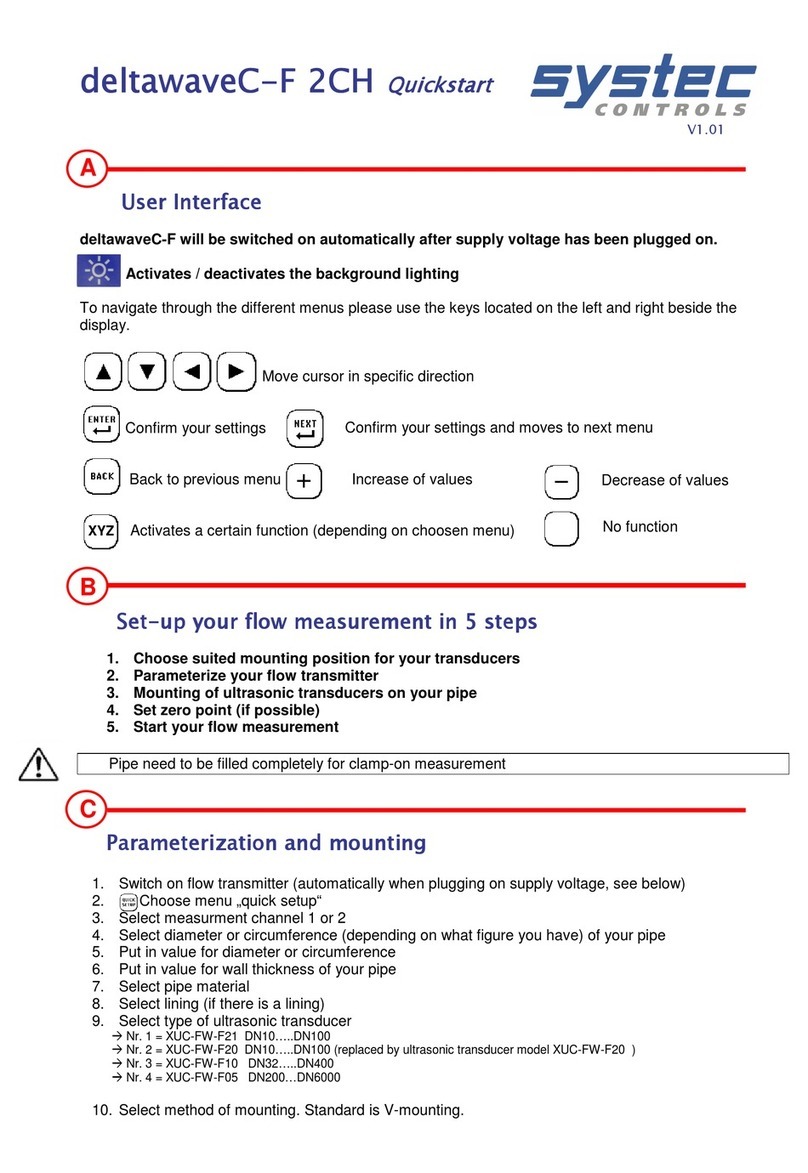

Start with the deltawaveC-F Getting Started (separate attachment)
You may also want to read the green dot chapters
The fields identified with an exclamation mark contain important
information that relates to the basic data and operation of the
device.
The fields identified with the “i“contain supplementary and
helpful information.
The instruction manual describes the function of both deltawaveC-P and
deltawaveC-F in 1-channel and 2-channel version. In addition to the chapters
you will find the corresponding pictograms. This indicates which of the devices
the chapter applies to.
deltawaveC-P
portable deltawaveC (1 Channel)
deltawaveC-F
stationary deltawaveC
1CH = 1 Channel; 2CH = 2 Channel

deltawaveC-F/P
Manual
7systec Controls Mess- und Regeltechnik GmbH 14.02.2023
3 deltawaveC-F/P & components
deltawaveC-F/P key points:
deltawaveC-F/P is a clamp-on ultrasonic flow meter for liquids in completely
filled pipelines.
deltawaveC-F/P works based on the transit time method.
deltawaveC-F/P provides heat measurement by default. Clamp-on Pt100
temperature sensors are available as an optional.
The power is supplied via integrated AC-power supply. For deltawaveC-F
DC-power supply is available.
The device supports measurements on pipelines with diameters in the range
DN10 to DN6000 (depending on the sensor used)
Temperature range (fluid): –40°C to +150°C (equates the temperature
range of the clamp-on ultrasound transducers)
deltawaveC-F/P is equipped with an electrically isolated output (relay), as
well as 4 to 20 mA current (active and passive) and impulse outputs that
can be operated in active and passive mode (with deltawaveC-F
universally parameterisable).
The stationary deltawaveC-F can optionally be equipped with an RS232 or
RS485 interface card as well as with two additional analogue inputs.
3.1 Approvals / EMC
deltawaveC-F/P is compliant with the following European
Directives and Standards:
2014/35/EU Low voltage directive
2014/30/EU Electromagnetic compatibility
Inspection specifications:
EN 55011 (2011-04)
EN 61000-4-2 (2009-12)
EN 61000-4-3 (2011-04)
EN 61000-4-4 (2013-04)
EN 61000-4-5 (2015-03)
EN 61000-4-6 (2014-08)
EN 61000-4-8 (2010-11)
EN 61000-4-11 (2005-02)
Inspection requests:
EN 61000-6-1 (2016-05)
EN 61000-6-3 (2011-09)

deltawaveC-F/P
Manual
8systec Controls Mess- und Regeltechnik GmbH 14.02.2023
3.2 Scope of delivery deltawaveC-F / P basic package
deltawaveC-F
deltawaveC-P
deltawaveC-F & ultrasonic
transducers
deltawaveC-P hard-shell case
deltawaveC-F flow transmitter
Ultrasonic transducers incl.
signal cables (cable length
according to order)
Spacer bar for transducers,
except for FW05
Mounting belt –stainless steel
Quick start Guide
USB stick with manual
Acoustic coupling pads
Hard-shell case
deltawaveC-P flow transmitter
Plug-in power adapter, including
an IEC appliance power cable
RG 58 connector cable for
transducer
Ultrasonic transducer (as
ordered by the customer)
Mounting material and spacer
bar for transducers
Cable for 4mA to 20mA
analogue output (Mini DIN,
alligator clips)
Quick start Guide
USB stick with Manual
Ultrasonic coupling grease
Other ultrasonic transducers for smaller or larger pipe dimensions, aswell
as clamp-on temperature sensors, are available on separate order.
Every deltawaveC-F can be retrofitted with a serial interface board
(optional). It can be connected either to an RS232 serial interface board
or to a RS485 interface.
You can reach your personal contact partner on the Internet at
www.systec-controls.de, or at the phone number [phone].
An overview of accessories and available transducer can be found in the
appendix.

deltawaveC-F/P
Manual
9systec Controls Mess- und Regeltechnik GmbH 14.02.2023
3.3 Transducer
Figure 1: deltawaveC-F/P –measuring converter and mounted ultrasound transducer;
left: deltawaveC-F, right: deltawaveC-P
Your deltawaveC-F / P essentially consist of the ultrasonic transducers mounted on
your pipeline and the transmitter. The transmitter performs the signal processing and
provides the user with the measurement results. The ultrasonic transducers transform
the electrical energy into kinetic energy (acoustic wave). The ultrasonic transducer
can also receive acoustic waves and convert these into electrical energy. Anoverview
of the available converters can be found in the appendix.
The ultrasonic transducers will be mounted on the pipeline, theygenerate and receive
the ultrasonic signals, by means of which flow rate will calculated in the transmitter.
As a result of the measuring principle, each transmitter is equipped with a
pair of ultrasonic transducers (A & B). Make sure ultrasonic transducers
are aligned with the direction of flow. Pay attention with the deltawaveC-
F (screw terminals), the loop has to be at the correct position and correct
polarity:
( + ) = red cable (core)
( –) = black cable (shield)
UP-Transducer (upstream positioned transducer):
The ultrasound transducer, which the flow passes first, is connected at the UP-
contacts.
DOWN-Transducer (downstream positioned transducer):
The ultrasound transducer, which the flow passes second, is connected at the
DOWN-contacts.

deltawaveC-F/P
Manual
10 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
3.4 Safety instructions
The operating temperature of the transmitter from -20°C to 60°Cmust
not be exceeded!
The ultrasonic sensors are sensitive to strong mechanical impacts
(irreparable damage possible)!
The transmitter and ultrasound transducers are generally not
approved for operation in potentially explosive atmospheres (request
documents for ATEX equipment).
The ultrasonic sensors must not exceed the specified operating
temperatures.
Protect the transmitter from impacts.
Avoid cable kinks on the sensor cables.
Make sure that the power supply is suitable.
The power supply unit of the deltawaveC-P is not protected against
moisture. Use it only in dry rooms.
Before connecting the deltawaveC-F to your power supply, make sure
that it is deactivated (e.g. fuse off).
3.5 Important instructions for the use of
deltawaveC-P
The plug-in power supply is only suitable for indoor use! In the case of mechanical or
electrical damage to the plug-in power supply unit or the 230V power supply cable,
these must be completely replaced!
DeltawaveC-P is equipped with a lithium-ion battery (Li-Ion 6000 mAh). This battery
power is sufficient for approximately 22 hours of network-independent operation.
If the deltawaveC-P is not used for a long time, recharge the battery at least
once every 3 ... 6 months.
The deltawaveC-P is equipped with a deep discharge protection. A pop-up
message informs you before the device switches off automatically.
To avoid unnecessary stress to the battery avoid connecting the
deltawaveC-P to a power supply if it is already charged completely. A
permanent connection to the power supply unit in the case of long-term
measurements is possible, however.
DeltawaveC-P is equipped with a quick-charge function. The function is
automatically activated after the deltawaveC-P is connected to the power
supply unit until a charge level of 80 % is reached.
This means that the unit can be operated again without connection to the
power supply within a very short time.

deltawaveC-F/P
Manual
11 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
General information about the charge states:
The exclamation point in the battery indicator appears if the charge is too
low, or if deltawaveC-P is busy determining the current charge status.
Determining the charge level might take up to one minute.
If the exclamation mark persists, the battery actually has a capacity <10%.
If "x" appears in the battery symbol, this means that the battery is defective
or there is a fault in the charging circuit. If the symbol is also displayed
after a restart of the deltawaveC-P, please contact systec Controls.
4 Measuring principle
Measuring principle: Ultrasonic transit time difference method (Clamp-On)
For this purpose two ultrasonic transducers are mounted on the pipeline from outside
and connected to the evaluation electronics.
The ultrasonic transducers work alternately as transmitters and receivers and send
ultrasonic signals at each other. These signals are accelerated or decelerated by the
medium flow. The resulting difference in the two signal propagation times is
proportional to the flow rate and is used together with the pipeline geometry for the
precise calculation of the flow rate.
Signal evaluation by means of cross-correlation:
The signal processing operates on the basis of a cross-correlation-based method,
which enables signal detection even at a low signal-to-noise ratio. On the basis of the
Charging
50-100%
25-49%
10-25%
<10%
x

deltawaveC-F/P
Manual
12 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
high-quality signal evaluation, measurements with gas input or solid load of the
medium are also possible within certain limits.
Calculation of the flow velocity [m/s]:
Calculation of the volume flow:
Integrated Reynolds-compensation (kRe):
The transit time difference method provides to determine the mean flow velocity along
the measuring path. The mean flow velocity over the tube cross-section can be
determined by means of a compensation factor which is dependent on the Reynolds
number.
The Reynolds number is determined iteratively from the current flow rate, the pipe
diameter and the kinematic viscosity of the fluid. For fluids of the device-internal
material database the data is provided.
The configuration of a user-defined medium is possible. For this purpose, the sound
velocity (can be practically determined by iterative approximation, see 14.2) and the
kinematic viscosity of the medium must be parameterized. The input of density and
heat capacity is additionally required for determining the heat quantity.
Re… Reynolds number,
v… flow velocity,
D… diameter,
ρ… density,
µ… dynamic viscosity,
υ… kinematic viscosity,
Integrated temperature compensation / Automatic Fluid Control (AFC):
Changes to the sound velocity of the liquid (temperature-dependent or when the
medium changes) cause changes of signal path angles and path length. These
deviations from the ideal path and the resulting measurement uncertainties are
compensated automatically by a correction factor (qp factor) determined by
deltawaveC-F / P without mechanical displacement of the transducers.
Standard:
The basis for the calculation is the VDI/VDE directive 2642: "ULTRASONIC FOW-
RATE MEASUREMENT OF FLUIDS IN PIPES UNDER CAPACITY FLOW
CONDITIONS" (12/1996)

 DvDv 


Re





4cos2 )( 2
Re
12
D
k
tt t
LQ
Re
12 cos2)( k
tt t
Lv 





deltawaveC-F/P
Manual
13 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
4.1 2-channel device applications
The deltawaveC-F 2-channel transmitter enables the realization of exceptional
measurement requirements for special applications. These are briefly described
below.
Two measuring paths can be operated separately at two different measuring points.
In addition to the separate results of measuring points (CH1 or CH2), the sum, the
difference as well as the mean value of both measuring paths are provided
additionally (CH1 + CH2, CH1 - CH2, (CH1 + CH2) / 2).
The mean value calculation is intended in particular for the use of both measuring
paths at one measuring point. This utilization makes it possible to increase the
accuracy and to reduce the effects of cross currents.
The heat quantity determination is limited to the use of two measuring
paths at one measuring point (only one pair of Pt100 can be connected).
The calculation is performed only for (CH1 + CH2) / 2.
A separate calculation only for CH1 and/or CH2 is not provided.

deltawaveC-F/P
Manual
14 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
5 deltawaveC-F/P Interfaces
5.1 Overview deltawaveC-P
Term
Description
1
UP/ DWN
BNC-Inputs for ultrasonic transducer
2
Relays/
Impulse
Mini-DIN-4 connectors output: Relay connection (passive, potential-free);
Digital output (open collector: 20, 40, 60, 100, 260, 500 ms square pulses)
3
T1/T2
Mini-DIN-6 connectors: 1 pair 3-conductor Pt100 (heat measurement):
4
Analog Out
2 Analogue outputs: 4…20mA signal, 24VDC, active (optional passive)
from CTRL 2.1 according to Namur NE43 (3.8-20.5 mA)
5
RESET
Hardware-Reset (Restart of the system)
6
USB
USB Interface (Mini-USB Type B), access to the integrated SD memory card
(Windows: Automatic detection as mass storage medium)
7
Power
Plug-in power: 19 V/DC, 3,42 A
Power
18.5 VDC
USB
Down
Up
T1/T2
Relays/Impulse
Analog Out
deltawaveC
Reset
1
4
3
5
6
7
2

deltawaveC-F/P
Manual
15 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
5.2 Overview deltawaveC-F
Term
Connection
Description
1
UP1
input for ultrasonic transducer measurement path 1
( + ) = red cable (core); ( –) = black cable (shield)
DWN1
UP2
input for ultrasonic transducer measurement path 2
Only 2-channel transmitter
DWN2
2
RS232 /
RS485
optional + retrofitted (Digital Interface board X1 & X2)
Data transmission via serial communication or Modbus and MBus
3
PT100 –1
(Tinput)
1 pair 3-conductor Pt100 (heat measurement)
W terminals: Sense lines (cables of the same polarity / colour)
R-Terminal: GND cable (different colour cable).
For 3-wire Pt100, bridging the sense connections.
PT100 –2
Toutput
4
REL
Relay connection, passive, potential-free
5
ANA 1 IN
ANA 2 IN
Analogue inputs: 4 ... 20mA Unit signal, 24VDC, active (optional passive)
6
ANA 1 OUT
ANA 2 OUT
Analogue outputs: 4 ... 20mA Unit signal, 24VDC, active (optional passive)
from CTRL 2.1 according to Namur NE43 (3.8-20.5 mA)
7
IMP 1
IMP 2
Digital output (open collector: 20, 40, 60,100, 260, 500ms square pulses)
IMP2 Only 2-channel transmitter usable
8
RESET
Hardware-Reset (Restart of the system)
9
USB
USB Interface (Mini-USB Type B), access to the integrated SD memory card
(Windows: Automatic detection as mass storage medium)
10
DIP 1 DO
DIP 2 DO
DIP Switch for configuring IMP1 and IMP2 active / passive
IMP2 only 2-channel transmitter usable
11
PE N L1
V+ V-
Two power supply options available:
alternating current 90 ... 240 V / AC, direct current 18 ... 36 V / DC

deltawaveC-F/P
Manual
16 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
5.3 Connection notes
To access the deltawaveC-F cable space, please detach the four screws and
remove the cover plate:
Figure 2: Remove cover from cable compartment
Please always make sure to put the correct voltage to your deltawaveC-
F. Improper supply voltage might seriously damage the flow transmitter.
You can check the type of power supply at the name plate, printed
on right side of enclosure of flow transmitter.
All in- and outputs (except relay) have defined potential on the
internal devices ground. For potential free operation of the in- and
outputs additional hardware is needed (with galvanic isolation). With
the normal in- and output it is not possible!
The analogue in- and outputs are active exworks 24V/DC (could
be set in passive mode by systec controls)
The maximum permitted load of the relay is 45V, 0,25A
Table 1: Recommendations for cable contacts
Terminal designation
description
recommendation
X8
In-/
Output
Cross-section:
0.13 –1.3 mm²
Diameter:
0.4 –1.3 mm
Contact length:
6.0 mm
X5
Power-
supply
Cross-section:
0.5 –4.0 mm²
Diameter:
0.8 –2.3 mm
Contact length:
8.0 mm
Figure 3: Cable assembly
Fastening screws on
cover (cross-slot).
insolation
stripped cable
length
cross section
diameter

deltawaveC-F/P
Manual
17 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
6 Operating
6.1 Control Buttons
Switches the device On and Off. To shut down
the device, press the button for duration of
approx. 3 seconds and then release it. No
function on deltawaveC-F
Switches the backlight On and Off
Multifunctional buttons: Activate the function
displayed beneath the button.
6.2 How to navigate
Use the corresponding multifunctional buttons:
Arrow buttons for navigation
Confirms your entry
Confirms your entries and
opens the next window
Returns you to the previous
window
Triggers the XYZ function
(variable, depending on the
application)
Increases the value
Reduces the value
No function
6.3 Select measurement channel
The operation of the 2-channel transmitter differs
from conventional operation only (in a large part)
through an additional selection of the relevant
channel / measuring path.
1
2
3
1
2
3
XYZ

deltawaveC-F/P
Manual
18 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
7 First Start
7.1 Basic settings, main menu, navigation
7.1.1 Adjustment of the display language
1. Plug in the device.
During the starting sequence please
press the multifunctional key next to the
section “SETUP”.
2. In the window choose the required
display language using the arrow keys.
Confirm your input by pressing
“ENTER“. Leave the menu with
“SETUP”.
To change the language via the main menu, see Chapter 11.7.3.
With the language setting, you change the language in the menus. The
language in the boxes next to the multifunction buttons remains largely
unchanged.
7.1.2 Navigation in main menu
After switching deltawaveC-F/P on and passing through the start screen,
the measuring window “Flow 1” will appear automatically after few seconds.
The measuring window “Flow 1” shows an overview of all necessary
information for the measurement of flow and heat quantity.

deltawaveC-F/P
Manual
19 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
1. Select “Setup“.
If the required window does not appear
after pressing “Setup“, please check if the
password function is deactivated.
2. If you can see this window, please
choose “COMPL” Setup“.
3. You are in the main menu now. From
this menu all necessary functions of the
device can be selected.
4. To return to the measuring window
please proceed as follows:
Choose “ESC” -> in the following window
please select “MEAS”.
Now you have become acquainted with the basic operation of your deltawaveC-FP.
There is a trick to reach the main menu even faster after switching the
device on: select “SETUP” during the start sequence right after switching
your deltawaveC-F on. In the following window choose “COMPL”
SETUP”.
7.1.3 Setting time and date
Having chosen the language for the menu you are in the main menu of the device.

deltawaveC-F/P
Manual
20 systec Controls Mess- und Regeltechnik GmbH 14.02.2023
1. Select the menu item (7) System
Settings using the arrow key.
2. In the following window choose menu
item (1) Time and Date.
3. By using the arrow keys the position
can be changed, by using +/- the value
can be adjusted. Please enter the time
and date according to the format
displayed.
4. Subsequently, press “ENTER“ to
confirm your input and return to the
system settings.
8 Preparing for measurement deltawaveC-F/P
Set-up your flow measurement in 5 steps
1. Choose suitable mounting position for your transducers
2. Parameterize your flow transmitter
3. Mount ultrasonic transducers onto your pipe
4. Set zero point (if possible)
5. Start your flow measurement
