System air fantech bathfan Commercial COM200 Manual

Installation, Operations, and Maintenance instruction EN
bathfan Commercial COM200–300–400–500
Ceiling Mount Exhaust Fan with Metal Casing

Table of contents
1 Introduction .............................................................1
1.1 Product Description ........................................1
1.2 Intended Use................................................. 1
1.3 Document Description .....................................1
1.4 Fantech Warranty........................................... 1
1.5 Product Overview........................................... 1
1.6 Type Designation ...........................................1
2 Safety ....................................................................2
2.1 Safety definitions............................................2
2.2 Safety Instructions.......................................... 2
2.3 Personal protective equipment .......................... 2
3 Installation ..............................................................3
3.1 To Set the Product Speed................................. 3
3.2 To Mount the Product ...................................... 3
3.3 To Plan the Duct Run ......................................3
3.4 To Attach the Duct ..........................................4
3.5 To Manage the Duct Run.................................. 4
4 Electrical connection ................................................. 5
4.1 To do before the electrical connection ................. 5
4.2 To connect the product to the power
supply..........................................................5
4.3 Motor Protection ............................................ 5
4.4 Wiring Diagrams ............................................ 5
4.5 To Attach the Ceiling Grille ...............................6
5 Operation................................................................7
5.1 To Start the Product ........................................7
5.1.1 To Stop the Product ............................7
6 Maintenance............................................................7
6.1 To Maintain the Product ................................... 7
7 Technical data.......................................................... 8
7.1 Technical Data Overview..................................8
7.2 Product Dimensions........................................ 8

1 Introduction
1.1 Product Description
This product is a ceiling mount exhaust fan with a metal casing.
This fan has rotating parts and personnel must exercise safety
precautions during installation, operations, and maintenance.
1.2 Intended Use
Use this product only in the manner intended by Fantech. If you
have any questions, please contact a Fantech representative.
1.3 Document Description
This document contains instructions for installation, operation
and maintenance of the product. The procedures must be done
by approved personnel only.
Speak to a Fantech representative for more information on how
to install the product in different installation locations.
1.4 Fantech Warranty
Make a scan of the code above to access Fantech’s warranty
in English, French, or Spanish. This product has a 5 year
warranty.
If additional support is needed to retrieve the warranty, visit fan-
tech.net; call (800) 747–1762 (US), (800) 565–3548 (Canada),
or [phone] (Latin America); email support@fantech.
net; or mail us at 10048 Industrial Blvd, Lenexa, KS 66215
United States or at 50 Kanfläkt Way, Bouctouche, NB E4S 3M5
Canada.

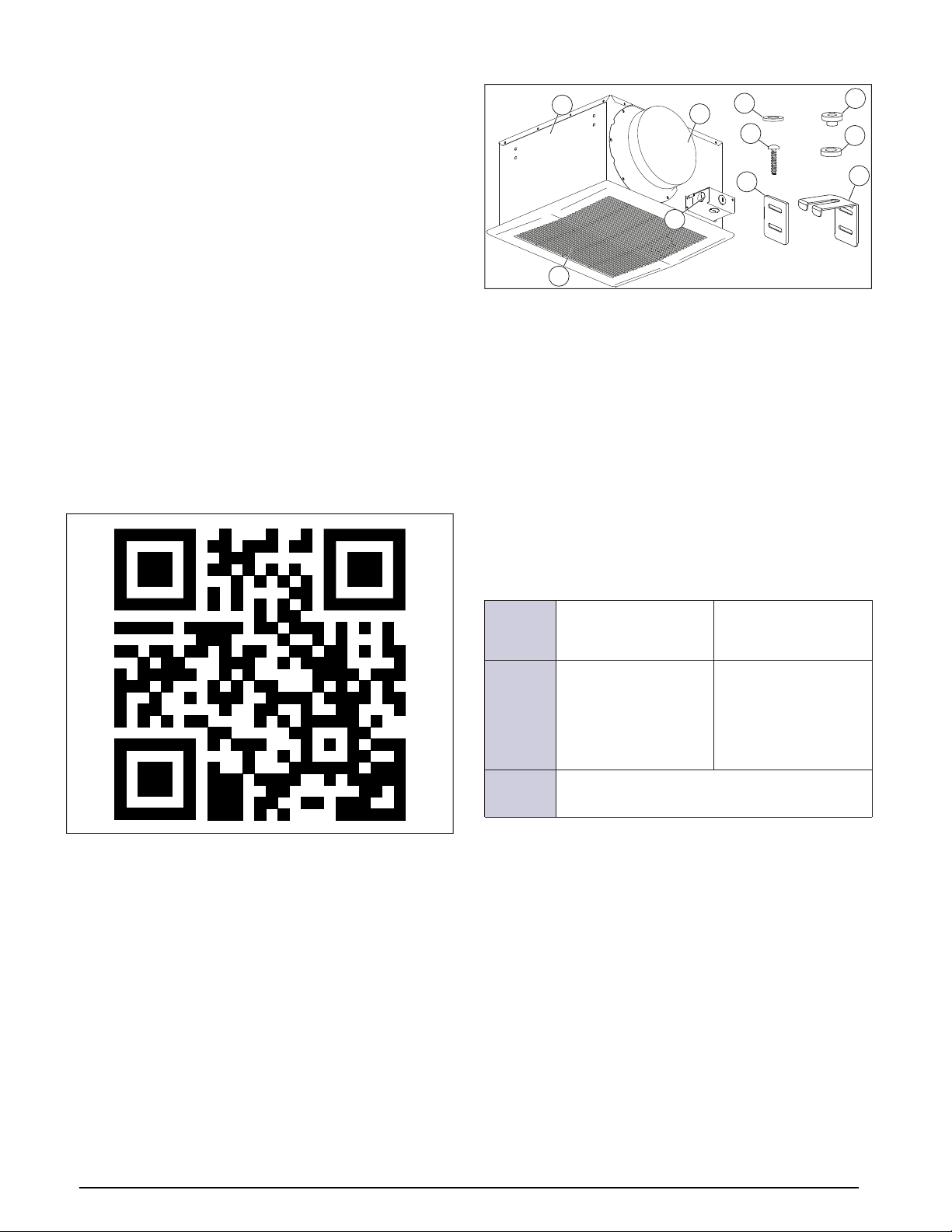

1.5 Product Overview
5
4
9
2
1
10
3
67
8
1. Casing, quantity 1
2. Duct Connector, quantity 1
3. Junction Box, quantity 1
4. Washer, quantity 8
5. Rubber 1, quantity 4
6. A Screw, quantity 8
7. Rubber 2, quantity 4
8. Rubber 3, quantity 4
9. Hanger Bracket, quantity 4
10. Ceiling Grille, quantity 1
1.6 Type Designation
Product
Name
Model Name bathfan Commercial
COM200–300–400–
500
Duct
Collar
Dimen-
sions in
inches
(mm)
bathfan Commercial
COM200–300–400–
500, #484320
8 (203)
Motor
Type
DC: Direct Current, 1–phase
1

2 Safety
2.1 Safety definitions
Warnings, cautions and notes are used to point out specially
important parts of the manual.
Warning
If you do not obey these instructions, there
is a risk of death or injury.
Caution
If you do not obey these instructions, there
is a risk of damage to the product, other
materials or the adjacent area.
Note:
Information that is necessary in a given situation.
2.2 Safety Instructions
Warning
This product is intended for general ventila-
tion use only. If you have questions, contact
Fantech. To decrease the risk of fire, elec-
tric shock, or injury, read and obey the fol-
lowing warning instructions before you do
work on the product:
• The ventilation contractor and the operator are responsible
for correctly installing the product.
• When installing the product, obey all applicable local condi-
tions and laws, and fire-rated construction codes and
standards.
• Because the product has rotating parts, exercise safety pre-
cautions when installing, operating, and maintaining the
product.
• Before installing, servicing, troubleshooting, or cleaning, set
the product’s electrical power supply source in the OFF posi-
tion, and lock the service disconnecting means. If the serv-
ice disconnecting means cannot be locked, tightly attach a
large warning device to the service panel.
• To prevent the product from backdrafting, obey the heating
equipment manufacturer’s guidelines and safety standards
such as those published by the National Fire Protection As-
sociation (NFPA), the American Society for Heating, Refrig-
eration & Air Conditioning Engineers (ASHRAE), and the
local code authorities.
• When cutting or drilling into walls or ceilings, watch for elec-
trical wiring and other hidden utilities to prevent damage.
• Ducted exhaust fans must always be released to the
outdoors
• When installing the product over a tub or shower, identify as
appropriate for the application and connect to a GFCI
(Ground Fault Circuit Interrupter) – protected branch circuit
(ceiling installation only).
• Make sure the product is correctly grounded.
• Never place a switch where it can be reached from a tub or
shower.
• Do not use this product with any solid-state speed control
device.
• Do not block the air intakes or exhaust.
• Do not mount this product in an outdoor location.
• Install the product at least 7 feet (2.1 meters) above the floor.
• Do not start and stop the product quickly.
• Do not clean the product with chemicals that can cause cor-
rosion or water more than 60° Celsius (140° Fahrenheit).
• Do not let unwanted objects enter the product.
• Do not use this product to remove hazardous or explosive
material and vapours.
• Do not mount this product vertically.
• Do not mount this product in kitchens.
• Do not release air into spaces within walls or into attics,
crawl spaces, or garages.
• Do not install this product in a ceiling with a thermal insula-
tion value more than R40.
2.3 Personal protective equipment
Use personal protective equipment during all work on the
product.
• Approved eye protection
• Approved protective helmet
• Approved hearing protection
• Approved protective gloves
• Approved protective shoes
• Approved work clothing
2

3 Installation

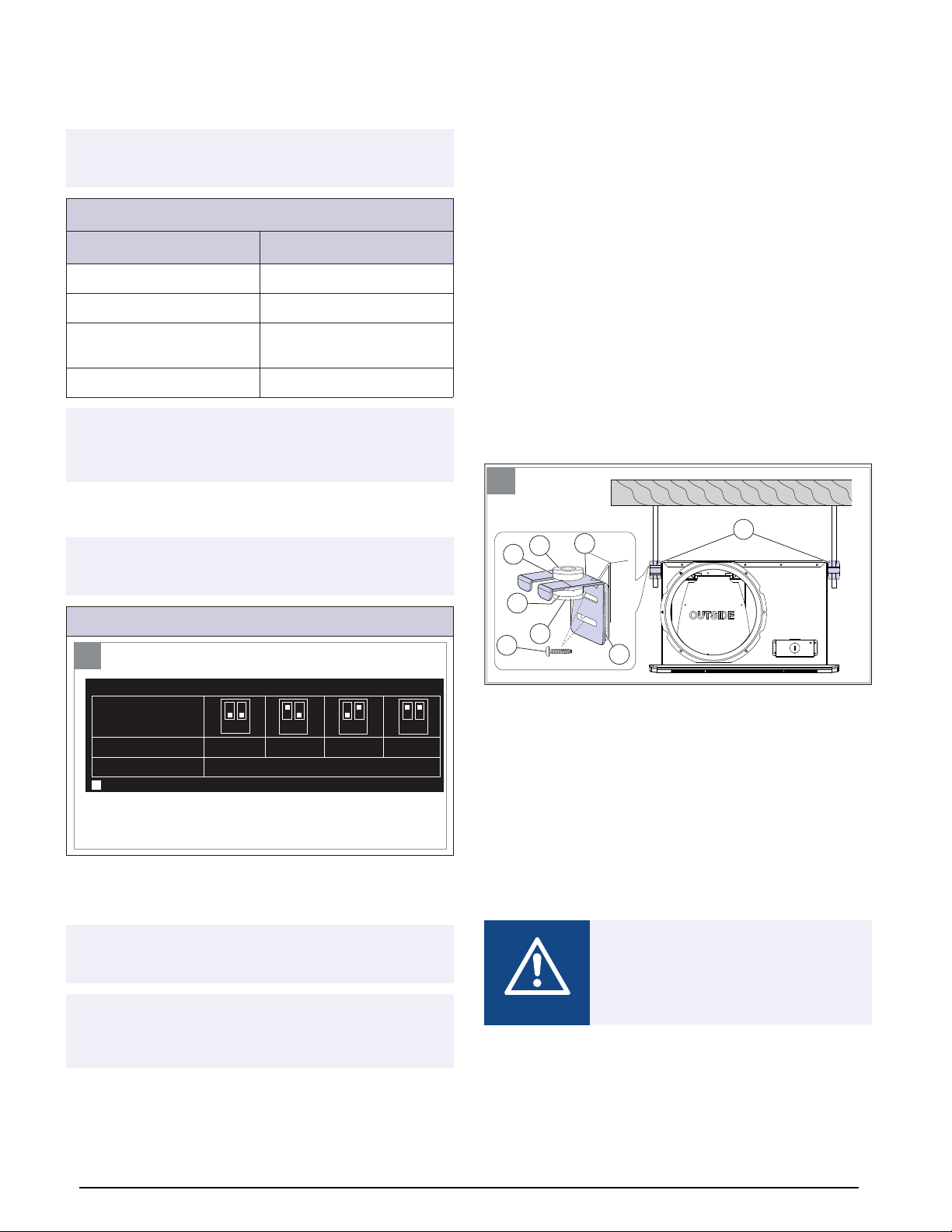

3.1 To Set the Product Speed
Note:
For only the bathfan Commercial COM200–300–400–500.
Legend for Diagram
English Terminology Meaning
CONTROL BOX Control Box
SWITCH POSITION Switch Position
AIRFLOW (CFM) Airflow, Cubic Feet per
Minute
DUCT DIAMETER Duct Diameter
Note:
The toggle switch will adjust the upper fan speed from 200,
300, 400, 500 Cubic Feet per Minute (CFM).
1To adjust the preselected airflow, adjust the control
switches according to the graphic below.
Note:
Dimensions are in inches (mm).
COM200–300–400–500
200 300 400
1 2
500
1 21 2
1 2
8 (203)
CONTROL BOX
SWITCH POSITION
DUCT DIAMETER
SWITCH
POSITION
AIRFLOW (CFM)
1
3.2 To Mount the Product
Note:
This product is type IC (Inherently Protected).
Note:
To make sure the product can be set correctly between the
framing, hanger brackets have been supplied.
1Before installation, remove the product from the packaging
and set the packaging aside.
2Identify the locations of the screw holes on the side of the
product casing, and the slots on the hanger brackets.
3Using (2) A Screws, attach (1) rubber 3 to the back side of
(1) hanger bracket.
4Using (2) A Screws, attach (1) hanger bracket to the side
of the product casing.
5Through the top of (1) hanger bracket, connect (1) rubber 1
to (1) rubber 2.
6Repeat the previous 4 steps until a total of (4) hanger
brackets are mounted on the sides of the product casing.
7Drill (4) holes in the ceiling joists in proportion to the loca-
tion of the (4) hanger brackets on the product.
8Assemble (1) washer on (1) large anchor bolt (not
included).
9Attach (1) large anchor bolt through the top of (1) hanger
bracket on the product.
10 Align (1) washer on (1) large anchor bolt attached through
the top of (1) hanger bracket.
11 Repeat the previous 3 steps to assemble (3) large anchor
bolts through the tops of (3) hanger brackets.
12 Using the (4) large attached anchor bolts, mount the prod-
uct in the ceiling.
2
3
4
5
67
1
1
2
1. Hanger Bracket
2. Washer
3. Rubber 1
4. Rubber 2
5. Washer
6. A Screw
7. Rubber 3

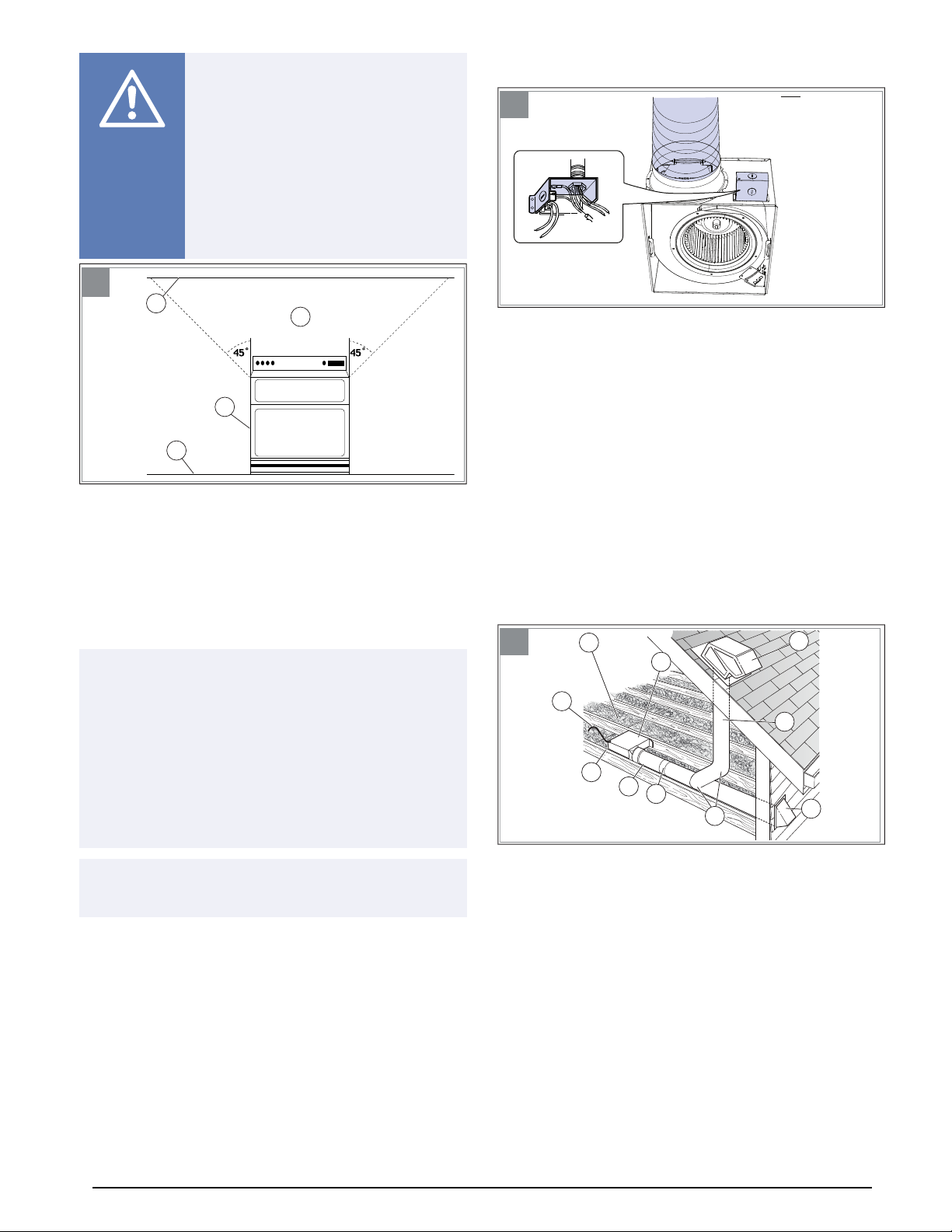

3.3 To Plan the Duct Run
Warning
Do not install the product above or inside
the area within 45 degrees on either side of
any kind of cooking equipment. Refer to
Figure 3.
3

Caution
To keep pressure losses to a minimum, and
promote sufficient airflow, observe the
following:
• Where possible, use short and straight
duct run lengths.
• Do not install the product with existing
duct.
• Do not install smaller than recommen-
ded duct on the product.
1
2
3
4
3
1. Floor
2. Cooking Equipment
3. Ceiling
4. Cooking Area
3.4 To Attach the Duct
Note:
For quiet operation, and to maximize performance, Fantech
recommends the following:
• Use insulated flexible duct for quiet operation
• If rigid duct is used, use 1–3 feet (0.3–0.91 meters) of in-
sulated flexible duct.
• Insulate the duct to minimize energy losses.
• If installing in an unconditioned space, attach insulation to
the product to prevent condensation
Note:
3/8 inch (10mm) strain relief is not included.
1Remove cover of the junction box and set aside.
2Refer to the 4.4 Wiring Diagrams section.
3Attach a trade sized 3/8 inch (10mm) strain relief to the
junction box knockout hole.
4Position the wires of the junction box through the strain
relief.
5Once the wires of the junction box have been correctly
connected, replace the junction box cover.
6Using duct tape, attach the duct to the duct connector.
7Examine the duct around the duct connector to make sure
the seal is air tight.
4
3.5 To Manage the Duct Run
1Using duct tape, attach additional ducts to the product to
make sure air is released to the outdoors.
2Depending on the shortest & straightest direction to the
outdoors, place the duct run either through the roof or
through the wall.
3If the duct was installed through the roof, attach an applica-
ble roof cap to the end of the duct run.
4If the duct was installed through the wall, attach an applica-
ble wall cap to the end of the duct run.
5Place insulation around the product’s casing.
6With sealant, close all gaps between the framing and the
product’s casing.
1
2
3
4
5
6
7
8
9
10
5
1. Insulation
2. Product Casing
3. Roof Cap
4. Vertical Duct Run
5. Wall Cap
6. Round Elbows
7. Duct Tape Attached to Duct Joints
8. Horizontal Duct Run
9. Sealed Gaps
10. Power Cable
4

4 Electrical connection
4.1 To do before the electrical
connection
• Make sure that the electrical connection agrees with the
product specification on the motor name plate.
• Make sure that the environment for electrical connection is
clean and dry.
• Make sure that the wiring diagram that is included with the
supply of the product agrees with the terminals in the con-
nection box.
4.2 To connect the product to the
power supply
• Complete the electrical connection for the motor. Refer to
the motor wiring diagram that is included with the product.
• Make sure that the cross section of the protective grounding
is equal to or larger than the cross section of the phase
conductor.
4.3 Motor Protection
This product has integrated motor thermal overload protection.
Reset the motor protection by disconnecting the fan from power
supply for 60 seconds.
4.4 Wiring Diagrams
Caution
Do not place the power or light switch
where it can be touched from a shower or
tub.
Note:
To connect power to this product, use a minimum of 14
American Wire Gauge (AWG) conductor with temperature
rating of at least 90° Celsius (190° Fahrenheit).
Note:
Refer to the following wiring diagrams to attach the wires of
the product to the wires of the house.
Legend for Diagram
English Terminology Meaning
ON/OFF SWITCH On/Off Switch
LINE IN Line In
BLACK (BLK) (Line) Black (Line)
WHITE (WHT) (Neutral) White (Neutral)
GROUND (GRD) Ground
UNIT Unit
FAN Fan
SWITCH BOX Switch Box
POWER SUPPLY 120V AC 120 Voltage Alternating Current Power Supply
FAN RECEPTACLE Fan Receptacle
WIRE PANEL Wire Panel
1Take 120 Volt Alternate Current (AC) housing wires to the
location of the product.
2Using UL-approved connectors only, attach the wires of
the product to the wires of the house.
5

COM200–300–400–500
FAN
ON/OFF
SWITCH
LINE
IN
BLK
WHT
GRD
WHT
GRD
BLK
SWITCH BOX UNIT
COM200–300–400–500
WIRE
PANEL UNIT
BLACK (BLK)
SWITCH BOX
FAN
SWITCH
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
4.5 To Attach the Ceiling Grille
1Make a cut around the casing of the product.
2Attach (2) grille springs into the correct holes of the ceiling
grille.
3Align the ceiling grille with the casing of the product.
4Push the ceiling grille into the casing of the product
correctly.
6
6

5 Operation
5.1 To Start the Product
1Make sure that 120 volts of Alternate Current (AC) wiring
are attached to the product.
2Set the switch to the ON position.
3After a soft start (5–10 seconds), make sure that the prod-
uct works as intended.
5.1.1 To Stop the Product
1Set the switch to the OFF position.
6 Maintenance
Warning
Set the installed switch(es) in the OFF
position before you do the maintenance
unless the instructions tell you differently.
Make sure that the switch(es) is not
accidentally set in the ON position.
6.1 To Maintain the Product
Caution
If the product suddenly starts to make loud
noises, or starts to vibrate in an unusual
way, stop the product immediately. Contact
a Fantech representative as the product
will need to be replaced.
Note:
For quiet operation, long life, and to maximize performance,
observe the following:
• Remove grille before carefully cleaning interior of product
with a vacuum with a soft brush attachment or a soft cloth.
• No other maintenance is required.
7

7 Technical data
7.1 Technical Data Overview
Voltage, Motor Power, Frequency Refer to the mo-
tor nameplate on
the blower
assembly.
Motor data Refer to the mo-
tor nameplate or
the technical
documentation
from the motor
manufacturer.
7.2 Product Dimensions
E
F
D
A
BC
Note:
Dimensions are given in inches (mm).
A B C D E F
bathfan Commercial
COM200–300–400–500,
#484320
8 (203) 14–1/8 (359) 14–1/8 (359) 9 (229) 15–1/2 (394) 16–1/2 (419)
8

9

Document in original language 2023-02-08
484289 - 005
© Copyright Fantech
All rights reserved
Fantech reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it
does not affect the previously agreed specifications.
USA
[phone]
[email protected]
Canada
[phone]
[email protected]
Latin America
[phone]
[email protected]
last page
