Tadiran Telecom AIROW 3 User manual

Hydrogen Peroxide Aerosol Disinfector
Innovative air purification solution
Model: TADIRAN AIROW 3™
Global Markets
Installation
Manual

– 2 – – 3 –
Safety
Table of Contents
Safety....................................................................... 3
Meet TADIRAN AIROW 3™................................4
Device Specifications......................................... 5
Included Parts....................................................... 6
Installation............................................................. 7
Verification ...........................................................11
Patent Information.............................................13
• This Class III appliance must only be powered with short-
circuit proof, safety extra low voltage (SELV) corresponding
to the marking on the device.
• This Class III device must only be supplied at SELV.
• This Class III device is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless
they have been given supervision or instruction concerning
the use of the device by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the device.
• This Class III device is not intended to be installed as a stand-
alone device. It is always installed in the indoor part of an air
conditioner (the receiving equipment).
• This Class III installation manual is intended to provide all
required instructions on how to install the purifier into the
indoor part of an air conditioner.
• Verify that the installation is performed in accordance with
the installation diagrams.
• Means for disconnection of the supply mains must be incor-
porated in the fixed wiring following the wiring rules.
• The mains to the DC power supply has a contact separation
in all poles that provide full disconnection under overvoltage
category III conditions, the means for disconnection is a quick
disconnect mains plug.
• Note that the device contains metal parts that carry high
voltage. Never insert a finger or any other unprotected
body part into the device! Use only isolated tools when
servicing or testing the device!
Please follow the installation procedure stated below.
This Device is a Class III Equipment

– 4 – – 5 –
Parameters Value
Weight 100g
Dimensions 96X42X26mm (Net)
Housing Material ABS Plastic, White Color
Operation Temperature –5°C to +55°C
Operation Humidity
(Non-Condensing) 20%–80%
Input Voltage 12 VDC ± 10%
Power Consumption 1 W Max
Indication LED Green – Proper Operation
Red – Failure
Maintenance Zero Maintenance
Ozon Emission <=5 ppb
Hydrogen Peroxide Level <=15ppb
Meet
TADIRAN AIROW 3™
Device Specifications
The TADIRAN AIROW 3™ device is designed to be implemented
in High-Wall air conditioning systems, fan coils, heat pump
PTACs, ductless mini splits and VRF ductless split systems. It
is installed on the air inlet side of the coil, in the indoor unit.
TADIRAN AIROW 3 reduces bacteria, viruses and molds* in the
air and improves the air quality in the conditioned space. The
device helps with preventing the development of pollutants
within the air conditioning system.
The principle of operation is based on the formation of an electric
field between a metal wire, located in the center of the device,
and two rectangular metal plates that face the metal wire.

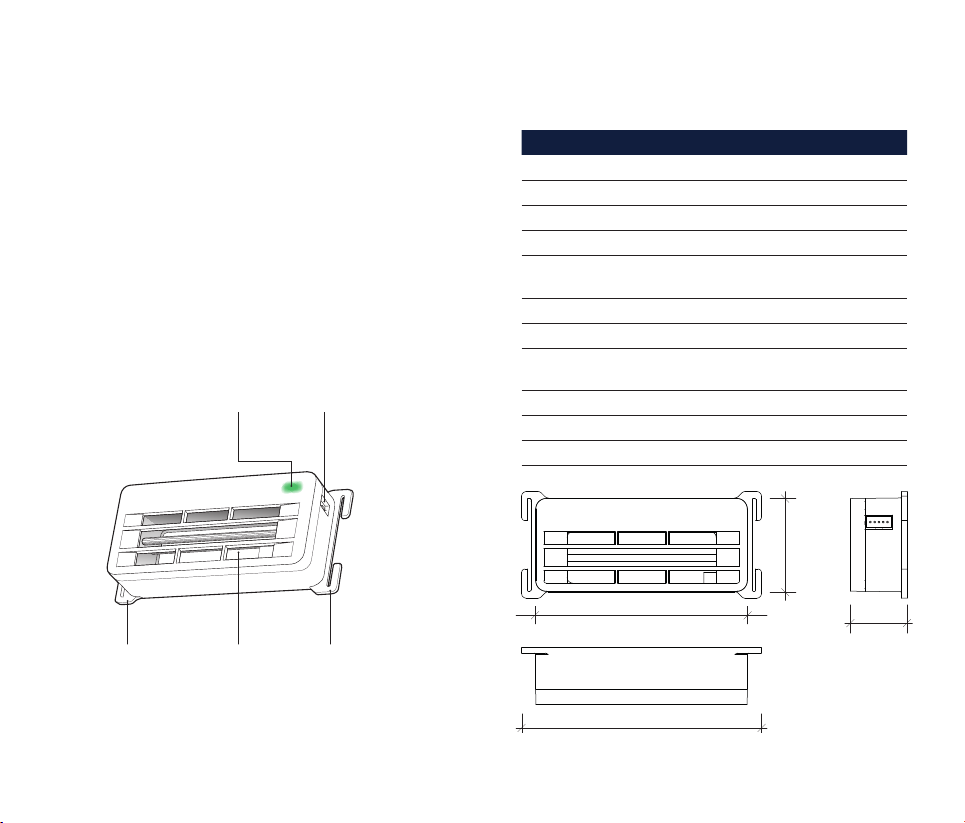

The following illustration outlines the TADIRAN AIROW 3 device.
*TADIRAN AIROW 3 reduced detected virus (SARS-CoV-2) aerosol levels by
99.93% within 60 min (18 cubic meter test chamber), detected Bacteria
Staphylococcus epidermidis aerosol levels by 99.994% within 90 min (1 cubic
meter test chamber) and reduced 99.4% of blue mold aerosolized in within
3 hours (25 cubic meter chamber).
General Note: All figures shown in this manual are for reference only.
Air Inlet
Opening
Mounting Clip
Slot
Mounting
Clip Slot
+12V DC Supply
and Control
Operation
Indicator
26mm
42mm
108mm
96mm

– 6 – – 7 –

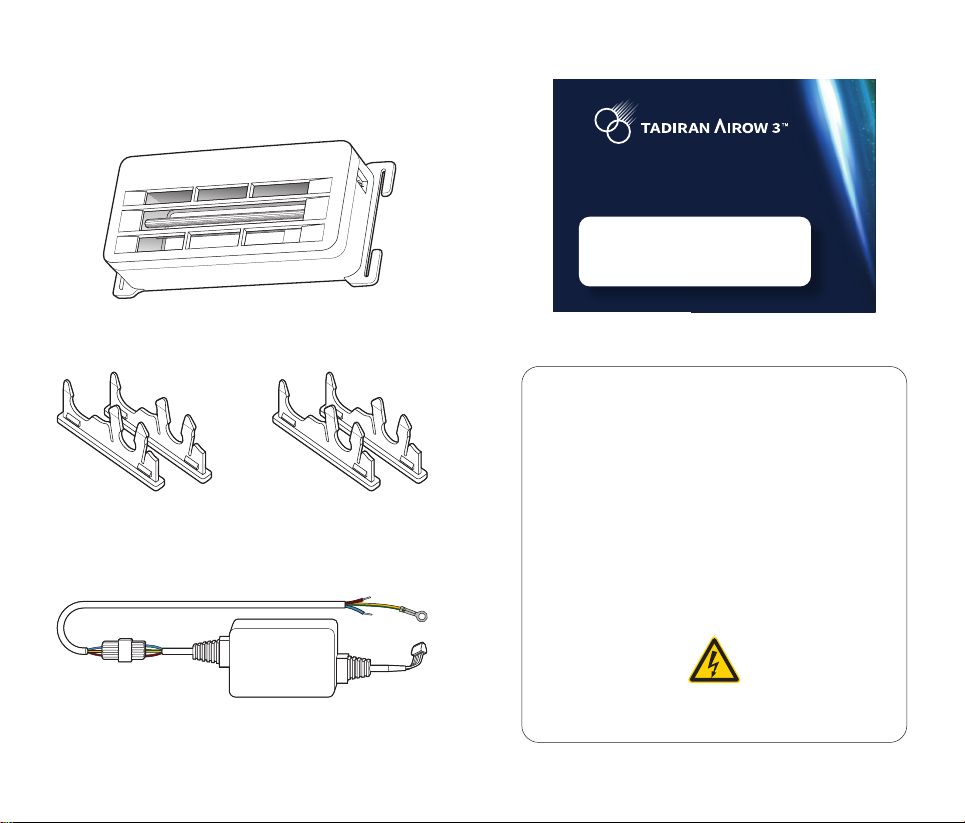

TADIRAN AIROW 3™Device
Mounting Clips for 7mm
Tube Coil
TADIRAN AIROW 3 Power Supply 110/220VAC to 12 VDC
Mounting Clips for 5mm
Tube Coil
Included Parts
Only qualified and licensed HVAC technicians may install
this device. The TADIRAN AIROW 3 device, power supply
and additional accessories should be disconnected
from any electric supply when touching their surface
or inner parts. Tadiran will not be liable for any loss or
damage in any case of misuse or installation by a non-
qualified person or not in compliance with the directions
included in this manual. Tadiran does not claim that
the TADIRAN AIROW 3™ will ensure consumers using
the device will not contract biological pathogens.
Consumers should continue to follow guidance from
governmental health organizations and certified health
professionals about preventative measures.
Disconnect the mains supply of the air conditioner before
performing the installation or before servicing the device.
NOTE!
Safety sticker
Air purifier is installed in
this A/C unit
Disconnect the mains supply
before servicing the
TADIRAN AIROW 3™ device

– 8 – – 9 –
Mount the TADIRAN AIROW 3™ device, using the
mounting clips, onto the indoor unit’s coil, at the
upper right corner of the coil.
Open the indoor unit’s front panel.
Remove the air filter.
Before Installation, unplug the air conditioner from the mains
supply.
1
3
2 4
Insert the proper installation clips (5mm or 7mm), on
both sides of the unit as shown in the drawing above.
Installation

– 10 – – 11 –
• Mount the power supply in the back of the indoor unit.
• Connect the plug of the DC cable of the power supply to
TADIRAN AIROW 3™ unit.
• Connect the AC cable of the power supply to the terminal
block of the indoor unit.
Brown wire: To the AC mains supply.
Blue wire: To the neutral terminal.
Yellow & Green wire: To ground.
• Reassemble the front panel.
After the unit is installed on the coil, disassemble the front panel
of the indoor unit.
• Plug the air conditioner to the mains supply and turn on the
air conditioner.
• The green LED indicator on the TADIRAN AIROW 3™ lights up,
indicating normal device operation.
• Place the safety sticker in a visible and accessible location,
near the terminal board.
Verification
6
5

– 12 – – 13 –
Installation is Completed!
Place the air filters back.
Close the front panel.
Line* – 110/230VAC, 50/60Hz
*Connect to the AC mains supply
Neutral
Ground
TADIRAN AIROW 3™ Power Supply
12 VDC Supply and Control
The following is a diagram of the electrical connections,
describing the TADIRAN AIROW 3™ connections to the terminal
block of the indoor unit.
7
Any Space
Can be a Safe
Place
Air Safe
Zone

– 14 – – 15 –
For more information, including specifications,
laboratory test results, and additional resources,
please visit our website
www.tadiran-international.com
Patent Information
Indication for Use
This product is not a medical device and is not intended to be used
as a medical device or to cure any disease or condition, nor should it
be used in the mitigation, treatment, or prevention of any disease or
condition.
Legal Notice
Only qualified and licensed HVAC technicians may install this device.
The TADIRAN AIROW 3™ device, power supply and additional
accessories should be disconnected from any electric supply when
touching their surface or inner parts. Tadiran will not be liable for
any loss or damage in any case of misuse or installation by a non-
qualified person or not in compliance with the directions included
in this manual. Tadiran does not claim that the TADIRAN AIROW 3™
will ensure consumers using the device will not contract biological
pathogens. Consumers should continue to follow guidance from
governmental health organizations and certified health professionals
about preventative measures.
Patented Method of Use
Europe Patent NO.3743196 (Albania, Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Macedonia, Malta, Monaco, Netherlands, Norway,
Poland, Portugal, Romania, San Marino, Serbia/Montenegro, Slovakia,
Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom)
China Patent NO. CN 112739389
Israel Patent NO. 262022
South Korea Patent NO. 10-2288840
Assembled In Romania

Tadiran Air Technologies Ltd.
Laskov St. 1, Afula 1834159 Israel | www.tadiran-international.com
