Tait TOP User manual

M2259-00-200-812 1
Copyright TEL Encrypted Radio Programming and Service Manual
Programming and
Service Manual
Tait Encrypted
TOP and T2000 Radios
June 2004 © Tait Electronics Limited
Corporate HQ: PO Box 1645,
Christchurch, New Zealand.
Tel: [phone]
Fax: [phone]
M2259-00-200-812 Web: www.taitworld.com/

2M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL

M2259-00-200-812 About This Manual 3
Copyright TEL Encrypted Radio Programming and Service Manual
About This Manual
Scope This manual provides installation and servicing information for service
shops and large users of Tait Encrypted radios. It specifies the cables
and information required to set up and manage a fleet of encrypted Tait
Orca Portables or T2000s. Both Midian and Transcrypt versions of
plug-in encryption modules are supported by this manual.
Errors If you find an error in this manual or have a suggestion on how it might
be improved, please do not hesitate to contact the Technical Author,
Tait Custom Integration, Tait Radio Systems Division, Tait Electronics
Ltd, P.O. Box 1645, Christchurch, New Zealand.
Technical Information
Any enquiries regarding this manual or the equipment it describes should be addressed in the
first instance to Tait Custom Integration (TCI), International Sales and Distribution, Tait
Electronics Ltd, P.O. Box 1645, Christchurch, New Zealand.
Updating Equipment And Manuals
In the interests of improving performance, reliability or servicing, Tait Electronics Ltd reserve
the right to update their equipment and/or manuals without prior notice.
Copyright
All information contained in this manual is the property of Tait Electronics Ltd. All rights are
reserved. This manual may not, in whole or part, be copied, photocopied, reproduced, translated
stored or reduced to any electronic medium or machine readable form without prior written
permission from Tait Electronics Ltd.
Ordering Tait Service Manuals
Service Manuals should be ordered from your nearest Tait Branch or approved Dealer. When
ordering, quote the Tait product code and, where applicable, the version.
Date Of Issue
M2259-00-000-812 Encrypted Radio Programming and Service Manual
Issue 000 published April 2002
M2259-00-100-812 Issue 100 published February 2004
M2259-00-200-812 Issue 200 published June 2004

4About This Manual M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL

M2259-00-200-812 Contents 5
Copyright TEL Encrypted Radio Programming and Service Manual
Contents
Section Title Page
1 Service Information 7
1.1 Servicing Accreditation 7
1.2 Tools Required 7
1.3 Warnings 7
1.4 Anti-Static Bench Set-Up 7
2Introduction 9
2.1 Encrypted Radio Programming and Service Kit 9
2.2 Related Documents 9
2.3 Encryption Module Compatibility 9
2.4 Radio Hardware Compatibility 10
2.5 Radio Firmware and Software Compatibility 10
2.6 Tait Encryption Products 10
3 System Operation 13
3.1 Configuration 13
3.2 Compatibility 13
3.3 Tait Encryption Interface Signal Specifications 14
4 Tait Orca Portable (TOP) Encryption 15
4.1 Circuit Operation 15
4.2 Programming the TOP Radio 17
4.3 Programming the Encryption Module 19
4.4 Testing the Encryption Module 20
4.5 TOP Encryption Upgrade Flex PCB Information 21
4.6 Encryption-Enabled TOP Operating Instructions 37
4.7 TOP Fault Finding 38
4.8 Fitting the TOP Encryption Upgrade Flex 39
5 T2000 Radio Encryption 47
5.1 Circuit Operation 47
5.2 Programming the T2000 radio 48
5.3 Programming the Encryption Module 48
5.4 Testing the Encryption Module 49
5.5 T2000 Encryption Flex PCB Information 51
5.6 Encryption-Enabled T2000 Operating Instructions 63
5.7 T2000 Fault Finding 64
5.8 Fitting the T2000 Encryption Upgrade Flex 65
6 Transcrypt Programming 69
6.1 OTAR Programming 69
6.2 Direct Programming 70
6.3 Operation 70
6.4 Using a TOP as an OTAR Programming Transmitter 70
6.5 Using a T2000 as an OTAR Programming Transmitter 71
6.6 Programming a Transcrypt Encryption Module 71
6.7 Security Codes 71
6.8 Programmer Configurations 72
6.9 Transcrypt Module Default Settings 72
6.10 Testing 72
6.11 Transcrypt OTAR Programming Cables 74

6Contents M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
7 Midian Programming 79
7.1 Circuit Operation 79
7.2 Programming a Midian Encryption Module (Hardwired) 79
7.3 Direct Programming a TVS2-Tait Module in a TOP radio 81
7.4 TVS2-Tait Factory Default Settings 82
7.5 VPU12-Tait Factory Default Settings 85
7.6 Testing the Midian Encryption Module 85
7.7 Midian TVS2-Tait Encryption Direct Programming Cable 86

M2259-00-200-812 Service Information 7
Copyright TEL Encrypted Radio Programming and Service Manual
1 Service Information
1.1 Servicing Accreditation
The procedures described in this manual should only be carried out by service personnel trained
and accredited by Tait Electronics to service Tait Orca Portable (TOP) and T2000 product ranges.
1.2 Tools Required
Use only tools specified for TOP and T2000 radios in their service manuals, including:
Fine tipped (1-2mm) temperature controlled soldering iron
Tweezers
Solder and flux pen
Scissors
Stainless steel spike (TOP only)
#6 Torx drive screwdriver bit (TOP only)
Adjustable spanner
Pozidrive screwdrivers (T2000 only)
1.3 Warnings
The encryption module controls the radio PTT, and either during normal operation or while
programming, can cause the radio to transmit. Always provide protection for test equipment
(such as RF signal generators) so they cannot be damaged by transmitter power.
Each encryption module is provided with a sheet for recording programmable settings. As some
module settings cannot be read back, it is strongly recommended that all settings be recorded for
each fitted module and kept in a secure place.
1.4 Anti-Static Bench Set-Up
An anti-static bench
set-up is required to
service Tait
equipment, to
prevent static
damage to
components: metal
framed bench, fitted
with a conductive
rubber bench mat
connected by an
earth lead to ground
(c/w 1M series
resistor). The
technician should
wear a wrist strap
connected to the
table.
to building earth (not
mains earth) via
1M series resistor
conductive rubber bench mat
conductive wrist strap
metal frame

8Service Information M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL

M2259-00-200-812 Introduction 9
Copyright TEL Encrypted Radio Programming and Service Manual
2 Introduction
This manual forms a part of the Tait Encrypted Radio Programming and Service Kit. The kit
provides service centres and large users of Tait Encrypted radios with all cables and information
required to set up, manage and maintain a fleet of encrypted Tait Orca Portable (TOP) radios and/
or T2000 Mobile radios.
2.1 Encrypted Radio Programming and Service Kit
The kit contains the following items:
Encrypted Radio Programming and Service Manual (IPN M2259-00-100-812) - this
manual
T2000 Programming Cable (IPN 219-02835-0X) to connect a Transcrypt OTAR
Programmer to a T2000 radio used for OTAR programming. (See Transcrypt Programming
section on page 69.) (See T2000 Programming Cable Specification on page 77.)
TOP Programming Cables (IPN 219-02841-0X and IPN 219-02128-0X) to connect a
Transcrypt OTAR Programmer to a TOP radio used for OTAR programming. (See
Transcrypt Programming section on page 69 and TOP Programming Cable specifications
on page 74.)
T2000 Encryption Upgrade Flex PCB (IPN 228-22593-0X) for fitting into a T2000 radio
used for OTAR programming. (See Transcrypt Programming section on page 69.)
Note: Dedicated direct programming cables are available if required, for direct programming
Midian TVS2 modules, or any supported Transcrypt module. See Support Products on
page 11.
2.2 Related Documents
This manual is intended to be read in conjunction with the following:
Service and programming manuals for T2000 radios
Service and programming manuals for TOP radios
Service and programming manuals for Transcrypt or Midian Encryption Modules
Service and programming manuals for Transcrypt OTAR Programmer or Midian
Programmer
More information on Tait encryption technology is available online in the Tait Encryption White
Papers at: http://taitweb.co.nz/main/index/encryption.
Information for programming and servicing Tait radios with either Transcrypt and Midian
encryption modules is included in this manual.
2.3 Encryption Module Compatibility
At the time of printing, the following Encryption modules are compatible with Encryption
Enabled TOP and T2000 radios.
Transcrypt TZ20-430
Transcrypt TZ20-460
Transcrypt TZ20-416
Midian TVS2-Tait (TOP radios only)
Midian TVS2-T2000 (T2000 radios only)
Midian VPU12-Tait

10 Introduction M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
For other encryption modules, check with a Tait Service Centre, or www.taitworld.com/.
Modules listed can be fitted to either TOP or T2000 radios, with the exception of the Midian
TVS-2 modules (see above). However, the modules will require some customisation to suit the
radio type. Details are included in the module manufacturer’s documentation, but differences
include:
removal of snap-off sections to fit a module into a TOP radio. Note that these snap-offs
include screw holes necessary to fit the module into a T2000 radio, so should not be
removed for T2000 application.
some modules require module-specific link settings on the Encryption Upgrade Flex PCB,
depending upon the radio type and the system configuration. These settings are described
in the module manufacturer’s documentation.
2.4 Radio Hardware Compatibility
Tait Orca Portable Radios
The TOP Encryption Upgrade Flex PCBs described in this manual are suitable for use in most
TOP 5000 radios (5010, 5020, 5035, 5040). The flexes can be retrofitted to most radio models,
but this should first be verified by providing the serial numbers to a Tait Service Centre for
confirmation.
T2000 Radios
The T2000 Encryption Upgrade Flex PCBs described in this manual are suitable for radios which
contain the Enhanced HC11 Control PCB (IPN 220-01344-XX). This can be verified by
providing the serial numbers to a Tait Service Centre for confirmation.
2.5 Radio Firmware and Software Compatibility
Tait Orca Portable Radios
Encrypted TOP radios require specific encryption-capable radio firmware. This is fitted during
manufacture of encryptable radios, but will need to be programmed separately where an
encyption upgrade kit is used. Contact the Tait Strategic Sales Team for confirmation of
encryption firmware support.
T2000 Radios
Encryption-capable T2000 radios require no firmware change to support encryption function.
2.6 Tait Encryption Products
Encryptable Radios
Note: New encryptable radio models will be added to the Tait product range as requested. The
following are examples only:
IPN Description Comments
TOP-XXXXX-B3 (Standard description) + ENCRYPTION Encryptable radio, flex fitted, no module.
Requires module purchase separately
T20XX-XXX-XXXE (Standard description) + ENCRYPTION Encryptable radio, flex fitted, no module.
Requires module purchase separately

M2259-00-200-812 Introduction 11
Copyright TEL Encrypted Radio Programming and Service Manual
Modules
Encryption Module Programs
Encryption Upgrade Kits (encryption modules not included)
Encryption Module Programming
Support Products
Documentation
Encryption Training
Tait offers training programmes for personnel responsible for fitting, programming and servicing
encrypted radios. In order to provide successful support for this technology, it is strongly
recommended that this training be undertaken.
IPN Description Comments
005-00015-00 MOD ECRYPT TZ20-416 TCRYPT Transcrypt module TZ20-416
005-00016-00 MOD ECRYPT TZ20-430 TCRYPT Transcrypt module TZ20-430
005-00017-00 MOD ECRYPT TZ20-460 TCRYPT Transcrypt module TZ20-460
005-00018-00 MOD ECRYPT VPU-12-TAIT MIDIAN Midian module VPU-12-Tait
005-00019-00 MOD ECRYPT TVS-2-TAIT MIDIAN Midian module TVS-2-Tait (TOP)
005-00020-00 MOD ECRYPT TVS-2-T2000 MIDIAN Midian Module TVS-2-T2000
IPN Description Comments
005-00021-XX PROG KL3+S/W ENCRYPT MIDIAN Programmer and software for radios equipped
with Midian modules
005-00022-XX PROG ENCRYPT TRANSC TR30-3060
Note: this option available in USA only
Programmer and software for radios equipped
with Transcrypt modules - service version
with editable master code
005-00023-XX PROG ENCRYPT TRANSC TR30-3061 Programmer and software for radios equipped
with Transcrypt modules - Customer version,
fixed master code
IPN Description Comments
TOPA-EA-001 KIT ENCRYPT UPGRD FLEX 5000 Tait Orca encryption upgrade kit
T2000-EA-001 KIT T2K ENCRYPT UPGRD FLEX T2000 encryption upgrade kit
IPN Description Comments
TOPA-EA-011 CHARGE PROGRAM/TEST ECRYPT KIT Factory fitting and programming of
encryption module
T2000-EA-011 CHARGE PROGRAM/TEST ECRYPT KIT Factory fitting and programming of
encryption module
IPN Description Comments
TOPA-EA-002 KIT ENCRYPT OTAR/SERV TOP+T2K Tait Orca and T2000 Encrypted Radio
Programming and Service Kit
TOPA-EA-008G CBL ENCRYPT DIRECT TOP G Direct programming cable for all radios
fitted with Transcrypt modules
TOPA-EA-007G CBL ENCRYPT DIRECT TOP TVS2 Direct programming cable for TOP radios
fitted with Midian TVS-2Tait and -07 (or
later version) flexes
IPN Description Comments
M2259-00-X00-812 SERV/PROG MANL ECRYPT This manual

12 Introduction M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL

M2259-00-200-812 System Operation 13
Copyright TEL Encrypted Radio Programming and Service Manual
3 System Operation

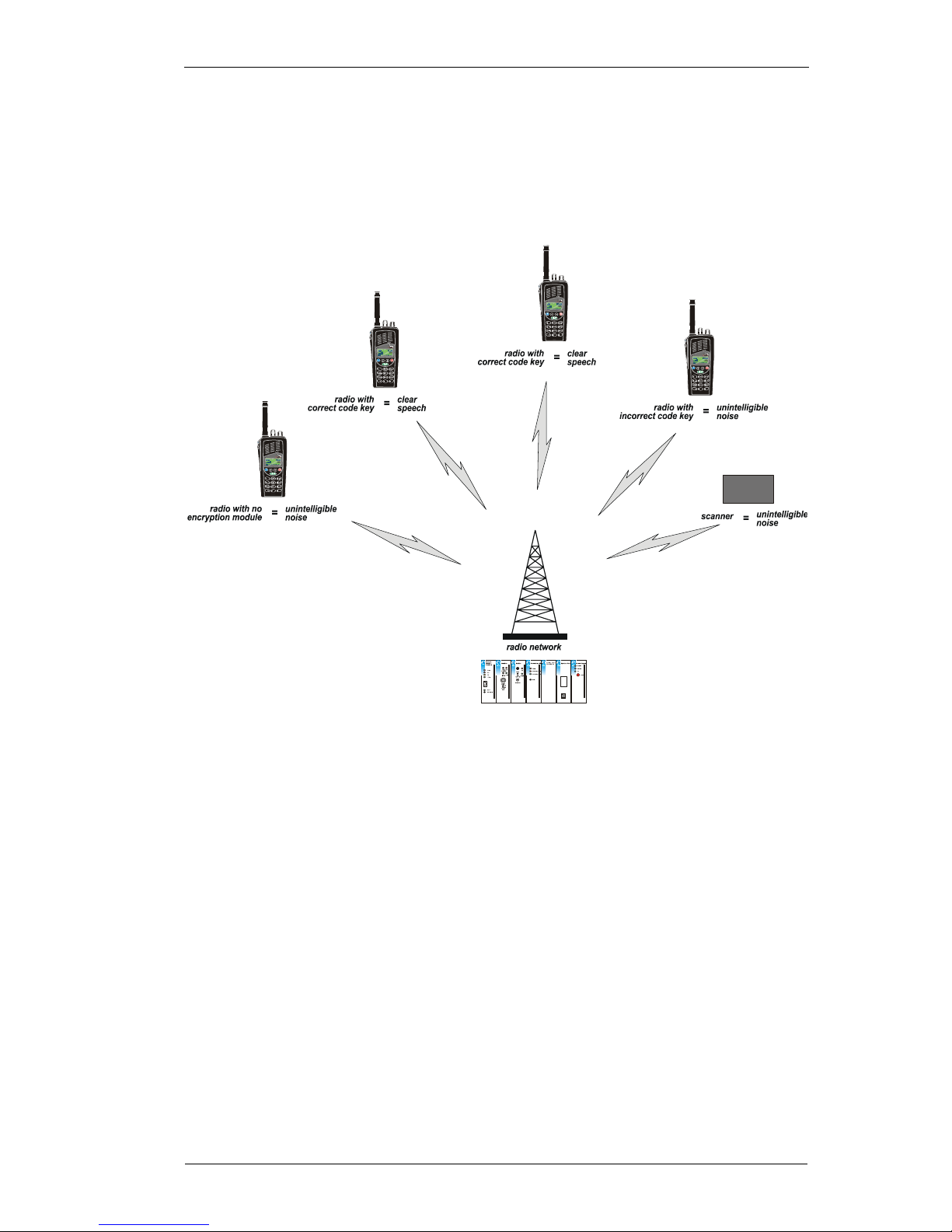

Encrypted radios provide increased privacy for conversations by jumbling speech so that only
radios with the right hardware and settings can reconstruct it. The diagram below shows a typical
radio system comprising portable radios, mobile radios, base stations or repeaters and an OTAR
(Over-the-Air Reprogramming) programming station.
Whether or not a radio transmission is encrypted is the user’s choice. When the encryption mode
is selected, the radio sends and receives encrypted calls to and from other radios with compatible
encryption module and settings (keys or codes). However, even when encryption is not selected,
an encryption-enabled radio will always decode encrypted communication from any radio with
compatible modules and settings.
When modules or settings are incompatible, communication is reduced to unintelligible noise.
3.1 Configuration
Both encryption modules and radios have many settings which affect encryption. You will need
to refer to the installation and programming manuals provided with all your encryption hardware.
This manual describes how to connect your hardware for setup, testing and maintenance, but
does not describe how to determine the settings you should use. These should be determined
during system design by technical personnel trained in the relevant Tait and third-party products.
Contact your Authorised Tait Service Centre for further assistance.
3.2 Compatibility
Some combinations of encryption hardware, software, radio versions and configurations,
accessories and programmable features may not be supported. In particular:

14 System Operation M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
Encryption modules from different manufacturers are not compatible
Features available in a Tait Encryption-enabled radio are not necessarily the full list of
features specified by the module manufacturer.
The system designer should confirm that the system meets user requirements.
3.3 Tait Encryption Interface Signal Specifications
For TOP Encryption Interface Signals, see page 15. For T2000 Encryption interface signals, see
page 48.

M2259-00-200-812 Tait Orca Portable (TOP) Encryption 15
Copyright TEL Encrypted Radio Programming and Service Manual
4 Tait Orca Portable (TOP) Encryption
Tait Orca Portable (TOP) radios can be encryption-enabled at a Tait Authorised Service Centre
using the TOP Encryption Upgrade Kit (IPN TOPA-EA-001) and a supported Transcrypt or
Midian Encryption Module. This kit comprises a flex circuit which brings all the required
connections for encryption to a single connector for plug-in encryption functionality. Full fitting
instructions for the flex are included in this manual.
Note: Module component values change between TOP and T2000 radios. Ensure the module
fitted has been configured for the TOP radio. See the encryption manufacturer’s service
manual for more information.
User Interface
This is a hardware and firmware solution. It offers:
user control of Encryption state (On or Off) by any Function button, programmed by the
user, with either short or long press activation
menu access to Encryption state (where menu function is available)
Where the radio has both a display and a keypad, it also provides:
encryption state by text on the radio display
user control of up to 16 encryption codes by keypad
continuous display of the currently selected encryption code
programmable control of the number of user accessible codes
display of the ‘accessory triangle’ indicating when transmitting or receiving encrypted
signals (Transcrypt modules) or if the encryption state is ON (Midian modules).
4.1 Circuit Operation
Functions of the interface are:
Transmit and receive audio is intercepted by the flex, where C572 and C567 are removed.
Audio passes through the encryption module and is encrypted or not according to the
encrypt state.
Links (not shown on the block diagrams, see the circuit diagram on page 21) allow the radio
to function as a standard, unencrypted radio when an encryption flex is fitted with no
module. To enable the radio to operate when a module is not fitted (-06 flex version only),
solder-short Link-6 and Link-7 to loop the audio back to the normal radio path. Radios with
-07 (or later version) flexes fitted do not require these links fitted.
The existing flex circuit that connects the Main PCB to the User Interface PCB is discarded,
and is replaced by the encryption flex circuit.The low voltage reset from the radio is used
to reset the module circuit.
Signal levels and pin assignments.
Function Mode Name Pin Module TOP Radio
Power Supply V+ 15V regulated
Reset I/P RS 2Active low Resets whenever supply lower
than 4.75V
Tx pressel I/P PTT 3Active low CMOS
Busy I/P RX 4Active low CMOS
Mode I/P MO 5Active low Momentary or level sensitive
Data to Scrambler I/P D-SC 6Hardwired module
programming I/P
If reqd.

16 Tait Orca Portable (TOP) Encryption M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL

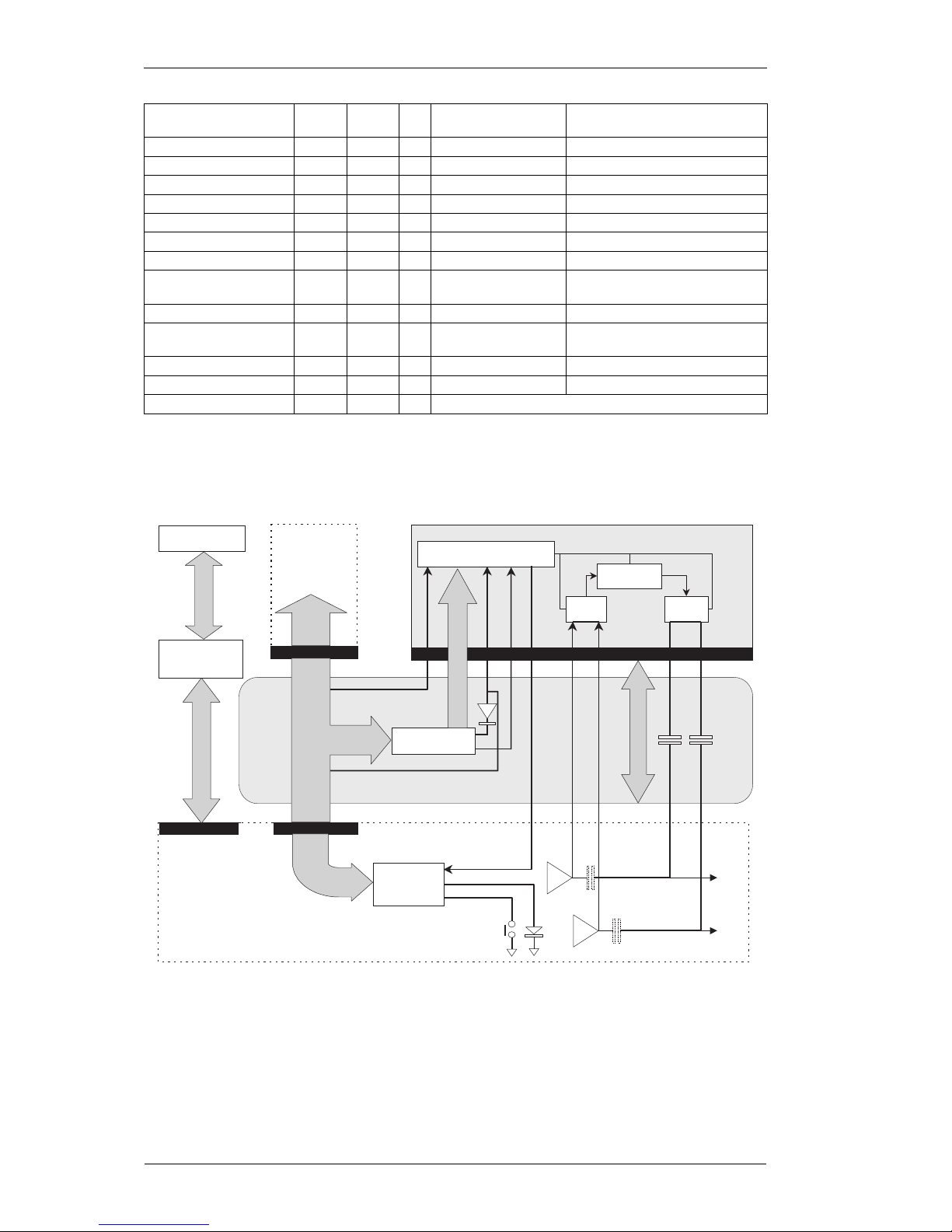

The diagram that follows shows the encryption circuit operation for both a TOP encrypted radio
and a TOP radio as a programming radio.
Note: When using a TOP radio as an OTAR programming radio, ensure encryption mode is
turned off.
An addressable latch on the radio UI board is replicated on the encryption flex and driven by the
same serial data bus. The radio micro uses four outputs of this latch to control the encryption
code select bus. Two other outputs provide the PTT and Mode drives to the module. The
remaining two pins function as normal for the UI board and are unused on the flex.
The external PTT and internal PTT are combined within the radio software to provide the PTT for
the module.
The radio LED is under normal micro control, and provides no indication of encryption status.
Data to Radio O/P D-RA 7Hardwired module
programming O/P
If required
Mode Indicator O/P IND 8Active high 3mA into LED
Emergency I/P EMG 9Active Low Module pull-up to 5V
Code select 8 I/P CS8 10 Active Low Module pull-up to 5V
Code select 4 I/P CS4 11 Active Low Module pull-up to 5V
Code select 2 I/P CS2 12 Active Low Module pull-up to 5V
Code select 1 I/P CS1 13 Active Low Module pull-up to 5V
Ground Gnd 14
Transmitter to scrambler I/P TX-SC 15 AC coupled to 250Hz 200 mV p-p at 1kHz for 2/3 max
deviation
Scrambler to transmitter O/P SC-TX 16 DC coupled Approx. unity thru gain
Receiver to scrambler I/P RX-SC 17 AC coupled to 250Hz 650 mV p-p at 1kHz for 2/3 max
deviation
Scrambler to Receiver O/P SC-RX 18 DC coupled Approx. unity thru gain
Audio alert O/P AL 19 DC Coupled
Trunking delay I/P TRK 20 Provision for future
Encryption module
Flex
PCB
OTAR or Direct
Programming Cable
PTT
Sense-1
TX path
C572
to
(removed)
(removed)
modulator
Green via DSP
Function 2 LED
C567
button
(Fn 2 button & LED normal micro use)
Rx path
to volume
Tait Orca Main PCB control
Programming
Computer
Decode
circuit
User Interface
Board
(keypad &
display)
Micro
Controller
INTERAccessory
Encrypt /
Decrypt
Radio
Micro
Controller
Tx/Rx
switch
Tx/Rx
switch
OTAR
Programmer
RX aud, Mic, PTT RS 232
Main-UI PCB bus
Data bus
Code control bus
+5V, ground, busy
Mode
TX -SC
RX -SC
SC -TX
SC -RX
IND
PTT
Reset
20 way edge connector
SK1

M2259-00-200-812 Tait Orca Portable (TOP) Encryption 17
Copyright TEL Encrypted Radio Programming and Service Manual
The module IND (status) output is fed to the SENSE-1 input to the radio micro. This allows the
software to display the status on the LCD accessory annunciator.
Encryption code control is achieved by keypad entry. Encryption Mode can be assigned to a
function key when the radio is programmed or through a menu. (On most radios, this function is
user-programmable.) This can be a long or short press of any valid function key, usually a long
press of Function-2 key.
4.2 Programming the TOP Radio
Before programming the TOP Encryption radio, you will need:
up-to-date standard Tait Orca Portable (TOP) Programming Applications installed, and
familiarity with their operation. TOP Programming Applications are on the CD with
the TOPA-SV-116 Programming Kit or from http://support.taitworld.com/ at Portable/
Programming Software which requires Tait Authentication System (TAS) access.
The packages you require are:
the conventional and trunked programming applications
the download and configuration application
the calibration application
Encryption flex fitted to the TOP radio. The flex is available in the TOPA-EA-001
Encryption Upgrade Kit. Instructions for fitting begin on page 17.
Back up Radio Data Files
Note: This procedure requires:
TOPA-SV-116 Programming Kit
1. Using the standard TOP programming software, save the existing programming data file
(*.ops).
2. Using the TOP calibration software, save the existing calibration data file (*.cps).
Download Custom Programming Software and Firmware
Note: This procedure requires:
'Tait Only' password for Tait World Technical Support - see your Tait dealer if you
do not have access.
1. Go to http://support.taitworld.com/custom/index.cfm
(Taitworld/Support/Login/Tait Only/Portable Radios/Encryption/).
Enter your login details, then click on Tait only.
2. Select Portable Radios then Encryption.
3. Select the correct Programming Software. As a guide, Select:
2259 for 501X and 502X radios
2275 for 503X and 504X trunked radios
2314 for 5021 radios
4. Click on the Programming Software [view/download] link and save the file.
5. Select the correct firmware.
Click on the Firmware [view/download] link and save the file.
Install Encryption Firmware in Radio
Note: This procedure requires:
Tait Orca Portable Download Program and Custom Encryption Firmware
1. Run the TOP download program.

18 Tait Orca Portable (TOP) Encryption M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
2. Select Download from the menu on the left.
3. Browse to the encryption firmware file you previously downloaded and click Open.
4. Click on Download.
5. Power-up the radio in bootstrap mode (hold FN1 button while radio is turned on)
Note: Radio display is blank when entering bootstrap mode.
6. Click on 'OK'. The radio firmware will download.
Note: If the radio displays 'DBASE ERROR', reload the saved programming data file
Note: If the radio displays 'CALIBRATION ERROR', reload the saved calibration data file.
7. Power-off radio, power-on with PTT pressed, and check firmware version is correct.
Install and Run Encrypted Radio Programming Software on PC
This procedure requires a TOP-SV-116 Programming Kit and Encrypted Radio Programming
Software
1. Unzip the Programming Software file in the directory that you want to run it from.
2. Run the *.exe file.
Encrypted Radio Programming Software Settings
1. In the Specification form set the Maximum Number of Encryption Codes to a number
between 1 and 16.
2. In the Key Settings form, choose a function key to assign to Encryption On/Off and
another for Encryption Code Select.
The available function keys are:
Function Key 1 (long or short press)
Function Key 2 (long or short press)
Function Key 3 (short press)
Short Menu key (long press)
External Function Key 1
External Function Key 2
3. In the User Defined Menu form, check the ENCRYPT SETTINGS box (ticking a top-level
menu will enable all of that menu's submenu functions). This means that Encryption (on/
off and code selection) will be available from the radio menu.
Transcrypt Module Programming
Note: All Transcrypt modules can be programmed directly, via a dedicated programming
cable, or over the air (OTAR)
This procedure requires:
a computer with OTAR programming software
a Transcrypt Programmer
a TOP or T2000 Lead (part of the TOPA-EA-002 Encrypted Radio Programming and
Service Kit) for OTAR programming
or
a direct programming cable (TOPA-EA-008G) for direct programming
a TOP or T2000 radio to use as a programming radio (OTAR only)
Transcrypt modules fitted to a TOP radio can be programmed using Over-The-Air-
Reprogramming (OTAR). The OTAR programmer allows a computer to alter a radio's encryption
module settings remotely, within the coverage range of the radio system.

M2259-00-200-812 Tait Orca Portable (TOP) Encryption 19
Copyright TEL Encrypted Radio Programming and Service Manual
For direct programming, the module is programmed directly, using a TOPA-EA-008G cable
connected to the radio’s accessory connector.
Note: Any TOP radio can be used for OTAR programming. However, if an encryption
module is fitted, it is important that the encryption function is turned off when
programming.
Note: If a T2000 radio is used for OTAR programming, a T2000 Encryption Flex must be
fitted to the radio. A module is not required, however, if one is fitted, it is important
that the encryption function is turned off when programming.
Refer to the following publications for detailed programming instructions
Transcrypt OTAR Programmer Manual
Transcrypt Module Manual
Transcrypt Programming section (page 69) of this manual
4.2.1 Midian Module Programming
The Midian VPU-12 module is preprogrammed by the manufacturer and does not normally
require programming. Its programmable functions can be programmed by open-radio direct
programming. It does not support OTAR programming. The Midian TVS2 module supports
OTAR programming of encryption codes only. However, the TVS2 supports direct programming
of all programmable functions.
Refer to the following manuals for detailed programming instructions
Midian Programming instructions
Midian Module Manual
Midian Programming section (page 79) of this manual
Important Additional Information
Once encryption is enabled, set the function buttons to:
turn encryption ON and OFF
access Code Change mode (optional)
set the number of user-accessible codes (optional)
Economy mode is the factory default, but is not recommended with
encryption-enabled radios as it will cause loss of sync pulses. This may result
in failure to decode some encrypted calls after a period of inactivity.
If the flex version is -06 (or earlier), to enable the radio to operate as a
standard, unencrypted radio when a module is not fitted, solder-short links
Link-6 and Link-7on the flex. This modification will loop the audio back to
the normal radio path. See the PCB layout section on page 21 of this manual
to locate the links.
If radios have no display, ensure no other function (eg incoming selcall or
repeater talkaround) is programmed to utilise the orange LED, or it will be too
difficult to determine encryption status.
4.3 Programming the Encryption Module
Note: When using a TOP radio as a programming transmitter, if an encryption module is
fitted, ensure the encryption function is turned off.

20 Tait Orca Portable (TOP) Encryption M2259-00-200-812
Encrypted Radio Programming and Service Manual Copyright TEL
Equipment setup and programming instructions are described in the Transcrypt Programming
section on page 69 or the Midian Programming section on page 79, depending upon the origin of
the encryption module. Refer also to programming and service manuals with your Transcrypt or
Midian encryption module and programmer.
Service Desk OTAR programming may be unsuccessful if:
the target radio is open during programming
the programming radio and the target radio are oriented differently eg one laying down, one
upright
one radio is set to High Power
4.4 Testing the Encryption Module
Equipment setup and testing instructions are described in the Transcrypt Programming section on
page 69 or the Midian Programming section on page 79, depending upon the origin of the
encryption module.
With encryption off:
Check normal power-up of the radio, with the normal display messages and confirmation
tones.
Check that receive and transmit audio are functioning, using a service instrument or another
radio on the same channel.
With encryption on:
Check that receive and transmit audio are functioning, using another T2000 or TOP radio
with the same encryption module, programmed with the same codes, on the same channel.
Where a code hopping module is fitted, confirm encryption is active by listening for the
initial sync burst on the receiving radio
Where a code inversion module is fitted, confirm encryption is active by pressing any
function key - the confidence tone will be a higher frequency than normal.
Check the Encryption User Interface features – status indicators, encryption settings etc.
(See the TOP Encryption User’s Guide information provided on page 37).
.
