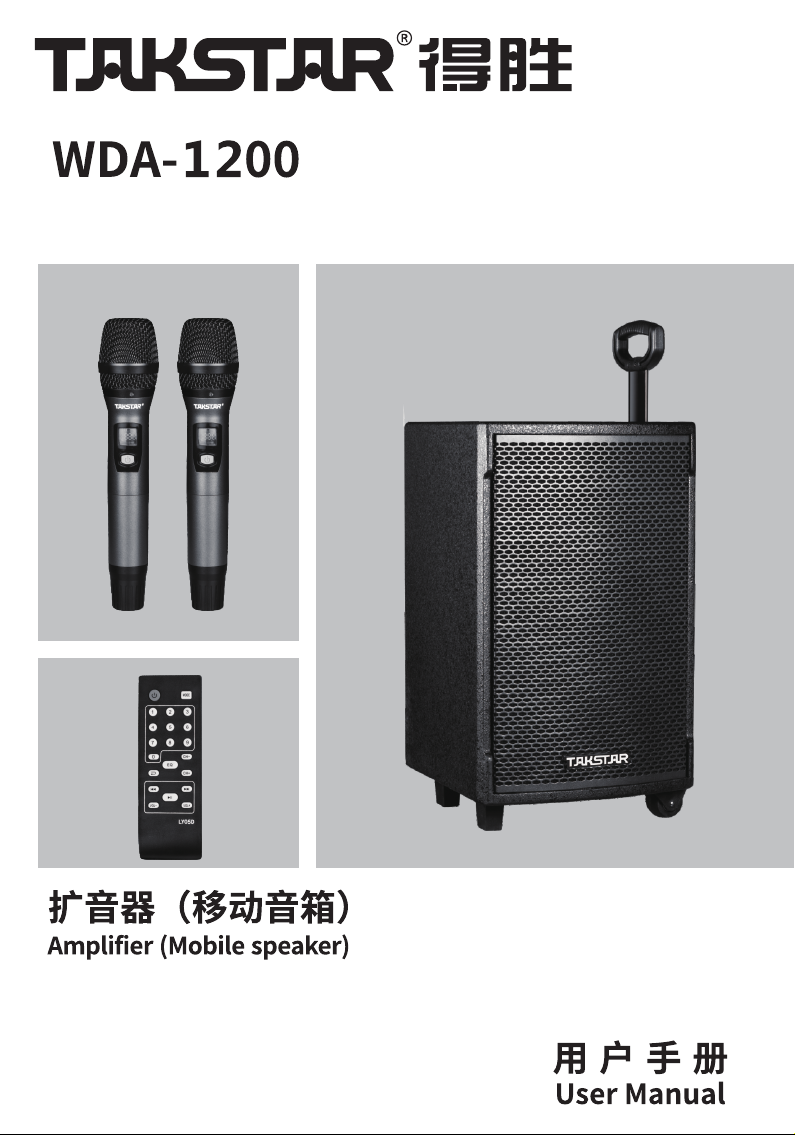

Takstar WDA-1200 User manual


采用DSP方案,
6.5英寸
6.5
4.5约18KG
前言
产品特性
技术参数

麦克风
R
L
P
麦克风 B
音量音量
低音
麦克风
充电/充满
音乐
WDA -1200
高音 混响 低音 高音
麦克风 A
话筒输入
吉他输入 麦克风
延时 总音量
电源开关
总音量
麦克风 麦克风 音乐 音乐
关
开
消除原唱
天线B天线A
话筒优先
户外模式
室内模式
流行模式
专业模式
原声模式
音频
输入
音频
输出
指示灯
低电压
M 3输入P
一键消除 原唱 M 3音乐播放
蓝牙功能
模式
上一曲
暂停
SD 卡槽
下一曲
循环
录音
US B插口
面板功能介绍

面板功能介绍
遥控器介绍

无线麦克风使用指南

仅适用于海拔2000
米以下地区使用
2000m
仅适用于非热带
气候条件下使用
17. 应将本产品放置在通风良好的位置,建议与周围物体留出10CM以上的间隙。通风孔不要覆
盖诸如报纸、桌布和窗帘等物品而妨碍通风;
18.本产品应当连接到带保护接地连接的电网电源输出插座上;
注意事项

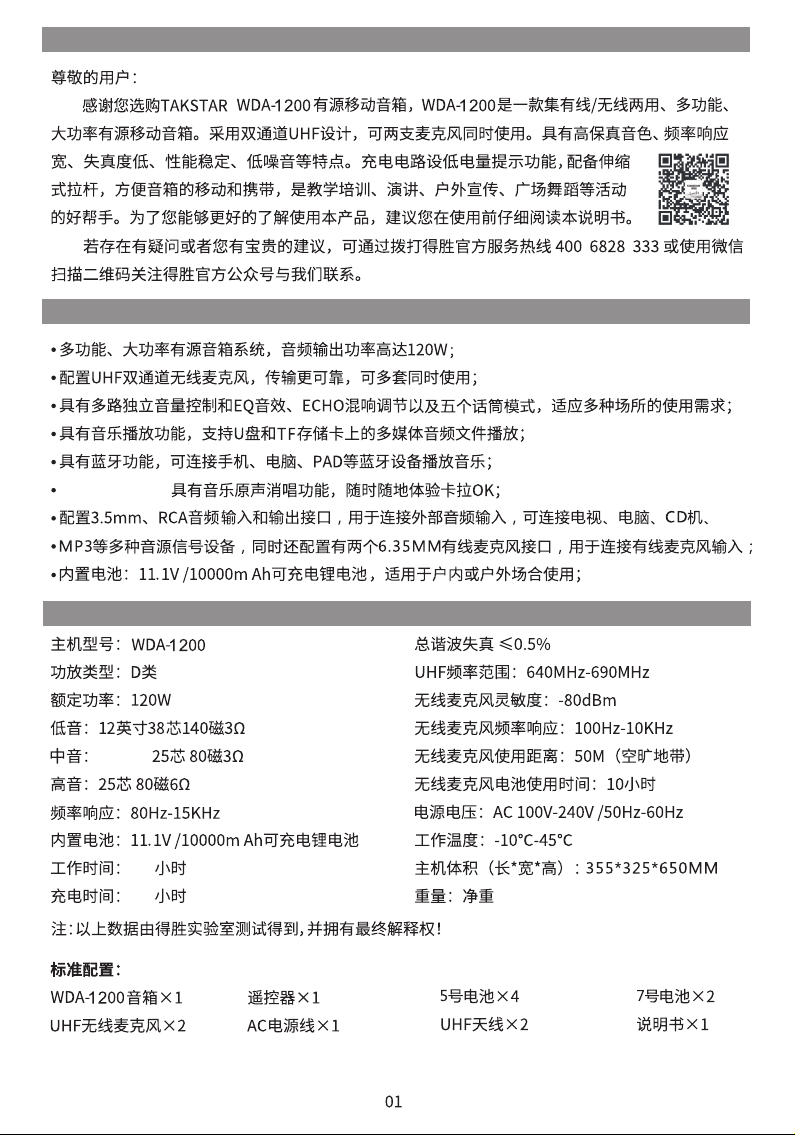

Preface
Features
Technical Specifications
It can be used with two wireless microphones simultaneously in various occasions such as training,
speech, outdoor promotions and dance parties. In order to better understand and use this product,
please read the user manual carefully before use.
If you have any questions or suggestions, please contact our local dealer.
• Multifunctional active speaker system with audio output up to 120W.
• UHF dual channels for reliable transmission and simultaneous use with two wireless
microphones.
• Independent volume controls, EQ, Echo and 5 MIC modes, adaptable to various occasions.
• Music playback function that supports playing audio files on flash drive and TF card.
• Bluetooth music playback which links to Bluetooth devices like PC, phone and tablet.
• DSP Vocal Removal function allows you to enjoy karaoke anywhere, anytime.
• 3.5mm & RCA Audio inputs/outputs for connection with external audio devices like TV,
PC, CD and MP3 player.
• Two 6.35mm connectors for wired microphone input.
• Built-in 11.V/10,000 mAh rechargeable li-ion battery, suitable for indoor/outdoor use.
Speaker Model: WDA-1200
Amplifier Type: Class-D
Rated Power: 120W
Bass: 12’’, 38mm voice coil, 140mm magnet, 3Ω
Mid: 6.5’’, 25mm voice coil, 80mm magnet, 3Ω
Treble: 25mm voice coil, 80mm magnet, 6Ω
Frequency Response: 80Hz-15KHz
Built-in Battery: 11.1V/10,000mAh rechargeable
li-ion battery
Operation Time: 6.5h
Charging Time: 4.5h
THD: ≤ 0.5%
UHF Range: 640MHz-690MHz
Wireless Mic Sensitivity: -80dBm
Wireless Mic Frequency Response: 100Hz-10KHz
Wireless Mic Operating Range: 50m (open area)
Wireless Mic Battery Life: 10h
Power Requirement: 100~240V AC, 50/60Hz
Operating Temperature: −10°C-45°C
Speaker Dimensions (L*W*H): 355*325*650mm
Net Weight: approx. 18kg
Note: The above data is measured by Takstar laboratory, and Takstar has the final
interpretation right!
Standard Configuration:
WDA-1200 Speaker × 1
UHF Wireless Mic × 2
Remote Control × 1
AC Power Cord × 1
AA Battery × 4
UHF Antenna × 2
AAA Battery × 2
User Manual × 1
06
Thank you for purchasing the TAKSTAR WDA-1200 Active Mobile Speaker, which features high
fidelity sound, wide frequency response, stable performance, as well as low distortion and noise.
Dear Customer,

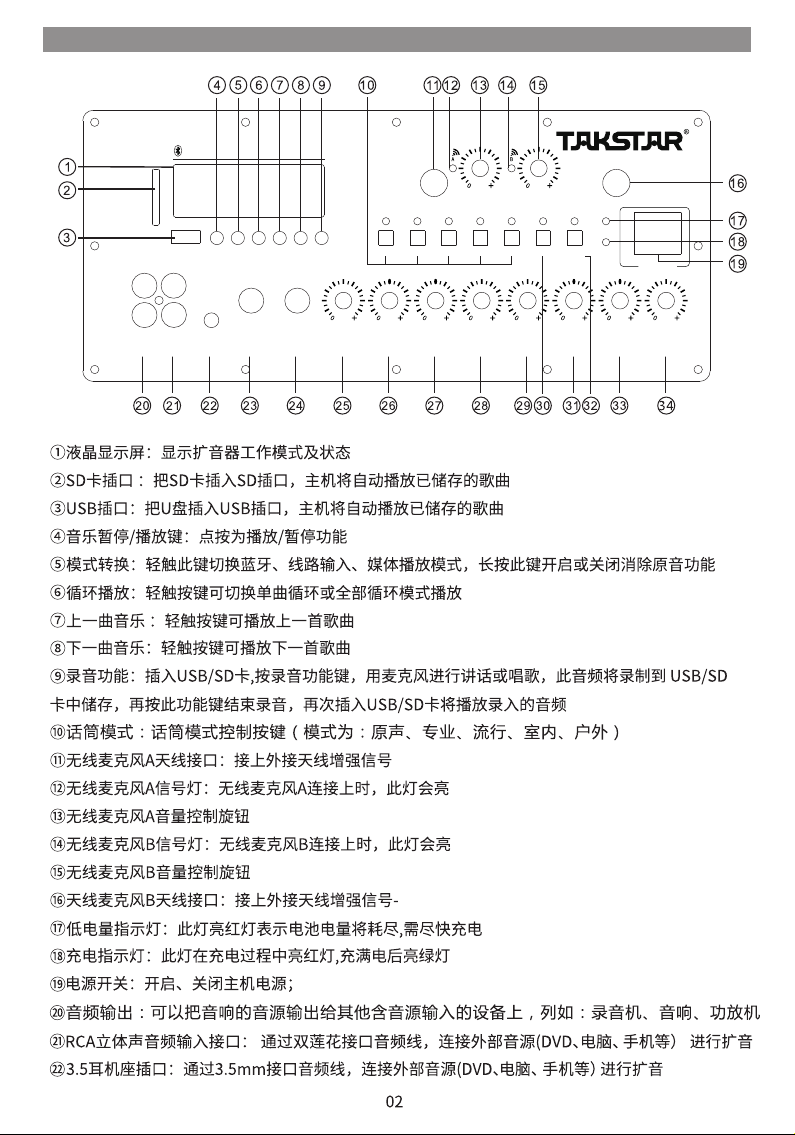

① LCD Display: display amplifier work mode and status.
② SD Card Slot: by inserting an SD card, the speaker will auto play music stored in the card.
③ USB Port: by inserting a USB flash drive, the speaker will auto play music stored in the drive.
④ Music Pause/Play Button: press to play/pause.
⑤ Switch Mode: press to switch mode: Bluetooth, Line IN or Media Play. Press and hold to enable/
disable vocal removal function.
⑥ Loop: press to switch from Loop Single to Loop All.
⑦ Previous Song: press to play the previous song.
⑧ Next Song: press to play the next song.
⑨ Recording Function: insert a USB/SD Card, then press Recording button to start recording your
speech or singing into an audio file onto the USB/SD Card; press Recording button again to end
the recording. By re-inserting the USB/SD Card, the speaker will play the recorded audio.
⑩ Mic Mode: microphone mode controls (which are, Original, Pro, Popular, Indoor, and Outdoor).
⑪ Wireless Mic-A Antenna Port: connect with an external antenna to boost signal strength.
⑫ Wireless Mic-A Signal LED: lit when wireless mic-A is connected.
⑬ Wireless Mic-A Volume Control Knob
⑭ Wireless Mic-B Signal LED: lit when wireless mic-B is connected.
⑮ Wireless Mic-B Volume Control Knob
⑯ Wireless Mic-B Antenna Port: connect with an external antenna to boost signal strength.
⑰ Low-Power Indicator: lit in red when battery is about to run out and requires charging as soon
as possible.
⑱ Charging Indicator: lit in red during charging, in green when fully charged.
⑲ Power Switch: turn on/off speaker power.
⑳ Audio Output: can be used to output the speaker audio towards other audio input devices, e.g.,
recorder, speaker, power amplifier.
㉑ RCA Stereo Input: used to connect with an external audio source (DVD, PC, phone) via an RCA
stereo cable for sound reinforcement.
㉒ 3.5mm Headphone Jack: used to connect with an external audio source (DVD, PC, phone) via a
3.5mm audio cable for sound reinforcement.
麦克风
R
L
P
麦克风 B
音量音量
低音
麦克风
充电/充满
音乐
WDA -1200
高音 混响 低音 高音
麦克风 A
话筒输入
吉他输入 麦克风
延时 总音量
电源开关
总音量
麦克风 麦克风 音乐 音乐
关
开
消除原唱
天线B天线A
话筒优先
户外模式
室内模式
流行模式
专业模式
原声模式
音频
输入
音频
输出
指示灯
低电压
M 3输入P
一键消除 原唱 M 3音乐播放
蓝牙功能
模式
上一曲
暂停
SD 卡槽
下一曲
循环
录音
US B插口
Panel Function Description
07

㉓ Guitar Input: used to connect with a guitar via a 6.35mm cable for sound reinforcement.
㉔ Mic Input: input for a wired microphone.
㉕ Mic Master Volume Control Knob
㉖ Mic Bass Volume Control Knob
㉗ Mic Treble Volume Control Knob
㉘ Mic Echo Control Knob: controls the duration of echo for microphone.
㉙ Mic Delay Control Knob
㉚ Mic Priority: auto lowers music volume when speaking through microphone and resumes
when the speech ends.
㉛ Music Bass Volume Control Knob
㉜ Vocal Removal: one-key vocal removal which can turn a music into an accompaniment track
for karaoke uses.
㉝ Music Treble Volume Control Knob
㉞ Music Master Volume Control Knob
① Power Button
② Number Buttons: for music folder selection
③ MP3 Repeat Mode Selection
④ Previous Song
⑤ Volume Down
⑥ Mode Selection
⑦ Radio Channel –
⑧ EQ Mode Controls (which are, Normal/Pop/
Rock/Jazz/Classic/Country)
⑨ Radio Channel +
⑩ Next Song
⑪ Play/Pause
⑫ Volume Up
Note: This remote control uses two AAA batteries.
Panel Function Description
Remote Control Description
08

1.Power ON/OFF
Power ON: install two 1.5V AA batteries, press the Power button to turn on the microphone, or press
and hold the Power button to turn off. (DO NOT install the batteries in wrong direction)
2.Switch Frequency
Noise during use, short transmission distance and
pickup of other wireless microphone signals may
be the results of frequency interference, which can
be avoided by switching frequency. Instructions:
when powered on, press Frequency Switch button
to select a desired frequency (16 channels in total).
Receiver on the speaker will auto sync when
frequency is switched. To select other channel,
repeat the above steps. (If the interference issue
remains, try the steps in below Instruction 3.)
3.ID Lock / Sync
First, turn off the speaker and the microphone.
Press and hold the Sync button, then the Power
button as well until the LCD screen flashes for 2s.
Turn on the speaker power, after 3s, press the
Sync button on the wireless mic to complete
syncing. Sync/Lock is successfully when the
Wireless Mic Indicator on the speaker is lit.
One microphone can sync with multiple speakers,
in other words, the speakers will receive signal
from this microphone. To un-sync with a speaker,
simply sync with another desired speaker at a
different frequency. In case your microphone is
broken and a new one is replaced by the
manufacturer, follow these steps to sync.
Capsule
Battery Display
Power Button
(ON: press;
OFF: press & hold)
Frequency Switch
/ Sync Button
Battery Holder
Signal Display
Frequency
Display
Bottom Cover
Wireless Microphone User Instructions
4.Microphone Factory Reset
When the batteries are not installed, press and hold Sync button until you have installed the
batteries. This will reset the device to factory defaults. (Pair with your speaker after reset)
5.Battery Status
When the battery icon flashes on the LCD display, it’s time to prepare new batteries. When the
icon turns from bright to dark and bright again, or the whole LCD is flashing, please change the
batteries timely as that they are now dry and cannot properly power the microphone any more.
6.Cautions
1) Place the microphone out of reach of children.
2) Take out the batteries when the microphone is not used.
3) Do not randomly press setting buttons during normal use.
4) Please replace the batteries when the microphone automatically turns off.
09

To avoid electric shock, overheat, fire, radiation, explosion, mechanical risk and injury or
property loss due to improper use, please read and observe the following items before use:
1. Please check if the power of the connected equipment matches with that of this product before
operation. Adjust the volume to proper level during operation. Do not operate at over-power or
high-volume level for extended time to avoid product malfunction or hearing impairment.
2. If there is any abnormality during use (e.g., smoke, strange odor), please kill the power switch
and unplug from power source, then send the product to the local dealer for repair.
3. Never use battery with damaged insulation should a detachable battery is required; Do not charge
a non-rechargeable battery.
4. Dispose the waste battery in designated waste bin as per refuse classification; do not use as
children toy or discard directly to avoid safety hazard or environmental damage.
5. Keep this product and its accessories in a dry and ventilated area. Do not store in a humid or dusty
area for extended time. Keep away from fire, rain, liquid intrusion, bumping, throwing, vibrating,
or from blocking any ventilation openings, to prevent malfunction.
6. The product must, when installed on walls or ceilings, be fixed firmly in place at adequate strength
to prevent from falling.
7. Please abide by safety rules during operation. Do not use the product in places prohibited by laws
or regulations to avoid accident.
8. Do not disassemble or repair the product by yourself to avoid injury. If you have any questions or
require any services, please contact our local dealer.
9. Put this product at least 60cm away from PC or TV due to its strong magnet inside.
10. The product has a built-in rechargeable lithium-ion battery. Please recharge once every three
months if not used for extended periods. Recommended to recharge timely after each use.
11. Only use lithium-ion battery of the same specifications as the original for replacement. Dispose
any obsolete battery properly.
12. Keep away from high temperature.
13. Place in a ventilated area.
14. Keep away from humid areas.
15. Turn off the product power before unplugging the power cord.
16. Unplug from power source when not used for extended periods.
17. Place in a well-ventilated area, recommended to be at least 10cm away from surrounding objects.
Do not block ventilation openings with objects such as newspaper, table cloth and curtain.
18. The product should be connected to a mains outlet with grounding protection.
Suitable only for
altitudes below 2,000m
2000m
Suitable only for
non-tropical climates
Safety Precautions
10
