Takstar E126W User manual

E126W
WIRELESS AMPLIFIER WITH LED DISPLAY
屏显版无线扩音器

前言
产品特性
○
○
○
○
○
○
○
○
一款体积小巧轻便的MINI型无线扩音器；
采用UHF无线传输技术，在空旷地带使用传输距离约40米；
数字扩音技术，8W大功率音频输出，搭配无线头戴麦克风，满足无线扩音需求；
内置大容量锂电池，充满电可续航工作约8小时，同时支持Type-C快充功能；
具有无线播放功能，不受线材束缚，播歌更方便；
配备指示灯显示设计，实时了解扩音器工作状态；
具有肩挂及腰挂等多种佩戴方式，使用更方便；
产品依照人体工学原理设计，造型新颖，外观时尚。
尊敬的用户：
感谢您选购得胜E126W屏显版无线扩音器，为了您能够更好的了解使用本
产品，建议您在使用前仔细阅读本说明书。
若存在有疑问或者您有宝贵的建议，可通过拨打得胜官方
服务热线400 6828 333或微信扫描二维码关注得胜官方公众号
与我们联系。
E126W 屏显版无线扩音器
包装清单
腰带 1条
说明书 1份
1
一分二充电线（Type-C）1条
背扣 1个
无线头戴麦克风 1个
E126W扩音器 1台

适用于教学、宣传、导览、培训、促销等场合扩音
频率响应：80Hz-12kHz
峰值功率：8W
扬声器阻抗：4Ω
总谐波失真：THD≤1%
工作电压：3.5V-4.2V
电池类型：锂离子电池
电池容量：3.7V/2000mAh
充电方式：DC 5V 800mA
充电时间：约2.5小时
使用时间：约8小时
产品重量：约142g
产品尺寸：91mm*72mm*25mm
拾音器：背极式驻极体
指向性：单指向
频率响应：60Hz-16KHz
灵敏度：-51至-54dB
UHF频率：630MHz-698MHz（分段）
UHF使用距离：空旷地带约40米
电池类型：锂离子电池
电池容量：3.7V/400mAh
充电规格：DC 5V 150mA
充电时间：约2.5小时
使用时间：约5小时
净重：约39g
注：以上数据由得胜实验室测试得到，并拥有最终解释权！
适用范围
主机参数
技术参数
头戴麦克风参数
2
E126W 屏显版无线扩音器

① 电源开关：向“ON”方向拨动旋钮，听到“滴”一声，此时电源指示灯亮蓝灯，
表示扩音器已通电并进入人声扩音状态，继续向“ON”方向拨动旋钮声音增大，
反之向“OFF”方向拨动则声音减小直至听到“滴”的一声关机；
② 电源指示灯：充电时，指示灯长亮红灯；红灯熄灭，蓝灯长亮表示电已充满；
扩音过程中红蓝灯闪烁表示低电压，当此红蓝灯闪烁时，请及时为扩音器充电（充
电时建议将扩音器关机）；
③ MIC IN输入插孔：将ø3.5mm的麦克风插头插入此孔，进入有线麦人声扩音工作
状态；（插入有线麦后无线麦将停止工作）；
④“M”模式切换按键：开机状态下，循环点按“M”键，可切换蓝牙模式和麦克
风模式，并有相应的语音提示；
⑤ 充电接口：通过Type-C充电线为扩音器充电；
⑥ 挂扣：用于安装肩带，可将扩音器斜挂于肩上使用；
⑦ 背扣：用于将扩音器扣于腰带或裤腰上使用。
3
功能示意：
④ ⑤ ①
③②
⑥
⑦
扩音器：
E126W 屏显版无线扩音器

4

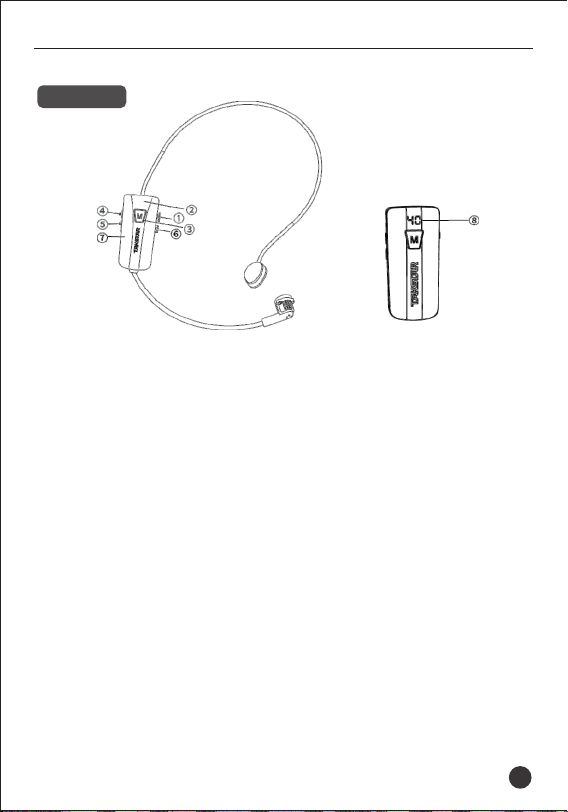

头戴麦克风：
① 电源开关：拨动开关至ON时开机，拨动开关至OFF时关机；
② 显示屏：显示工作频道、麦克风音量、功率提示；
③ M按键：用于调频操作，详见本说明书的“对频方法”部分；
④“+”按键：点按增加麦克风音量；在变频状态下，点按切换上一个频道，长按
快速跳转频道；
⑤“-”按键：点按减少麦克风音量；在变频状态下，点按切换下一个频道，长按
快速跳转频道；
⑥ 充电接口：通过Type-C充电线为无线头戴麦克风充电；
头戴麦克风 显示屏
⑦ 电源指示灯：关机未充电时，指示灯熄灭；开机时长亮蓝灯；电量充足时，
指示灯常亮蓝灯；电量不足时，闪烁蓝灯；充电过程中，红灯常亮，充满后
红灯灭；
⑧ 工作频道/麦克风音量：默认显示当前工作频道，有“01-40”共40个工作
频道；当点按音量+、-键时，则显示音量大小，有“U1-U9”共9级音量，
3秒后回复正常数值；10秒后无任何操作，显示屏将自动熄灭；
⑨ 高/低功率切换：同时点击M按键和“-”按键为低功率同时显示屏显示低功率
提示“E0”，同时点击M按键和“+”按键为高功率同时显示屏显示高功率提示
“E1”（低功率无线使用距离在10米左右，高功率无线使用距离在40米左右）。
E126W 屏显版无线扩音器

使用方法
二、蓝牙配对
首次使用本机时，需要与手机或蓝牙设备配对连接，步骤如下：
① 先打开扩音器电源开关，点按“M”键切换成蓝牙模式，当工作指示灯蓝灯快速
闪烁时，表示正在蓝牙搜索配对状态；
② 进入手机“设置”菜单，找到蓝牙功能选项，开启手机的蓝牙功能，待搜索到
“TAKSTAR E126W”，点击“TAKSTARE126W”进行连接，工作指示灯恢复常
亮，同时伴有提示音“蓝牙已连接”，表示蓝牙连接成功，手机、笔记本、平板、
IPAD等设备蓝牙连接产品成功后，可实现播放音乐功能。
5
一、对频方法
1.配对方法
产品出厂时已默认配对好，开机会自动连接，无需配对。如遇有信号干扰，可
按下面方法进行重新配对或变频。
① 先打开头戴麦克风电源开关，等待显示屏显示频道状态下，然后长按麦克风“M”
键5秒，待显示屏上显示转圈状态。此时立刻打开扩音器电源开关，等待头戴麦克
风显示屏转圈切换到数字频道，对着麦克风说话有声音，表示配对成功；
② 对着头戴麦克风说话没声音，说明配对不成功，请按上面方法重新配对。
2.变频方法
同时打开扩音器及头戴麦克风电源开关，短按头戴麦克风上的“M”键，待头戴
麦克风显示屏上的频道数字闪烁后点按音量加减键来切换上下频点，长按音量加
减键可快速切换频点，显示屏同步显示对应频道。
3.多台同时使用的方法
① 多台同时使用先按上述第一种“配对方法”重新连接一次后，再按上述变频方
法进行变频操作切换不同频道；
② 多台同时使用时，需要切换不同的频道，以免干扰。
E126W 屏显版无线扩音器

安全警示
1.使用产品时请确认所连设备与本产品功率是否匹配以及合理调整音量大小，不要
在超过产品功率及大音量下长时间使用，以免造成产品损伤和听力异常；
2.使用中若发现有异常（如冒烟、异味等），请立即关闭电源开关并拔掉电源插头，
然后将产品送经销商检修；
消费者若使用电源适配器供电，则应购买配套使用获得CCC认证并满足标准要求
的电源适配器
4
5.本产品及附件都应放置在室内干燥通风处，请勿长期存放在潮湿、灰尘多的环境，
使用中避免靠近火源、雨淋、进水、过度碰撞、抛掷、振动本机及覆盖通风孔，以
免损坏其功能；
6.若产品需要固定于墙壁或天花板时，请确保固定到位，防止因固定强度不足导致
产品发生跌落危险；
7.使用该产品时需遵守相关安全规定，法律法规明确禁止使用场合请勿使用本机，
以免导致意外事故；
请不要自行拆机改装或维修，以防止出现人身伤害，如有问题或服务请联系当地经
销商跟进处理。
3.
；
.本产品禁止拆解、撞击、挤压或投入火种；若出现严重鼓胀，请勿继续使用；请勿
置于高温环境中，电池浸水后禁止使用；用错误型号电池更换会有爆炸危险，务必
按照说明处置用完的电池。
为避免电击、高温、着火、辐射、爆炸、机械危险以及使用不当等可能造成的人身
伤害或财产损失，使用本产品前，请仔细阅读并遵守以下事项：
6
③ 下次开机后点按“M”键开启蓝牙时，如果是已有连接过的蓝牙设备，则自动回
连，同时伴有提示音“蓝牙已连接”；蓝牙连接成功的情况下，点按“M”键断开
连接，同时伴有提示音“麦克风模式”。
E126W 屏显版无线扩音器

7

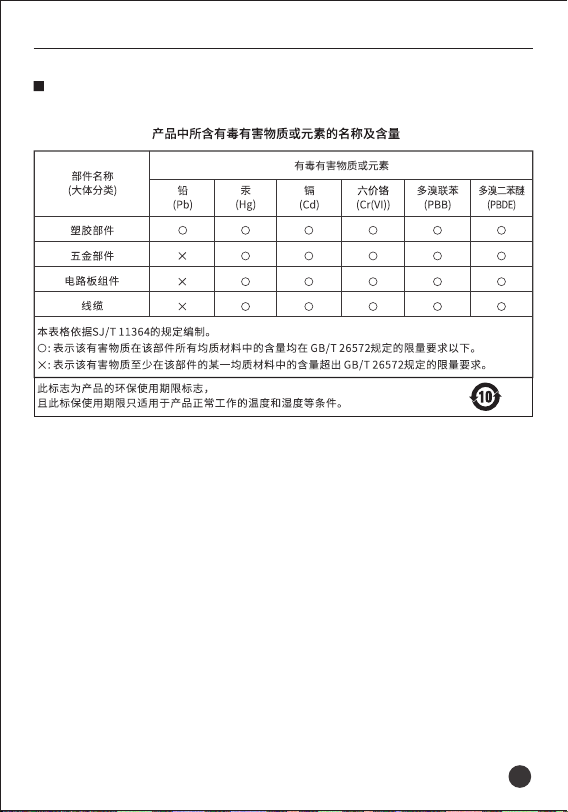

环保说明
E126W 屏显版无线扩音器

Preface
Features
○
○
○
○
○
○
○
○
Compact, lightweight, wireless voice amplifier.
UHF transmission, effective up to 40m in open area.
8W high-power digital audio amplification, with wireless headset mic.
Built-in Li-ion battery lasts up to 8h, supports Type-C quick charge.
Wireless audio playback for untethered music enjoyment.
LED indicators give you a clear idea about device status.
Wear across shoulder or around waist, use at ease.
Stylish look and ergonomic design.
Dear Customer,
Thank you for purchasing Takstar E126W Wireless Amplifier with LED Display.
In order to better understand and use the product, please read this manual
carefully.
If you have any questions or suggestions, please contact our local dealer.
Product Content
Strap 1pc
User Manual 1pc
8
Y Splitter Charging Cable (Type-C) 1pc
Belt Clip 1pc
Wireless Headset Microphone 1pc
E126W Voice Amplifier 1pc
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

Voice amplification for teaching, promotion, tour guide, training, sales.
Frequency Response: 80Hz-12kHz
Peak Power: 8W
Speaker Impedance: 4Ω
THD: THD≤1%
Operating Voltage: 3.5V-4.2V
Battery Type: Lithium-ion battery
Battery Capacity: 3.7V/2,000mAh
Charging Method: DC 5V 800mA
Charging Time: approx. 2.5h
Battery Life: approx. 8h
Net Weight: approx. 142g
Dimensions: 91mm*72mm*25mm
Cartridge: back electret
Polar Pattern: unidirectional
Frequency Response: 60Hz-16KHz
Sensitivity: -51~-54dB
UHF Frequency: 630MHz-698MHz (segmented)
UHF Effective Range: approx. 40m, open area
Battery Type: Lithium-ion battery
Battery Capacity: 3.7V/400mAh
Charging Method: DC 5V 150mA
Charging Time: approx. 2.5h
Battery Life: approx. 5h
Net Weight: approx. 39g
Note: The above data is measured by Takstar laboratory, and Takstar has the
final interpretation right!
Applications
Voice Amplifier
Specifications
Headset Microphone
9
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

① Power switch: slide the knob towards [ until you hear a to
power up the device into voice amplification mode, indicated by the lit blue
power indicator. Keep sliding towards [ON] to increase volume, or vice
versa, towards [OFF] to decrease volume or power off the device (slide
until a sound).
② Power indicator: illuminates red during charge; turns blue when fully
charged; flashes red when battery is running low during operation which
requires charging the amplifier timely. (Recommended to power off the
amplifier while charging)
③ MIC IN jack: accepts ø3.5mm headphone plug for wired operation.
(When the wired mic is inserted, the wireless mic will stop working.)
ON] "click"
"click"
Function Descriptions
10
④ ⑤ ①
③②
⑥
⑦
E126W WIRELESS AMPLIFIER WITH LED DISPLAY
Voice Amplifier:

11
④ [M] button: when powered on, press to switch between Bluetooth Mode
and Microphone Mode, indicated by respective voice prompt.
⑤ Charging port: accepts Type-C charging cable for charging the amplifier.
⑥ Strap clip: used to install a strap for wearing the amplifier across shoulder.
⑦ Belt clip: used to clip the amplifier onto belt or pants.

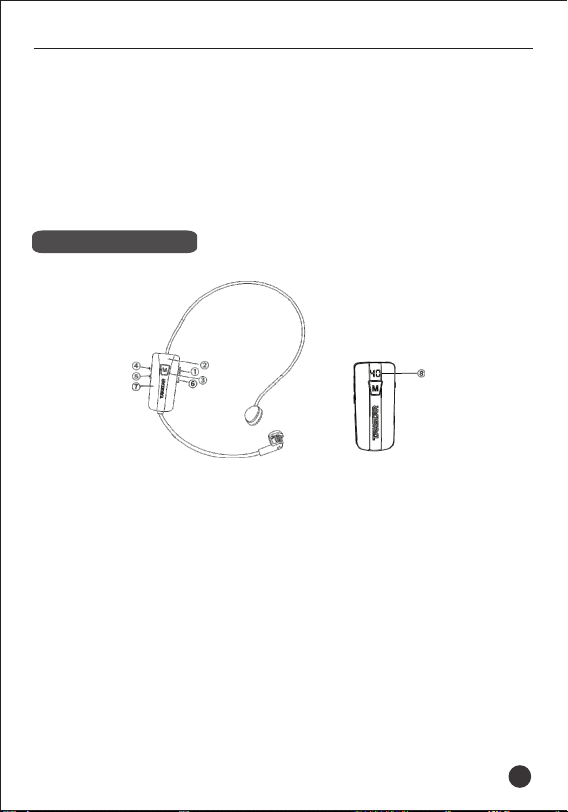

Headset Microphone：
Headset microphone Display screen
① Power switch: The microphone is turned on when the switch is in the ON
position, and the microphone is turned off when the switch is in the OFF
position.
② Display screen: Display working channel, mic volume and power setting.
③ M button: Used for frequency matching. Refer to the "Frequency matching
methods" for details.
④ + button: Press it to increase the volume of the microphone. While changing
frequency, press it to switch to the previous channel, and long press it to quickly
switch channels.
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

12
⑤ - button: Press it to decrease the volume of the microphone. While changing
frequency, press it to switch to the next channel, and long press it to quickly
switch channels.
⑥ Charging interface: Use the Type-C cable to charge the wireless headset
mic.
1
⑦ Power Indicator: off when powered off; solid blue when powered on and
power is sufficient; blue pulses when power is low; solid red while charging,
red off when fully charged.
⑧ Working channel/microphone volume: The current working channel is
displayed by default, and there are totally 40 working channels "01-40".
When you press the volume+ and - buttons, the volume is displayed and
returns to normal value after 3 seconds; there are totally 9 levels of
volume"U1-U9". After 10 seconds without any operation,the display
screen will automatically go out.
⑨ High/Low Power Switch: press both [M] and [-] buttons at the same time
to switch to low power, LED display shows E0; or press both [M] and [+] to
switch to high power, LED display shows E1. (Use distance is around 10m
when set to low power, or around 40m when set to high power)
Operation
A. Frequency Matching
1. Matching Steps
It has the factory setting. If there is no interference, do not matching frequency
or change frequency.
① Power on the headset mic, wait until the screen shows channel status. Long
press mic M button for 5s until a circle appears on the screen. Then
immediately power on the amplifier and wait until the circle on mic screen
changes to channel number.Speak to the mic to test. If your voice is amplified,
the devices are paired successfully.
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

B. Bluetooth Pairing
Upon first time using the device, you need to connect it to your phone or
Bluetooth device as follows:
① Turn on the amplifier, then press [M] button once to switch to Bluetooth
Mode and start Bluetooth discovery and pairing, indicated by a flashing blue
LED.
② Enter Settings menu on your phone, find and enable Bluetooth, wait until
"TAKSTAR E126W" is discovered and tap on it to connect. When paired
successfully, the LED will resume lit permanently, and there will be a voice
prompt "Bluetooth Connected". Devices such as cell phones, laptops,
tablets and iPads can play music after successful Bluetooth connection with
the product.
③ At your next power-up, simply press [M] button to enable Bluetooth and
auto connect to the previously paired device, signaled by a voice prompt
"Bluetooth Connected". When Bluetooth is connected, press [M] once to
disconnect, followed by a voice prompt "Microphone Mode".
13
② Speak to the microphone but no sound. This means the matching is
successful. Match again.
2. Changing Frequency
Power up both the amplifier and the headset mic. Press M button on mic, and
the channel number on headset LED display will flicker. Then press or long
press volume +/- button to change frequency gradually/rapidly, the LED display
will show respective frequency channel changes.
3. Multiple units used at the same time
① Use the above methods to pair first and then change frequency channels.
.
② Make sure to use different channel on each device to avoid interference.
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

To avoid electric shock, overheat, fire, radiation, explosion, mechanical
risk and injury or property loss due to improper use, please read and
observe the following items before use:
1. Please check if the power of the connected equipment matches with that
of this product before operation. Adjust the volume to proper level during
operation. Do not operate at over-power or high-volume level for extended
time to avoid product malfunction or hearing impairment.
2. If there is any abnormality during use (e.g., smoke, strange odor), please
kill the power switch and unplug from power source, then send the product
to the local dealer for repair.
3. When using a power adapter to supply power, please use a matching power
adapter that has obtained CCC certification and meets the standard
requirements.
4. Do not dissemble, impact or squeeze the product or throw into fire. Stop
using if it is severely swollen. Do not place in high temperature environment.
Do not use after the battery is submerged in water. Risk of explosion if the
battery is replaced with the wrong model. Be sure to dispose used batteries
following instructions.
5. Keep this product and its accessories in a dry and ventilated area. Do not
store in a humid or dusty area for extended time. Keep away from fire, rain,
liquid intrusion, bumping, throwing, vibrating, or from blocking any
ventilation openings, to prevent malfunction.
6. The product must, when installed on walls or ceilings, be fixed firmly in
place at adequate strength to prevent from falling.
Safety Instructions
14
E126W WIRELESS AMPLIFIER WITH LED DISPLAY

7. Please abide by safety rules during operation. Do not use the product in
places prohibited by laws or regulations to avoid accident.
8. Do not disassemble or repair the product by yourself to avoid injury. If you
have any questions or require any services, please contact our local dealer.
15
E126W WIRELESS AMPLIFIER WITH LED DISPLAY
