Takstar EBS-630A User manual

EBS-630A 定阻定压吸顶音箱说明书
EBS-630A×2
说明书×1
欢迎使用EBS-630A 定阻定压吸顶音箱，使用前请您仔细阅读说明书，以便能正
确的操作使用。
若存在有疑问或者您有宝贵的建议，可通过拨打得胜官方服务
热线400 6828 333 或微信扫描二维码关注得胜官方公众号与我们
联系。
■ 标准配置
■ 产品特性
■ 适用场合
■ 技术参数
■ 产品图示
■ 产品尺寸图
• EBS-630A 机型是2分频定阻定压两用专业级天花板嵌入式及吊装式多用途无源音
箱，系统采用两分频全频段设计，箱体采用ABS面板+金属箱体，防潮，防水，耐
紫外线的全天候工作材料设计
• 低音采用6.5口径防潮防水的复合材质振膜，高音采用1英寸蚕丝振膜，角度可调，
整个系统声音温暖厚实，中音饱满，高音细腻柔和.系统设计采用目前最流行的无
边框及网罩吸附式设计，安装及拆卸维修非常方便
会议中心、酒店、餐厅、建筑背景音乐等多种用途
• 额定定阻功率：80W(AES)
• 额定定阻阻抗：8Ω
• 额定定压功率： 70V (80/60/40/20/10 W) /
100V（80/60/40/20 W) (AES)
• 频率响应（±3dB）：70Hz-20kHz
• 灵敏度（1W/1M）：87dB
• 覆盖角：H110×V110°
• 最大声压级：103dB
• 分频模式：无源二分频
• 分频点：3000Hz
• 安装方式：嵌入式安装/吊坠安装
• 安装开孔尺寸：246mm圆孔
• 安装深度：176mm
• 接线方式：凤凰插
• 表面处理：黑色
• 高频：1寸蚕丝膜、钕磁、可旋转
高音单元
• 低频：6.5″×1（25芯），80磁钢
（聚丙烯)复合盆胴体+NBR丁腈橡
胶悬边单元
• 规格： φ278mm×H176mm
• 净重：3.3Kg
278mm 278mm
246mm (开孔尺寸)
176mm
■ 产品安装
① 嵌入式安装
② 坠吊安装
此圆形纸板用来安装音响开孔
使用，外径246mm
螺丝刀顺时针方向对4颗脚架螺丝转动为紧固音响
螺丝刀逆时针方向对4颗脚架螺丝转动为拆卸音响
吊装金属空心管
音响紧固后将金属网罩吸附在面板上
警示：无论哪种安装方式安全绳都务必紧固在龙骨或吊杆上
定阻/定压/
选择开关
金属防尘网罩
紧固螺丝，安装
及拆卸扬声器
高音，可调节角度
强力磁铁，
吸附金属网罩
安装脚架，嵌入式
安装紧固活动组件
坠吊安装紧
固活动夹片
输入端
活动部件
安全绳
紧固点
■ 安全警示
为避免电击、高温、着火、辐射、爆炸、机械危险以及使用不当等可能造成的
人身伤害或财产损失，使用本产品前，请仔细阅读并遵守以下事项：
1. 使用产品时请确认所连接设备与本产品功率是否匹配以及合理调整设备音量大小，
不要在超过产品功率及大音量下长时间使用，以免造成产品异常；
2. 使用中若发现有异常（如冒烟、异味等），请立即关闭电源开关并拨掉电源插头，
然后将产品送经销商检修；
3. 本产品及附件都应放置在室内干燥通风处，勿长期存放在潮湿、灰尘多的环境，
使用中避免靠近火源，雨淋、进水、过度碰撞、抛掷、振动本机及覆盖通风孔，避
免损坏其功能；
4. 若产品需要固定于墙壁或天花板上时，请确保固定到位，防止因固定强度不足导
致产品发生跌落危险；
5. 使用该产品时需遵守相关安全规定，法律法规明确禁止使用场合请勿使用产品，
以免导致意外事故；
6. 请不要自行拆机改装或维修，以防止出现人身伤害，如有问题或服务需求请联系
当地经销商跟进处理。
仅适用于海拔2000
米以下地区使用
2000m
仅适用于非热带
气候条件下使用

EBS-630A Fixed-Impedance/Voltage Ceiling Speaker
2 * EBS-630A
1 * User Manual
Thank you for purchasing EBS-630A Fixed-Impedance/Voltage Ceiling Speaker.
In order to correctly use the device, please read the manual carefully.
If you have any questions or suggestions, please contact our local dealer.
■ Standard Configuration
■ Features
■ Applications
■ Technical Specifications

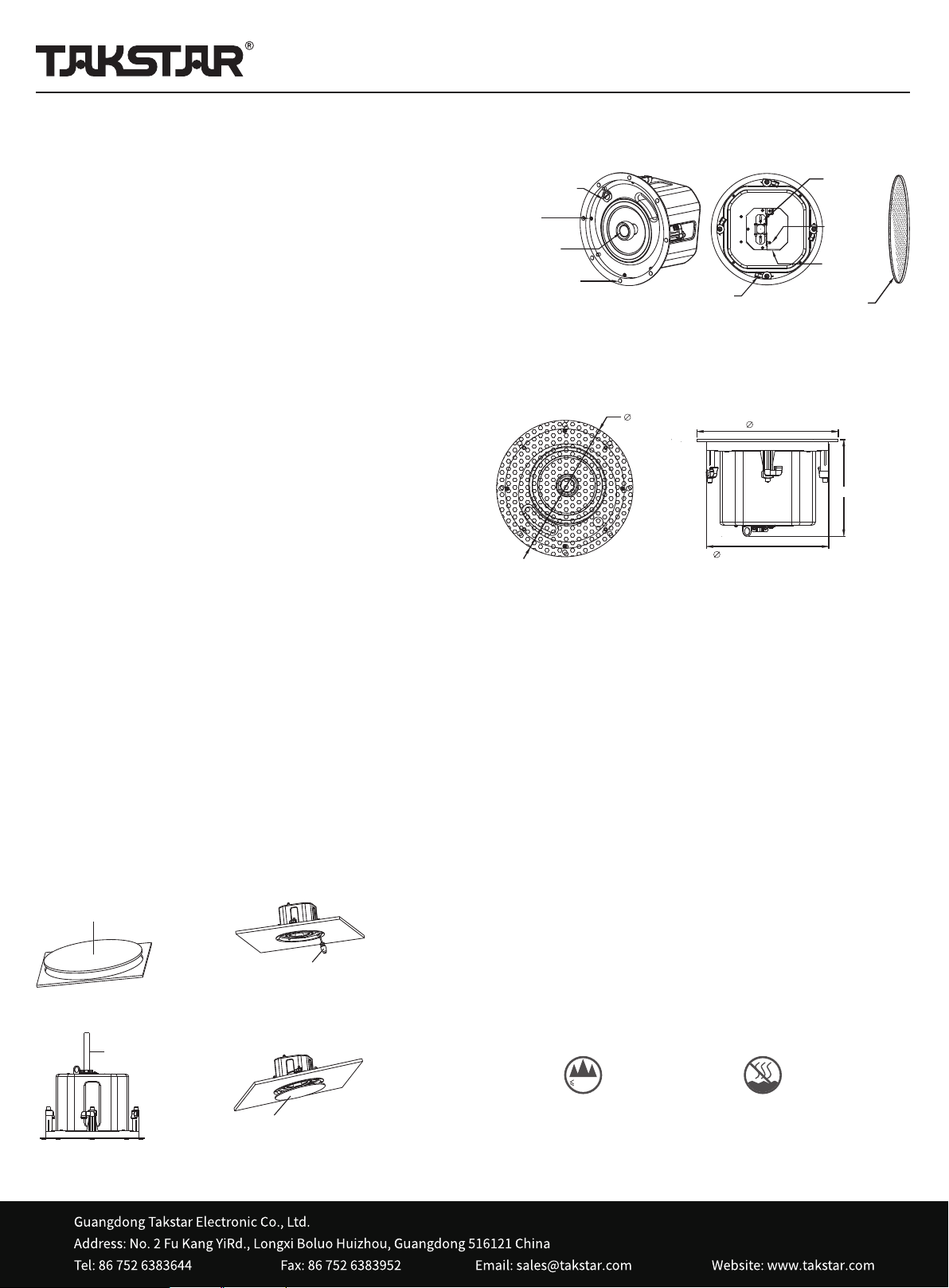

■ Illustration
■ Dimensions
• Professional, passive, two-way, full-range, fixed-impedance/voltage ceiling
speaker that can be embedded or suspended. Utilizes ABS panel + metal
cabinet, all-weather-proof material against moisture, water, and UV.
• One 6.5" woofer with moisture/water-proof composite diaphragm, and 1"
silk-dome tweeter with adjustable angle, producing rich mids, delicate highs
and an overall warm sound. Popular borderless design and magnetic grille,
extremely easy for installation and removal.
BGM in hotel/restaurant/building/conference center.
• Rated Power: 80W (AES)
• Rated Impedance: 8Ω
• Rated Voltage Power: 70V (80/60/40/20/
10W) / 100V (80/60/40/20W) (AES)
• Frequency Response (±3dB): 70Hz-20kHz
• Sensitivity (1W/1M): 87dB
• Coverage Angle: H110*V110°
• Max SPL: 103dB
• Crossover: two-way, passive
• Crossover Frequency: 3000Hz
• Installation Method: embedded/suspended
• Cut-out Size: ø246mm circle
• Installation Depth: 176mm
• Connection: phoenix plug
• Finish: black
• HF: 1" tweeter with silk dome, Nd
magnet, rotatable angle
• LF: 6.5" * 1 driver (25mm voice coil)
with 80mm magnet, (PP) composite
cone + NBR surround.
• Dimensions: ø278mm*H176mm
• Net Weight: 3.3Kg
278mm 278mm
246mm (Cut-out size)
176mm
■ Installation
① Embedded Installation
② Suspended Installation
Use the cardboard to cut an opening,
at 246mm outer diameter.
Turn clockwise to tighten the 4 screws around the speaker
frame; or Turn counterclockwise to loosen them for speaker
removal.
Suspension Metal Tube
Attach the metal grille on top
of the installed speaker.
Warning: Regardless of the installation method, the safety rope must be
fastened to the keel or suspender.
Switch for Constant
Impedance/Voltage
Dust-proof
metal grille
Screw, for
installation/removal
Tweeter,
adjustable angle
Strong magnet,
attracts metal grille
Mounting arm, for
embedded installation
Suspension
fastening part
Input terminal,
movable
Safety rope
fastening point
■ Safety Instructions
To avoid electric shock, overheat, fire, radiation, explosion, mechanical
risk and injury or property loss due to improper use, please read and observe
the following items before use:
1. Please check if the power of the connected equipment matches with that
of this product before operation. Adjust the volume to proper level during
operation. Do not operate at over-power or high-volume level for extended
time to avoid product malfunction or hearing impairment.
2. If there is any abnormality during use (e.g., smoke, strange odor), please
kill the power switch and unplug from power source, then send the product
to the local dealer for repair.
3. Keep this product and its accessories in a dry and ventilated area. Do not
store in a humid or dusty area for extended time. Keep away from fire, rain,
liquid intrusion, bumping, throwing, vibrating, or from blocking any
ventilation openings, to prevent malfunction.
4. The product must, when installed on walls or ceilings, be fixed firmly in
place at adequate strength to prevent from falling.
5. Please abide by safety rules during operation. Do not use the product in
places prohibited by laws or regulations to avoid accident.
6. Do not disassemble or repair the product by yourself to avoid injury. If you
have any questions or require any services, please contact our local dealer.
Suitable only for
altitudes below 2,000m
2000m
Suitable only for
non-tropical climates
