Takstar ESC-044 User manual

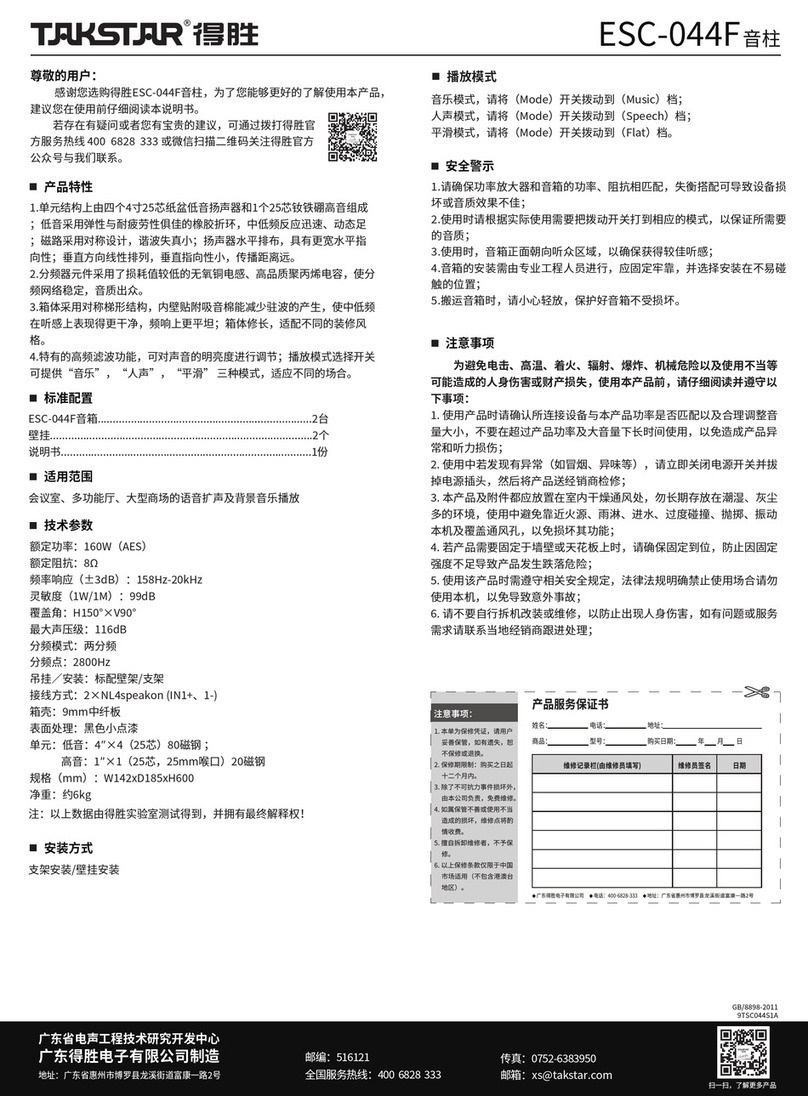

ESC-044音柱
邮编：516121
广东省电声工程技术研究开发中心
广东得胜电子有限公司制造
地址：广东省惠州市博罗县龙溪街道富康一路2号
全国服务热线：400 6828 333
传真：[phone]
邮箱：[e-mail] 扫一扫，了解更多产品
尊敬的用户：
感谢您选购得胜ESC-044音柱，为了您能够更好的了解使用本产 品，
建议您在使用前仔细阅读本说明书。
若存在有疑问或者您有宝贵的建议，可通过拨打得胜官
方服务热线 400 6828 333 或微信扫描二维码关注得胜官方
公众号与我们联系。
1.单元结构上由四个4寸25芯纸盆低音扬声器和1个25芯钕铁硼高音组成
；低音采用弹性与耐疲劳性俱佳的橡胶折环，中低频反应迅速、动态足
；磁路采用对称设计，谐波失真小；扬声器水平排布，具有更宽水平指
向性；垂直方向线性排列，垂直指向性小，传播距离远。
2.分频器元件采用了损耗值较低的无氧铜电感、高品质聚丙烯电容，使分
频网络稳定，音质出众。
3.箱体采用对称梯形结构，内壁贴附吸音棉能减少驻波的产生，使中低频
在听感上表现得更干净，频响上更平坦；箱体修长，适配不同的装修风
格。
4.特有的高频滤波功能，可对声音的明亮度进行调节；播放模式选择开关
可提供“音乐”，“人声”，“平滑” 三种模式，适应不同的场合。
产品特性
ESC-044音箱.........................................................................2台
壁挂.......................................................................................2个
说明书...................................................................................1份
为避免电击、高温、着火、辐射、爆炸、机械危险以及使用不当等
可能造成的人身伤害或财产损失，使用本产品前，请仔细阅读并遵守以
下事项：
1. 使用产品时请确认所连接设备与本产品功率是否匹配以及合理调整音
量大小，不要在超过产品功率及大音量下长时间使用，以免造成产品异
常和听力损伤；
2. 使用中若发现有异常（如冒烟、异味等），请立即关闭电源开关并拔
掉电源插头，然后将产品送经销商检修；
3. 本产品及附件都应放置在室内干燥通风处，勿长期存放在潮湿、灰尘
多的环境，使用中避免靠近火源、雨淋、进水、过度碰撞、抛掷、振动
本机及覆盖通风孔，以免损坏其功能；
4. 若产品需要固定于墙壁或天花板上时，请确保固定到位，防止因固定
强度不足导致产品发生跌落危险；
5. 使用该产品时需遵守相关安全规定，法律法规明确禁止使用场合请勿
使用本机，以免导致意外事故；
6. 请不要自行拆机改装或维修，以防止出现人身伤害，如有问题或服务
需求请联系当地经销商跟进处理；
标准配置
注意事项
安全警示
1.请确保功率放大器和音箱的功率、阻抗相匹配，失衡搭配可导致设备损
坏或音质效果不佳；
2.使用时请根据实际使用需要把拨动开关打到相应的模式，以保证所需要
的音质；
3.使用时，音箱正面朝向听众区域，以确保获得较佳听感；
4.音箱的安装需由专业工程人员进行，应固定牢靠，并选择安装在不易碰
触的位置；
5.搬运音箱时，请小心轻放，保护好音箱不受损坏。
会议室、多功能厅、大型商场的语音扩声及背景音乐播放
适用范围
额定功率：160W（AES）
额定阻抗：8Ω
频率响应（±3dB）：158Hz-20kHz
灵敏度（1W/1M）：95dB
覆盖角：H150°×V90°
最大声压级：114dB
分频模式：两分频
分频点：2800Hz
吊挂／安装：标配壁架/支架
接线方式：2×NL4speakon (IN1+、1-)
箱壳：9mm中纤板
表面处理：黑色小点漆
单元：低音：4″×4（25芯）80磁钢 ；
高音：1″×1（25芯，25mm喉口）20磁钢
规格（mm）：W142xD185xH600
净重：约6kg
注：以上数据由得胜实验室测试得到，并拥有最终解释权！
技术参数
安装方式
音乐模式，请将（Mode）开关拨动到（Music）档；
人声模式，请将（Mode）开关拨动到（Speech）档；
平滑模式，请将（Mode）开关拨动到（Flat）档。
播放模式
支架安装/壁挂安装
GB/8898-2011
9TSC044S1A

ESC-044 Column speaker
Dear customer,
Thank you for purchasing ESC-044 column speaker. Please read
user manual carefully before operation and keep it for reference in
future.
1. This column speaker consists of four 4 inch 25mm cone woofers and one
25mm NdFeB tweeter. The woofer features elastic and durable rubber
surround for quick and dynamic MFLF and symmetric magnet design for low
harmonic distortion. Widerhorizontal directivity and narrower vertical
directivity for farther transmission.
2. The crossover is designed with low consumption OFC inductor, high
quality polypropylene capacitor for reliable performance and prominent
sound.
3. Trapezoidal enclosure and acoustic foam eliminate the standing wave
inside,and make the MFLF purer and frequency response flatter. The slender
enclosure suits for various installation.
4.Correcting circuit can adjust the sound brightness. Playing mode switch
can select from 3 modes to suit for different applications: music mode, vocal
mode, flat mode.
Features
ESC-044 column speaker................................................................2pcs
Wall mounting stand...................................................................... 2pcs
User manual......................................................................................1pc
Rated Power：160W(AES)
Rated Impedance：8Ω
Frequency Response（±3dB）：158Hz-20kHz
Sensitivity（1W/1M）：95dB
Coverage：H150°×V90°
Max SPL：114dB
Crossover：two way
Crossover Frequency：2800Hz
Installation：wall mounting/stand
Connector：2×NL4speakon (IN1+、1-)
Enclosure：9mm MDF
Finish：black painting
Unit：LF：4″×4（25mm）80 magnet ；
HF：1″×1（25mm，25mm throat）20 magnet
Dimension（mm）：W142xD185xH600
Net Weight：approximate 6Kg
To avoid electric shock, over temperature, catching fire, explosion,
mechanical risk and hurt or property loss caused by improper use, please read
the following items carefully before operation:
1.Please check if the power of the connected equipment matches with that of
this product before operation. Adjust the volume to proper level during
operation. Do not operate at over-power or high volume level for a long time to
avoid abnormal functioning or hearing loss.
2. If abnormal phenomenon (smoke, abnormal smell) happens, please turn off
the power switch and disconnect the power plug with power socket, and send
the product to local dealer for maintenance.
3. The product and accessories should be put in dry and ventilated place rather
than humid or dusty environment. Prevent the product from liquid, rain, water,
over-colliding, throwing, vibra-
ting, vent hole covered to avoid function destroyed.
4. When the product needs to be installed on wall or ceiling, please fix it tightly
to avoid dropping risk.
5. Please abide by safety rules during operation. Do not use the product in the
place prohibited by regulation or law to avoid accident.
6. Do not disassemble or repair the product by yourself to avoid hurt. If you
have question or need service, please contact the local dealer.
Set the mode switch to Music for music mode.
Set the mode switch to Speech for vocal mode.
Set the mode switch to Flat for flat mode.
Product content
Caution
Reinforcement or background music playing in conference room, multifunction
hall, large supermarket;
Application
Specification
Playing mode
Note: the above data is obtained from the test of Takstar laboratory, and Takstar
has the final interpretation right!
Installation
Wall installation and stand mounting
Note
1. Please make sure that the power and impedance of the power amplifier
and the speaker match, and the unbalanced matching may cause
equipment damage or poor sound quality.
2. When operation, please set the toggle switch to the corresponding
mode according to the actual operation needs to ensure the required
sound quality.
3. During operation, put the front of the speaker facing the audience area
to ensure a better sense of listening.
4. Ask professional technician for installation, which shall be fixed firmly
and installed in a position hard to reach.
5. When carrying the speaker cabinet, please handle it with care to prevent
the speaker from damage.
