Tanco Autowrap 1300 S Service manual

TANCO AUTOWRAP
1300 S & SM
OPERATORS HANDBOOK
WD66-1300 S-M1205
Tanco Autowrap Ltd.
Royal Oak Road
Bagenalstown
Co. Carlow
Ireland
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: www.tanco.ie

2
Tanco Autowrap 1300 S
Operator’s manual
GUARANTEE
Subject to hereunder provided, the sellers undertake to correct either by repair or at their election by replacement
any defect of material or workmanship which occurs in any of its goods within twelve months after delivery of such
goods to first user, with the exception of contractors or commercial users when warranty period is six months.
In respect of Autowraps the warranty period is for 12 months or 8000 bales, whichever occurs first.
In respect of Aerways, tine breakage will be assessed on an individual basis in every case.
The term goods when used in this document means the article or articles described in invoices as sold by the sellers
but dose not include equipment or proprietary parts or accessories not manufactured by the sellers. The sellers,
however, undertake to pass on so far as they legally can to the first user the benefit of any warranty given to the
sellers by the suppliers of such equipment, parts or accessories.
This understanding shall not apply to:-
(a) Any goods that have been sold by the first user.
(b) Any goods which have been injured by unfair wear and tear, neglect or improper use.
(c) Any goods the identification marks of which have been altered or removed.
(d) Any goods that have not received the basic normal maintenance such as tightening of bolts, nuts, tines,
hose connections and fittings and normal lubrication with the recommended lubricant.
(e) The use of any product on tractors exceeding the recommended horsepower.
(f) Any goods that have been altered or repaired other that on instruction or with the written approval of
the seller or to which any part not manufactured or having written approval by the sellers have been
fixed.
(g) Any second-hand goods or parts thereof.
Any allegedly defective part or parts returned to the seller must be sent carriage paid. No claim for repair or
replacement will be entertained unless upon discovery of the alleged defect written notification is sent to the Sellers
giving, at the same time, the name of the Buyer from whom the goods were purchased and the date of purchase,
together with the full details of the alleged defect and the circumstances involved, also the serial number of the
machine etc.
The sellers shall be under no liability to their Buyers and first or subsequent users of their goods or to any other
person or persons for loss or damage howsoever arising in respect of either personal injuries or for arising out of, or
in any other way connected with or arising from the manufactures sale, handling, repair, maintenance, replacement
or use of its goods or the failure or malfunction of any of its goods.
Representation and/or warranties made by any persons (including Buyers and employees and other representatives
of the Seller) which are inconsistent or conflicting with these conditions are not binding upon the sellers unless
given in writing and signed by a director of sales.
CLAIMS
If you wish to make a claim under the guarantee:
1: Immediately, stop using the machine.
2: Consult with your Tanco dealer (supplier). He/She can download a warranty claim form on-line. This
should be filled out and e-mailed to distributor and forwarded to relevant contact person in Tanco. Please
ensure all relevant information is included on this form
3: Consult with your Tanco dealer (supplier)and have him forward your claim and the damaged item to
Tanco.

3
Tanco Autowrap 1300 S
Operator’s manual
USER'S MANUAL
TANCO AUTOWRAP 1300 S
CHAP. CONTENTS PAGE
1.0 INTRODUCTION 5
2.0 SAFETY PRECAUTIONS 6
3.0 GENERAL INFORMATION ON BALEWRAPPING 9
4.0 SETTING UP / MOUNTING OF THE MACHINE 11
5.0 EMERGENCY STOP* (Instant stop) 14

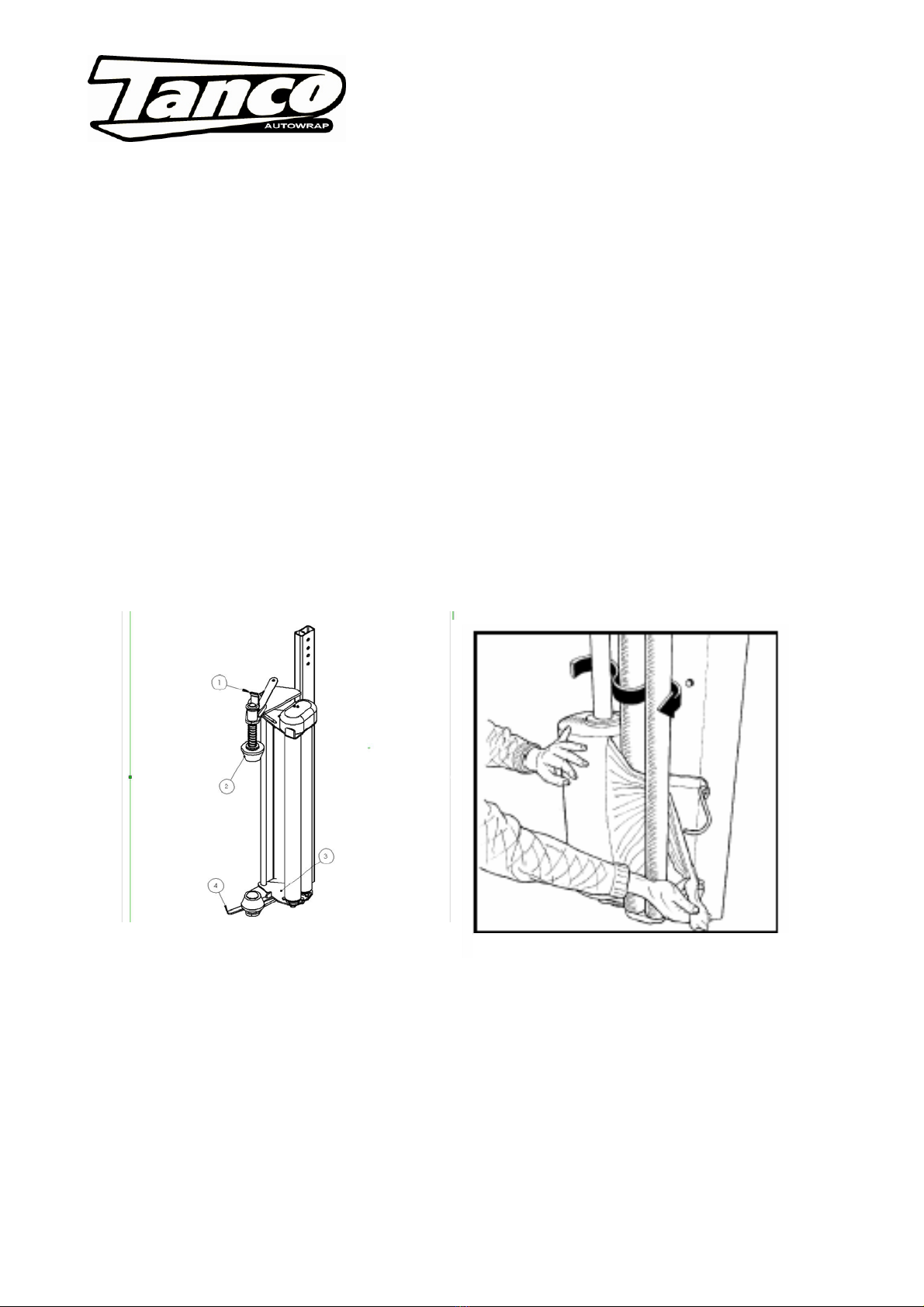

6.0 MOUNTING OF PLASTIC FILM 14

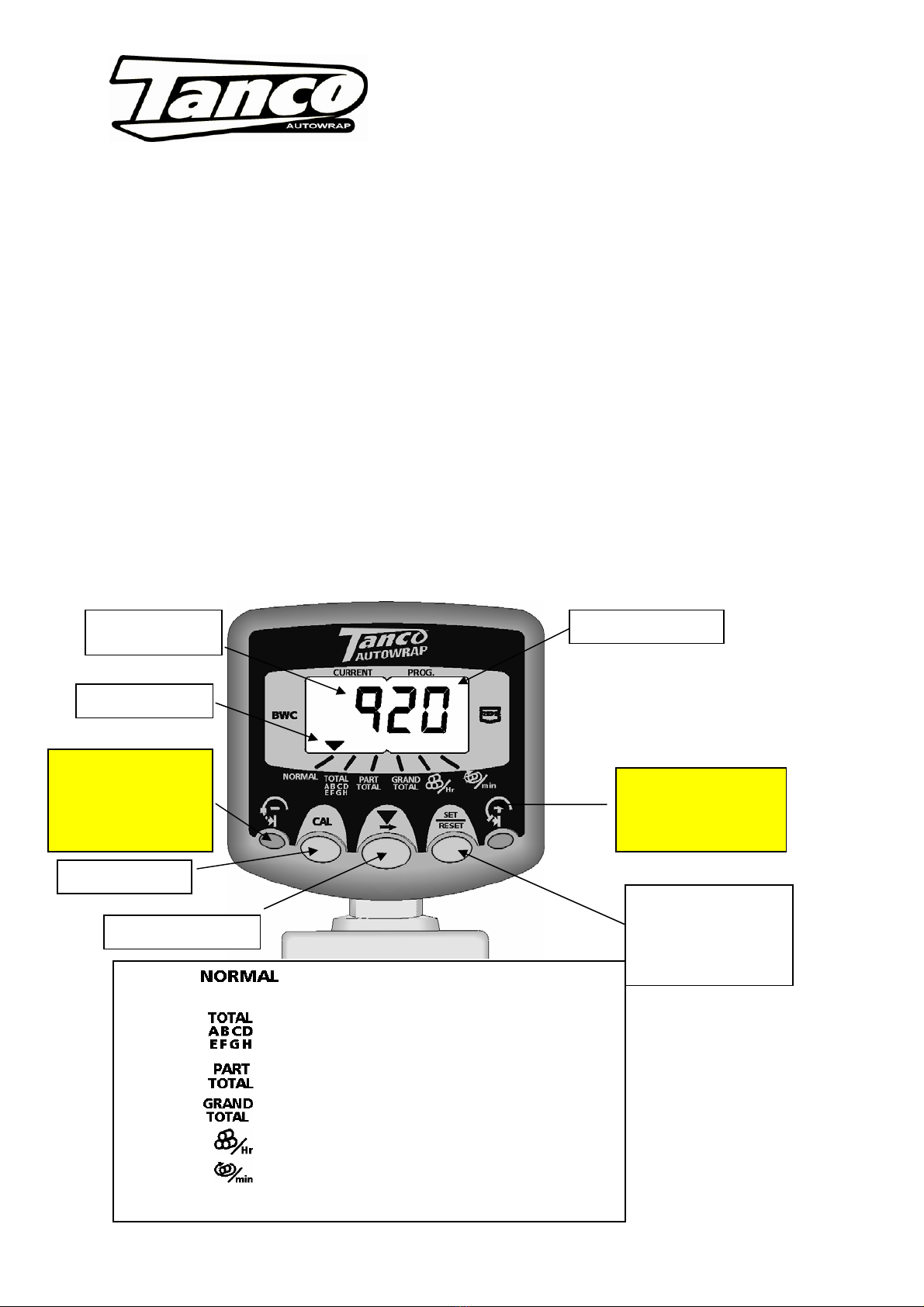

7.0 CONTROLLER MANUAL 16
8.0 SPEED SETTING OF THE WRAPPING ARM 23
9.0 ADJUSTING THE OVERLAP 23
10.0 OPERATING INSTRUCTIONS 24
11.0 PERIODIC MAINTENANCE 26
12.0 ELECTRIC CIRCUIT 27
13.0 DESCRIPTION OF HYDRAULICS 29
14.0 CHECK POINTS BEFORE TROUBLE SHOOTING 31
15.0 PROCEDURE OF TROUBLE SHOOTING 32
16.0 TROUBLE SHOOTING 33
17.0 HYDRAULIC CHART 34
18.0 DECLARATION OF CONFORMITY 35

4
Tanco Autowrap 1300 S
Operator’s manual

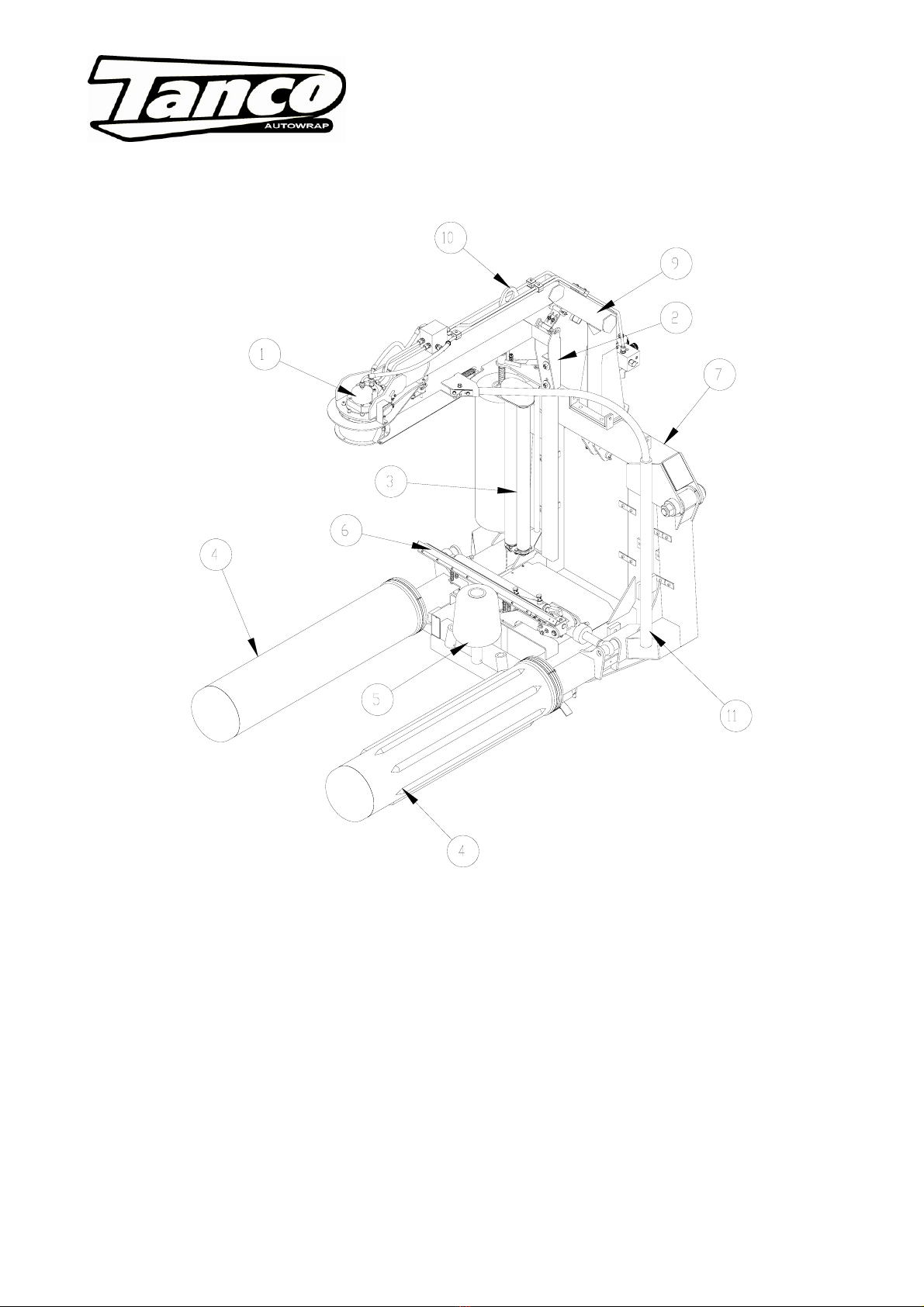

TANCO AUTOWRAP 1300
Bale wrapping machine
1. Wrapping arm motor 7 Main frame
2. Wrapping arm 8 Speed control
3. Film Dispenser 9 Tower
4. Rollers 10 Lifting Eye
5. Bale stop roller 11 Emergency stop*
6.CutandStart

5
Tanco Autowrap 1300 S
Operator’s manual
1.0 INTRODUCTION.
Tanco Autowrap Ltd congratulates you with the choice of TANCO AUTOWRAP bale wrapping
machine. We are certain you will be satisfied with the machine, and that you will have the
pleasure of your investment for many years.
The TANCO AUTOWRAP bale wrapping machine has more features than any other bale
wrapping machine available. TANCO AUTOWRAP can pick up the bale, wrap and stack them
without the operator leaving the tractor cab. This system is protected by patent laws.
TANCO AUTOWRAP 1300 is hydraulically driven by the tractors hydraulic system, and is
controlled from the tractor cab. The machine can either be mounted to three point linkage, front
mounted with quick-couplers to the tractors front loader or on a wheel loader. Then it's possible
to stack the bales upon each other.
TANCO AUTOWRAP 1300 is designed to wrap bales of grass, hay or straw, with nominal
diameter of 1.1-1.5 m, and weights up to (1200kg). The machine was developed and has been
improved since it’s beginning in 1986, and is now a very reliable and safe machine with high
security built in.
This manual is meant to explain how TANCO AUTOWRAP is prepared, mounted, used and how
it works, and shall together with the spare part's list be a reference for maintenance and
troubleshooting. So take good care of the books, they are a part of the machine.
Read carefully through this manual, and specially chapter 2.0, safety instructions, before starting
the machine, and follow the instructions thoroughly. If problems should occur, check with chapter
16.0, and try to find out what is wrong. Ask your dealer for advice before you make the problem
worse than it is.
* EMERGENCY STOP. Tanco Autowrap 1300 is equipped with a so-called emergency stop
on the wrapping arm. This device stops all functions momentarily, but is per definition not
an emergency stop, because it does not shut down the inputs. But it has the same
function, so we have decided to call it an emergency stop in this manual.
Technical Specifications AUTOWRAP 1300 S
Height in working position, min. / max.
Width, min. / max.
Length, min. / max.
Weight
Wrapping arm speed, recommended
Wrapping arm speed, max.
Bale size, max.
Bale weight, max.
Capacity
Pre-stretcher
Hydraulic connection
Oil pressure / amount, min.
Oil amount, max.
Counter pressure, max.
Electric connection
2420 mm
1300mm
2450 mm
590 kg
22 revolutions' per minute
27 revolutions' per minute
1500 mm Diameter
1200 kg
Approx. 25 bales per hour
750 mm
1 no. Single Acting Service, + free return
1 no. Double Acting Service
180 bar / 15 liters per minute
40 liters per minute
10 bar
12 V DC
Tanco Autowrap Ltd can change the construction and/or technical specifications without warning
and without rights to changes on already delivered products.
© Copyright. All rights reserved. Any copying and reproduction of this manual is not permitted
without permission from Tanco Autowrap Ltd. With precaution of printing failure.

6
Tanco Autowrap 1300 S
Operator’s manual
Fig.: 2-1
2.0 SAFETY PRECAUTIONS.
Tanco Autowrap Ltd does not take responsibility for damages that may occur to machine,
persons or other equipment, because of the machine NOT being used as described in this
manual, or because of the safety precautions NOT being followed.
2.1 SAFETY EQUIPMENT.
Before using the machine, make sure that all guards and covers are securely fitted. The machine
must not be operated if a function does not work as described later in this manual. (See chapter
2.5).
2.2 BECOME FAMILIAR WITH THE OPERATIONS OF THE MACHINE.
If you are unsure how to operate the machine properly, either use of or maintenance to your
Tanco autowrap, please contact your Tanco autowrap dealer.
2.3 ADJUSTMENTS / MAINTENANCE.
Turn off the tractor and discharge the oil pressure before performing any adjustment or
maintenance on the machine. Remember that a well maintained machine is a safe machine.
2.4 IMPORTANT!
ALWAYS MAKE SURE THAT NOBODY IS IN THE HAZARD AREA OF THE WRAPPING ARM
WHEN THE MACHINE IS IN USE.
THE MACHINE MUST NEVER BE OPERATED BY PERSONS WHO DO NOT KNOW
ENOUGH ABOUT HOW TO SAFELY OPERATE THE MACHINE, OR BY PERSONS UNDER
16 YEARS OF AGE.

7
Tanco Autowrap 1300 S
Operator’s manual
2.5 DANGEROUS AREAS.
Tanco Autowrap Ltd has given the safety to the operator the highest priority, but it is still
impossible to secure oneself of every danger area on the machine. Therefore we will now go
through some of the dangers that can occur when using the Tanco autowrap bale wrapper.
1. IMPACT OF THE WRAPPING ARM.
During the wrapping process the arm rotates with a speed of 20-27 revolutions per
minute around the bale. On the arm is mounted a Film dispenser unit with a plastic roll.
The speed on this can give a person serious injuries if one enters the working area of the
wrapping arm. To reduce this danger we have mounted an emergency stop* device on
the wrapping arm, this stops all movement instantly when someone comes in the way of
it. It is very important that this protection always works and that it should not
under any circumstances be disconnected.
(See more about the emergency stop* in chapter 5.0).
2. SQUEEZE-DANGER BETWEEN THE MAIN FRAME AND THE WRAPPING ARM.
As earlier explained, we have a wrapping arm with a Dispenser and a plastic roll. During
every revolution the wrapping arm passes the main frame. Here there may occur a
squeeze danger if a person stands to close to the main frame when the wrapping arm
passes. The distance between the main frame and the wrapping arm is not large enough
to give place for a person. Between the pre-stretcher and the bottom frame there can
also be a squeeze danger.

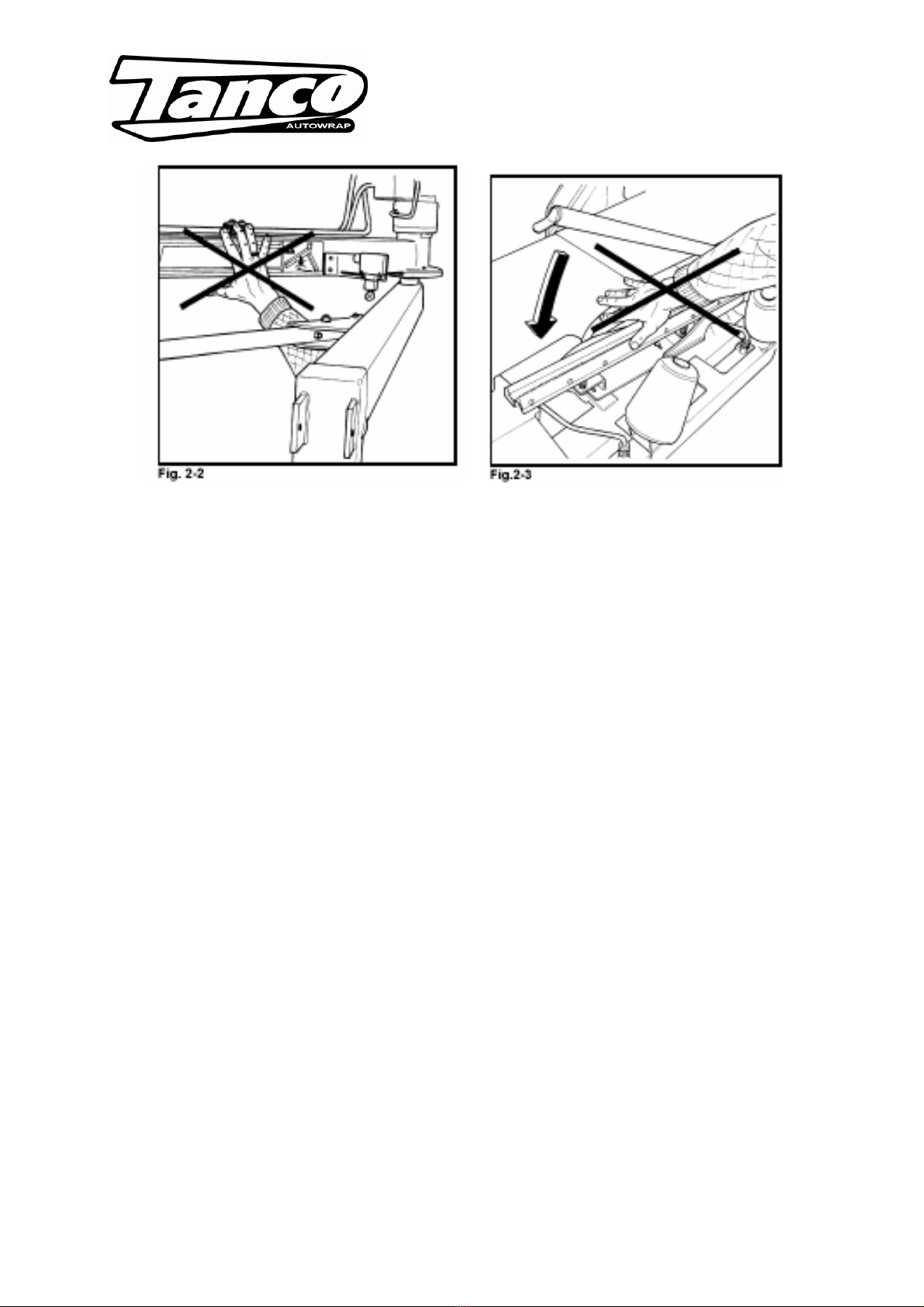

3. SQUEEZE-DANGER BETWEEN THE STATIONARY AND WRAPPING ARM.
During the main wrapping process the wrapping arm moves around a stationary arm.
Every time the wrapping arm passes the stationary arm, there is a squeeze danger that
can be dangerous for the fingers. The distance between the stationary and the wrapping
arm is between 25-40 mm. (See fig. 2-2).
4. SQUEEZE DANGER BETWEEN THE ROLLERS AND THE MAIN FRAME.
During the wrapping process the bale rotates on two rollers. When the rollers are in
motion there is a danger of being squeezed.
5. SQUEEZE DANGER BETWEEN ROLLER ARMS AND MAIN FRAME, INWARDS.
When loading a new bale, the roller arms move towards the main frame, Beware of the
danger. Keep clear of this area.

8
Tanco Autowrap 1300 S
Operator’s manual
6. SQUEEZE DANGER BETWEEN ROLLER ARMS AND MAIN FRAME, OUTWARDS.
When loading or unloading a new bale, the roller arms move outwards. Beware of the
danger. Keep clear of this area.
7. SQUEEZE DANGER CAUSED BY CUT AND START UNIT.
At the end of the wrapping process the plastic is cut and held tight until the start of the
next wrapping process. When the cutter arm moves down to lock the plastic, there can
occur a squeeze danger between the cutter arm and the cutter holder. The cutter blade
that cuts the plastic is very sharp, so keep hands away from the cutter. (See fig. 2-3).
2.6 LOCKING THE WRAPPING ARM.
When the machine is not in use, make sure the locking stay for the wrapping arm is secured, and
that the locking bolt is fitted. If the locking stay is not secured, the wrapping arm and/or the
machine could be damaged during transport.
2.7 THREE POINT MOUNTING.
When the machine is mounted on the three point linkage, make sure that the lifting arms are
tightened up so there is no sideways movement. Ensure rear window is closed or that it
cannot be hit by the Tower when the 3 point linkage is raised.
2.8 FRONT MOUNTING.
If the machine is mounted on a front loader there must be a counterweight fitted to the three point
linkage. It must be large enough to give the tractor good stability.
Connecting heavy working implements often has an overall negative effect on
the tractor's driving and braking capacity.
2.9 TRANSPORTING.
When transporting on a public road there are certain safety measures that must be taken:
1. Make sure that the locking bolt on the wrapping arm is mounted. (Chapter 2.6).
2. Move the main rollers fully inwards.
3. Always transport the machine in the lowest possible position.
4. Make sure that the machine does not cover the tractors lights. If necessary, mount extra
lights.
5. Make sure that at least 20% of the tractor's total weight is on the steering wheels.
6. If the machine is front-mounted, it's necessary to balance the weight with a counterweight
mounted to the three-point linkage.

9
Tanco Autowrap 1300 S
Operator’s manual
3.0 GENERAL INFORMATION ON BALE WRAPPING.
3.1 THE PRINCIPLE.
The advantages of round bale silage are many, and include fewer feed units, a flexible harvesting
system, large capacity and the possibility of selling feed units.
In principle, the same fermentation processes occur whether the fodder is placed in a silo or
pressed into bales and packed in plastic, i.e. lactic acid fermentation in anaerobic conditions. The
oxygen in the bale must be exhausted before fermentation begins.
The grass should be dried to approximately 30-40% solid content. The solid content can be
determined by twisting the grass by hand. If drops of liquid are forced out of the grass, the solid
content is less than 25%. Low solid content, (wet grass), can lead to increased butyric acid
fermentation if preservatives are not added to the grass. If the solid content is too high, (over
50%), normal fermentation will not take place and there will be enough oxygen in the bale to
produce mould fungus.
3.2 THE BALER.
It is vital that the baler produces compact, well-formed bales, as misshapen bales can be difficult
to wrap. Wrapping will also often take longer, thereby increasing the amount of plastic used.
3.3 DIFFICULT BALES.
When a misshapen bale is wrapped, it will have a tendency to move outwards or inwards on the
roller. If the bale begins to move outwards, the machine must be lifted slightly at the rear edge to
get the bale to rest against the support roller on the main frame. It can therefore be useful to use
a hydraulic top link to make this adjustment easier. (See chapter 4.2).
If the support roller almost disappears into the bale the machine should be pressed down slightly
at the rear edge in order to remove the bale from the machine. The plastic can be damaged when
friction against the roller increases. Best results are achieved when the bale rolls easily against
the support roller all the time.
If the bale to be wrapped is conical you must ensure that the sharp end is pointed at the tractor. It
will then be easier to get the bale to lie correctly during packing. It is easy for such a bale to "turn"
forward in the direction in which it is pointing, and therefore lie against the support rollers. If the
bale is lying on a slope it must be picked up from the lower side. A hydraulic top link will again be
advantageous.
3.4 TYPES OF PLASTIC.
A good type of plastic with good adhesive properties, and which is recommended for bale
wrapping, must be used. The thickness of the plastic foil should be at least 25 µ. (25/1,000 mm).
In order that the plastic tightens sufficiently around the bale, it is stretched before being wrapped,
so it is somewhat thinner when it is put on the bale. With short-term storage, (up to eight weeks),
it is recommended that bales have a minimum of four layers of plastic at the thinnest points, with
at least 52-53% overlap.
For long-term storage, or when the grass is wet when it is wrapped, the bale should have 90-100
µ plastic, (6 layers), and the same amount of overlap. If thinner plastic is used, more layers
should be applied. If it is very hot the plastic will be stretched further, and more layers should be
applied. It is better to have slightly too much than too little plastic on the bale.
From experience, light plastic produces slightly lower temperatures within the bale, and tends to
improve feed quality.

10
Tanco Autowrap 1300 S
Operator’s manual
3.5 STORAGE LOCATION.
Care should be taken in finding a suitable location for the storage of bales. The storage location
should preferably be prepared before the bales are laid out. An elevation close to well-drained
roads is recommended. If the wrapped bales are simply placed on stubble there is a danger of
the plastic being pierced. A tarpaulin or a thin layer of sand should therefore be laid where the
bales are to be stored over the winter.
Bales should be stored in the shade as far as possible. This reduces the danger of air leakage in
the bales. A bale which is stored in sunlight and which therefore undergoes greater swings in
temperature "pumps in" a great deal of air in comparison to a bale stored in the shade. According
to "Teknik for Lantbruket" [Technology for Agriculture] in Sweden, a bale stored in the shade has
only 40% of the air leakage of a bale which is stored in sunlight.
3.6 STACKING / PROTECTION.
If bales are hard and well formed, they can be stacked vertically, but loose and misshapen bales
with low solid content should not be stacked higher than one layer, as this could easily cause
deformity and the danger of runoff will be increased.
Bales can also be stored on their sides. The layer of plastic is thicker here, providing greater
protection against piercing.
Bales should be covered with a tarpaulin or a fine-mesh net to protect against birds and small
rodents. If the plastic is pierced, it must be sealed with weatherproof, hard-wearing tape,
preferably under the outermost layer of plastic. Ensure that the hole is adequately sealed.
3.7 The best wrapping results are obtained by...
...harvesting the grass early.
...drying it out to 30-40% solid content. If there is a danger of rain, bale and wrap the
grass anyway.
...taking care not to mix any earth in with the grass.
...using a baler that produces even, firm bales.
Bales 1.2 m in width and with a diameter of 1.2-1.5 m are the preferred sizes.
...wrapping the bales soon after baling, never later than two hours afterwards.
...using a good plastic type and six layers of plastic. This removes the need to use
preservatives.
...storing bales in the shade to reduce the danger of air leakage.

11
Tanco Autowrap 1300 S
Operator’s manual
4.0 SETTING UP / MOUNTING OF THE MACHINE.
Be careful! There is a danger of being crushed when working implements are fitted and
connected. Carry out the fitting procedures slowly and carefully, and use separate and
approved lifting equipment to make the work easier. See section 2 on safety regulations
and pay attention to the various safety decals displayed on different parts of the bale
wrapper.
4.1 THREE POINT LINKAGE.
TANCO AUTOWRAP 1300 is intended for rear mounting to the three point linkage, category 2.
When attached to three point linkage, make sure the machine is level across the tractor. Tighten
up and lock the lifting arms so there is no sideways movement.
4.2 TOP LINK.
Adjust the top link of the tractor so that the machine is level with the ground. It is recommended to
use a hydraulic top link, as this makes it easy to adjust the angle of the machine.
During the wrapping process it is recommended to tilt the machine towards the tractor, as this will
prevent the bale from falling off the rollers. (See fig. 4-1).
4.3 FRONT MOUNTING.
As extra equipment the machine can be equipped with quick-couplers for front loader or wheel
loader.
(See spare parts list chapter 2-4 for what types of quick couplers there are).
You also need longer hydraulic hoses. (See spare parts list chapter 4-2 for more details).
When front-mounted there must be a large enough counterweight fitted to the three point linkage,
this is to secure the tractors stability.

12
Tanco Autowrap 1300 S
Operator’s manual
4.4 CONTROL BOX 1300 S
1300 EH Controller 1300 S controller – Wrap counter also
operates Cut and Tie.
4.5 ELECTRIC CONNECTION.
The electrical supply cable for the 1300S machine is terminated in a “Cobo” power plug, this
should be used where a compatible socket is available on the tractor. There is a 5 Amp inside
the Cobo plug.
If such a socket is not available it is recommended to connect directly from the tractors' 12
volt battery.
The electric wires from the battery must have an area measurement of min. 2,5 mm2and
have a 5amp fuse overload protection.
Connection to other contacts on the tractor can cause risk of malfunction, and is not
recommended.
BROWN LEADER GOES TO BATTERY PLUS POLE
BLUE LEADER GOES TO BATTERY MINUS POLE
4.6 CONTROL UNIT 1300 S.
The control unit should be attached to a suitable place in the tractor cab.
THE CONTROL UNIT IS NOT SHOCK-PROOF. MAKE SURE THAT IT IS FASTENED TO A
SOFT PAD THAT SECURES A NON-VIBRATING FOUNDATION.

13
Tanco Autowrap 1300 S
Operator’s manual
4.7 HYDRAULIC CONNECTION. (See Fig. 13-1)
The 1300S machine uses two of the tractors remote valves to operate. One valve operates the
wrap arm rotation and cutter, the second valve operates the rollers in (loading) and rollers out
(unloading) function.
There are 4 no. hydraulic connections between the 1300S machine and the tractor. They are
divided into two pairs, one pair connected to one side of the entry block (marked ‘P’ and ‘T’ on
the side of the block) and the second pair connected to the opposite side of the block (marked
‘R+ and ‘R-‘).
The hose from P can be connected to either a single or double acting service on the tractor, this
is the hydraulic supply for wrap arm rotation and cutter.
The hose from T (fitted with a female Q/R coupling) must be connected to a free return to
tank. This is the return from the wrap arm rotation and cutter. The Cutter will not operate
correctly if this is not a free return.
Hoses from R+ and R- should be connected to a double acting service on the tractor. This is the
hydraulic supply for rollers in and rollers out.
The 1300 SM is equipped with a two bank, cable operated valve. This requires just two
connections, a Feed and return. If possible arrange for a free return for the Return line as this
eliminates the risk of Hydraulic lock. This occurs if you try to send oil in the opposite direction
against the non-return valve. This results in pressurized oil between the non-return valve and the
quick coupling and prevents connection of the quick coupling. The only way to discharge the
pressure is to open the quick coupling using two 27 mm spanners.
The hydraulic hoses between machine and tractor are equipped with 3 no. 1/2" ISO male quick-
couplers and 1 no. female coupler. Discharge the oil pressure before you connect the oil hoses.
Use the tractors' hydraulic lever.
To make sure that the bale wrapper works properly, the tractors' oil pressure has to be at least
180 bar. The oil flow should be 25 - 40 liters per minute.
4.9 CHECK LIST.
Before using the machine it is recommended to follow this check list:
1. Make it a habit to discharge the oil-pressure before connection or disconnection of the
hydraulic hoses. (By operating the hydraulic control lever inside the tractor). (Use the
tractors hydraulic control lever).
2. Tie up loose hoses so that no squeeze damages occur.
3. Remove the locking bolt that holds the wrapping arm to the frame during transport.
4. Start the tractor and try out the functions, pull and hold the tractors single acting hydraulic
lever (note you must press the ‘Reset’ button on the controller for the wrap arm to
operate), the Cutter should automatically open and close on the second turn and also on
the last set turn the wrap arm will go into slow speed and the cutter will open, when you
hear the controller bleep release the hydraulic lever, the arm rotation will stop and the
cutter will close.
Check the operation of the roller arms out and in on the second service.
8. Check all connections, hoses and couplings. If there is any oil-leakage, it should be
rectified immediately.
If any problems should occur, it is most likely that the failure is in the quick-couplers on
the tractors pressure and return-connections.
Make sure that both the male and the female-couplers open properly for the oil flow. Check
Your TANCO AUTOWRAP bale wrapper has been tested in practical operation in approx. 2
hours at the factory.

14
Tanco Autowrap 1300 S
Operator’s manual
5.0 EMERGENCY STOP*.
5.1 The machine is equipped with a safety guard on the wrapping arm, and its operation must be
tested before work itself is started.
5.2 The emergency stop* is to prevent the wrapping arm from damaging people and objects, when
the machine is started and during the wrapping process.
5.3 It consists of a releaser hoop that activates a small electric switch, which gives a signal to the
control box to start the emergency stop.
5.4 When testing this function, start the wrapping arm. Hold out an arm or any obstacle. The wrapping
arm shall now stop before it hits the arm. Great care must be taken when testing this function.
5.5 To restart the machine the obstacle must be removed and the arm must be returned to its original
position. The ‘Reset’ switch on the control box must be pressed to allow wrapping to start again.
5.6 IMPORTANT: GIVEN THE VELOCITY AND MOMENTUM OF THE ARM IT IS IMPOSSIBLE TO
STOP THE WRAP ARM IMMEDIATELY. THE EMERGENCY STOP ARM IS PROVIDED TO HELP
REDUCE THE RISK OF SERIOUS INJURY AND GREAT CARE MUST BE TAKEN WHEN
OPERATING THIS MACHINE.
6.0 MOUNTING OF PLASTIC FILM.
Fig.: 10-2
Fig.: 10-1
When loading a plastic roll, first ensure the top cone (2) is pushed up to latched position, then push back
the Stretch rollers (3) until held in position by locking catch (4). .
Place the Roll on the Bottom Cone and release the top latch (1). Beware of Fingers!
Pull the film between the rollers on the pre-stretcher in the direction of the arrow. (See fig. 5-2). (See also
the sticker on the dispenser).
Release the locking catch and allow the rollers to lie against the roll of film. Pull the film from the roll and
tie it to the bale.

15
Tanco Autowrap 1300 S
Operator’s manual
6.1 The standard film dispenser is designed for 750mm film. If using 500 mm film an adaptor is
required which must be ordered separately. See parts book and contact your dealer.
6.2 Height adjustment of pre-stretcher / plastic film.
The plastic film should hit at the middle of the bale wrapped, and therefore it can be necessary to
adjust the height of the pre-stretcher.
6.3 Tanco Dual Stretch Dispenser
Some Tanco Autowrap machines can optionally be fitted with a patented dual stretch gear system.
This system enables a quick change of stretch levels on the Film Dispenser.
If the bolt (1) is fitted in position 2, the top set of gears provide the stretch (70%).
By removing the bolt from position 2 and fitting it in position 3, the bottom set of gears become the stretch gears
giving 32% (for prestretched film) or optionally 55% (for use in hotter climates or with square bales).
Tanco Dispenser Gear Combinations
Inner Gear Outer Gear % Stretch
60 Tooth 35 Tooth 70%
58 Tooth 37 Tooth 55%

16
Tanco Autowrap 1300 S
Operator’s manual
7.0 S Controller Manual
7.1 Introduction
What can it do ?
7.2 The control switches
7.3 Using the instrument
7.3.1 Channel 1 - Current/Target Wraps display
7.3.1.1Manually reset Current Wraps to zero
7.3.1.2Programme Target Wraps
7.3.1.3Programme Early Warning Alarm
7.3.2 Channel 2 - Store Totals
7.3.2.1Display a Store Total
7.3.2.2Select a Store Total
7.3.2.3Reset a Store Total
7.3.3 Channel 3 - Part total
7.3.3.1Display Part Total
7.3.3.2 Reset Part Total
7.3.4 Channel 4 - Grand Total
7.3.4.1Display Grand Total
7.3.5Channel 5 - Bale Wrapping Rate
7.3.5.1 Display Bale Wrapping Rate
7.3.5.2 Reset the Timing Period
7.3.6Channel 6 - Bale Wrapping Speed
7.3.6.1 Display Bale Wrapping Speed
7.3.6.2 Programme the Overspeed Alarm
7.3.7 Total Reset
7.3.8 Programming Level 2

17
Tanco Autowrap 1300 S
Operator’s manual
3.1. Introduction
The instrument has 6 channel functions with an illuminated 4 digit LCD display, 5 switches to control all functions
and an internal alarm. An external alarm is optional.
The instrument is normally powered on via the vehicle ignition circuit and recalls the function displayed when the
instrument was last used.
What can it do ?
•Continuously displays the current number of wraps around the bale alongside the desired (Target) number of wraps
preset by the operator.
•Sounds an alarm at a preset number of wraps before the target number is reached.
•Automatically senses when the bale wrap sequence ends and records it to each of these memory registers:
(i) Grand Total
(ii) Part Total
(iii) One of eight selectable Store Totals
•Displays the number of bales wrapped per hour, within any desired time period.
•Displays bale wrapping speed in rpm, and sounds an alarm when a preset speed is exceeded.
•Film break alarm and automatic stop.
•Adjustable turntable stop position.
7.2. The Control Switches
There are five switches on the front panel used individually or in combination to programme, set/reset or select a
function.
Programme Key
Target No. of wrapsCurrent No. of
w
r
aps
Override the
automatic Cut &
Start opening on
final turn.
(
See Section 10.7
)
Put the wrap arm
into slow speed and
open Cut & Start.
(
See Section 10.7
)
Select Channel
Channel 1 ‘Normal’ display (Current/Target no. of Wraps)
Channel 2 Store Totals (A – H)
Channel 3 Part Total
Channel 4 Grand Total
Channel 5 Bale Wrapping Rate
Channel 6 Bale Wrapping Speed
Channel Indicator
Set Target Wraps
Set Alarm Threshold
Reset Totals

18
Tanco Autowrap 1300 S
Operator’s manual
7.3.0 Using the Instrument
7.3.1 Channel 1 - Current/Target Wraps Display
Press to select .
The left-hand section shows the current number of wraps and the right hand section shows the target number.
When the current number = Target number, the alarm will sound for 2 seconds and the display will flash. (If set, the
early warning alarm sounds beforehand).
Automatic reset of current number to zero normally occurs 5 seconds after the Target number is reached. If
additional wraps are added after the Target number is reached, the current number will continue to advance.
7.3.1.1 Manually reset No. of Wraps to Zero
Press to select .
Press and hold.
7.3.1.2 Programme the Target Wraps
Hold continuously.
The third digit flashes.
Hold to cycle to the required digit then release, otherwise press once…
The fourth digit flashes.
Hold to cycle to the required digit.
Release all.

19
Tanco Autowrap 1300 S
Operator’s manual
7.3.1.3 Program Early Warning Alarm
An early warning alarm can be programmed to sound from 1 to 9 wraps before the target number is reached.
Depending on the setting, the alarm will sound long beeps for up to 8 wraps, short beeps for the final wrap, and then
a continuous beep for three seconds.
For example, if the bale requires 22 wraps and you want an alarm at 20 wraps, then set the number to 2.
To effectively disable the alarm, set the number to 0.
Press to select .
Hold continuously.
The fourth digit flashes.
Hold to cycle to the required digit.
Release all.
7.3.2 Channel 2 - Store Totals
When bale wrap is complete, one of eight pre-selected memory store totals A, b, C, d, E, F, G, or H, is
automatically advanced by 1. Store totals can be reset individually.
3.2.1 Display a Store Total
Press to select .
The fourth digit displays the current store designation for 2 seconds.
The current total for that store then displays for five seconds, then defaults to
channel 1.
3.2.2 Select a Store Total
Press to select .
Select the desired store total (A – H).
This is now the default store, and subsequent bale counts are stored there
until another store is selected.

20
Tanco Autowrap 1300 S
Operator’s manual
3.2.3 Reset a Store Total
Press to select .
Select the desired store total (A – H).
Press and hold.
7.3.3 Channel 3 – Part Total
When the bale wrap is complete, the part total is automatically advanced by 1. The part total can be reset at any time
3.3.1 Display Part Total
Press to select .
Part total displays for 5 seconds then defaults to channel 1.
3.3.2 Reset Part Total
Press to select .
Press and hold for 5 seconds.
7.3.4 Channel 4 - Grand Total
When the bale wrap is complete, the grand total is automatically advanced by 1. The grand total cannot be reset.
3.4.1 Display Grand Total
Press to select .
Grand total displays for 5 seconds then defaults to channel 1.
