Tandberg Data RDX QuikStor User manual

RDX® QuikStor™
Internal USB and Internal SATA
12
34
5
USB or SATA Cable
Power Adapter Cable
Mounting Screws
AccuGuard License Activation Card
Note: AccuGuard software is only included with
selected RDX products
Quick Start Guide
1.
2.
4.
5.
3.
for USB 3.0
for SATA
Visit the support section of the Tandberg Data web site
(www.tandbergdata.com) for more information, including product
warranty and registration, knowledge base articles, user
documentation and technical support.
For More Information
WHAT‘S IN THE BOX?
The following power ratings represent typical-use performance
USB 3.0
DC Input Voltage and
Rated Input Current
SATA 5V/1.5A
Power Source
Power Ratings
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
FCC Compliance Notice
5V/0.9A and 12V/0.003A
for SATA
for USB 3.0
6
RDX Emergency Media Eject Pin
6.
For RDX Warranty Registration and
Technical SupportActivation visit:
http://registration.tandbergdata.com/
Available External RDX Drives:
8782-RDX: Tandberg RDX External USB3+ Drive, bare
8781-RDX: Tandberg RDX External USB3+ Drive, with software
(Includes AccuGuard Server for RDX deduplication backup software)
A SUBSIDIARY OF

1
2
3
Mount the RDX QuikStor
Install RDX Utility
Connect Data and Power Cables
Load RDX Cartridge
•
•
•
Write
Protect
Keyed
Corner
+5VDC
DATA -
DATA +
GND
Key
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB 0- 4 USB 1-
5 USB 0+ 6 USB 1+
7 GND 8 GND
9 Key 10 USBOC
1 2
9 10
USB SATA
Server
Front
RDX QuikStor
4
5Install AccuGuard Server
for RDX
USB 2.0 cable connector pin-out

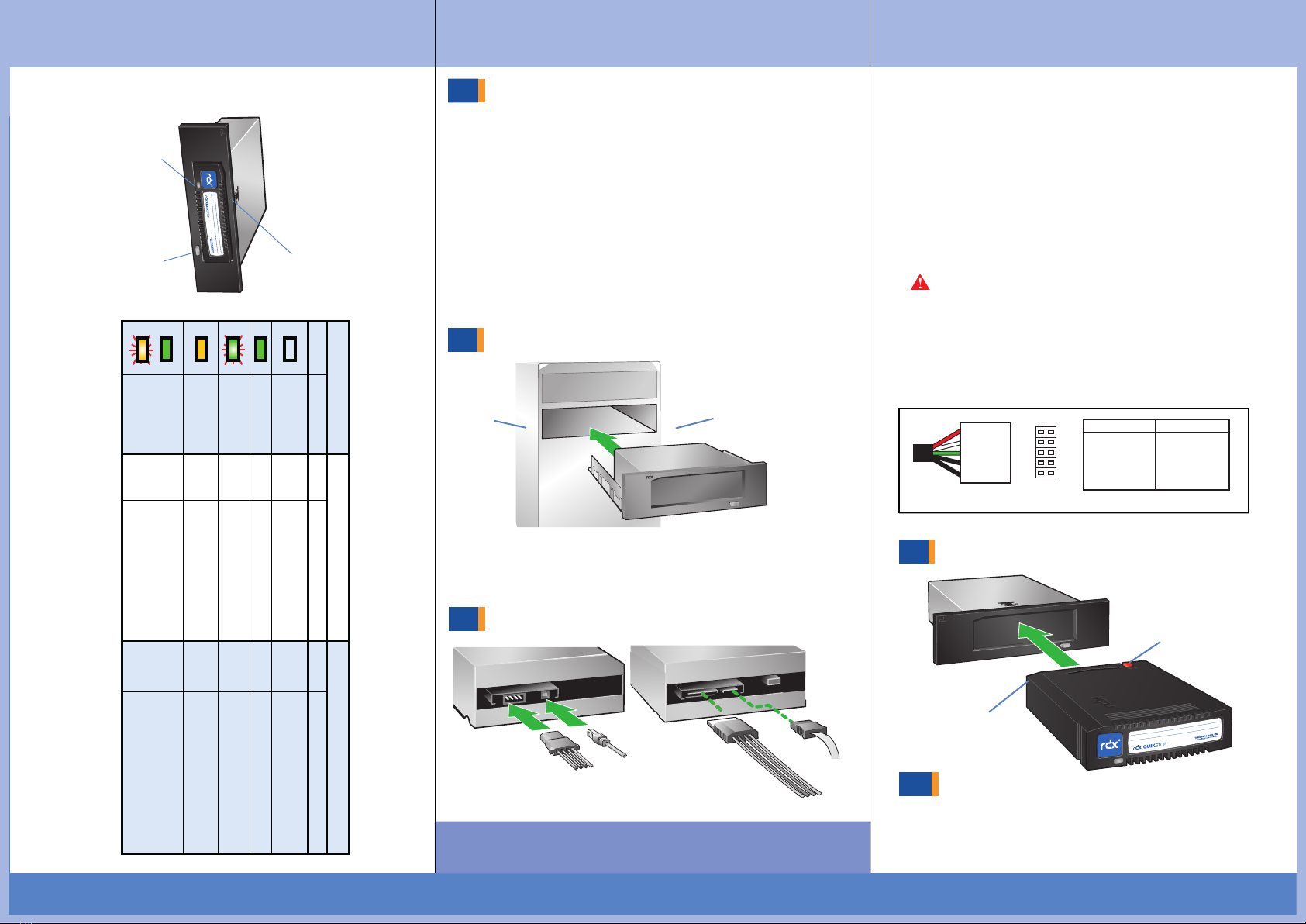

RDX QuikStor Features
and LED Status
Emergency Eject Hole
Eject Button/ Power LED
Activity LED
LED State Media LED Drive LED
Color Activity
Status Description
Status
Description
OFF
STEADY GREEN READY
READY
ACTIVITY
EJECTING
STEADY AMBER FAULT
FAULT
N/A
PREVENT
*
BLINKING
GREEN
STEADY GREEN
Blinking Amber
once eject button
is pressed
Media is not inserted properly or
is powered down due to low
power mode and host inactivity.
Media is ready
Reading,writing,seeking
RDX has detected a Media fault
condition. For more inform ation,
run a diagnostic application.
RDX has detected a Drive fault
condition. For more inform ation,
run a diagnostic application.
Drive is ejecting Media
RDX is ready and working properly
Drive does not have power.
NOT
READY
POWER
DOWN
Host com puter is access ing the
media and the us er has press ed the
Eject Button. The drive will eject the
media after the Host access
completes.
P/N 433822 Rev. J
START HERE

Note: The RDX Utility
installs only on Windows.
Go to www.Tandbergdata.com.
Choose “Support” from the main menu.
Click on “Drivers” and Downloads at the right hand side of the page.
Click the “Go”-Button near RDX QuikStor.
Choose “RDX_Utility.zip”.
Click on “Download RDX Utility”.
Register and download the RDX Utility.
Unpack the zip-file, start “setup.exe” and follow the installation
instructions.
Power off the computer and open the server cover.
Slide the RDX QuikStor into the drive opening.
Secure the dock with the four supplied mounting screws.
© 2016 Tandberg Data. All rights reserved. RDX QuikStor and AccuGuard are Trademarks of Tandberg Data. RDX is a registered trademark of Tandberg Data S.a.r.l. All other trademarks are the property of their respective owners.
Tandberg Data AccuGuard is only included with selected
RDX products. If your product includes a licence activation
card, follow the instructions for download and installation.
Connect the data cable to motherboard or controller card and then
connect both data cable and power cable to the back of the RDX
QuikStor. The Dock connections are keyed to ensure the correct fit.
SATA interface: SATA controller driver and BIOS support for
AHCI is required, please verify and enable AHCI before you install
the operating system on your computer device.
USB interface: If you encounter connectivity problems, please
order the appropriate aaccessory cable:
Partno. 1020916: USB 3.0 cable intern 810mm (2x10Pin to Type B)
Partno. 433820: USB 2.0 cable intern 810mm (Type B to 2.54 Pitch 5PIN)
Warning: Connecting the USB 2.0 cable incorrectly to the PC
will result in damage. Verify pin layout on the motherboard
versus the cable connector pin-out (see diagram). Consult
your motherboard manual for the pin1 location on the mating
USB connector.
Reinstall the server cover and turn on the computer.
Download and install the latest RDX drive firmware.
•
•
•
•
•
•
•
•
•
•
•
For further Product Information, Knowledge Base and
Technical Support visit www.tandbergdata.com
