Tanita WB-380 User manual

GB
Please read this nstruction Manual carefully and keep it
handy for future reference.
Temperature Range for Use : 5°C 35°C
Relative Humidity : 30% 80% (without condensation)
Temperature Range of Environment : -10°C 50°C
Range of Relative Humidity : 10% 90% (without condensation)
To avoid malfunctions, avoid storing the equipment where there is direct sunlight, significant temperature
changes, the risk of dampness, a large amount of dust, in the vicinity of fires, or where there is the risk
of receiving vibrations or shocks.
<Storage Conditions>
<Usage Conditions>
ELECTRONIC SCALE
WB-380
Instruction manual
Manual_WB-380_V1

2. Safety Notes
1. Table of Contents
GB
2
Warning Ignoring instructions highlighted with this mark could result in death or severe
injury.
Caution Ignoring instructions highlighted with this mark could result in injury or damage to
ro erty.
This mark indicates actions that are rohibited.
This mark indicates instructions that must always be adhered to.
Warning
The following outlines p ecautiona y measu es to be taken to avoid inju y to the use s of this device and
othe s, and to p event damage to p ope ty. Please familia ise you self with the contents to ensu e the safe
ope ation of this equipment.
2. Safety Notes ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••2
3. Part Names •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••6
4. Assembly nstructions •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••8
5. Functions•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••10
6. Set up••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••10
7. Power supply ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••11
8. Operation••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••12
9. Based on N H/WHO BM Guidelines••••••••••••••••••••••••••••••••••12
10.Measuring height procedure ••••••••••••••••••••••••••••••••••••••••••••••••••••13
11.Output data format•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••14
12.Troubleshooting•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••15
13.Specifications•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••16
Prohibited
Do not handle the lug with a wet hand.
Such action may result in electric shock, fire, or leakage.
Kee this equi ment away from flammable gas and oxygen rich environment.
No modification of this equi ment is allowed.
There is a risk of electrocution or injury. Nor can precise analysis be guaranteed.
Do not use double ada ters.
May result in fire.
Always…
Use only a correctly wired outlet.
Only genuine cables and equipments are allowed.

GB
3
Caution
Stand clear of the subject during measurement to ensure accuracy.
Always…
Kee away from water.
Do not jum on the equi ment.
Do not insert fingers into ga s and holes.
Do not a ly force to the dis lay.
The screen panel may break and cause injury.
Assist ersons with disabilities.
Another person should assist persons with disabilities who may not be able to take a measurement alone.
Be sure clean the scale latform with a ro riate disinfectant after each use.
Continually monitor both the subject and the equi ment for anomalies.
f an anomaly in the subject or equipment is discovered,take appropriate action, such as stopping the
equipment, while ensuring the safety of the subject.
Be sure to use the included AC ada ter.
Un lug the AC cable from the equi ment when moving it.
When not in use for a long time, un lug the AC Ada ter from the wall socket.
Inter retation of analysis results (e.g. evaluation of measurements and formulation of exercise
rogrammes based on results) must be erformed by a rofessional.
Weight loss measures and exercise based on self-analysis could be harmful to you health. Always follow
the advice of a qualified professional.
Prohibited

GB
4
For Accurate Measurements
Always…
Ensure the weighing latform is laced on a level and stable surface.
Avoid measuring in multi le locations with greatly differing tem eratures.
This may cause inaccurate measurements. Allow the equipment to stand for at least
2 hours before using if it is moved to a new location with a temperature difference
of 20°C or more.
Avoid subjecting the equi ment to excessive shocks or vibrations.
Use in a stable location.
Errors in measurements may occur if the device is used in an unstable location.
Scheduled Maintenance
Always…
U date settings, re lace items, or call for service as necessary according to the results of the
visual ins ections. Do not use the unit if you see any signs of damage. Equi ment that has been
damaged must be checked for ro er o eration by qualified ersonnel before using again.
TANITA recommends that each facility conduct eriodic checks of each unit.
1. Check the following at least daily:
• The unit is on a stable and level surface ie on a firm flooring, not on a thick carpet
2. Visually inspect the following at least weekly:
• The display for any damage or contamination
• All cables, cords, and connector ends for damage or contamination
• All safety-related labeling for legibility
• All accessories (sensors, electrodes, etc.) for wear or damage
3. Visually inspect the following at least monthly:
• Screws on equipment

GB
5

GB
6
Display Box
Release Screw Knob
Height Rod Arm
Platform
WB-380H
WB-380S
WB-380P
Platform
Display Box
Display Box
Accessories
AC Adapter
Screw x 4
Instruction Manual AC Adapter
Instruction Manual
Back Cover Front Cover
<WB-380H, WB-380P><WB-380S>
Battery Box
DC JackLid
3. Part Name
LR6 (AA Alkaline battery) x 4 LR6 (AA Alkaline battery) x 4

GB
7
쎱Symbols and their Meanings 쎱Control Panel
Display Unit On Output
Display Unit Off
Direct current
Select BM mode
Zero reset
Caution
Refer to the attached notes.
Adjust height for BM

GB
8
4. Assembly Instruction
Base (fully assembled and pre-wired to display assembly)
Cable (Base side)
Lower Pillar Assembly
Screw
Cable (Cables) (Top Head Display Assembly Side)
Top Head Display Assembly (fully assembled and pre-wired to base)
Back Cover
Front Cover
Top Height Rod Assembly (fully assembled with pivoting height measuring lever)
Height Rod Arm
Lower Height Rod Assembly

GB
9
For WB-380H For WB-380P
nstall the lower pillar into the
base using the four (4) screws.
nstall the lower pillar into the
base using the four (4) screws.
Push all the way down assem-
bled the top height rod to the
lower height lod opening on
the pillar.
Assemble the top head display
into the lower pillar inserting the
cable into lower pillar.
Connect the cable inside the bot-
tom of the lower pillar.
Connect the cables inside the
bottom of the lower pillar.
Attach the back cover and the front cover as shown. Attach the back cover and the front cover as shown.

GB
10
5. Functions
쎱Automatic Power Off
This equipment has an automatic power off function that automatically turns off the power in order to reduce
battery consumption.
If the display does not change for 30 seconds, the power will be automatically turned off.
6. Set up
쎱Flat and stable location
쎱Angle Adjustment
1) Fully release screw knob on the colum. 2) The indicator could select at 90-degree 2 positions be sure to screw
it tightly after setting the position.
Position the two (2) adjustable supporting feet on the base until they just make contact with the floor.

GB
11
7. Power supply
쎱AC adapter
AC adapter is much preferable when the scale will be used continuously.
1) Plug on the AC adapter. nsert
the AC adapter jack into the
DC Jack on the back of the
pole.
2) nsert the connecter into the
DC Jack on the back of the
indicator.
Plug on the AC adapter. nsert the AC adapter jack into the DC
Jack on the back of the indicator.
1) Pull up the battery case which located on top of display.
2) Ensure that the batteries are inserted with the correctpolarity.
3) push down the battery case completely.
4) Unplug the DC connecter on the back of the indicator.
Unplug the DC connecter.Or the scale wouldn’t work.
<Back side>
For WB-380H, WB-380P
For WB-380H, WB-380P For WB-380S
For WB-380S
쎱Batteries
Caution

GB
12
ONON
ZEROZERO
(or )
d
d
d
d
d
2. BMI Weighing
1) Turn on the power by pressing the key.
2) After all the segments flash, [0.0kg] is displayed.
3) The person to be weighed should still in the middle of the platform.
4) The weight will be locked-in and displayed on the display. “ (Hold)” sign will appear in the upper
left corner of the display.
5) Press the key (or ). The default height [170cm] will be displayed.
6) Set the height with the key.
7) Once the height and weight have been established, press the key.
The weight and BMI calculation will then be displayed.
When the scale is connecting to an external device, weight, height and BM data will be exported
at this time.
8) The scale will automatically shut off in 30 seconds.
ONON
ZEROZERO
ONON
ZEROZERO
d
d
d
d
8. Operation
1. Standard Weighing Procedures
1) Turn on the power by pressing the key.
2) After all the segments flash, [0.0kg] is displayed.
3) The person to be weighed should still in the middle of the platform.
4) The weight will be locked-in and displayed on the display. “ (Hold)” sign will appear in the upper
left corner of the display.
When the scale is connected to an external device, weight data will be exported at this time.
5) The scale will automatically shut off in 30 seconds.
Note: •Do not press the key while standing on the scale, as accurate measurement will not be
possible.
ONON
ZEROZERO
ONON
ZEROZERO
9. Based on NIH/WHO BMI Guidelines
Under Weight
Normal Range
Pre obese
Obese
Obese
Obese
CLASS l
CLASS ll
CLASS lll
BM ⬍18.5
18.5 ⬉BM ⬍25
25 ⬉BM ⬍30
30 ⬉BM ⬍35
35 ⬉BM ⬍40
BM ⭌40

GB
13

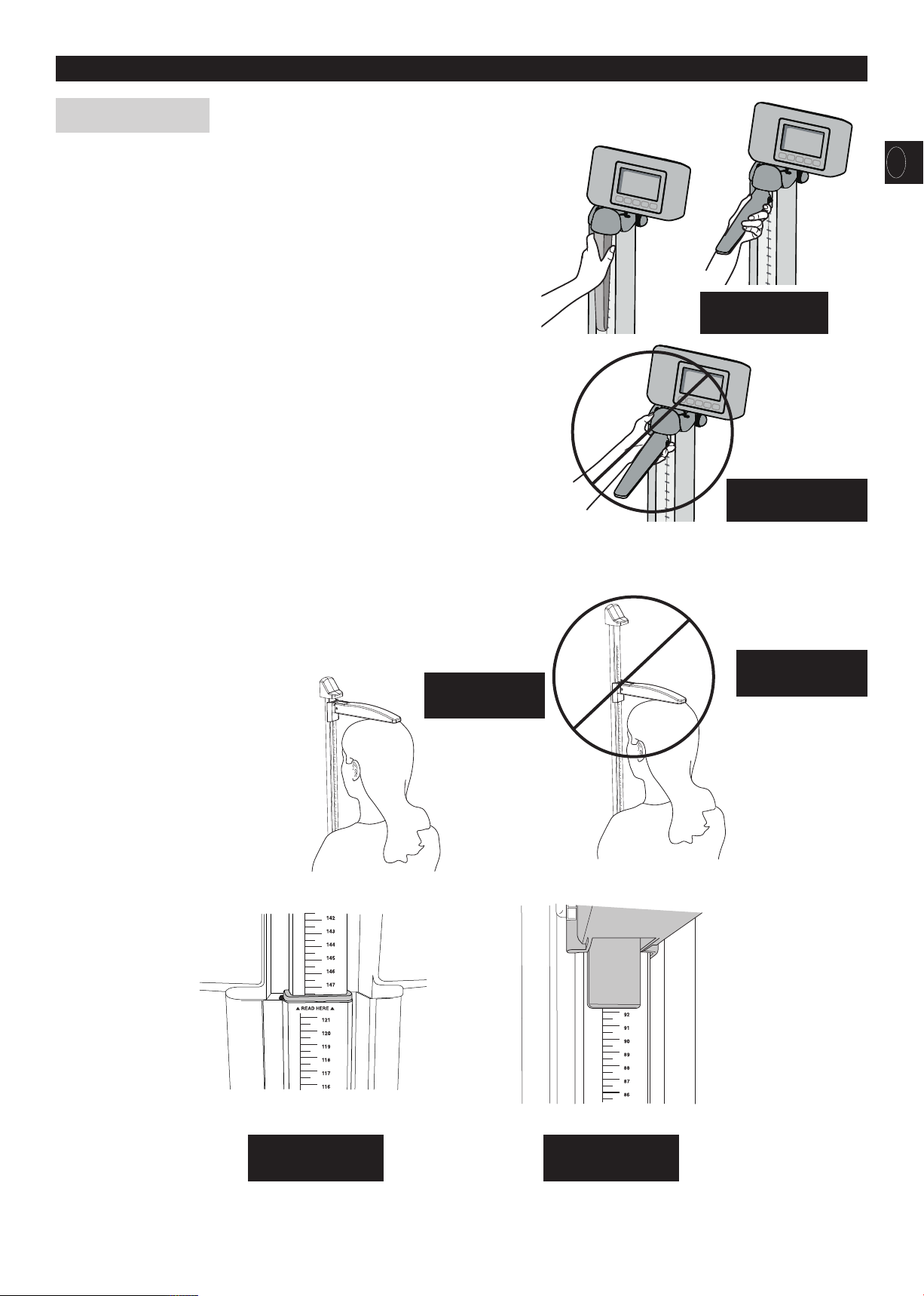

10. Measuring height procedure
The user should step on the platform without wearing shoes for accurate
measurement.
Always have someone assist the user for accurate measurement.
1) Adjust the Height Rod Arm position before the user steps on the platform. Place
hand on the Height Rod Arm.
f the subject is taller than 120 cm, pull the Height Rod Sliding Block and
Height Rod Arm at the same time upward so that the arm is positioned higher
than the subject’s head.
f the subject is shorter than 120 cm, move the Height Rod Arm down.
Incorrect way to hold
the Height Rod Arm
Correct way to hold
the Height Rod Arm
To avoid danger of breaking or coming loose, you
must hold the height rod arm securely.
2) Gently lower the Height Rod Arm until the Height Rod Arm touches the very top of the
user’s head.
3) Read the measurement.
f the subject is taller than 120 cm,
read the number just above the top of
the Upper Pillar Column (see example
#1).
f the subject is shorter than 120cm,
read the number below the Height
Rod Arm (see example #2).
INCORRECT way to
measure the height of
120cm or more
Reading the height
measurement of
120cm or LESS
Reading the height
measurement of
120cm or MORE
Example #1: 147.5 cm Example #2: 92 cm
CORRECT way to
measure the height of
120cm or more
For WB-380H

GB
14

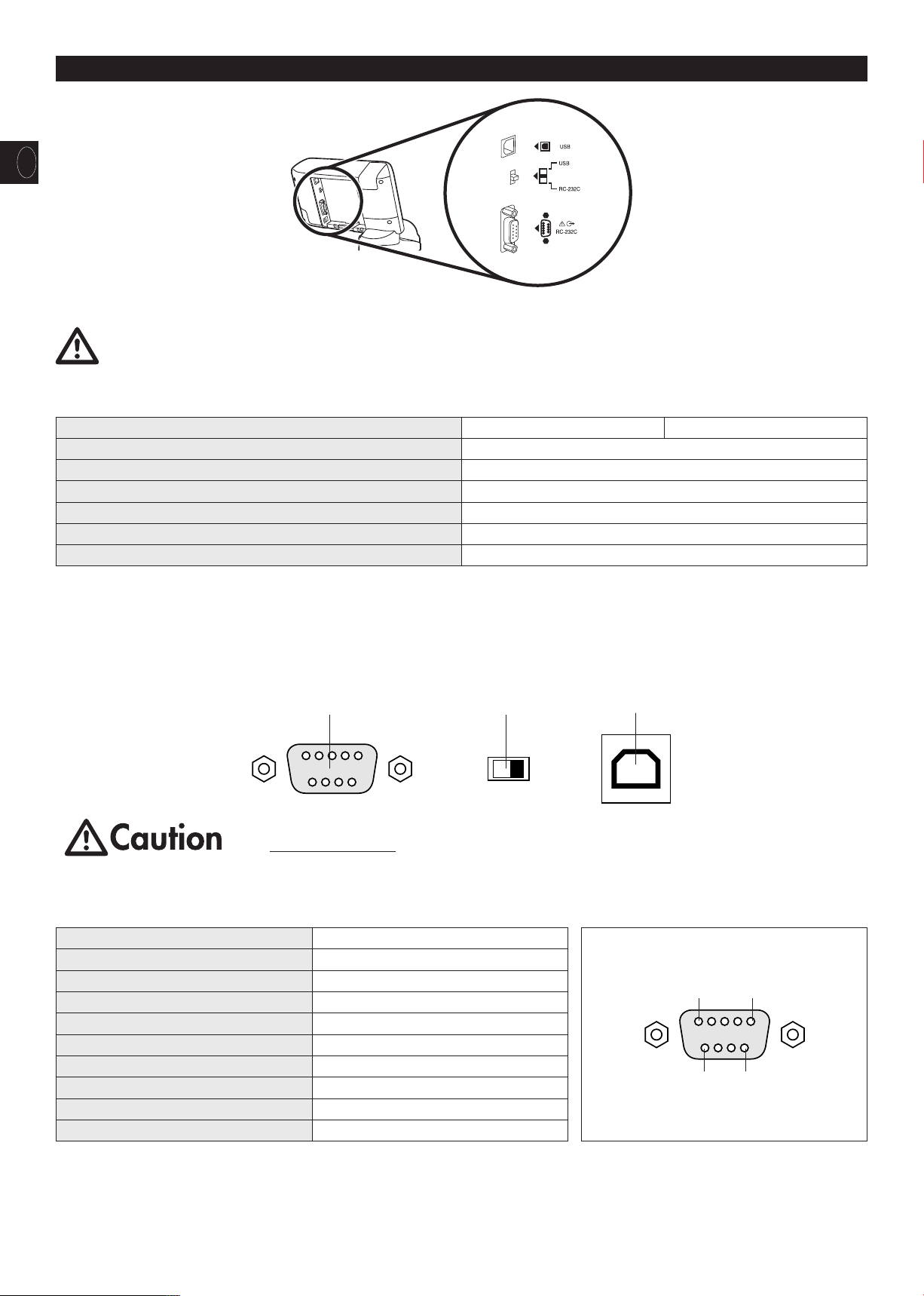

11. Output data format
This section covers the exporting of data from the scale to an external device (e.g. PC) using a RS-232C and USB compliant signal.
•RS-232C and USB interface are for data OUTPUT ONLY!
•This scale is not capable of receiving instructions from an external device.
Note:
•An RS-232C connector (D sub 9-pin female) and USB connector (B-type 4-pin female) are located on the back of the display unit.
•Please provide your own cables as necessary as none are included.
RS-232C :Straight D sub 9-pin (male) – D sub 9-pin (female)
USB :A-type 4-pin (male) – B-type 4-pin (male)
•Select Switch : Please select which interface you would like to use
f you want to use the USB output, you must install the necessary driver on to your PC, available to download
from http://www.tanita.eu.
Specifications
Signal Line Name and Connection Method
Communications standard
Terminal no. Signal name
TXD
GND
1
2
3
4
5
6
7
8
9
Communications method
Signal speed
Data bit length
Parity
Stop bit
Terminator
E A RS-232C compatible USB
Asynchronous transaction
9600 baud
8 bits
None
1 bit
CR+LF
RS-232C Port USB Port
RS-232C/USB Select SW
5
96
1

GB
15
Height Hm xxx.x
xxx.x
xx
{0
˜0
˜1
Output data
Name of item Header
Weight
BM
Checksum
Output data (ASCII code) Pattern
BMI mode
4 – 5 bytes
3 – 5 bytes
Control data
Control data
Control data
Model
Control data
Fix to 16
Fix to 1
Fix to 1
Fix to 1
2 Bytes fixed
1 Byte fixed
1 Byte fixed
1 Byte fixed
MO "WB-380" 8 Byte fixed
2 Bytes fixed
˜2
Wk
CS
xxx.x 3 – 5 bytes
M
Note:
•The data are divided with commas (,) for each data.
•The terminator (end of the data) is CR (ASC code 0DH), LF (ASC code 0AH).
•The control data for the items 1 – 4 are for expansion. They are not used presently so the receiving side can ignore them.
•Because of its specifications, the scale will output an irrelevant signal approximately 0.1 second after data output. Make sure you ignore this
signal and do not import it.
[Output example]
eight mode
12. Troubleshooting
f you are concerned that the scale may not be functioning correctly, please check the following point before requesting repairs.
Problem Check Points
Nothing is displayed when key
is pressed.
ONON
ZEROZERO
“Lo” is displayed.
Measurement is not accurate.
The weight does not stabilize
“OL” is displayed
“-OL” is displayed
“Error” is displayed
•Check the connection of the AC adapter jack to the DC jack, and the connection of the AC
adapter plug to the power outlet.
•The batteries may be weak. Try an AC adapter or new LR6 (AA) batteries.
•Check the terminals of the batteries for contamination
•Batteries Unplug the DC connecter on the back of the indicator.
The batteries are running out. Please replace them immediately or use the AC adapter.
•Check that all feet of scale are stable and on a hard flat surface, carpeting depth should be
kept to a minimum.
•After having stepped down from the scale and pressed the key, perform the
measurement again.
•Accurate measurement may be impossible if the product is used where there is excessive
vibration.
ONON
ZEROZERO
•Are you moving during measurement?
• s the measured weight within the range of weight measurement?
•Are you touching the height rod arm, switch, or another part during measurement?
•The range of weight (300kg) is exceeded.
•Was anything placed on the scale before measurement?
•Check whether the cable between the platform and display is disconnected, cut, or pinched.

WB3807611(0)-1309CF© 2013 TAN TA Corporation. All Rights Reserved.
GB
Power Consumption
13. Specifications
Model WB-380
Strain Gauge Load Cell
0 - 300kg
Mechanical Height Rod
64cm – 214cm
395 x 552 x 1425 mm Total 11.2kg
395 x 595 x 1196 mm Total 10.0kg
395 x 529 x 123 mm Total 7.1kg
RS-232C (D sub 9-pin Female connector) USB (B-type)
AC adapter (included) Centre Minus
DC 6V 200mA (LR6 - AA Alkaline Battery x 4)
0.3 W max.
5°C - 35°C
Approximately 100hours of continuous use when using LR6
(AA Alkaline battery)
395 x 390 x 59 mm
Upper 5Digits and Lower 4Digits LCD
Height of numerals / 24mm
300kg / 0.1kg
61cm- 250cm 1cm increments
0.1 increments
61cm- 250cm 1cm increments
300kg / 0.1kg
eight Measurement
Measurement System
Maximum Capacity / Minimum Graduation
Height Measurement
Range of eight
Measurement System
Range of Height
Input Items
Height
Output Items Display
eight
Height
BMI
B-380H
B-380P
B-380S
Size / weight of equipment Overall
Platform
Display
Output Data Interface
Power Source
Temperature Range of usage
Battery Life
This device features radio interference suppression in compliance with EC
Regulation 2004/108/EC
Disposal
This equipment is electronic device. Please
dispose of this equipment appropriately as
not the genera l household waste but elec-
tronic equipment. Please follow a regional
regulation when you dispose of this.
