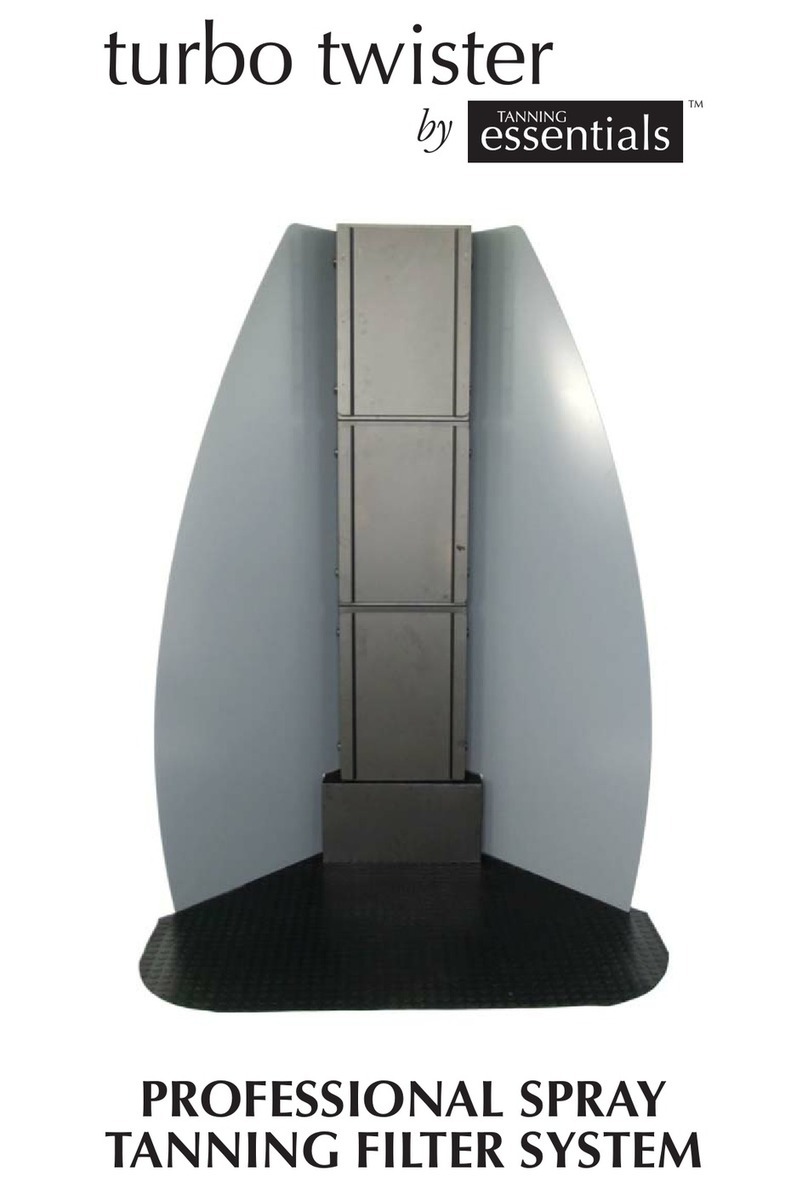

tanning essentials TURBO TWISTER TOWER Installation guide

TURBO TWISTER TOWER - TRAINING MANUAL
www.tanningessentials.co
SIMPLE TANNING SYSTEMS built purposely for a perfect spray tan.

WELCOME
Thank you for choosing the Tanning Essentials Turbo Twister Tower. Please read the
following to help assist you with the set up and maintenance of your tower.
The Tanning Essentials Turbo Twister Tower contains the following:
2 x Fan Unit 2 x Steel Support Bars
1 x Top Unit 1 x Connection Cord
1 x Base Unit 1 x Foot Pedal Power Cord
2 x Sides Panels 14 x Screws
1 x Floor
1
2
3
4
5
www.tanningessentials.co
QUICK SET UP GUIDE
1
3
6
7
8
9
2
4
5
6
7
8
9

FRONT OF TURBO TWISTER TOWER
www.tanningessentials.co
Anti-Slip
Comfort
Floor Mat
Bottom Fan
Unit
Middle Fan
Unit
Top Unit
Base Unit
Aluminium Side
Panels
Filter
Opening
ON / OFF
Switch

BACK OF TURBO TWISTER TOWER
www.tanningessentials.co
Fan Unit
ON / OFF
Unit Switch
Screws
Metal Bar
Top Unit Handle
Foot Pedal / Power
Female Socket
Male Socket

TOWER ASSEMBLY
www.tanningessentials.co
STEP 1
Lay the floor into position, the wide straight edge is
the front.
STEP 2
Using the handle, place the base unit on the back of the
floor with the hollow side facing down.
STEP 3
Locate your two fan units and top unit, picking them up
with the handles located on the back, place the first fan
unit onto the base, lining it up with the grooves – make
sure it is securely in place with no movement.
STEP 4
Locate the metal bars and align them with the holes on
the side of the station. Loosely screw the metal bars to
the base unit and the fans using the screws provided.
Note: Only loosely screw the rails into position, allowing room to
insert the sides and only tighten after the sides are in place.
Stack the next fan unit on top of the first one. And the top
unit on the second one so you have a total of three units
on top of the base.
Ensure the red filter release buttons are on the right hand
side when looking at the front of the station.

TOWER ASSEMBLY
www.tanningessentials.co
STEP 6
Locate the foot pedal and power cord. Connect the power
cord to the shorter cord coming out of the foot pedal.
Connect the longer cord from the foot pedal into the
bottom fan unit of the tower. Find the connector cord
and insert the metal male end into the bottom fan unit,
and the female end into the middle fan unit. Plug the
power cord coming from the foot pedal into the wall
socket and turn on the wall switch. You will need to turn
on each fan unit at the back of the tower.
STEP 5
Locate the aluminium sides and peel off the protective
film. Insert the aluminium sides in between the fan units
and the loosely screwed-on metal support bars. Once
the side panels are inserted, starting from the top, tighten
the screws to clamp the side panels tightly into position.
(Note: these are reversible for two colour options)

CHANGING THE EXTRACTION FILTERS
www.tanningessentials.co
STEP 1
Press the red button on the side of the system and swing
open the front of the unit.
STEP 2
Remove the filter, discard and replace with a new filter
with the metal grid facing forward.
STEP 3
Close the unit back up by pressing the red button and
pushing the front of the unit in place until it locks.
The filters are disposable and replacement filters are ordered in a 2 pack. It is recommended
that filters be changed after 100+ sprays. .
STEP 1
Use a flat edge screwdriver to open the fuse
compartment.
STEP 2
Remove the old fuse and replace with a new one.
CHANGING THE FUSE

TROUBLESHOOTING AND MAINTENANCE
If you are experiencing problems with this unit, in the first instance please carefully read the
relevant sections of the User Manual and the Troubleshooting section below. If you cannot
solve your problem please contact your supplier for further assistance.
www.tanningessentials.co
PROBLEM CAUSE WHAT TO DO
Your unit isn’t
extracting at
full capacity.
Unit isn’t working correctly.
The unit is not turned on.
The filter needs to be changed.
Feel for air from the back of each
unit.
Check each fan unit switch is on
and illuminated blue and make
sure all cords are inserted correctly.
Replace the filter.
The blue light
on the power
switch does
not turn on.
The foot pedal
does not work.
There is a build
up of solution
around the fan
units.
Electricity not turned on.
The fuse needs to be replaced.
Electricity is not turned on.
The fan units need to be
cleaned.
The filter needs to be changed.
Check the power cord is plugged
in correctly.
Change the fuse. This is located on
the side of each fan unit where the
power switch is, above the metal
pronged male plug.
Check each tan unit switch is on
and illuminated blue, and make
sure all cords are inserted
correctly.
Check the power is turned on
at the power outlet.
Clean the unit using warm soapy
water. Approximately once a month
unstack the fan units and clean in
between with warm soapy water.
Replace the filter.

WARRANTY INFORMATION
IMPORTANT
Please keep your proof of Purchase and User Manual in a safe place as you will
require these to make a warranty claim. Prior to making a claim you should read
through the trouble shooting section in the manual and contact your supplier.
All warranty claims should be made directly to your supplier.
If within one (1) year from the date of purchase, the product fails due to a defect in
material or workmanship, we will repair if possible or replace it free of charge with a
comparable unit which may be new or refurbished. This warranty applies only to the
original purchaser and is not transferable. The goods must be returned to the seller
with proof of purchase to be assessed at the purchasers cost.
Warranties shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. The manufacturer shall not be obligated
under these warranties:
a) to repair damage resulting from attempts by personnel other than authorised
representatives to install, repair or service the product;
b) to repair damage, malfunction, or degradation of performance resulting from
improper use or incompatible solution;
c) to perform maintenance or cleaning or to repair damage, malfunction, or
degradation of performance resulting from failure to perform user maintenance
and cleaning as prescribed;
d) to repair damage, malfunction, or degradation of performance resulting from
use of the product in an environment not meeting the operating specifications,
To activate your warranty, please complete the information and post to Tanning
Essentials within 14 days of purchase.
www.tanningessentials.co

WARRANTY RETURN FORM
Please include this form when returning warranty items.
www.tanningessentials.co
DATE:
PRODUCT NAME:
CUSTOMER NAME:
PURCHASE DATE:
BUSINESS NAME:
SUPPLIER INVOICE No*:
CONTACT NUMBER:
E MAIL:
ADDRESS :
(PO Box Not Accepted)
Customer Information:
Product Information:
Reason for Return:
I give my authority for goods to be left at the postal address mentioned above: Please circle YES / NO
Please Note: If circled Yes, no liabillity will be taken
* All waranty claims must include proof or purchase. This must be a photocopy of the original invoice.

SAFETY INFORMATION
The Tanning Essentials Turbo Twister Tower is designed and built to the highest
standards. This system must not be operated by children, sprayed using only professional
spray tan solution, kept away from water and be connected to the correct power supply
at all time.
Please note the details of your model here:
The Tanning Essentials Turbo Twister Tower is made in China
WARRANTY CARD
www.tanningessentials.co
....................................................................................................................................................................... ..................
To submit your warranty online, please visit www.tanningessentials.co and select the warranty link. Please include proof of purchase.
MODEL TYPE: SERIAL NUMBER:
SUPPLIER NAME:
NAME:
ADDRESS:
EMAIL:
BEAUTYBUSINESS TYPE TANNING HAIR MOBILE HOME
DATE OF PURCHASE:
SUBURB:
COUNTRY:
PHONE:
POST CODE: STATE:
MODEL:
SERIAL NUMBER:
DATE OF PURCHASE:
SUPPLIER NAME:

OUR DETAILS
ADDRESS:
10 Apex Court, Thomastown, VIC. 3074 Australia
PHONE:
1300 877 677 (within Australia)
INTERNATIONAL PHONE:
[phone]
EMAIL:
[email protected]
WEB:
www.tanningessentials.co
www.tanningessentials.co
Tanning Essentials
10 Apex Court,
Thomastown, VIC. 3074
Australia
AFFIX
POSTAGE
STAMP
HERE
....................................................................................................................................................................... ..................
www.facebook.com/tanningessentials
View our full video on the Turbo Twister Tower
Set Up, Maintenance and Troubleshooting
www. .com/user/TanningEssentials
