Task Force Tips Master Stream 3200 Owner's manual

©Copyright Task Force Tips LLC 2018-2021 1 LIM-031 May 13, 2021 Rev01
TASK FORCE TIPS LLC
MADE IN USA · tft.com
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax [phone]
G-Force
INSTRUCTION FOR INSTALLATION, OPERATION, AND MAINTENANCE
Master Stream 3200
Supplemental Instructions for use with
LIM-030 Manual for Masterstream Nozzle Series
DANGER
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
FIXED/SELECTABLE
SERIES
FLOW SETTING PRESSURE K
FACTOR
LPM BAR/KPA/80
MASTER STREAM
3200 SELECTABLE
1600 8 39
2400 8 59
3200 8 78

©Copyright Task Force Tips LLC 2018-2021 2 LIM-031 May 13, 2021 Rev01
The member companies of FEMSA that provide emergency
response equipment and services want responders to know and
understand the following:
1. Firefighting and Emergency Response are inherently
dangerous activities requiring proper training in their hazards
and the use of extreme caution at all times.
2. IT IS YOUR RESPONSIBILITY to read and understand
any user’s instructions, including purpose and limitations,
provided with any piece of equipment you may be called on
to use.
3. IT IS YOUR RESPONSIBILITY to know that you have been
properly trained in Firefighting and/or Emergency Response
and in the use, precautions, and care of any equipment you
may be called upon to use.
4. IT IS YOUR RESPONSIBILITY to be in proper physical
condition and to maintain the personal skill level required to
operate any equipment you may be called upon to use.
5. IT IS YOUR RESPONSIBILITY to know that your equipment is
in operable condition and has been maintained in accordance
with the manufacturer’s instructions.
6. Failure to follow these guidelines may result in death, burns or
other severe injury.
Fire and Emergency Manufacturers and Service Association, Inc.
PO Box 147, Lynnfield, MA 01940 • www.FEMSA.org
© 2020 FEMSA. All Rights Reserved.
PERSONAL RESPONSIBILITY CODE
DANGER
LIM-030 Masterstream
Nozzle Series Manual
©Copyright Task Force Tips LLC 1999-2020 1 LIM-030 November 16, 2020 Rev15
TASK FORCE TIPS LLC
MADE IN US A · tft.com
3701 InnovationWay, Valparaiso,IN 46383-9327 USA
800-348-2686· 219-462-6161 · Fax [phone]
INSTRUCTIONS FOR INSTALLATION, OPERATION, AND MAINTENANCE
Masterstream
Nozzle Series
WARNING
Understand manual before use. Operat ion of this de vice without under standing the manual and
receiving proper training is a misuse of this equi pment. Obtain safety information at tf t.com/serial-
number.
This equipment is intended for use by trained and qualied emergency services personnel for
reghting.All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdict ion (AHJ).
This instruction manual is intended to familiarize reghters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. Th is manual shou ld be
kept available to all operating and maintenance personnel.
MASTERSTREAM 1000
150 - 1000 GPM @ 100 PSI
600 - 4000 L/min @ 7 BAR (700 kPa)
MASTERSTREAM 1250S
150 - 1250 GPM @ 100 PSI
600 - 4500 L/min @ 7 BAR (700 kPa)
MASTERSTREAM 1250
300 - 1250 GPM @ 70 - 120 PSI
1100 - 4700 L/min @ 4.8 - 8.3 BAR (480 - 830 kPa)
MASTERSTREAM 1500
300 - 1500 GPM @ 70 - 120 PSI
1100 - 5700 L/min @ 4.8 - 8.3 BAR (480 - 830 kPa)
MASTERSTREAM 2000
300 - 2000 GPM @ 80 - 120 PSI
1100 - 7600 L/min @ 5.5 - 8.3 BAR (550 - 830 kPa)
MASTERSTREAM 4000
600 - 4000 GPM @ 80 - 120 PSI
2300 - 15000 L/min @ 5.5 - 8.3 BAR (550 - 830 kPa)
SUPPORTING MATERIALS
The following documents contain supporting safety and operating information pertaining
to the equipment described in this manual.

©Copyright Task Force Tips LLC 2018-2021 3 LIM-031 May 13, 2021 Rev01
1.0 FLOW CHARACTERISTICS

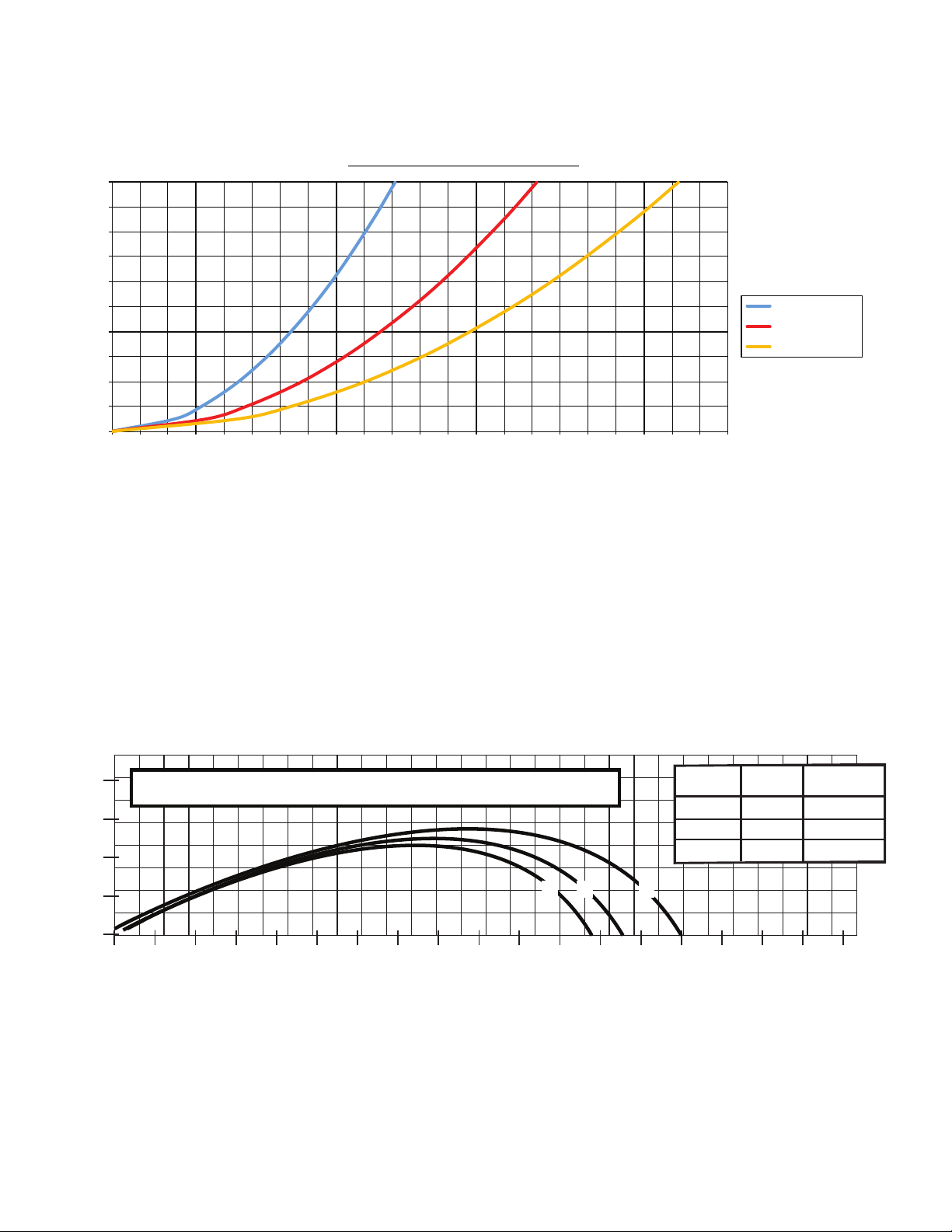

1.1 FLOW VS. PRESSURE
The Master Stream 3200 Selectable Nozzle allows the user to select one of several orifice sizes by turning a knob at the front of the
nozzle. An indicator on the knob shows which flow is selected.
Figure 1.1
1.2 REACH AND TRAJECTORY
The graph gives the stream trajectory for the Master Stream Series nozzles at various flows.
Notes on trajectory graph:
• Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water drops
approximately 10% farther.
• To estimate trajectories at elevations other than 30 degrees, refer to document LTT-135, available at tft.com.
• Trajectories shown are for water. The addition of foam is expected to decrease the reach by 10%.
• Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%.
• Stream trajectory of Master Stream 3200 based on “The Trajectories of Large Fire Fighting Jets” by A.P. Hatton and M.J. Osborne,
Reference: “The International Journal of Heat and Fluid Flow”, Vol 1 No 1.
Figure 1.2
2.0 EXPLODED VIEWS AND PARTS LISTS
Exploded views and parts lists are available at tft.com/serial-number.
0
2
4
6
8
10
12
14
16
18
20
0
250 500 750
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
4250
4500
4750
5000
5250
5500
Nozzle Pressure (BAR)
Flow (LPM)
Master Selectable Flow vs Pressure
1600 LPM @ 8 BAR
2400 LPM @ 8 BAR
3200 LPM @ 8 BAR
20
METERS
MASTER STREAM 3200 @ 8 BAR (800 KPA)
15
80 900 10203040506070
METERS
0
10
5ABC
LPM
FLOW
1600
2400
3200
KGF
REACTION
100
160
210
CURVE
A
B
C

©Copyright Task Force Tips LLC 2018-2021 4 LIM-031 May 13, 2021 Rev01
3.0 WARRANTY
Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its
products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and
workmanship during the five (5) year period from the date of purchase. TFT’s obligation under this warranty is specifically limited to
replacing or repairing the equipment (or its parts) which are shown by TFT’s examination to be in a defective condition attributable to
TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana
46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is
a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT
will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an
intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages
for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT.
It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.
THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
