TASKING iSYSTEM Infineon TC397XE Instructions for use

Infineon TC397XE Emulation Adapter
Hardware User Manual
V1.8, November 2023
isystem.com/start

General safety instructions
Please read the following safety precautions carefully before putting this device to use to avoid
any personal injuries, damage to the instrument, or to the target system. Use this instrument
only for its intended purpose as specified by this manual to prevent potential hazards.
Use included power cord and power supply
The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if
you need to consider an alternative power.
Use grounding wire
Prior to applying power to either the BlueBox or the target, connect the device and the target sys-
tem together with the included grounding wire. This is to avoid potential damage caused by any
voltage difference between the device and the target system.
Use proper overvoltage protection
Ensure proper protection to avoid exposing the BlueBox device or the operator to overvoltage
surges (e.g. caused by thunderstorm, mains power).
Do not operate without cover
Do not operate the device with cover removed.
Avoid circuit and wire exposure
Do not touch exposed components or wires when the device is powered.
Do not operate with suspected damage
If you suspect damage may have occurred, the BlueBox device must be inspected by qualified
service personnel before further operation.
Do not operate the device outside its rated supply voltage or environ-
mental range
Consult with iSYSTEM before using equipment outside of the parameters provided in this
manual.
This symbol is used within the manual to highlight further safety notices.

Contents
Introduction .......................................................................................................................................... 4
Package content ................................................................................................................................ 5
Options .................................................................................................................................................... 6
Target adaptation ................................................................................................................................... 6
Measurement board ............................................................................................................................... 7
Operation ............................................................................................................................................... 8
How to connect ........................................................................................................................................ 8
Configuration ............................................................................................................................................ 8
Connectors .............................................................................................................................................. 10
Standalone operation ........................................................................................................................... 12
Mechanical information ............................................................................................................. 14
Emulation Adapter ................................................................................................................................ 14
Solder part ............................................................................................................................................... 14
Extender .................................................................................................................................................. 15
Assembly ............................................................................................................................................. 16

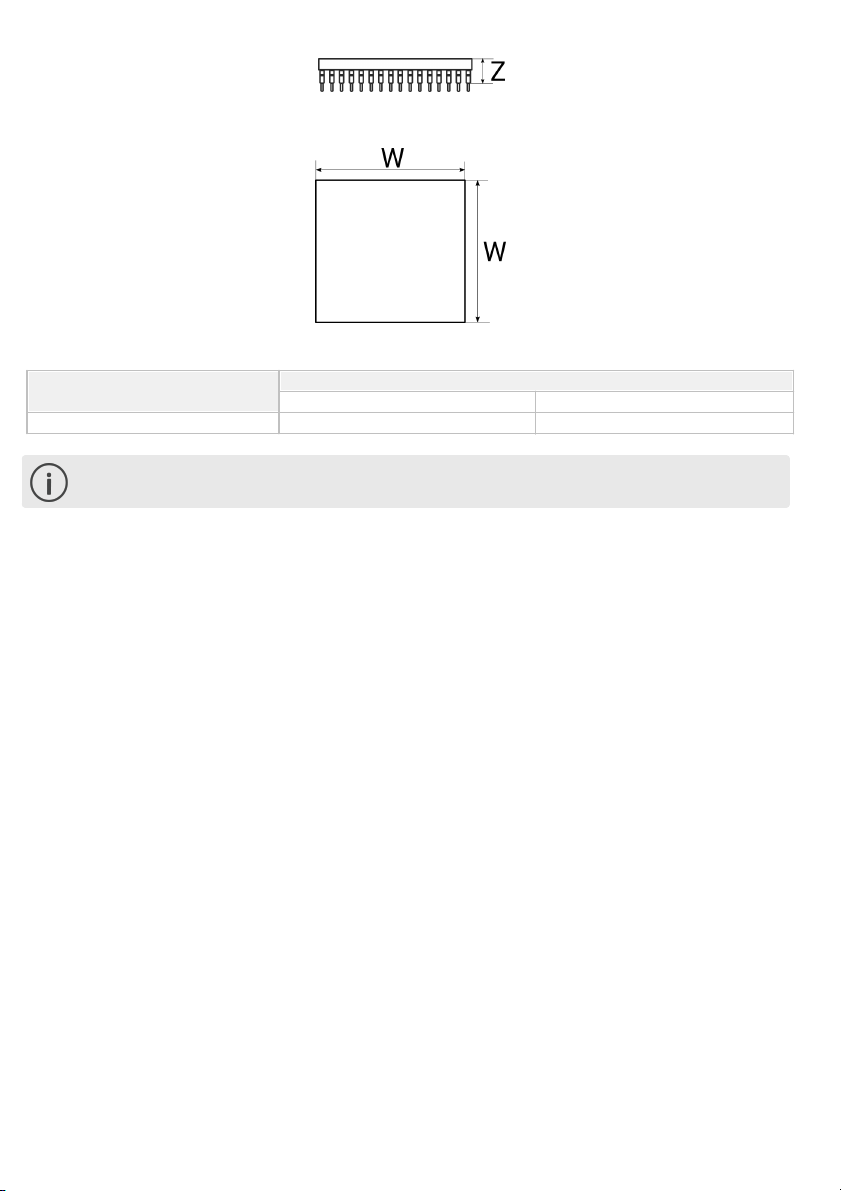

BGA ........................................................................................................................................................... 16
Accessories ......................................................................................................................................... 17
User Notes .......................................................................................................................................... 18

Introduction
Infineon TC397XE Emulation Adapter is based on the 292-pin TC397XE superset device and
provides full trace capabilities for the:
· TC397Xx
· TC387QP
· TC3E7Qx
devices, where the trace port is not available or lacks the full trace capability.
The Emulation Adapter might differ in some peripherals from the target device; there-
fore, the device datasheet should be checked.
Infineon TC397XE Emulation Adapter supports the following debug and trace interfaces:
· DAP
· DAPE
· AGBT (Aurora Gigabit Trace)
The Emulation Adapter can also be used as a standalone device for microcontroller evaluation
purposes or for development and testing of an embedded application ahead of target board
availability.

Package content
Infineon TC397XE Emulation Adapter is delivered with all the components required for a stan-
dalone operation. Target adaptation parts for the Target board adaptation and the Power ad-
apter must be ordered separately.
Infineon TC397XE
Emulation Adapter
with Infineon Microcontroller
TC397XE
Power supply package
Power converter
Power adapter
Ordering code:
IEA-TC397XE-TOP
Ordering code:
IEA-PS
Ordering code:
IT9V-PS
GND Wire
Crystal 20 MHz
Ordering code: BB-WIRE

Options
Target adaptation
The Emulation Adapter adaptation to a specific target microcontroller pincount and package is
done via a Conversion board and a Solder part. Sometimes also an optional Extender is avail-
able. Conversion boards connect between the Emulation Adapter and the matching Solder part,
which is being soldered on the embedded target side. Available Conversion boards, Solder parts
and optional Extenders are listed in the table below.
Package (Pitch)
MCU
Conversion board
(Ordering code)
Type
Extender (optional)
(Ordering code)
Solder part
(Ordering code)
BGA292
TC397Xx
TC387QP
TC3E7Qx
IEA-TC397XE-TC397
BGA
IA292LFBGA-EXTENDER
IA292LFBGA-SOLDER
BGA adaptation
Conversion board
Extender (optional)
Solder part

Measurement board (optional)

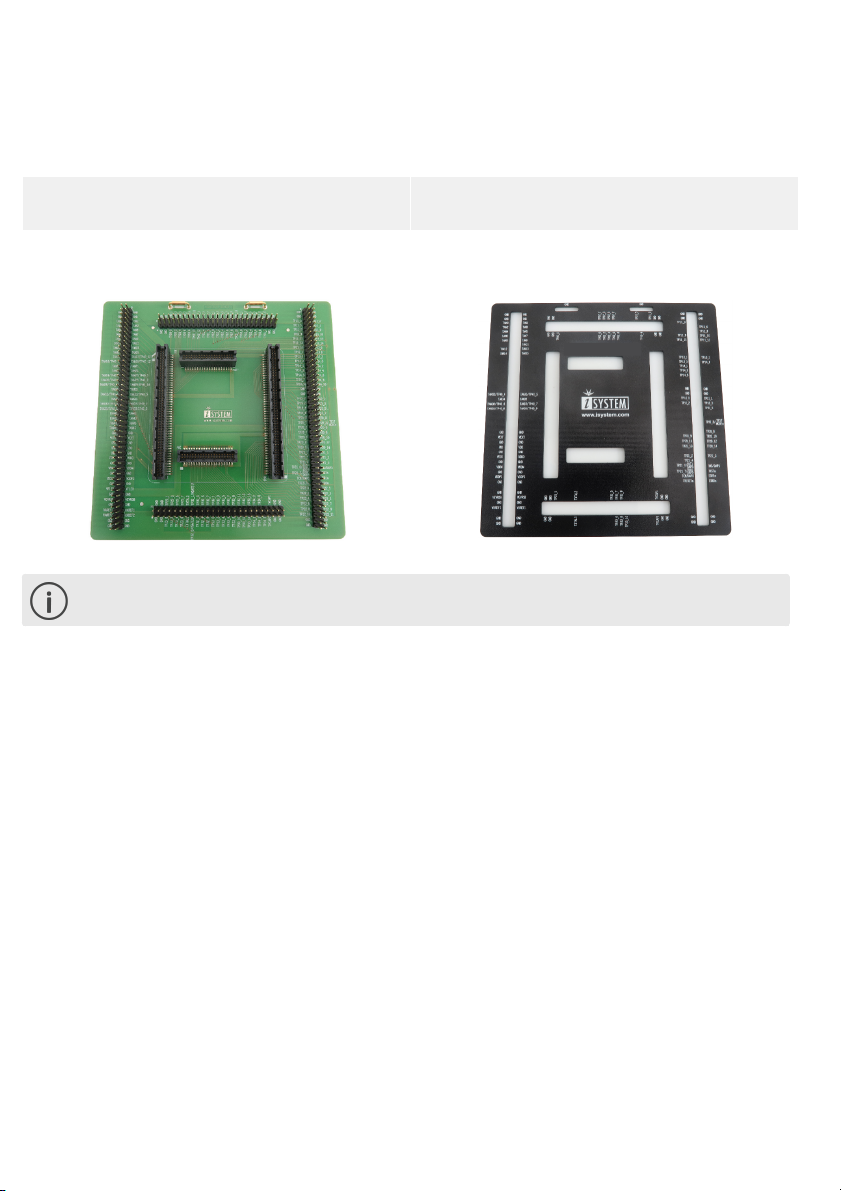

The Measurement board connects between the Emulation Adapter and the Conversion board.
Embedded targets often do not have access to all the MCU pins / connected signals to connect
with measurement equipment (oscilloscope, logic analyzer), its use provides easy access to all
MCU pins. It is delivered together with an Layout board (chip signals are clearly marked), which
is placed over the Measurement board.
Measurement board
Layout board example for the Measurement
board
Ordering code:
IAMTC397XE
Not available in every Emulation Adapter or every MCU pin count.

Operation
How to connect?
· How to connect Emulation Adapter (video) - short link: isystem.com/ea-intro
· How to connect TASKING Hardware (video) - short link: isystem.com/connect-hardware
Configuration
J1: Target reset configuration
Jumper J1 connects the Emulation Adapter reset line and the user target board reset line and is
populated by default.
Emulation Adapter features a Reset push button (SW1).
If having problems establishing the initial debug session with the Emulation Adapter, remove J1
and try again.
J2 and J3: Clock source configuration
Jumpers J2 and J3 select clock source for the emulation device.
Position 1-2 (default position) selects the crystal circuit oscillator
on the target.
Position 2-3 selects an external clock source (Q1 socket on the
Emulation Adapter).
The Emulation Adapter may not operate when target board’s crystal circuit is used as
the clock source. TIP: The crystal should be as close as possible to the microcontroller.
The crystal on the target board might not oscillate in conjunction with the Emulation
Adapter when the clock lines (TP21_2, TP21_3) between the crystal and the emulation
device on the Emulation Adapter become too long, thus affecting the impedance of
the crystal circuit.
Separately packed 20 MHz crystal can be used as a 20 MHz external clock (XOSC)
source to the emulation device. If a different clock frequency is required, insert appro-
priate crystal into the Q1 socket and replace C7 (default 10pF populated) and C8 (de-
fault 10pF populated) accordingly. Crystal socket Q1 is by default not populated (NP).

Crystal socket Q1 schematics below:
J4 and J5: GND connection points
In case a good ground connection is required, connection points bridge J4 and pin J5 provide
easy access to the Emulation Adapter's GND potential.
J6 and J7: VFLEX and VAREF
VFLEX - If the target’s VFLEX pin isn’t exposed, bridge the jumper J6 to connect VEXT from the
target to power VFLEX.
Setting the jumper when emulating the BGA device may prevent establishing a debug
connection or, in the worst case, can damage the Target board.
VAREF - If the target’s VAREF2 pin isn’t exposed, bridge the jumper J7 to connect VAREF1 from
the target to power VAREF2

Setting the jumper if VAREF2 is present on the device may prevent establishing a de-
bug connection or, in the worst case, can damage the Target board.
P2: Power supply configuration
Power supply of the Emulation Adapter is configured via the unshrouded 26-pin 2.54 mm
header (P2).
Signal direction
Signal
Pin
Pin
Signal
Signal direction
Target board
TVEXT
1
2
VEXT
Emulation device
Target board
TVDDM
3
4
VDDM
Emulation device
Target board
TVAREF1
5
6
VAREF1
Emulation device
Target board
TVAREF2
7
8
VAREF2
Emulation device
Target board
TVEVRSB
9
10
VEVRSB
Emulation device
Target board
TVFLEX
11
12
VFLEX
Emulation device
Not connected
NC
13
14
NC
Not connected
Not connected
NC
15
16
NC
Not connected
Not connected
NC
17
18
NC
Not connected
Not connected
NC
19
20
NC
Not connected
Ground
GND
21
22
GND
Ground
Ground
GND
23
24
GND
Ground
Ground
GND
25
26
KEY
P2 Signal description
By default, all jumpers are set to connect user target power supply to the microcontroller resid-
ing on the Emulation Adapter. Only pins 1-2, 3-4, 5-6, 7-8, 9-10 and 11-12 must be bridged, but
for the convenience and ease of use, all jumpers are set, except for pins 25-26.
Pin 26 is the polarizer key preventing incorrect connection of the IEA-PS Power converter, when
being plugged in.
If a different power source is used (e.g., a Standalone operation), remove all jumpers and apply
3V3 or 5V to:
· VEXT (pin 2),
· VDDM (pin 4),
· VAREF1 (pin 6),
· VAREF2 (pin 8),
· VEVRSB (pin 10),
· VFLEX (pin 12).
Enclosed Power supply package (Power converter and Power adapter) simply plugs into the P2
header row, providing the necessary power supply for Emulation Adapter operation. LED1 indic-
ates if power is supplied to the Emulation Adapter.
Refer to the microcontroller documentation for more details about power voltage designations.
Connectors
Be aware that debug and trace signals from the Emulation adapter superset device are
not connected to the target board. They are exposed only to the connectors on the
Emulation adapter.
P1: DAP
P1 connector exposes DAP debug interface.
Signal Dir-
ection
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal Dir-
ection
I
Reference Voltage
Vref
1
2
DAP1
DAP Data pin
I/O
Ground
GND
3
4
DAP0
DAP clock
O
Ground
GND
5
6
DAP2
Optional 2d DAP Data pin
I/O

Signal Dir-
ection
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal Dir-
ection
Not Connected
NC
7
8
DAPEN
DAP Enable
O
Ground
GND
9
10
nRESET
Reset
I/O
10-pin Infineon DAP pinout
Signal Direction is described from the BlueBox perspective.
BlueBox supporting Infineon DAP debug and trace interface connects to the P1 connector.
P8: DAPE
P8 connector exposes DAPE debug interface.
Signal Dir-
ection
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal Dir-
ection
I
Reference Voltage
Vref
1
2
DAPE1
DAP Data
I/O
Ground
GND
3
4
DAPE0
DAP Clock
O
Ground
GND
5
6
DAPE2
Optional 2nd Data Pin
I/O
Not Connected
NC
7
8
DAPEN/DAP
3
Optional 3rd Data Pin
I/O
Ground
GND
9
10
NC
Not Connected
10-pin DAPE pinout
Signal Direction is described from the BlueBox perspective.
BlueBox supporting Infineon DAPE debug and trace interface connects to the P8 connector.

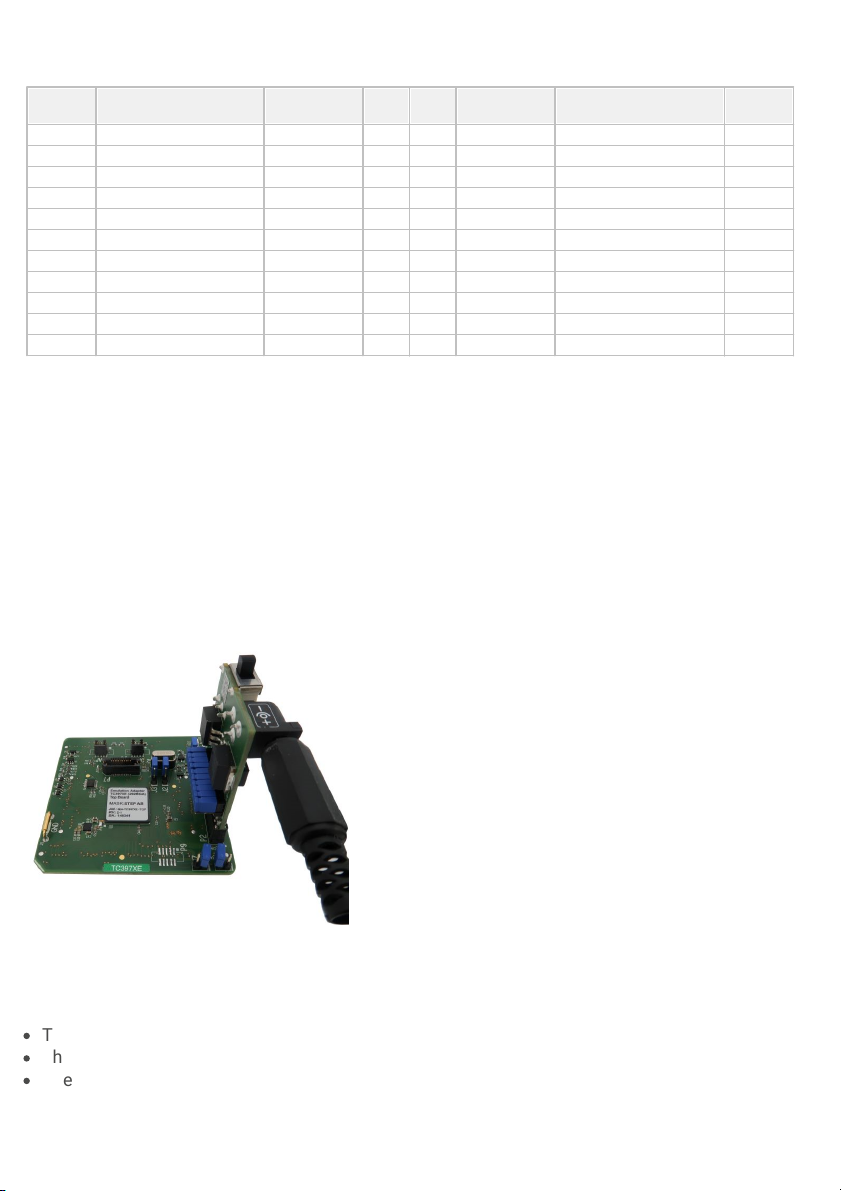

P7: AGBT
P7 connector exposes AGBT interface.
Signal Dir-
ection
Signal Description
Signal
Pin
Pin
Signal
Signal Description
Signal Dir-
ection
I
AGBT TX0_P
TX0_P
1
2
Vref
Reference Voltage
I
I
AGBT TX0_N
TX0_N
3
4
DAP0
DAP clock
O
Ground
GND
5
6
DAP1
DAP Data pin
I/O
Not Connected
NC
7
8
NC
Not Connected
Not Connected
NC
9
10
DAP2
Optional 2nd Data pin
I/O
Ground
GND
11
12
nTRST/DAPEN
JTAG/Output
O
Not Connected
NC
13
14
CLK+
AGBT Clock
O
Not Connected
NC
15
16
CLK-
AGBT Clock
O
Ground
GND
17
18
TGO*
AGBT Trigger out
I
Not Connected
NC
19
20
AGBT ERR
AGBT Error
Not Connected
NC
21
22
RESET
Reset
I/O
22-pin AGBT pinout (Revision C1)
Signal Direction is described from the BlueBox perspective.
Blue color marks the trace signals.
* Pin 18: TGO (AGBT Trigger out) is connected to the pin TP32.6. Before Revision C1 pin 18 was
NC (Not Connected).
BlueBox solution supporting AGBT (Aurora GigaBit Trace) interface connects to the P7 con-
nector.
Standalone operation
Infineon TC397XE Emulation Adapter is delivered with all components required for a Stan-
dalone operation.
Power supply
Use the enclosed IEA-PS Emulation Adapter Power converter and adapter.
A Power supply package, which is delivered with the Emulation Adapter, is required when:
· The Emulation Adapter is used as a standalone device .
· The target board doesn’t provide an accurate supply voltage.
· The target board doesn’t provide sufficient current for the Emulation Adapter operation.
The Power converter can supply either 3.3 V or 5 V. The array of jumpers J0–J9 selects 3.3 V or
5 V voltage on the P3 connector, which connects to the Emulation Adapter.

Signal
Pin
Pin
Signal
NC
1
2
J0
NC
3
4
J1
NC
5
6
J2
NC
7
8
J3
NC
9
10
J4
NC
11
12
J5
NC
13
14
J6
NC
15
16
J7
NC
17
18
J8
NC
19
20
J9
GND
21
22
GND
GND
23
24
GND
GND
25
26
KEY
P3 connector and J0–J9 jumper correlation table
For example, when J2 is in the 3V3 position, it supplies 3.3 V to pin 6 of the P3 connector. When
J2 is in the 5V position, it supplies 5 V to pin 6 of the P3 connector pin.
Be careful not to supply 5 V to the microcontroller power supply pin, which has de-
clared a maximum voltage 3.3 V! Refer to the microcontroller documentation for de-
tailed information on power supply.
P3 connector on the Power Supply board
External power supply requirements:
Min Voltage
Max Voltage
Min Power
8 V
12 V
18 W
Clock source
If the target’s crystal circuit microcontroller oscillator (if available) is not an adequate clock
source, insert appropriate crystal into the Q1 socket, replace the default 10pF C7 and C8 capacit-
ors when necessary and place jumpers J2 and J3 in 2-3 position.

Mechanical information
Emulation Adapter
Side view of the Emulation Adapter, one Extender and Solder part (each Extender adds approx. 3,25mm)
Top view of the Emulation Ad-
apter
Top view of the Conversion board
Ordering code
Unit (mm)
M
N
P
R
IEA-TC397XE
70
70
IEA-TC397XE-TC397
70
70
Solder part
Top view of the Solder part
Ordering code
Unit (mm)
K
L
IA292LFBGA-SOLDER
17
17

Extender
Side view of the Extender
Top view of the Extender
Ordering code
Unit (mm)
W
Z
IA292LFBGA-EXTENDER
17
3.25
To view Emulation Adapter schematics, use the short link isystem.com/schematics.

Assembly
1. Solder the Solder part Bon the Target A.
2. (optional, recommended) Connect Extender Cto the Solder part B.
The Extender protects from damaging the Solder part if the Emulation Adapter setup is frequentlyassembled and disassembled.
Be careful and gentle during this procedure because all parts of the setup are extremely sensitive, and pins can easily bend or
even break in the worst-case scenario.
More Extenders can be stacked to gain height between the Emulation Adapter and the Target, if surrounding components so high
that they prevent connecting the Emulation Adapter. Keep the number of Extenders C at minimum since every Extender degrades
the signal integrity of the electrical signals.
3. Assemble in order: Emulation Adapter F, optional Measurement board E, Conversion board D.
4. Connect Conversion board Dto:
· Solder part or
· Extender

Accessories
To ease the development process, we recommend using the following iSYSTEM hardware tools.
Ordering Code
Description
IC5700
iC5700 BlueBox
IC5000
iC5000 BlueBox
IC57031
IOM6 Hub (3 x FNet & FBridge)
IC57040
IOM6 CAN/LIN
IC57041
IOM6 ADIO
Debug Adapters and Active Probes
Listed Debug Adapters and Active Probes provide tracing functionality.
Ordering Code
Description
IC57163-1
Infineon DAP/DAPE II Active Probe
IC57164
Infineon AGBT Active Probe
IC50163-2
10-pin 1.27 mm Infineon DAP2 Wide Debug Adapter
More information about our products on www.isystem.com or via [e-mail].

User Notes
This page is intentionally left blank.

This page is intentionally left blank.

www.isystem.com
Visit our website for:
· Support - isystem.com/support
· Tutorials - isystem.com/start
· Knowledge Base - kb.isystem.com
