CCRR--HH222200
SERVICE MANUAL
CD Receiver
Effective : October, 2004 S-0129A
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[E(N)]:EUROPE(GoldVersion)[E(S)]:EUROPE(Silver
Version)[UK]:U.K.
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 MICROCOMPUTER PIN FUNCTIONS ・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・5
4 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・8
5 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・12

1 SPECIFICATIONS
−2−
AMPLIFIER Section
Output Power .............................. 25 W/ch (6 ohms, 0.5 %,1 kHz)
Input Sensitivity................................................ 300 mV/47k ohms
Frequency Response ...................... 20 Hz to 60,000 Hz (+1/-3 dB)
TUNER Section
FM Section
Frequency Range .......... 87.50 MHz to 108.00 MHz (50 kHz steps)
Signal-to-Noise Ratio .............................................. 65 dB (Mono)
60 dB (Stereo)
AM Section
Frequency Range .................... 522 kHz to 1629 kHz (9 kHz steps)
Signal-to-Noise Ratio............................................................ 35 dB
CD PLAYER Section
Frequency Response .......................... 20 Hz to 20,000 Hz (±2 dB)
Signal-to-Noise Ratio .......................................... more than 85 dB
Wow and Flutter ...................................................... Unmeasurable
GENERAL
Power Requirements............................................ 230 V AC, 50 Hz
Power Consumption .............................................................. 75 W
(standby) .............................................................................. 1.5 W
Dimension (W x H x D) ................................ 215 x 110 x 359 mm
Weight ................................................................................ 4.4 kg
Standard Accessories
Remote Control Unit (RC-959) x 1
Batteries (AA, R6, SUM-3) x 2
AM Loop Antenna x 1
FM Lead-type Antenna x 1
Owner's Manual x 1
Warranty Card x 1
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

2 MICROCOMPUTER PIN FUNCTIONS
−3−
TMP87PS71AF
PIN No. NAME I/O DESCRIPTION
1 F_MUTE O Function Mute Control port (Active "H")
2 REMOTE I Remote Data input port
3 RDS_CLK I RDS Clock input port
4 RDS_DATA I RDS Data input port
5 TAPE(H) O TAPE Control port (Active "H")
6 AUX2(H) O AUX2 Control port (Active "H")
7 N.C - No Connection
8 CD_STBY O CD_STANDBY On Control port
9 GND - GND
10 JOG2 I
11 JOG1 I
12 RESET I Reset port
13 X IN -
14 X OUT -
15 GND - GND
16 BACK_UP I BACKUP mode control port
JOG Data Input port(Master Volume)
8MHz Crystal Connection port

−4−
PIN No. NAME I/O DESCRIPTION
17 CD_BUS0 I/O
18 CD_BUS1 I/O
19 CD_BUS2 I/O
20 CD_BUS3 I/O
21 CD_OPEN_SW I CD Open Switch input port
22 CD_CLOSE_SW I CD Close Switch input port
23 CD_LIMIT_SW I CD Limit Switch input port
24 TUNED_IN I Tuner Module Tuned port
25 STEREO_IN I Tuner Module Stereo port
26 N.C - No Connection
27 POWER_H O Power on port
28 PLL_DIN I PLL data input port
29 V-STB O Volume I.C(IC21) Chip enable port
30 P/V_CLK O PLL/VOLUME Colck output port
31 P/V_DATA O PLL/VOLUME Data output port
32 PLL_CE O PLL Chip enable port
33 VDD I Power Supply port
34~65 FIP_DATA O FIP Data output port
66 -30V I -30V Supply port
67 OPTION I option port
68 PROTECT I Protect Control port (Active "L")
69 H/P_IN I Headphone input control port
70 CD_POWER O CD Power control port
71 CD_RESET O CD Reset output port
72 CD_BUCK O CD DSP IC Clock port
73 CD_CCE O CD DSP IC Chip enable port (Active "L")
74 CD_RW O CD Control Interface
75 CD_OPEN_M O Open Motor control port
76 CD_CLOSE_M O Close Motor control port
77 KEY2 I
78 KEY1 I
79 SP_ON O Speaker On Control port
80 T_MUTE O Tuner Mute Control port
KEY Data input port
CD_BUS Interface port

−5−
3
1
2
4
5
6
7
8
9
10
11
11
12 13
17
14
15
15
16
17
18
19
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
3 EXPLODED VIEWS AND PARTS LIST

−6−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
1CGR1A345M9ZK79 ORNAMENT,DOOR[E(N)]
CGR1A345M7ZG5 ORNAMENT,DOOR[E(S),UK]
2CGU1A347Z WINDOW,FIP
3KGB1A047 BADGE,TEAC[E(N)]
KGB1A047Z BADGE,TEAC[E(S),UK]
4CGK1A098ZA VOLUMEKNOBASSY[E(N)]
CGK1A098YA VOLUMEKNOBASSY[E(S),UK]
5CGR1A346MBC13 ORNAMENT,RING[E(N)]
CGR1A346MBC22 ORNAMENT,RING[E(S),UK]
6CKM1A144ZC11 PANEL,FRONT[E(N)]
CKM1A144ZC35 PANEL,FRONT[E(S),UK]
7CGL1A133 INDICATOR,STANDBY
8CGW1A386R5K80 PANEL,SUB[E(N)]
CGW1A386M7ZG5 PANEL,SUB[E(S),UK]
9CBT1A495M9K79 CAP,STANDBY[E(N)]
CBT1A495M7G5 CAP,STANDBY[E(S),UK]
10 CBT1A483 KNOB,STANDBY
11 CBT1A493MBC13 KNOB,CPS[E(N)]
CBT1A493MBC22 KNOB,CPS[E(S),UK]
12 CBT1A942M9K79 KNOB,MODE[E(N)]
CBT1A942M7G5 KNOB,MODE[E(S),UK]
13 CBT1A943M9ZK79 KNOB,PLAY[E(N)]
CBT1A943M7ZG5 KNOB,PLAY[E(S),UK]
14 HFLHNA11SM28 FIP
15 CMD1A468 BRACKET,FLT
16 CMD1A376 SUPPORT,LED
17 COP11719B PCB,MAINASSY[E(N)]
COP11719C PCB,MAINASSY[E(S),UK]
18 CJDKSL2130CCM CDSINGLEMECH
19 KMH1A092 SUPPORT,PCB
20 CKL2A055M9K63 FOOT[E(N)]
CKL2A055H45 FOOT[E(S),UK]
21 KHG1A050Y CUSHION,FOOT
22 CUA1A248 CHASSIS,BOTTOM
23 CMD1A395 BRACKET,PCB
24 CHE1A030 HOLDER,PCB
25 CMD1A530 BRACKET,PCB(A)
26 CMY1A233 HEATSINK
27 COP11718B PCB,POWERASSY[E(N)]
COP11718C PCB,POWERASSY[E(S),UK]
28£CLT5P040ZE TRANS,POWER
29 COP11718B PCB,POWERASSY[E(N)]
COP11718C PCB,POWERASSY[E(S),UK]
30 CMD1A531 BRACKET,PCB
31 COP11767B PCB,CDASSY
32 COP11719B PCB,MAINASSY[E(N)]
COP11719C PCB,MAINASSY[E(S),UK]
33 COP11719B PCB,MAINASSY[E(N)]
COP11719C PCB,MAINASSY[E(S),UK]
34 CNVMB114MA18L TUNERMODULE(EUR)
35 COP11718B PCB,POWERASSY[E(N)]
COP11718C PCB,POWERASSY[E(S),UK]
36 CKF1A282Z PANEL,REAR[E]
CKF1A282Y PANEL,REAR[UK]

−7−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
37£KHR1A028 BUSHING,ACCORD
38£CJA2B043ZA CORD,POWER[E]
£CJA2E045ZA CORD,POWER[UK]
39 CKC1B156S21 CABINET,TOP[E(N)]
CKC1B156S35 CABINET,TOP[E(S),UK]
40 CGX1A361 SHEET,HIGH
41 CGX1A362 SHEET,LOW
42 KMC1A245 SHIELDCUSHION
F751£KBA2C2000TLEZ FUSE
KLZ9W001Z RING,FERRITE
CWC1B2A15A080B CARDCABLE,15P
CWC1F1A16A130A CARDCABLE,16P
CWC1C4A17B070B CARDCABLE,17P
CWC1B2A17A100B CARDCABLE,17P
CWC1C4A17B200B CARDCABLE,17P
CWC1B2A19A070B CARDCABLE,19P
CWC1B2A30A080B CARDCABLE,30P

−8−

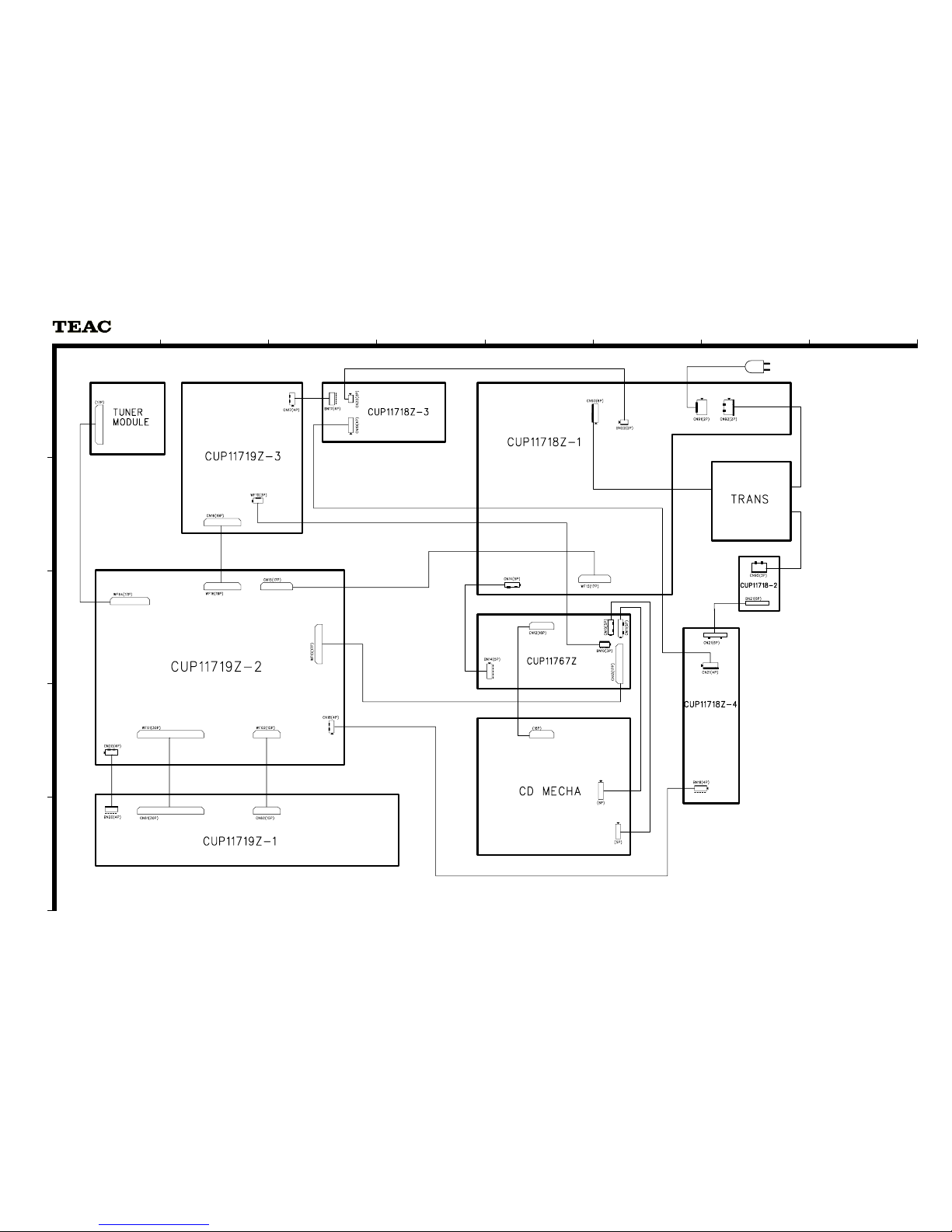

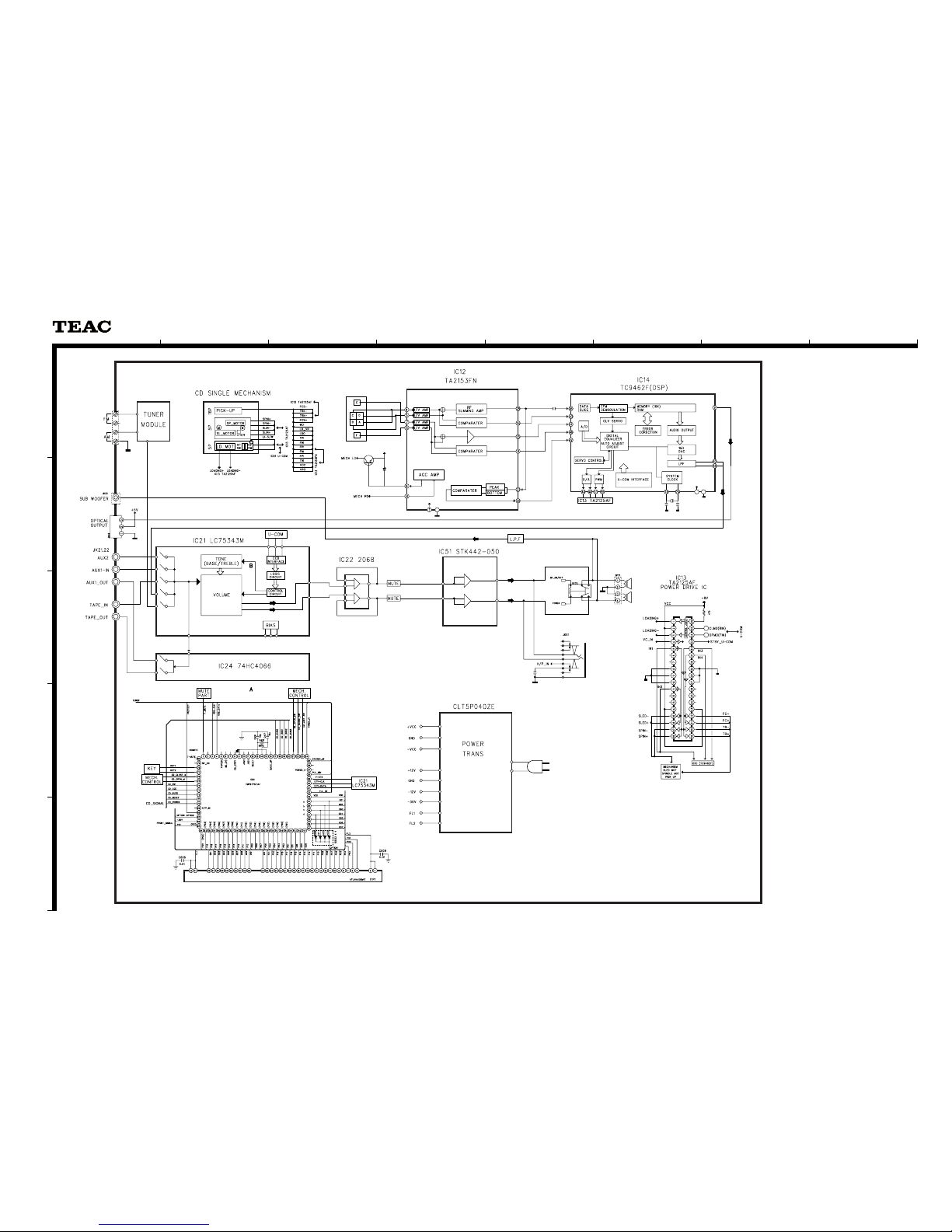

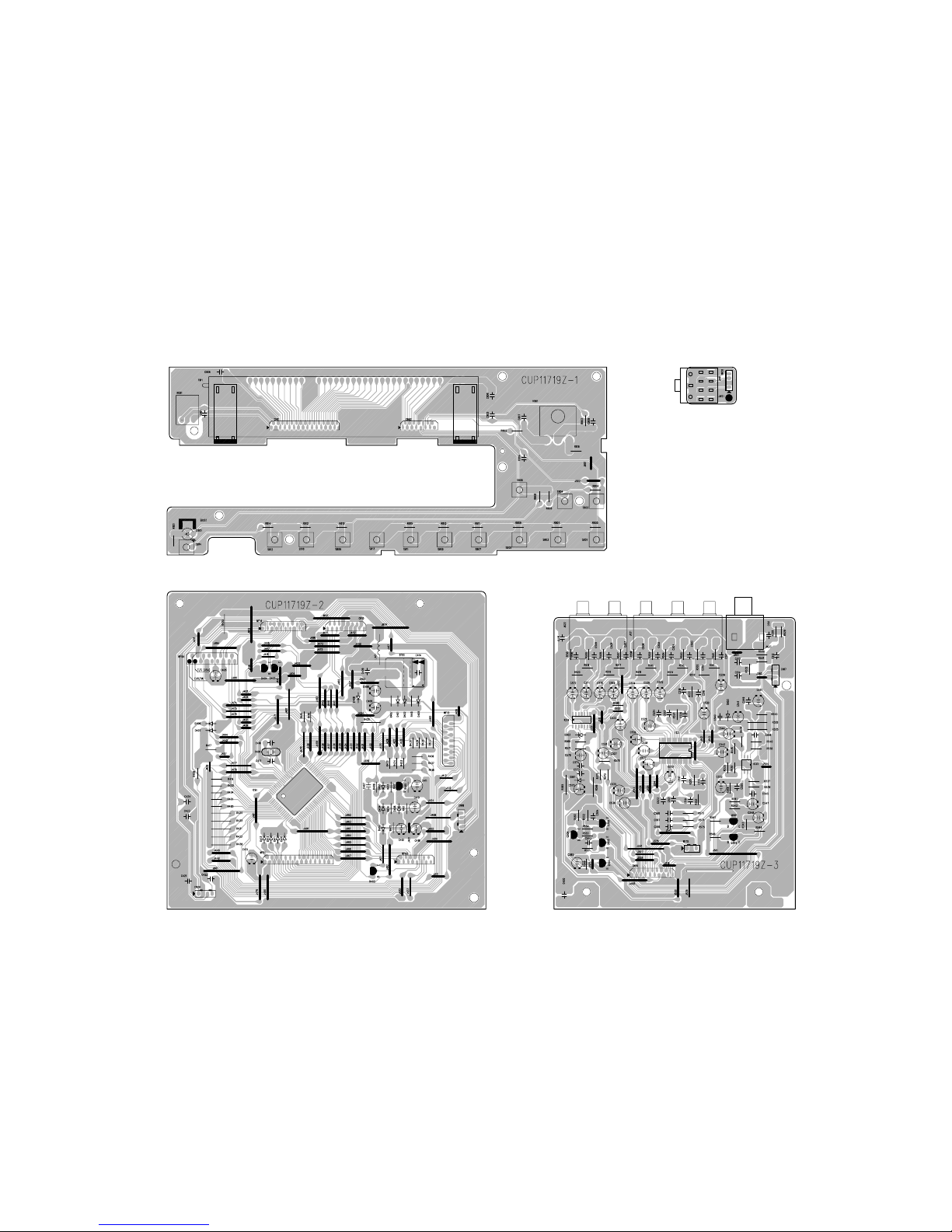

4 PC BOARDS AND PARTS LIST
MAIN PCB

−9−
POWER PCB

CD PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
COP11767B PCB,CDASSY
CUP11767Z PCB,CD
CN10 KJP05GA19ZM WAFER,MOLEX53014‑0510
CN11 KJP06GA19ZM WAFER,MOLEX53014‑0610
CN12 KJP16GB113ZG WAFER,16P
CN13 KJP17GB116ZG WAFER,GF120‑17S‑LS
D102 HVD1SS133MT DIODE,1SS133T‑77
IC10 HVITC9462F IC,TC9462F
IC12 HVITA2153FN IC,TA2153FN
IC13 HVITA2125AF IC,TA2125AF
IC15£HVIKA78L05AZT IC,KA78LXXAZTA
L100 HLQ02C100KT COIL,AXAIL
Q100 HVTKTA1266YT TR,KTA1266Y
X101 HOX16934E120C CRYSTAL,16.934MHZ
MAIN PCB ASSY (GATHER)
REF.NO. PARTSNO. DESCRIPTION
COP11719B PCB,MAINASSY[E(N)]
COP11719C PCB,MAINASSY[E(S),UK]
CUP11719Y PCB,MAIN
BK81 CMD1A376 SUPPORT,LED
BK82 CMD1A468 BRACKET,FLT
BK83 CMD1A468 BRACKET,FLT
C414 BCES0HD104 C,GOLDEECS0HD104V
CN15 KJP17GA117ZG WAFER,GF102‑17S‑TS
CN16 KJP19GA117ZG WAFER
CN17 CJP04GA19ZY WAFER,4P00906‑0027
CN18 CJP04GA19ZY WAFER,4P00906‑0027
CN20 CJP04GA19ZY WAFER,4P00906‑0027
CN61 KJP30GB113ZG WAFER,GF106‑30S‑LS
CN62 KJP15GB113ZG WAFER,15P
D401 HVD1SS133MT DIODE,1SS133T‑77
D402 HVD1SS133MT DIODE,1SS133T‑77
D403 HVD1SS133MT DIODE,1SS133T‑77
D404 HVD1SS133MT DIODE,1SS133T‑77
D405 HVD1SS133MT DIODE,1SS133T‑77
D406 HVD1SS133MT DIODE,1SS133T‑77
D407 HVD1SS133MT DIODE,1SS133T‑77
D408 HVD1SS133MT DIODE,1SS133T‑77
D409 HVD1SS133MT DIODE,1SS133T‑77
D411 HVD1SS133MT DIODE,1SS133T‑77
D412 HVD1SS133MT DIODE,1SS133T‑77
D413 HVD1SS133MT DIODE,1SS133T‑77
D414 HVD1SS133MT DIODE,1SS133T‑77
D501 HVDMTZJ4.7BT DIODE,ZENERMTZJ4.7B
D502 HVDMTZJ4.7BT DIODE,ZENERMTZJ4.7B
D503 HVDMTZJ9.1BT DIODE,ZENERMTZJ9.1B
MAIN PCB ASSY (GATHER)
REF.NO. PARTSNO. DESCRIPTION
D801 HVD342YCTB7T089 LED,YELLOWSLR342YCTB7
FIP1 HFLHNA11SM28 FIP
IC24 BVI74HC4066D IC,74HC4066D
IC81 HVITMP87PS71AF IC,TMP87PS71AF
IC91 HVILC75343M IC,LC75343M
IC92 HVINJM2068MDTE1 IC,NJM2068MD‑TE1
JK21 CJJ4R020W JACK,BOARD[E(N)]
JK21 CJJ4M046Z JACK,BOARD[E(S),UK]
JK22 CJJ4P019W RCA,JACK[E(N)]
JK22 CJJ4P014W JACK,IN/OUT[E(S),UK]
JK23 CJJ4M056W JACK,BOARD[E(N)]
JK23 CJJ4R019W TERMINAL,IN/OUT[E(S),UK]
JK61 HJJ2E021Z JACK,HEADPHONE[E(N)]
JK61 HJJ2E027Z JACK,HEADPHONE[E(S),UK]
L401 KLZ9H001Z BEAD,CORE
Q401 HVTKSB811YT TR,KSB811Y
Q402 HVTKRA107MT TR,KRA107M
Q404 HVTKRA107MT TR,KRA107M
Q405 HVTKRA107MT TR,KRA107M
Q501 HVTKTD1302T TR,KTD1302
Q502 HVTKTD1302T TR,KTD1302
Q503 HVTKRA107MT TR,KRA107M
Q504 HVTKRA107MT TR,KRA107M
Q505 HVTKTD1302T TR,KTD1302
Q506 HVTKTD1302T TR,KTD1302
RC61 KRVHIM602H32 SENSOR,REMOCON
S801 CST1A012ZT SW,TACT00802‑0005
S802 CST1A012ZT SW,TACT00802‑0005
S803 CST1A012ZT SW,TACT00802‑0005
S804 CST1A012ZT SW,TACT00802‑0005
S805 CST1A012ZT SW,TACT00802‑0005
S806 CST1A012ZT SW,TACT00802‑0005
S807 CST1A012ZT SW,TACT00802‑0005
S808 CST1A012ZT SW,TACT00802‑0005
S809 CST1A012ZT SW,TACT00802‑0005
S810 CST1A012ZT SW,TACT00802‑0005
S811 CST1A012ZT SW,TACT00802‑0005
S812 CST1A012ZT SW,TACT00802‑0005
S813 CST1A012ZT SW,TACT00802‑0005
S814 CST1A012ZT SW,TACT00802‑0005
VR61 HSR2A011Z VR,ENCODEREC16B243040F
WF10 CJP03GA19ZY WAFER,3P
WF13 KJP17GA115ZG WAFER,GF120‑17S‑TS
WF16 KJP17GA117ZG WAFER,GF102‑17S‑TS
WF61 KJP30GA117ZG WAFER,GF102‑30S‑TS
WF62 KJP15GA117ZG WAFER,15P
WF64 KJP17GA115ZG WAFER,GF120‑17S‑TS
X401 HOX08000E160C CRYSTAL
−10−
