TECAi ecoil User manual

ecoil
Portable coil cleaning system
user manual EN
original manual

©
Portable coil cleaning system 2-22
ecoil
introduction
Training service
Technical service
Thank you very much for placing your trust in a quality product from TEINNOVA.
This product is manufactured using modern production processes and extensive
quality assurance measures.
We try to do everything possible to ensure that you are satisfied with this product and
can work with it without any problems.
If you have any questions about this product, please contact your dealer or our
company directly.
Before operating the machine, carefully read the operating instructions for your
equipment.
Please consider this manual as part of the machine and keep it handy for future
reference.
We offer the option of providing companies with specific training in the use of our
equipment and training their operators to provide the best service and thus
contribute to the success of their end customers.
Aspects such as knowing how to draw up a good quotation objectively, how to res-
pond to specific problems that may arise, or how to offer a more professional and
efficient service.
Thanks to our own manufacturing of cleaning equipment, we can control at all
times the quality and performance of each machine we manufacture, and this has
allowed us to have very low repair ratios which have always been solved with our
own Technical Support Service managed by the same team that manufactures it,
and in very short periods of time.
We have all kinds of spare parts for your equipment, as well as related accessories.
This instruction manual is protected by copyright. We reserve all rights, especially the right to production,
translation and processing with electronic systems.
Dear customer:

5-22
6-22
7-22
8-22
9-22
12-22
16-22
10-22
Portable coil cleaning system 3-22
ecoil
symbology
safety warnings
envisaged conditions of use
know your machine
control panel
operating instructions
use of chemicals
accessories and related equipment
index

17-22
18-22
19-22
20-22
22-22
21-22
Portable coil cleaning system 4-22
ecoil
transport
maintenance and care
waste management
technical specifications
EC declaration of conformity
guarantee conditions
índice

Portable coil cleaning system 5-22
ecoil
symbology
DANGER!
WARNING!
CAUTION!
IMPORTANT NOTE!
All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained
in this section, it is important to read with special attention the text related to this symbology as it is related to
personal and equipment safety.
This symbol alerts you to a potentially hazardous situation which can result in
death or serious injury if t h e instructions are not followed properly. Be sure to
read all instructions described in the “Safety Information” section.
This symbol alerts you to a potentially hazardous situation which may result in
minor or moderate injury, or property damage resulting in personal injury if the
indicated instructions are not followed properly.
This symbol alerts you to a situation that may result in property damage
without personal injury if you do not follow the instructions properly.
This symbol alerts you to information regarding the optimal use of the equipment
to avoid possible misuse.

Portable coil cleaning system 6-22
ecoil
The ECOIL equipment must NOT be used for purposes other than those described in t h i s instruction
manual.
Before starting up the equipment, make sure that all connections are correct.
Do not direct the nozzle jet at people.
Be careful to place your ECOIL correctly on its back or on a smooth and stable surface to be able to
perform the work better.
Persons operating ECOIL equipment must be sufficiently trained.
It is advisable to wear mechanical protection gloves and coveralls when operating the equipment.
Safety goggles must be worn to prevent chemical splashes from reaching the operator’s eyes.
Properly strapped ECOIL in an upright position during transport in a vehicle.
To avoid electric shock, never expose the equipment to rain. Store the equipment indoors in a cool, dry
place.
Do not disassemble your ECOIL equipment, nor manipulate any of the internal elements of the equipment.
In the event of a fault, please contact TEINNOVA’s Technical Assistance Service on the following telephone
number [phone].
safety warnings

Portable coil cleaning system 7-22
ecoil
Any other use is strictly prohibited
without the written permission of
the manufacturer.
Unless otherwise specified,
the chemical should be the
one recommended by the
manufacturer, COILNET. The use of
a different chemical will void the
warranty and may cause irreparable
damage to your TECAI equipment.
ECOIL is a machine for fast and effective cleaning of air conditioning coils, evaporators and condensers.
envisaged conditions of use
LEGEND battery power supply
Do not place the device in a
horizontal position under any
circumstances, as this could lead to
malfunctions.
ecoilecoil
Electric brushing robot for
duct cleaning
Cleaning and rinsing
gun
mains water
chemical product

1
2
4
6
10
7
89
11
3
5
12
Portable coil cleaning system 8-22
ecoil
Components:
1- Water tank 10l
2- Chemical tank 2,5l
3- Handle
4- Battery
5- Gun support
6- Rinsing / cleaning gun
7- Resettable fuse
8- Pump power regulator
9- Chemical regulator
10- On/Off button
11- Backpack harness
12- Chemical display slot
know your machine

1
2
3
4
Portable coil cleaning system 9-22
ecoil
Main control panel:
control panel
Pump regulator
General Switch
Chemical regulator
Regulates the power of the pump
Regulates the amount of chemical you want to use
Switching the equipment on and off
Cleaning / rinsing Button to change the operation of the equipment

Portable coil cleaning system 10-22
ecoil

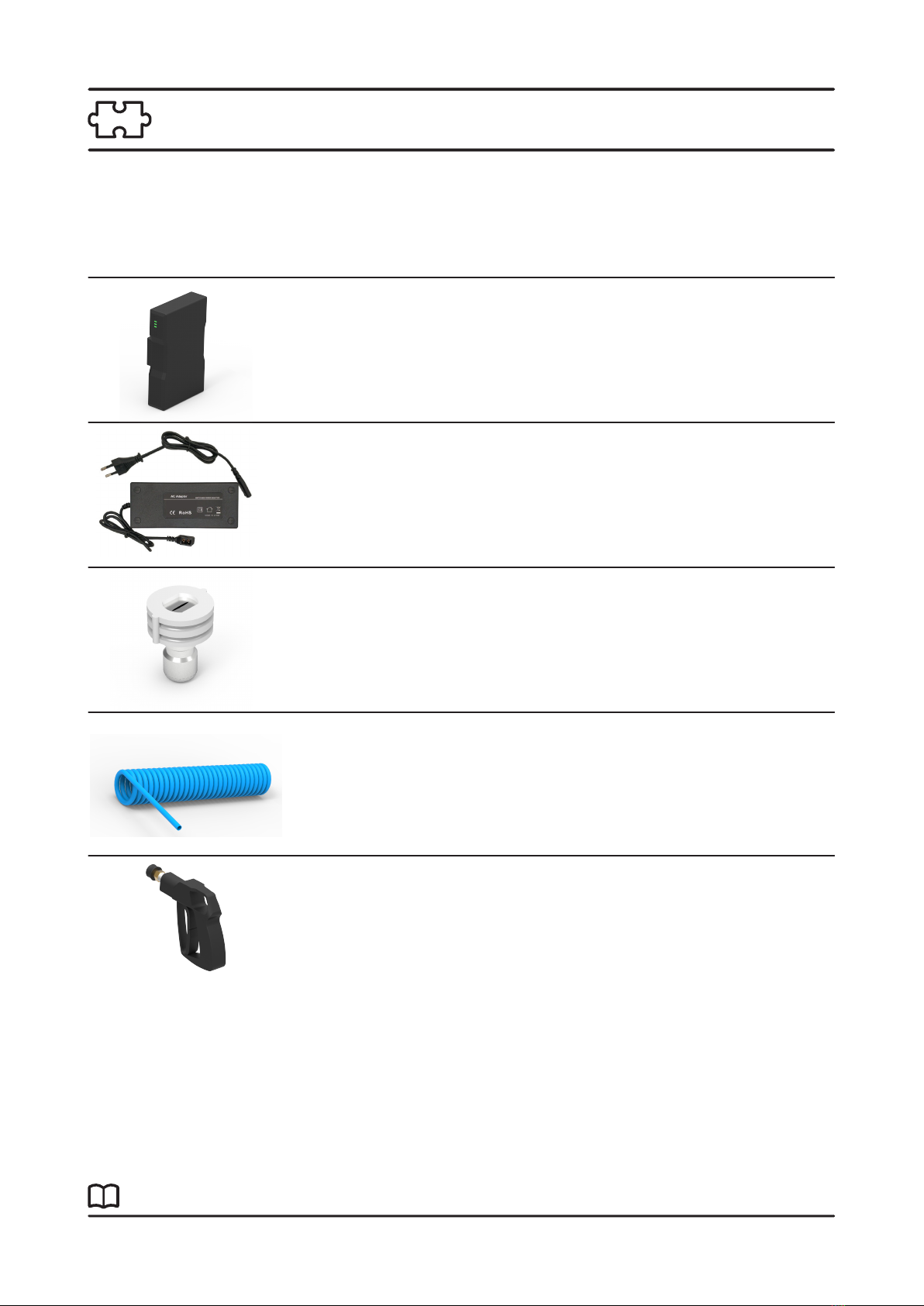

Accessories included:
accessories and related equipment
96Wh lithium battery with autonomy of 1 hour of continuous work.
Cod. AC3303419
Li-Ion battery
Charger for the 4.5A lithium battery (full charge in less than 2 hours).
Cod. AC3304601
Li-Ion battery charger
White 40º fast nozzle specifically designed for rinsing and cleaning with your
ECOIL equipment.
Cod. 370004007
Spiral liquid hose. It is integrated into the side of your equipment, connected to
the handle.
Cod. AC3303108
Spray gun with nozzle holder for cleaning with your ECOIL equipment.
Cod. AC3303344
White 40º nozzle
Spiral liquid hose
Pistol

Portable coil cleaning system 11-22
ecoil
Optional accessories:
accessories and related equipment
Kit consisting of 3 rods of 30 cm which, thanks to their adapters, can be coupled
together to obtain a lance almost 1 metre long.
The main rod has a quick coupling to attach it to the gun. It also has 2 nozzles,
one straight at 45º and the other curved at 90º. All components are enclosed
in a hard case.
Cod. AC3303305
Section to be able to increase the size of the lance. It consists of a 30 cm rod
with an adapter.
Cod. AC3303304
Accessory kit
Lance extension 30 cm
System for the protection and collection of liquids for wall-mounted split
cleaning.
Cod. AC3303329
System for the protection and collection of liquids for cassette split cleaning.
Cod. AC3303330
Highly effective alkaline degreaser for air conditioning coils.
Cod. PQ8400105
Highly effective alkaline degreaser for untreated air conditioning coils.
Cod. PQ8400106
Wall split protector
Split cassette protector
Coilnet Jerrycan 10 liters
Coilfoam Jerrycan 10 liters

1
2
3
Portable coil cleaning system 12-22
ecoil

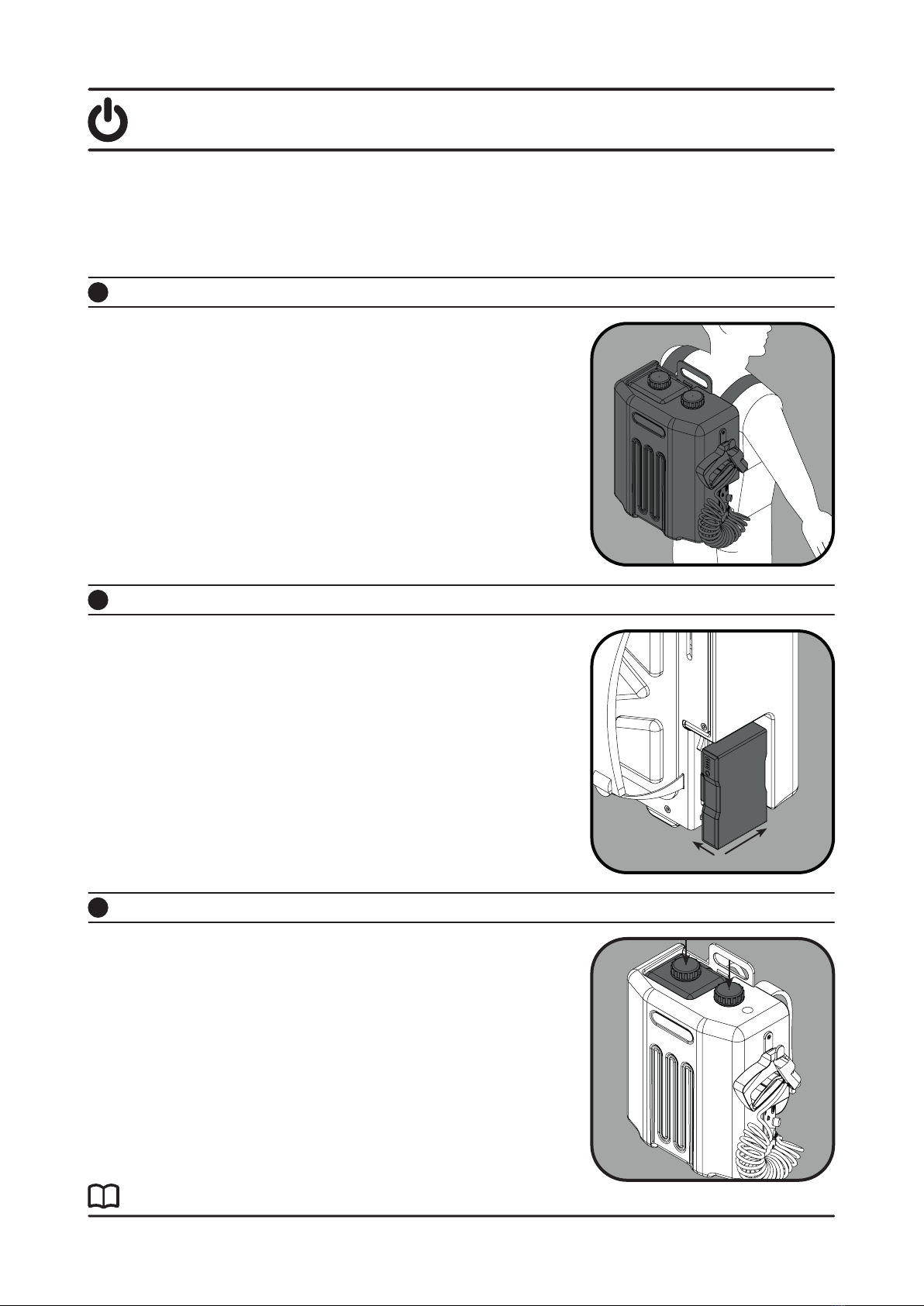

Steps for a correct installation of your ECOIL:
Placement of your ECOIL:
Its ECOIL can be used in two ways, as a backpack on the user’s back
or on a smooth and stable surface.
Use one option or the other as deemed optimal for the performance
of the work.
operating instructions
Place the battery in your equipment so that you can start working
with it. To do this, place the battery on the adapter and push it down
until it “clicks”.
The large tank is for the water and the small tank is for the chemical.
Pour the product through a funnel to ensure that no chemical gets
into your equipment.
Use of the battery:
Filling of tanks:

1
2
Portable coil cleaning system 13-22
ecoil
operating instructions
By means of the control panel located on the side of the equipment, the function we want to perform is
selected. Depending on the function selected, the LED on the push button changes colour and the unit
communicates this by speaking.

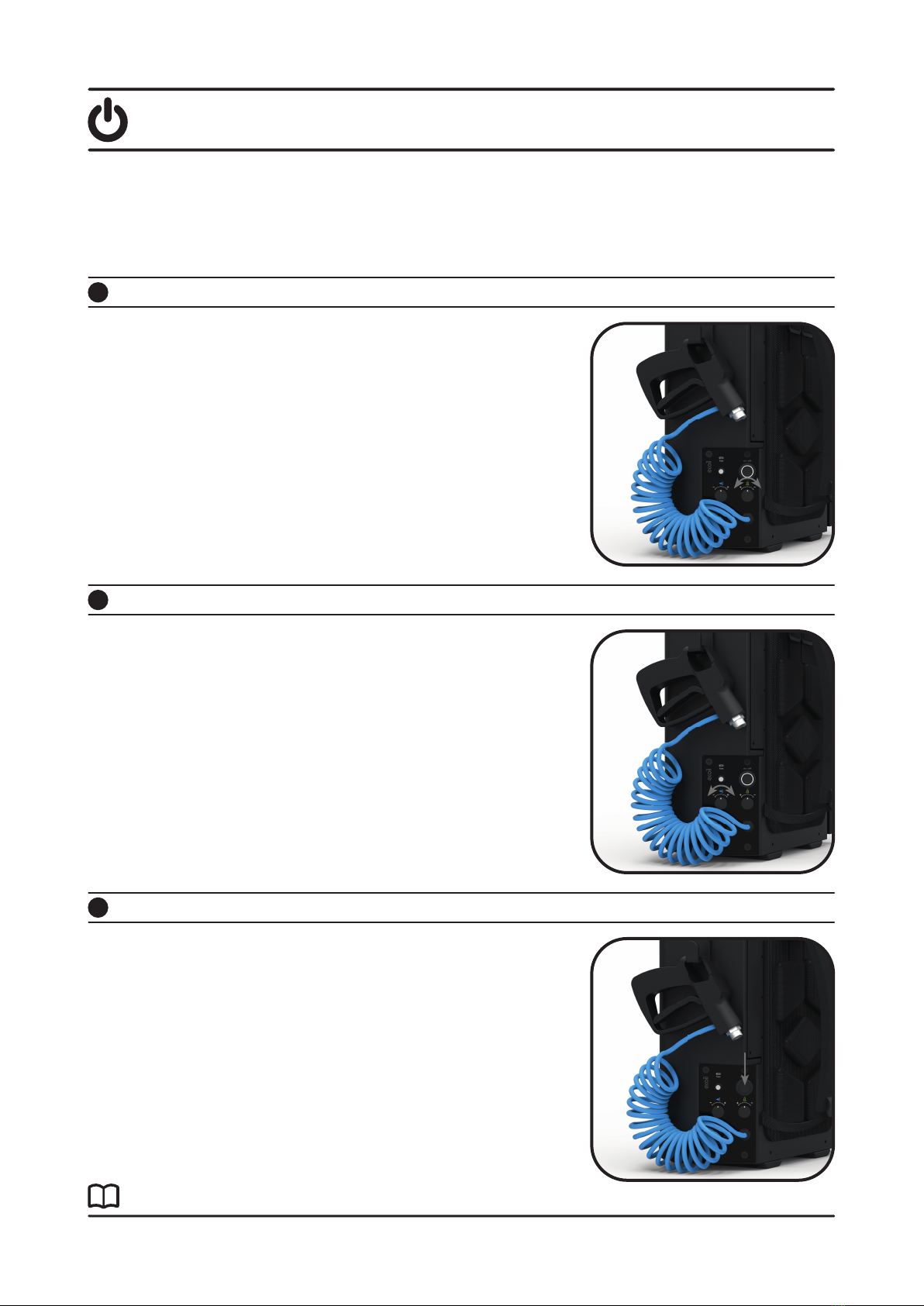

Switching on the equipment:
Switch on your ECOIL by pressing the on/off button. The LED on the
button will turn blue and the equipment will inform of its status by
means of the word ACLARMED.
Selection of the function to be performed:
Change from rinsing to cleaning:
In order to change the status of the equipment, you have to press
on t h e membrane keypad of the gun. Each time we press, the
power button will change colour and the equipment will inform us
by means of the word CLEAR or CLEAN.
CLARIFIED - Blue power button. The unit is now ready to pour water
only.
CLEANING - White power button. The equipment is now ready for
chemical spraying.

3
4
5
Portable coil cleaning system 14-22
ecoil
operating instructions
Chemical regulation
Pump regulation
Switching off the equipment:
Switch off your ECOIL by pressing the on/off button.
Adjust the pump power by turning the knob.
Turn to the right to increase the power and to the left to reduce it.
Regulate the amount of chemical you want to use by turning the
wheel. Turn to the left to take more chemical, and to the right to take
less.
The roulette wheel has approximately 11 spins.

1
2
Portable coil cleaning system 15-22
ecoil
operating instructions
Steps to charge your battery correctly:
Battery replacement:
Battery charging:
Remove the battery from your equipment, press the tab on the
adapter and p u l l t h e battery out.
Charge the battery using the charger supplied with the device. You
can see the amount of charge by pressing the button on the side.
For a full charge, wait until the light turns green, because even if all
the lines are lit up, it does not mean that the battery is 100% charged.

q
r
x
n
Portable coil cleaning system 16-22
ecoil
COILNET and COILFOAM are the chemicals used for the operation of your ECOIL equipment.
They are particularly suitable for cleaning, sanitising and deodorising air-conditioning coils.
Its 10 kg canister format facilitates clean and safe transport and handling.
The use of PPE when working with the
machine is compulsory by Law 31/1995,
on the Prevention of Occupational Risks.
Wear PPE to prevent splashing or inhalation
of vapours released by the chemical.
Before starting the cleaning process, it is
very important to read the product label
to know the properties, applications,
instructions for use and precautions to be
taken into account when using COILNET or
COILFOAM.
full face protection Protects against particle projections and splashes. The standard
governingthisPPEisUNEEN166:2002“EyeprotectionSpecifications”.
Protects against projections to the body from accidental chemical
splashes. The standard governing this PPE is UNE EN 13034:2005.
It protects the hands from accidental chemical splashes and from
mechanical risks such as burns. The standard governing this PPE is
UNE EN 420:2004 and UNE EN 374-1:2004.
Protects against inhalation of vapours produced by the chemical.
The standard governing this PPE is UNE EN 136:1998.
total body protection
full hand protection
full respiratory protection
PPE to be used during the handling of your ECOIL:
use of chemicals

Portable coil cleaning system 17-22
ecoil
The machine is designed to be transported in a small van.
During transport, the machine must be securely tied down to prevent any damage. It shall also be placed in its
normal working position (upright).
It is not recommended to place the machine on a transport pallet or similar. The machine must rest on a
completely flat and horizontal surface.
The machine must never be placed in
a horizontal position (lying down) for
transport. This would result in serious
damage to the machine and therefore in
the machine malfunctioning.
Clean all parts of the machine thoroughly
before loading it for transport.
transport

Portable coil cleaning system 18-22
ecoil
maintenance and care
Keep the equipment as clean as possible , storing it in a place protected from the weather.
If the foam or rinse water is not sprayed evenly through the nozzles, check that the nozzles are not clogged with
dirt.
Keep the machine in good condition, avoid knocks or overloading.
Keep the connections clean to avoid obstructions in the ducts that could lead to serious damage to the main
machine elements.
After you have finished using your ECOIL equipment, it is important to clean the liquid circuit of the
equipment by rinsing it. Keeping the equipment stored with chemicals in the internal ducts of the
machine can reduce the life of the components.
TEINNOVA has spare parts for all parts of the machine as well as consumables for all the maintenance tasks
indicated in this manual.
If you require any parts or consumables, please contact TEINNOVA Customer Service on [phone].
Spare parts:

Portable coil cleaning system 19-22
ecoil
The materials used in the packaging are recyclable.
Do not dispose of the packaging in household waste, but hand it
in at official collection points for recycling.
Do not throw electrical appliances in the rubbish!
We recommend that power tools and accessories undergo an
environmentally friendly recovery process.
Dispose of the materials in the appropriate container or go to
your local collection points.
Directive 2012/19/EU of 4 July 2012 on waste electrical
and electronic equipment (WEEE).
waste management

ecoilecoil
419
492
200
Portable coil cleaning system 20-22
ecoil
Power supply
Nominal battery voltage
Battery charging time
Maximum outlet pressure
Maximum output flow rate
Water tank capacity
Chemical tank capacity
Dimensions
Unladen weight (with battery)
Hose length
Noise level
Materials
Battery Li-ion 6600mAh (97.68Wh)
14,4V
90 min
6,9 bar
6 l/min
10 l
2,5 l
419 x 200 x 492 mm
16,50 x 7,87 x 19,37 inches
8,5 kg // 18,74 lb
2 m // 6,56 ft
60 dB
Polyethylene UV8, HDPE and cloth
Features
technical specifications
