Techni Mobili RTA-737DL User manual

Thank you for purchasing our product.
MODEL RTA-737DL
ASSEMBLY INSTRUCTIONS
REV.PFT-6378-0221-0

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P. 1 RTA-737DL P. 1

P. 2 RTA-737DL P. 2
1
x2
2
x1
3
x1
4
x1
Left cabinet leg Left frame Right frame Left-top-front tube
MAIN PARTS LIST
5
x2
6
x1
7
x1
8
x1
Right-top and front-tube
Right-bottom-back tube
Earphone hook
Left tabletop 9
x1
10
x1
Right back panel
Top shelf top panel 11
x1
12
x1
Left back panel
Right tabletop 13
x1
14
x1
Top shelf bottom panel
Top shelf back panel 15
x1
16
x1
Top shelf left panel Top shelf right
panel

P. 3 RTA-737DL P. 3
MAIN PARTS LIST
17
x1
Left cabinet left
panel
18
x1
20
x1
Left cabinet right
panel
Left cabinet bottom
panel
21
x1
22
x2
Left bottom
accessory shelf
Drawer front panel 23
x2
24
x2
Drawer left panel Drawer right panel
19
x1
Left cabinet back
panel
25
x2
Drawer back panel 26
x2
Drawer bottom
panel
27
x2
sets
“Flat”:
2 pcs, go
inside the cabinet
“L shaped”: 2 pcs,
go on the drawers
Drawer sliders*, each set of 4 pcs
* Screws I come packaged together with these pieces.
LIST OF HARDWARE, SCREWS AND FITTINGS
PART QTY ITEM
M5x40 Bolt
A32
B32 Ø15x12mm
Cam lock
C30 M5x40
D25 M6x30
E1M6x12
F8M6x40
G6Ø8x40mm
PART QTY ITEM
M4x18
H4
I*16 M3.5x14
* These screws come
packaged together
with the sliders #27.
J296mm
Handle
K7
Ø18mm
Plastic
adhesive
hole cover
1Screwdriver
1M6 Allen
Wrench

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 4 RTA-737DL P. 4
1
Top shelf
Left cabinet
Accessory shelf
Drawers
10
2
6
3
4
9
1
5
5
14
13
22
21
17
19
8
15
16
12
23
18
20 22
24
26
25 7

P.5 RTA-737DL P.5

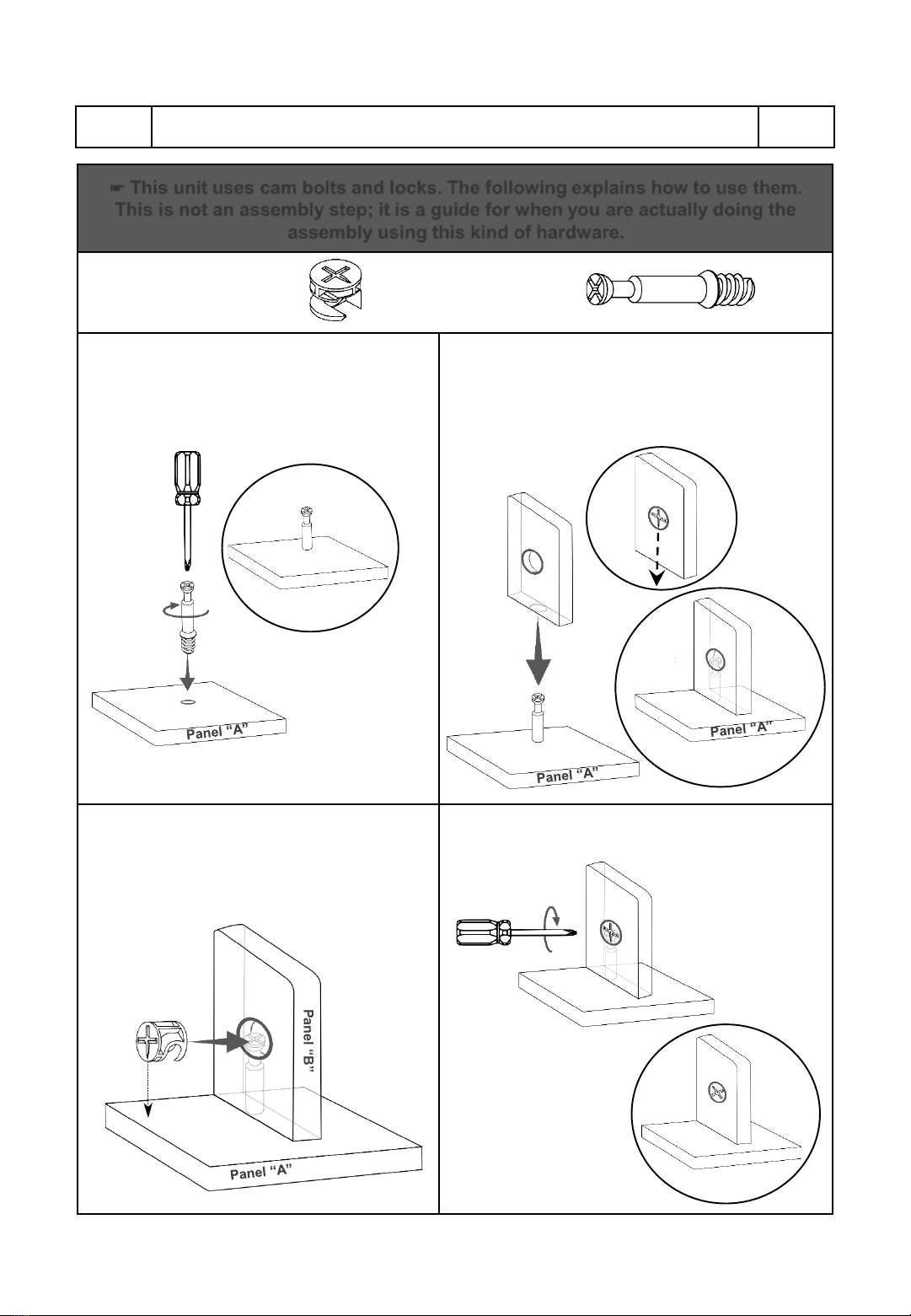

☛This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head. 4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P.6 RTA-737DL P.6
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
P. 7 RTA-737DL P. 7
Grab all the sets of sliders 27 and separate them into 2 groups according
to their shape:
-The “Flat” ones will be used on the next step.
-The “L Shaped” will be used until step 23, set them aside.
STEP 1
(Right, x2)
(Front)
(Front)
(Front)
(Front)
The “Flat” ones will
be used on step 2.
The “L-Shaped” will
be used on step 23,
set them aside.
27
27
27
27
(Left, x2)
(Left, x2)
(Right, x2)
Assemble the “Flat” sliders 27 to the left cabinet side panels 17 and 18
with screws I, making sure the wheel faces towards the front of the
panels.
Please note the sliders attach at the front on the 4th hole and the wheel
faces down with 2 empty holes above it.
4th hole from front
STEP 2
Hardware:
I
M3.5x14
8
Pcs
(Front)
2 empty holes
above the wheel
(Front)
(Front)
27
17 18

P. 8 RTA-737DL P. 8
•Attach the bolts Ainto the indicated holes on panels 17 and 18.
•Join panels 17 and 18 to panel 19.
•Insert the cam locks Bon panel 19 and turn them to lock the pieces
as explained in page 5.
Assemble the cabinet bottom panel 20 to the side panels 17 and 18 with
screws Cthrough the indicated holes from underneath.
Place panel on top
of the bottom tubes
STEP 3
Hardware:
AM5x40 Pcs
Bolt
4
B
Cam lock
4
Pcs 18
17
21 1
(Front)
19
STEP 4
Hardware:
C
M5x40
4
Pcs
18
17
20
(Top)
STEP 5
Hardware:
D
M6x30
4
Pcs
Place the accessory shelf 21 on top of the bottom tubes of the cabinet
legs 1and assemble it with screws Dfrom underneath. The screws go
through the legs and into the panel.
1
Cam locks
alignment
B
A

P. 9 RTA-737DL P. 9
Place the cabinet built in step 4over the legs 1and assemble the
bottom panel 20 with screws Dfrom underneath. The screws go
through the legs and into the panel.
•Assemble the right back panel 9to the right tabletop 12 with screws C
from behind.
•Assemble the right front tube 5to the tabletop 12 with screws Dat the
front and from underneath.
STEP 6
Hardware:
D
M6x30
4
Pcs
STEP 7
Hardware:
C
M5x40
3
Pcs
D
M6x30
3
Pcs
1
1
12
9
(Front)
20
These holes must
stay on the left
side, they are
needed for step 10
(Right)
5
D
C

P. 1 0 RTA-737DL P. 1 0
Attach the hook 7to the right frame 3with screw E, but pay attention to
the orientation of the hook.
With the help of another person, and following this order:
•Assemble the frame 3to the tubes 6and 5(one tube 5is already
attached to tabletop 12) on the right side with screws F.
•Assemble the left frame 2to those same tubes on the left side with
screws F.
(C is only for
panel 9)
STEP 8
Hardware:
E
M6x12
1
Pc
STEP 9
Hardware:
C
M5x40
2
Pcs
F
M6x40
6
Pcs
73
(Top)
(Left)
C
5
The hook attaches on the inside,
but faces towards the outside
•Secure panel 9 to both frames on both sides with screws C.
F
C
2
3
5
6
9
12
(Right)

P. 11 RTA-737DL P. 11
•With the help of another person, bring the structure built in step 9 to
the upright position.
•Secure the tabletop 12 to the frames 2and 3with screws Dfrom
underneath.
M5x40 Pcs •Attach the bolts Ato the tabletop 12 on the left side.
•Join panel 11 to tabletop 12.
•Insert the cam locks Binto panel 11 and turn them to lock the pieces
as explained in page 4.
STEP 10
Hardware:
A
Bolt
2
D
M6x30
4
Pcs
STEP 11
Hardware:
B2
Pcs
C
M5x40
2
Pcs
A
12
2
12
D
11
•Secure panel 11 to frame 2 with screws C from behind.
2
3
C
B
FIRST
THEN
Cam locks
alignment

P. 1 2 RTA-737DL P. 1 2
•Assemble the tube 4to panels 9and 18 with screws F.
•Assemble the panel 18 to panel 11 with screws C.
Install bolts Aand dowels Ginto the indicated holes on the left tabletop 8.
(Front)
(Back)
STEP 12
Hardware:
C
M5x40
2
Pcs
F
M6x40
2
Pcs
STEP 13
Hardware:
AM5x40 Pcs
Bolt
7
G
Dowels
6
Pcs
18
A8
4
G
11
F
C
9

P. 1 3 RTA-737DL P. 1 3
•With the help of another person, place the left tabletop 8 over the unit
on the left side.
•Insert the cam locks B into panels 11, 17 and 18, and turn them to lock
the pieces as explained in page 5.
•Secure the left tabletop 8 to the tube 4 with screws D from underneath.
•Secure the left tabletop 8 to the back panel 9 with screws C from
behind.
Assemble the top shelf side panels 15 and 16 to the top shelf back panel
14 with Bolts Aand cam locks Bas explained in page 5.
(Back)
(Front)
STEP 14
Hardware:
BCam
locks
7
Pcs
C
M5x40
2
Pcs
D
M6x30
3
Pcs
STEP 15
Hardware:
A
B
M5x40 Pcs
4
Bolts
Cam
locks
4
Pcs
17
11
(Top)
8
18
Cam locks
alignment
9
4
D
C
B
15
16
14
A
B

P. 1 4 RTA-737DL P. 1 4
Assemble the bottom panel 13 to panels 14, 15 and 16 with screws C.
With the help of another
person, assemble the
shelf bottom panel 13 to
frames 2and 3and to the
tube 5with screws Dfrom
underneath.
(Front)
STEP 16
Hardware:
C
M5x40
7
Pcs
STEP 18
Hardware:
D
M6x30
7
Pcs
14
13
3
2
16
15
STEP 17
Hardware:
AM5x40 Pcs c
e
a
x
m
pla
lo
i
cks
Bolts
7
BCam
locks
7
Pcs
Assemble the top panel
10 to panels 14, 15 and
16 with bolts A and
B as
ned in page 5.
(Back)
14
10
16
15
Cam locks
alignment
B
A
13
5

P. 1 5 RTA-737DL P. 1 5
For each of the 2drawers,
assemble the side panels
23 and 24 to the front
panel 22 with bolts Aand
M5x40 Pcs cam locks B as explained
in page 4.
For each of the 2 drawers, slide the bottom
panel 26 through the grooves of the side
panels and into the front panel as shown.
STEP 19
Hardware:
A
Bolts
8
BCam
locks
8
Pcs
27
24
23
STEP 20
All the
grooves
must align 22
For each of the 2 drawers,
assemble the back panel
25 to the side panels 23
and 24 with screws C.
STEP 21
Hardware:
CM5x40
8
Pcs
23
25
24
For each of the 2 drawers,
assemble the handle Jto
front panel 22 with screws
H.
J22
For each of the 2 drawers, flip upside-down and assemble the “L” sliders
27 with screws I, making sure the wheel goes towards the back, and that
they don’t protrude, otherwise, the drawer raises 1” and won’t fit in the
cabinet.
STEP 23
Hardware:
IM3.5x14
(comes
with 27)
8
Pcs
24
24
23
26
STEP 22
Hardware:
HM4x18
4
Pcs
JHandle
2
Pcs
When finished, the sliders
should look like this from the
back of the drawer:
The assembly below is
incorrect, it raises 1” and the
drawer won’t fit:
Cam locks
alignment
22
27
23

P. 1 6 RTA-737DL P. 1 6
•Cover the cam locks on the inside of the top shelf with stickers K.
•Insert the drawers into the cabinet, first the bottom one, them the top
one. Insert at an angle with their fronts facing down, making sure the
wheels from the drawer slide in the middle of the sliders inside the
cabinet.
•If the top drawer doesn’t fit, review the assembly done in steps 2 and
23 for the correct assembly of the sliders.
STEP 24
Hardware:
K7
Pcs
ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
24

WEIGHT LIMITS
P. 1 7 RTA-737DL P. 1 7
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers or compartments without your
supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or might
fall off. Please note that lifting from the tabletop with too much weight on the product might
lead to part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•The glass is made of safety tempered glass. The safety feature is that when breakage
occurs, the glass shatters into many tiny pieces minimizing the risk of serious injuries. If
the glass breaks, do not handle the pieces with your bare hands, take some pictures and
contact Customer Service immediately.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
88 Lbs.
(40 Kg)
2.2 Lbs.
(1 Kg)
33 Lbs.
(15 Kg)
11 Lbs.
(5 Kg)
88 Lbs.
(40 Kg)
33 Lbs.
(15 Kg)
66 Lbs.
(30 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired anew product from
RTA Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described
herein."Defects" as used in this warranty, is defined as any imperfections that impair the
use of the furniture or product.RTA Products LLC will replace any defective part, at its
discretion, and without charge to the original purchaser other than the freight from the end
consumer to RTA Products.
Replacement parts can only be supplied if parts are available.Items out of production
may be unavailable.This warranty will be effective for the applicable time period
beginning the date of purchase on your original sales receipt.RTA product’s obligation
under this warranty is limited to repairing or replacing products or parts as provided
herein.This product has been designed for and is intended for office and home-office use
only.This warranty is Original Purchaser’s sole remedy for product defects, and this
warranty does not extend to any product, or damage to any product, caused by or
attributed to abuse or misuse, products used for commercial or rental purposes, use
modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or
implied, including without limitations any implied warranty or merchantability or of fitness
for aparticular purpose.Please note, all desks made with PVC Laminate surface should
not be exposed to direct sunlight, as it may damage the material.Damage of this nature
is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages.This warranty is limited to merchandise purchased in the Continental United
States.Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.This warranty
gives you specific legal rights.You may also have other rights that may vary from state to
state.
RTA Products will advise you of the procedure to follow in making warranty claims.The
following are the procedures for warranty claims:
a. Call us Monday –Friday,from 9am-5pm (Eastern Time) at [phone] to explain
the defect and give your name, address and phone number.Please have ready the
model number of our product, date and place of purchase.You can also write to us by
e-mail to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine
the extent or the cause of the defect, purchaser will need to send the part in question
at purchaser’s expense.Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement.We will
ship the replacement at our expense.
P. 1 8 RTA-737DL P. 1 8
TECHNI MOBILI WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
TV Stand/Entertainment Center: 2 YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
