Techni Mobili RTA-954D User manual

Thank you for purchasing our product.
MODEL RTA-954D
ASSEMBLY INSTRUCTIONS
REV.CMN-6659-0622

P. 1 RTA-954D P. 1
•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.

P. 2 RTA-954D P. 2
1
x1
2
x2
3
x1
Left base Left support Left panel
MAIN PARTS LIST
4
x1
5
x1
Left back panel Middle vertical panel
6
x1
7
x1
Bottom panel Door 8
x1
9
x1
Middle horizontal
panel
Right support
10
x1
Right panel 11
x1
12
x2
Drawer front panel Drawer side panel
13
x1
Drawer back panel 14
x1
15
x1
Tabletop Drawer bottom
panel
x1
16
x1
Right back panel

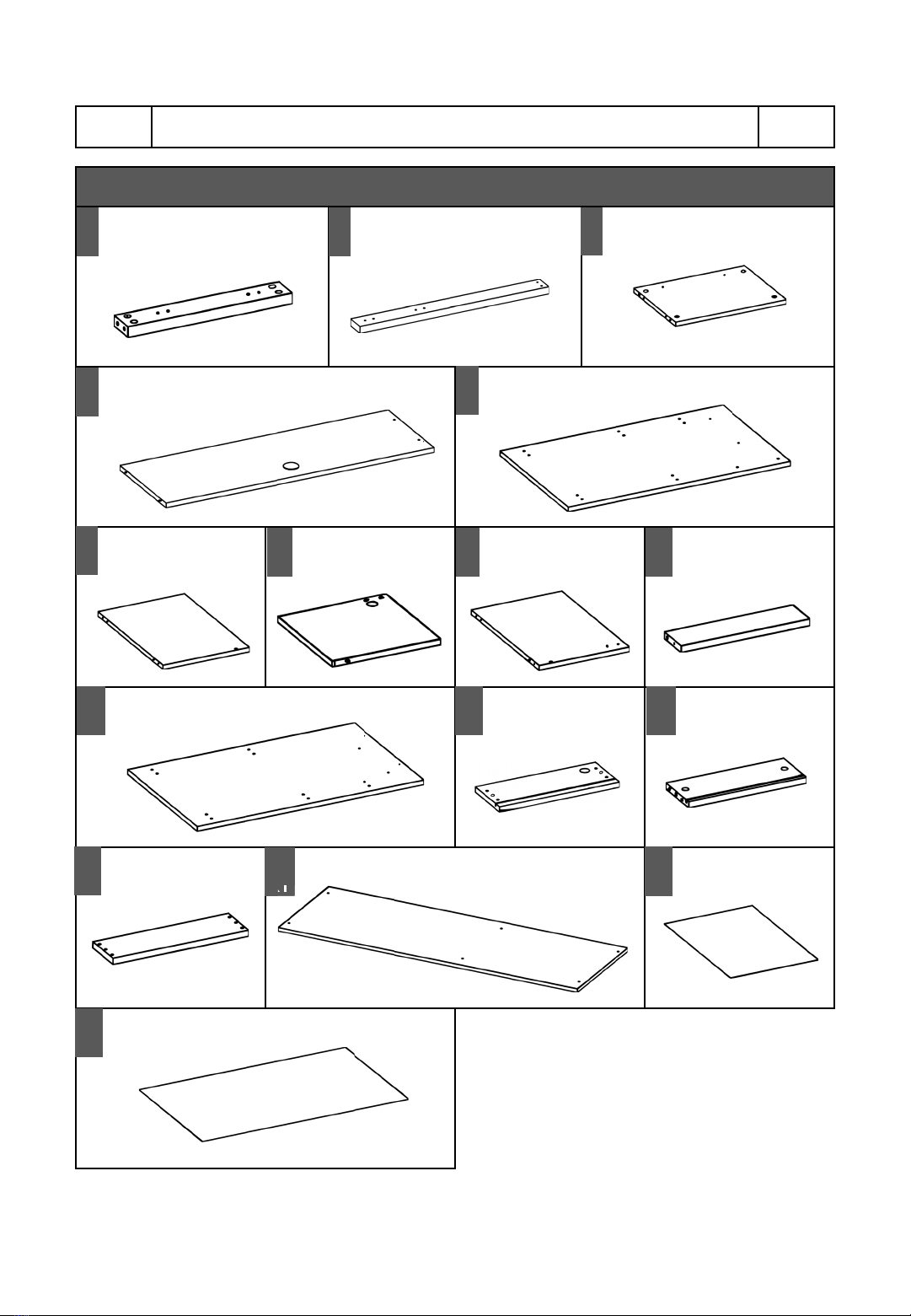

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-954D P. 3
LIST OF INCLUDED HARDWARE
PART
QTY ITEM
A12 Bolt
B12 M4x50
C24 M3.5x12
D2M4x30
E12 Cam lock
F4Plastic foot
15x25mm
G2Plastic foot
43x24x7mm
H6Metal bracket
I1Magnet
TOOLS THAT ARE REQUIRED (But not included)
Phillips Screwdriver Mallet
Hammer
PART
QTY ITEM
J28 Wooden dowel
M6x30
K2Metal pin
L32 Nail 10mm
M1
Cable
management
(grommet)
N2Handle
O1Metal plate
25x15mm
P2Drawer slider
Q20 Self-adhesive
sticker

P. 4 RTA-954D P. 4
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing t
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head.
4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”
Panel
“B”

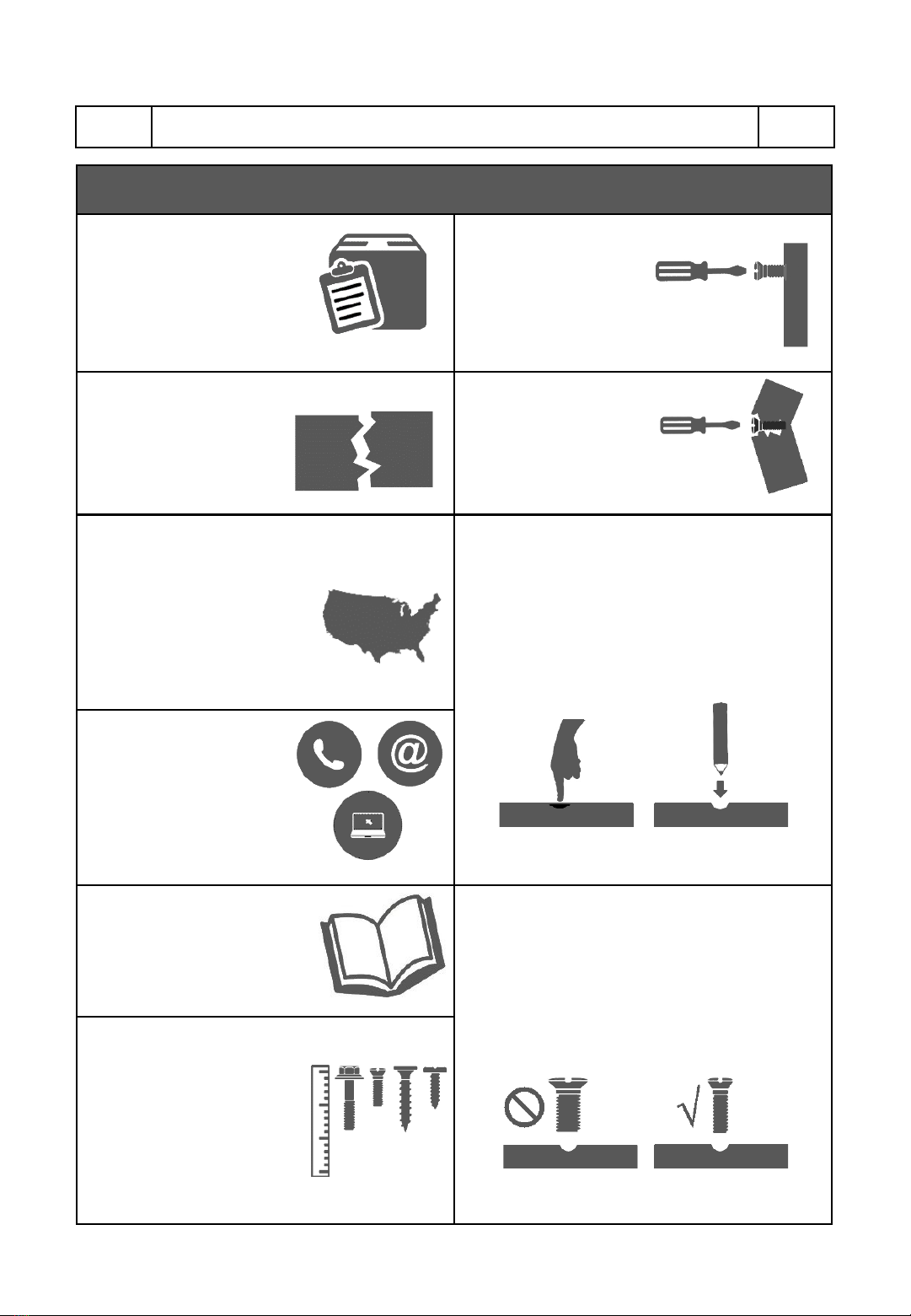

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 5 RTA-954D P. 5
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
Use a mallet to install the dowels Jinto the indicated holes on panels 3,
5, 6, 8, 9, 10 and 12.
STEP 1
Hardware:
JDowel
M6x20
24
Pcs
Tools required
(But not included)
P. 6 RTA-954D P. 6
Install the bolts Ainto the indicated holes on panels 2, 11 and 13.
(Bottom)
13
2
3
9
6
8
8
(Top)
(Bottom)
(Top)
10
12
2
2
11
(Front)
(Top)
(Bottom)
5
(Top)
(Bottom)
5
(Front)
STEP 2
Hardware:
ABolt
12
Pcs
Tools required
(But not included)
12

P. 7 RTA-954D P. 7

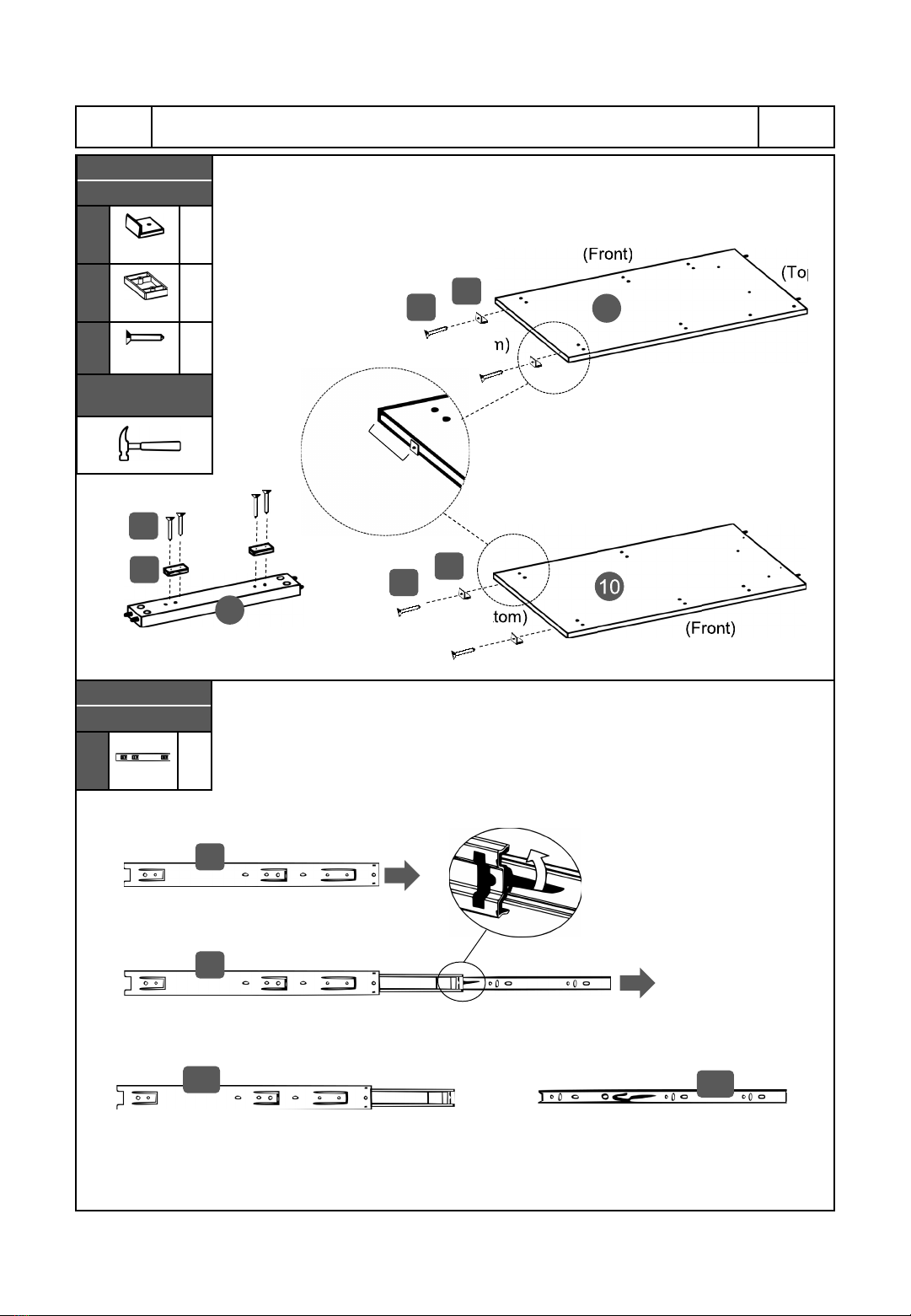

Use nails L to install:
•The feet F to the bottom of panels 5and 10.
•The feet G to the base 1.
1(Front)
(Bottom)
10
(Front)
(Bottom)
10
(Top)
(Bottom)
(Front)
(Top)
(Bottom)
(Front)
(Top)
5
Install F
at approximately
2” from each end
on 5 and 10
•Grab the sliders P and extend them completely towards the RIGHT.
•In between the smaller piece and the middle piece there is a black
plastic lever sticking out, with the tip of your thumb press the lever UP
and at the same time pull out the smaller piece away from the rest.
•The slider will now be split into piece P-1 (big) and P-2 (small).
(Front)
The “Big” pieces P-1 will be used on big
panels 5 and 10.
The “Small” pieces P-2 will be used on
small panels 12.
STEP 4
Hardware:
P
Sliders
2
Pcs
(Front)
(Front) (Front)
STEP 3
Hardware:
F
Foot
4
Pcs
G
Foot
2
Pcs
LNail
8
pcs
Tools required
(But not included)
LF
LF
L
G
P
P
P-1 P-2

P. 8 RTA-954D P. 8
Important notes for this step:
1. Both panels 12 are exactly the same, however, one will be used as
RIGHT side and the other as LEFT side.
2. All the pieces of sliders P-1 and P-2 have a front end that will need to
face towards the front of the panels.
•Flip the panels 12 and assemble to them the small sliders P-2 with
screws C, but oriented opposite on each panel. Make sure that the
grooves on the other side are located at the BOTTOM.
•Assemble the big sliders P1 to the panels 5and 10 on the top sets of holes with
screws C. Attach first the back hole (2nd from the back end), then open the slider
slowly until you are able to see the front hole (1st from the front end). You might
need to slide away the piece with the ball bearings to clear the view of the hole.
The grooves go
at the bottom
12
12
(Front)
(Front)
10
10
(Front)
(Front)
(Top)
5
(Top)
5
(Front)
(Front)
12
12 Flip Flip
(Top)
STEP 5
Hardware:
C
M3.5x12
8
Pcs
P-1
Big
2
Pcs
P-2
Small
2
Pcs
Tools required
(But not included)
P-1
P-1
P-2 P-2
P-1
P-1
(Front)
P-2
P-2

P. 9 RTA-954D P. 9

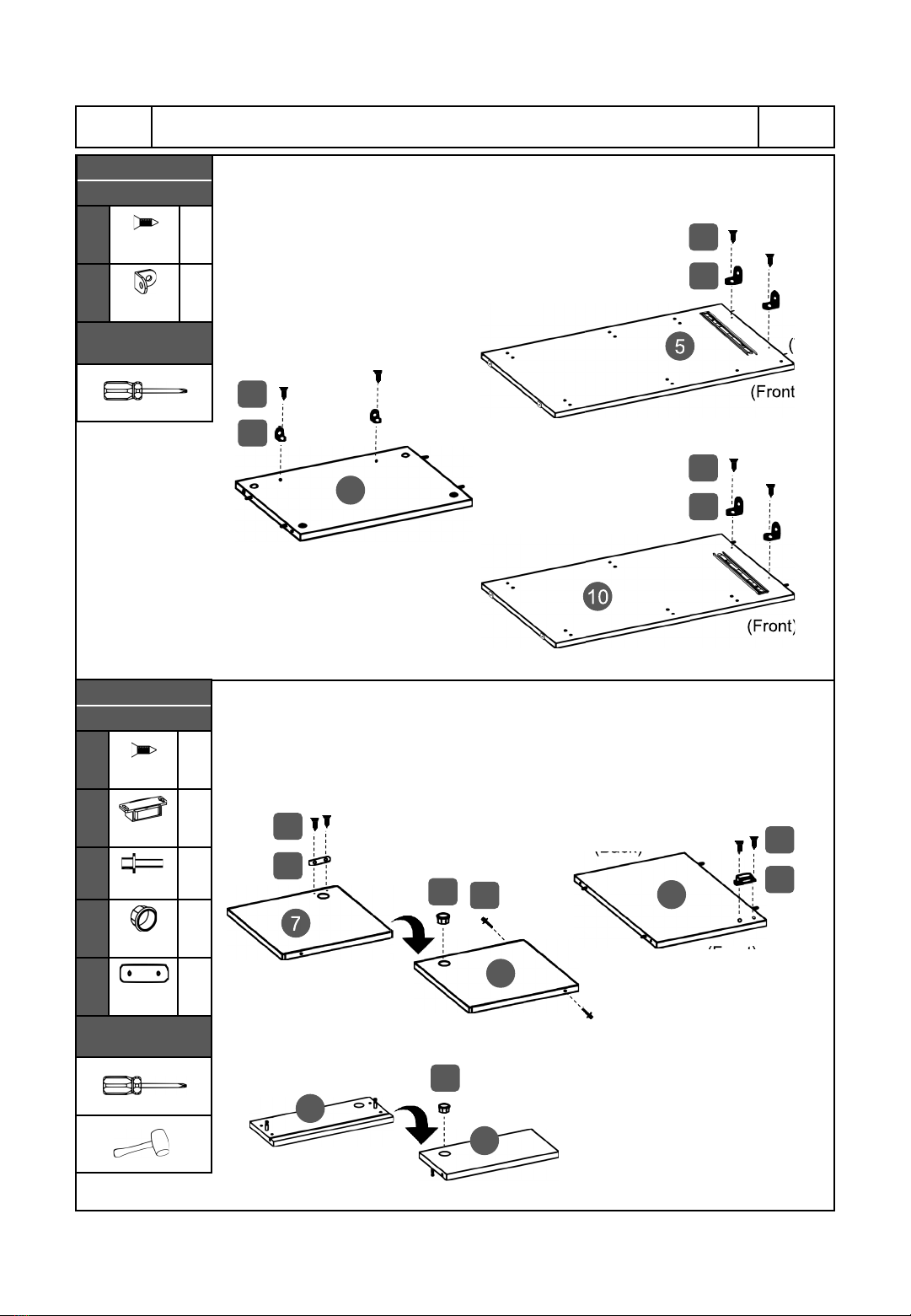

(Front)
(Back)
•Install the metal plate Oto the door 7with screws C.
•Install the metal pins Kto the door 7.
•Install the handles Nto the panels 7and 11.
•Install the magnet Ito panel 8with screws C oriented towards the
front of the panel.
(Inside face)
7
7
7
(Outside face)
(Front)
(Back)
8
Install the brackets Hto panels 3, 5and 10 with screws Cin the
indicated locations.
(Front)
10
(Front)
10
(Top)
3
(Top)
(Front)
(Top)
5
(Front)
(Top)
5
STEP 6
Hardware:
C
M3.5x12
6
Pcs
H
Bracket
6
pcs
Tools required
(But not included)
STEP 7
Hardware:
C
M3.5x12
4
Pcs
I
Magnet
1
pc
KMetal pin
2
Pcs
N
Handle
2
Pcs
O
Plate
1
Pc
Tools required
(But not included)
C
H
C
O
(Back face)
11
11 (Front face)
N
H
C
H
C
C
I
NK

P. 1 0 RTA-954D P. 1 0

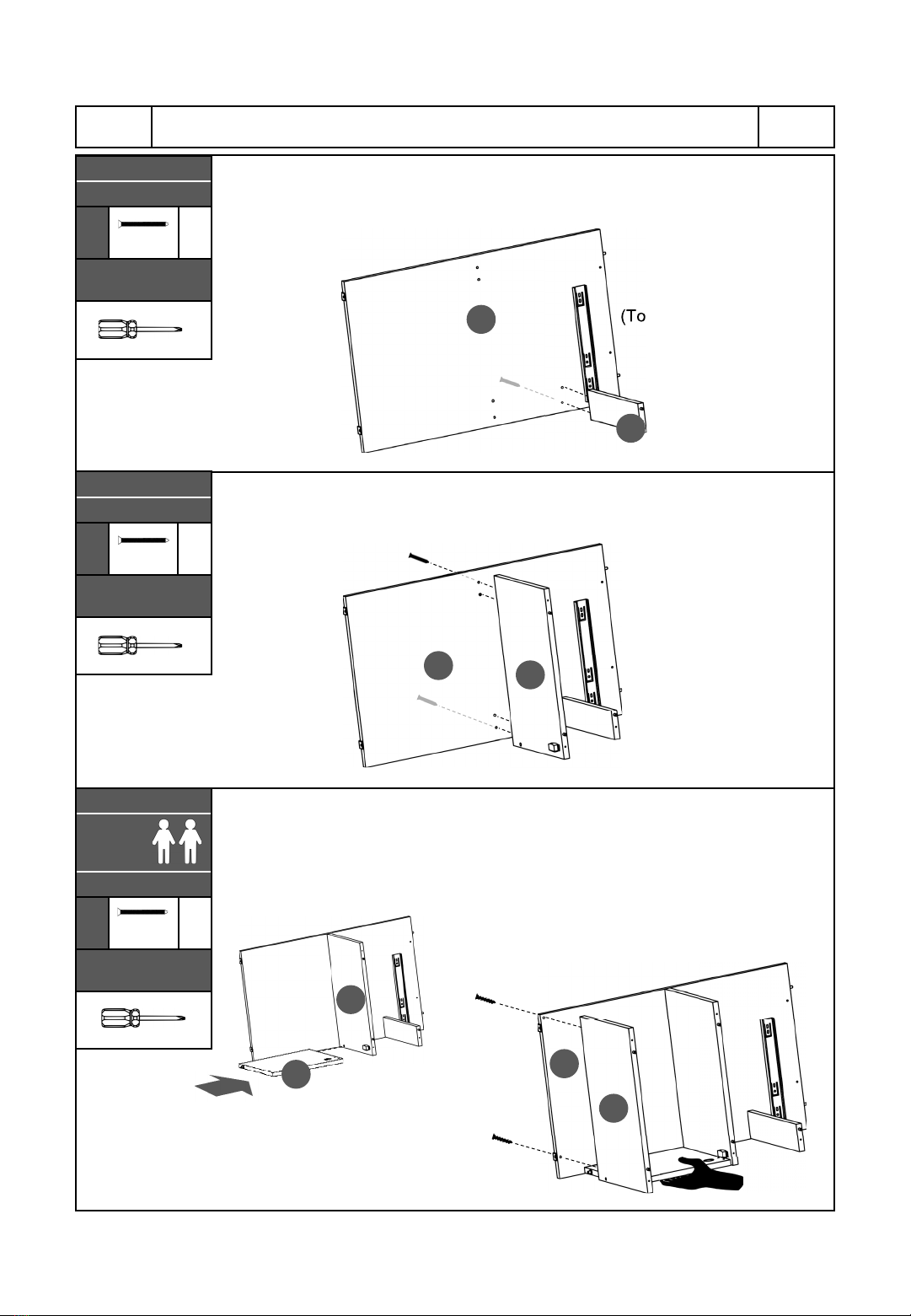

Assemble panel 9to panel 10 with screws Bas shown. The screw goes
through panel 10 and into panel 9.
With the help of another person, attach the door 7to panel 8by inserting
its metal pin into the corresponding hole, and while the other person
holds the panel, assemble panel 6to panel 10 with screws Bmaking
sure the pin from 7inserts into the hole on 6.
STEP 8
Hardware:
BM4x50
1
Pc
Tools required
(But not included)
STEP 10
Requires
of 2
persons
Hardware:
BM4x50
2
Pcs
Tools required
(But not included)
(Top)
Assemble panel 8to panel 10 with screws Bas shown. The screws go
through panel 10 and into panel 8.
STEP 9
Hardware:
BM4x50
2
Pcs
Tools required
(But not included)
(Top)
10
9
(Front)
(Back)
(Bottom)
(Front)
8
10
THEN:
FIRST:
7
8
10
6

P. 11 RTA-954D P. 11

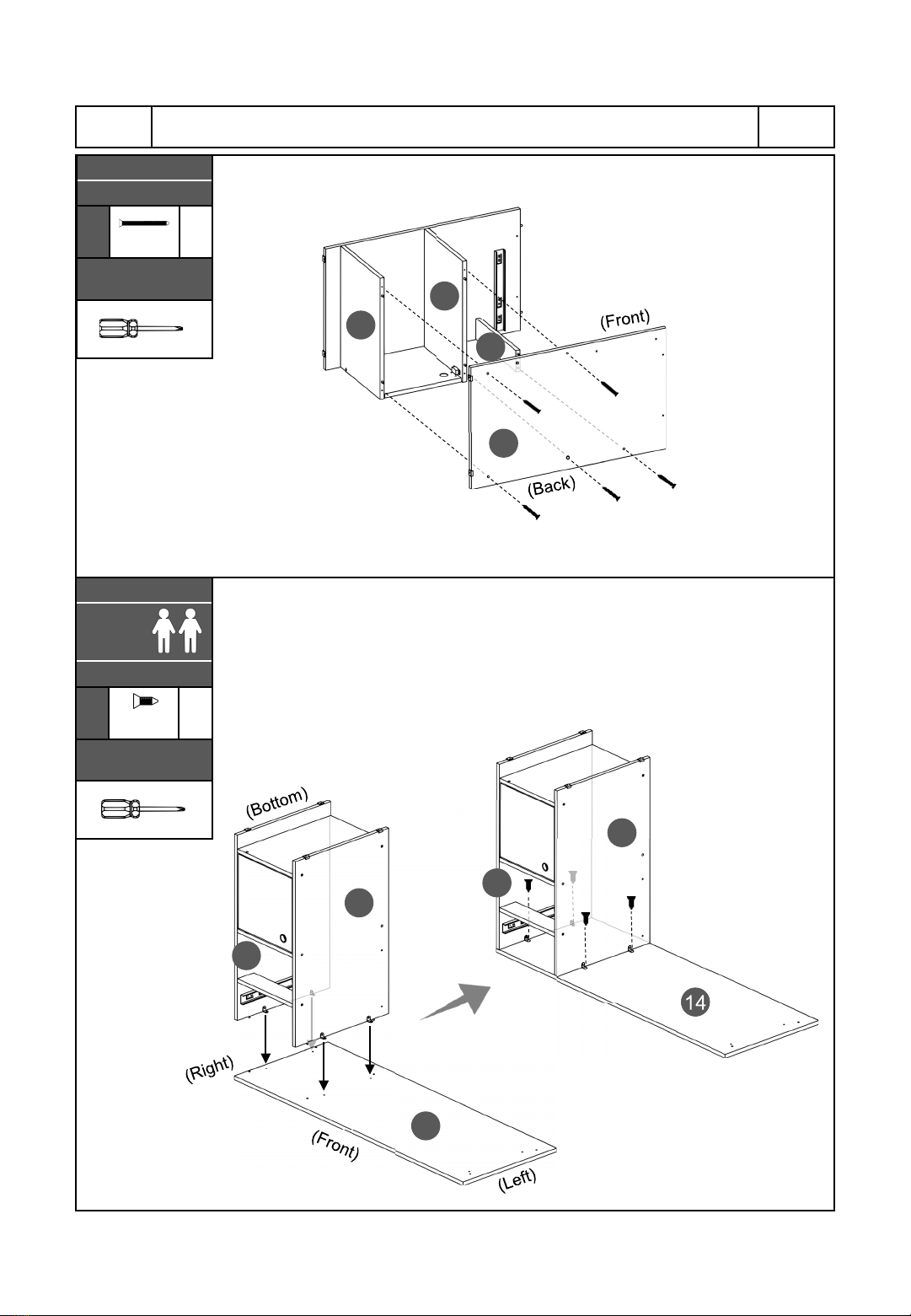

Assemble panel 5to panels 6, 8and 9with screws Bas shown.
•Place the tabletop 14 upside-down over a clean blanket to protect its
finish.
•With the help of another person, place the cabinet section built in step
11 over the tabletop 14 making the brackets Hcoincide with the pre-
drilled holes and secure panels 5and 10 to 14 with screws Cas
shown.
STEP 12
Requires
of 2
persons
Hardware:
CM3.5x12
4
Pcs
Tools required
(But not included)
STEP 11
Hardware:
BM4x50
5
Pcs
Tools required
(But not included)
14
6
5
9
8
(Top)
(Bottom)
14
14
(Front)
10
5
10
5

P. 1 2 RTA-954D P. 1 2

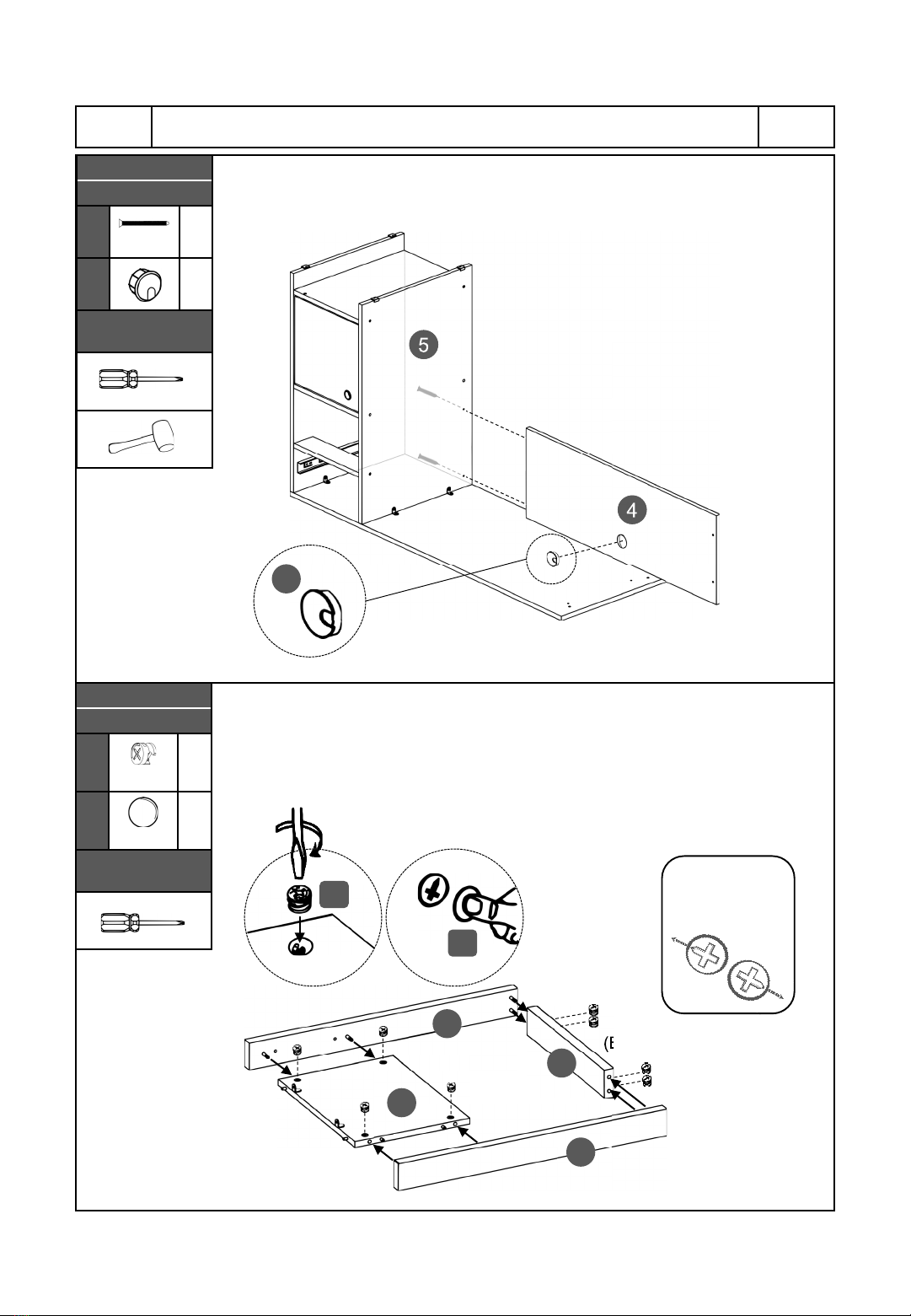

STEP 13
Hardware:
BM4x50
2
Pcs
M1
Pc
Tools required
(But not included)
Insert the cable management (grommet) Minto panel 4, then assemble it
to panel 5 with screws B as shown.
5
4
5
4
M
•Join the supports 2to the base 1and to the left panel 3. Make sure
the base 1will have its smooth surface facing UP.
•Insert the cam locks Einto panels 1and 3and turn them to lock the
pieces as explained in page 4.
•Cover the cam locks Eon panel 3with the stickers Q.
(Bottom)
Cam locks
alignment on
1 and 3
STEP 14
Hardware:
E
Cam lock
8
Pcs
Q
Sticker
4
Pcs
Tools required
(But not included)
(Bottom)
2
1
2
3
(Top)
E
Q

P. 1 3 RTA-954D P. 1 3
•With the help of another person, place the leg structure built in step
14 over the tabletop 14 making sure that:
a) The brackets Hon panel 3coincide with the pre-drilled holes on 14.
b) The surface with cam locks on panel 3faces towards the inside.
•Secure the brackets Hto panel 14 with screws C.
•Secure the support 2to panel 4with screws Das shown.
Cam locks on 3
go facing towards
the inside
STEP 15
Requires
of 2
persons
Hardware:
CM3.5x12
2
Pcs
DM4x30
2
Pcs
Tools required
(But not included)
14
3
2
4
14
With the help of another person, bring the unit upright, then place the
back panel 16 centered over the back of the cabinet, and secure it with a
minimum of 12 nails Las shown.
IMPORTANT: Try to nail into the center of the boards and as straight as
possible to avoid the nails entering too close to the edges or slanted as
the wood might bulge or split.

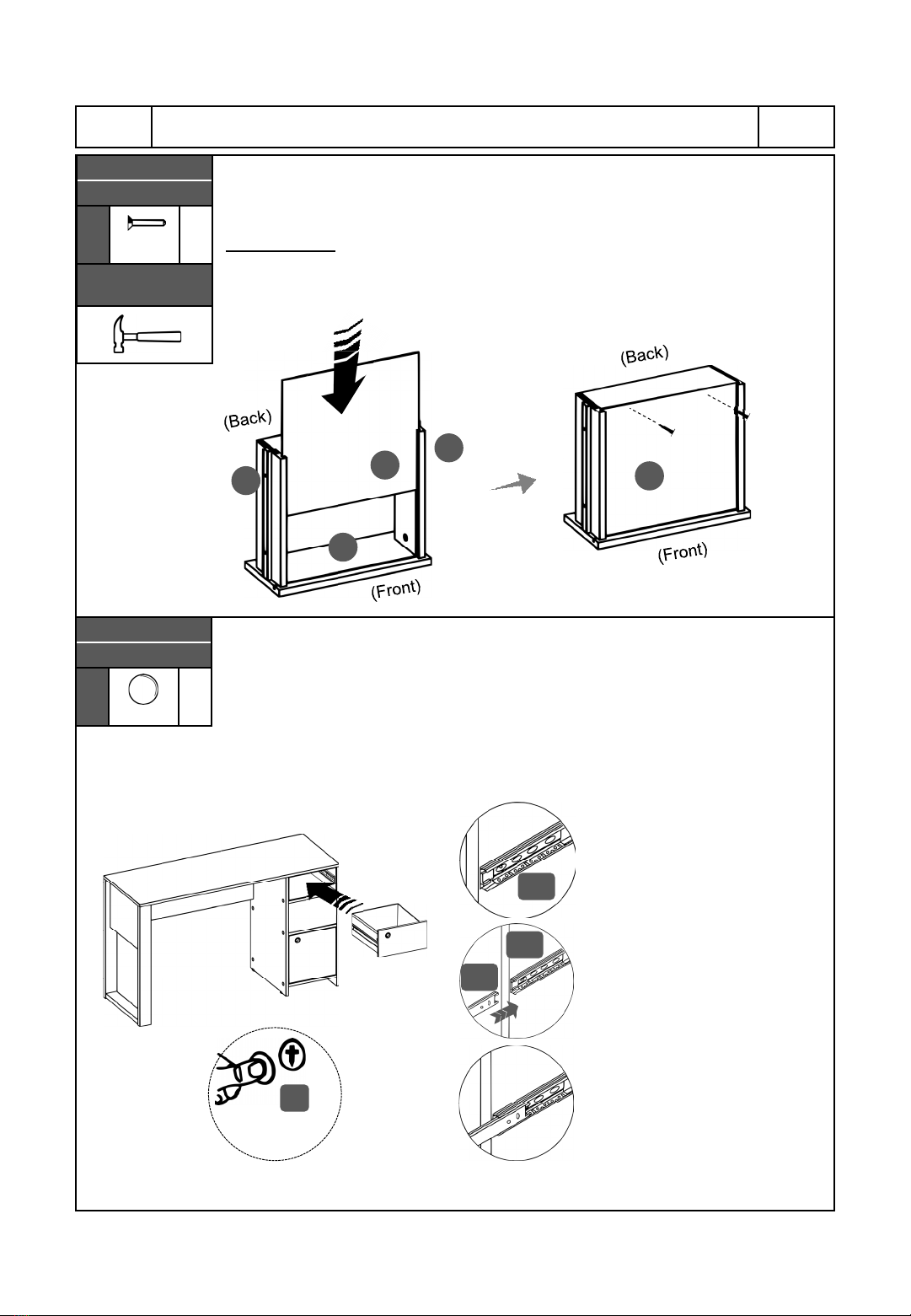

STEP 16
Requires
of 2
persons
Hardware:
LNail
Min
12
Pcs
Tools required
(But not included)
16
C
D

P. 1 4 RTA-954D P. 1 4
Assemble the drawer back panel 13 to the side panels 12 with cam locks
Eas shown and as explained in page 4, then cover the cam locks with Q.
STEP 17
Hardware:
E
Cam lock
2
Pcs
Q
Sticker
2
Pcs
Tools required
(But not included)
Important notes for this step:
For the drawer, you will use both panels 12, but one will go as the
RIGHT side and the other as the LEFT side, so make sure that the
sliders P2 on them are facing the opposite direction as it was instructed
in Step 5on page 8.
•Assemble the panels 12 to the drawer front panel 11 on their
respective sides with cam locks Eas shown and as explained in
page 4.
•Cover the cam locks with Q.
Left Right 12
12
Left
12
Right
12
11
Cam locks
alignment
on 12
STEP 18
Hardware:
E
Cam lock
2
Pcs
Q
Sticker
2
Pcs
Tools required
(But not included)
13
11
11
E
Q
E
Q

P. 1 5 RTA-954D P. 1 5
STEP 19
Hardware:
LNail
Min
2
Pcs
Tools required
(But not included)
•Slide the drawer bottom panel 15 through the grooves of panels 12
and into the groove of panel 11.
•Secure the bottom panel 15 at the back with at least 2 nails L.
IMPORTANT: Try to nail into the center of the boards and as straight as
possible to avoid the nails entering too close to the edges or slanted as
the wood might bulge or split.
•On the main unit first make sure that on the sliders P1 the piece with
the ball bearing is all the way to the front. If the arey not, slide them
with the tip of your finger towards the front.
•Install the drawer by engaging its sliders P2 through the black plastic
guide and the bearings of P1, and pushing slowly inside.
•Cover all visible screw holes and cam locks with Q.
1. Make sure the piece
with the ball bearings is
all the way to the front
2. The slider P2 must go
through the plastic guide and
engage into the ball bearing
piece of P1
3. Push in very slowly.
12 15 12
15
STEP 20
Hardware:
Q
Sticker
12
Pcs
P-1
P-2
P-1
11
Q

P. 1 6 RTA-954D P. 1 6
ALL DONE!
Give yourself a nice pat on the back, you did a
great job!
Enjoy your new unit.

WEIGHT LIMITS
P. 1 7 RTA-954D P. 7
8.8 Lbs.
(4 Kg)
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers or compartments without your
supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or might
fall off.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
6.6 Lbs.
(3 Kg)
6.6 Lbs.
(3 Kg)
55 Lbs.
(25 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described herein.
"Defects" as used in this warranty, is defined as any imperfections that impair the use of the
furniture or product. RTA Products LLC will replace any defective part, at its discretion, and
without charge to the original purchaser other than the freight from the end consumer to RTA
Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date
of purchase on your original sales receipt. RTA product’s obligation under this warranty is
limited to repairing or replacing products or parts as provided herein. This product has been
designed for and is intended for office and home-office use only. This warranty is Original
Purchaser’s sole remedy for product defects, and this warranty does not extend to any
product, or damage to any product, caused by or attributed to abuse or misuse, products
used for commercial or rental purposes, use modifications of, or attachments to the product,
and products or parts not used, maintained, or extended hereunder is in lieu of any and all
other warranties, express or implied, including without limitations any implied warranty or
merchantability or of fitness for a particular purpose. Please note, all desks made with PVC
Laminate surface should not be exposed to direct sunlight, as it may damage the material.
Damage of this nature is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages. This warranty is limited to merchandise purchased in the Continental United
States, excludes AK, HI and PR. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights that may
vary from state to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model
number of our product, date and place of purchase. You can also write to us by e-mail
to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at
purchaser’s expense. Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement. We will
ship the replacement at our expense.
P. 1 8 RTA-954D P. 1 8
TECHNI MOBILI DESK WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
