Techni Mobili RTA-8211 User manual

Thank you for purchasing our product.
MODEL RTA-8211
ASSEMBLY INSTRUCTIONS
REV.062021-9
Scan QR Code to view
Full assembly video

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
•Scan QR Code to view full assembly and step video.
P. 1 RTA-8211 P. 1

1
x2
2
x2
3
x2
4
x2
Drawer left panel Drawer right panel Drawer front panel

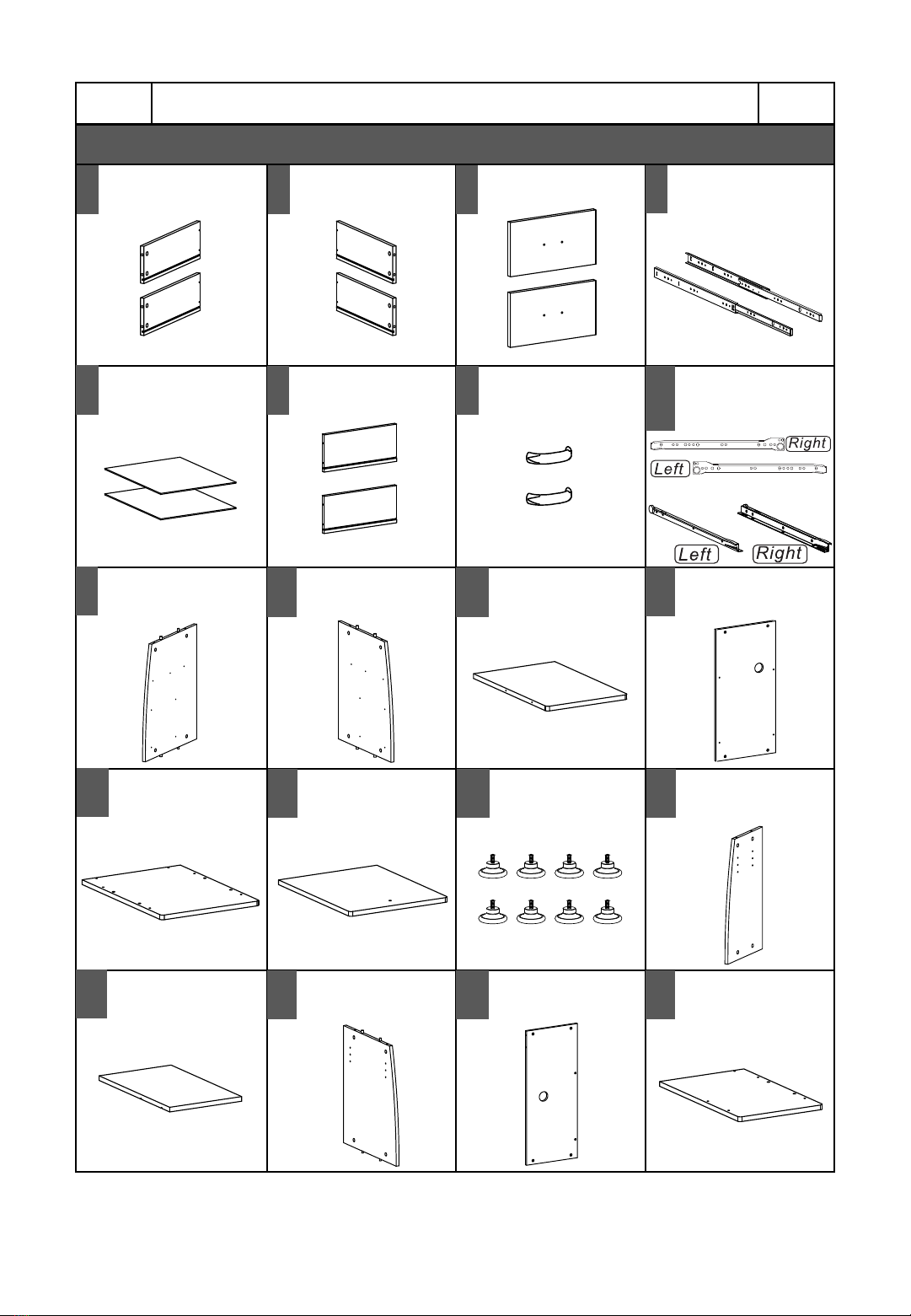

MAIN PARTS LIST
5
x2
6
x2
7
x2
8
X2
Sets
Drawer bottom
panel
Drawer back panel Handle
9
x1
10
x1
Left panel for
drawers’ cabinet
Right panel for
drawers’ cabinet
11
x1
12
x1
Scanner panel Back panel for
drawers’ cabinet
13
x1
14
x1
Bottom panel for
drawers’ cabinet
Top panel for
drawers’ cabinet
15
x8
16
x1
Glide studs Left panel for
CPU cabinet
17
x1
18
x1
Adjustable panel Right panel for
CPU cabinet
19
x1
20
x1
Back panel for
CPU cabinet
Bottom panel for
CPU cabinet
Sliders for scanner
(Black,lots of holes,not
threaded)
Sliders for drawer
“L” shape: Go on drawers
P. 2 RTA-8211 P. 2
Flat: Go inside the unit

21
x1
22
x1
set
Top panel for
CPU cabinet
23
x1
24
x1
Keyboard panel Tabletop

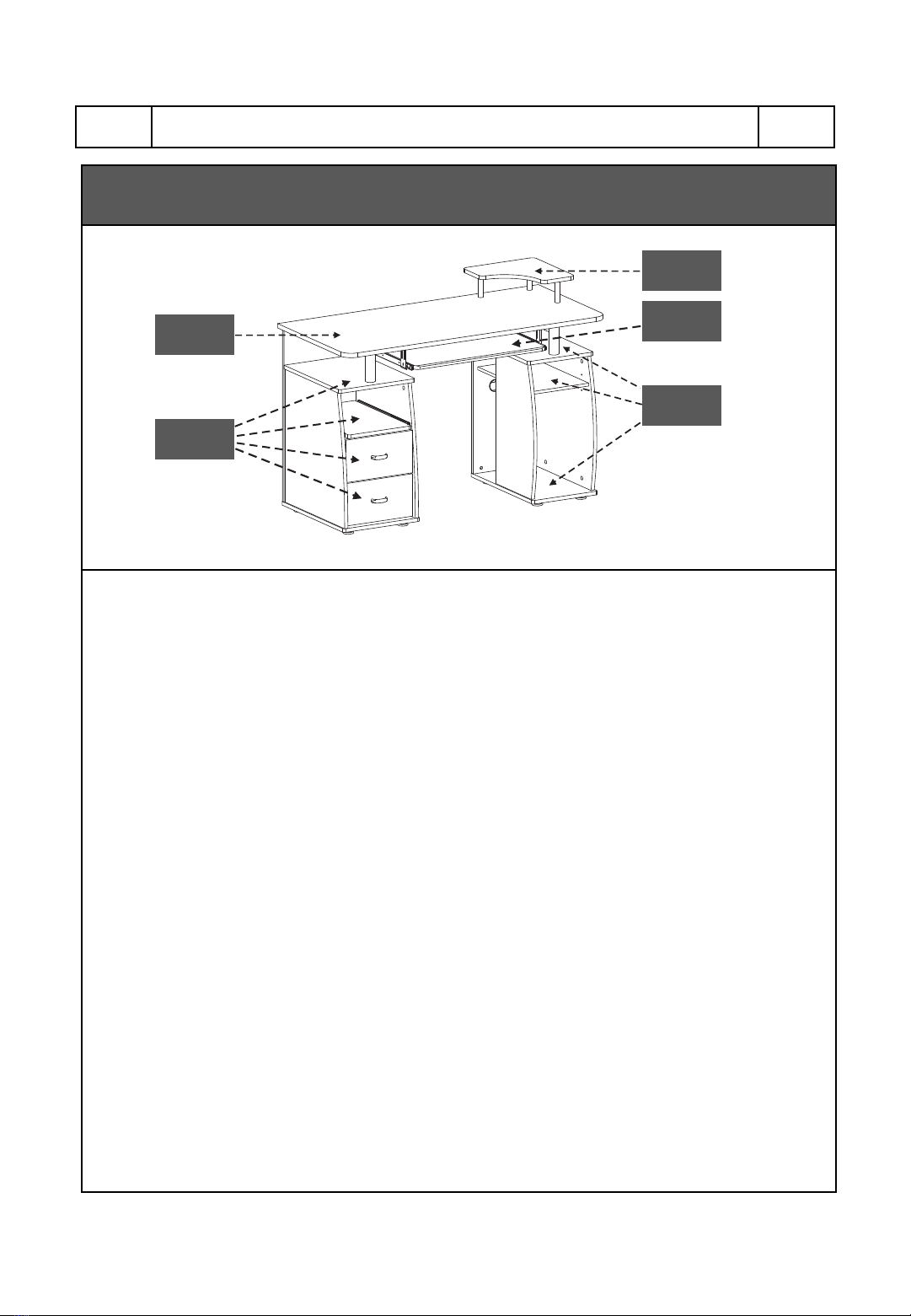

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-8211 P. 3
Sliders for keyboard
panel
(Silver with threaded
holes)
25
x4
26
x2
Base bracket
for sliders
Thick support
tubes for
tabletop
27
x1
28
x3
Central back
panel
Thin support
tubes for
corner shelf
29
x1
Corner shelf
9
11
12
3
3
13
14
16 18
19
20
17
23
24
26
28
10
29
LIST OF HARDWARE, SCREWS AND FITTINGS
PART QTY ITEM
A16 M6x40
(cam bolt)
B26 ST3x15
C8ST4x35
D4M4x20
E12 ST4x14
F4M6x12
G4M4x4
H5M6x35
PART QTY ITEM
I2Ø40x1.5
(Plastic washer)
J3M6x30
K6ST5x40 (euro)
L20 M6x25
(cam bolt)
M4Ø5x17
(Metal pin)
N2Grommet
Screwdriver

☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt Cam Lock
1. Screw the bolt into the
corresponding panel.
2. Place the other panel over the
panel with the bolt, then insert the
cam lock to join the bolt’s head.
If the cam lock does not want to
enter, check its proper alignment.
There might be a very small gap
between the panels which is normal.
3. Turn the cam lock clockwise. This
will lock the parts together and will
close any gaps.
Alignment: The cross
points towards the panel
with the bolt.
P. 4 RTA-8211 P. 4

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. Territories or other
countries, please contact the
supplier from where the unit
was purchased.
P. 5 RTA-8211 P. 5

ASSEMBLY STEPS

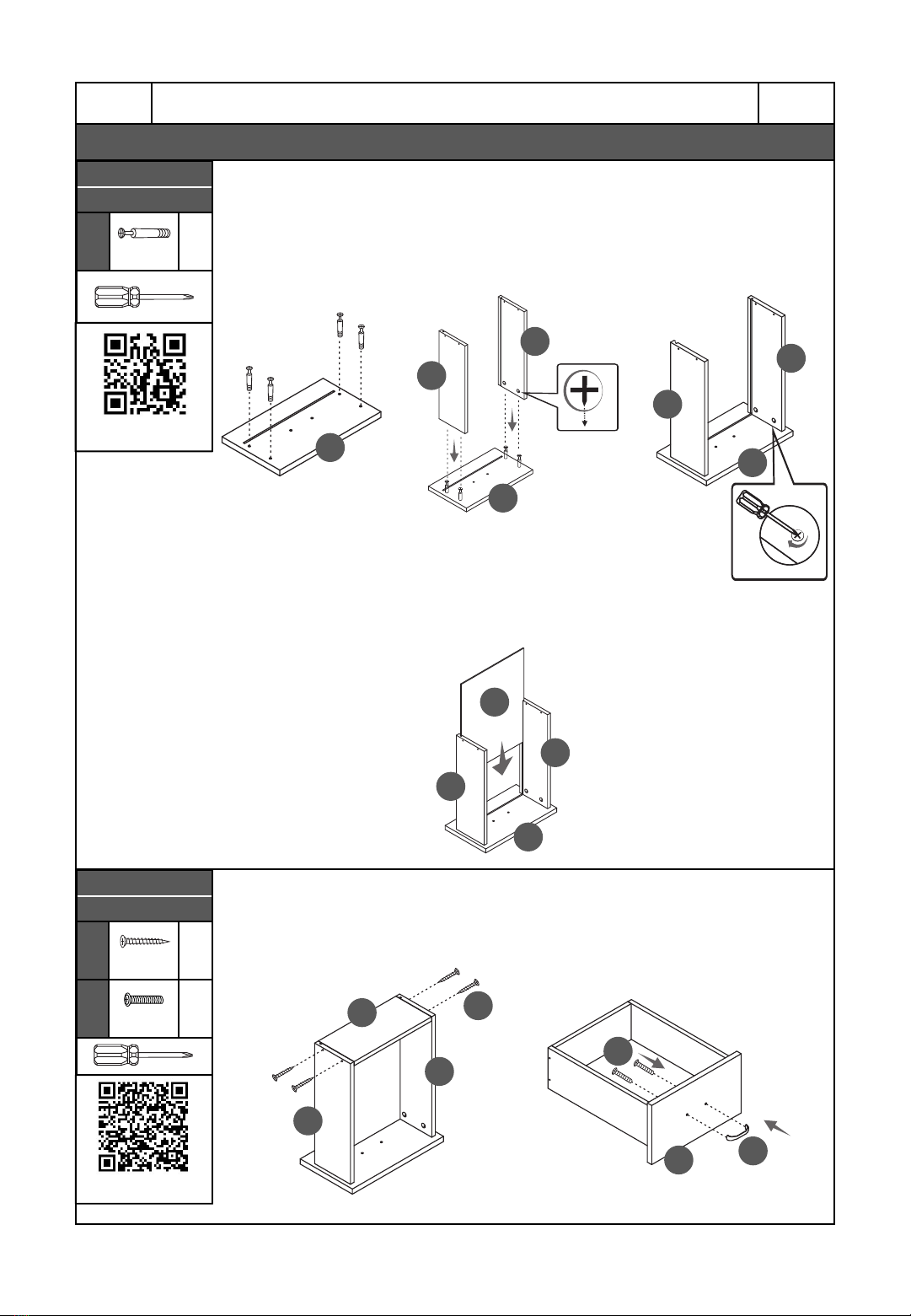

•Attach the bolts L to the drawer front panel 3.
•
•
Make sure the cam locks on panels 1and 2are aligned to receive
the bolts, and attach the panels to panel 3.
Turn the cam locks to lock the pieces.
Please remember this procedure, which is also explained in page 4.
STEP 1
Hardware:
L
M6x25
4
Pcs
P. 6 RTA-8211 P. 6
•Assemble the drawer back panel 6between the left and right panels 1
and 2with screws C.
•Install the handle 7to the front panel 3with screws D.
Scan QR Code
to view this step
STEP 2
Hardware:
C
ST4x35
4
Pcs
D
M4x20
2
Pcs
Scan QR Code
to view this step
Cam lock
alignment
•Slide the bottom panel 5 through the grooves of the
side panels and into the groove of the front panel as
shown.
7
3
2
1
3
2
1
3
5
1
2
3
1
2
6
3
C
D

•Grab all the 8 pieces of sliders 8and set aside the 4 “Flat”pieces as
they will be used until next step.
•Flip the drawer and attach the “L” shaped sliders with screws B,
making sure the wheel goes towards the back, and that the sliders
don’t protrude, otherwise, the drawers raise 1” and won’t fit in the unit.
•Repeat steps 1 through 3 for the second drawer.
•Assemble the “Flat” sliders 8to the middle and bottom sets of holes
on the side panels 9and 10 with screws B, making sure the wheels
go facing towards the front and facing down (there will be 2 empty
holes above the wheel).
•It is recommended to attach at the front first, then the back.
STEP 3
Hardware:
B
ST3x15
4
Pcs
Scan QR Code
to view this step
STEP 4
Hardware:
B
ST3x15
8
Pcs
Scan QR Code
to view this step
(F(Froronntt))
((BaBacckk))
((TTop)op)
((Top))
(F(Froronntt))
((Front))
10
9
P. 7 RTA-8211 P. 7
8
These 3 holes are
for the scanner
slider in step 5
8
8
VERY IMPORTANT!
INCORRECT:
Raises the
drawer 1”
and won’t fit!
CORRECT:
Sliders don’t
protrude on
the bottom.
Attach using these holes
8
8

Important: Make sure you use in this step the correct sliders 4
which are black, longer,and have more holes than sliders 22.
•Attach the sliders 4to the top sets of holes on panels 9and 10 with
screws B, starting with the front holes first by opening the sliders
slowly until you see the first hole through the big opening; then open
the sliders completely and attach on the 2 back holes.
Attach the glide studs 15
to the underside face of
the panels 13 and 20 (the
side with only 4 holes).
STEP 5
Hardware:
B
ST3x15
6
Pcs
Scan QR Code
to view this step
STEP 6
Hardware:
15 8
Pcs
Scan QR Code
to view this step
9
((TTop)op)
(F(Froronntt))
(F(Froronntt))
((Front))
P. 8 RTA-8211 P. 8
10
STEP 7
Hardware:
A
M6x40
4
Pcs
Scan QR Code
to view this step
910
13
Assemble the side panels
9and 10 to the bottom
panel 13 with bolts Aas
explained in page 4.
The back of
panel 13 will
have 2 free
holes for next
step
Front hole first: Find front hole through big opening
Back holes after: Open sliders completely
Front hole first Back holes after
4
49
10
(F(Froronntt))
(Front) (Front)
((TTop)op)
((TTop)op)
((TTop)op)
Cam lock
alignment
13
20
BLACK SLIDERS!

•Assemble the back panel 12 to the bottom panel 13 with bolts Las
explained in page 4.
•Then secure the panel 12 to the side panels 9and 10 withscrews K.
•Finally attach the grommet Nto the back panel 12.
Assemble the top panel 14 to the
side panels 9 and 10 with bolts A
as explained in page 4.
STEP 8
Hardware:
K
ST5x40
4
Pcs
L
M6x25
2
Pcs
N1
pc
Scan QR Code
to view this step
STEP 9
Hardware:
A
M6x40
4
Pc
Scan QR Code
to view this step
12
10
((TTop)op)
This hole is
at the front
((Front))
P. 9 RTA-8211 P. 9
Cam lock
alignment
Cam lock
alignment
STEP 10
Hardware:
B
ST3x15
4
Pcs
Scan QR Code
to view this step
Slide out the sliders 4and with the help of another person, assemble
the scanner panel 11 with screws Bfrom the sides.
N
12
13
10
(F(Froronntt))
L
K
(F(Froronntt))
((TTop)op)
Scan QR
C
(F(Froronntt))
14
9
10
4
11 11

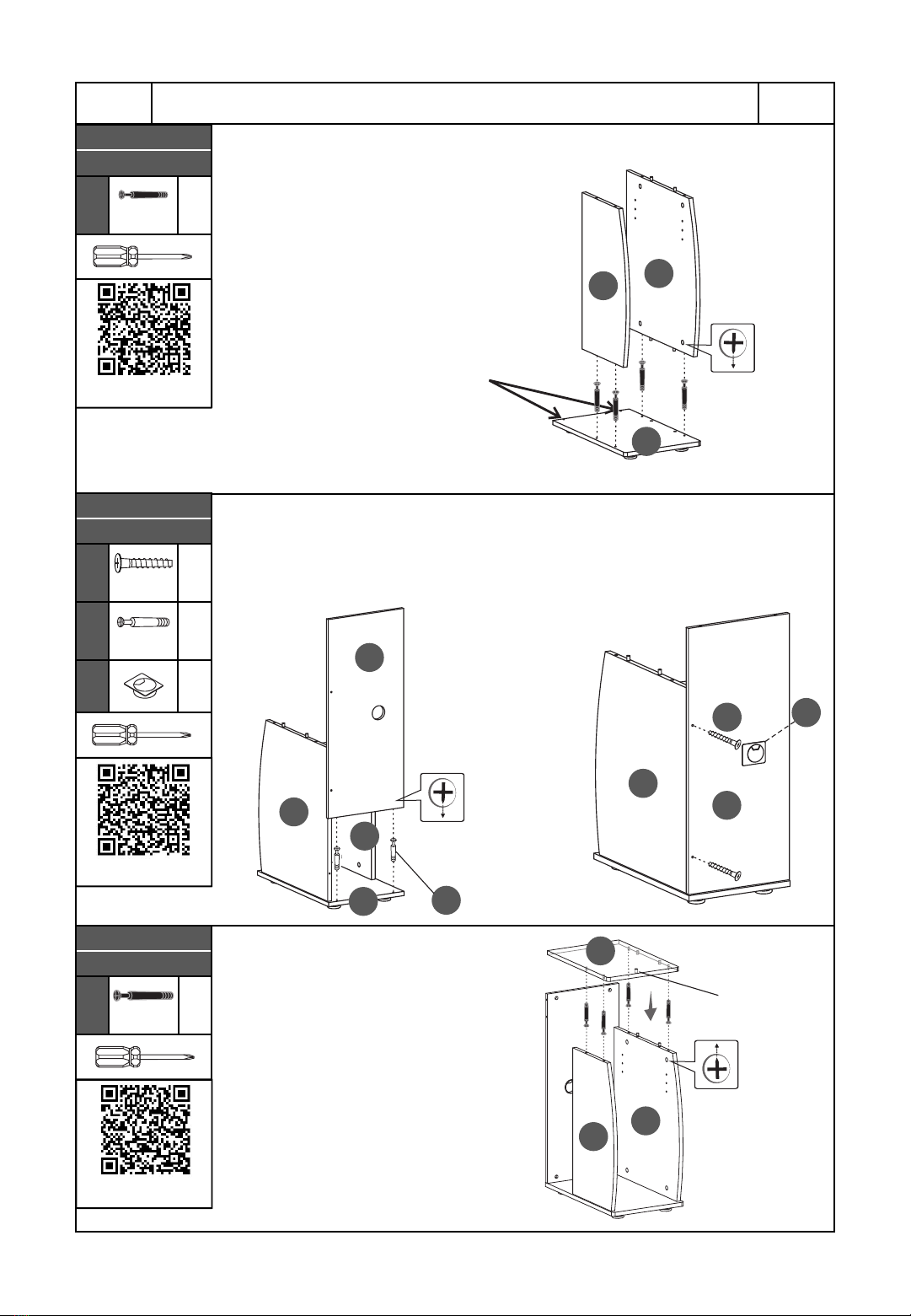

Assemble the left panel 16 and the right
panel 18 to the bottom panel 20 with
bolts Aas explained in page 4.
STEP 11
Hardware:
A
M6x40
4
Pcs
Scan QR Code
to view this step
((TTop)op)
(F(Froronntt))
((Front))
((TTop)op)
(F(Froronntt))
P. 1 0 RTA-8211 P. 1 0
STEP 12
Hardware:
K
ST5x40
4
Pcs
L
M6x25
2
Pcs
N1
Pc
Scan QR Code
to view this step
•Assemble the back panel 19 to the bottom panel 20 with bolts Las
explained in page 4.
•Then secure the panel 19 to the side panel 18 with screws K.
•Finally attach the grommet Nto the back panel 19.
The back of panel
20 will have 2 free
holes for next step
STEP 13
Hardware:
A
M6x40
4
Pcs
Scan QR Code
to view this step
Assemble the top panel 21 to the
side panels 16 and 18 with bolts A
as explained in page 4.
16 18
Cam lock
alignment
20
N
Cam lock
alignment
L
19
18
16
20
19
18
(F(Froronntt))
((TTop)op)
Cam lock
alignment
This hole is
at the front
16 18
21
K

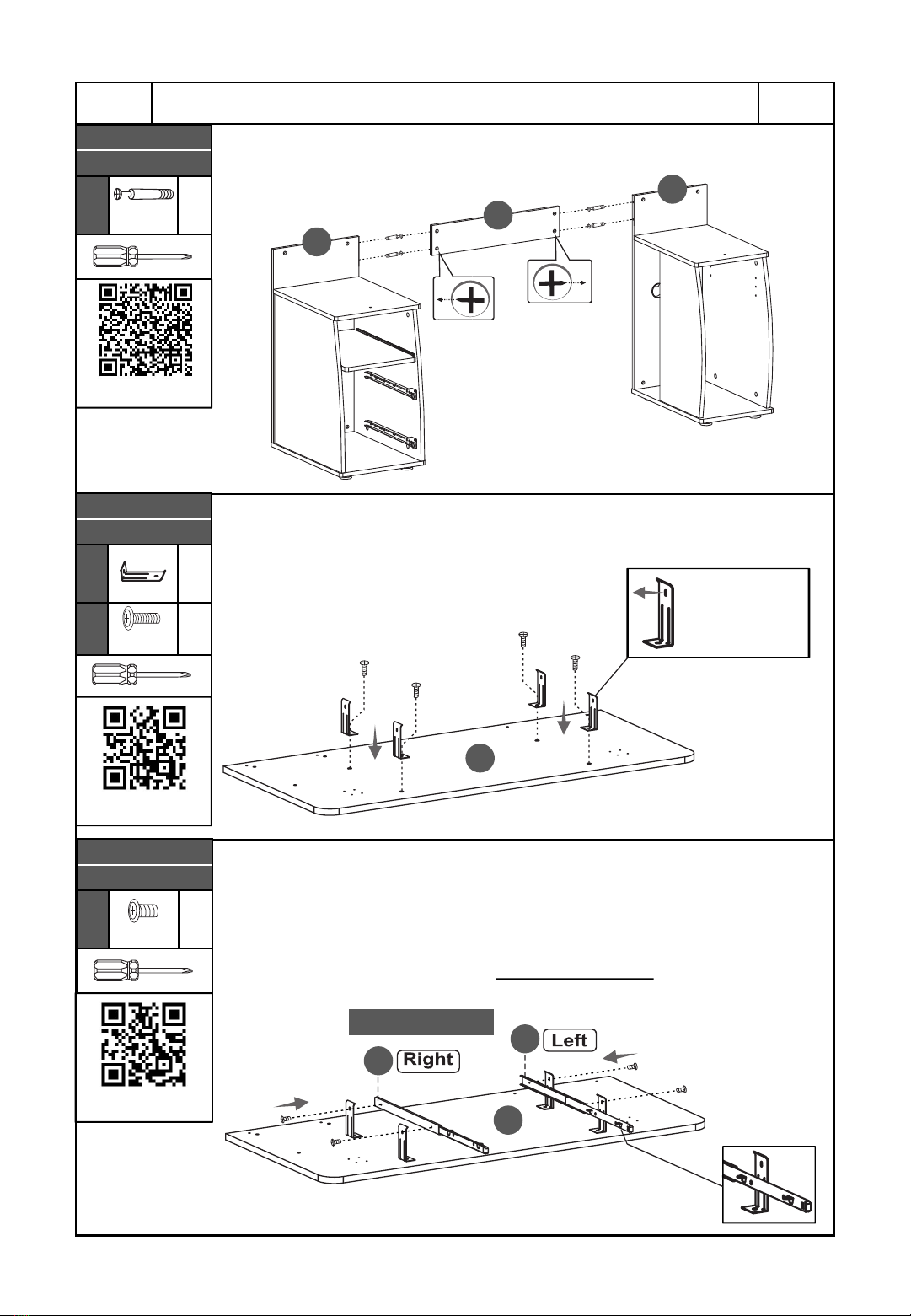

Assemble the back panel 27 to the left panel 12 and the right panel 19
with bolts Las explained in page 4.
Assemble the slider bases 25 to the center holes on the tabletop 24
with screws F. Make sure the bases face towards the inside.
STEP 14
Hardware:
L
M6x25
4
Pcs
Scan QR Code
to view this step
STEP 15
Hardware:
25 4
Pcs
F
M6x12
Scan QR Code
to view this step
(F(Froronntt))
P. 11 RTA-8211 P. 11
STEP 16
Hardware:
G
M4x4
4
Pcs
Scan QR Code
to view this step
•Assemble the keyboard sliders 22 to the bases 25.The screws enter
from the exterior through the bases and into the threaded holes on the
sliders.
•If there are no threaded holes on the sliders, then you have used in
step 5the sliders 22 intended for this step instead of sliders 4.Please
go back to step number 5and switch the sliders.
24 The tabs go
facing UP
Scan QR
C
ode
12
19
27
Cam locks
alignment
4
Pcs
24
The bases go
facing towards
the inside
(F(Froronntt))
22
22
SILVER SLIDERS!

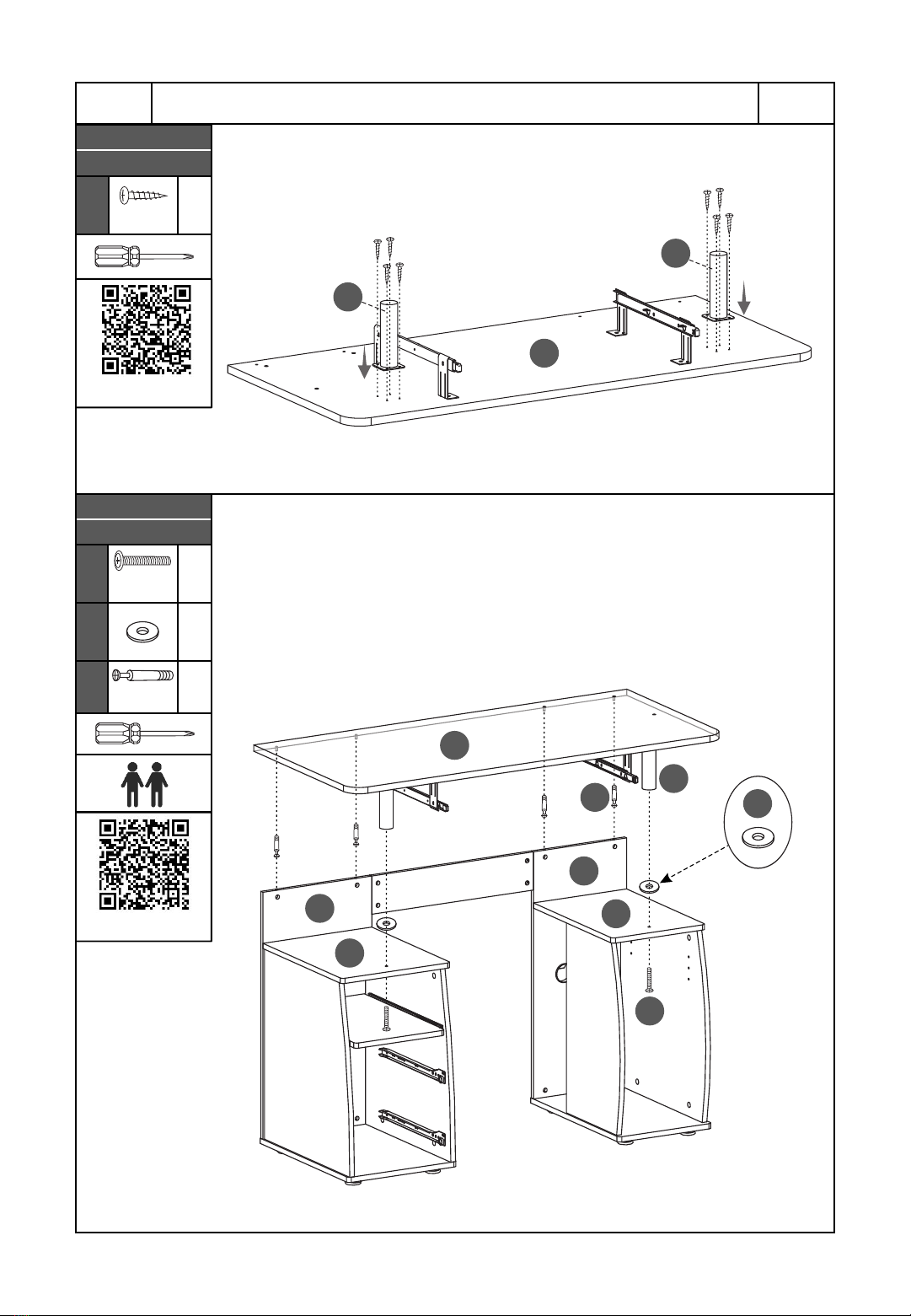

Assemble the support tubes 26 to the tabletop 24 with screws E.
•Place the plastic washers Iover the center of the holes on panels 14
and 21.
•Attach the bolts Lto the back holes of the tabletop 24.
•With the help of another person, carefully place the tabletop 24 over
the structure so the bolts enter into the back panels12 and 19.
•Secure the support tubes 26 to panels 14 and 21 with screws H.
•Secure the tabletop to the back panels by turning the cam locks.
STEP 17
Hardware:
E
ST4x14
8
Pcs
Scan QR Code
to view this step
STEP 18
Hardware:
H
M6x35
4
Pcs
I2
Pcs
LM6x25
4
Pcs
Scan QR Code
to view this step
(F(Froronntt))
(F(Froronntt))
24
P. 1 2 RTA-8211 P. 1 2
26
26
24
26
KI
19
12
14
21
H

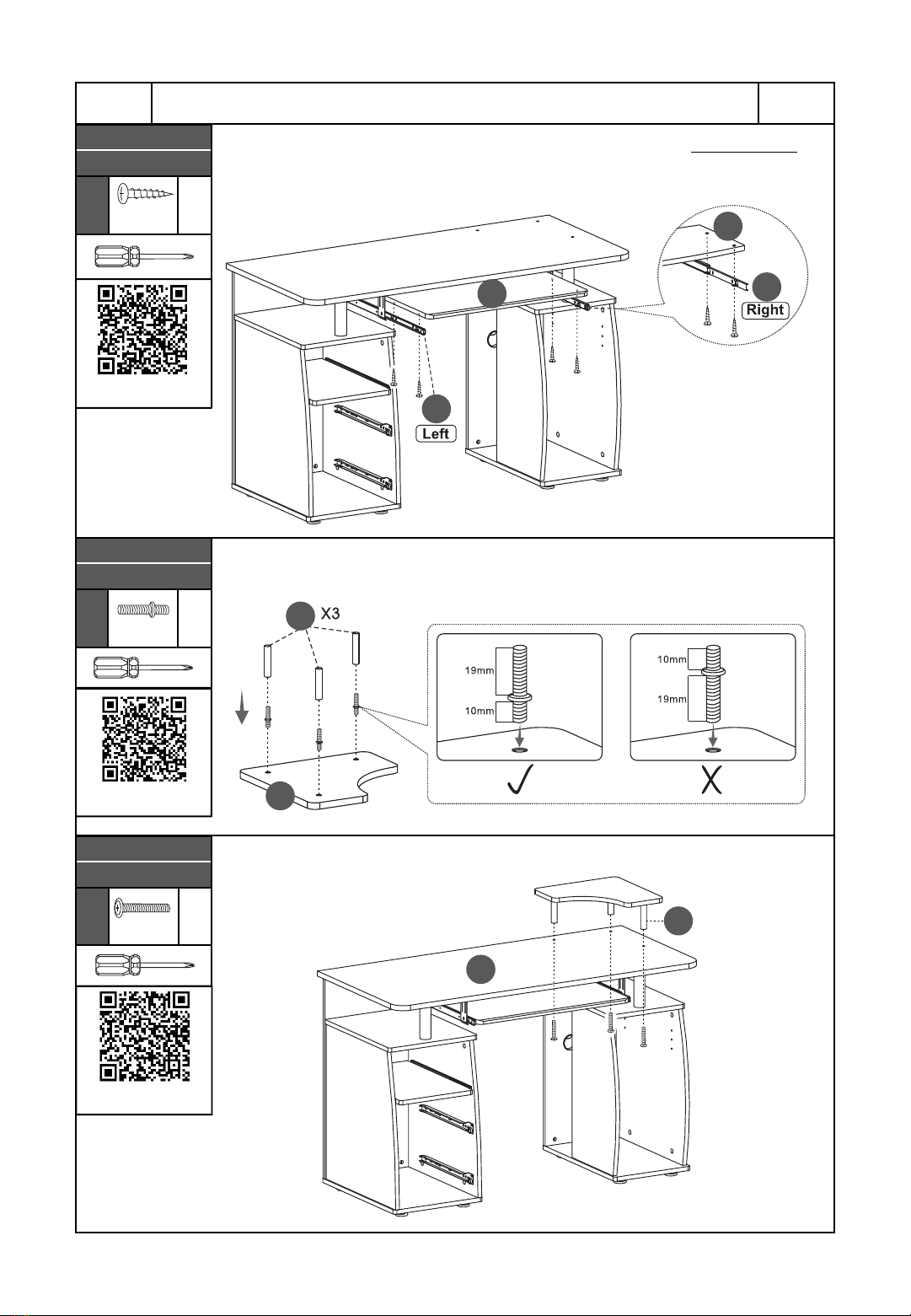

Slide out the sliders 22 and place the keyboard panel 23 over the tabs
making the pre-drilled holes match, then secure the panel with screws
Efrom underneath.
Insert the long end of the screws Jinto one end of the tubes 28,then
attach the tubeswith the short end of the screwsinto panel 29.
STEP 19
Hardware:
E
ST4x14
4
Pcs
Scan QR Code to view
this step
STEP 20
Hardware:
J
M6x30
3
Pcs
Scan QR Code
to view this step
(Into tube)
P. 1 3 RTA-8211 P. 1 3
Attach the tubes 28 to the tabletop 24 with screws Hfrom underneath.
STEP 21
Hardware:
H
M6x35
3
Pcs
Scan QR Code
to view this step
23
22
23
22
29
28
(Into panel)
24
28

•
•

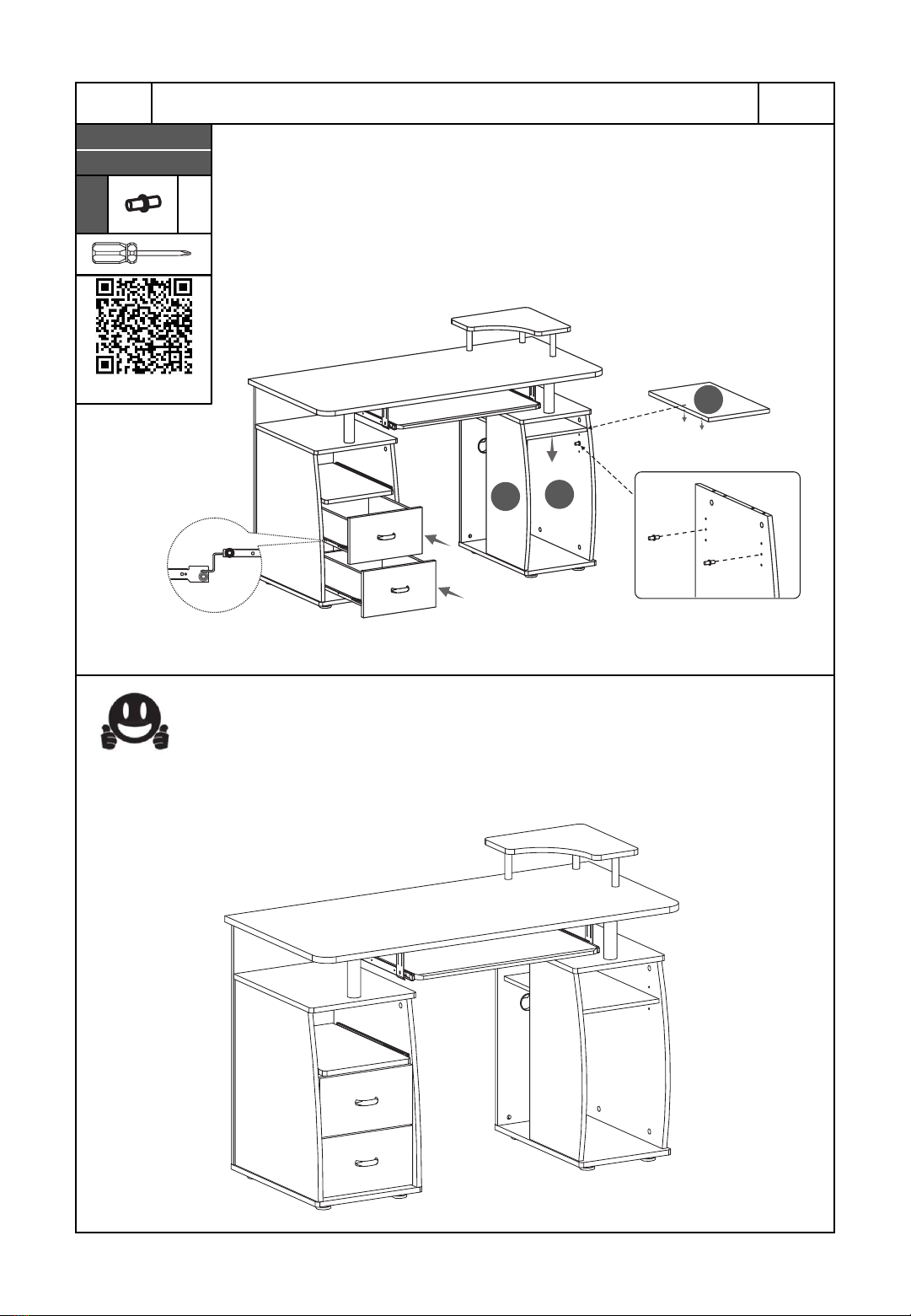

Insert the drawers into the left cabinet starting with the bottom one,
then the top drawer. The top drawer might need to be inserted at an
angle with its front facing down.
Insert the pins Minto one of the 3 sets of holes on the side panels 16
and 18 on the CPU cabinet, and install the adjustable panel 17.
(F(Froronntt))
P. 1 4 RTA-8211 P. 1 4
ALL DONE!
Give yourself a nice pat on the back. You did a great job!
STEP 22
Hardware:
M
Scan QR Code
to view this step
4
Pcs
16 18
17

AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING
CARE AND MAINTENANCE WARNINGS:
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers or compartments without your
supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be
lifted by at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or
might fall off. Please note that lifting from the tabletop with too much weight on the
product might lead to part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid
damage in transit.
•Shall any part of the unit become defective during the warranty period, replacement
parts might be available to you at no charge. Please refer to the last pages on this
manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly,
negligence, improper use, modifications, or not heeding the above warnings.
WEIGHT LIMITS
P. 1 5 RTA-8211 P. 1 5
30 Lbs.
(13.6 Kg)
80 Lbs.
(36.3 Kg)
30 Lbs.
(13.6 Kg)
30 Lbs.
(13.6 Kg)
22 Lbs.
(10 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired anew product from
RTA Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described
herein."Defects" as used in this warranty, is defined as any imperfections that impair the
use of the furniture or product.RTA Products LLC will replace any defective part, at its
discretion, and without charge to the original purchaser other than the freight from the end
consumer to RTA Products.
Replacement parts can only be supplied if parts are available.Items out of production
may be unavailable.This warranty will be effective for the applicable time period
beginning the date of purchase on your original sales receipt.RTA product’s obligation
under this warranty is limited to repairing or replacing products or parts as provided
herein.This product has been designed for and is intended for office and home-office use
only.This warranty is Original Purchaser’s sole remedy for product defects, and this
warranty does not extend to any product, or damage to any product, caused by or
attributed to abuse or misuse, products used for commercial or rental purposes, use
modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or
implied, including without limitations any implied warranty or merchantability or of fitness
for aparticular purpose.Please note, all desks made with PVC Laminate surface should
not be exposed to direct sunlight, as it may damage the material.Damage of this nature
is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages.This warranty is limited to merchandise purchased in the Continental United
States.Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.This warranty
gives you specific legal rights.You may also have other rights that may vary from state to
state.
RTA Products will advise you of the procedure to follow in making warranty claims.The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain
the defect and give your name, address and phone number.Please have ready the
model number of our product, date and place of purchase.You can also write to us by
e-mail to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine
the extent or the cause of the defect, purchaser will need to send the part in question
at purchaser’s expense.Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement.We will
ship the replacement at our expense.
P. 1 6 RTA-8211 P. 1 6
TECHNI MOBILI WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
TV Stand/Entertainment Center: 2 YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
P. 1 7 RTA-8211 P. 1 7
