Techni Mobili RTA-4837D User manual

Thank you for purchasing our product.
MODEL RTA-4837D
ASSEMBLY INSTRUCTIONS
REV.072021-0

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P. 1 RTA-4837D P. 1

P. 2 RTA-4837D P. 2
1
x1
2
x1
3
x1
4
x1
Left support leg Left structure Right front structure Right back structure
MAIN PARTS LIST
5
x1
6
x1
7
x1
8
x1
Top horizontal structure Glass tabletop
Left panel Right panel 9
x1
10
x1
Back panel Bottom panel 11
x1
12
x3
Set
Cabinet top
panel
Sliders 13
x2
14
x2
Small drawer
front panel
Small drawer
left panel
15
x2
16
x3
Small drawer
right panel
Drawer bottom
panel
17
x2
18
x1
Small drawer
back panel
Large drawer
front panel
19
x1
20
x1
Large drawer
left panel
Large drawer
right panel
21
x1
22
x7
Large drawer
back panel
Glide studs 23
x3
24
x1
Handles Small support
bar
25
x8
Drawer
connectors
Left panel
Right panel
left panel
right panel
bar

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-4837D P. 3
LIST OF SCREWS AND FITTINGS
PART QTY ITEM
A17 M6x15
B8M6x25
C9M6x30
D2M6x50
E6M4x28
F46 ST3x15
G12 ST4x35
PART QTY ITEM
H2M6 Nut
I2Ø16MM
J12 M6x40
1Allen
Wrench
1Screwdriver
1Wrench
(Spanner)

P. 4 RTA-4837D P. 4
☛
☛

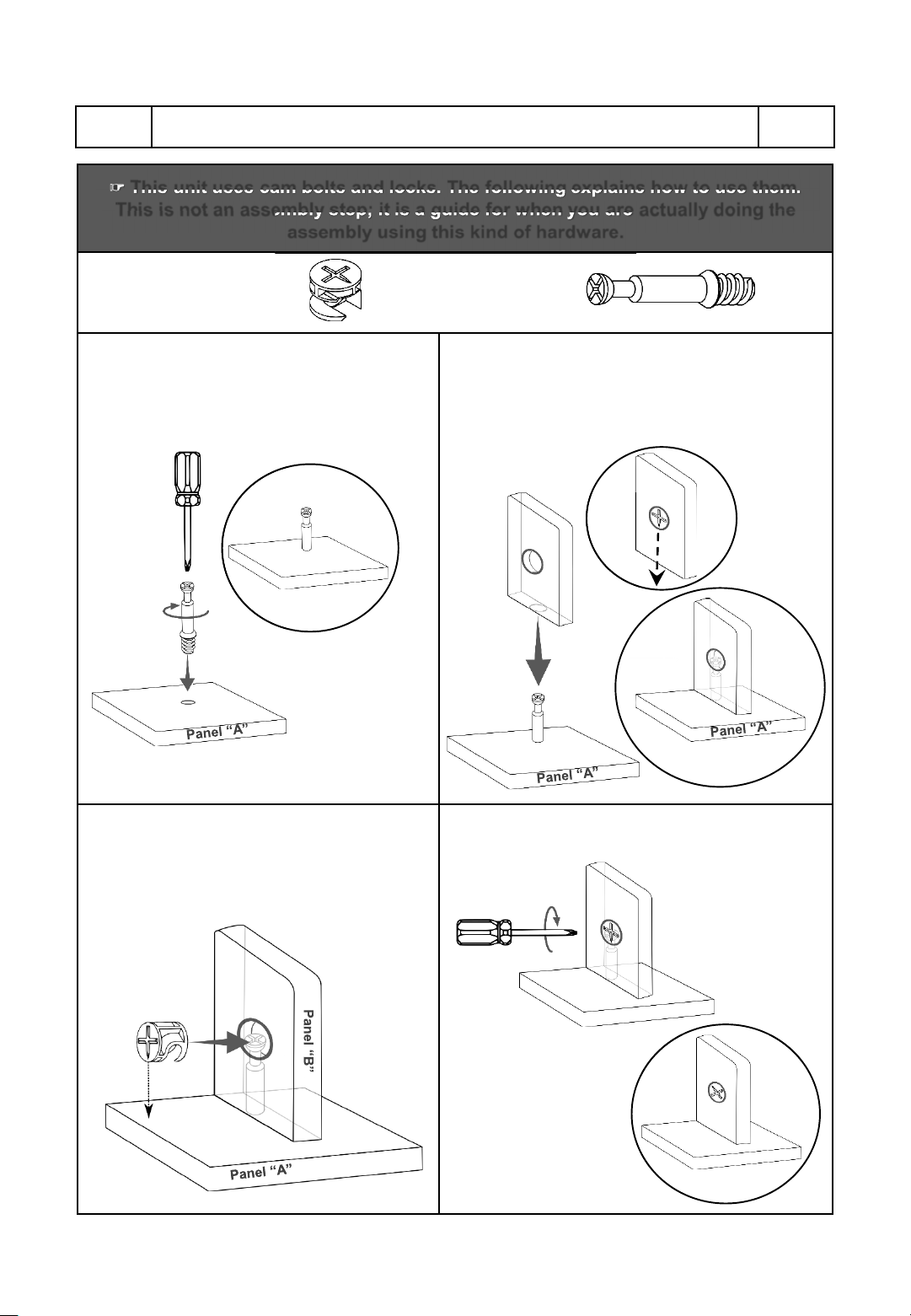

This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing t
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head.
4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”
Panel
“B”

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 5 RTA-4837D P. 5
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
Slowly open the sliders 12 until you see the first front hole thru the big
hole, then attach them to the front holes on the Left panel 7and the Right
panel 8with screws F.
STEP 1
Hardware:
F
ST3x15
6
Pcs
P. 6 RTA-4837D P. 6
Open the sliders 12 completely, and secure them on the back holes of
panels 7and 8with screws F.
12
(Front)
panel
(Front)
(Front)
7 8
12
12
STEP 2
Hardware:
F
ST3x15
12
Pcs
(Back)
(Back)
(Front)

P. 7 RTA-4837D P. 7

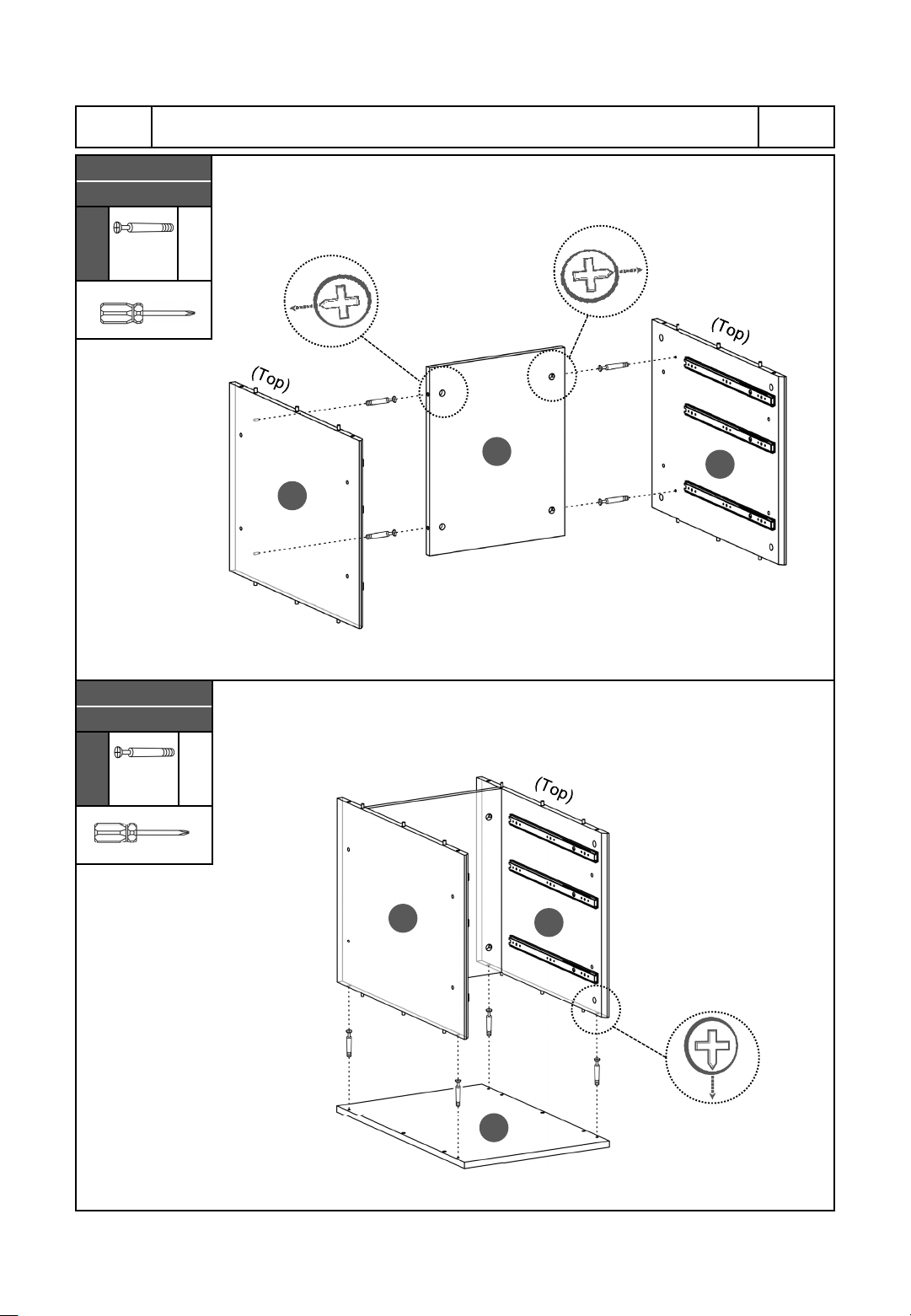

Assemble the Left panel 7and the Right panel 8to the back panel 9with
bolts Jas shown and as explained in page 4.
Assemble the panels 7 and 8 to the Bottom panel 10 with bolts Jas
shown and as explained in page 4.
STEP 3
Hardware:
JM6x40
Bolt
4
Pcs
(Front)
7
8
9
(Front)
Cam locks alignment
STEP 4
Hardware:
JM6x40
Bolt
4
Pcs
(Front)
78
10 Cam locks
alignment

P. 8 RTA-4837D P. 8
Assemble the Cabinet top panel 11 to the side panels 7and 8with bolts
Jas shown and as explained in page 4.
•Carefully flip the cabinet to have its front facing down.
•Pay close attention to the correct orientation of piece 4as shown.
•With the help of another person, assemble the Right back structure 4
to panels 7and 8with screws Bfrom the inside as shown.
STEP 6
Hardware:
B
M6x25
4
Pcs
STEP 5
Hardware:
JM6x40
Bolt
4
Pcs
Cam locks
alignment
78
11
(Front)
78
(Front)
(Front)
8
11
FLIP 90°to the front
(Top)
(Top)
4
7
8
11
(Bottom)
(Front)
(Front)
(Front)

P. 9 RTA-4837D P. 9
•With the help of another person, flip the cabinet 180 degrees towards
the RIGHT or the LEFT (but do not flip towards the front or the back)
to have its front opening facing towards the top as shown.
•With the help of another person, assemble the Top horizontal
structure 5to the structure 4with screws C, making sure the tabs go
under the other structures.
•Assemble the Right front structure 3to the structure 5with screws C.
STEP 7
Hardware:
C
M6x30
4
Pcs
711
Flip 180°to the RIGHT or the LEFT, but do not flip towards the front or the back.
8
Assemble the Right front structure
to the RIGHT or the LEFT, but do not flip
11
7
8
to the RIGHT or the LEFT, but do not flip
towards the front or the back.
8
8
7
(Top)
(Bottom)
3
5
4
(Top)
(Bottom)
11
Secure the Right front structure 3to the side panels 7and 8with screws
Bfrom inside of the cabinet.
STEP 8
Hardware:
B
M6x25
4
Pcs 7
3
8
(Top)
(Bottom)
The tabs on 5 go under
the other structures

P. 1 0 RTA-4837D P. 1 0
•Secure the structures 3and 4to the Bottom panel 10 with screws C.
•Attach the Glide studs 22 to the structures 3and 4.
STEP 9
Hardware:
C
M6x30
4
Pcs
22 4
Pcs
STEP 10
Hardware:
A
M6x15
2
Pcs
4
10
22 C
•With the help of another person, bring the unit upright.
•Secure the structure 5to the structures 3and 4with screws Afrom
underneath.
•If you don’t see the holes for the screws, please go back and review
step 7.
3
4
5
If you don’t see the holes for the screws, please go back and review
(Front)
3
3

P. 11 RTA-4837D P. 11
Attach the Glide studs 22 to Left support leg 1and Left structure 2.
•First assemble the Left structure 2to the structure 5with screws D,
washers Iand nut caps H. The screws go from outside through 2and
5, and secured on the other side with the washers and nuts.
STEP 11
Hardware:
22 3
Pcs
STEP 12
Hardware:
A
M6x15
1
Pc
C
M6x30
1
Pc
D
M6x50
2
Pcs
H
M6
2
Pcs
IØ16MM
2
Pcs
2
1
(Front)
2
5
H
DI
•Then assemble the Left support leg 1to the Left structure 2with a
screw C at the top and a screw A at the bottom.
21
C
A
C for the TOP
A for the BOTTOM

P. 1 2 RTA-4837D P. 1 2
From behind the unit, attach the Small support bar 24 to the structures 2
and 5with screws A.
With the help of another person, carefully place the Glass tabletop 6over
the frame so the metal studs from the glass enter into the big holes of the
structures 2, 3and 4, then secure it with screws Afrom underneath.
STEP 13
Hardware:
A
M6x15
2
Pcs
STEP 14
Hardware:
A
M6x15
4
Pcs
A
(Back)
A
5
2
24
(Front)
6
2
3
4
(Front)
(Back)

P. 1 3 RTA-4837D P. 1 3
For each of the small drawers, attach the Drawer connectors 25 to the
inside of the Drawer side panels 14 and 15 with screws F.
For each of the small drawers, assemble the back panel 17 to the side
panels 14 and 15 with screws G.
STEP 15
Hardware:
F
ST3x15
8
Pcs
25 4
Pcs
STEP 16
Hardware:
G
ST4x35
8
Pcs
15
15
14
14
15 17
The grooves on all the
panels go facing towards
the bottom and the inside
For each of the small drawers, slide the Bottom panel 16 through the
grooves on panels 14 and 15 and into the groove of panel 17.
STEP 17
14
15 17
14
15
17
16
25
25
F

P. 1 4 RTA-4837D P. 1 4
•For each of the small drawers, assemble the Front panel 13 to the
Connectors 25 with screws Afrom the inside.
•For each of the small drawers, attach the Handle 23 to the Front
panel 13 with screws Efrom inside.
Attach the Drawer connectors 25 to the inside of the Large drawer side
panels 19 and 20 with screws F.
STEP 18
Hardware:
A
M6x15
4
Pcs
E
M4x28
4
Pcs
STEP 19
Hardware:
F
ST3x15
8
Pcs
25 4
Pcs
13
20
E
23
The groove go facing
towards the bottom
A
25
20
19
•Assemble the back panel 21 to panels 19 and 20 with screws G.
•Slide the Bottom panel 16 through the grooves on panels 19 and 20
and into the groove of panel 21.
STEP 20
Hardware:
G
ST4x35
4
Pcs
16
16
19
20
21
19
20 21
The grooves go
facing towards the
bottom and the inside

P. 1 5 RTA-4837D P. 1 5
With the help of another person, install all the drawers starting with the
large one on the bottom, by pulling out the sliders inside the cabinet, and
securing each drawer to the sliders on the sides with screws Fas shown.
STEP 22
Hardware:
F
ST3x15
12
Pcs
(Front)
• Assemble the Front panel 18 to the Connectors 25 with screws A
from the inside.
•Attach the Handle 23 to the Front panel 18 with screws Efrom inside.
STEP 21
Hardware:
A
M6x15
4
Pcs
E
M4x28
2
Pcs
E
23
The groove go facing
towards the bottom
A
25
18

ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
P. 1 6 RTA-4837D P. 1 6

WEIGHT LIMITS
P. 1 7 RTA-4837D P. 1 7
11 Lbs.
(5 Kg)
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as inside
one of the drawers.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers without your supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or might
fall off.
•Always lift from the frame. Avoid lifting from the glass to avoid part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•The glass is made of safety tempered glass. The safety feature is that when breakage
occurs, the glass shatters into many tiny pieces minimizing the risk of serious injuries. If
the glass breaks, do not handle the pieces with your bare hands, take some pictures and
contact Customer Service immediately.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING
CARE AND MAINTENANCE WARNINGS:
66 Lbs.
(30 Kg)
110 Lbs.
(50 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired anew product from
RTA Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described
herein."Defects" as used in this warranty, is defined as any imperfections that impair the
use of the furniture or product.RTA Products LLC will replace any defective part, at its
discretion, and without charge to the original purchaser other than the freight from the end
consumer to RTA Products.
Replacement parts can only be supplied if parts are available.Items out of production
may be unavailable.This warranty will be effective for the applicable time period
beginning the date of purchase on your original sales receipt.RTA product’s obligation
under this warranty is limited to repairing or replacing products or parts as provided
herein.This product has been designed for and is intended for office and home-office use
only.This warranty is Original Purchaser’s sole remedy for product defects, and this
warranty does not extend to any product, or damage to any product, caused by or
attributed to abuse or misuse, products used for commercial or rental purposes, use
modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or
implied, including without limitations any implied warranty or merchantability or of fitness
for aparticular purpose.Please note, all desks made with PVC Laminate surface should
not be exposed to direct sunlight, as it may damage the material.Damage of this nature
is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages.This warranty is limited to merchandise purchased in the Continental United
States.Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.This warranty
gives you specific legal rights.You may also have other rights that may vary from state to
state.
RTA Products will advise you of the procedure to follow in making warranty claims.The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain
the defect and give your name, address and phone number.Please have ready the
model number of our product, date and place of purchase.You can also write to us by
e-mail to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine
the extent or the cause of the defect, purchaser will need to send the part in question
at purchaser’s expense.Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement.We will
ship the replacement at our expense.
P. 1 8 RTA-4837D P. 1 8
TECHNI MOBILI WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
TV Stand/Entertainment Center: 2 YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
P. 1 9 RTA-4837D P. 1 9
