Techni Mobili RTA-3930SU User manual

Thank you for purchasing our product.
MODELS
RTA-3930SU
RTA-3940SU
ASSEMBLY INSTRUCTIONS
REV.LTK-6666-0422-2
Scan QR code to
view assembly video
Please note that this
product comes packaged
in 2 separate boxes.

P.1 RTA-3930SU, RTA-3940SU P.1
SAMPLE –DO NOT SCAN
•Scan the QR code shown in the front page to view the complete
assembly video online.
•We have added QR Codes to some steps for your assistance. If a
QR code is provided on a step, scan it to view the assembly video
online.
•The product comes packaged in 2 separate boxes.
•The unit requires AC power supply 100V-240V.
110V-240V
•The unit plugs into an electrical outlet type Aor B.
•Please read carefully the assembly instructions before
the installation.
• Do not discard this manual or any of the packaging
material until the unit has been completely assembled.
•Will require two people.

P.2 RTA-3930SU, RTA-3940SU P.2
1
x2 2
x1 3
x1
Metal foot Leg without motor Leg with motor
MAIN PARTS LIST
4
x1
5
x1
Adjustable support beam
Transmission rod
6
x2 7
x1
Support plate Power adapter 8
x2 9
x1
Metal covers
(for the beam)
Power cable
10
x4 11
x1
Cable tie Metal holder
(for adapter)
12
x1 Tabletop
13
x1 14
x1
Handset Switch cord 15
x1 Control box

MAIN PARTS LAYOUT (FOR REFERENCE):
P.3 RTA-3930SU, RTA-3940SU P.3

3









3






LIST OF HARDWARE, SCREWS AND FITTINGS
PART QTY ITEM
A 
B
C4 

C5 

D

PART QTY ITEM
E
F 
G






BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P.4 RTA-3930SU, RTA-3940SU P.4
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

P.5 RTA-3930SU, RTA-3940SU P.5
3
ASSEMBLY STEPS
se the e C5 to asseble the etal feet 1to the les 2and 3with
srews A
STEP 1
Hardware:
Ax

s
C5 x
se the e C4 to loosen p all the srews on the iddle of the
spport bea 4to allow the bea to expand

an  ode
to iew this step
Top
otto
Top
otto
The  srews are
loated in the iddle
at the top of the bea
The bea will be able to
expand for the next step
STEP 2
Hardware:
C4 x
an  ode
to iew this step


Top
otto
1
1


P.6 RTA-3930SU, RTA-3940SU P.6
•Place the adjustable support beam 4over the brackets of the legs 2
and 3with the beam tabs facing UP.
•Use the key C5 to assemble the adjustable support beam 4to the
legs 2and 3with screws B.
STEP 3
Hardware:
BM8x50
4
Pcs
C5 5x5
Scan QR Code
to view this step
3
2
4
Tabs facing UP
2

3

ront
a
ront
(Back)

P.7 RTA-3930SU, RTA-3940SU P.7
•
•
Use the hex wrench (spanner) Gto loosen up the nut on the
transmission rod 5to allow it to expand,and insert the inner rod into
the hole of the leg 2,but DO NOT TIGHTEN the nut, this isdone until
step 8.
On the other end of the transmission rod 5,connect its plastic gear to
the gear on the leg with motor 3making sure the hole with screw on
the transmission rod faces UP.
•Tighten the screw to secure the gears together.
(Front)
(Back)
STEP 4
Hardware:
D2.5x2.5
G
3
Scan QR Code
to view this step
5
5
2
3
5
3. Hole on gear must face UP
4. Connect gears
5. Tighten screw
2. Insert but DO NOT TIGHTEN
5
1. Loosen up
2
5
3
3

P.8 RTA-3930SU, RTA-3940SU P.8
Use the key C5 to assemble the support plates 6to the legs 2and 3with
screws A.
NOTE: The metal plates might have small rubber grommets, if that is the
case, DO NOT REMOVE THEM.
STEP 5
Hardware:
AM6x16
4
Pcs
C5 5x5
Scan QR Code
to view this step
•With the help of another person, place the tabletop 12 upside-down
over carpeting or large blanket to protect its top surface.
•With the help of another person, place the frame over the tabletop 12
and slide the metal holder 11 under the beam 4 near the leg with
motor 3.
STEP 6
Scan QR Code
to view this step
Do not remove
the rubber
grommets on 6
3
2
6
6
(Front)
(Back) 12
4
3
11
ront
(Back)

P.9 RTA-3930SU, RTA-3940SU P.9
•With the help of another person, expand or retract the beam 4to make
the holes on the support plates 6align with the pre-drilled holes on the
tabletop 12.
•Use a Phillips screwdriver (not included) and screws Fto assemble:
1. The metals plates 6to the tabletop 12.
2. The handset 13 to the tabletop 12 on the side of your choice (left or
right). Please note that there will be extra holes intended for other
style of this product.
3. The tabs from the beam 4to the tabletop.12.
STEP 7
Hardware:
FM4.2x19
12
Pcs
(NOT INCLUDED)
6
6
Scan QR Code
to view this step
12
4
Expand or retract the frame
to align with pre-drilled holes
13
(Front)
(Back)
4

P.10 RTA-3930SU, RTA-3940SU P.10
•Use the key C4 to re-tighten all the holes on the middle of the beam 4.
•If the transmission rod 5detached from the leg 2 in the previous
steps, go ahead and re-insert it, then use the hex wrench (spanner) G
to tighten the nut.
Hardware:
C4
G
Scan QR Code
to view this step
STEP 8





Tighten
Tighten 

P.11 RTA-3930SU, RTA-3940SU P.11
Without attaching them to the unit, make the following connections:
•The cable from the handset 13 to the control box 15 in its respective
receiving port.
STEP 9
15
13
Scan QR Code
to view this step
•The power cable 9to the port on the power adapter 7.
•The switch cord 14 to the port on the control box 15 and to the receptacle cable on the
power adapter 7.
•The cable from the motor on the leg 3to the corresponding port on the control box 15.
•The power cable 9to a 110-240V power outlet type A or B (2-prong). Please check
first if the electrical voltage for the power outlet you intend to use is suitable before
connecting.
15
Handset
Wire Port
Switch
Cord Port
Motor Wire Port
15
3
15
14
7
14
110-240V
7
9
15
7
9
15
7

P.12 RTA-3930SU, RTA-3940SU P.12
It is important to do a lift test before proceeding.
•Stay clear of the legs as they will move up and down during the test.
•Press the UP and DOWN arrows on the handset 13 to make sure the
legs rise/lower simultaneously.
•If the unit works fine, set the legs to the lowest position and
disconnect the power cable 9from the power supply.
•If none of the legs rise, review all the connections made in step 9.
•If the leg without motor 2does not rise, review the assembly for the
transmission rod 5done in steps 4and 8.
After the lift test is done, use the key Dto attach the metal covers 8to
the beam 4with screws E.
STEP 10
STEP 11
Hardware:
D2.5x2.5
EM4x6 Pcs
Scan QR Code
to view this step
Scan QR Code
to view this step
3
2
13
13
UP
button
DOWN
button
(Front)
(Back)
88
4
4
2.5x2.5
4

P.13 RTA-3930SU, RTA-3940SU P.13

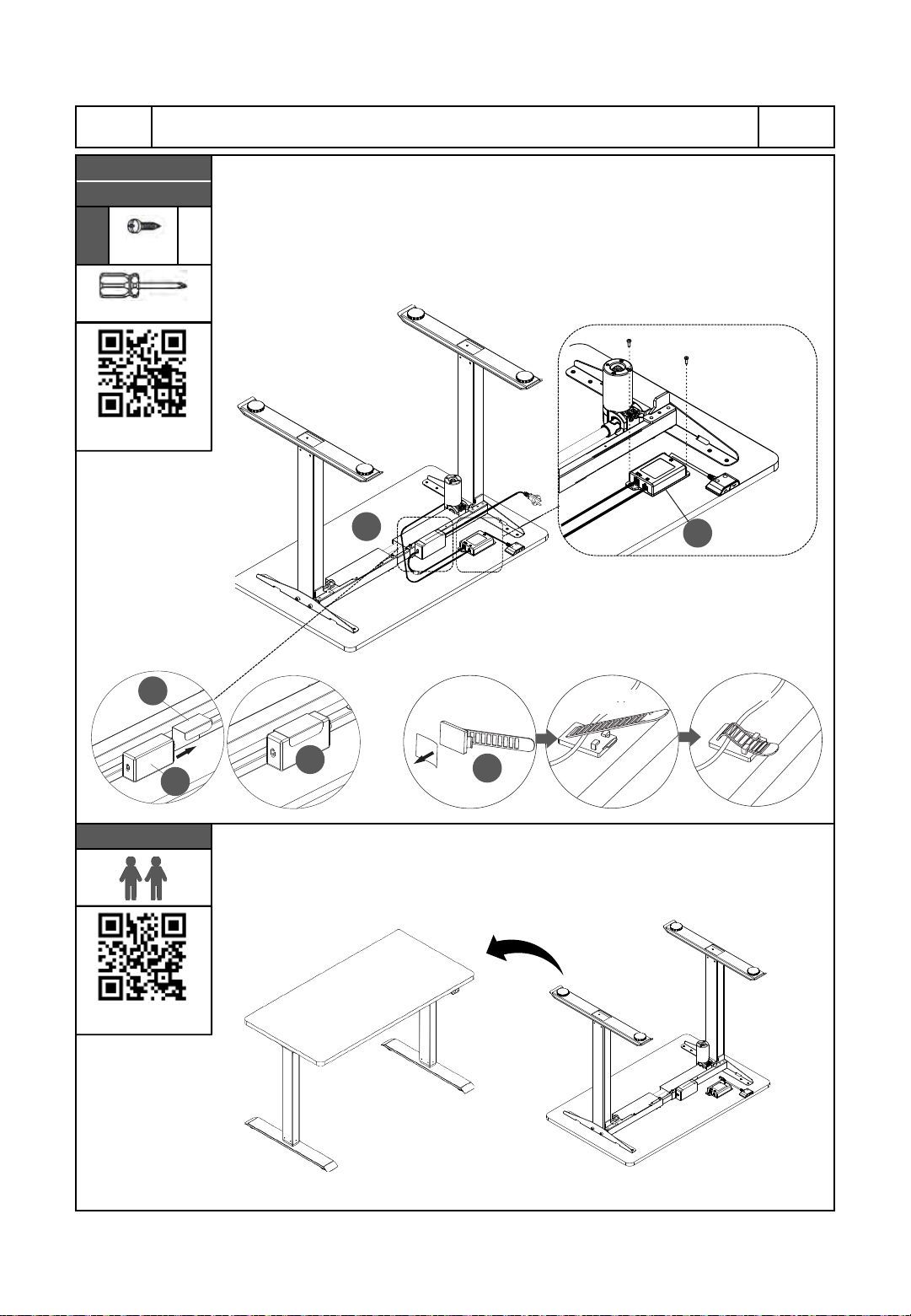

•Slide the power adapter 7into the holder 11.
•Tear-off the cable ties 10 and attach them to the tabletop 12, then use
them to hold and secure the cables from all the wired connections.
•With the help of another person, bring the unit upright.
•Re-connect the power cable to the electrical outlet.
STEP 12
Hardware:
FM4.2x19
2
Pcs
(NOT INCLUDED)
STEP 13
Scan QR Code
to view this step
Scan QR Code
to view this step
12
(Front)
(Back)




Tear off Secure
aae cae
CABLES MANAGEMENT:
•Use a Phillips screwdriver (not included) to attach the control box 15
to the tabletop 12 with screws F.Please note that there are no pre-
drilled holes for it, you can attach anywhere on the panel.

ALL DONE!
Give yourself a nice pat on the back. You did a great job!
P.14 RTA-3930SU, RTA-3940SU P.14
DOWN
UP
Lift range
from floor:
Weight Limit:
154 Lbs
(70 Kg)
48.5” Max
29” Min
TROUBLESHOOTING NORMAL ISSUES
Issue Try this
Table does not go up or down when
operating the handset
•Check the connections of all the cables as explained in
page 11.
•Do a reset.
•Unplug and wait for at least 18 min. before operating
again.
Only the leg with the motor goes up
or down Check the correct assembly of the transmission rod as explained in page 7.
Unit rises extremely slowly Check for weight overload and test by removing some of
the heavy objects from the unit.
Unit lowers itself down Check for weight overload and test by removing some of
the heavy objects from the unit.
Unit does not reach the maximum or
minimum heights Do a reset.
Button pressed but the unit moves
in the opposite direction Do a reset.
Press the UP or DOWN buttons
to adjust the height of the unit
and release the buttons when the
desired height is reached.
If the handset becomes unresponsive, do a reset by keeping the DOWN button
pressed, the unit will come down to the lowest position and will rebound to stop, then
release the button. Wait 20 seconds before operating the handset again.
Sometimes the handset becomes unresponsive even after doing a reset, so if this is
the case, please unplug the unit from the power supply and wait for 18 minutes (the
maximum duration of the duty cycle) before plugging and using again.

P.15 RTA-3930SU, RTA-3940SU P.15
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Unplug the unit from its power supply before cleaning the unit.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
• If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to operate the handset without your supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that might fall off.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, lower the unit to the lowest height and
protect and secure it to avoid damage in transit.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
TECHNICAL DATA
Input voltage 100V-240V, 50/60Hz
Duty cycle (power cycle) 10%: 2 min on at most, 18 min. off.
Tolerable ambient temperature 32-104°F (0-40°C)
Max. lift speed 59 in/min (25mm/s)
CARE, MAINTENANCE AND SAFETY WARNINGS:
•Do not dispose of the electrical components in the same bin with regular household
wastes. Please check with your city offices for collection services and proper disposal of
those items.
•The tabletop and some of the frame pieces are made of materials that can be recycled.
Please check with your city offices for collection and recycling services.

RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described herein.
"Defects" as used in this warranty, is defined as any imperfections that impair the use of the
furniture or product. RTA Products LLC will replace any defective part, at its discretion, and
without charge to the original purchaser other than the freight from the end consumer to RTA
Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date
of purchase on your original sales receipt. RTA product’s obligation under this warranty is
limited to repairing or replacing products or parts as provided herein. This product has been
designed for and is intended for office and home-office use only. This warranty is Original
Purchaser’s sole remedy for product defects, and this warranty does not extend to any
product, or damage to any product, caused by or attributed to abuse or misuse, products
used for commercial or rental purposes, use modifications of, or attachments to the product,
and products or parts not used, maintained, or extended hereunder is in lieu of any and all
other warranties, express or implied, including without limitations any implied warranty or
merchantability or of fitness for a particular purpose. Please note, all desks made with PVC
Laminate surface should not be exposed to direct sunlight, as it may damage the material.
Damage of this nature is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages. This warranty is limited to merchandise purchased in the Continental United
States, excludes AK, HI and PR. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights that may
vary from state to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model
number of our product, date and place of purchase. You can also write to us by e-mail
to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at
purchaser’s expense. Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement. We will
ship the replacement at our expense.
P.16 RTA-3930SU, RTA-3940SU P.16
TECHNI MOBILI DESK WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
