Techni Mobili RTA-S06 User manual

Thank you for purchasing our product.
MODEL RTA-S06
ASSEMBLY INSTRUCTIONS
REV.LS-6541-0222-5

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P.1 RTA-S06 P.1

P.2 RTA-S06 P.2
1
x1 2
x1 3L
x2 4
x1
Top drawer left
panel Top drawer right
panel Locking caster Top drawer front
panel
MAIN PARTS LIST
5
x2 6
x1 7
x1 8
x1
Drawer bottom panel Top drawer back
panel Bottom drawer left
panel Bottom drawer right
panel
9
x1 10
x1
Bottom drawer front panel Bottom drawer back panel 11
x1
Set
File tubes, Set of 2 pcs
12
x2
Set
13
x2
14
x1
Handle
Left panel 15
x1
16
x1
Right panel
Bottom panel 17
x1 Back panel
3N
x2 Non-locking caster
Sliders, Set of 4 pcs for each drawer
“Flat”: 2 pcs, go
inside the cabinet “L shaped”: 2 pcs,
go on the drawers

P.3 RTA-S06 P.3
MAIN PARTS LIST
19
x1
Set
L bracket
and Nut
18
x1 Top wood panel 20
x1 21
x4
Bottom drawer
front wheel Support tube
22
x1 Top glass panel
Ø1x2.75”
23A
x1 Set Metal fitting A,
set of 2 pcs 23B
x1 Set Metal fitting B,
set of 2 pcs 23C
x1 Set Metal fitting C,
set of 2 pcs
23D
x1 Set Lock and keys,
matching set 23F
x1 Set Tiny screw F
for 23C,
set of 2 pcs
23G
x1 Metal ring G
for lock
23E
x1 Metal locking bar
16.75” 
LIST OF HARDWARE,
SCREWS AND FITTINGS
PART QTY ITEM
A16 M6x40
B8M4X35
C30 M3x15
D4M4x20
E18 M4x14
F1M6x12
G4M6x20
Headless
H4M6x35
1
1
MAIN PARTS LAYOUT (FOR REFERENCE):
14
20
22
49
18
1
2
3N
3L
10
7
8
6
5
23E
23A
23C
23A
23C
23F
23F

P.4 RTA-S06 P.4

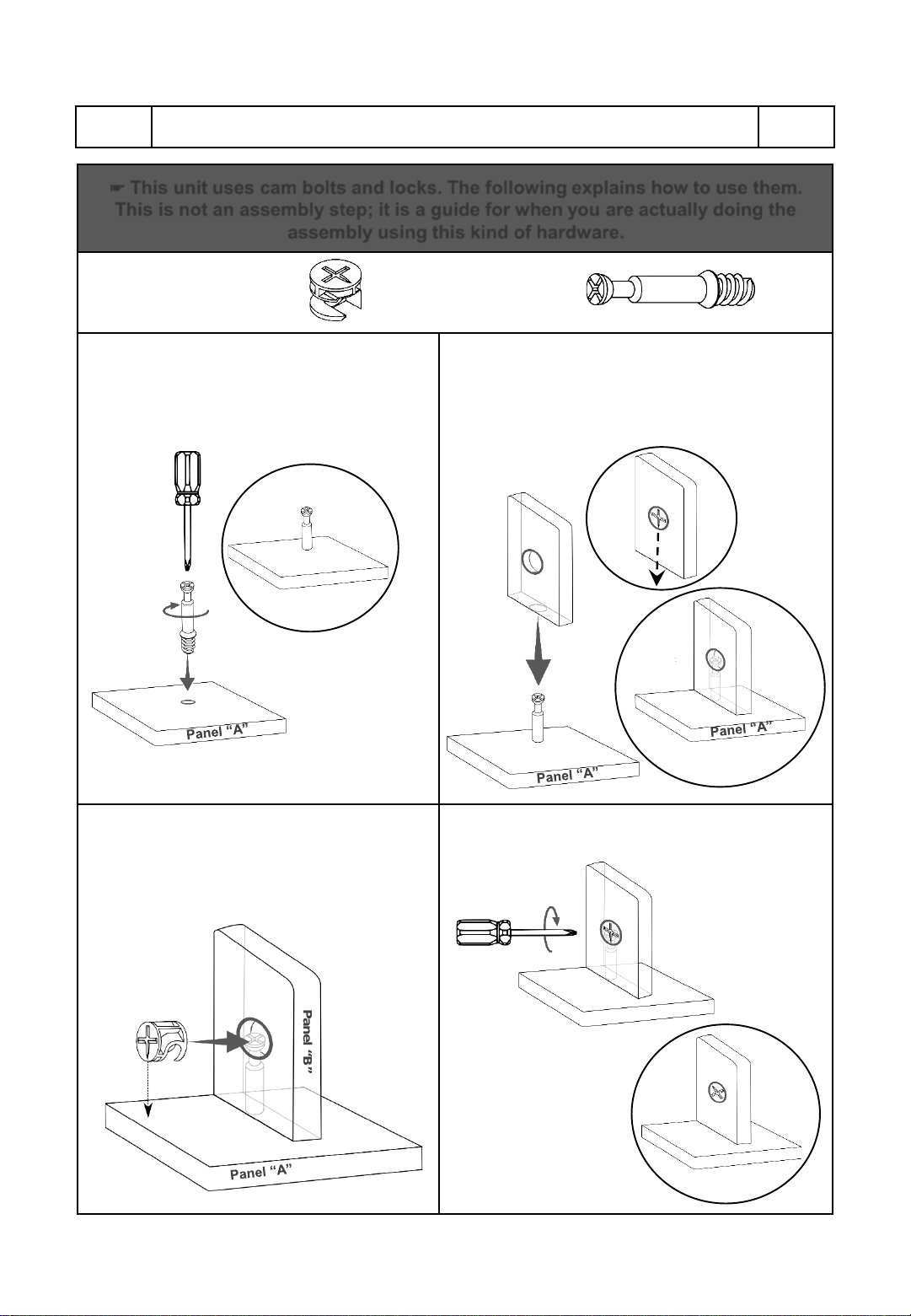

☛This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head. 4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”

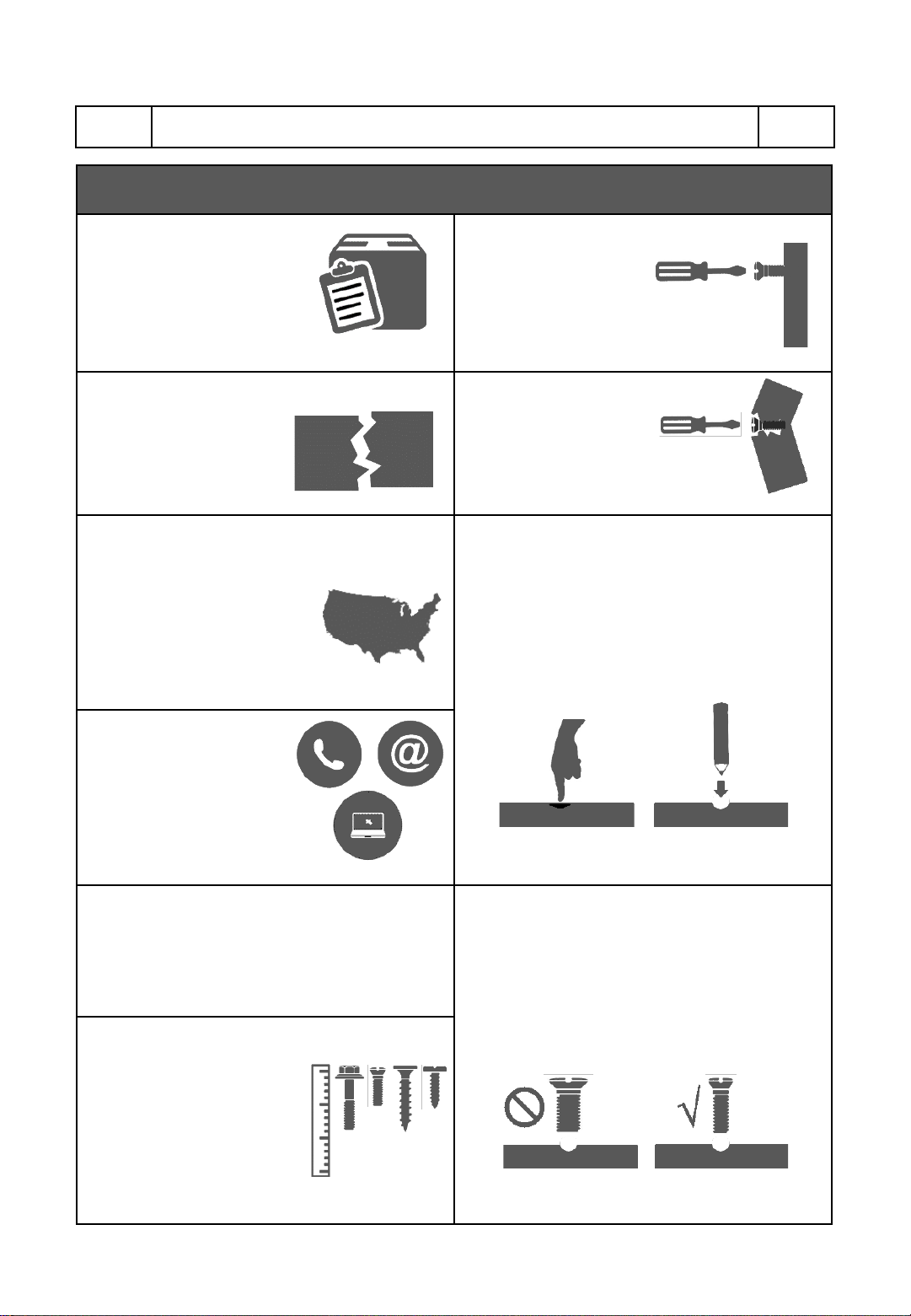

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P.5 RTA-S06 P.5
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
P.6 RTA-S06 P.6
•Slide the metal fittings through the metal bar 23E in the following
exact order:
-One of 23A with the flat side UP.
-Both 23C facing UP.
-The second 23A with the flat side UP.
•Align the pieces 23C in between the marks on the bar 23E,and insert
the tiny screws 23F into 23C and tighten to leave 23C stationary
within those marks.
STEP 2
Hardware:
FIRST INSERT:
THEN TIGHTEN 23C:
(Top)
(Bottom)
23A 23A
23C 23C
23F 23F
23C
23C
Attach the casters 3 to the bottom surface of panel 16 with screws Eas
indicated:
•The locking casters 3L go at the FRONT of the panel.
•The non-locking casters 3N go at the BACK.
STEP 1
Hardware:
EM4x14
16
Pcs
(Front)
16
LOCKING
go at the front
NON-LOCKING
go at the back
3N
3L
16
16
TOP surface:
BOTTOM surface:
23A go with flat side facing UP.
THEN ALIGN 23C:
23E
23E (Top)
(Bottom)

ASSEMBLY STEPS
P.7 RTA-S06 P.7
Grab all the sets of sliders 12 (total 8pcs) and separate them into 2
groups according to their shape:
-The “Flat” ones will be used on the next step.
-The “L Shaped” will be used until steps17 and 24, set them aside.
STEP 4
(“Flat” Right, x2)
(Front)
(Front)
(Front)
(Front)
The “Flat” ones will
be used on step 4.
The “L-Shaped” will be
used until steps 17 and
24, set them aside.
12
12
12
12
(“Flat” Left, x2)
(“L” Right, x2)
(“L” Left, x2)
Assemble the locking system 23 to the right panel 15 by attaching the
fittings 23A with screws Cas shown.
STEP 3
Hardware:
CM3x15
8
Pcs
(Top)
(Front)
(23E goes with
rods at top)
15
23E
23C

P.8 RTA-S06 P.8
•Attach the bolts Ato panels 14 and 15 into the indicated holes.
•Check and make sure the cam locks on panel 16 are aligned and
ready to receive the bolts, just as explained in page 4.
•Join panels 14 and 15 to panel 16 and turn the cam locks.
(Top)
(Front)
(Front)
(Back)
STEP 6
Hardware:
AM6x40
Bolt
4
Pcs
15
14 16
Cam locks
alignment on 16:
FIRST:
THEN:
Assemble the “Flat” sliders 12 to the side panels 14 and 15 with screws
C. Please note:
•The wheel is at the front, and faces down with 2 holes above it.
•The sliders attach at the front on the 2nd hole.
•The grooves on the panels are located at the back.
STEP 5
Hardware:
CM3x15
8
Pcs
14
12
15
(Top)
(Back)
(Front)
The groove goes at
the back of panels
2nd hole from front
(Front)
Wheel at front,
2 holes above it
(Back)
(Front)
(Back)
14 15
(Top)

P.9 RTA-S06 P.9

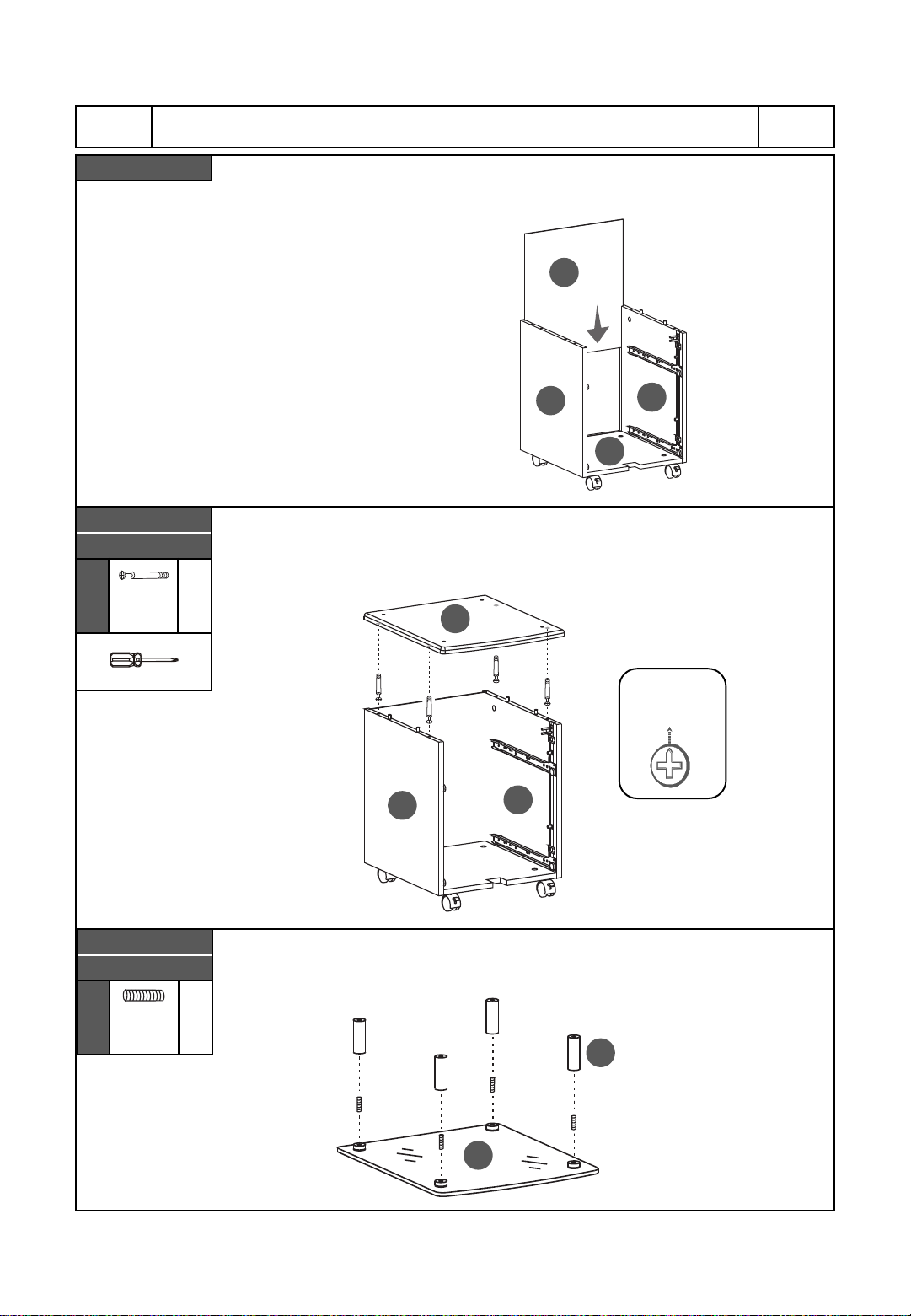

Slide in the back panel 17 through the grooves of panels 14 and 15 and
into the groove of panel 16.
STEP 7
•Attach bolts Ato the bottom surface of the top wood panel 18.
•Align cam locks on panels 14 and 15.
•Assemble panel 18 to 14 and 15 as explained in page 4.
(Front)
14
18
STEP 8
Hardware:
AM6x40
Bolt
4
Pcs
Cam locks
alignment
15

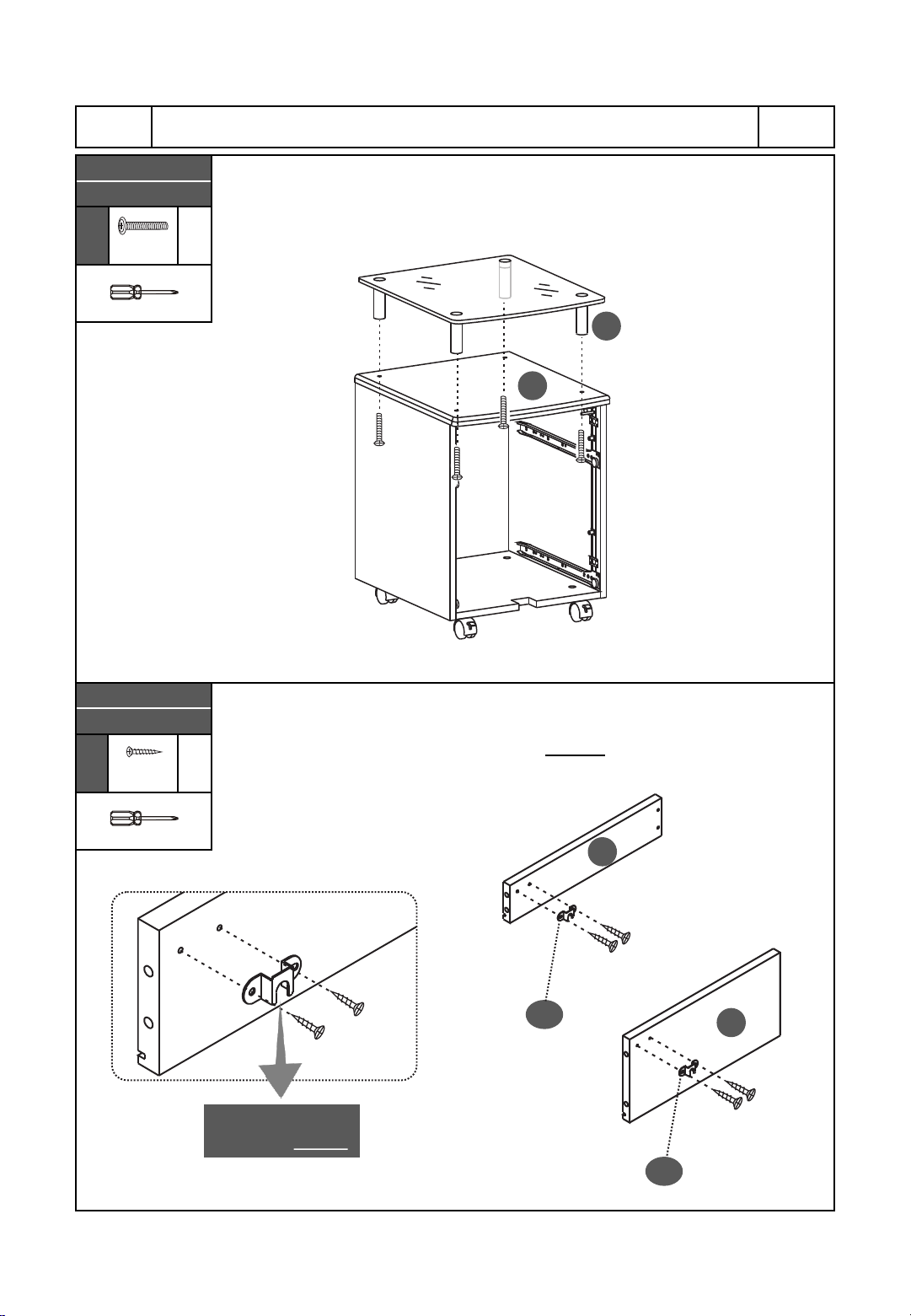

Assemble the support tubes 21 to the discs on the top glass panel 22
with screws G.
21
22
STEP 9
Hardware:
GM6x20
Headless
4
Pcs
1415
17
16

P.10 RTA-S06 P.10
Assemble the support tubes 21 to the top wood panel 18 with screws H
from underneath.
Attach the metal fitting 23B to the drawers right panels 2and 8
respectively with screws C.
NOTE: The “U” on the fitting must face DOWN.
(Front)
(Top)
(Front)
STEP 10
Hardware:
HM6x35
4
Pcs
STEP 11
Hardware:
CM3x15
4
Pcs
18
21
8
23B
The “U” on 23B
must face DOWN
2
23B
(Front)
(Top)

For the top drawer,
assemble side panels 1
and 2 to the front panel 4
with bolts A.
Slide one of the bottom panels 5 through
the grooves of the side panels and into the
front panel as shown.
STEP 12
Hardware:
AM6x40
Bolt
4
Pcs
2
1
4
STEP 13
2
4
1
5
Assemble the back panel
6 to the side panels 1 and
2 with screws B.
STEP 14
Hardware:
BM4x35
4
Pcs
1
6
2
Assemble one of the
handles 13 to front panel 4
with screws D.
13
P.11 RTA-S06 P.11
STEP 15
Hardware:
DM4x20
2
Pcs
•Assemble the lock 23D to the interior face of the front panel 4with
screws C, making sure the keys will make the rod rotate from the
bottom to the top in a counter-clock motion.
•Attach the ring 23G to the lock at the front.
NOTE: If the lock is installed turning the wrong way, the rod might
get stuck with the drawer locked, unable to open it.
STEP 16
Hardware:
CM3x15
2
Pcs
4
23D
23G
CORRECT:
Bottom to top
in counter-
clock motion.
Cam locks
alignment
INCORRECT:
It might get the
rod stuck and
drawer might
not open.
4

P.12 RTA-S06 P.12
•For the bottom drawer, assemble the L bracket 19 to the front panel 9
with screws Eand F.
•Assemble the front wheel 20 to the bracket 19 with the nut 19.
(Top)
(Bottom)
STEP 18
Hardware:
EM4x14
2
Pcs
FM6x12
1
Pc
19
19
2
1

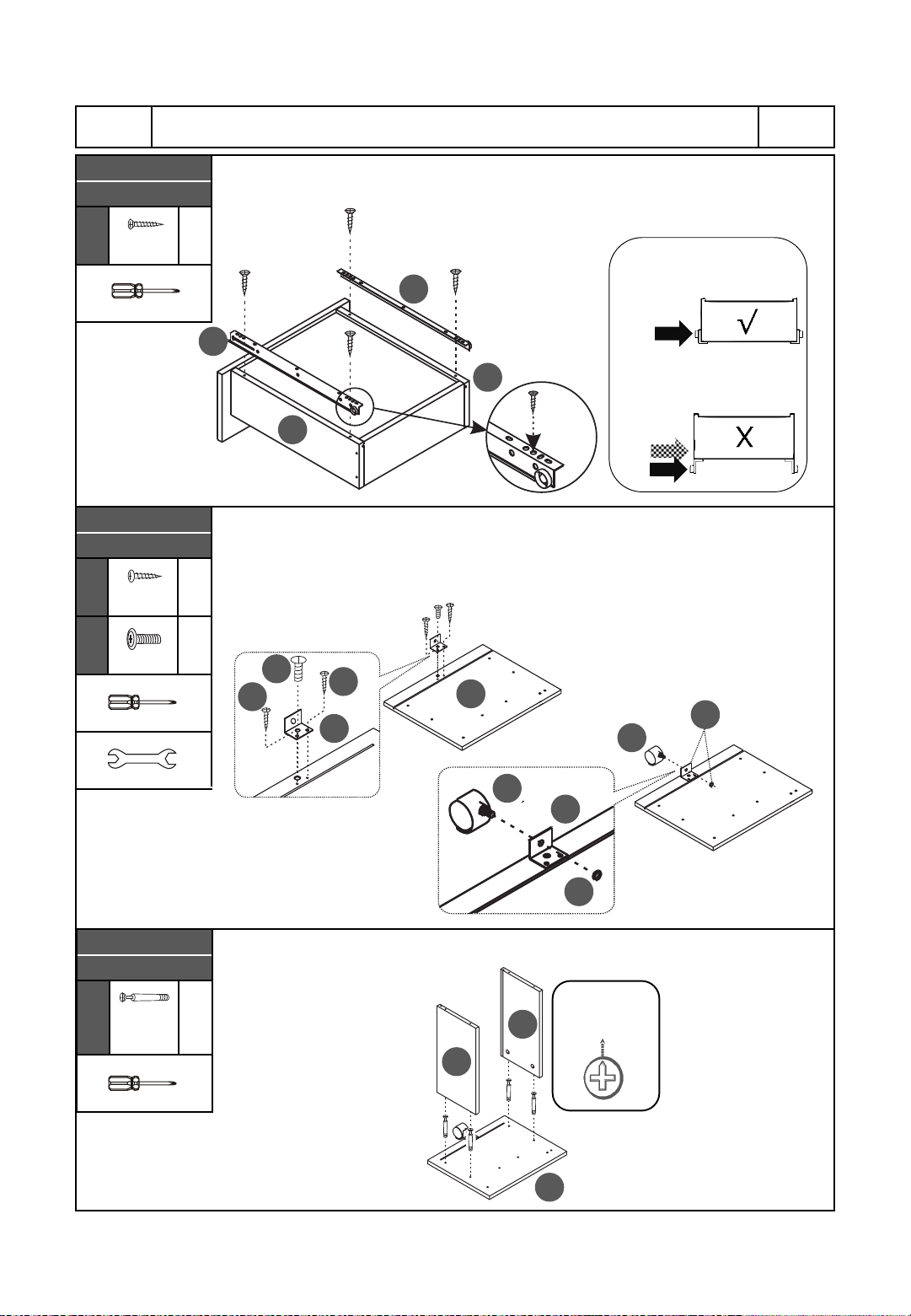

Flip the drawer upside-down and assemble the “L” sliders 12 with screws
C, making sure the wheel goes towards the back, and that they don’t
protrude, otherwise, the drawer raises 1” and won’t fit in the cabinet.
STEP 17
Hardware:
CM3x15
4
Pcs
12
When finished, the sliders
should look like this from the
back of the drawer:
The assembly below is
incorrect, it raises 1” and the
drawer won’t fit:
(Top)
(Bottom)
(Front)
E
20
F9
Assemble side panels 7and 8to the front panel 9with bolts A.
STEP 19
Hardware:
AM6x40
Bolt
4
Pcs Cam locks
alignment
(Top)
(Bottom)
8
7
9
(Back)
12
E
20 19
19
(Bottom)
(Top)

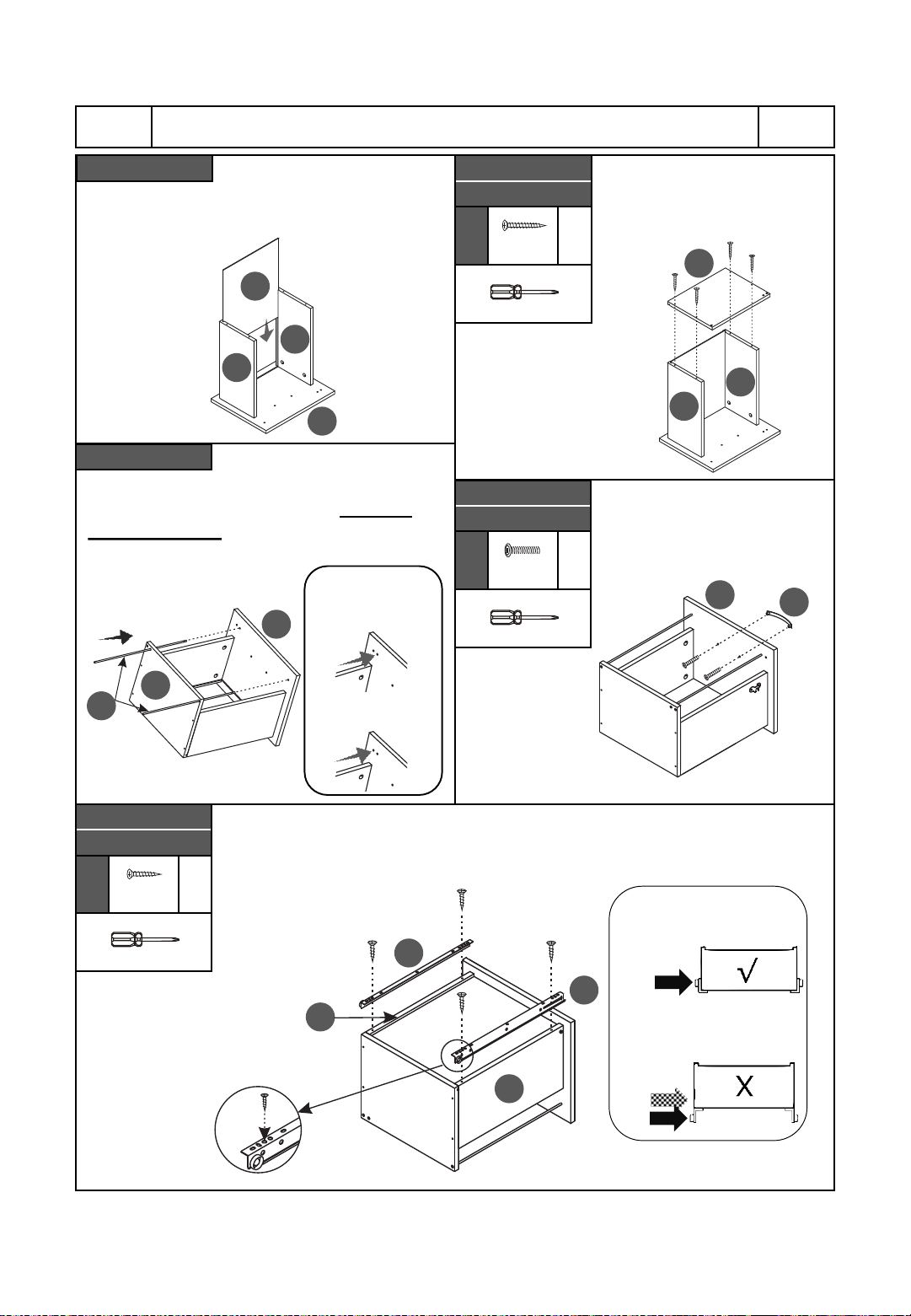

Slide the bottom panel 5
through the grooves of the side panels and
into the front panel as shown.
Insert the file tubes 11
through the corresponding hole on panel
10 and screw into panel 9, but DO NOT
OVERTIGHTEN to avoid accidental
damage humps or perforation.
STEP 21
Hardware:
BM4x35
4
Pcs
7
5
8
STEP 20
8
10
7
Assemble the back panel
10 to the side panels 7
and 8 with screws B.
STEP 22
10
11
9
Assemble the handle 13
to front panel 9 with
screws D.
913
P.13 RTA-S06 P.13
STEP 23
Hardware:
DM4x20
2
Pcs
(Top)
(Bottom)
Holes to use
for LETTER
files (U.S.):
Holes to use
for A4 files:
8
7
Flip the drawer upside-down and assemble the “L” sliders 12 with screws
C, making sure the wheel goes towards the back, and that they don’t
protrude, otherwise, the drawer raises 1” and won’t fit in the cabinet.
STEP 24
Hardware:
CM3x15
4
Pcs
12
When finished, the sliders
should look like this from the
back of the drawer:
The assembly below is
incorrect, it raises 1” and the
drawer won’t fit:
(Top)
(Bottom)
9
12

P.14 RTA-S06 P.14
•Insert the drawers into the cabinet, starting with the bottom then the top. Insert at an
angle with their fronts facing down, making sure the wheels from the drawer slide in
the middle of the sliders inside the cabinet. If the top drawer does not enter, review the
assembly done in steps 5, 17 and 24.
•Test the lock on the top drawer: make sure the bottom drawer is completely closed
and the rod on the lock is facing DOWN; the key must turn COUNTER-CLOCKWISE.
If the key turns clockwise, or the drawers don’t lock, review the assembly done in steps
2, 3, 11 and 16 .
STEP 25
ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
Inside the drawer, the rod on the lock
must face DOWN, and the Key must
turn counter-clockwise

WEIGHT LIMITS
P.15 RTA-S06 P.15
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the drawers.
•Do not sit on the unit or lean against it.
•Do not allow small children to climb over the unit.
•Do not allow small children to reach inside the drawers without your supervision.
•Before moving the unit, make sure the front casters are unlocked.
•Before moving the unit, make sure to secure any object that might fall off.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•The glass is made of safety tempered glass. The safety feature is that when breakage
occurs, the glass shatters into many tiny pieces minimizing the risk of serious injuries. If
the glass breaks, do not handle the pieces with your bare hands, take some pictures and
contact Customer Service immediately.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
22 Lbs.
(10 Kg)
22 Lbs.
(10 Kg)
22 Lbs.
(10 Kg)
30 Lbs.
(13.6 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described herein.
"Defects" as used in this warranty, is defined as any imperfections that impair the use of the
furniture or product. RTA Products LLC will replace any defective part, at its discretion, and
without charge to the original purchaser other than the freight from the end consumer to RTA
Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date
of purchase on your original sales receipt. RTA product’s obligation under this warranty is
limited to repairing or replacing products or parts as provided herein. This product has been
designed for and is intended for office and home-office use only. This warranty is Original
Purchaser’s sole remedy for product defects, and this warranty does not extend to any
product, or damage to any product, caused by or attributed to abuse or misuse, products
used for commercial or rental purposes, use modifications of, or attachments to the product,
and products or parts not used, maintained, or extended hereunder is in lieu of any and all
other warranties, express or implied, including without limitations any implied warranty or
merchantability or of fitness for a particular purpose. Please note, all desks made with PVC
Laminate surface should not be exposed to direct sunlight, as it may damage the material.
Damage of this nature is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages. This warranty is limited to merchandise purchased in the Continental United
States, excludes AK, HI and PR. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights that may
vary from state to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model
number of our product, date and place of purchase. You can also write to us by e-mail
to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at
purchaser’s expense. Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement. We will
ship the replacement at our expense.
P.6 RTA-S06 P.16
TECHNI MOBILI DESK WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
