TECHNICAL & SERVICE MANUAL
SPLIT SYSTEM AIR CONDITIONERSPLIT SYSTEM AIR CONDITIONER
SPA250R5TAA - GR250R5TAA
SPA250R5TAA - GR250R7TAA
SPA360R5TAA - GR360R7TAA
SPA480R5TAA - GR480R7TAA
0.8180.111.105/01

−
2
−
Table of Contents
1.SPECIFICATIONS…………………………………………………………………………… 4
1-1 Unit Specifications…………………………………………………………………….. 4
1-2 Major Component Specifications……………………………………………………. 8
(A) Indoor Unit……………………………………………………………………….... 8
(B) Outdoor Unit………………………………………………………………………. 11
1-3 Other Component Specifications……………………………………………………. 16
1-4 Dimensional Data……………………………………………………………………... 16

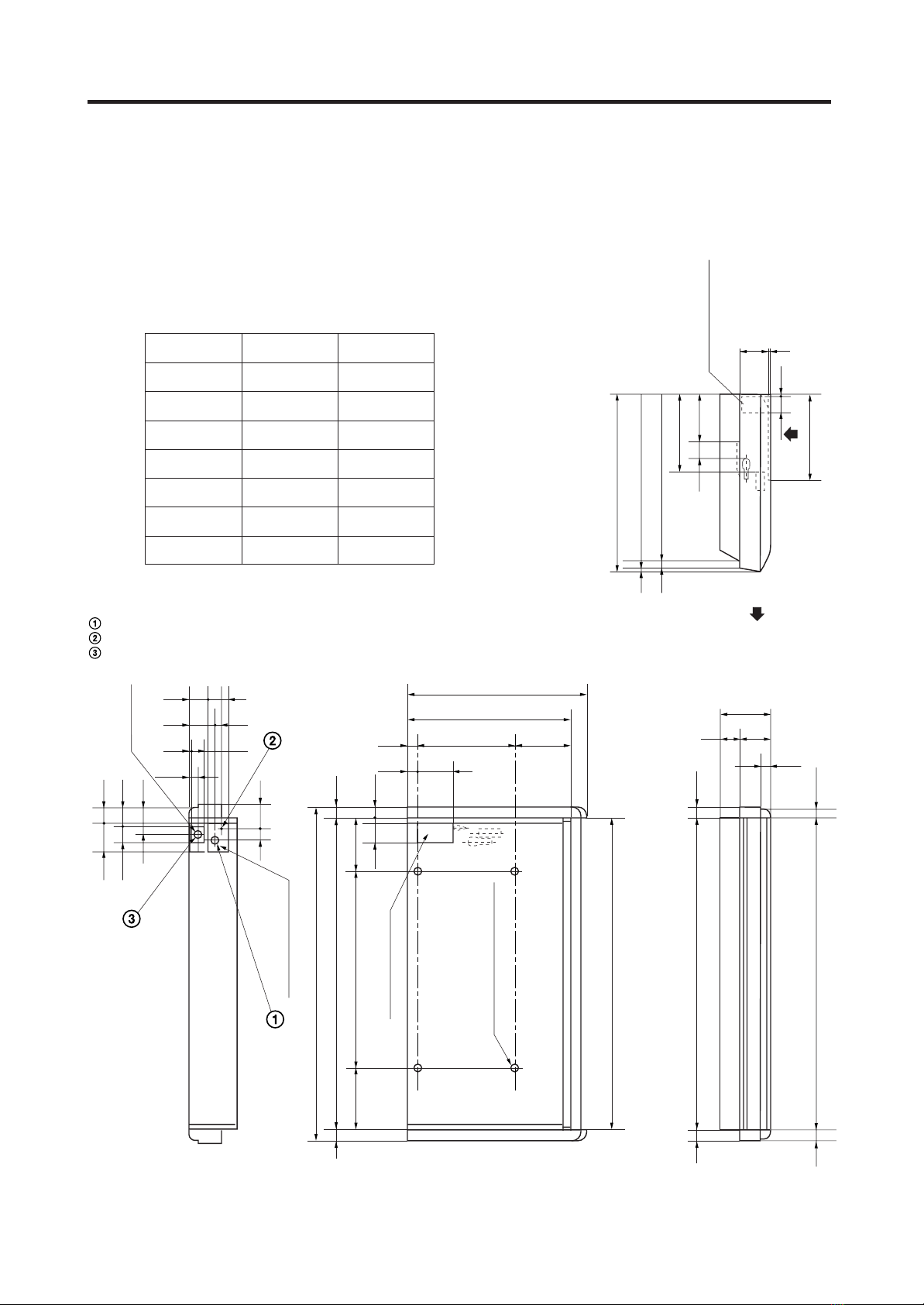

(A) Indoor Unit……………………………………………………………………….... 16

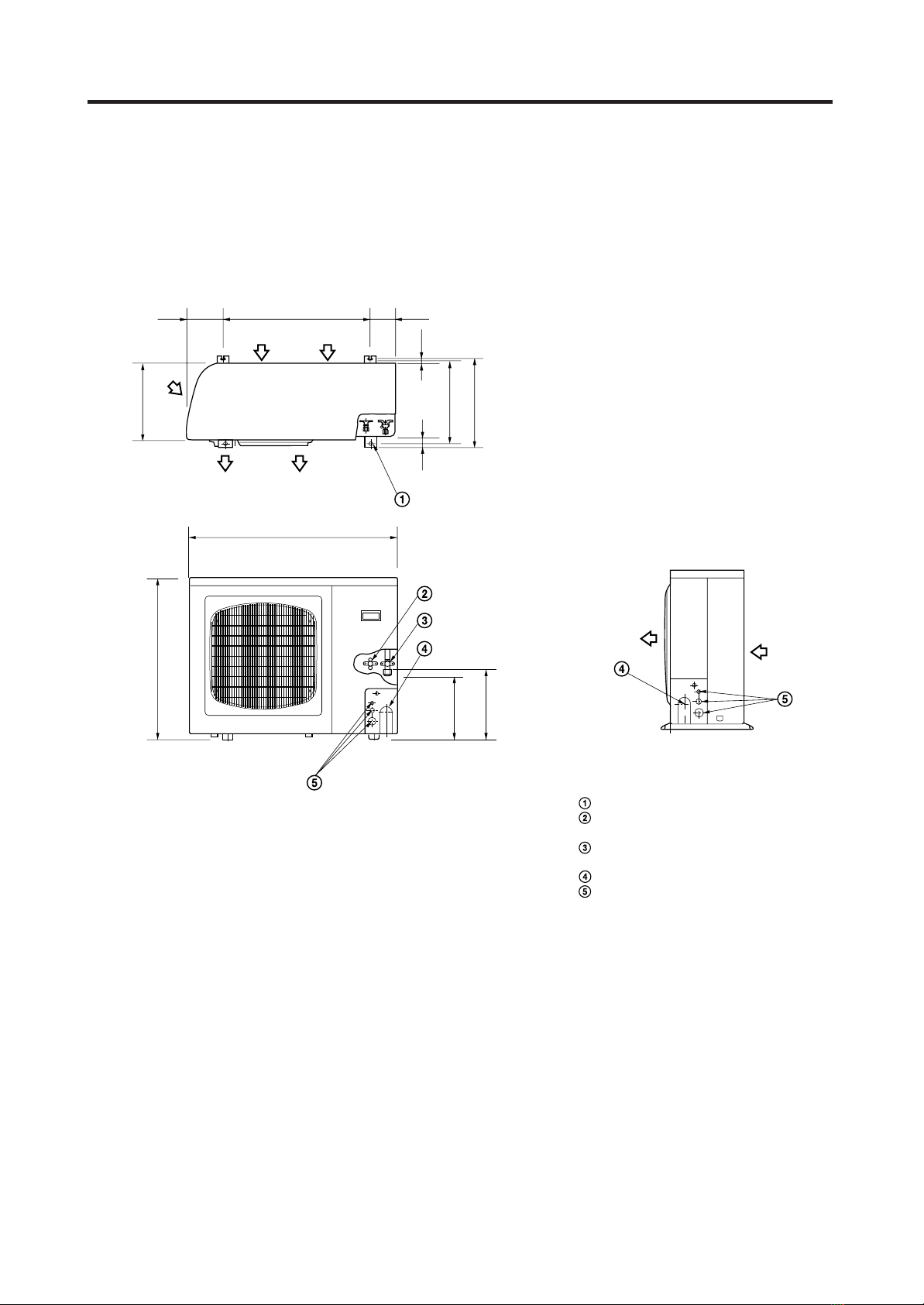

(B) Outdoor Unit………………………………………………………………………. 17
1-5 Refrigerant Flow Diagram……………………………………………………………. 19
1-6 Operating Range……………………………………………………………………… 21
1-7 Cooling Capacity………………………………………………………………………. 22
1-8 Heating Capacity……………………………………………………………………… 26
1-9 Noise Criterion Curves……………………………………………………………….. 27
1-10 Air Throw Distance Chart…………………………………………………………….. 29
2. PROCESSES AND FUNCTIONS……………………………………………………….… 30
2-1 Room Temperature Control………………………………………………………….. 30
(A) Cooling ……………………………………………………………………….…… 30
(B) Heating…………………………………………………………………………….. 31
2-2 Cold Draft Prevention (Heating Cycle)……………………………………………… 32
2-3 Automatic Fan Speed (Indoor Unit)……………………………………………….… 33
(A) Cooling ……………………………………………………………………….…… 33
(B) Heating…………………………………………………………………………….. 33
2-4 Outdoor Fan Speed Control………………………………………………………….. 34
(A) Cooling ……………………………………………………………………….…… 34
(B) Heating…………………………………………………………………………….. 34
2-5 Freeze Prevention (Cooling)……………………………………………………….… 35
2-6 Condensing Temperature Control (Cooling)……………………………………….. 36
2-7 Overload Protection (Heating)……………………………………………………….. 37
2-8 Discharge Temperature Control (Cooling and Heating)…………………………... 38
2-9 Auto. Mode for Automatic Heating/Cooling Switching…………………………….. 38
2-10 Defrosting Control, Outdoor Heat Exchanger Coil (Heating)…………………….. 40
2-11 4-Way Valve, Solenoid Control…………………………………………………….... 41
(A) Normal Control Mode…………………………………………………………….. 41
(B) AUTO Control Mode……………………………………………………………… 42
2-12 Automatic Restart after Power Interruption………………………………………… 42
2-13 Electronic Refrigerant Control Valve………………………………………………... 43
2-14 Compressor Discharge Gas Temperature…………………………………………. 43
(A) Cooling ……………………………………………………………………….…… 43
(B) Heating (Except During Defrosting)…………………………………………….. 43
2-15 Compressor Current Detection Circuit……………………………………………… 44
2-16 Dehumidifying Operation……………………………………………………………... 45
2-17 Auto-flap Control…………………………………………………………………….… 46
2-18 Electronic Refrigerant Control Valve Control…………………………………….… 47
2-19 Voltage Detection Control………………………………………………………….… 48

−
3
−
3. ELECTRICAL DATA………………………………………………………………………... 49
3-1 Electrical Characteristics……………………………………………………………... 49
3-2 Electric Wiring Diagrams / Schematic Diagrams…………………………………... 53
(A) Indoor Unit……………………………………………………………………….... 53
(B) Outdoor Unit………………………………………………………………………. 55
4. SERVICE PROCEDURES………………………………………………………………….. 63
4-1 Troubleshooting……………………………………………………………………….. 63
4-2 Checking the Electrical Components……………………………………………….. 97

– 4–
MODEL No. Indoor Unit SPA250R5TAA
Outdoor Unit GR250R5TAA
POWER SOURCE 220 - 230 - 240 V / 1 Phase / 50 Hz
PERFORMANCE Cooling Heating
Capacity kW 7.38
BTU / h 25,000 27,000
Air circulation (Hi/Me/Lo) m3 / h1,140/1,020/840
Moisture removal(High) Liters/h 3.4-
ELECTRICAL RATINGS
Voltage rating V 220230240220230240
Available voltage range V 198 - 264 198 - 264
Running amperes* A14.7 14.9 15 14.8 14.8 15
Max. running amperes** A16.9 16.8 16.8 16.1 15.9 15.8
Power input kW 3.11 3.15 3.23.11 3.15 3.2
Power factor %96.2 91.9 88.9 95.5 92.5 88.9
C.O.P W / W 2.35 2.32 2.28 2.57 2.54 2.5
Max. starting amperes A 68 71 74 68 71 74
FEATURES
Controls / Thermostat control Microprocessor / I.C. thermostat
Timer ON / OFF 72-hours / ON/OFF 24-hours & Program
Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)
Airflow direction (Indoor) Automatic (Remote control)
Air filter Washable, easy access
Remote controller (Option) Wired : K70D026ZAA / Wireless : K70D027ZAA
Refrigerant control Electronic Refrigerant Control Valve
Drain pump (drain connection) No (20A, OD26mm)
Compressor Rotary
Operation sound Indoor - Hi/Me/Lo dB - A 45 / 41 / 37
Outdoor - Hi dB - A 52
REFRIGERANT TUBING
Limit of tubing length m (ft.) 50 (164)
Limit of tubing length at shipment m (ft.) 30 (98)
Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)
between the two units Outdoor unit is lower than indoor unit: 30 (98)
Refrigerant tube Narrow tube mm (in) 6.35 (1 / 4)
outer diameter Wide tube mm (in) 15.88 (5 / 8)
Refrigerant amount at shipment kg R22 - 3.0
DIMENSIONS & WEIGHT Indoor unit Outdoor unit
Unit dimensions Height mm (in) 185(7-9/32) 735(28-30/32)
Width mm (in) 1,270(50) 940(37)
Depth mm (in) 670(26-12/32) 340(13-12/32)
Package dimensions Height mm (in) 271(10-21/32) 826(32-17/32)
Width mm (in) 1,370(53-30/32) 1,016(40)
Depth mm (in) 782(30-25/32) 416(16-12/32)
Net weight kg (lb) 28(62) 71(157)
Shipping weight kg (lb) 36(79) 77(170)
Shipping volume m3(Cu. ft.) 0.29(10.2) 0.349(12.3)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Cooling :
Rating conditions(*) :Indoor air temperature 27 °C DB / 19 °C WB, Outdoor air temperature 35 °C DB
Heating :
Rating conditions(*) : Indoor air temperature 20 °C DB, Outdoor air temperature 7 °C DB / 6 °C DB
1.SPECIFICATIONS
1-1 Unit Specifications

– 5–
MODEL No. Indoor Unit SPA250R5TAA
Outdoor Unit GR250R7TAA
POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz
PERFORMANCE Cooling Heating
Capacity kW 7.38
BTU / h 25,000 27,000
Air circulation (Hi/Me/Lo) m3 / h1,140/1,020/840
Moisture removal(High) Liters/h 3.4-
ELECTRICAL RATINGS
Voltage rating V 380400415380400415
Available voltage range V 342 - 456 342 - 456
Running amperes* A 4.84.64.54.94.84.7
Max. running amperes** A 5.35.14.95.75.55.3
Power input kW 2.72 2.74 2.77 2.81 2.82 2.85
Power factor %86.1 86 85.6 87.1 84.8 84.4
C.O.P W / W 2.68 2.66 2.64 2.85 2.84 2.81
Max. starting amperes A 26 28 29 26 28 29
FEATURES
Controls / Thermostat control Microprocessor / I.C. thermostat
Timer ON / OFF 72-hours / ON/OFF 24-hours & Program
Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)
Airflow direction (Indoor) Automatic (Remote control)
Air filter Washable, easy access
Remote controller (Option) Wired : K70D026ZAA / Wireless : K70D027ZAA
Refrigerant control Electronic Refrigerant Control Valve
Drain pump (drain connection) No (20A, OD26mm)
Compressor Rotary
Operation sound Indoor - Hi/Me/Lo dB - A 45 / 41 / 37
Outdoor - Hi dB - A 52
REFRIGERANT TUBING
Limit of tubing length m (ft.) 50 (164)
Limit of tubing length at shipment m (ft.) 30 (98)
Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)
between the two units Outdoor unit is lower than indoor unit: 30 (98)
Refrigerant tube Narrow tube mm (in) 6.35 (1 / 4)
outer diameter Wide tube mm (in) 15.88 (5 / 8)
Refrigerant amount at shipment kg R22 - 3.0
DIMENSIONS & WEIGHT Indoor unit Outdoor unit
Unit dimensions Height mm (in) 185(7-9/32) 735(28-30/32)
Width mm (in) 1,270(50) 940(37)
Depth mm (in) 670(26-12/32) 340(13-12/32)
Package dimensions Height mm (in) 271(10-21/32) 826(32-17/32)
Width mm (in) 1,370(53-30/32) 1,016(40)
Depth mm (in) 782(30-25/32) 416(16-12/32)
Net weight kg (lb) 28(62) 71(157)
Shipping weight kg (lb) 36(79) 77(170)
Shipping volume m
3
(Cu. ft.) 0.29(10.2) 0.349(12.3)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Cooling :
Rating conditions(*) : Indoor air temperature 27
°
C DB / 19
°
C WB, Outdoor air temperature 35
°
C DB
Heating :
Rating conditions(*) : Indoor air temperature 20
°
C DB, Outdoor air temperature 7
°
C DB / 6
°
C DB
1-1 Unit Specifications
1.SPECIFICATIONS

– 6–
MODEL No. Indoor Unit SPA360R5TAA
Outdoor Unit GR360R7TAA
POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz
PERFORMANCE Cooling Heating
Capacity kW 10.6 11.4
BTU / h 36,000 39,000
Air circulation (Hi/Me/Lo) m3 / h1,680/1,410/1,200
Moisture removal(High) Liters/h 4.8-
ELECTRICAL RATINGS
Voltage rating V 380400415380400415
Available voltage range V 342 - 456 342 - 456
Running amperes* A 5.35.25.15.45.25.1
Max. running amperes** A 6.36.26665.9
Power input kW 3.08 3.13.12 3.16 3.19 3.23
Power factor %88.3 86 85.1 88.9 88.5 88.1
C.O.P W / W 3.44 3.42 3.43.61 3.57 3.53
Max. starting amperes A 31 33 34 31 33 34
FEATURES
Controls / Thermostat control Microprocessor / I.C. thermostat
Timer ON / OFF 72-hours / ON/OFF 24-hours & Program
Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)
Airflow direction (Indoor) Automatic (Remote control)
Air filter Washable, easy access
Remote controller (Option) Wired : K70D026ZAA / Wireless : K70D027ZAA
Refrigerant control Electronic Refrigerant Control Valve
Drain pump (drain connection) No (20A, OD26mm)
Compressor Rotary
Operation sound Indoor - Hi/Me/Lo dB - A 47 / 43 / 39
Outdoor - Hi dB - A 53
REFRIGERANT TUBING
Limit of tubing length m (ft.) 50 (164)
Limit of tubing length at shipment m (ft.) 30 (98)
Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)
between the two units Outdoor unit is lower than indoor unit: 30 (98)
Refrigerant tube Narrow tube mm (in) 9.52 ( 3 / 8 )
outer diameter Wide tube mm (in) 19.05 ( 3 / 4 )
Refrigerant amount at shipment kg R22 - 3.5
DIMENSIONS & WEIGHT Indoor unit Outdoor unit
Unit dimensions Height mm (in) 250(9-27/32) 1,235(48-20/32)
Width mm (in) 1,570(61-26/32) 940(37)
Depth mm (in) 670(26-12/32) 340(13-12/32)
Package dimensions Height mm (in) 336(13-7/32) 1,326(52-7/32)
Width mm (in) 1,670(65-24/32) 1,016(40)
Depth mm (in) 782(30-25/32) 416(16-12/32)
Net weight kg (lb) 41(90) 94(207)
Shipping weight kg (lb) 51(112) 101(223)
Shipping volume m
3
(Cu. ft.) 0.439(15.5) 0.56(19.8)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Cooling :
Rating conditions(*) : Indoor air temperature 27
°
C DB / 19
°
C WB, Outdoor air temperature 35
°
C DB
Heating :
Rating conditions(*) : Indoor air temperature 20
°
C DB, Outdoor air temperature 7
°
C DB / 6
°
C DB
1-1 Unit Specifications
1.SPECIFICATIONS

– 7–
MODEL No. Indoor Unit SPA480R5TAA
Outdoor Unit GR480R7TAA
POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz
PERFORMANCE Cooling Heating
Capacity kW 1416
BTU / h 47,800 54,600
Air circulation (Hi/Me/Lo) m3 / h1,920/1,610/1,320
Moisture removal(High) Liters/h 7.1-
ELECTRICAL RATINGS
Voltage rating V 380400415380400415
Available voltage range V 342 - 456 342 - 456
Running amperes* A 8.58.78.999.19.2
Max. running amperes** A 9.19.19.39.89.59.2
Power input kW 4.84 5.04 5.13 5.19 5.33 5.41
Power factor %86.5 83.6 80.2 87.6 84.5 81.8
C.O.P W / W 2.89 2.78 2.73 3.08 32.96
Max. starting amperes A 71 73 75 71 73 75
FEATURES
Controls / Thermostat control Microprocessor / I.C. thermostat
Timer ON / OFF 72-hours / ON/OFF 24-hours & Program
Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)
Airflow direction (Indoor) Automatic (Remote control)
Air filter Washable, easy access
Remote controller (Option) Wired : K70D026ZAA / Wireless : K70D027ZAA
Refrigerant control Electronic Refrigerant Control Valve
Drain pump (drain connection) No (20A, OD26mm)
Compressor Scroll
Operation sound Indoor - Hi/Me/Lo dB - A 48 / 44 / 40
Outdoor - Hi dB - A 55
REFRIGERANT TUBING
Limit of tubing length m (ft.) 50 (164)
Limit of tubing length at shipment m (ft.) 30 (98)
Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)
between the two units Outdoor unit is lower than indoor unit: 30 (98)
Refrigerant tube Narrow tube mm (in) 9.52 ( 3 / 8 )
outer diameter Wide tube mm (in) 19.05 ( 3 / 4 )
Refrigerant amount at shipment kg R22 - 4.5
DIMENSIONS & WEIGHT Indoor unit Outdoor unit
Unit dimensions Height mm (in) 250(9-27/32) 1,235(48-20/32)
Width mm (in) 1,570(61-26/32) 940(37)
Depth mm (in) 670(26-12/32) 340(13-12/32)
Package dimensions Height mm (in) 336(13-7/32) 1,326(52-7/32)
Width mm (in) 1,670(65-24/32) 1,016(40)
Depth mm (in) 782(30-25/32) 416(16-12/32)
Net weight kg (lb) 41(90) 108(238)
Shipping weight kg (lb) 51(112) 115(254)
Shipping volume m
3
(Cu. ft.) 0.439(15.5) 0.56(19.8)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Cooling :
Rating conditions(*) : Indoor air temperature 27
°
C DB / 19
°
C WB, Outdoor air temperature 35
°
C DB
Heating :
Rating conditions(*) : Indoor air temperature 20
°
C DB, Outdoor air temperature 7
°
C DB / 6
°
C DB
1-1 Unit Specifications
1.SPECIFICATIONS

– 8–
1.SPECIFICATIONS
1-2 Major Component Specifications
(A) Indoor Unit
MODEL No. SPA250R5TAA
Source 220 - 230 - 240 V / 1 phase / 50Hz
Remote Controller (option) Wired : K70D026ZAA /Wireless : K70D027ZAA
Controller P.C.B. Ass’y CR-X253GH (Microprocessor)
Fan (Number…diameter) mm Centrifugal (4...ø130)
Fan Motor
Model…Nominal output WKFG4Q–41A5P...40 W
Source 220 - 230 - 240 V / 1 phase / 50Hz
No. of pole…r.p.m. (230 V, High) rpm. 4...1,198
Coil resistance ΩBRN–WHT :175.1 ,ORG–YEL :70.9
(Ambient temperature 20 °C) WHT–VLT :43.6 ,WHT–PNK :15.6
VLT–ORG :27.0
Safety device
Operatingtemperature Open °C130 ±5 °C
Close °CDifferential 15 deg. (min.)
Run capacitor VAC, µF440 V, 2.5 µF
Electronic refrigerant control valve
Solenoid control model DKV-MOZS550E0
Coil resistance (at 20 °C) ΩORG–GRY:46 ,YEL–GRY:46
RED–GRY:46 ,BLK–GRY:46
Solenoid control valve model IKV-24D12
Heat exchanger
Coil Aluminum plate fin / Copper tube
Rows…fin pitch mm 3…1.7
Face area m20.170
Auto louver motor MC8 D
Auto louver motor...Rated V, Hz, W, rpm. 220 - 240 VAC, 50 Hz, 3 W, 3.3 rpm. 8P
Coil resistance (at 25 ˚C) Ω14,900 Ω±8 %
Dew proof heater V, W 240 V, 15 W

– 9–
1.SPECIFICATIONS
(A) Indoor Unit
MODEL No. SPA360R5TAA
Source 220 - 230 - 240 V / 1 phase / 50Hz
Remote Controller (option) Wired : K70D026ZAA / Wireless : K70D027ZAA
Controller P.C.B. Ass’y CR-X253GH (Microprocessor)
Fan (Number…diameter) mm Centrifugal (4...ø150)
Fan Motor
Model…Nominal output WKFG4Q–101D5P...100 W
Source 220 - 230 - 240 V / 1 phase / 50Hz
No. of pole…r.p.m. (230 V, High) rpm. 4...1,194
Coil resistance ΩBRN–WHT :43.3 ,ORG–YEL :349.3
(Ambient temperature 20 °C) WHT–VLT :16.6 ,VLT–PNK :40.8
VLT–ORG :24.5
Safety device
Operating temperature Open °C130 ±5 °C
Close °CDifferential 15 deg. (min.)
Run capacitor VAC, µF440 V, 4.0 µF
Electronic refrigerant control valve
Solenoid control model EKV-MOZS559E0
Coil resistance (at 20 °C) ΩORG–GRY:46 ,YEL–GRY:46
RED–GRY:46 ,BLK–GRY:46
Solenoid control valve model HKV-30D16
Heat exchanger
Coil Aluminum plate fin / Copper tube
Rows…fin pitch mm 3…1.7
Face area m20.34
Auto louver motor MC8 D
Auto louver motor...Rated V, Hz, W, rpm. 220 - 240 VAC, 50 Hz, 3 W, 3.3 rpm. 8P
Coil resistance (at 25 ˚C) Ω14,900 Ω±8 %
Dew proof heater V, W 240 V, 17 W

– 10 –
1.SPECIFICATIONS
(A)Indoor Unit
MODEL No. SPA480R5TAA
Source 220 - 230 - 240 V / 1 phase / 50Hz
Remote Controller (option) Wired : K70D026ZAA /Wireless : K70D027ZAA
Controller P.C.B. Ass’y CR-X253GH (Microprocessor)
Fan (Number…diameter) mm Centrifugal (4...ø150)
Fan Motor
Model…Nominal output WKFG4Q–101D5P...100 W
Source 220 - 230 - 240 V / 1 phase / 50Hz
No. of pole…r.p.m. (230 V, High) rpm. 4...1,212
Coil resistance ΩBRN–WHT :43.3 ,ORG–YEL :349.3
(Ambient temperature 20 °C) WHT–VLT :16.6 ,VLT–PNK :40.8
VLT–ORG :24.5
Safety device
Operatingtemperature Open °C130 ±5 °C
Close °CDifferential 15 deg. (min.)
Run capacitor VAC, µF440 V, 4.5 µF
Electronic refrigerant control valve
Solenoid control model EKV-MOZS559E0
Coil resistance (at 20 °C) ΩORG–GRY:46 ,YEL–GRY:46
RED–GRY:46 ,BLK–GRY:46
Solenoid control valve model HKV-30D16
Heat exchanger
Coil Aluminum plate fin / Copper tube
Rows…fin pitch mm 3…1.7
Face area m20.34
Auto louver motor MC8 D
Auto louver motor...Rated V, Hz, W, rpm. 220 - 240 VAC, 50 Hz, 3 W, 3.3 rpm. 8P
Coil resistance (at 25 ˚C) Ω14,900 Ω±8 %
Dew proof heater V, W 240 V, 17 W

– 11–
1.SPECIFICATIONS
(B) Outdoor Unit
Unit Model No. GR250R5TAA
Source 220 - 240 V / 1 phase / 50 Hz
Controller P.C.B. Ass'y CR-C253GH5 (Microprocessor)
Control circuit fuse 250 V, 3.15 A
Compressor Rotary (Hermetic)
Model...number C-R221H5W
Source 220 - 240 V / 1 phase / 50 Hz
Nominal output W2200
Compressor oil cc 1500
Coil resistance ΩC - R:0.76 ,R - S:3.52
(Ambient temperature 25 °C) C - S:2.76
Safety devices
Overload relay models Internal type
Operating temperature Open °C160 ±5
Close °C87 ±11
Crank case heater 240 V 25 W
Refrigerant amount at shipment kg R-22 - 3.0
High pressure switch ACB-1TB07
Set pressure OFF kg/cm230
ON kg/cm224 ±2.0
Fan Propeller
Number...diameter mm 1...ø460
Fan speeds 2 (AUTO)
Fan motor
Model KFC6T-91C5P
Source 220-230-240V / 1 phase / 50 Hz
No. of pole...rpm (230 V, High) 6...772
Nominal output W70
Coil resistance ΩWHT–BRN:127.3 ,VLT–YEL:15.0
(Ambient temperature 20 °C) WHT–VLT :56.7 ,YEL–PNK:7.2
Safety device Internal type
Operating temperature Open °C130 ±8
Close °C79 ±15
Run capacitor VAC, µ F440 V, 6 µ F
Heat exchange
Coil Aluminium plate fin, Copper tube
Rows...fin pitch mm 2...2.0
Face area m20.616
+2.0
+0.5
1-2 Major Component Specifications

– 12–
1.SPECIFICATIONS
(B) Outdoor Unit
Unit Model No. GR250R7TAA
Source 380 - 400 - 415 V / 3 phase / 50 Hz
Controller P.C.B. Ass'y CR-C253GH (Microprocessor)
Control circuit fuse 250 V, 3.15 A
Compressor Rotary (Hermetic)
Model...number C-R224H8U
Source 380 - 400 - 415 V / 3 phase / 50 Hz
Nominal output W2400
Compressor oil cc 1350
Coil resistance ΩT - R :5.54 ,R - S :5.54
(Ambient temperature 25 °C) S - T :5.54
Safety devices
Overload relay models Internal type
Operating temperature Open °C120 ±5
Close °C98 ±11
Crank case heater 240 V 25 W
Refrigerant amount at shipment kg R-22 - 3.0
High pressure switch ACB-1TB07
Set pressure OFF kg/cm230
ON kg/cm224 ±2.0
Fan Propeller
Number...diameter mm 1...ø460
Fan speeds 2 (AUTO)
Fan motor
Model KFC6T-91C5P
Source 220-230-240V / 1 phase / 50 Hz
No. of pole...rpm (230 V, High) 6...772
Nominal output W70
Coil resistance ΩWHT–BRN:127.3 ,VLT–YEL:15.0
(Ambient temperature 20 °C) WHT–VLT :56.7 ,YEL–PNK:7.2
Safety device Internal type
Operating temperature Open °C130 ±8
Close °C79 ±15
Run capacitor VAC, µ F440 V, 6 µ F
Heat exchange
Coil Aluminium plate fin / Copper tube
Rows...fin pitch mm 2...2.0
Face area m20.616
+2.0
+0.5

– 13–
1.SPECIFICATIONS
(B) Outdoor Unit
+2.0
+0.5
Unit Model No. GR360R7TAA GR480R7TAA
Source 380 - 400 - 415 V / 3 phase / 50 Hz
Controller P.C.B. Ass'y CR-C253GH (Microprocessor)
Control circuit fuse 250 V, 3.15 A
Compressor Rotary (Hermetic) Scroll (Hermetic)
Model ..... number C-R243H8V ZR61KC-TFD-522
Source 380 - 400 - 415 V / 3 phase / 50 Hz
Nominal output W2,400 3,700
Compressor oil cc 1,350 2,130
Coil resistance ΩT-R: 5.54 R-S:5.54 T1-T2 : 2.72 T2-T3 : 2.72
(Ambient temperature 25°C) S-T: 5.54 T3-T1 : 2.72
Crank case heater 240 V 25 W –
Safety devices
Overload relay models Internal type
Operating temperature Open °C120 ±5 130
Close °C98 ±11 61
Refrigerant amount at shipment kg R-22 - 3.5 R-22 - 4.5
High pressure switch ACB-1TB07
Set pressure OFF kg/cm230
ON kg/cm224 ±2.0
Fan Propeller
Number...diameter mm 2 ..... ø460
Fan motor
Model...Nominal output KFC6T-91C5P x 2 ... 90 W x 2
Source 220-230-240V / 1 phase / 50 Hz
No. of pole ..... rpm (230V, High) 6...772
Coil resistance ΩBRN–WHT:127.3 ,VLT–YEL :15.0
(Ambient temperature 20°C) WHT–VLT:56.7 ,YEL–PNK: 7.2
Safety device Internal type
Operating temperature Open °C130 ±8
Close °C79 ±15
Run capacitor VAC, µ F440 V, 6 µ F x 2
Heat exchange
Coil Aluminium plate fin / Copper tube
Rows ..... fin pitch (mm) 2 ..... 2.0
Face area m21.08

– 14–
1
1-3Other Component Specifications
Unit model No. Indoor Unit Outdoor Unit
SPA250R5TAA GR250R5TAA, GR250R7TAA
Power Transformer ATR - II215TB ATR - I65B
Rated
Primary V. Hz AC 230 V, 50 Hz AC 230 V, 50 Hz
Secondary 10.2V , 1.4 A 14 V , 0.4 A
14 V , 0.5 A —
Coil resistance ΩWHT – WHT :110 , BRN – BRN : 0.5 WHT – WHT : 300 , BRN – BRN : 2.2
RED – RED : 2.3
Thermal cut off temperature °C 145 145
Thermistor (Coil sensor) PB3M - 41E - S4, PBC - 41E - S25, PBC - 41E - S14, PBC - 41E - S36, PBC - 41E - S4
Coil resistance kΩ–10 °C : 23.7 , 10 °C : 9.7
– 5 °C : 18.8 , 20 °C : 6.5
0 °C : 15.0 , 30 °C : 4.4
5 °C : 12.1 , 40 °C : 3.1
45 °C : 2.6
Thermistor (Room or coil sensor) KTEC - 35 - S6 PTC - 51H - S1
Coil resistance kΩ0 °C : 16.5 , 40 °C : 2.7 60 °C : 13.8 , 90 °C : 5.1
5 °C : 12.8 , 45 °C : 2.2 70 °C : 9.7 , 100 °C : 3.8
10 °C : 10.0 , 50 °C : 1.8 75 °C : 8.2 , 110 °C : 2.8
20 °C : 6.3 , 55 °C : 1.5 80 °C : 7.0 , 120 °C : 2.2
30 °C : 4.0 , 85 °C : 5.9 , 130 °C : 1.7
Relay — FMCA - 1SZ607
Coil rated V — AC 220 - 240 V
Contact rating V.A — AC 440 V, 13 A
Coil resistance (at 25 °C) Ω— —
Solenoid control valve or coil
Solenoid control valve IKV - 24D12 CHV - 0201
Solenoid coil DKV - MOZS550E0 CHV - 01AJ504D1
1.SPECIFICATIONS

– 15–
1
1
1-3Other Component Specifications
Unit model No. Indoor Unit Outdoor Unit
SPA360R5TAA SPA480R5TAA GR360R7TAA GR480R7TAA
Power Transformer ATR - II215TB ATR - I65B
Rated
Primary V. Hz AC 230 V, 50 Hz AC 230 V, 50 Hz
Secondary 10.2V , 1.4 A 14 V , 0.4 A
14 V , 0.5 A —
Coil resistance ΩWHT – WHT :110 , BRN – BRN : 0.5 WHT – WHT : 300 , BRN – BRN : 2.2
RED – RED : 2.3
Thermal cut off temperature °C 145 145
Thermistor (Coil sensor) PB3M - 41E - S4, PBC - 41E - S25, PBC - 41E - S35, PBC - 41E - S36, PBC - 41E - S4
Coil resistance kΩ–10 °C : 23.7 , 10 °C : 9.7
–5 °C :18.8 , 20 °C : 6.5
0 °C :15.0 , 30 °C : 4.4
5 °C :12.1 , 40 °C : 3.1
45 °C : 2.6
Thermistor (Room or coil sensor) KTEC - 35 - S6 PTC - 51H - S1
Coil resistance kΩ0 °C : 16.5 , 40 °C : 2.7 60 °C : 13.8 , 90 °C : 5.1
5 °C : 12.8 , 45 °C : 2.2 70 °C : 9.7 , 100 °C : 3.8
10 °C : 10.0 , 50 °C : 1.8 75 °C : 8.2 , 110 °C : 2.8
20 °C : 6.3 , 55 °C : 1.5 80 °C : 7.0 , 120 °C : 2.2
30 °C : 4.0 85 °C : 5.9 , 130 °C : 1.7
Relay — FMCA - 1SZ607
Coil rated V — AC 220 - 240 V
Contact rating V.A — AC 440 V, 13 A
Coil resistance (at 25 °C) Ω— —
Solenoid control valve or coil
Solenoid control valve HKV - 30D16 CHV - 0301 CHV - 0401
Solenoid coil EKV - MOZS559E0 CHV - 01AJ504D1
1.SPECIFICATIONS

– 16–
(A)Indoor Unit:250, 360, 480 Type
107 60
60 73
103
33
12
92
62
42
35
89
8540
40
6590
221
35
40
138
330 256
626
670
1190
4 - ø 28 HOLES FOR ANCHOR BOLT
TUBING FOR TOP (SLIT HOLE)
TUBING FOR BACK (SLIT HOLE)
1190 1190
40
221
4040
3535
36
125C
B
330
60 8
9110
TUBING FOR SIDE
18158
291
588 626 670
29 38
Dimension : mm
Refrigerant gas line
Refrigerant liquid line
Drain connection
D
E A
(Wide tube)
(Narrow tube)
(20A, O.D. 26mm)
0296_T_I
DRAIN HOLE (SLIT HOLE)
25 type 36, 48 type
A1270 1570
B185 250
C60 125
D748 1048
E1190 1490
Ref.gas line ø 15.88 ø 19.05
Ref. liquid line ø 6.35 ø 9.52
1.SPECIFICATIONS
1-4Dimentional Data

– 17 –
(B) Outdoor Unit :GR250R5TAA
GR360R7TAA
400 380
20
340
20
110660170
735
280
307
940
Dimension : mm
Hole for anchor bolt (4-ø13)
Refrigerant tube joint (narrow tube)
Flare connection 1/4 in (6.35 mm)
Refrigerant tube joint (wide tube)
Flare connection 5/8 in (15.88 mm)
Refrigerant tubing inlet
Power supply inlet
0411_C_S
1.SPECIFICATIONS
1-4Dimentional Data

– 18 –
(B) Outdoor Unit :GR360R7TAA
GR480R7TAA
400 380
20
340
20
110660170
1235
580
607
940
Dimension : mm
Hole for anchor bolt (4-ø13)
Refrigerant tube joint (narrow tube)
Flare connection 3/8 in (9.52 mm)
Refrigerant tube joint (wide tube)
Flare connection 3/4 in (19.05 mm)
Refrigerant tubing inlet
Power supply inlet 0412_C_S
1.SPECIFICATIONS
1-4Dimentional Data

– 19 –
Insulation of Regrigerant Tubing
IMPORTANT
To prevent heat loss and wet floors due to
dripping of condensation, both the wide and
narrow tubes must be well insulated with a
proper insulation material. The thickness of
the insulation should be a min. 8 mm.
After a tube has been
insulated, never try to bend it
into a narrow curve because it
can casue the tube to break
or crack.
HP
High
pressure
switch
Compressor
Accumulator
Accumulator
EC
P
Heat exchanger
4-way valve EC
P
Heat exchanger
Distributor
Electronic
ref.control
valve
Strainer
Liquid line
nipple
Liquid line
service
valve O.D.
ø6.35mm
(1/4")
O.D.
ø15.88mm
(5/8")
Gas line
nipple
Gas line
service
valve
Distributor
Sub-heat exchanger
Cooling Cycle
Heating Cycle
Strainer
M
0417_C_S
Muffler
Outdoor Unit:GR250R5TAA Indoor Unit:SPA250R5TAA
:GR250R7TAA
Insulation
Thickness:
Min. 8mm
Wide tube Narrow tube
Thickness:
Min. 8mm
0132_C_I
1.SPECIFICATIONS
1-5Refrigerant Flow Diagram

– 20–
Insulation of Regrigerant Tubing
IMPORTANT
To prevent heat loss and wet floors due to
dripping of condensation, both the wide and
narrow tubes must be well insulated with a
proper insulation material. The thickness of
the insulation should be a min. 8 mm.
After a tube has been
insulated, never try to bend it
into a narrow curve because it
can casue the tube to break
or crack.
Outdoor Unit:GR360R7TAA Indoor Unit:SPA360R5TAA
:GR480R7TAA :SPA480R5TAA
Insulation
Thickness:
Min. 8mm
Wide tube Narrow tube
Thickness:
Min. 8mm
0132_C_I
HP
High pressure
switch
Compressor *Accumulator
*Hot equipped in “AE448SH3E”
Accumulator
EC
P
Heat exchanger
4-way valve EC
P
Heat exchanger
Distributor
Electronic
ref.control
valve
Strainer
Liquid line
nipple
Liquid line
service
valve O.D.
ø9.52mm
(3/8")
O.D.
ø19.05mm
(3/4")
Gas line
nipple
Gas line
service
valve
Distributor
Sub-heat exchanger
Cooling Cycle
Heating Cycle
Strainer
M
Muffler
0418_C_S
1.SPECIFICATIONS
1-5Refrigerant Flow Diagram
