Dear User,
Our objective is to make this product provide you with the best output
which is manufactured in our modern facilities in a careful working
environment, in compliance with total quality concept.
Therefore, we suggest you to read the user manual carefully before
using the product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of
the features specified in the Manual may not be available in your
appliance.
All our appliances are only for domestic use, not for commercial use.
Products marked with (*) are optional.
“Conforms with the WEEE Regulations.”
EN

3
Contents
Important warnings 4
Methods for protecting ceramic glass cooking surface 13
Electrical connection 14
Introduction of the appliance 15
Accessories 16
Technical features of your oven 17
Installation of your oven 18
Installation of the oven feet 20
Control panel 20
Using oven section 21
Using the grill 22
Using the chicken roasting 22
Using cooker section 23
Description of oven 24
Cooking time table 25
Maintenance and cleaning 26
Installation of the oven door 27
Cleaning and maintenance of the oven’s front door glass 28
Catalytic walls 28
Rack positions 29
Changing the oven lamp 29
Using the grill deector sheet 30
Troubleshooting 31
Handling rules 33
Recommendations for energy saving 33
Environmentally-friendly disposal 34
Package information 34

4
IMPORTANT WARNINGS
1. Installation and repair should always be performed
by “AUTHORIZED SERVICE”. Manufacturer shall not be
held responsible for operations performed by unauthorized
persons.
2. Please read this operating instructions carefully.
Only by this way you can use the appliance safely and
in a correct manner.
3. The oven should be used according to operating
instructions.
4. Keep children below the age of 8 and pets away
when operating.
5. WARNING: The accessible parts may be hot while using
the grill. Keep away from children.
6. WARNING: Fire hazard; do not store the materials on
the cooking surface.
7. WARNING: The appliance and its accessible parts are
hot during operation.
8. Setting conditions of this device are specied on
the label. (Or on the data plate)
9. The accessible parts may be hot when the grill is
used. Small children should be kept away.
10. WARNING: This appliance is intended for cooking. It
should not be used for other purposes like heating a room.
11. To clean the appliance, do not use steam cleaners.
EN

5
12. Ensure that the oven door is completely closed
after putting food inside the oven.
13. NEVER try to put out the re with water. Only shut
down the device circuit and then cover the ame with
a cover or a re blanket.
14. Children under 8 years of age should be kept away,
if they cannot be monitored continuously.
15. Touching the heating elements should be avoided.
16. CAUTION: Cooking process shall be supervised.
Cooking process shall always be supervised.
17. This device can be used by children over 8 years
of age, people with physical, hearing or mental challenges
or people with lack of experience or knowledge; as long
as control is ensured or information is provided regarding
the dangers.
18. This device has been designed for household use
only.
19. Children must not play with the appliance.
Cleaning or user maintenance of the appliance shall
not be performed by children unless they are older than
8 years and supervised by adults.
20. Keep the appliance and its power cord away from
children less than 8 years old.
21. Put curtains, tulles, paper or any ammable (ignitable)
material away from the appliance before starting to use
the appliance. Do not put ignitable or ammable materials
on or in the appliance.

6
22. Keep the ventilation channels open.
23. The appliance is not suitable for use with an external
timer or a separate remote control system.
24. Do not heat closed cans and glass jars. The pressure
may lead jars to explode.
25. Oven handle is not a towel drier. Do not hang towels,
etc. on the oven handle.
26. Do not place the oven trays, plates or aluminium
foils directly on the oven base. The accumulated heat
may damage the base of the oven.
27. While placing food to or removing food from the
oven, etc., always use heat resistant oven gloves.
28. Do not use the product in states like medicated
and/or under inuence of alcohol which may affect your
ability of judgement.
29. Be careful when using alcohol in your foods. Alcohol
will evaporate at high temperatures and may catch re
to cause a re if it comes in contact with hot surfaces.
30. After each use, check if the unit is turned off.
31. If the appliance is faulty or has a visible damage,
do not operate the appliance.
32. Do not use the appliance with its front door glass
removed or broken.
33. Place the baking paper together with the food into
a pre-heated oven by putting it inside a cooker or on an
oven accessory (tray, wire grill etc.).
EN

7
34. Do not put objects that children may reach on the
appliance.
35. It is important to place the wire grill and tray properly
on the wire racks and/or correctly place the tray on the
rack. Place the grill or tray between two rails and make
sure it is balanced before putting food on it.
36. Against the risk of touching the oven heater elements,
remove excess parts of the baking paper that hang over
from the accessory or container.
37. Never use it at higher oven temperatures than the
maximum usage temperature indicated on your baking
paper. Do not place the baking paper on the base of the
oven.
38. When the door is open, do not place any heavy
object on the door or allow children to sit on it. You
may cause the oven to overturn or the door hinges to be
damaged.
39. The packaging materials are dangerous for children.
Keep packaging materials away from the reach of children.
40. Do not use abrasive cleaners or sharp metal scrapers
to clean the glass as the scratches that may occur on
the surface of the door glass may cause the glass to
break.
41. Do not hit glass surfaces of vitro-ceramic cookers
with a hard metal, resistance can get damaged. It may
cause an electric shock.

8
42. User should not handle the oven by himself.
43. Food can spill when foot of oven is dismantled or
gets broken, be careful. It may cause personal injuries.
44. During usage, the internal and external surfaces
of the oven get hot. As you open the oven door, step
back to avoid the hot vapour coming out from the interior.
There is risk of burning.
45. Upper cover of the oven can be closed for a reason,
than cookware can trip over. Step back to avoid the hot
food coming on you. There is risk of burning.
46. Do not place heavy objects when oven door is
open, risk of toppling.
47. User should not dislocate the resistance during
cleaning. It may cause an electric shock.
48. Do not place metal utensils such as knife, fork,
spoon on the surface of the appliance, since they will
get hot.
49. Do not remove ignition switches from the appliance.
Otherwise, live electric cables can be accessed. It may
cause an electric shock.
50. Oven supply can be disconnected during any
construction work at home. After completing the work,
re-connecting the oven shall be done by authorized service.
51. Do not place metal utensils such as knife, fork, spoon
on the surface of the appliance, since they will get hot.
EN

9
52To prevent overheating, the appliance should not
be installed behind of a decorative cover.
53. Turn off the appliance before removing the
safeguards. After cleaning, install the safeguards
according to instructions.
54. Cable xing point shall be protected.
55. Please don’t cook the food directly on the tray /
grid. Please put the food into or on appropriate tools
before putting them in the oven.
56. CAUTION: If the glass of the stove is broken, turn
off any heating element immediately and disconnect the
appliance from power source, do not touch the surface of
the appliance and do not use the appliance.
57. For hobs incorporating halogen lamps the user
not to stare at the halogen lamp.

10
Electrical Safety
1. Have an authorized electrician set grounding
equipment. Our company shall not be responsible for the
damages that shall be incurred due to using the product
without grounding according to local regulations.
2. The circuit breaker switches of the oven shall be
placed so that end user can reach them when the oven
is installed.
3. The power supply cord shall not contact the hot
parts of the appliance.
4. If the power supply cord is damaged, this cord shall
be replaced by the manufacturer or its service agent or
an equally qualied personnel to prevent a hazardous
situation.
5. Never wash the product by spraying or pouring
water on it! There is a risk of electrocution.
6. WARNING: To avoid electric shock, ensure that the
device circuit is open before changing the lamp.
7. WARNING: Cut off all supply circuit connections before
accessing the terminals.
8. WARNING: If the surface is cracked, turn off the appliance
to avoid risk of electric shock.
9. Do not use cut or damaged cords or extension cords
other than the original cord.
EN

11
10. The rear surface of the oven also heats up when
the oven is operated. Electrical connections shall not
touch the rear surface, otherwise the connections may
be damaged.
11. Do not tighten the connecting cables to the oven
door and do not run them over hot surfaces. If the cord
melts, this may cause the oven to short circuit and
even a re.
12. If the power supply cable is damaged, it must be
replaced by its manufacturer or authorized technical
service or any other personnel qualied at the same
level, in order to avoid any dangerous situation.
13. Do not use steam cleaners for cleaning the appliance,
otherwise electric shock may occur.
14. An omnipolar switch capable to disconnect power
supply is required for installation. Disconnection from
power supply shall be provided with a switch or an
integrated fuse installed on xed power supply according
to building code.
15. Appliance is equipped with a type ‘’Y’’ cord cable.
16. Fixed connections shall be connected to a power
supply enabling omnipolar disconnection. For appliances
with over voltage category below III, disconnection device
shall be connected to xed power supply according to
wiring code.

12
Intended Use
1. This product has been designed for domestic use.
Commercial use is not permitted.
2. This appliance may only be used for cooking
purposes. It shall not be used for other purposes like
heating a room.
3. This appliance shall not be used to heat plates under
the grill, drying clothes or towels by hanging them on
the handle or for heating purposes.
4. The manufacturer assumes no responsibility for any
damage due to misuse or mishandling.
5. Oven part of the unit may be used for thawing,
roasting, frying and grilling food.
6. Operational life of the product you have purchased
is 10 years. This is the period for which the spare parts
required for the operation of this product as dened is
provided by the manufacturer.
EN

13
Methods for Protecting Ceramic Glass Cooking Surface
Ceramic glass surface is unbreakable and scratch
resistant to a certain degree. However, to avoid any
damage, please do the following:
1. Never pour cold water on hot cookers.
2. Do not stand on a ceramic glass plate.
3. Sudden pressure, for example, the effect of a falling
salt shaker may be critical. So, do not place such objects
on a place above the hobs.
4. After each use, make sure that the base of the cooking
pot and surfaces of cooking zones are clean and dry.
5. Do not peel vegetables on the hob surfaces. Sand
grains falling from the vegetables may scratch the
ceramic glass plate.
6. Do not lay ammable materials such as cardboard
or plastic on the oven. Objects such as tin, zinc, or
aluminium (as well as aluminium foils or empty coffee
pots) may melt on hot cooking surfaces and thus cause
damage.
7. Take care not to let sugary foods or fruit juices contact
the hot cooking zones. The ceramic glass surface may
be stained by these.

14
for 3 phase supply according to electrical power for cooker section has
4 ceramic heater and oven section has electric models. Installation by a
qualied electrician is mandatory.
2. Your oven is adjusted in compliance with 220-240V / 380-415V
AC,50/60Hz. electric supply. If the mains are different from this specied
value, contact your authorized service.
3. Electrical connection of the oven should only be made to connections /
sockets with an earth system installed in compliance with local regulations.
If there are no connections/sockets with an earth system in place where
the oven will be installed, immediately contact a qualied electrician to
install. The manufacturer is not responsible for damages that will arise
because of the appliance not be connected to an earth system.
4. If your supply cable gets damaged, it should be replaced by an
authorized service agent or qualied electrician in order to avoid danger
or electric shock.
5. Electrical cable should not touch the hot parts of the appliance.
6. Operate your oven in dry atmosphere.
7. When placing your oven to its location, ensure that it is at the counter
level. Bring it to the counter level by adjusting the feet if necessary.
Electrical Connection Scheme
220-240V~50/60Hz
H05 VV-F 3G 4 mm²
Live
Phase
Neutral
Neutre
Earth
Terre
Erdung
380-415V 2N~50/60Hz
H05 VV-F 4G 1.5 mm²
Neutral
Neutre
Earth
Terre
Erdung
380-415V 3N~50/60Hz
H05 VV-F 5G 1.5 mm²
Neutral
Neutre
Earth
Terre
Erdung
L3
L2
L1
L2
L1
220-240V~50/60Hz
H05 VV-F 3G 4 mm²
L N Neutral
Neutre
Earth
Terre
Erdung
EN
Electrical Connection
1. Your oven requires 40 Amp fuse for mono phase or 3x16 Amp fuse

15

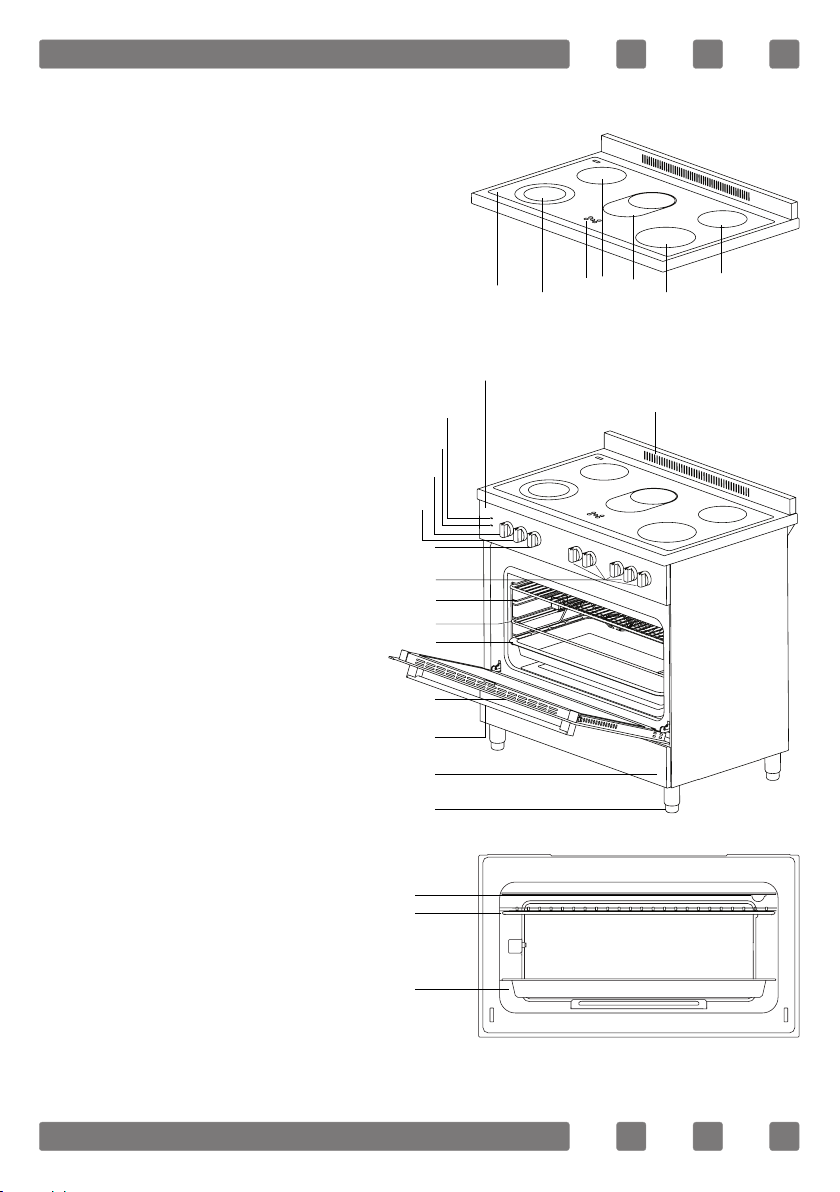

INTRODUCTION OF THE APPLIANCE
13
2456
7
1. Vitro ceramik glass
2. 180/120 mm dual hilight
3. Restvarmeindikator
4. 140 mm hilight
5. 140X250 mm
(ovaldual) hilight
6. 180 mm hilight
7. 140 mm hilight
8. Control panel
9. Oven section led lamp
10. Led lamp
11. Thermostat setting
12. Timer (analog-digital)
13. Oven control knobs
14. Hob control knobs
15. Rack
16. Chicken roasting
17. Deep tray
18. Oven door
19. Handle
20. Lower cabinet door
21. Plastic leg
22. Splash back
23. Lamp
24. Grill
25. Deep tray
11
10
9
8
22
12
14
13
15
16
17
21
20
18
19
23
24
25

16
Accesories
Deep tray
Used for pastries, deep fried foods and stew recipes.
In case of frying directly on the grill for cakes, frozen
foods and meat dishes, it can be used of oil pick-up
tray.
Wire grill
Used for frying and/or placing the foods to be baked,
fried and frozen foods on the desired rack.
Telescopic rail *
With the help of telescopic rails, the trays and/or
wire racks can be easily placed and removed.
In tray wire grill *
Foods that can stick while cooking such as beef are
placed on in tray grill. Thus, the contact and sticking
of the food is prevented.
Tray handle *
It is used to hold hot trays.
Splash back *
The resulting temperature of the oven chimney avoid
contact with the wall.
EN

17
Technical Features Of Your Oven
Specications 90x60
Outer width 900 mm
Outer depth 610 mm
Outer height 925 mm
Lamp power 15-25 W
Bottom heating element 2000 W
Top heating element 1500 W
Turbo heating element 2200 W x 1 / 1250 W x 2
Grill heating element 3250 W
Supply voltage 220-240 / 380-415 V 50/60 Hz
Ceramic heater 140 mm * 1200 W
Ceramic heater 180 mm * 1700 W / 1800 W
Ceramic heater 140 mm / 250 mm * 1800 W
Ceramic heater 120 mm / 180 mm * 1700 W
WARNING: For the modication to be done by authorized service, this
table should be considered. Manufacturer may not be held responsible for
any problems rising because of any faulty modication.
WARNING: In order to increase the product quality, the technical
specications may be changed without prior notice.
WARNING: The values provided with the appliance or its accompanying
documents are laboratory readings in accordance with the respective
standards. These values may differ depending on the use and ambient
conditions.

18
Check if the electrical installation is proper to bring the appliance in
operating condition. If electricity installation is not suitable, call an
electrician and plumber to arrange the utilities as necessary. Manufacturer
shall not be held responsible for damages caused by operations
performed by unauthorized persons.
WARNING: It is customer’s responsibility to prepare the location the
product shall be placed on and also to have the electrical installation
prepared.
WARNING: The rules in local standards about electrical installations
shall be followed during product installation.
WARNING: Check for any damage on the appliance before installing it.
Do not have the product installed if it is damaged. Damaged products
cause a risk for your safety.
Right Place for Installation and Important Warnings
Appliance feet should not stay on soft surfaces such as carpets. The
kitchen oor shall be durable to carry the unit weight and any other
kitchenware that may be used on the oven.
The appliance is suitable for use on both side walls, without any support,
or without being installed in a cabinet. If a hood or aspirator will be
installed above the cooker, follow the instructions of the manufacturer for
height of mounting. (min. 650 mm)
EN
INSTALLATION OF YOUR OVEN

19

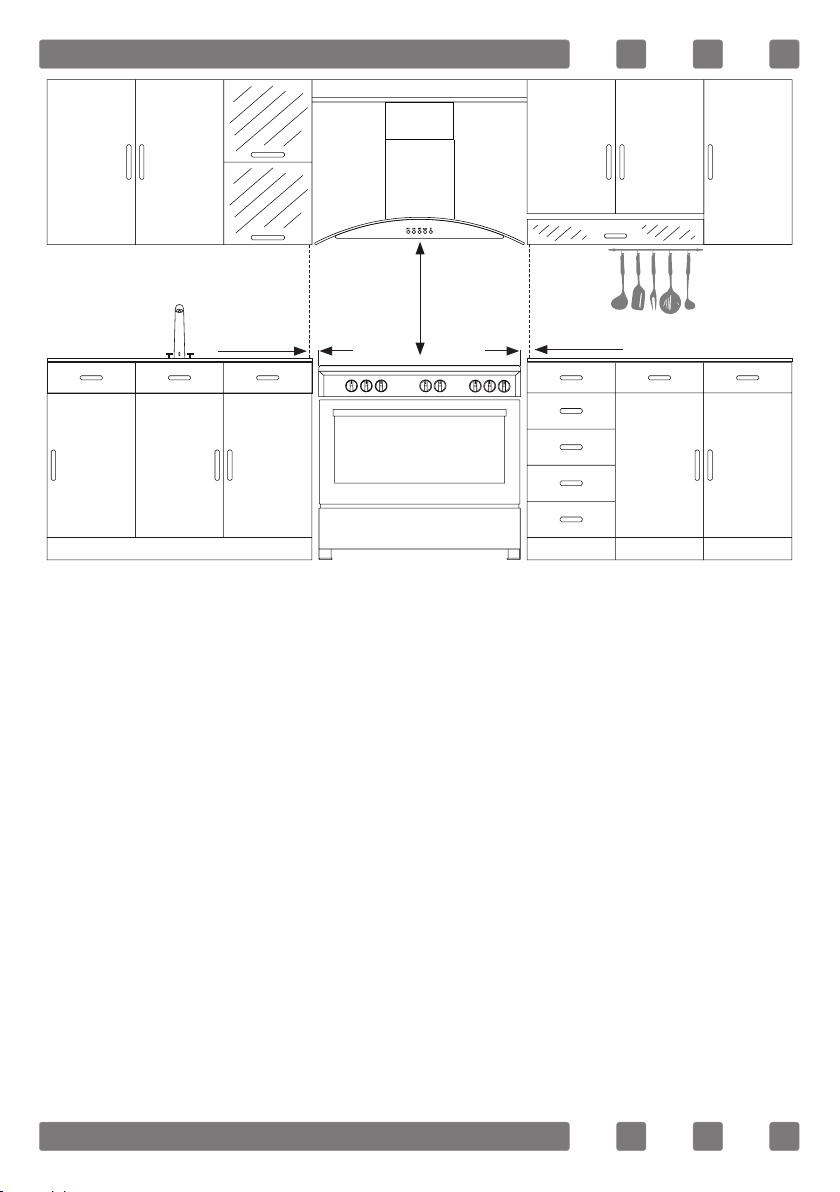

WARNING: The kitchen furniture near the appliance must be heat
resistant.
WARNING: Do not install the appliance beside refrigerators or coolers.
Heat radiated by the appliance increases the energy consumption of cooling
devices.
WARNING: Do not use the door and/or handle to carry or move the appliance.
650mm min.
6,5 mm min. 6,5 mm min.

20
oven as shown in (gure 1).Nuts are centered on these lathes in order to
screw feet. Complete the feet installation process by screwing the feet to
the nuts (gure 2).
2. You can balance your oven by turning the screwed feet according to
the surface type you are using.
3. If your oven has plastic food as in (gure 3) you can adjust your ovens
height from these feet as turned clockwise or anticlockwise.
CONTROL PANEL
WARNING: The control panel above is only for illustration purposes.
Consider the control panel on your device.
Figure 1 Figure 3Figure 2
1 2 3 4 5 6 7
1. Thermostat
2. Function selection button
3. Front left ceramic heater
4. Rear left ceramic heater
5. Center ceramic heater
(ovaldual)
6. Rear right ceramic heater
7. Front right ceramic heater
EN
Installation Of The Oven Feet
In order to install the oven feet;
1. Foot attachment lath is installed on the oven from the bottom of the
