Model 2306-LAN
Communications and Firmware Upgrade Instructions
071377001 April 2022 *P071377001*1
Overview
This document describes how to use the Model 2306-LAN Battery/Charger Simulator and connect to a local
area network (LAN) and how to upgrade the firmware.
The Model 2306-LAN is a TCP/IP protocol supported instrument. There is one LAN port that supports full
connectivity on a 10 Mbps or 100 Mbps network. The 2306-LAN automatically detects the network speed.
Figure 1: Model 2306-LAN connection location
Contact your network administrator to confirm your specific network requirements before setting up a
LAN connection.
If you have problems setting up the LAN, refer to LAN troubleshooting (on page 14).
Set up LAN communication on the instrument
The following information describes how to set up manual or automatic LAN communications.
See the Model 2302/2302-PJ/2306/2306-PJ/23-6-VS Battery/Charger Simulator Quick Results Guide
(document number: 2306-903-01) for other setup information and the Model 2302/2302-PJ/2306/2306-PJ/23-6-
VS Battery/Charger Simulator Instruction Manual (document number: 2306-901-01) for other operating
instructions on tek.com/keithley.

Model 2306-LAN Communications and Firmware Upgrade Instructions
2 071377001 April 2022
LAN cable connection
Connect a LAN cable from your computer to the LAN port on the rear panel of the 2306-LAN.
Figure 2: Model 2306-LAN cable connection
Each device on a LAN (corporate or private) requires a unique IP address. Contact your corporate information
technology (IT) department for details about obtaining an IP address before you connect the 2306-LAN to a
corporate or private network.
Contact your corporate IT department for permission before you connect the 2306-LAN to a
corporate network.
When the 2306-LAN is shipped, the IP configuration is set to manual and is set to the following values:
Instrument IP address: 192.168.0.2
Gateway: 192.168.0.1
Subnet mask: 255.255.255.0
These values persist through a power cycle unless they are changed or the LAN RESET button is selected. If
the LAN RESET button is selected, the TCP/IP mode is set to manual. For more detail on the LAN RESET
button, refer to the Check communication settings (on page 3).
Configure your computer and the IP address of the instrument on the same network, as indicated in the
following graphic.

Model 2306-LAN Communications and Firmware Upgrade Instructions
071377001 April 2022 3
Set the computer IP address: 192.168.0.3
Set the instrument IP address (this is the instrument default): 192.168.0.2
Figure 3: Model 2306-LAN configure computer
Check communication settings
Before configuring the LAN, you can check the communications settings on the instrument without making any
changes. Use the navigation keys as indicated in the following figure to navigate through the menu items.
Figure 4: Model 2306-LAN front panel

Model 2306-LAN Communications and Firmware Upgrade Instructions
4 071377001 April 2022
To check communications settings on the instrument from the front panel:
1. Press MENU to activate the menu and use the ▲ (up) and ▼ (down) keys to navigate through the primary
menu items.
2. Navigate until VIEW OR CHANGE: LAN is displayed on the screen.
3. Press ENTER to access the LAN menu. Use the ▲ (up) and ▼ (down) keys to navigate through the LAN
menu items.
METHOD (DHCP method)
IP-ADDRESS
GATEWAY
SUBNET-MASK
LAN RESET (you can reset the LAN here, if needed)
PORT
MAC_ADDRESS (this cannot be changed)
4. Press ENTER to access the menu and review the settings for the interface.
5. Press ENTER again to save changes or press MENU to leave the menu without making any changes.
Manually setup the LAN configuration
The following information details how to set up the 2306-LAN IP configuration, IP address, gateway, subnet
mask, port, and LAN configuration on the instrument from the front panel.
Contact your corporate information technology (IT) department to secure a valid IP address for the
instrument when placing the instrument on a corporate network.
The instrument IP address has leading zeros, but the computer IP address does not.
To manually set up the instrument from the front panel:
Press MENU to leave the menu without making any changes. Press ENTER to save and return to
the main menu.
1. Press MENU to activate the menu. Use the ▲ (up) and ▼ (down) keys to go to VIEW OR CHANGE: LAN.
2. Press ENTER to access the LAN menu. Use the ▲ and ▼ keys to navigate through the LAN menu items.
3. To set the IP configuration DHCP method, go to the METHOD menu and press ENTER. Use ▲ and ▼ to
display MANUAL or AUTO and change the IP configuration.
4. To set the IP address, go to IP-ADDRESS and press ENTER. Use ▲ and ▼ and ◄ and ► to enter a valid
IP address. The default IP address is 192.168.000.002.
5. To set the GATEWAY, go to GATEWAY and press ENTER. Use ▲ and ▼ and ◄ and ► to enter a valid
GATEWAY address. The default GATEWAY is 192.168.000.001.

Model 2306-LAN Communications and Firmware Upgrade Instructions
071377001 April 2022 5
6. To set the SUBNET-MASK, go to SUBNET-MASK and press ENTER. Use ▲ and ▼and ◄ and ► to enter
a valid SUBNET-MASK. The Default SUBNET-MASK is 255.255.255.000.
7. To set the PORT, go to PORT and press ENTER. Use ▲ and ▼ and ◄ and ► to enter a valid PORT
number. The default PORT is 5025. Range (0 through 65535).
8. To reset the LAN configuration, go to LAN RESET and press ENTER. Select YES to reset all LAN
configurations (select CANCEL to keep the current LAN configuration).
9. Press ENTER for the LAN configuration to take effect and return to the main menu.
LAN configuration through a computer
You will need to download the 2306-LAN Configuration Tool from the Product Support and Downloads web
page. This tool provides the interface needed to set up the 2306-LAN IP address, subnet mask, gateway, and
port from a computer. Once the executable file for the configuration tool has been downloaded to your
computer, the following information describes how to install and use the tool.
For firmware upgrade information, go to Firmware upgrade instructions (on page 12).
Do not use this configuration procedure for the Series 2300 models 2302, 2303, 2306, or 2308
instruments.
To use the LAN Configuration Tool:
1. Double-click the 2306-LAN Configuration Tool.exe file.
2. Select Scan Devices.
Figure 5: Scan devices

Model 2306-LAN Communications and Firmware Upgrade Instructions
6 071377001 April 2022
3. Select Scan (refer to the following figure). All IP information for the instrument is displayed automatically
(the default IP is 192.168.0.2). The following figure and table identify the settings in the 2306-LAN
Configuration Tool.
Figure 6: Model 2306-LAN configuration tool
LAN configuration
setting
Description
1
Local IP address of your computer
2
Instrument serial number
3
Instrument MAC address
4
Instrument IP address
5
Port (5025 is the default)
6
Select Clear to clear all of the display value
4. Change the IP address, subnet mask , gateway, and port, as needed (the port default is 5025).
5. Select Apply Setting.
The following table indicates the range of IP addresses that can be used on the 2306-LAN instrument.
Class
IP range (set up on instrument)
A
1.0.0.0 through 126.255255.255
B
128.0.0.0 through 191.255.255.255
C
192.0.0.0 through 223-255.255.255

Model 2306-LAN Communications and Firmware Upgrade Instructions
071377001 April 2022 7
AUTO-MDIX
The Model 2306-LAN does not support automatic MDIX (medium dependent interface crossover)
feature. However, with an AUTO-MDIX network card, it is possible. We recommend using straight-
through cables to connect the 2306-LAN to switches or routers, and crossover cables to connect the
2306-LAN workstations or servers. Also, if the Model 2306-LAN instrument is connected to a
personal computer, router, ethernet switch, or other devices that contain an enabled AUTO-MDIX
network card, you can use either type of cable.
LAN interface protocols
You can use one of following LAN protocols to communicate with the 2306-LAN instrument.
Port number
Protocol
1024
VXI-11
5025
Raw socket
You can only use one remote interface at a time. Although multiple ethernet connections to the
instrument can be opened, only one can be used to control the instrument at a time.
VXI-11: Similar to a GPIB cable and supports message boundaries and service requests (SRQs). A VXI-11
driver or VISA software is required.
Raw socket: Basic ethernet connection that communicates similarly to RS-232 without explicit message
boundaries. The instrument always terminates messages with a line feed. However, binary data may include
bytes that resemble line feed characters and it may be difficult to distinguish between data and line feed
characters.
Programming C# examples
See the following VXI-11 protocol C# example (on page 8) and the Raw socket protocol C# example (on page
9) for detail.

Model 2306-LAN Communications and Firmware Upgrade Instructions
8 071377001 April 2022
VXI-11 protocol C# example
When you use the VXI-11 protocol to communicate with a 2306-LAN instrument, use the C# (C-sharp)
programming language using the following example (in the order indicated) to program your instrument.
1. Open resource.
2. Configure resource.
3. Send a command or READ data.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Ivi.Visa;
namespace Idn
{
class Program
{
static void Main(string[] args)
{
var system_dmm =(Ivi.Visa.IMessageBasedSession)
Ivi.Visa.GlobalResourceManager.
Open ("TCPIP0::192.168.0.2::inst0::INSTR");
// Set timeout value to 60 seconds
system_dmm.TimeoutMilliseconds = 60000;
system_dmm.SendEndEnabled = true;
system_dmm.TerminationCharacterEnabled = true;
//return character
system_dmm.TerminationCharacter = 0xa;
//system_dmm.FormattedIO.WriteLine("*rst");
//system_dmm.FormattedIO.WriteLine("*cls");
system_dmm.FormattedIO.WriteLine("*IDN?");
Console.WriteLine("\nInstrumnet ID: {0}\n",
system_dmm.FormattedIO.ReadLine());
Console.WriteLine("\nSet and output Sour1 volt to 1V ,and Sour2 volt to 2V\n");
system_dmm.FormattedIO.WriteLine(":sour:volt 1;:output on;:sour2:volt 2;
:output2 on");
system_dmm.FormattedIO.WriteLine("read?;");
Console.WriteLine("\nSour1 volt value: {0} ", system_dmm.FormattedIO.ReadLine());
system_dmm.FormattedIO.WriteLine("read2?;");
Console.WriteLine("Sour2 volt value: {0}\n", system_dmm.FormattedIO.ReadLine());
System.Threading.Thread.Sleep(4000);
system_dmm.FormattedIO.WriteLine(":output off;:output2 off");
// Close the session
system_dmm.Dispose();
}
}
}

Model 2306-LAN Communications and Firmware Upgrade Instructions
071377001 April 2022 9
Raw socket protocol C# example
When you use the VXI-11 protocol to communicate with a 2306-LAN instrument, use the C# (C-sharp)
programming language using the following example (in the order indicated) to program your instrument.
1. Set the IP address.
2. Set the port.
3. Connect to the instrument.
4. Send a command or READ data.
static void Main(string[] args)
{
//define IP address variable
IPAddress ip;
//define end point
IPEndPoint ipe;
//define a socket
Socket clientSocket;
//instrument address ip: 192.168.0.2
ip = IPAddress.Parse("192.168.0.2");
// set instrument TCP port:5025
ipe = new IPEndPoint(ip, 5025);
clientSocket = new Socket(AddressFamily.InterNetwork, SocketType.Stream,
ProtocolType.Tcp);
//Connect to instrument through LAN
clientSocket.Connect(ipe);
//send message
string idnCommand = ":SOUR:VOLT 5;:OUTP ON;:READ?";
//send command
set 5v, output on, read volt value
//Command encodes to byte array
byte[] sendBytes = Encoding.ASCII.GetBytes(idnCommand);
//send command
clientSocket.Send(sendBytes);
C//windows console output
Console.WriteLine("Send: " + idnCommand);
//receive message
string recStr = "";
//define receiving array . length 4096 bytes
byte[] recBytes = new byte[4096];
//receive command response
int bytes = clientSocket.Receive(recBytes, recBytes.Length, 0);
//encoding to strings
recStr = Encoding.ASCII.GetString(recBytes, 0, bytes);
//console output strings
Console.WriteLine("2306-LAN feedback: " + recStr);
clientSocket.Close();
//pause
Console.Read();
}

Model 2306-LAN Communications and Firmware Upgrade Instructions
10 071377001 April 2022

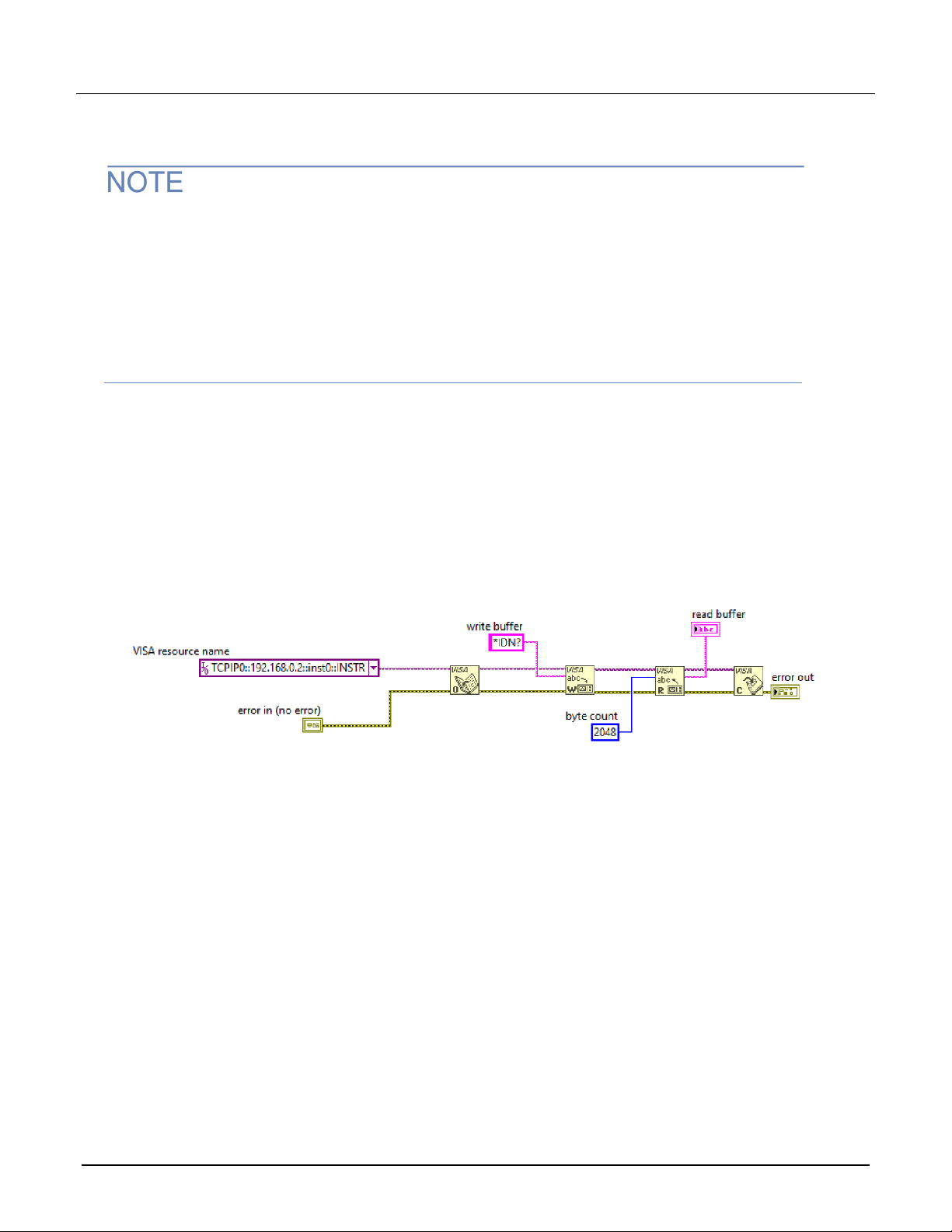

NI-VISA example program
NI-VISA is National Instruments (NITM) implementation of the VISA standard. The Keithley I/O Layer
(KIOL) contains a licensed version of the NI-VISA Runtime Engine that contains only the binary files
(DLLs) that allow the NI-VISA drivers to operate.
If you already have NI software (such as LabVIEWTM or LabWindowsTM) installed, you have a valid
license that can be used with Keithley drivers and application software.
If you do not have NI software installed, you must Install Keithley I/O Layer to install the drivers.
VXI-11 NI-VISA protocol example
In the example program, you can query the model information of the instrument using the *idn? command, as
shown in the following figure.
The VISA resource name must be configured, as shown in the following figure.
Figure 7: Model 2306-LAN NI-VISA programming example (VXI-11)
