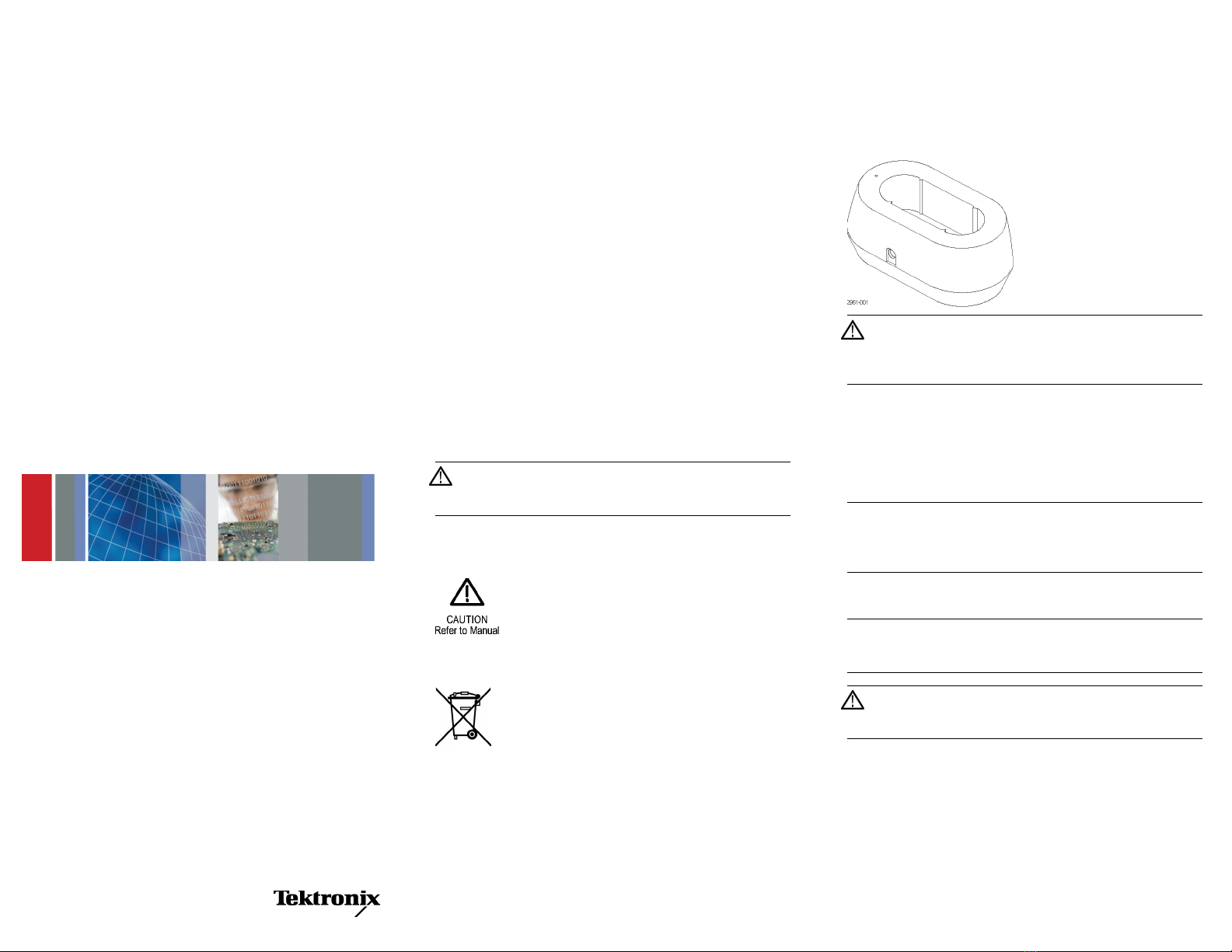

Tektronix THSCHG User manual

xx Safety Summary
To avoid potential hazards, use this product only as specified.
To Avoid Fire or Personal Injury
Recharge battery properly. Recharge the battery pack only
for the recommended charge cycle at the recommended
temperature.
Use proper battery charger. Use only the THSCHG charger
or the THS3000 series oscilloscope to charge the THSBAT
Lithium-Ion battery pack.
Do not operate without covers. Do not operate this product
with covers or panels removed.
Do not operate with suspected failures. If you suspect there is
damage to this product, have it inspected by qualified service
personnel.
Do not operate in wet/damp conditions.
Keep product surfaces clean and dry.
Use proper AC adapter. Use only the AC adapter specified for
this product.
Safety Terms in This Manual
CAUTION. These statements identify conditions or practices
that could result in damage to the equipment or other
property.
Safety Symbols on the Product
This symbol indicates that this product complies
with the applicable European Union requirements
according to Directives 2002/96/EC and 2006/66/EC
on waste electrical and electronic equipment
(WEEE) and batteries. For information about
recycling options, check the Support/Service section
oftheTektronixWebsite(www.tektronix.com).
Description
The THSCHG is a battery charging base for use with the
THSBAT Li-ion battery packs. Whenusedwiththeexternal
power supply for THS3000 series oscilloscopes, it will typically
charge the battery pack in approximately 5.5 hours.
CAUTION. To avoid damage to the battery pack, use only
the oscilloscope or the THSCHG battery charger to charge
the battery pack. Do not connect any other voltage source
to the battery pack.
You do not need to continuously charge (trickle charge) Li-Ion
battery packs to maintain full operating capacity between jobs.
However, a Lithium-Ion battery pack will self-discharge while
not in use. To achieve the longest operating time, charge your
battery pack before use. If you plan to store battery packs, read
the specific instructions to do this. (See note below.)
NOTE. Refer to the THSBAT Rechargeable Battery Pack
Instructions (Tektronix part number 071-2960-xx) for
information on storage, transportation, and end-of-life
recycling or disposal of the THSBAT Lithium-Ion battery pack.
Charging the Battery Pack
NOTE. For optimum performance, charge the battery pack
completely before using it for the first time or after prolonged
storage.
CAUTION. To avoid overheating of the batteries during
charging, do not exceed the allowable ambient temperature
giveninthespecifications.
1. Connect the oscilloscope AC adapter/power supply to a
mains outlet and insert the DC plug of the power supply
into the THSCHG External Battery Charger.
THSCHG
External Battery Charger
ZZZ
Instructions
x
*P071296100*
071-2961-00

2. Align the slots on the battery to the slots in the charger and
insert the battery into the charger.
3. Note the condition of the green LED:
LED condition Description
Slowly flashing Battery is charging
Continuously on Battery is fully charged
Rapidly flashing Charging error
4. Each of the 5 segments in the status display equal about
20% of full charge. All segments on indicates that the
battery is charged to 100 % of its present capacity.
Specifications
Characteristic Description
Capacity 52 Wh, 4.8 Ah
Output 10.8 VDC
Charge time 5.5 hrs
Adapter requirements 18 V / 0.84 A
Input voltage range 15–23 V
Input current limiter 0.714 A ±5%
Operating temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage temperature -20 °C to +60 °C (-4 °F to +140 °F)
Humidity 10 to 30 °C (50 to 86 °F) 95% ±5%
30 to 40 °C (86 to 104 °F) 75% ±5%
40 to 45 °C (104 to 113 °F) 45% ±5%
Emission and Immunity EN 61316-1:2006
Warranty Information
For warranty information, go to the www.tektronix.com
Web site, and search for “THSCHG warranty”.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tektronix.com to find contacts in
your area.
Copyright © Tektronix, Inc. All rights reserved. www.tektronix.com
