Teleorigin RB IndustrialRT User manual

Data wydania: 28.01.20
RB Industrial RT
User Manual
ver. 1.0

Contents
1. Safety Recommendations..................................................................................................3
2. Overview............................................................................................................................4
3. Package.............................................................................................................................
3.1 Box.........................................................................................................................................
3.2 Package contents...................................................................................................................
4. General presentation.........................................................................................................6
4.1 Product description ...............................................................................................................6
4.2 External connections..............................................................................................................7
4.2.1Antenna connector............................................................................................................7
4.2.2 RS232/RS48 /GPIO connector......................................................................................7
4.2.3 Power supply connector..................................................................................................9
4.2.4 SIM card holder...............................................................................................................9
4.3 Product sticker....................................................................................................................10
. Supported connections.....................................................................................................11
6. Basic features and services.............................................................................................12
7. Online support..................................................................................................................13

1. Safety Recommendations
READ CAREFULL
Be sure the use of this product is allowed in the country and in the environment
required. The use of this product may be dangerous and has to be avoided in the following
areas:
–where it can interfere with other electronic devices in environments such as hospitals,
airports, aircrafts, etc
–where there is risk of explosion such as gasoline stations, oil refineries, etc. It is
responsibility of the user to enforce the country regulation and the specific environment
regulation.
Do not disassemble the product; any mark of tampering will compromise the
warranty validity.
We recommend following the instructions of the hardware user guides for a correct
wiring of the product. The product has to be supplied with a stabilized voltage source and
the wiring has to be conforming to the security and fire prevention regulations.
The product has to be handled with care, avoiding any contact with the pins
because electrostatic discharges may damage the product itself. The same cautions have
to be taken for the SIM, checking carefully the instruction for its use. Do not insert or
remove the SIM when the product is in power saving mode.
The system integrator is responsible of the functioning of the final product;
therefore, care has to be taken to the external components of the module, as well as of
any project or installation issue, because the risk of disturbing the GSM network or
external devices or having impact on the security. Should there be any doubt, please refer
to the technical documentation and the regulations in force.
Every module has to be equipped with a proper antenna with specific
characteristics. The antenna has to be installed with care in order to avoid any
interference with other electronic devices and has to guarantee a minimum distance from
the people (20 cm). In case of this requirement cannot be satisfied, the system integrator
has to assess the final product against the SAR regulation.

2. Overview
RB IndustrialRT is the complete GSM/GPRS modem solution with additional hardware
functionalities and embedded programmable module. Device has built-in RS48 module (in
applications it is possible to use one of the modules - RS232 or RS48 ).
RB IndustrialRT has a built-in application whose main task is reporting values of
selected MODBUS registers to the http server, communication with servers in the cloud and
controlling SCADA systems via SMS and TCP/IP connection.

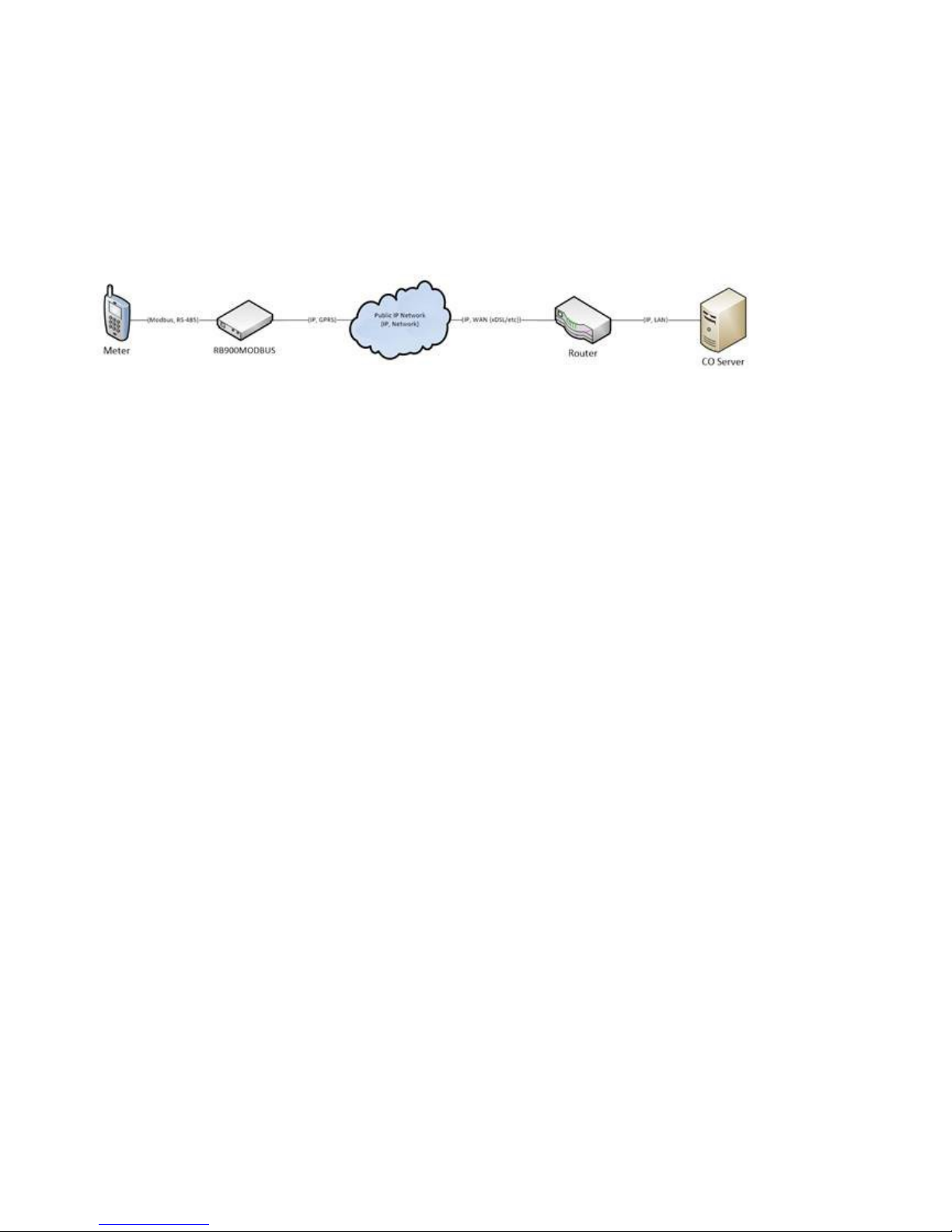

Typical RB IndustrialRT application

3. Package
3.1 Box
The package contains a sticker corresponding to the sticker on the modem. The
serial number uniquely identifies the modem and ensures that it is the original product.
3.2 Package contents
The package contains:
•RB IndustrialRT modem
•GSM antenna (SMA connector)
•Wall handle
•Power cable

4. General presentation
4.1 Product description
SMA
connector
Extractable
SIM card
holder
SIM card
holder
ejector
Power
supply
10-pin connector
(RS 3 , RS485,
GPIO)
STATUS
NETWORK
POWER
LED

4.2 External connections

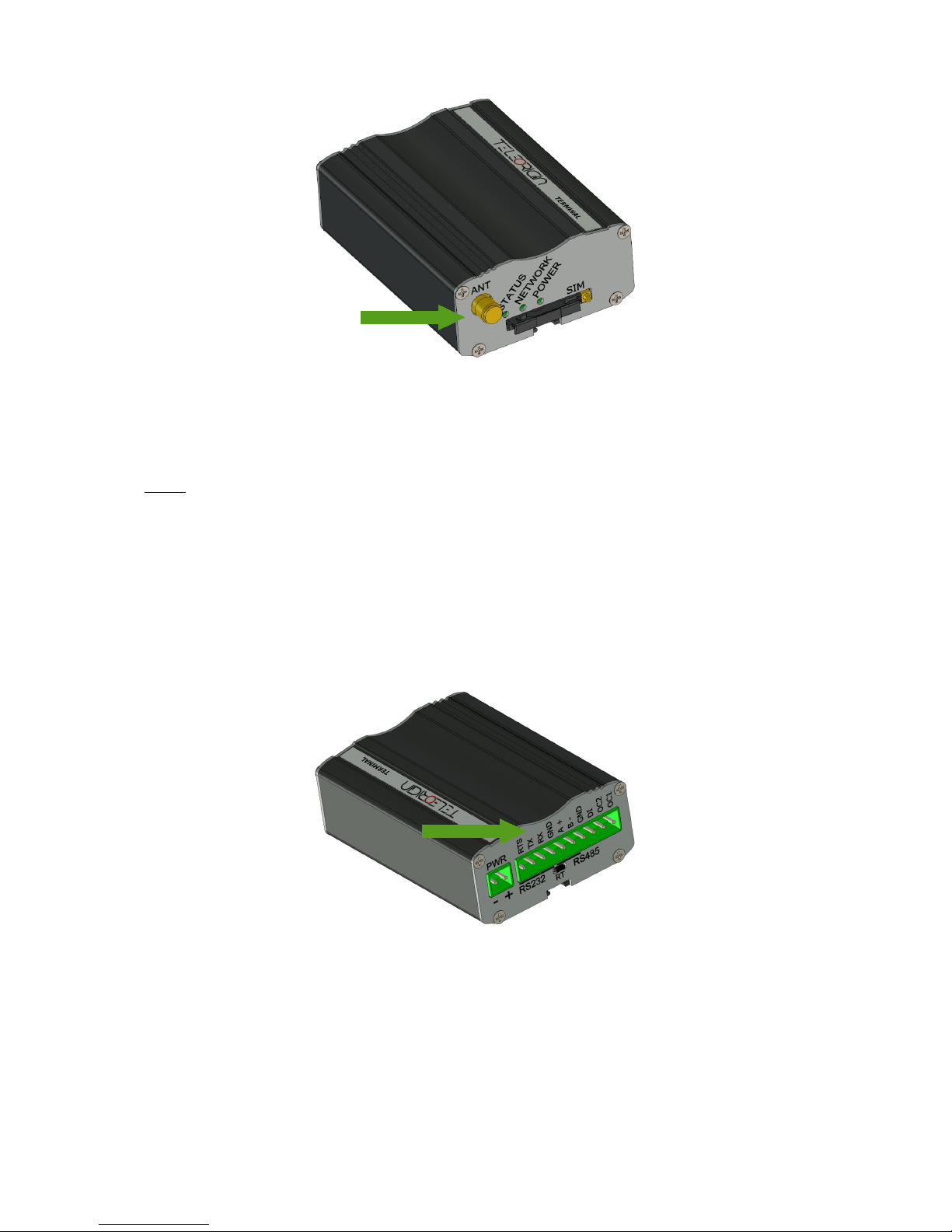

4.2.1 Antenna connector
GSM antenna connector – SMA type, female, 0 Ω. Connector is used to connect external
GSM antenna.
Note: If there is no antenna connected to SMA connector, the connection with GSM network is
impossible.
4.2.2 RS232/RS485/GPIO connector
Modem RB IndustrialRT is equipped with 10-pin connector with RS232/RS48 and
GPIO interfaces

Pinout of 10-pin connecor:
Pin number Name Direction
1 RTS OUT
2 TX OUT
3 RX IN
4 GND OUT
A+ -
6 B- -
7 GND -
8 DI IN
9 OC2 OUT
10 OC1 OUT
Note: Modem can't be used with RS232/RS48 serial cables longer than 3 m.

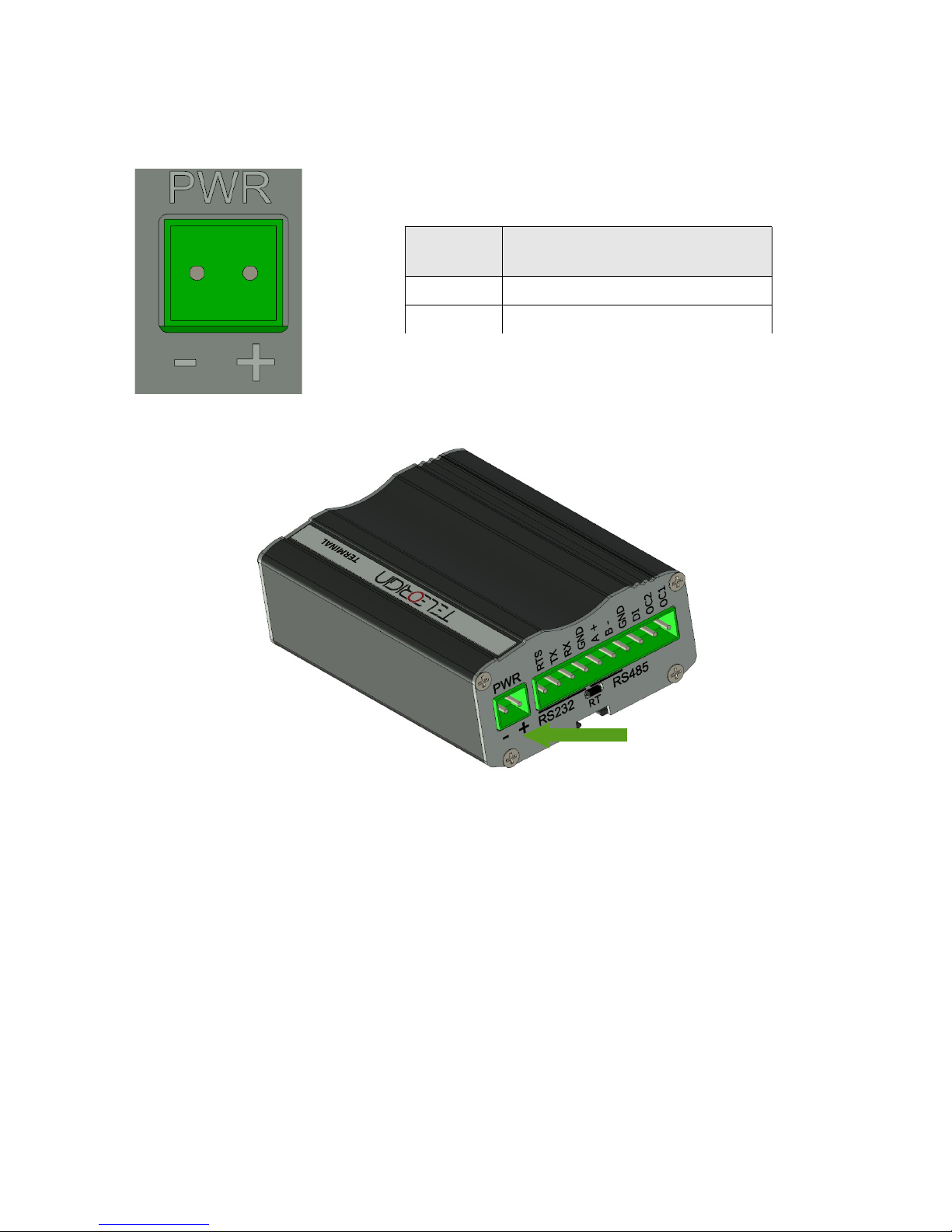

4.2.3 Power supply connector
The power supply connector is a 2-pin connector for external DC power supply
connection
Pin
indication
Description
- Ground (GND)
+ 5 V – 30 V DC
4.2.4 SIM card holder
SIM card holder is placed in front of RB IndustrialRT terminal (as shown below) and is
accessible externally. To insert SIM card into the holder press the yellow button, eject the
little drawer, place there the SIM card and insert drawer into the modem (you will hear
“click”). To operate the module in a GSM network, it is necessary to insert a SIM card
obtained from the network operator.

4.3 Product sticker
Product stickers are on the modem and on the box of the product.
A production sticker includes the following information:
•Manufacturer name
•The model signature
•Product serial number (IMEI)
•The CE marking
• WEEE symbol (waste electrical and electronic equipment)

5. Supported connections
The RB Industrial supports general interrogation commands for binary and analog
objects. When required, group interrogation command can be used.
The RB Industrial scan data on Modbus registers but it send them to monitor station
only after interrogation command. Cyclic Data Transmission can be enabled when
required. When enabled An interrogation command interrupts cyclic transmission in
progress, which is automatically restarted after the interrogation command has been
responded.
The RB Industrial provides configurable setpoints for reporting events when a measured
value exceeds a predefine threshold or changes by a certain percentage, or a binary point
status changes. The scan period for events depends on Modbus register counts and
number of controlled stations connected to modem. Events can only be reported for
mapped static object points.
RB Industrial RT also implements DNP3 in accordance with Level 2 as specified in the
“DNP3 Subset Definitions V2.00”. Level 2 was chosen to match MultiTrode’s Outpost
SCADA system. It is also the most popular level and will thus maximise compatibility with
other Masters. The RB Industrial supports general interrogation commands for binary and
analog objects. When required, Read command for Object 60 VAR 1 will be used.
The RB Industrial scan data on Modbus registers but it send them to monitor station
only after interrogation command. Cyclic Data Transmission can be enabled when
required. When enabled An interrogation command interrupts cyclic transmission in
progress, which is automatically restarted after the interrogation command has been
responded.
The RB Industrial RT provides configurable setpoints for reporting events when a
measured value exceeds a predefine threshold or changes by a certain percentage, or a
binary point status changes. The scan period for events depends on Modbus register
counts and number of controlled stations connected to modem. Events can only be
reported for mapped static object points.

6. Basic features and services
Basic features and available services for RB IndustrialRT are contained in table below:
Feature/service Description
Supported bands: GSM/GPRS 8 0/900/1800/1900 Mhz
Interfaces Connectors
- SMA antenna
SIM card
- 3.0V / 1.8V
- STK 3.1
Connectivity
- USB 2.0 HS
- UART: BR from 300 bps to 11 .2 Kbps
- Auto BR
SMS - MO / MT Text and PDU mode
- Cell broadcast
- SMS over GPRS
GSM supplementary
services
- TCP/IP. UDP/IP, SMTP, FTP protocols
- USSD phase II
Power supply V – 30V DC
Dimension 72 x 3. x 26 mm (without connectors)
83 x 3. x 26 mm (with connectors)
Temperature range Min. -20°C, Max. 60°C
Humidity Min. %, Max. 8 %

7. Online support
Elproma provides a range of online support which includes:
The latest version of this document
Technical support
This information can be found on our website: www.teleorigin.com
For further information you can contact us at:
email: [email protected]
tel.: [phone]
fax.: [phone]
