Teletek electronics CA60Plus User manual

TeleTek
CA60Plus
Software version 3.1
Installation Manual
May 2000

2
TeleTek CA60Plus Installation Manual
CONTENTS
PART I. CA60Plus Security Control Panel Installation.................................................................3
1. Security Control Panel............................................................................................................4
2. LED Display Keypad. ............................................................................................................4
3. Inputs and Outputs.................................................................................................................5
4. LED Keypad Wiring...............................................................................................................6
5. Programmable Outputs PGM1, PGM2 and PGM3...............................................................7
6. Programmable Output SIREN...............................................................................................7
7. Detectors Wiring....................................................................................................................9
8. Internal Communicator Wiring............................................................................................10
9. Powering up the Panel..........................................................................................................10
PART II. Programming the CA60Plus Parameters....................................................................11
1. Zone Configuration...............................................................................................................14
2. PGM and SIREN programmable outputs configuration......................................................17
3. Times....................................................................................................................................19
4. Code system management...................................................................................................20
5. Engineer parameters...........................................................................................................21
6. Communicator parameters..................................................................................................23
7. Communicator test parameters...........................................................................................25
8. Communicator event codes.................................................................................................26
9. CA60Plus test modes..........................................................................................................28
Appendix A..............................................................................................................................29
RESET Parameters Table........................................................................................................29

PART I. CA60Plus Security Control Panel Installation
The CA60Plus Security Control Panel is designed and tested in accordance with the EMC standards.
For the reliable functioning of the system, please have in mind the following recommendations:
1. Make sure that the control panel is well earthened.
2. Isolate the low and high voltage cables and use different entry holes into the cabinet.
3. Avoid putting connecting wires loops inside the cabinet and their mounting above or under the
PCB.
4. The additional relays SHOULD NOT be housed inside the CA60Plus Control Panel cabinet
because their work may generate electromagnetic noise.
4.1. Use relays with good isolation between the contacts and the coil.
4.2. The relays connected to outputs with an open collector should be designed for 12 V
DC and coil impedance more than 400 Ω.
5. The connecting cable between the control panel and the keypad should be 4-wired. It is not
advisable:
5.1. to use this cable for other connections - phone line connection, flash-lamps, siren or
relay management.
6. While mounting the connecting wires avoid channels or cable tunnels with high voltage cables.
This is particularly important when these cables power up electromotors, luminiscent lamps or
three-phase network. If this is not possible use shielded cables. The earthening of the shield
should be done only INSIDE the control panel cabinet.
TeleTek CA60Plus Installation Manual
3

1. Security Control Panel
2. LED Display Keypad
4
TeleTek CA60Plus Installation Manual
1
2
3
5
1
4
BATT
BATTERY
F - 0,63 A
F1 F2
F3
Transformer
50 / 60 Hz
17 V / 24VA
Powering 12V / 7 Ah
1 - Mounting holes
2 - CA60Plus Security Panel
3 - AC terminal
4 - Signal cables holes
5 - AC cable hole
1
Fig.1 CA60Plus Security Control Panel
Transmitter
Ca60Plus
Fig.2 CA60Plus LED Display Keypad
a) Cover
123
456
789
0
ON PROG CLEAR ENTER
LED - dis
p
la
y
Key Panel
ARM
MEM
CLR ENT
0
12 3
456
789
PROG
DISARM
б
)
Bottom
1
1
1
2
1 - Mountin
g
holes
2 - Cables hole
1
1
11
1
2
2

3. Inputs and Outputs
••
••
•AC - 17 V/24 VA AC transformer power supply
••
••
•Earth - Earthening wire
••
••
•+AUX and - AUX - 13 V DC - 1A power supply for detectors
••
••
•+PGM - 13 V DC - 1A power supply for auxilliary units
••
••
•PGM1, PGM2 and PGM3 - programmable outputs
••
••
•SIREN - siren programmable output
••
••
•Z2, Z3, Z4, Z5 and Z6 - zone inputs; (zone Z1 is in the keypad)
••
••
•COM - common shield
••
••
•A and B - to telephone company connectors
••
••
•A1 and B1 - to phone
••
••
•RED and BLACK - keypad power supply
••
••
•GREEN and YELLOW - panel - keypad interface
••
••
•F1 - battery fuse 2A
••
••
•F2 - auxilliary supply fuse 1A
••
••
•F3 - fuse 1A for powering the detectors, the programmable outputs ant the keypad
••
••
•12 V, 7 Ah battery cables
5
TeleTek CA60Plus Installation Manual
BATTERY
12 V / 7 Ah
F1 F2
F3
BATT
Reset jumper
B1
A1
B
A
AC
+AUX
-AUX
+PGM
PGM1
PGM2
PGM3
SIREN
Z2
Z3
Z4
Z5
Z6
COM
COM
COM
GREEN
YELLOW
RED
BLACK
LED
F1 (BATT) - 2 A
F2 ( AUX) - 1 A
F3 (PGM) - 1 A
Fig. 3 Inputs and Outputs

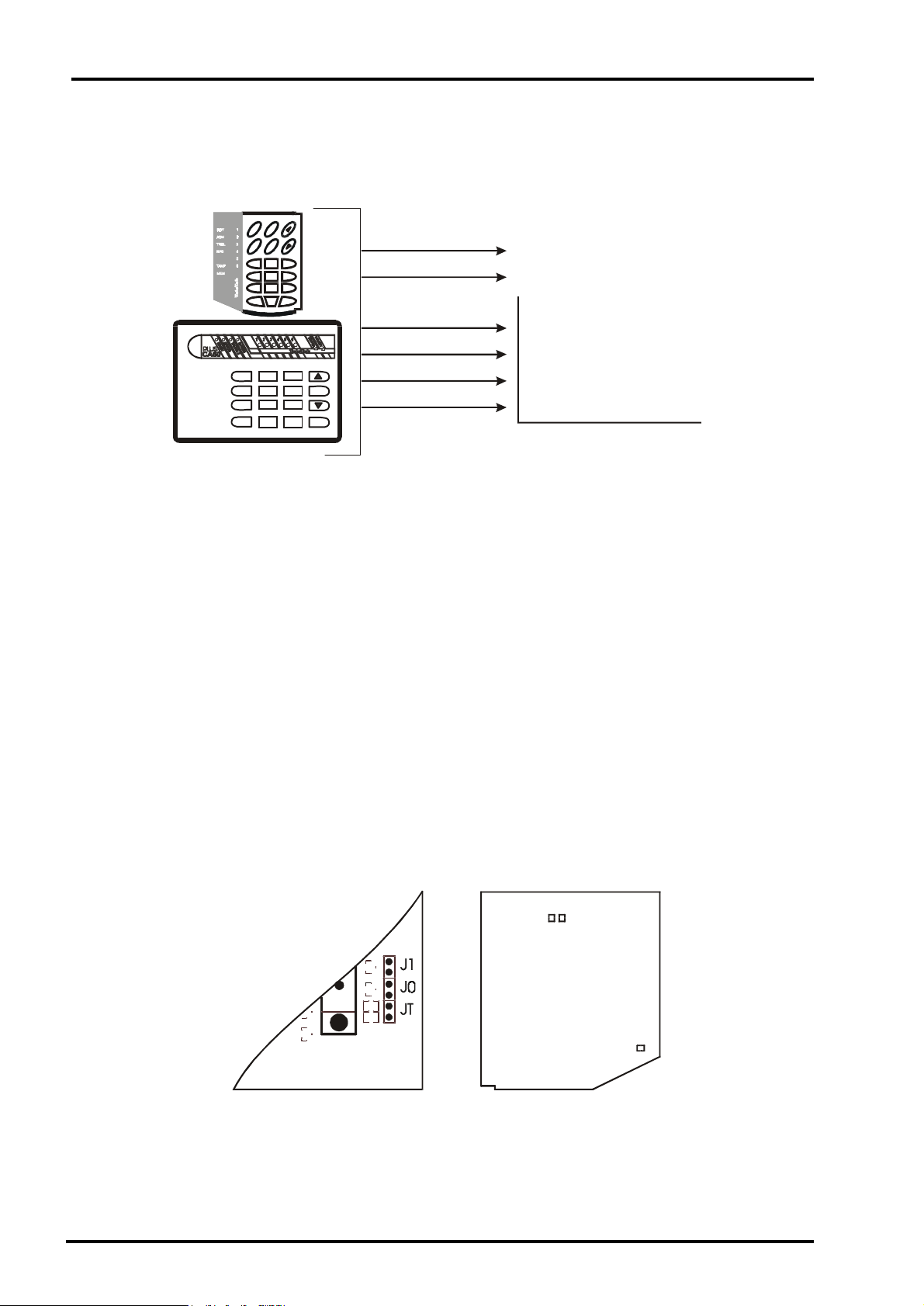

4. LED Keypad Wiring
The CA60Plus control panel keypad is wired by the manufacturer with a 20 cm long cable bundle.
While connecting the bundle to the panel have in mind the colour match of the different wires (See
Fig.4).
The cables for the zone in the keypad are white and black.
The zone in the keypad should not to balanced.
Up to three keypads may be connected in parallel to one security panel.Each keypad should be set
with his own address. This could be done by mounting a jumper in a specified place inside the keypad
(See Fig. 5).
The keypad addresses are set by jumpers:
••
••
•JT - the first keypad address
••
••
•J0 - the second keypad address
••
••
•J1 - the third keypad address
If there is only one keypad in the security panel it is obligatory that the JT jumper is installed. When
more than one keypad is used the JT jumper should be mounted in the most distant keypad.
The connecting wire between the keypad and the security panel should be no longer than 100 m
and with a section no less than 0,25 mm.
6
TeleTek CA60Plus Installation Manual
Fig. 4Keypad - Panel Connecting
123
456
789
0
ON PROG CLEAR ENTER
YELLOW
WHITE
GREEN
RED
BLACK
BLACK
RED
GREEN
YELLOW
BLACK
SECURITY PANEL
TERMINALS
ZONE 1
DETECTORS WIRES
ARM
MEM
CLR ENT
0
12 3
456
789
PROG
DISARM
Rev1.3
J1 J0
JT
TeleTek
C A 60P lu s
keyboard
Rev 2.1
Fig. 5 Keypad Jumper

5. Programmable Outputs PGM1, PGM2 and PGM3
The PGM1, PGM2 and PGM3 security panel outputs have a programmable active level. Thus they
could be used for generating managing signals to exterior units (for example a siren with a blocking input)
or direct managing of low power exterior units (such as relays, LEDs, etc.).
The two ways of using the programmable outputs are described on Fig. 6 and Fig. 8.
Fig. 6 describes a LED and relay management through the programmable outputs PGM. The active
level of these outputs is low.
6. Programmable Output SIREN
The SIREN output of the control panel is designed for siren managing. A managing signal toward a
siren with blocking input could be generated or power supply managed siren provided. The two ways of
using the SIREN output are discribed on Fig. 7 and Fig. 8.
On Fig.7 is described the SR110E siren (produced by TeleTek®) wiring. The SIREN output has
been used. When an alarm event occurs the SIREN output switches to a low level and powers up the
siren SR110E.
7
TeleTek CA60Plus Instalation Manual
F2
B
AC
+AUX
-AUX
+PGM
PGM1
PGM2
PGM3
SIREN
Z2
COM
CA60Plus
1k
RELAY
Fig. 6 LED and Relay Management by PGM1
and PGM2
LED
F2
B
AC
+AUX
-AUX
+PGM
PGM1
PGM2
PGM3
SIREN
Z2
COM
+12 V
-12 V
CA60Plus
SR110E
Fig. 7 Two-wires SIREN Management

F2
B
AC
+AUX
-AUX
+PGM
PGM1
PGM2
PGM3
SIREN
Z2
COM
+12 V
-12 V
BlkSIREN
BlkFIRE
CA60Plus SR2000
Fig. 8 Siren Management by SIREN and PGM3 Outputs
On Fig. 8 is described the SR2000 siren (produced by TeleTek®) wiring. Two managing signals are
used - SIREN and PGM3. When an alarm event occurs the SIREN output switches to a low level and
activates the SR2000 siren. When an alarm event responding to the PGM3 parameters occurs the PGM3
output switches to an active level and the SR2000 siren (depending on its configuration) activates its
signal lamp or produces a “FIRE” audible signal.
TeleTek CA60Plus Installation Manual
8

7. Detectors Wiring
The CA60 Plus control panel operates with dry relay contacts detectors. It is also possible fire detectors
with a relay output to be used.
To balance the zones use the applied 1 kΩ resistors. The balancing resistors should be housed in the
last detector in the chain.
The zones that will not be used should be terminated with a 1 kΩresistor on the terminals regardless
the chosen zone balancing type.
After the initial powering up of the security panel the zone balancing type should be programmed. By
default the balancing is ALARM type.
On Fig. 9 a, b and c are described the possible variants of wiring the detectors and balancing the zones.
9
TeleTek CA60Plus Installation Manual
1k
NC
RELAY 1
NC
RELAY 2
NC
RELAY n
NC
TAMPER 1
NC
TAMPER 2
NC
TAMPER n
1k
ZONE x
COM
b) Connectin
g
Detectors with Two Balancin
g
Resistors
Fig. 9 Possibilities for Connecting Detectors
to the Security Panel
NC
RELAY 1
NC
RELAY 2
NC
RELAY n
NC
TAMPER 1
NC
TAMPER 2
NC
TAMPER n
1k
1k
ZONE x
TAMPER
ZONE
COM
COM
а
)
Connectin
g
Detectors with One Balancin
g
Resistor
1k
NC
RELAY 1
NC
RELAY 2
NC
RELAY n
NC
TAMPER 1
NC
TAMPER 2
NC
TAMPER n
1k
ZONE x
COM
C) Connectin
g
up to Four Detectors with Two Balancin
g
Resistors
1k 1k

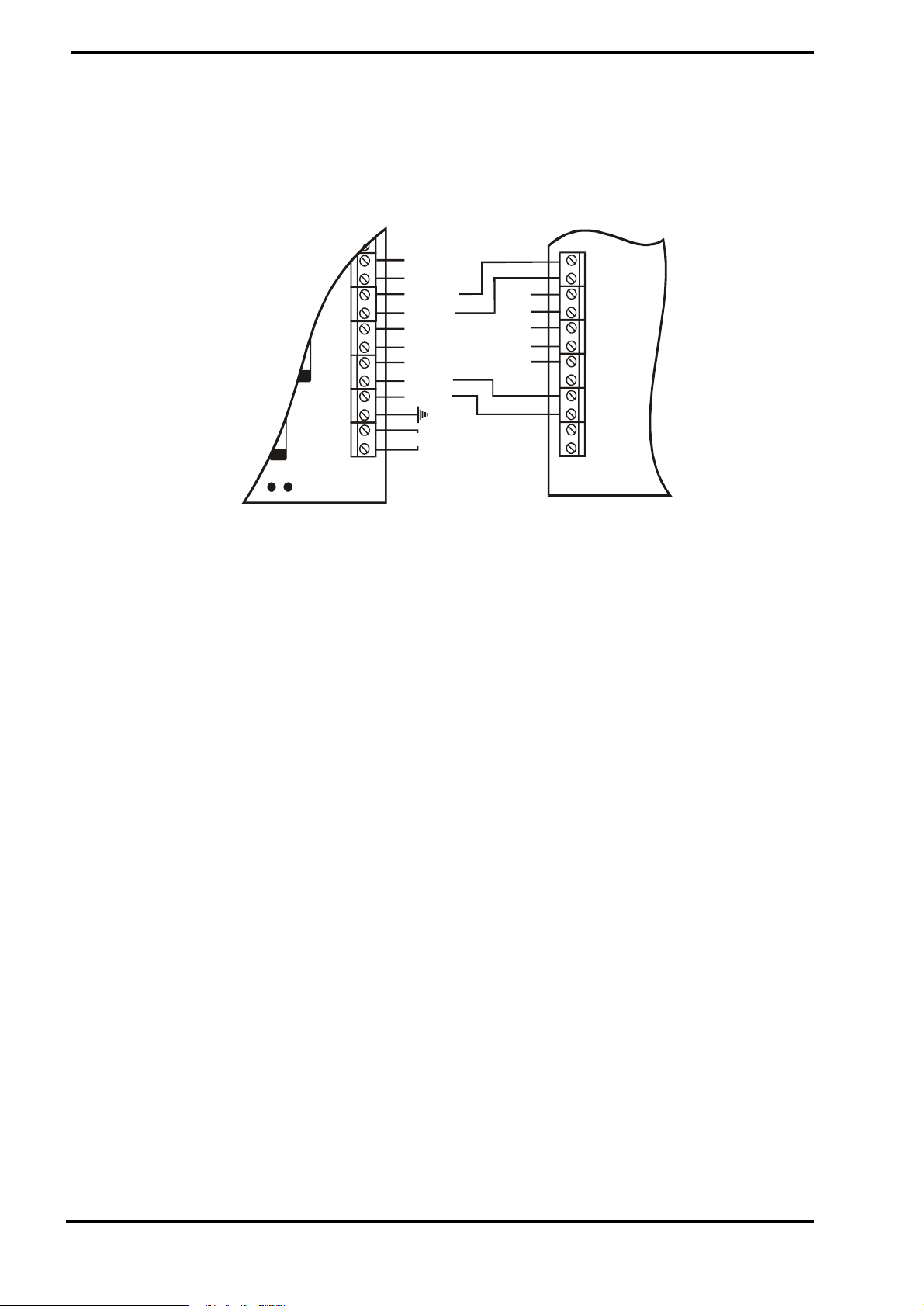

8. Internal Communicator Wiring
The telephone line is connected to A and B terminals of the CA60Plus security panel regardless the
polarity (See Fig. 10).
The phone is connected to A1 and B1 terminals of the CA60Plus security panel regardless the polarity
(See Fig. 10).
After powering up the security panel program the communicator parameters.
If the internal communicator will not be used additional units mounting is not necessary. In this case the
programming of the comunicator parameters is not advisable.
9. Powering up the Panel
Put the RESET jumper on the CA60Plus security panel to configure the panel with the parameters set
by default by the producer.
Power up 220 V AC. The keypad will produce a short audible signal and the LEDs on the display will
flash.
Take off the RESET jumper.
Connect the battery to the security panel through the RED (+) and the BLACK (-) cable.
The normal condition of the security panel (all the detectors are non-active and there are no troubled
TAMPER circuits) is indicated on the keypad by constantly illuminating green LED READY . The
security panel is programmed with the default parameters set by the producer.
If the keypad is open or incorrectly wired all the LEDs on the display will flash an an audible signal will
be heard.
If an open zone or TAMPER is present on the display will light the respective zone LED as well as the
MEMORY or the TAMPER LED.
ATTENTION! If an open TAMPER circuit is present in the the security system the siren
will be activated. Enter 1111 code to silence the siren. The respective zone LED will illuminate
constantly, the TAMPER LED will flash. Restore the trouble - the TAMPER LED will illuminate
constantly. By entering a 0000 code erase the alarm event memory.
10
TeleTek CA60Plus Installation Manual
B1
A1
B
A
}
Phone Line
Phone
}
Fig.10 Internal Communicator Connection

PART II. Programming the CA60Plus Parameters
There are two ways to program control panel - using LED keypad and using Remote
Programmrng software “Up/Down Load”.
A.ProgrammingtheCA60PlususingLEDkeypad
Begin programming the control panel only after reading the following instructions carefully.
Engineer parameters programming mode of CA60Plus control panel could be activated only
when the system is disarmed.
Engineer parameters programming mode of CA60Plus control panel is activated by pressing
the PROG key once and entering an engineer code:
{PROG}-> {engineercode}

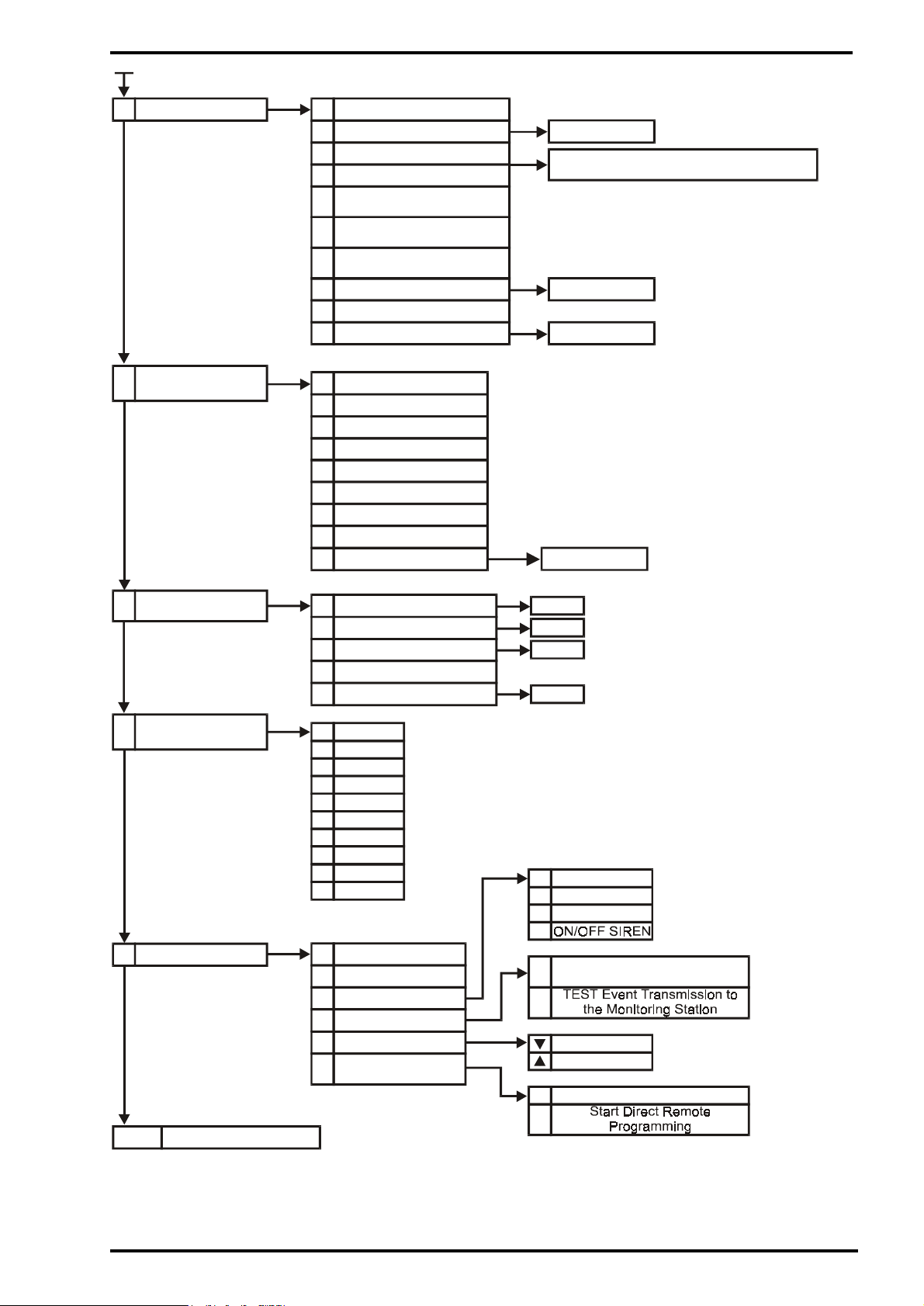

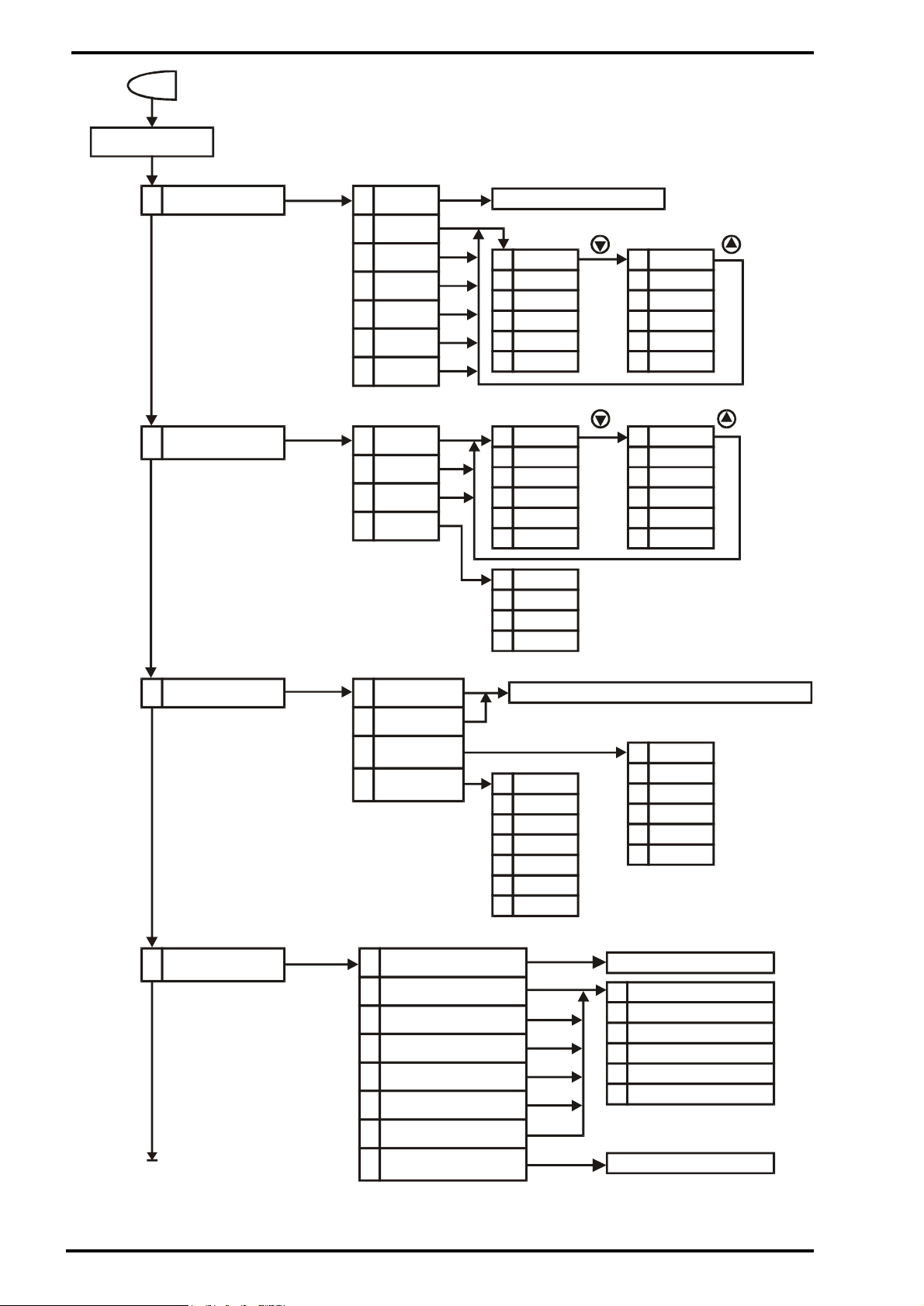

After a 2-digit address is entered the control panel parameters could be programmed. Use
the programming diagram shown on Fig. 11 and the detailed address descriptions in this manual.
The programming could be done in the order described on Fig. 11 or in an arbitrary order.
Appendix À contains a table of addresses and the panel configuration after RESET.
All the possible parameters, the indication on the keypad display and the necessary
manipulations for programming are described in details for each separate address.
The data for each address are confirmed by pressing ENTER.
When reviewing the programmed parameters the exiting of respective address by pressing
the CLEAR key once is advisable. This action will not change the existing parameters.
In case of a mistake when operating in the engineer menu it is advisable to exit the menu by
pressing the CLEAR key twice and to start the programming mode from the beginning.
B.ProgrammingtheCA60PlususingRemoteProgrammingsoftware“Up/Down
Load”
After installing there is a posibility to program control panel CA60Plus using Remote
Programming software in time period of 24 hours after RESET. The connection will be with
DEFAULT configuration of Up/Down Load parameters (addresses 54, 55, 56, 57, 58 and 59).
After 24 hour time period elapsed the Number of Rings parameter (address 58) becomes 0 and
remote access is imposible.
11
TeleTek CA60Plus Installation Manual

TeleTek CA60Plus Installation Manual
12
PROG
Engineer Code
4Code System
Managment
3Times
1 Zone Parameters
2Programmable
Outputs Parameters
0
1
2
3
Exit Time
Entry Time
Alarm Time
Duration
Alarm Time
Delay
1
2
3
4
5
6
MEDICAL
PS/bypass
AC LOSS
BAT LOW
FUSE
Pol +/-
1
2
3
4
ALARM
PANIC
TAMPER
FIRE
1
2
3
4
5
6
FOLLOW
DOUBLE
PART 1
PART 2
CHIME
FAST
1
2
3
4
5
6
Entry/Exit
ALARM
PANIC
TAMPER
FIRE
MEDICAL
1
2
3
4
PGM 1
PGM 2
PGM 3
SIREN
1
2
3
4
5
6
ALARM
PANIC
TAMPER
FIRE
FIRE/RST
ON/OFF
1
2
3
4
5
1 min
2 min
3 min
4 min
5 min
66min
1
2
3
4
5
01 min
2 min
3 min
4 min
5 min
0 min
66min
0Balancing
1
2
3
4
5
6
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Enabled/Disabled
7Master Code Access to
the User Codes Rights
1
2
3
4
5
6
User Code 1 Rights
User Code 2 Rights
User Code 3 Rights
User Code 4 Rights
User Code 5 Rights
User Code 6 Rights
0Arming by a Code
2
3
4
5
6
Arming
Arming PART 1
Arming PART 2
Event Memory Review
Zone Bypass
1Disarming
One Resistor/Two Resistors
Enabled/Disabled
Free Programmable Interval from 1 to 59 seconds
Zone X Type Zone X Attribute
Fi
g
. 11 CA60Plus Parameters Pro
g
rammin
g

TeleTek CA60Plus Installation Manual
13
Fig. 11 CA60Plus Parameters Programming - continue
Engineer Parameters
50Engineer Code Change
1
2
3
7
8
9
Hardware Reset
Software Reset
Partial Reset
Call Back
Number of Rings
Answering Machine
5
6
Press these keys as follows
<1>, <2>, <3>, <4>, <5>, <6> and <ENTER>
PC Account for
Remote Programming
Panel Account for
Remote Programming Enable/Disable
4PC Telephone Number for
Remote Programming
Enable/Disable
Enable/Disable
6Communicator
Parameters 1
2
3
4
Enable/Disable
0
5
6
7
8
Phone Number 2
Subscriber Account 2
Communication Report 1
Report Format 2
Phone Number 1
Subscriber Account 1
Report Format 1
Communication Report 2
Wait Dial Tone
8Communicator
Event Codes
9
4
5
8
7
6
MEDICAL
BYPASS
ON
OFF
TROUBLE
RESTORE
1
2
3
0ALARM
PANIC
TAMPER
FIRE
CLEAR ENGINEER MENU Exit
0
1
2
3
0
ON
End of Remote programming
5
Walk Test
Led Test
Output Test
Communicator Test
Remote Programming
Display
4Display Log
0
ON
End of Communication and
Non-transmitted Events Erasure
3
4ON/OFF PGM 3
2
1ON/OFFPGM1
ON/OFF PGM 2
Previous Event
Next Event
7Communicator Test
Parameters 0
1
2
4
3
Clock Settings
Test Report Time
Auto Reporting
Test Report Code
Line Fault Indication Delay
HH:MM
DD
MM
HH:MM
9 Test Modes

TeleTek CA60Plus Installation Manual
1. Zone Configuration
ADDRESS10 ZONEBALANCINGTYPE
In this address the zone balancing type is set. Each pressing of a digit key alters
the balancing type. The display indication is described in the table.
ALARM One balancing resistor. The LEDs from 1 to 6 light.
DUAL Two balancing resistors. The LEDs from 1 to 6 do not light.
DEFAULT :ALARM
ADDRESS11 ZONE1-TYPEANDATTRIBUTES
This address includes two submenus. In the first one is set the type of the zone,
in the second one - its attributes. The switching between the submenus is done
by the arrow keys.
ZONE1TYPESUBMENU
In this submenu for a certain zone only one type could be chosen. The choice is
done by pressing a digit number corresponding to the number of the desired
type.
1 ENTRY/EXIT Entry/Exit zone
2 ALARM Alarm zone
3 PANIC 24 hour Panic zone
4 TAMPER 24 hour Tamper zone
5 FIRE 24 hour Fire zone
6 MEDICAL 24 hour Medical zone
ZONE1 ATTRIBUTES SUBMENU
In this submenu the attributes for ZONE 1 are chosen. The zone could have
more than one attribute. Each attribute is activated/desactivated alternately by
pressing a digit key with the respective number. The attribute is active when the
respective LED lights. At the end of the procedure on the display should light
only the LEDs corresponding to the desired attributes.
1 FOLLOW Follow zone
2 DOUBLE KNOCK Double knock zone
3PART1 Part 1 zone
4PART2 Part 2 zone
5 CHIME Chime mode
6 FAST Fast zone
DEFAULT: Entry/Exit type with PART1 and CHIME attributes
ADDRESS12 ZONE2-TYPEANDATTRIBUTES
Programming as in address 11.
DEFAULT: ALARM type with FOLLOW attribute
ADDRESS13 ZONE3-TYPEANDATTRIBUTES
Programming as in address 11.
DEFAULT: ALARM type with PART2 attributes
ADDRESS14 ZONE4-TYPEANDATTRIBUTES
Programming as in address 11.
DEFAULT: ALARM type with PART2 attributes
14

ADDRESS15 ZONE5-TYPEANDATTRIBUTES
Programming as in address 11.
DEFAULT: PANIC type
ADDRESS16 ZONE6-TYPEANDATTRIBUTES
Programming as in address 11.
DEFAULT: TAMPER type
The zone types options and attributes are listed in Table 1
Table 1. Zone types and attributes
ENTRY/EXIT This zone provides time for arming and disarming the area.
When the system is armed, an activated detector in this zone will not cause an
alarm until the programmed EXIT TIME is expired.
When the armed zone is disturbed, the alarm will not be activated until the
programmed ENTRY TIME is expired.
When the ENTRY/EXIT TIME is running, an audible signal from the keypad
buzzer is heard.
ALARM This is an instant zone which could be activated only under Security Mode. It
activates the PGMs and the SIREN output having ALARM attributes and the
communicator.
When the zone is activated, the MEMORY LED and the zone LED light. After
disarming the system these LEDs continue lighting until a user code is entered
or the system is armed again.
In disarmed condition of the system the active status of this zone is indicated by
the respective LED flashing while the zone is open.
PANIC Silent Panic - only the programmable PANIC type outputs and the
communicator are activated. When the zone is activated, the respective LED
flashes. There is no memory indication. When a valid user code is entered the
MEMORY LED and the zone LED illuminate constantly. The memory is erased
either by reentering a valid user code or when the system is armed again.
Audible Panic - activates the PGMs and the SIREN output having ALARM
and/or PANIC attributes and the communicator. The sirens are instantly activated
regardless the programmed delay time. When the zone is activated, the
MEMORY LED and the zone LED illuminate constantly. The memory is erased
either by reentering a valid user code or when the system is armed again.
TAMPER The active status of this zone type activates the SIREN output, the TAMPER
programmed outputs and the communicator.
When the area is disarmed and the TAMPER siren output is programmed as
“silent”, the TAMPER activation will cause the keypads buzzer to produce an
audible signal.
When the zone is activated, the TAMPER LED and the zone LED illuminate
constantly. The memory is erased only by entering an engineer or a master
code. Constantly open TAMPER is indicated by flashing LED TAMPER.
FIRE Allows the connecting of 12 V fire detectors to the system. They should have a
normally closed dry contacts in passive condition and an open circuit in alarm
condition.
When the detector is activated, the SIREN output, the FIRE type proggrammed
outputs and the communicator are activated.
When the zone is activated the MEMORY LED flashes and the zone LED
illuminates constantly regardless the operating mode of the system.
The memory is erased either by reentering a valid user code or when the system
is armed.
15
TeleTek CA60Plus Installation Manual

MEDICAL When this zone type is activated, the MEDICAL type programmed outputs and
the communicator are activated. Regardless the status of the system, the LED
of the activated zone lights. The memory is erased either by reentering a valid
user code or when the system is armed.
FOLLOW The ALARM type zones could be programmed as FOLLOW zones. When the
ENTRY/EXIT TIME is running the user may enter this zone type without
activating the alarm. Otherwise the alarm starts immediately.
DOUBLE KNOCK The ALARM type zones could be programmed as DOUBLE KNOCK zones.
When a signal for activating a DOUBLE KNOCK zone occurs, a 3-minutes
time window starts running. If any zone is activated before the 3-minutes period
is expired, the alarm starts. If no alarm activation occurs in this time window,
the first activation is ignored. If the zone remains active for more than 15 sec
the alarm starts immediately.
PART1 Zone with PART1 attribute enters Partial Security Mode (PART SET1). The
zones with no such attribute are bypassed. The attribute is valid for ALARM or
ENTRY/EXIT type zones.
PART2 Zone with PART2 attribute enters Partial Security Mode (PART SET2). The
zones with no such attribute are bypassed. The attribute is valid for ALARM
or ENTRY/EXIT type zones.
CHIME In disarmed status of the system the activation of a zone with the CHIME
attribute causes a specific audible signal from the keypads. When the system is
armed, this zone acts as an ordinary ALARM or ENTRY/EXIT type zone. The
attribute is valid for the ALARM or ENTRY/EXIT type zones.
FAST When this attribute is set to certain zone, the time for scanning the entry signal
is reduced for the ALARM and ENTRY/EXIT type zones. This allows vibration
detectors without an analyser to be connected to this zone.
16
TeleTek CA60Plus Installation Manual

2. PGM AND SIREN PROGRAMMABLE OUTPUTS
CONFIGURATION
ADDRESS21 PGM1PROGRAMMABLEOUTPUT
In this address the events which will force the programmable output to move
into an active level are programmed.
A free combination of events activating the programmable output is allowed.
The output is activated whenever a programmed event occurs (function logical
OR) and is restored when all the programmed events are restored (function
logical AND).
Press the digit number corresponding to the desired parameter. If the LED with
the same number lights the parameter is set.
To switch between the first and the second group of parameters use the arrow
keys.
PGM1PROGRAMMABLEOUTPUT- FIRSTGROUPOF
PARAMETERS
1 ALARM Activated when an intervention into ALARM or ENTRY/EXIT zones under
Security Mode occurs. The output is restored by entering a valid user code or
automatically after 1 min.
3 PANIC Activated when a PANIC type zone or the PANIC keys combination are
activated. The output is restored by entering a valid user code.
3 TAMPER Activated when the tamper of a zone or a TAMPER type zone are activated
regardless the status of the system - armed or disarmed. The output is restored
when the tamper is restored.
4 FIRE Activated when a FIRE type zone is activated. The output is restored by entering
a valid code.
5 FIRE RST Activated for 4 seconds after entering a valid code.
6 ÎN/OFF Activated when the system is armed. The output is restored when the system is
disarmed.
PGM1PROGRAMMABLEOUTPUT- SECONDGROUPOF
PARAMETERS
1 MEDICAL Activated when a MEDICAL type zone is activated. The output is restored by
entering a valid user code.
2 PS/Bypass Activated when the system is armed with a bypassed alarm or ENTRY/EXIT
zone or a Partial Security Mode (PARTSET) is on. The output is restored when
the system is disarmed.
3 AC LOSS Activated when the 220 V AC is lost. The output is restored when the AC
power is restored.
4 BAT LOW Activated when the battery power is less than 11 V. The output is restored
when the battery power is restored.
5 FUSE Activated when any of the fuses of the panel is blown. The output is restored
when the fuse is replaced.
6 POL +/- This attribute chooses the output active level. When the “-“ is chosen (the LED
does not light) the active level is 0 V. When the “+” is chosen the output active
level is 12 V.
DEFAULT: ON/OFF, POL “+”
17
TeleTek CA60Plus Installation Manual

ADDRESS22 PGM2PROGRAMMABLEOUTPUT
Programming as in address 21.
DEFAULT:ALARM, TAMPER, POL “+”
ADDRESS23 PGM3PROGRAMMABLEOUTPUT
Programming as in address 21.
DEFAULT:AC LOSS, BAT LOW, FUSE, POL “+”
ADDRESS24 SIRENPROGRAMMABLEOUTPUT
The SIREN output is activated by 4 events. The active level of this output is low
(0 V) and could not be programmed.
A free combination of events activating this output is allowed. The output is
restored after the bell time - programmed in address 32 - is expired.
ALARM Activated when an intervention into ALARM or ENTRY/EXIT zones under
Security Mode occurs. The output is restored by entering a valid user or master
code or automatically after the bell time is expired.
TAMPER Activated when the tamper of a zone or a TAMPER type zone are activated
regardless the status of the system - armed or disarmed. In case the event is not
chosen to activate the SIREN output, it will cause an audible signal from the
keypads. The output is restored by entering a valid user or master code or
automatically after the bell time is expired.
PANIC Activated when a PANIC type zone or the PANIC keys combination is
activated. The output is restored by entering a valid user or master code.
FIRE Activated when a FIRE type zone is activated. The output is restored by entering
a valid code. This event ALWAYS activates the SIREN output and could
not be cancelled.
DEFAULT:ALARM, PANIC, TAMPER, FIRE/ALW
18
TeleTek CA60Plus Installation Manual

3. TIMES
ADDRESS30 EXITTIMEPROGRAMMING
EXIT TIME The EXIT TIME for the ENTRY/EXIT type zones is set in this address. The
number of seconds from 01 to 60 is entered. For a time period less than 10 sec
the first digit should be 0.
The lighting scale formed by the LEDs from 1 to 6 indicates the period.
Each lighting LED includes 10 seconds. For example if the LEDs 1, 2 and 3
light, the chosen time is 20 to 29 seconds.
DEFAULT: 45 seconds
ADDRESS31 ENTRYTIMEPROGRAMMING
ENTRY TIME The ENTRY time for the ENTRY/EXIT type zones is set in this address. The
number of seconds from 01 to 60 is entered. For a time period less than 10 sec
the first digit should be 0.
The lighting scale formed by the LEDs from 1 to 6 indicates the period.
Each lighting LED includes 10 seconds. For example if the LEDs 1, 2 and 3
light, the chosen time is 20 to 29 seconds.
DEFAULT: 15 seconds
ADDRESS32 BELLTIMEPROGRAMMING
BELL TIME The bell time period is set in this address. The number of minutes from 1 to 6 is
entered.
The lighting scale formed by the LEDs from 1 to 6 indicates the period. Each
lighting LED includes 1 minute.
DEFAULT:3 minutes
ADDRESS33 BELLDELAYTIMEPROGRAMMING
BELL DELAY The bell delay time is set in this address. The number of minutes from 1 to 6 is
entered.
The lighting scale formed by the LEDs from 1 to 6 indicates the period. Each
lighting LED includes 1 minute.
DEFAULT:0 minutes
19
TeleTek CA60Plus Installation Manual

4. CODE SYSTEM MANAGEMENT
ADDRESS40 SETWITHCODE
NO Full or Partial arming of the area does not require confirmation by entering a
valid user code. The LEDs from 1 to 6 do not light.
YES Full or Partial arming of the area requires confirmation by entering a valid user
code. The LEDs from 1 to 6 light.
DEFAULT: NO
ADDRESS41 USERCODE1ATTRIBUTES
In this address the USER CODE1 attributes are set. The user code could have
more than one attribute. An attribute is activated/desactivated alternately by
pressing the digit of the respective number. The choice is indicated by lighting of
the LED with the number of the pressed digit. At the end of the procedure on
the display should light only the LEDs responding to the desired attributes.
1 Unset Enables this user code to disarm the area.
2 FullSet Enables this user code to arm the area.
3 Part Set 1 Enables this user code to arm PART1 of the area.
4 Part Set 2 Enables this user code to arm PART2 of the area.
5 Log Gives this user code an access right to the event memory.
6 Bypass Gives this user code a right to bypass zones in the secured area.
DEFAULT:UNSET, FULLSET, PART SET1, PART SET2, LOG, BYPASS
ADDRESS42 USERCODE2ATTRIBUTES
Programming as in address 41.
DEFAULT:No
ADDRESS43 USERCODE3ATTRIBUTES
Programming as in address 41.
DEFAULT:No
ADDRESS44 USERCODE4ATTRIBUTES
Programming as in address 41.
DEFAULT:No
ADDRESS45 USERCODE5ATTRIBUTES
Programming as in address 41.
DEFAUL]T : No
ADDRESS46 USERCODE6ATTRIBUTES
Programming as in address 41.
DEFAULT:No
ADDRESS47 MANAGERACCESSTOTHEUSERCODEATTRIBUTES
NO The access of the manager to the user codes rights is denied.
The LEDs from 1 to 6 do not light.
YES The access of the manager to the user codes rights is allowed.
The LEDs from 1 to 6 light.
DEFAULT:YES
20
TeleTek CA60Plus Installation Manual
