TensCare itouch easy User manual

Distributed by:
easy
Instructions for Use
INTELLIGENT TENS
TensCare Ltd, 9 Blenheim Road,
Longmead Business Park,
Epsom, Surrey KT19 9BE, UK
Tel [phone]
Email: [email protected]
www.tenscare.co.uk
Pub Ref : I-ITE-UK Rev 2.0 11/13

Contents
Section Page
1 Introduction 1
2 Special Features 1
3 How TENS works 3
4 Side Effects 4
5 The Programmes 4
6 Programme Information 7
7 Controls and Screen Information 9
8 Contents 15
9 Installation of Batteries 15

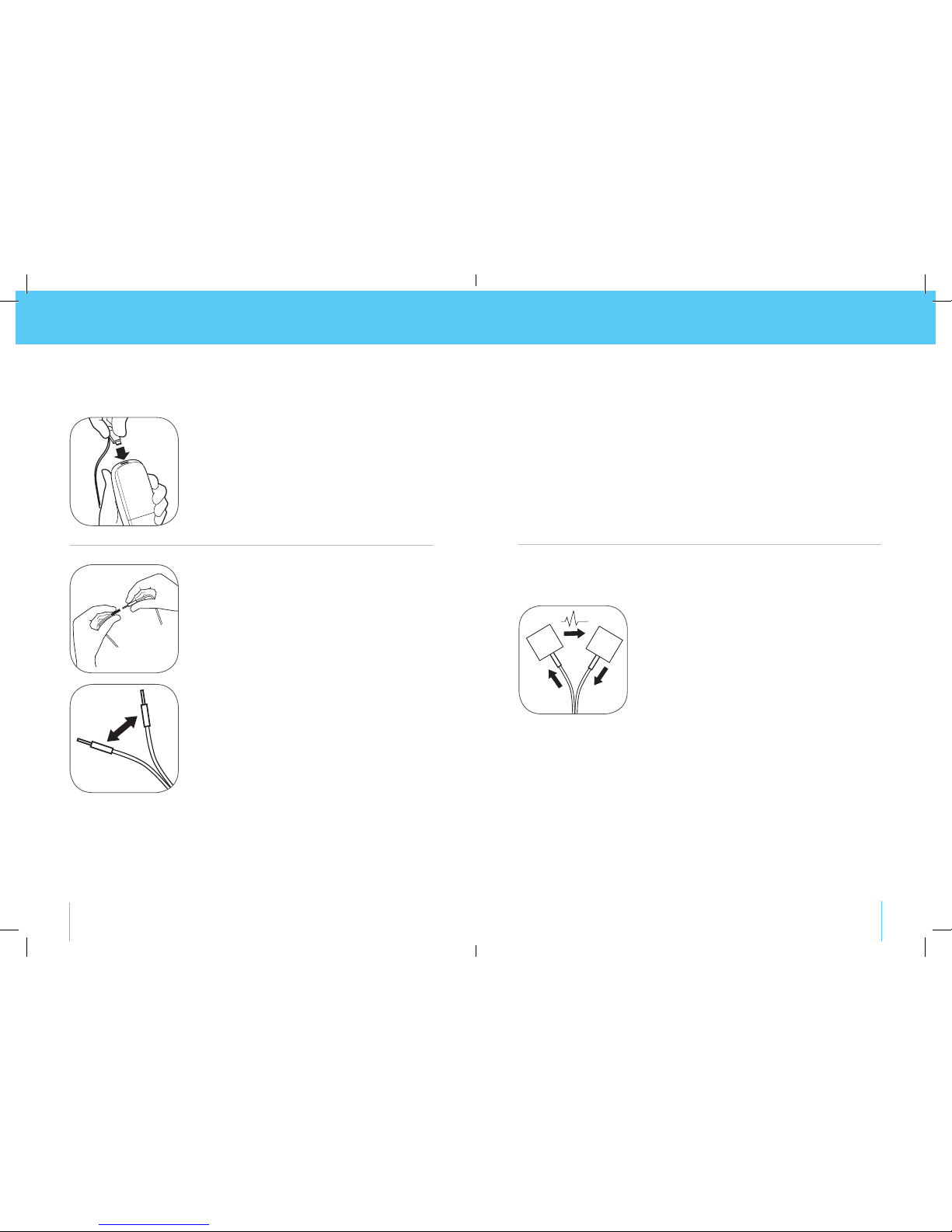

10 Connecting Mono Lead wire 17
11 Positioning of Electrode Pads 18
12 General Pad Advice 20
13 Pad Alarm 22
14 The Belt Cradle 23
15 Cleaning 23
16 Troubleshooting 25
17 Caution and Warnings 25
18 Guarantee 29
19 Consumables and servicing 30
20 WEEE 31
21 Technical Specifications 33
easy

2
1
1. INTRODUCTION
The “itouch easy” as its name suggests is wonderfully easy to
use yet offers the very best in TENS pain relief. It is the result
of considerable research and represents a new generation of
TENS units.
2. SPECIAL FEATURES
• Pad Alarm
Perfect pad contact and condition is important to obtain maximum
benefit from any TENS unit. To ensure best performance the “itouch
easy” has been fitted with a “Pad Alarm” that shows you if the
contact of any of the four pads to your body is lost or below standard.
You might otherwise not be aware of the break in contact which
would interrupt the benefit being obtained from the unit.
• Comfort Strength Control (CSC)
Gives a gentle and reproducible stimulation. “CSC” monitors skin and
pad resistance and adjusts the output to maintain a constant feeling.
This gives you greater comfort and takes away the possibility of getting
an unpleasant spike in strength if a pad starts coming away from the
body. With “CSC” you can increase the strength on the “itouch easy”
in very small steps which is much more comfortable than conventional
TENS units.
• One Touch Memory Start
The “itouch easy” has a memory which allows it to remember the
last programme and intensity that was used. On start up, at the touch
of only ONE button, the “itouch easy” will automatically return to
the last programme used and to around 75% of the intensity. The
intensity gently “ramps” up to this level. The intensity can be stopped
at any time by pressing any button. The 75% level takes into account
accommodation that the body may have experienced.
• Mono Lead Wire
To ease set up and use, a new unique mono lead wire has been
developed. This lead wire has only one plug connector which goes into
the unit but at the other end it has four pin ends for connection
to pads.
OTHER FEATURES
• Medically proven programmes
The “itouch easy” is supplied with 8 preset programmes all of which
have been clinically proven to give high levels of pain relief.
• Backlit LCD screen for easy reading
Whenever a button is pressed the screen will light up from the back
making the screen easy to read and very clear.

4
3
3. HOW “TENS” WORKS
TENS stands for Transcutaneous Electrical Nerve Stimulation. TENS
stimulates your body’s own natural defences against pain, namely
the release of endorphins. TENS is totally safe, has been used
successfully by thousands of pain sufferers.
THE ADVANTAGES OF TENS
Totally Safe • Easy to Use • Drug Free
TENS sends a gentle stimulation through the skin which works
in TWO ways:-
• Pain Gate
Stimulating the sensory nerves, which carry touch and temperature
signals. These nerves go to the same connections in the spine as the
nerves carrying pain. A strong sensory signal will block the pain signal
travelling up the spine to the brain, this is known as closing the “Pain
Gate” and takes effect quite quickly after the unit is switched on.
You can use TENS several times a day, for as long as you like.
• Endorphin Release
At low frequency settings, and slightly stronger output, TENS drives the
motor nerves to produce a small repetitive muscle contraction. This is
seen by the brain as exercise, and this promotes release of Endorphins
- your body’s own natural pain killer. The relief builds up and normally
takes about 40 minutes to reach a maximum level which can last for
hours after the machine is switched off. By using TENS you can expect
to achieve a significant reduction in pain if not complete pain relief.
4. SIDE EFFECTS
There are no known side effects to TENS use and long-term TENS
use is not harmful.
5. THE PROGRAMMES
There is no one programme appropriate for a particular condition,
and the most appropriate varies from one person to another, even if
they have the same type of pain. Therefore, the selection of both the
programmes and the positioning of the pads should be performed on
an individual basis. You may need to try a few positions/programmes
before finding the one that suits you the best.
The following grid summarises the programmes available and how
they vary. All the programmes are effective for chronic pain, which
continues or recurs over a prolonged period and the programmes B,
C, D and H are effective for acute pain, such as pain caused by sports
injury or an accident. Some programmes are particularly effective for
certain pains. These have been indicated under the “Specific uses”
section. The “itouch easy” has 8 pre-set pain relief programmes.
If you are using TENS for the first time, it is recommended that
you start with programme A. TENS can be used for as long as is
necessary. Continuous treatment is fine, but electrode pads should be
repositioned regularly (at least every 12 hours) to allow the skin to be
exposed to the air. The Endorphin Release modes work better when the
strength is high enough to cause small muscle contractions.
Best results are achieved at between 20 and 40 minutes.

6
5
Pr Output Sensation Specific Uses
A Constant Tingling/Pins and needles Most types of chronic
sensation. Increase strength and acute pain
slowly until a strong but including arthritis, sciatica
comfortable sensation. and rheumatism.
Pain Gate
B Constant Pulsing or tapping sensation Back pain, arthritis and
associated with muscle rheumatism.
contractions. Increase the Not for injured muscles.
strength to a level that just Endorphin Release
produces muscle activity.
C Burst Stimulus is delivered in Back pain, arthritis
bursts, i.e. a group of pulses and rheumatism.
rather than a single pulse. Not for injured muscles
You will get muscle activity Pain Gate/Endorphin
at a lower strength and
thus you may find it
more comfortable.
D Constant Is similar to B, but has a Menstrual pain, nausea,
Freq specifically travel sickness and
recommended for nausea, morning sickness.
travel sickness and morning Not for injured muscles
sickness (see body map for
position of electrode pads).
Pr Output Sensation Specific Uses
E Constant This is similar to A, but has Most types of acute
deeper penetration and a and chronic pain
stronger feel. It is more including arthritis,
likely to produce muscle sciatica and
contractions at a rheumatism.
lower strength. Pain Gate
F Modulated This is similar to E, but Most types of acute and
with the pulse width chronic pain including
modulating continuously, arthritis, sciatica
this gives a pleasant slow and rheumatism
relaxing massage sensation. Pain Gate
G Modulated This constantly modulates Most types of acute and
the frequency between 20 chronic pain including
and 100 Hz over 12secs. arthritis, sciatica
The continuous change and rheumatism
helps prevent
accommodation occurring. Pain Gate
H Han This gives 3 seconds of Back pain & arthritis.
Stimulation tapping, followed by 3 Not for injured muscles
seconds of tingling. The Pain Gate/Endorphin
strength is adjusted
automatically to keep the
stimulation comfortable
as the frequency changes
N.B. Chronic Pain is pain that continues or recurs over a prolonged period, such as
Arthritis and Sciatica. Acute Pain is severe pain following a sports injury or accident,
such as a strained or pulled muscle.

8
7
6. PROGRAMME INFORMATION
• Frequency (measured in Hz - pulses per second)
A frequency of 110 Hz is good at blocking pain signals.
A low frequency of 4 or 10 Hz allows for the release of endorphins,
the body’s natural morphine-like substances.
• Pulse Width (measured in µS - millionths of a second)
The “itouch easy” units offer a range of pulse widths from 50 to 250 µS.
The feeling through the pads will vary depending on the pulse width.
• Constant and Burst Modes
Constant mode is when the sensation is continuous as against Burst
mode when the sensation, is as its name implies, is one of on and off.
• Modulation Modes
Modulation is when either the frequency or pulse width sweep across
range of settings. This enables the body to receive many different signals
and can be very beneficial and lessen any effect of accommodation.
See programmes F and G.
• Han Stimulation
Professor Han in China found that alternating very low (2Hz) and
medium (110Hz) frequency gave best pain relief in his research studies.
See programme H.
Programme Output Frequency Hz Pulse Width µS
A Constant 110 50
B Constant 4 200
C Burst 2 bursts of 100Hz per sec.
D Constant 10 200
E Constant 110 200
*F Modulated Strength/
Duration 110 50-250
**G Modulated 20-110 200
***H Han Stimulation 2Hz/110Hz 200/100
*F - The pulse width modulates from 50 up to 250 and back in 12 seconds,
whilst intensity is modulating from chosen level down 70% and back.
**G - The frequency modulates from 20 -100 and back in 12 seconds.
***H - The frequency is set at 2 Hz for 3 seconds and then changes to
110Hz for 3 seconds. This is repeated continuously.
PROGRAMME SETTINGS

10
9
7. CONTROLS
Programme
Selector
Lock Button
Channel 2
Strength
UP
Channel 2
Strength
DOWN
Channel 1
Strength UP
Time Selector
Channel 2
Strength UP
7. SCREEN INFORMATION
Programme
selected
Frequency
selected
Channel 1
strength
selected
Pulse
width
selected
Channel 2
strength
selected

12
11
One Touch Memory Start
When switched on the unit will
automatically start in the programme which
was being used when it was switched off.
The strength increases to about 75% of the
level when the unit was last used. To stop
the increase in strength at any time, press
any key once.
Channel 1 Strength DOWN / OFF button
To lower the strength: Press and release
this button. The strength reduces by 2.0mA
each time (four times the rate of increase)
When the strength gets down to zero the
unit will then switch off. Alternatively to
switch the unit off press and hold down this
button for 3 seconds.
ON / Channel 1 Strength UP button
Note: Channel 1 controls the output through the
white leads.
To switch unit on: Press and hold down
for 3 seconds.
To increase Strength: Press and hold
down until required strength is achieved.
No sensation will be felt through the pads
until the strength has reached at least the
2.5mA level. (See bottom left hand corner
of screen).
The strength increases in very small
steps (0.5mA) thereby giving a soft and
comfortable sensation. Increase the
strength until it feels strong but still
comfortable. The body acclimatizes to the
feeling through the pads therefore to keep
the sensation constant increases in strength
may be necessary.

14
13
Channel 2 Strength UP button
Note: Channel 1 controls the output
through the black leads.
To increase strength: Press and hold
down until required strength is achieved.
No sensation will be felt throughthe pads
until the strength has reached at least the
2.5mA level. (See bottom right hand corner
of screen).
Channel 2 Strength DOWN button
To lower the strength: Press and release
this button. The strength reduces by 2.0mA
each time (four times the rate of increase).
Programme Selector button
The “itouch easy” has 8 medically proven
programmes. The programme selected will
appear in the top left hand corner of the
screen. To select the next programme press the
Programme Selector button and release. The
programmes are shown as A,B,C,D,E,F,G or H.
Time Selector button
Each time the unit is switched on it defaults
back to continuous mode, known as TIMER
OFF. There are four other time periods
available, 15, 30 45 and 60 minutes. In
order to set any of these time periods press
and release the Time Selector button until
the required time period is shown in the
screen. During use within the four time
periods, the unit counts down the minutes
set and switches off when it reaches zero.
Lock button
In order to lock the keypad press and
hold down the Lock button until the
word “LOCK” appears on the screen.
To unlock the keypad press the button
and hold down the button again until the
word “LOCK” is no longer on the screen.
The Lock button is situated on the right
hand side of the unit.
Screen display shows:

16
15
8. CONTENTS
• “itouch easy” Pain Relief unit
• Belt Cradle
• Mono Lead wire
• Pack of 4, 50x50mm, superior self-adhesive electrode pads
(item code: E-CM5050)
• AA 1.5v (Type LR6) batteries (2)
• Instruction Manual
• Storage Pouch
9. INSTALLATION OF BATTERIES
Remove Battery Cover
Press down in centre of battery cover
and slide backwards in direction of
raised arrows.
9. INSTALLATION OF BATTERIES
Insert batteries
Ensure that the ribbon goes behind the
batteries to aid removal.
Ensure that the batteries are inserted the
right way as shown in battery compartment.
When the batteries are running low a low
battery indicator will show on the screen
(battery symbol). and it is important to
change the batteries as soon as possible.
Rechargeable batteries: It is possible to use
rechargeable batteries.
Disposal of batteries: Always dispose of
batteries safely. Do not throw onto a fire.
Warning: Keep batteries out of the
reach of small children •
If battery leakage occurs and comes in
contact with the skin or eyes, wash
thoroughly with lots of water.
• Do not mix alkaline and rechargeable
batteries • Do not attempt to recharge
alkaline batteries
!

18
17
10. CONNECTING MONO LEADWIRE
11. POSITIONING OF ELECTRODE PADS
The following body maps in this instruction
booklet will show you where to place the
electrode pads for a range of common
complaints, dependent on your symptoms.
For symptoms not illustrated, apply the
pads around/near to the source of the
pain or seek advice from your doctor
or physiotherapist.
The electrode pads must always be used in
pairs, so that the signal can flow in a circuit.
NOTE: Always check unit is OFF before
attaching or removing pads.
Insert the Mono leadwire plug into the base
of the unit. Please note that it has been
designed to only insert one way.
Attaching the electrode pads to
Mono Lead wire
At the other end of the Mono Lead wire,
the lead wire splits into four pin ends,
2 white and 2 black. Push the pin ends into
the pigtail ends of the electrode pads.
The mono lead wire can be split as required
and adjust the toggle as necessary.
Mono Lead wire colour coding
L-IT … Mono Lead wire (dual channel), as
supplied with the unit, has FOUR wires for
use with four pads. Two of the wires are
white and the other two are black. Channel
1controls the output to the white wires and
Channel 2 to the black wires.
It is also possible to use L-IT Mono Lead wire (dual channel) with
only two pads using only the white lead wires. In which case the
black lead wires, as they are not in use, can safely be put to the
side - There is no risk from the exposed pins.
L-IT-1 Mono Lead wire (single channel) can be purchased as an
accessory. This lead is for those who only wish to use two pads
through Channel 1.

20
19

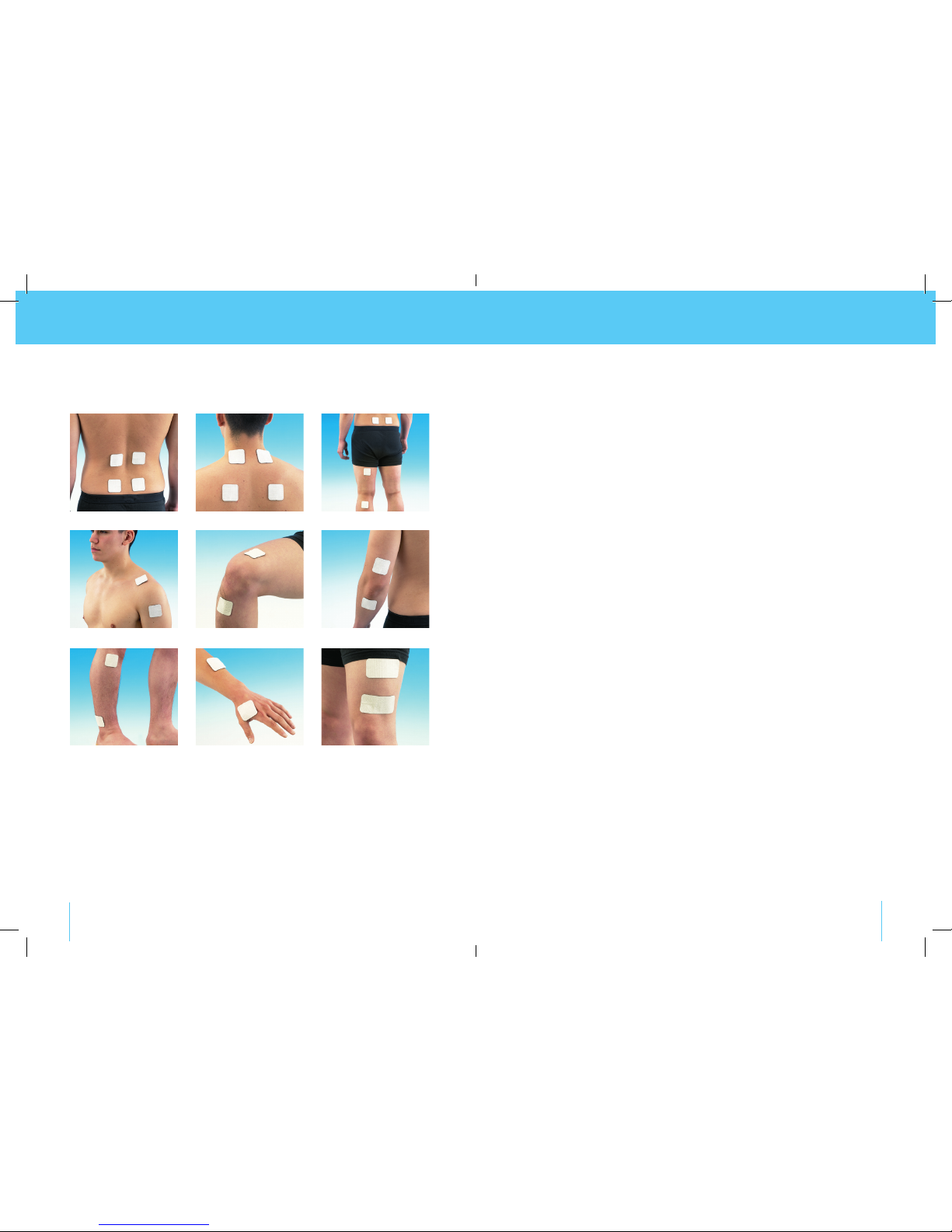

Lower Back Neck and Shoulder Sciatica
Shoulder Knee Elbow
Ankle Wrist Leg
11. POSITIONING OF ELECTRODE PADS (cont)
Where only two pads are shown on the arm, shoulder, and leg, use
the other two pads either on the opposite limb or place all four pads
on the same limb in a square pattern with each pad being about 4
inches apart.
12. GENERAL PAD ADVICE
• The electrode pads supplied are reusable but are for single
patient use.
• In order to obtain the best conductivity through the pads
always ensure that they are in good condition and tacky.
• Before use make sure your skin is clean and dry.
• Peel the electrode pads from their protective plastic shield by
holding and lifting one corner of the pad and pulling. Do not
pull on the pigtail wire of the pad.
• After use always replace the pads on the plastic liner and
replace in the re-sealable plastic bag.
• If the pads dry out then it is best to buy a replacement pack
of electrodes. In an emergency it may be possible to restore
some of the tackiness of the pad by adding a tiny drop of water
on each pad and spreading around. If too much water is added
the pads will become too soft then it is suggested in order to try
re-establish some adhesiveness to place them sticky side up in a
refrigerator for a few hours.
• In very hot weather the gel on the pads may become soft. In
such cases place the pads, still on their plastic liners and in
their bag into a fridge until they return to their normal condition.

22
21
12. GENERAL PAD ADVICE (cont)
• The pads provided are latex –free.
• Replace pads when they lose their stickiness.
Poor connection may cause discomfort and skin irritation
• Storage life of an unopened pack of electrodes is 2 years.
This may be affected by very high temperatures or very
low humidity.
13. PAD ALARM
Perfect pad contact and condition is important to obtain maximum
benefit from any TENS unit. To ensure best performance the
“itouch easy” has been fitted with a “Pad Alarm”.
If the contact between any of the pads and the skin or the quality
of the pads is below the required standard the pad alarm will be
triggered. An audible bleep will be heard and at the top of the
screen the word “PADS” will flash.
When the pad alarm is triggered, the Comfort Strength Control
facility will automatically lower the intensity to a comfortable level
thereby avoiding the possibility of any electrical shock, however
small. If the alarm is triggered due to the pads coming partly away
from the body, then when they are put back the intensity will
automatically return to the original level.
The “PADS” alarm does not function on either channel when the
intensity levels are below 5.0mA.

24
23
14. THE BELT CRADLE
In order to be able to wear the “itouch easy” around the waist a
belt cradle is supplied.
Attaching the belt cradle: To attach the belt cradle push the
“itouch easy” upwards into the cradle so that it slides between
the two sides of the cradle and slots into it with the two notches
on the inside of the cradle going into the two holes in the top of
the unit.
Removing the belt cradle: To remove the cradle push a finger
through the hole at the back of the cradle while holding onto it.
NB: Do not attach the mono leadwire before attaching the belt
craddle to the unit and it is necessary to detach the mono leadwire
before removing the craddle
15. CLEANING
The case and lead wires can be cleaned by wiping with a damp
cloth and a solution of mild soap and water. Wipe dry.
Do not immerse your TENS machine in water.
Do not use any other cleaning solution than soap and water.
Clean the case and lead wires at least once a week by wiping with
a damp cloth and a solution of mild soap and water. Wipe dry.
16. TROUBLESHOOTING
Problem Possible causes Solution
No display Flat batteries Replace batteries
Batteries inserted incorrectly Check
Damaged battery contacts Contact supplier
Low battery display Low batteries Replace batteries
No sensation Incorrect connection Have you applied both
electrode pads (per lead wire)
to ensure a complete circuit?
Not strong enough Increase strength.
Most users will feel something
at a setting below 20
Pad Alarm Poor pad condition Ensure machine is attached to
your body correctly.
Clean skin and press pad firmly.
Wait 5 minutes for pad to
absorb skin moisture.
Lead not connected to Are you using left hand
body correctly control for two white leads
and right hand control for two
black leads?
Lead faulty/damaged Purchase replacement
if necessary.
If the above review has failed to resolve your problem, call TensCare or your local
dealer (address on back cover) for advice.

26
25
16. TROUBLESHOOTING
If your TENS machine is not working properly please check
the following:
BATTERIES:
i) Have they been fitted correctly? ii) Do they need replacing?
PADS:
If PADS signal is flashing:- i) Have you applied both electrode pads
(per lead wire) to ensure a complete circuit? ii) Are the lead wires
properly connected at both ends?
If the above review has failed to resolve your problem, call
TensCare or your local dealer (address on back cover) for advice.
17. CAUTIONS & WARNINGS
Do not use TENS :
• If you have a heart pacemaker or have a heart rhythm problem.
TENS in the direct vicinity of a pacemaker may affect some
models. If TENS is applied on the front of the neck this can
affect your heart rate. Very strong TENS across the chest may
cause an extra heartbeat.
• If you have epilepsy. TENS may affect seizure threshold.
• During the first three months of pregnancy. It is not known
whether TENS may affect foetal development.
• On the abdomen in the later stages of pregnancy.
Stop use immediately if you experience unexpected contractions.
• When driving, operating machinery, or similar actions
needing fine control. Loose pads, damaged leads, or
sudden changes in contact may cause brief involuntary
muscle movements.
• To mask or relieve undiagnosed pain.
May delay diagnosis of progressive condition.
Caution :
• Observe caution when using the Itouch Plus at the same
time as being connected to monitoring equipment with
body worn electrode pads. It may interfere with the signals
being monitored.
• Strong electromagnetic fields (electrosurgery/microwave
cookers/mobile phones) may affect the correct operation of
this unit - See section 21. If it appears to behave unusually,
move it away from these devices.
• Use caution following recent surgical procedures.
Stimulation may disrupt the healing process.

28
27
Do not place electrode pads :
• On broken skin
The pads could encourage infection.
• On skin which does not have normal sensation.
If the skin is numb, too great a strength may be used, which
could result in skin inflammation.
• On the front of the neck
Could cause the airway to close, giving breathing problems.
May cause sudden drop in blood pressure (vasovagal response).
• Over the eyes-
May affect eyesight or cause headaches.
• Across the front of the head
Effect on patients who have had strokes or seizures is not known.
May affect sense of balance.
The effects of stimulation of the brain are unknown.
• Near malignant tumours
In vitro experiments have shown that electricity can promote
cell growth.
Do not:
• Ignore any allergic reaction to the electrode pads:
If a skin irritation develops stop using TENS, and try a different
type of electrode. Alternative pads specially made for sensitive
skin are available, see section 16
Also do not :
• Immerse your TENS unit in water or place it close to
excessive heat.
It may cease to operate correctly
• Attempt to open up or modify the TENS unit.
This will invalidate the guarantee and may affect safe operation.
• Mix old, new or different types of batteries.
• Use this device with leads, electrodes, and accessories other
than those recommended by the manufacturer.
Performance may vary from specification or
cause skin inflammation.

30
29
17. CAUTIONS & WARNINGS (cont)
Caution:
• observe caution when using electrotherapy at the same time
as being connected to electro-monitoring equipment with body
worn electrode pads as interference may occur with the signals
to the electro-monitoring equipment.
Do:
• Remove batteries from your TENS machine if the unit is unlikely
to be used for a long period.
18. GUARANTEE
Your TensCare device is guaranteed for two years from the date
of purchase. If a fault develops return the unit to TensCare at the
address below, together with a copy of your invoice and details of
the problem. The guarantee does not cover the batteries, electrode
pads or mono lead wire.
Please note that the Guarantee is invalidated if
i) incorrect batteries have been fitted ii) the unit has been
immersed in water, maltreated or tampered with.
19. CONSUMABLES AND SERVICING
Replacement electrode pads, new batteries and lead wires are
available from your supplier or distributor (see back cover for contact
details), by mail order from TensCare, by telephone using a credit or
debit card, or through our website.
Accessories/Spares
The following replacement parts may be ordered from Tenscare
E-CM5050 Pack of 4 50x 50 Electrode pads:
L-IT Mono Lead wire (dual channel):
L-IT-1 Optional single channel lead
B-AA Batteries 1.5V AA batteries
X-IT-BC Replacement belt cradle
X-IT-BAT Replacement Battery cover
Rechargeable batteries and charger are available.
Contact us for details.
Expected Service Life
• The machine will often last for more than 5 years, but
is guaranteed for 2 years. Accessories (leads, pads, and batteries)
are not covered by the guarantee.
• Lead life depends greatly on use. Always handle the leads with care
• Pads should last 12-20 applications, depending on skin
condition and humidity.
• AA Alkaline Batteries should last about 48 hours continuous use.

32
31
20. DISPOSAL OF WASTE ELECTRICAL AND
ELECTRONIC PRODUCTS (WEEE)
One of the provisions of the European Directive 2002/96/CE is that
anything electrical or electronic should not be treated as domestic
waste and simply thrown away. To remind you of this Directive
all affected products are now being marked with a crossed-out
wheelie bin symbol, as depicted below.
To comply with the Directive you can return your old electro-
therapy unit to us for disposal. Simply print a postage-paid
PACKETPOST RETURNS label from our website www.tenscare.
co.uk, attach this to an envelope or padded bag with the unit
enclosed, and post it back to us. Upon receipt we will send your
old device for components recovery and recycling to help to
conserve the world’s resources and minimise any adverse effects
on the environment.

34
33
21. TECHNICAL SPECIFICATION
Waveform Asymmetrical Bi-Phasic
Amplitude (over 500 ohm load) 70mA zero to peak +ve in
steps of 0.5mA
Constant current over
500-1500 Ohm
Constant voltage when
PADS signal shows.
Output plug Fully shielded: touch proof
mini USB
Channels Dual Channel
Batteries 2 x AA Alkaline
(Two AA batteries) OR
rechargeable NiMH
Weight 90 gms without batteries
Dimensions 110 x 53 x 30 mm
Safety Classification Internal power source. Type BF
Designed for continuous use.
No special moisture protection.
Environmental Specifications: Temperature range:5 to 40C
Operating: Humidity: 15 to 93% RH non-condensing
Storage: Temperature range: -25-+70C RH 93%
non condensing
Contact Duration: at least 10 minutes
TYPE BF Equipment providing a degree of protection
EQUIPMENT against electric shock, with isolated
applied part.
This symbol on the unit means
“Refer to Instructions for use”
The unit is not water resistant, and
should be protected from liquids.
NB: The electrical specifications are nominal and subject to variation from the listed
values due to normal production tolerances
EC Declaration of Conformity
TensCare Ltd hereby declare that an examination of the production quality
assurance system has been carried out following the requirements of the
UK national legislation according to Annex V of the Directive 93/42/EEC on
medical devices. We certify that the production quality system conforms
with the relevant provisions of the aforementioned legislation, and the result
entitles the organization to use the CE 0473 marking on this product.
The first number2: Protected against access to hazardous parts
with a finger, and the jointed test finger of 12mmø, 80mm
length, shall have adequate clearance from hazardous parts, and
protected against solid foreign objects of 12.5mmø and greater.
The second number 2: Protected against vertically falling water
drops when enclosure is tilted up to 15˚. Vertically falling drops
shall have no harmful effects when the enclosure is tilted at any
angle up to 15” on either side of the vertical.
IP22

36
35
EMC PRECAUTIONS
Use special precautions regarding EMC according to the information
provided below.
Other portable and mobile RF communications equipment can affect performance.
Do not use when adjacent to or stacked with other electrical equipment. Use of
leads or probes other than those listed in section 18 may affect EMC performance.
The Itouch Plus is intended for use in the electromagnetic environment specified
below. The customer or the user of the Itouch Plus should assure that it is used in
such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment guidance
Electrostatic ±6 kV contact ±6 kV contact Floors should be wood, concrete or
discharge (ESD) ±8 kV air ±8 kV air ceramic tile. If floors are covered with
IEC 61000-4-2 synthetic material, the relative
humidity should be at least 30 %.
Electrical fast ±2 kV for power supply Not applicable Not applicable
transient/burst lines
IEC 61000-4-4 ±1 kV for Input/output lines
Surge ±1 kV differential mode Not applicable Not applicable
IEC 61000-4-5 ±2 kV common mode
Voltage dips, short <5 % UT (>95 % dip in Not applicable Not applicable
interruptions and UT) for 0,5 cycle
voltage variations 40 % UT(60 % dip in
on power supply UT ) for 5 cycles
input lines 70 %UT (30 % dip in
IEC 61000-4-11 UT )for 25 cycles
<5 % UT (>95 % dip
in UT ) For 5s
Power frequency 3 A/m Not applicable Not applicable
(50/60 Hz) magnetic
field IEC 61000-4-8
NOTE UT is the a.c. mains voltage prior to application of the test level
Guidance and manufacturer’s declaration - electromagnetic emissions
The itouch Sure is intended for use in the electromagnetic environment specified below.
The customer or the user of the itouch sure should assure that it is used in such an environment.
Emissions test Compliance Electromagnatic environment - guidance
RF emissions Group 1 The model itouch uses RF energy only for its
CISPR 11 internal function. Therefore, its RF emissions are very
low and are not likely to cause any interference in
nearby electronic equipment.
RF emissions Class B The model itouch is suitable for used in domestic
CISPR 11 establishment and in establishment directly connected
to Harmonic emissions a low voltage power supply
Harmonic emissions Not applicable network which supplies buildings used for domestic
IEC61000-3-2 purposes.
Voltage fluctuations/ Not applicable
flicker emissions
IEC 61000-3-3
