Terex Genie GS-2669BE User manual

Operator's Manual
Serial Number Range
GS™-2669BE
From GS69F-11475
CE
GS™-3369BE
GS™-4069BE
Bi-Energy Power
with
Maintenance
Information
Original Instructions
Second Edition
Second Printing
Part No. 1278003
GT

Operator's Manual Second Edition • Second Printing
GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
F ro n t M a tte r
Contents
Introduction.......................................................1
Symbol and Hazard Pictorials Definitions ............4
General Safety ..................................................6
Personal Safety.................................................9
Work Area Safety ............................................ 10
Legend ........................................................... 18
Controls .......................................................... 19
Inspections...................................................... 22
Operating Instructions...................................... 34
Transport and Lifting Instructions...................... 44
Maintenance ................................................... 47
Specifications.................................................. 50
Copyright©2013 Terex Corporation
SecondEdition: SecondPrinting, March2018
Genie is registeredtrademarks of Terex SouthDakota, Inc.in
the U.S.A. andmany other countries. “GS” is atrademark of
Terex SouthDakota,Inc.
Complies with EC Directive2006/42/EC
See EC Declarationof Conformity

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 1
Int r oduction
Aboutthis manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
ProductIdentification
The machine serial number is located on the serial
label.
Serialnumber
stampedon chassis
Seriallabellocationunder
chassiscover
IntendedUse
This machine is intended to be used only to lift
personnel, along with their tools, and materials to
an aerial work site.
Bulletin Distributionand
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register your
machine and keep your contact information up to
date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.

Operator's Manual Second Edition • Second Printing
Introduction
2 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
ContactingtheManufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transferof Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.
Danger
Failureto obeytheinstructionsand
safetyrules in this manualwillresult
in deathorseriousinjury.
Do NotOperateUnless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 3
SafetySign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
HazardClassification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol
—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow
this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates
a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.

Operator's Manual Second Edition • Second Printing
Symbol and Hazard Pictorials Definitions
4 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
Sym bol andHazardPictorials Definit ions
Readthe operator’s
manual
Readthe service
manual
Crushhazard
Crushhazard
Collisionhazard
Tip-overhazard
Tip-overhazard
Tip-overhazard
Tip-overhazard
Electrocutionhazard
Electrocutionhazard Explosionhazard Fire hazard Burn hazard Skin injectionhazard
Engagesafety arm
Keepaway from
movingparts
Keepclear of
outriggersandtires
Move machineto
levelground
Closechassistray
Lowerthe platform.
Do notsetup whereit
cannotbe leveled with
outriggers
Maintainrequired
clearance
Access by trained
andauthorized
personnelonly
Use a pieceof
cardboardorpaperto
searchfor leaks

Second Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 5
Chockthe wheels Releasebrakes Tiedown Lanyardanchorage
points No smoking
Wheelload
Transportdiagram
Sideforce
Wind speed
Outriggerload
Voltageratingfor
powerto platform Pressurerating for air lineto platform Maximumcapacity Crushinghazard
Holdrailwhilelowering
Indoor
Outdoor

Operator's Manual Second Edition • Second Printing
General Safety
6 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT

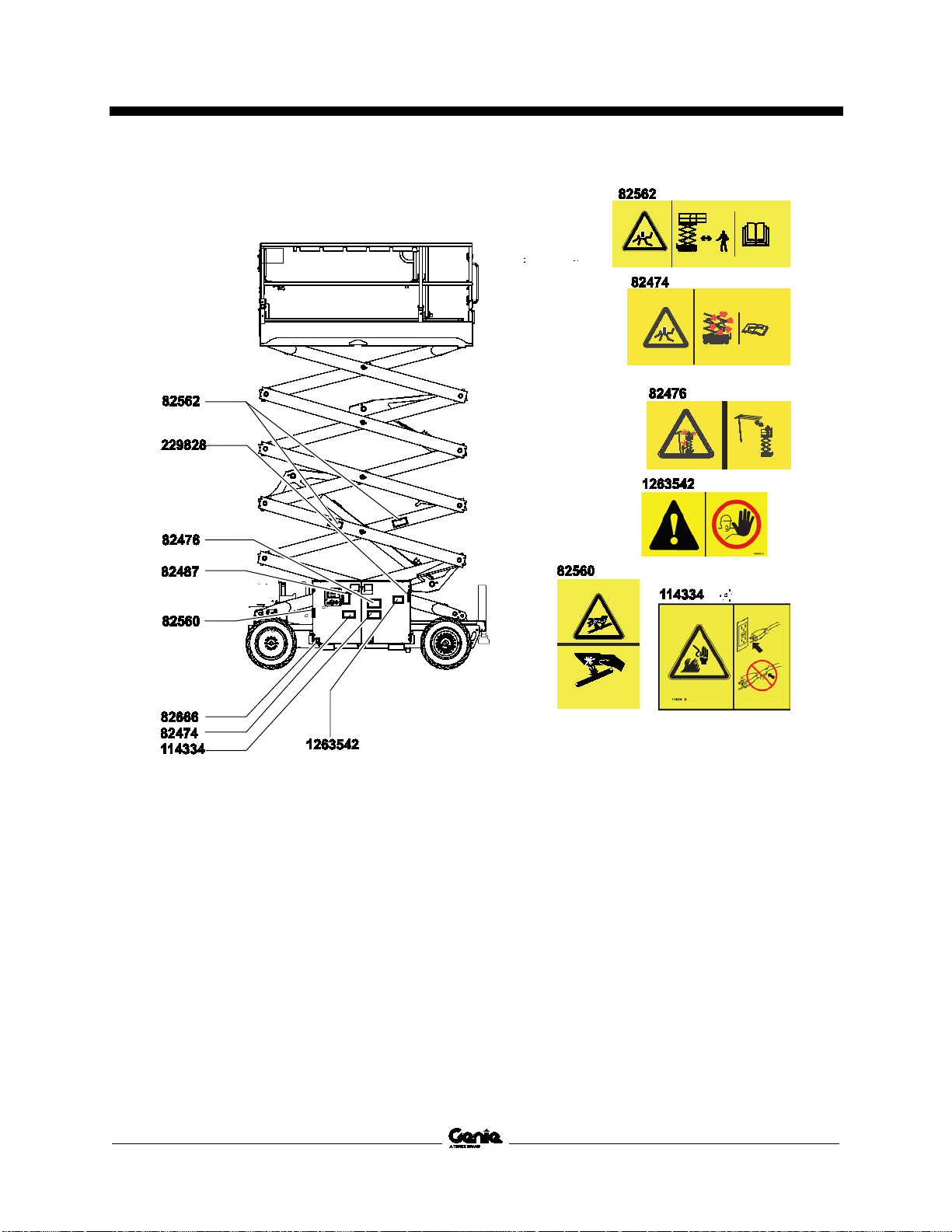

G ener al Safety

Second Edition • Second Printing Operator's Manual
General Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 7

Operator's Manual Second Edition • Second Printing
General Safety
8 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT

Second Edition • Second Printing Operator's Manual
Personal Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 9
Personal Saf et y
PersonalFallProtection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the following
shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual Second Edition • Second Printing
Work Area Safety
10 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
W o r k A r e a S af et y
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental
regulat
ions regarding
required clearance from
electrical power lines.
At a minimum, the
required clearance
contained in the chart
below must be followed.
Line Voltage
Required Clearance
0
to 50KV 3.05
m
5
0 to 200KV 4.60
m
20
0to 350KV 6.10
m
35
0to 500KV 7.62
m
50
0to 750KV 10.67
m
750to 1000KV
13.72m
Allow for platform movement, electrical line sway or
sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must
not touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-overHazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum capacity
Platform extended
Model
Platform
retracted
Platform
only
Extension
only
Maximum
occupants
GS-2669BE
680 kg
544 kg
136 kg
4
GS-3369BE
454 kg
318 kg
136 kg
Indoor –
4
Outdoor –
2
GS
-4069BE 363 k
g
227 k
g
136 k
g
Indoor –
3
Outdoor –
2
Platform retracted
Platform extended
Extension only
Platform only
The weight of options and accessories, such as
panel carriers, will reduce the rated platform
capacity and must be subtracted from the platform
capacity. See the decals with the options and
accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 11
Do not raise the platform
unless the machine is on
a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not alter or disable the limit switches.
Do not drive over 0.48 km/h with the platform
raised.
Outdoor Use: Do not raise the platform when
wind speeds may exceed 12.5 m/s. If wind speeds
exceed 12.5 m/s when the platform is raised, lower
the platform and do not continue to operate the
machine.
Indoor Use: When raising the platform, follow
ratings for allowable side force and number of
occupants on the next page.
Do not operate the
machine in strong or
gusty winds. Do not
increase the surface area
of the platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.

Operator's Manual Second Edition • Second Printing
Work Area Safety
12 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop
-offs.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the platform raised.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable manual force
GS-2669BE
Indooruse only
–4 person
Outdoor use
– 4 person
400
N
400N
GS-3369BE
Indooruse only
–4 person
Outdoor use
– 2 person
400N
400N
GS-4069BE
Indooruse only
–3 person
Outdoor use
– 2 person
400N
400N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 13
Do not place or attach
fixed or overhanging loads
to any part of this machine.
Do
not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled by
person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
For GS-2669 and GS-3369 machines with
standard battery option, each battery must weigh
29 kg. For GS-4069 machines and machines with
high capacity battery option, each battery must
weigh 32.7 kg.
CrushingHazard
Keep hands and limbs out of scissors.
Keep hands clear when folding rails.
Do not work under the platform or in the scissor
links without the safety arm in place.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
OperationonSlopesHazards
Do not drive the machine on a slope that exceeds
the maximum uphill, downhill or side slope rating of
the machine. Slope rating applies only to machines
in the stowed position.
Maximum slope rating, stowed position
Extensiondeck uphill
35%(19°)
Extensiondeck downhill
15%(9°)
Sideslope
35%(19°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.

Operator's Manual Second Edition • Second Printing
Work Area Safety
14 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
FallHazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Attach the lanyard to the anchor
provided in the platform.
Do not sit, stand, or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Do not enter or exit the platform unless the
machine is in the stowed position.
Attach the platform entry chain or close the entry
gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Collision Hazards
Be aware of limited sight
distance
and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site, and
governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 15
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the platform
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the ground surface,
congestion,
slope,
location of personnel, and
any other factors which
may cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any cover
will cause serious injury. Only trained maintenance
personnel should access compartments. Access
by the operator is only advised when performing a
pre-operation inspection. All compartments must
remain closed and secured during operation.
When the engine is running, operate the machine
in a well-ventilated area to avoid carbon monoxide
poisoning.
ExplosionandFire Hazards
Do not start the engine if you smell or detect diesel
fuel or other explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine or charge the battery
in hazardous locations or locations where
potentially flammable or explosive gases or
particles may be present.
Do not spray ether into engine.

Operator's Manual Second Edition • Second Printing
Work Area Safety
16 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
DamagedMachineHazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator's, safety, and responsibilities
manuals are complete, legible, and in the storage
container located on the machine.
ComponentDamageHazards
Do not use the machine as a ground for welding.
Do not use any battery or charger greater than 12V
to jump-start the engine.
Do not operate the machine in locations where
extremely high magnetic fields may be present.
Battery Safety
BurnHazards
Batteries contain acid.
Always wear protective
clothing and eye wear when
working with batteries.
Avoid spilling or contacting
battery acid. Neutralize
battery acid spills with baking
soda and water.
Do not expose the batteries or the charger to water
or rain during charging.
Explosion Hazards
Keep sparks, flames, and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
The battery tray should
remain open during the
entire charging cycle.
Do not contact the battery
terminals or the cable
clamps with tools that may
cause sparks.
Component Damage Hazard
Do not use any battery charger greater than 48V to
charge the batteries.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278003GT GS™-2669BE • GS™-3369BE • GS™-4069BE 17
Electrocution/Burn Hazards
Connect the battery charger to a
grounded, AC 3
-wire electrical
outlet only.
Inspect daily for damaged cords,
cables and wires. Replace
damaged items before operating.
Avoid electrical shock from contact with battery
terminals. Remove all rings, watches and other
jewelry.
Do not expose the batteries or the charger to water
or rain during charging.
Do not operate when generator is submerged in
water.
Tip-over Hazard
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
For GS-2669 and GS-3369 machines with
standard battery option, each battery must weigh
29 kg. For GS-4069 machines and machines with
high capacity battery option, each battery must
weigh 32.7 kg.
Lifting Hazard
Use the appropriate number of people and proper
lifting techniques when lifting batteries.
LockoutAfter EachUse
1 Select a safe parking location—firm level
surface, clear of obstruction and traffic.
2 Lower the platform.
3 Turn the key switch to the off position and
remove the key to secure from unauthorized
use.
4 Charge the batteries.

Operator's Manual Second Edition • Second Printing
Legend
18 GS™-2669BE • GS™-3369BE • GS™-4069BE Part No. 1278003GT
Legend
1 Platform entry gate
2 Platform guard rails
3 Lanyard anchorage points
4 Platform extension lock handle
5 Manual storage container
6 Platform controls
7 Platform extension
8 Battery charger (behind cover at the ground
controls side)
9 Ground controls side cover
10 Hydraulic tank (behind cover)
11 Tilt alarm (behind cover)
12 Hydraulic oil level indicator (behind cover)
13 Ground controls with LCD readout screen
14 Outriggerhousing (if equipped with outriggers)
15 Outrigger footpad (if equipped with outriggers)
16 Steer tire
17 Engine (under cover)
18 Battery compartment covers
19 Non-steer tire
20 Entry ladder
21 Transport tie-down
22 Safety arm
23 GFCI outlet
