Operator's Manual
Serial Number Range
GS™
-
1530/32 from GS30P
-
200101
from GS32P-200101
from GS46P-200101
ANSI/CSA
North America
South America
Asia
GS™
-
1930/32 from GS30D-40101
from GS32D-10101
from GS46D-20101
GS™
-
1932 XH
GS™
-
2
032
GS™
-
2
632 with
Maintenance
Information
GS™
-
3232
GS™
-
2
04
6
GS™
-
2
64
6
GS™
-
2
646 XH
GS™
-
324
6
Original Instructions
Eighth Edition
Second Printing
Part No. 1296776GT
GS™
-
3246 XH
GS™-4046

Operator's Manual Eighth Edition • Second Printing
GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
Front Matter
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 6
General Safety ...................................................... 9
Personal Safety................................................... 27
Work Area Safety................................................ 28
Legend ................................................................ 37
Controls............................................................... 40
Inspections.......................................................... 44
Operating Instructions......................................... 70
Transport and Lifting Instructions ....................... 87
Maintenance ....................................................... 92
Specifications...................................................... 94
Copyright © 1997 Terex Corporation
Eighth Edition: Second Printing, November 2020
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
These machines comply with
ANSI/SAIA A92.20
CAN/CSA B354.6

Eighth Edition • Second Printing Operator's Manual
Introduction
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.

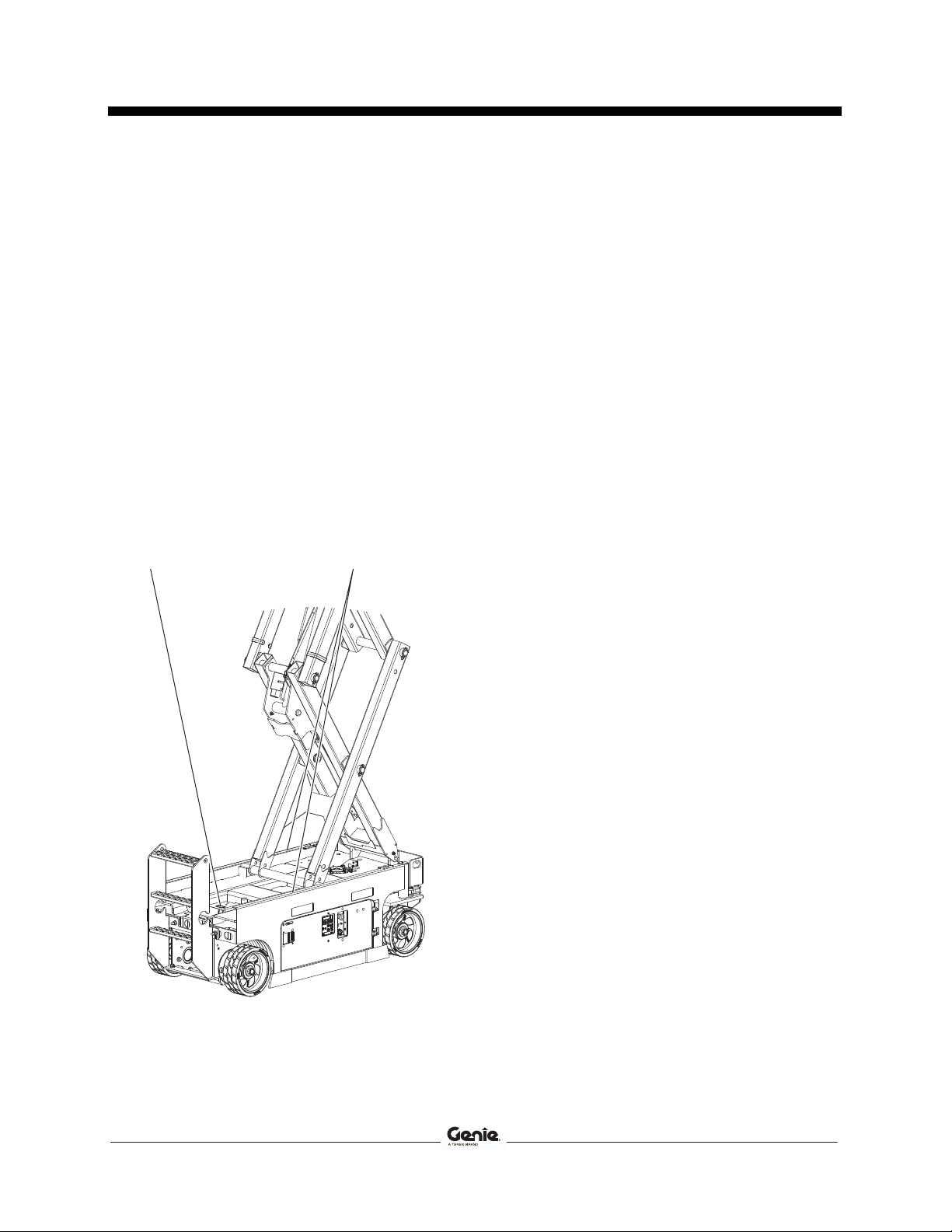

Product Identification
The machine serial number is located on the serial
label.
Serial label located on
chassis
Serial number stamped on
chassis
Intended Use and Familiarization
Guide
The intended use of this machine is to lift personnel,
including tools, and materials to an aerial work site.
Before operating the machine, it’s the operator’s
responsibility to read and understand this
familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Eighth Edition • Second Printing
Introduction
2 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT

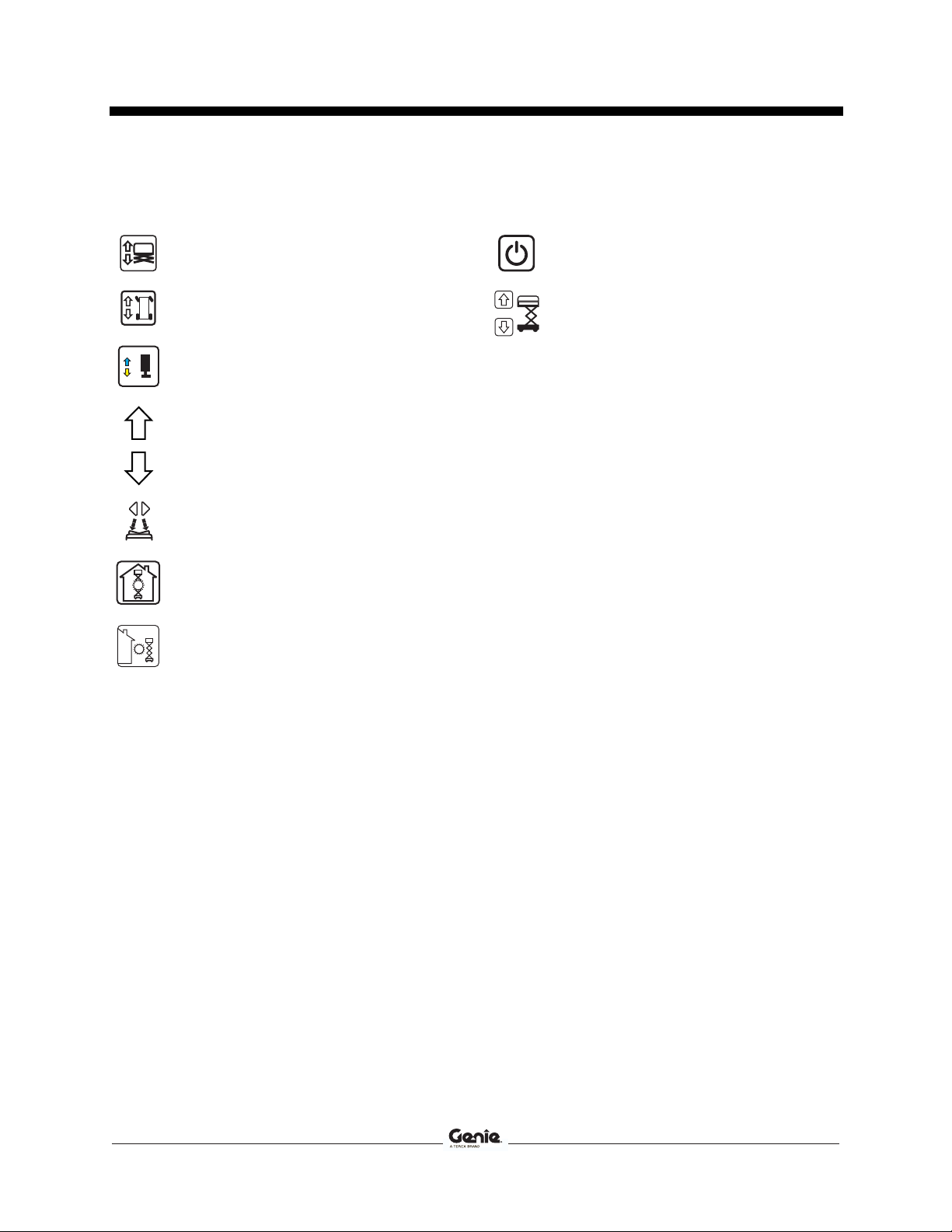

Platform controls symbology and related
machine movement:
Lift function enable button
Drive function enable button
Outrigger function button
Platform up/down (when lift function
selected)
Drive forward/reverse (when drive function
selected)
Steer right/left (when drive function
selected)
Area of operation, indoor use button
Area of operation, outdoor use button
Ground controls symbology and related
machine movement:
Lift function enable button
Platform up/down button
Sequential functions and movement:
•Drive and steer.
Interlocked functions:
•Elevated drive speed.
•Elevated drive in an off-level condition.
•All platform and ground controls.
Limitations of use:
•The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
•Do not elevate the platform unless the machine
is on firm level ground.

Eighth Edition • Second Printing Operator's Manual
Introduction
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 3
Bulletin Distribution and Compliance
Safety of product users is of paramount importance
to Genie. Various bulletins are used by Genie to
communicate important safety and product
information to dealers and machine owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their associated
dealer, so it is important to register your machine
and keep your contact information up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Eighth Edition • Second Printing
Introduction
4 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules–safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.

Eighth Edition • Second Printing Operator's Manual
Introduction
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 5
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol–used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.
DANGER
WARNING
CAUTION
NOTICE

Operator's Manual Eighth Edition • Second Printing
Symbol and Hazard Pictorials Definitions
6 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT

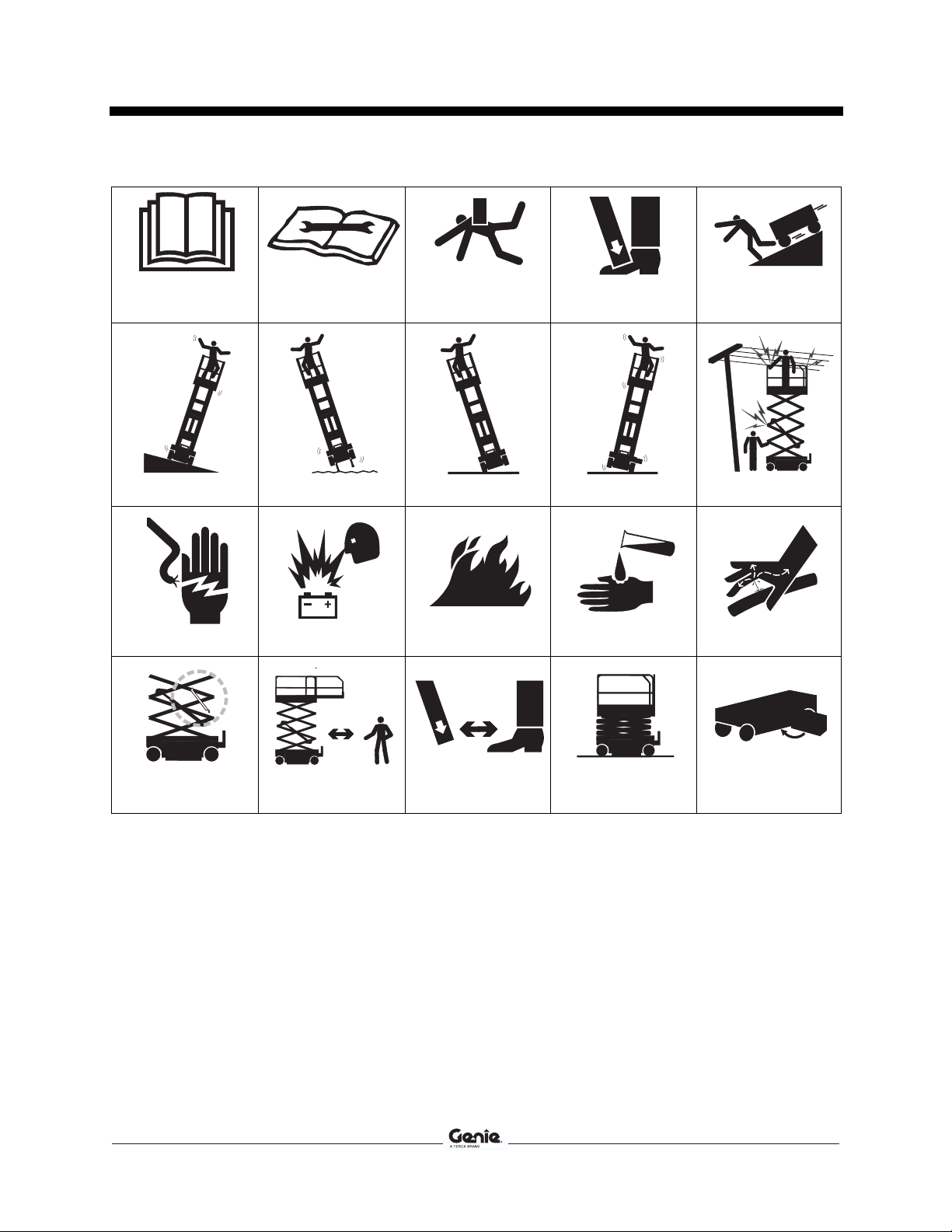

Symbol and Hazard P ictorials Definiti ons
Read the operator’s
manual
Read the service
manual
Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to
level ground
Close chassis tray

Eighth Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 7

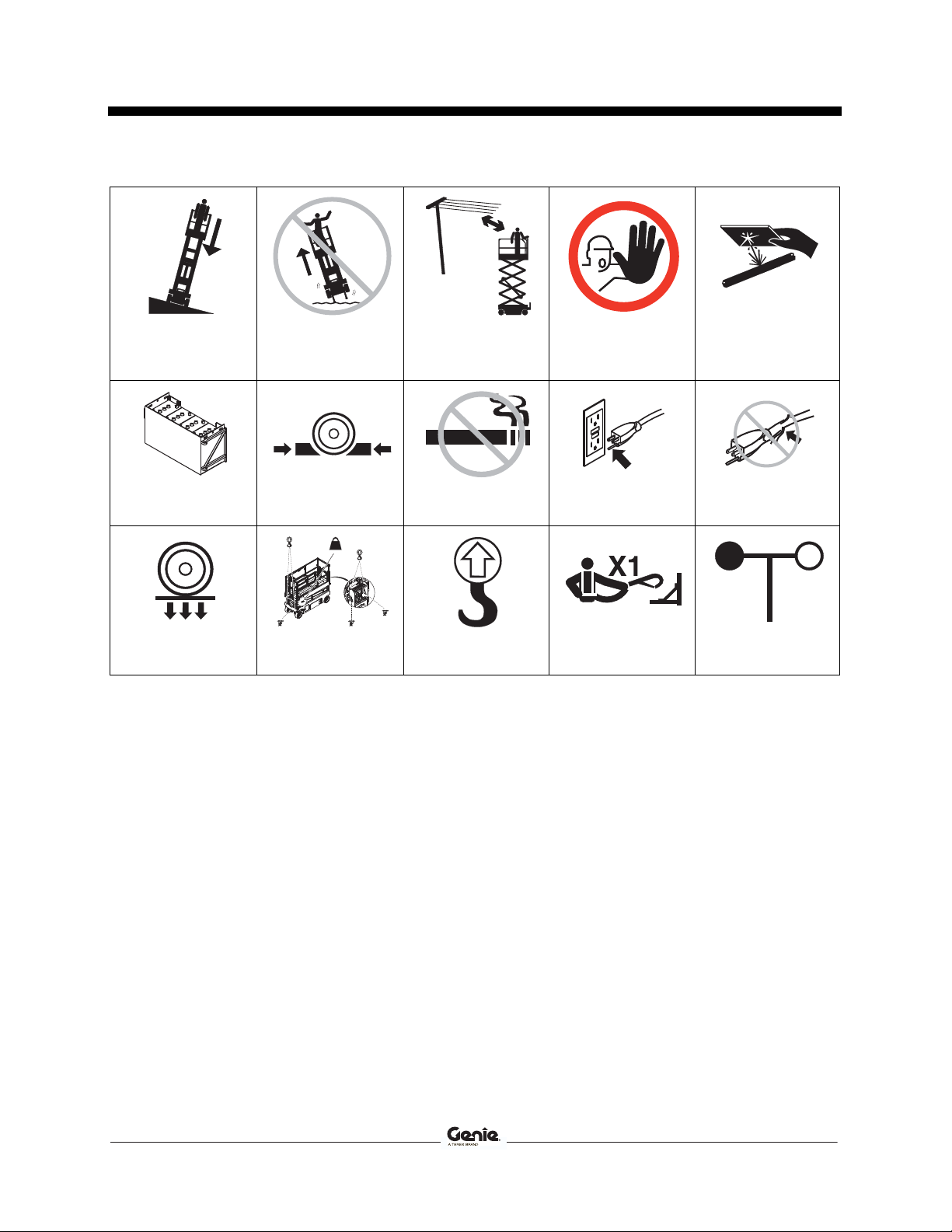

Lower the platform. Do not set up where it
cannot be leveled
with outriggers
Maintain required
clearance
Access by trained and
authorized personnel
only
Use a piece of
cardboard or paper to
search for leaks
Batteries used as
counterweights
Chock the wheels No smoking Grounded AC
3-wire only
Replace damaged
wires and cords
Wheel load Lifting & tie down
instructions
Lifting point Lanyard anchorage
points
Wind speed
lbs /
Kg

Operator's Manual Eighth Edition • Second Printing
Symbol and Hazard Pictorials Definitions
8 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
Tiedown Release brakes Engage brake Pressure rating for air
line to platform
Voltage rating for
power to platform
Maximum capacity Indoor Outdoor Manual force
Platform overloaded

Eighth Edition • Second Printing Operator's Manual
General Safety
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 9

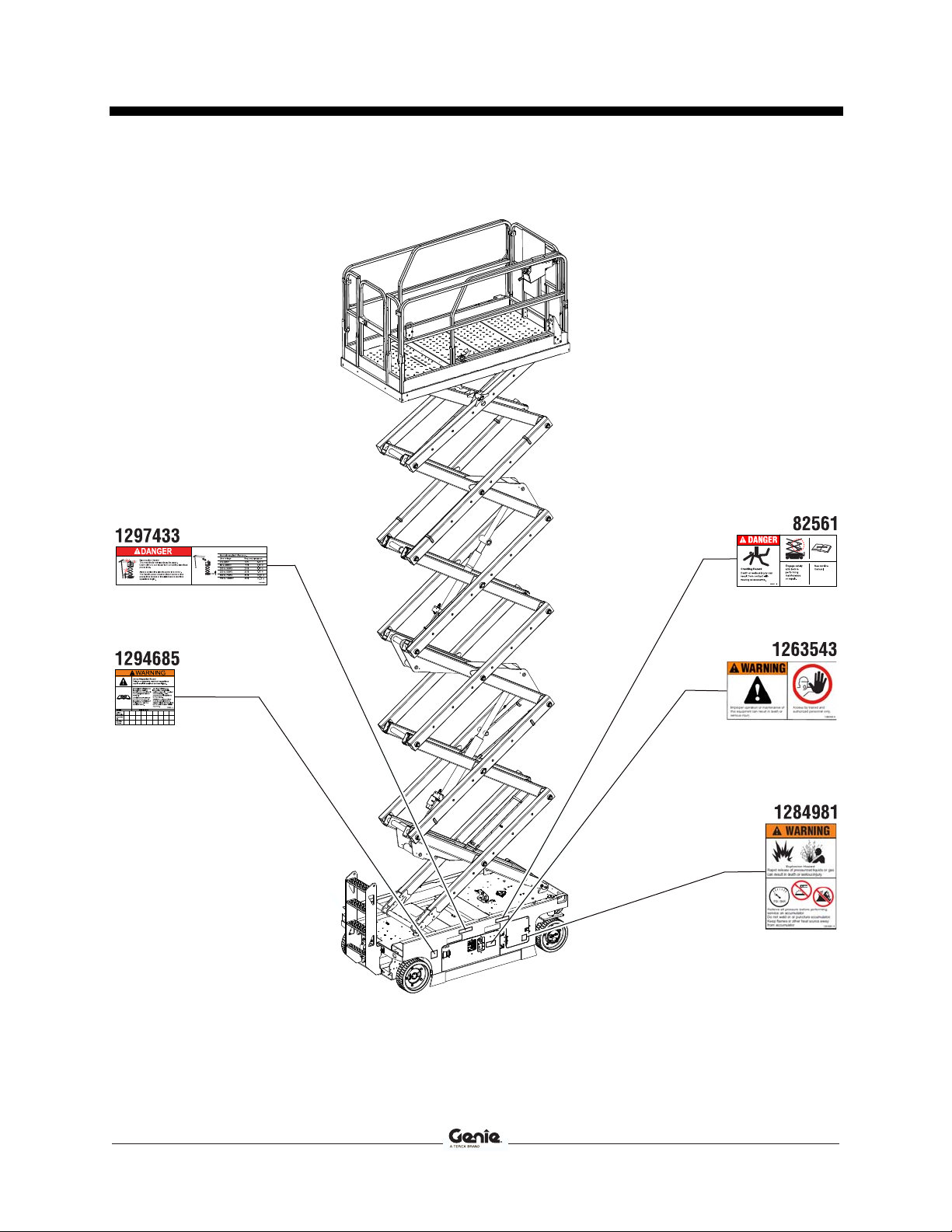

General Safety

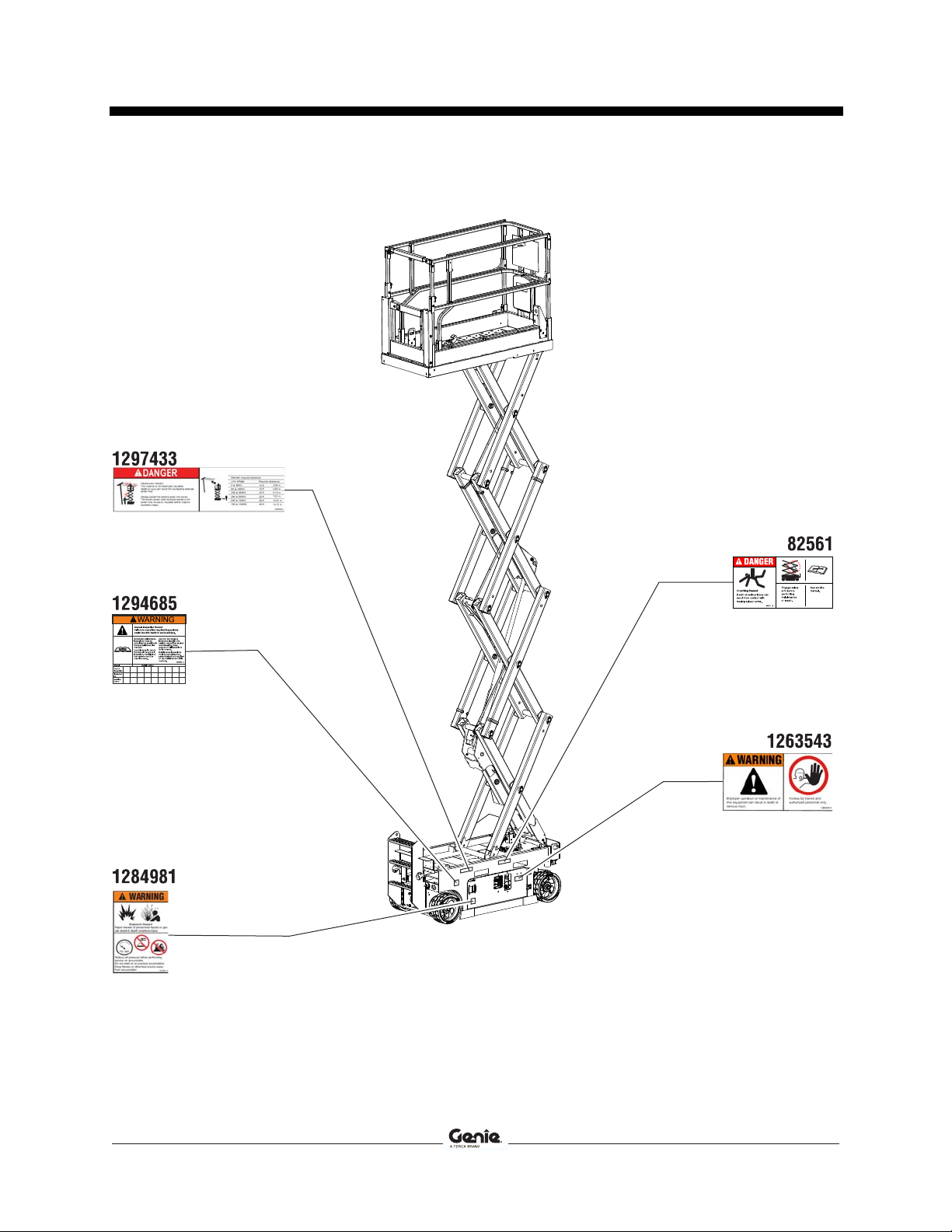

GS-1530, GS-1532, GS-1930, GS-1932, GS-1932 XH

Operator's Manual Eighth Edition • Second Printing
General Safety
10 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT

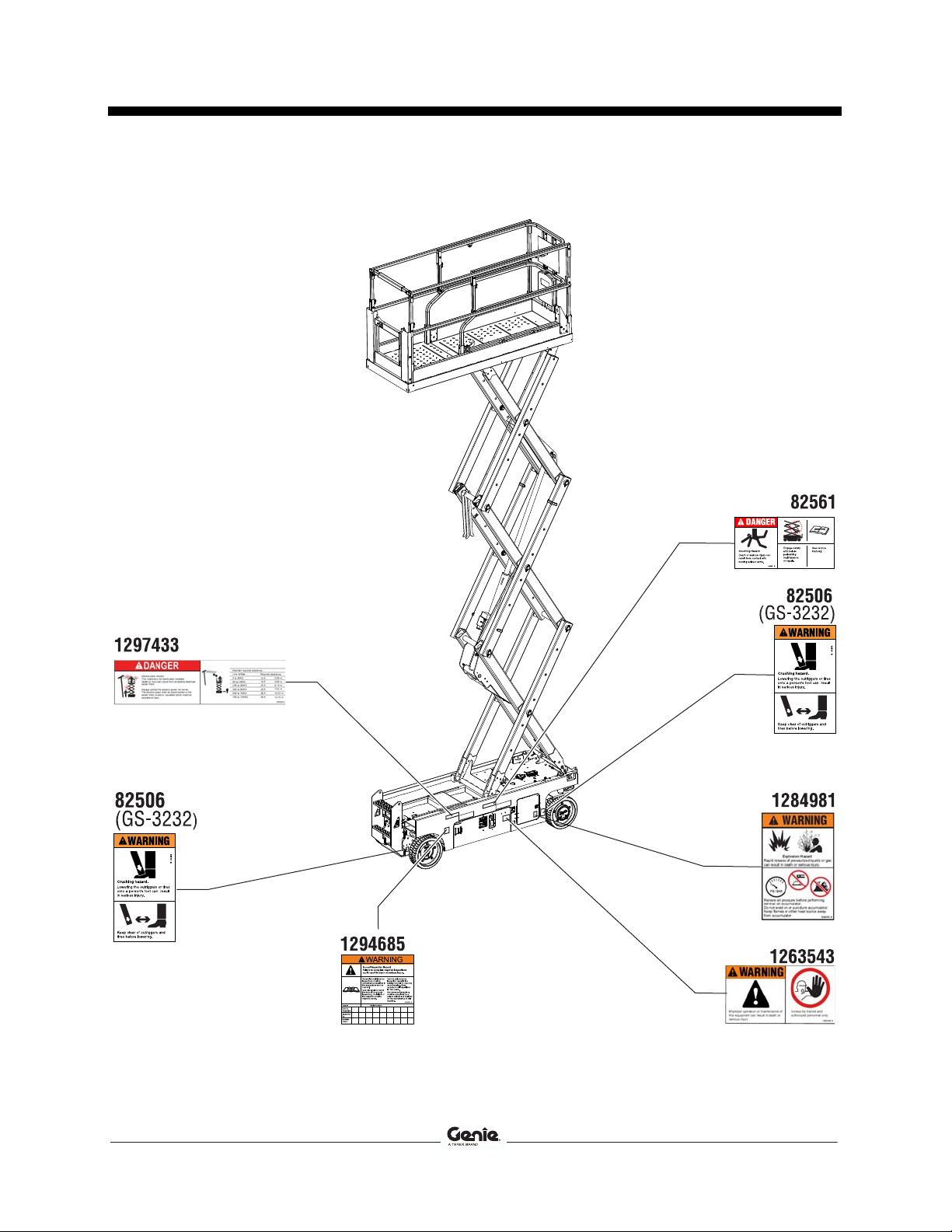

GS-1530, GS-1532, GS-1930, GS-1932, GS-1932 XH

Eighth Edition • Second Printing Operator's Manual
General Safety
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 11

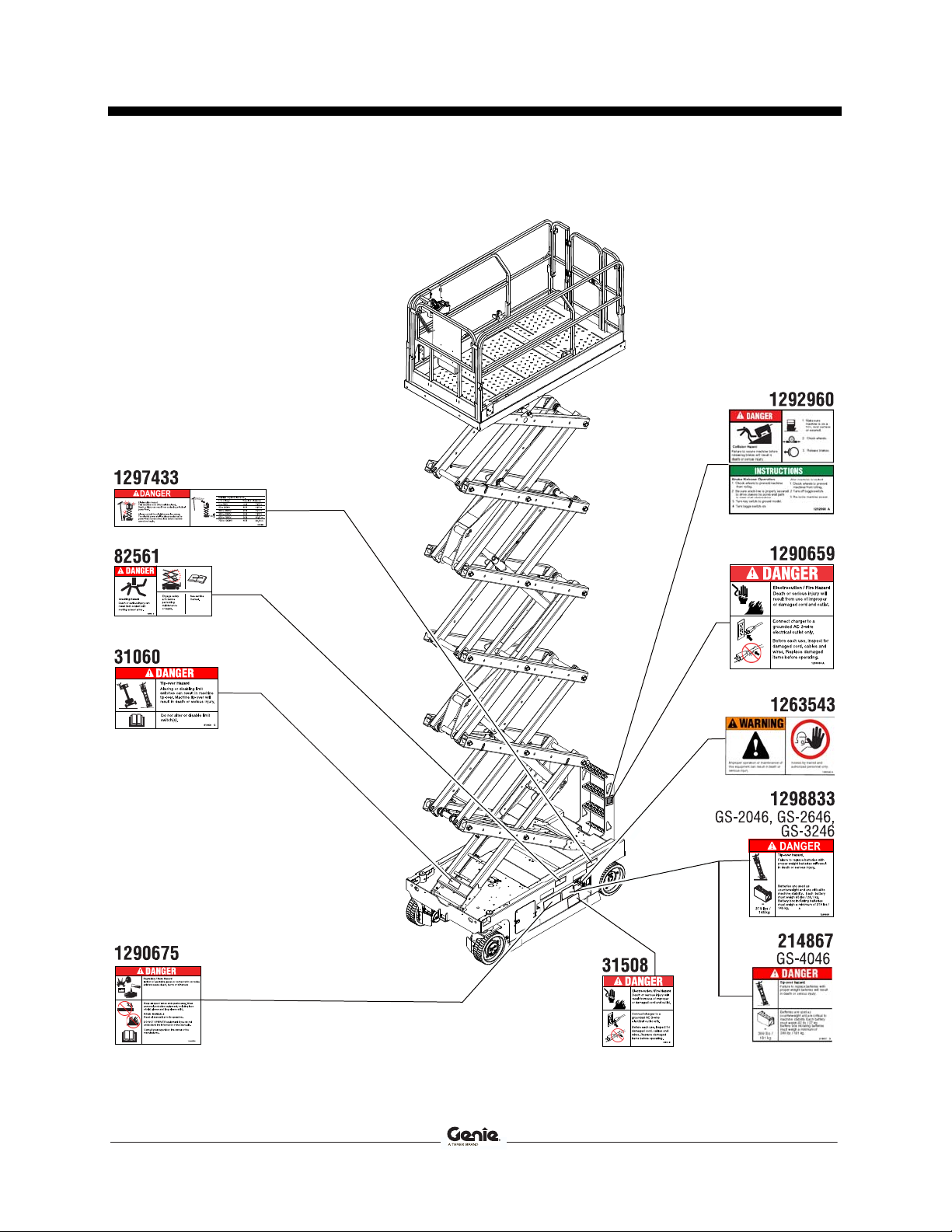

GS-1530, GS-1532, GS-1930, GS-1932, GS-1932 XH
44736 C
DANGER
Tip-over
Hazard
If tilt-alarm
sounds, unit is
on a severe
slope. Death or
serious injury
could occur.
1 Lower the
platform.
2Movethe
machine
to level
surface.
1296298 (GS-1530)

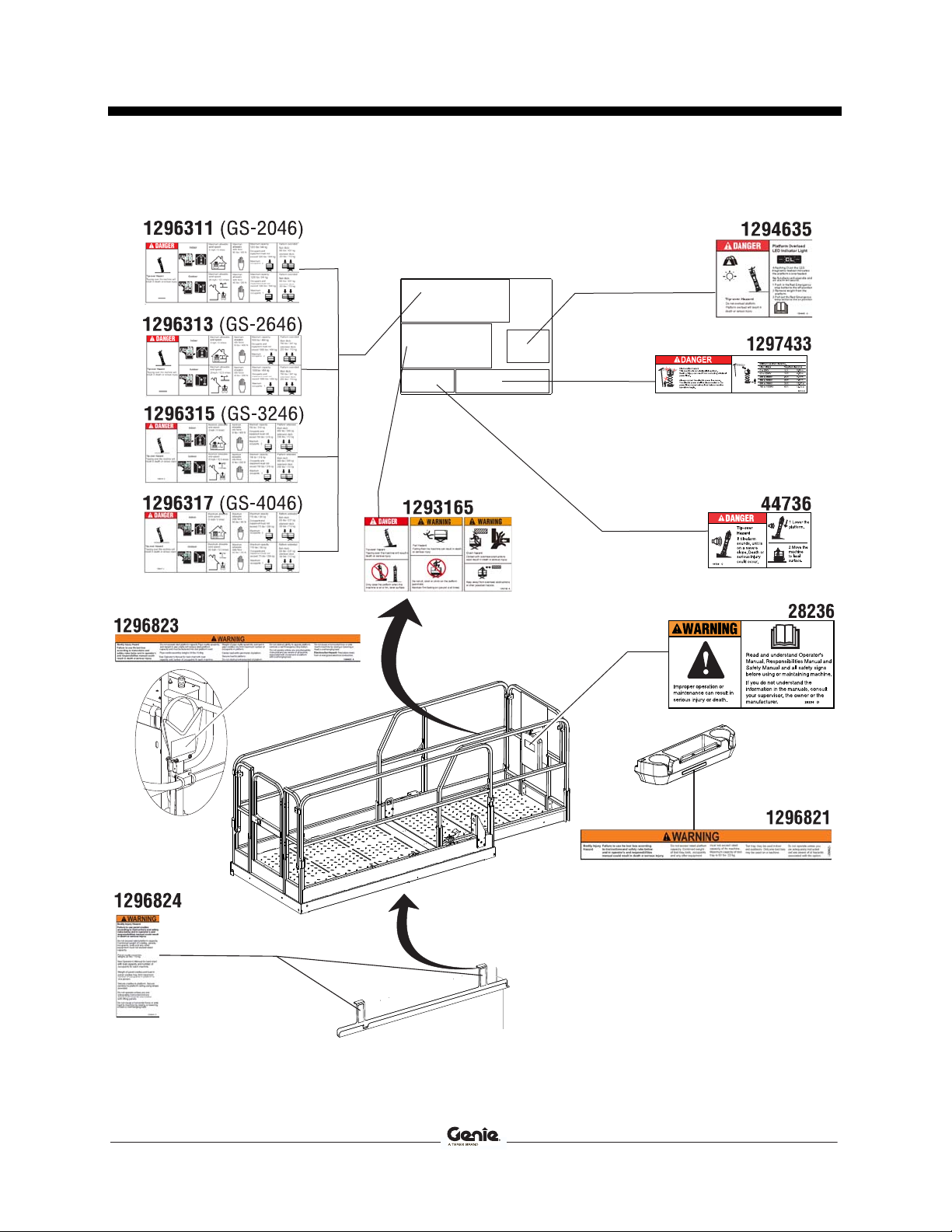

1294635
44736
1293165
Read and understand Operator's
Manual, Responsibilities Manual and
Safety Manual and all safety signs
before using or maintaining machine.
If you do not understand the
information in the manuals, consult
your supervisor, the owner or the
manufacturer.
28236 D
WARNING
Improper operation or
maintenance can result in
serious injury or death.
28236
1296300 (GS-1930/32)
1297433
1297433A
DANGER
0
Electrocution Hazard
This machine is not electrically insulated.
Death or injury can result from contacting electrical
power lines.
Always contact the electric power line owner.
The electric power shall be disconnected or the
power lines moved or insulated before machine
operations begin.
Maintain required clearance.
Line voltage Required clearance
13.72 m
10 ft
15 ft
20 ft
25 ft
35 ft
45 ft
3.05 m
4.60 m
6.10 m
7.62 m
10.67 m
1296823
1296821
1296824

Operator's Manual Eighth Edition • Second Printing
General Safety
12 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
GS-2032, GS-2632, GS-3232

Eighth Edition • Second Printing Operator's Manual
General Safety
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 13
GS-2032, GS-2632, GS-3232

Operator's Manual Eighth Edition • Second Printing
General Safety
14 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
GS-2032, GS-2632, GS-3232

Eighth Edition • Second Printing Operator's Manual
General Safety
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 15
GS-2046, GS-2646, GS-2646XH, GS-3246, GS-3246 XH, GS-4046

Operator's Manual Eighth Edition • Second Printing
General Safety
16 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
GS-2046, GS-2646, GS-2646XH, GS-3246, GS-3246 XH, GS-4046

Eighth Edition • Second Printing Operator's Manual
General Safety
Part No. 1296776GT GS™-30 • GS™-32 • GS™-46 17
GS-2046, GS-2646, GS-2646XH, GS-3246, GS-3246 XH, GS-4046

Operator's Manual Eighth Edition • Second Printing
General Safety
18 GS™-30 • GS™-32 • GS™-46 Part No. 1296776GT
GS-1530, GS-1532, GS-1930, GS-1932, GS-1932 XH
