Terex Genie GS-2669RT User manual

Operator's Manual
Serial Number Range
GS™-2669RT
from GS69F-18000
CE
GS™-3369RT
GS™-4069RT
with
Maintenance
Information
Original Instructions
Third Edition
First Printing
Part No. 1305657GT

Operator's Manual Third Edition • First Printing
GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
Front Matter
Manufacturer:
Terex South Dakota, Inc.
500 Oakwood Road
Watertown, SD 57201, USA
Authorized representative:
Genie Industries B. V.
Boekerman 5
4751 XK OUD GASTEL
The Netherlands
Contents
Introduction........................................................... 1
Symbol and Hazard Pictorials Definitions............. 5
General Safety...................................................... 8
Personal Safety................................................... 11
Work Area Safety................................................ 12
Legend................................................................ 19
Controls............................................................... 20
Inspections.......................................................... 25
Operating Instructions......................................... 36
Transport and Lifting Instructions ....................... 43
Maintenance ....................................................... 46
Specifications...................................................... 50
Copyright © 2011 by Terex Corporation
Third Edition: First Printing, August 2020
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity

Third Edition • First Printing Operator's Manual
Introduction
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 1
Introduction
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.

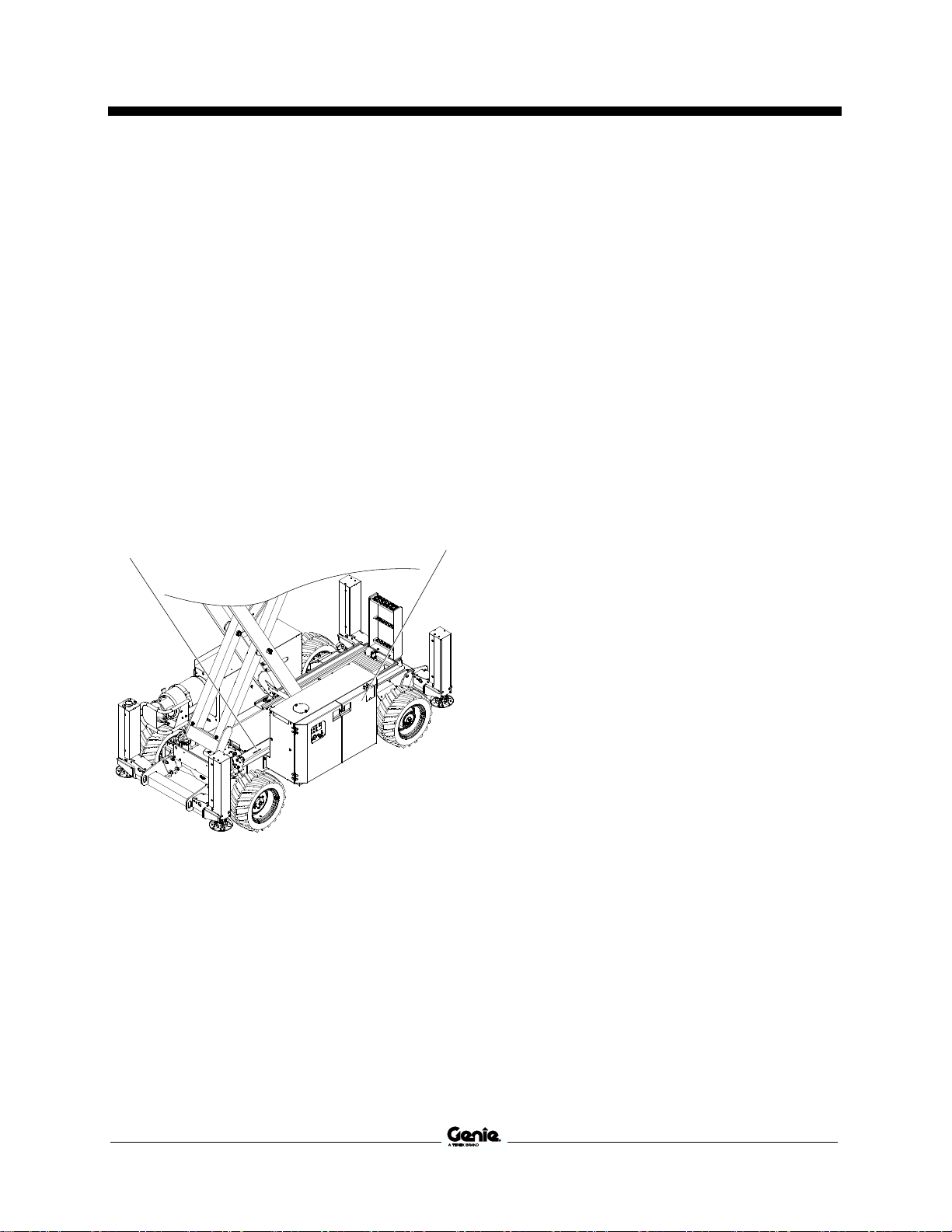

Product Identification
The machine serial number is located on the serial
label.
Serial number stamped on
chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift personnel,
including tools, and materials to an aerial work site.
Before operating the machine, it’s the operator’s
responsibility to read and understand this
familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read, understand,
and obey the manufacturer’s instructions and
safety rules provided in the Operator’s Manual.
The Operator’s Manual is located in the manual
storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Third Edition • First Printing
Introduction
2 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT

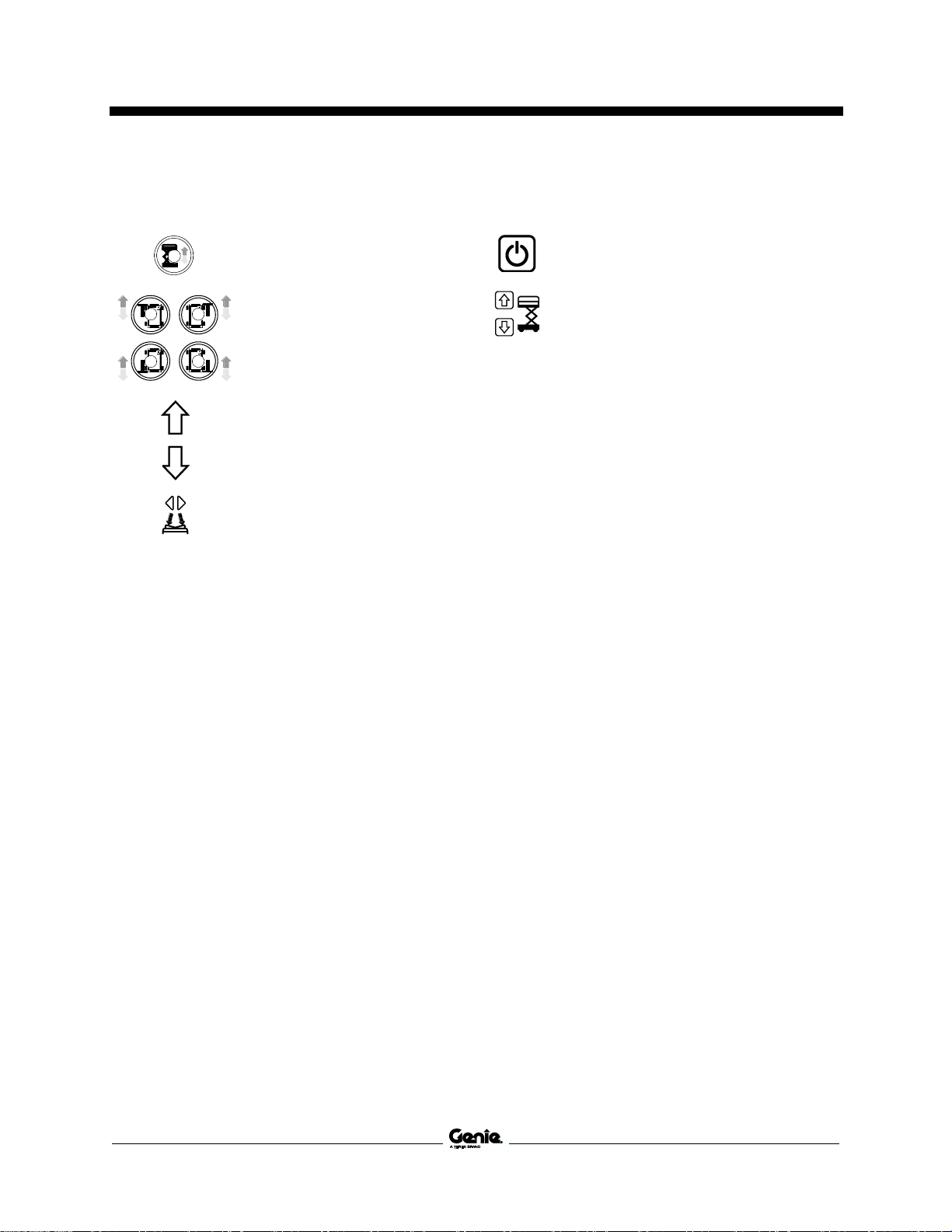

Platform contols symbology and releated
machine movement:
Lift function enable button
Outrigger auto level button
(when thumb rocker switch
moved up or down)
Platform up/down (when lift
function selected)
Drive forward/reverse (when
drive function selected)
Steer right/left (when drive
function selected)
Ground controls symbology and related
machine movement:
Lift function enable button
Platform up/down button
Sequential functions and movement:
Drive and steer.
Interlocked functions:
Elevated drive speed.
Elevated drive in an off-level condition.
All platform and ground controls.
Limitations of use:
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
Do not elevate the platform unless the machine
is on firm level ground.

Third Edition • First Printing Operator's Manual
Introduction
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 3
Bulletin Distribution and Compliance
Safety of product users is of paramount importance
to Genie. Various bulletins are used by Genie to
communicate important safety and product
information to dealers and machine owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins isbased on the most current
owner on record along with their associated dealer,
so it is important to register your machine and keep
your contact information up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model number
and serial number of your machine, along with your
name and contact information. At minimum, Genie
should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that applies
to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free at
1-800-536-1800.

Operator's Manual Third Edition • First Printing
Introduction
4 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.

Third Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 5

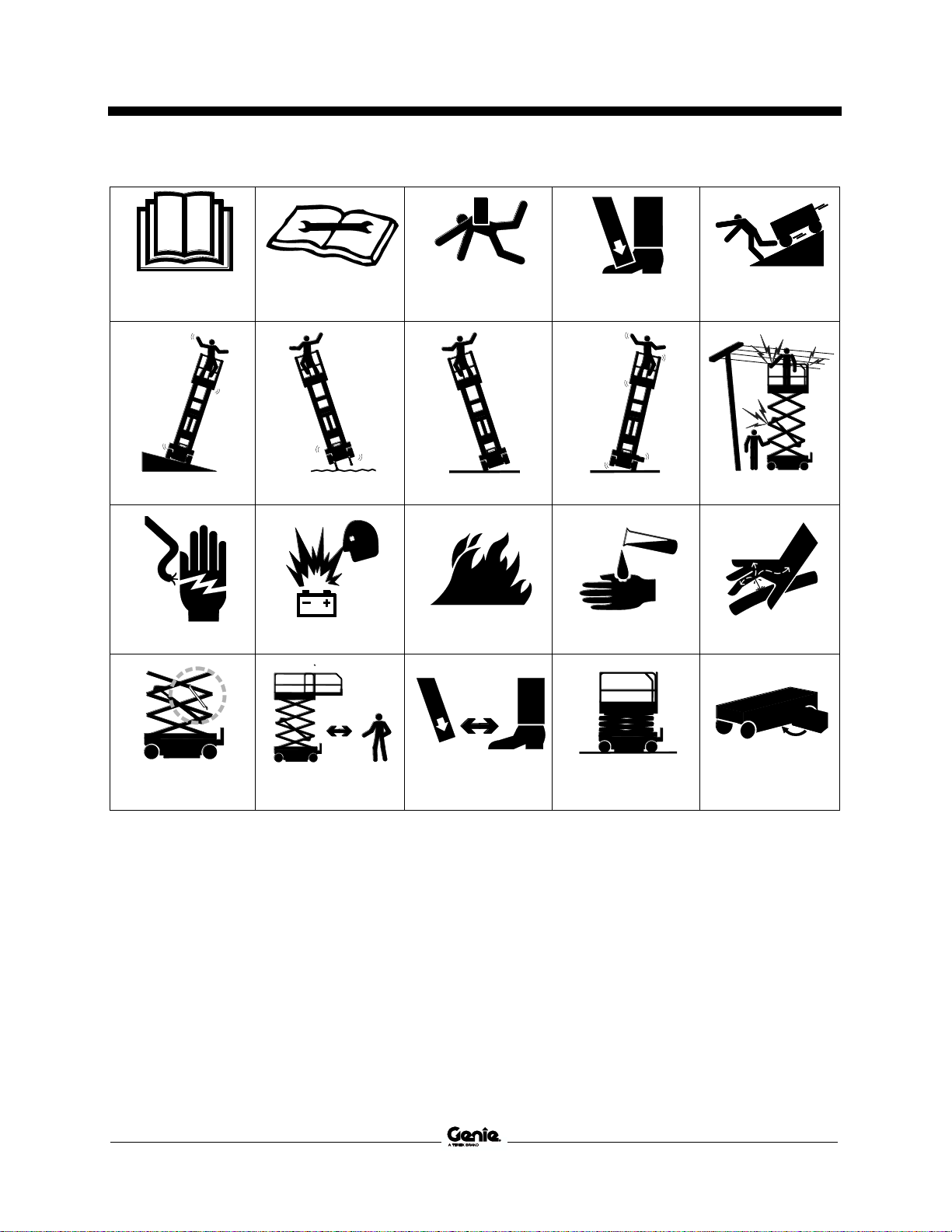

Symboland Hazard Pictorials Definitions
Read the operator’s
manual
Read the service
manual
Crush hazard
Crush hazard
Collision hazard
Tip-over hazard
Tip-over hazard
Tip-over hazard
Tip-over hazard
Electrocution hazard
Electrocution hazard
Explosion hazard
Fire hazard
Burn hazard
Skin injection hazard
Engage safety arm
Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to level
ground
Close chassis tray

Operator's Manual Third Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT

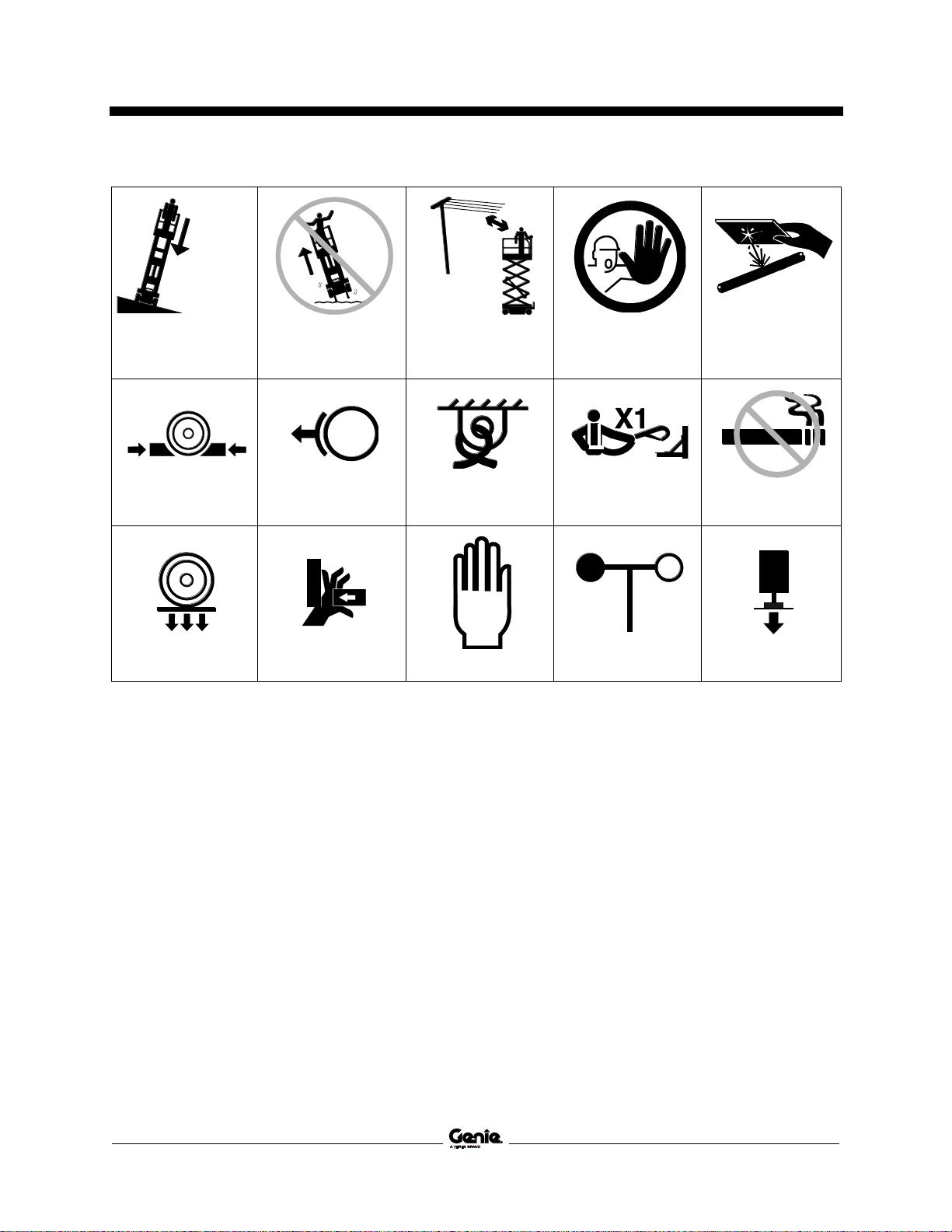

Lower the platform.
Do not set up where it
cannot be leveled with
outriggers
Maintain required
clearance
Access by trained and
authorized personnel
only
Use a piece of
cardboard or paper
to search for leaks
Chock the wheels
Release brakes
Tiedown
Lanyard anchorage
points
No smoking
Wheel load
Crush hazard
Side force
Wind speed
Outrigger load

Third Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 7
Voltage rating for
power to platform
Pressure rating for air
line to platform
Maximum capacity
Fall hazard
100% Restraint
Burn hazard stay
away
Transport diagram
Collision hazard
Lanyard anchorage
points
Platform overloaded
Hold rail while lowering
Crushing hazard

Operator's Manual Third Edition • First Printing
General Safety
8 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
GeneralSafety

Third Edition • First Printing Operator's Manual
General Safety
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 9

Operator's Manual Third Edition • First Printing
General Safety
10 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT

Third Edition • First Printing Operator's Manual
Personal Safety
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 11
PersonalSafety
Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine provided the
operator remains inside the perimeter of the
platform guardrail system. If PFPE is required by
job site or employer rules, the following shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual Third Edition • First Printing
Work Area Safety
12 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT

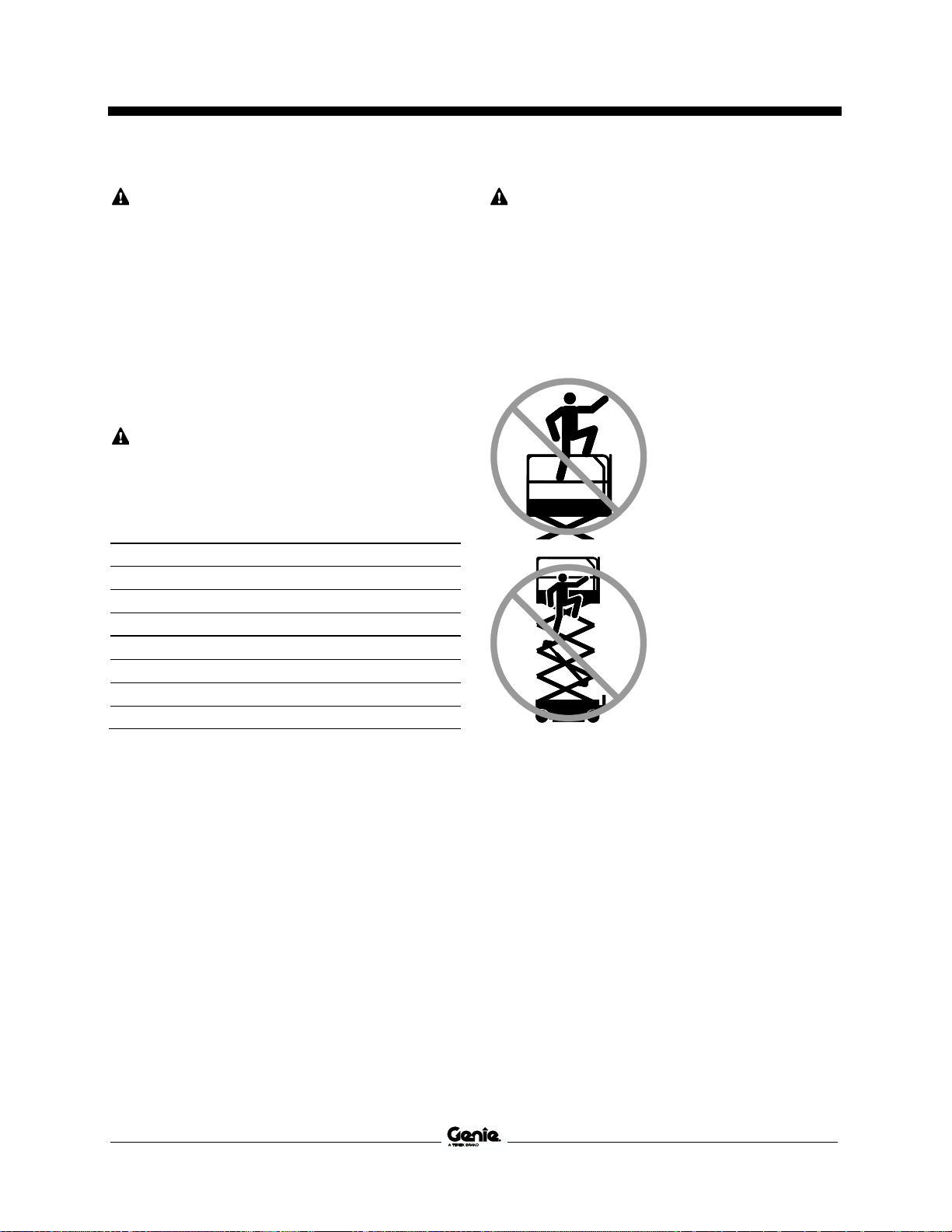

Work AreaSafety Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or proximity
to electrical current.
Obey all local and
governmental
regulations regarding
required clearance from
electrical power lines. At
a minimum, the required
clearance contained in
the chart below must be
followed.
Line Voltage
Required Clearance
0 to 50KV
10 ft
3.05 m
50 to 200KV
15 ft
4.60 m
200 to 350KV
20 ft
6.10 m
350 to 500KV
25 ft
7.62 m
500 to 750KV
35 ft
10.67 m
750 to 1000KV
45 ft
13.72 m
Allow for platform movement, electrical line sway or
sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must
not touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum capacity
Platform extended
Model
Platform
retracted
Platform
only
Extension
only
Maximum
occupants
GS-2669RT
1500 lbs/
680 kg
1200 lbs/
544 kg
300 lbs/
136 kg
4
GS-3369RT
1000 lbs/
454 kg
700 lbs/
318 kg
300 lbs/
136 kg
Indoor –4
Outdoor –2
GS-4069RT
800 lbs/
363 kg
500 lbs/
227 kg
300 lbs/
136 kg
Indoor –3
Outdoor –2
Platform retracted
Platform extended
Extension only
Platform only

Third Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 13
Do not raise the platform
unless the machine is on a
firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not alter or disable the limit switches or angle
sensor.
Do not drive over 0.3 mph / 0.48 km/h with the
platform raised.
Do not raise the platform when wind speeds may
exceed 28 mph / 12.5 m/s. If wind speeds exceed
28 mph / 12.5 m/s when the platform is raised,
lower the platform and do not continue to operate
the machine.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Use extreme care and slow
speeds while driving the
machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop-offs.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.

Operator's Manual Third Edition • First Printing
Work Area Safety
14 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the platform raised.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not push off or pull
toward any object outside
of the platform.
Maximum manual force –ANSI and CSA
GS-2669RT –4 person
GS-3369RT –4 person, indoor
GS-3369RT –2 person, outdoor
GS-4069RT –3 person, indoor
GS-4069RT –2 person, outdoor
90 lbs/400 N
90 lbs/400 N
90 lbs/400 N
90 lbs/400 N
90 lbs/400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter a mobile elevating work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform, toeboards,
or guard rail system can increase the weight in the
platform and the surface area of the platform or the
load.
Do not place or attach fixed
or overhanging loads to
any part of this machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they are
evenly distributed and can be safely handled by
person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.

Third Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 15
Crushing Hazard
Keep hands and limbs out of scissors.
Keep hands clear when folding rails.
Do not work under the platform or in the scissor
links without the safety arm in place.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Maximum slope rating, stowed position
GS-2669RT
40% (22°)
GS-3369RT
35% (19°)
GS-4069RT
35% (19°)
Maximum side slope rating, stowed position
GS-2669RT
40% (22°)
GS-3369RT
35% (19°)
GS-4069RT
35% (19°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Use approved lanyard attachment
point provided.
Do not sit, stand, or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Do not enter or exit the platform unless the machine
is in the stowed position.

Operator's Manual Third Edition • First Printing
Work Area Safety
16 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or secured
before releasing the brakes.
Operators must comply with employer, job site, and
governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping the
platform guard rail.
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the
platform unless the area
below is clear of
personnel and
obstructions.
Limit travel speed
according to the
condition of the ground
surface, congestion,
slope, location of
personnel, and any
other factors which may
cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.

Third Edition • First Printing Operator's Manual
Work Area Safety
Part No. 1305657GT GS™-2669RT • GS™-3369RT • GS™-4069RT 17
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any cover
will cause serious injury. Only trained maintenance
personnel should access compartments. Access by
the operator is only advised when performing a
pre-operation inspection. All compartments must
remain closed and secured during operation.
Component Damage Hazards
Do not use any battery or charger greater than 12V
to jump-start the engine.
Do not use the machine as a ground for welding.
Do not operate the machine in locations where
extremely high magnetic fields may be present.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine in hazardous locations
or locations where potentially flammable or
explosive gases or particles may be present.
Do not spray ether into engines equipped with glow
plugs.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.

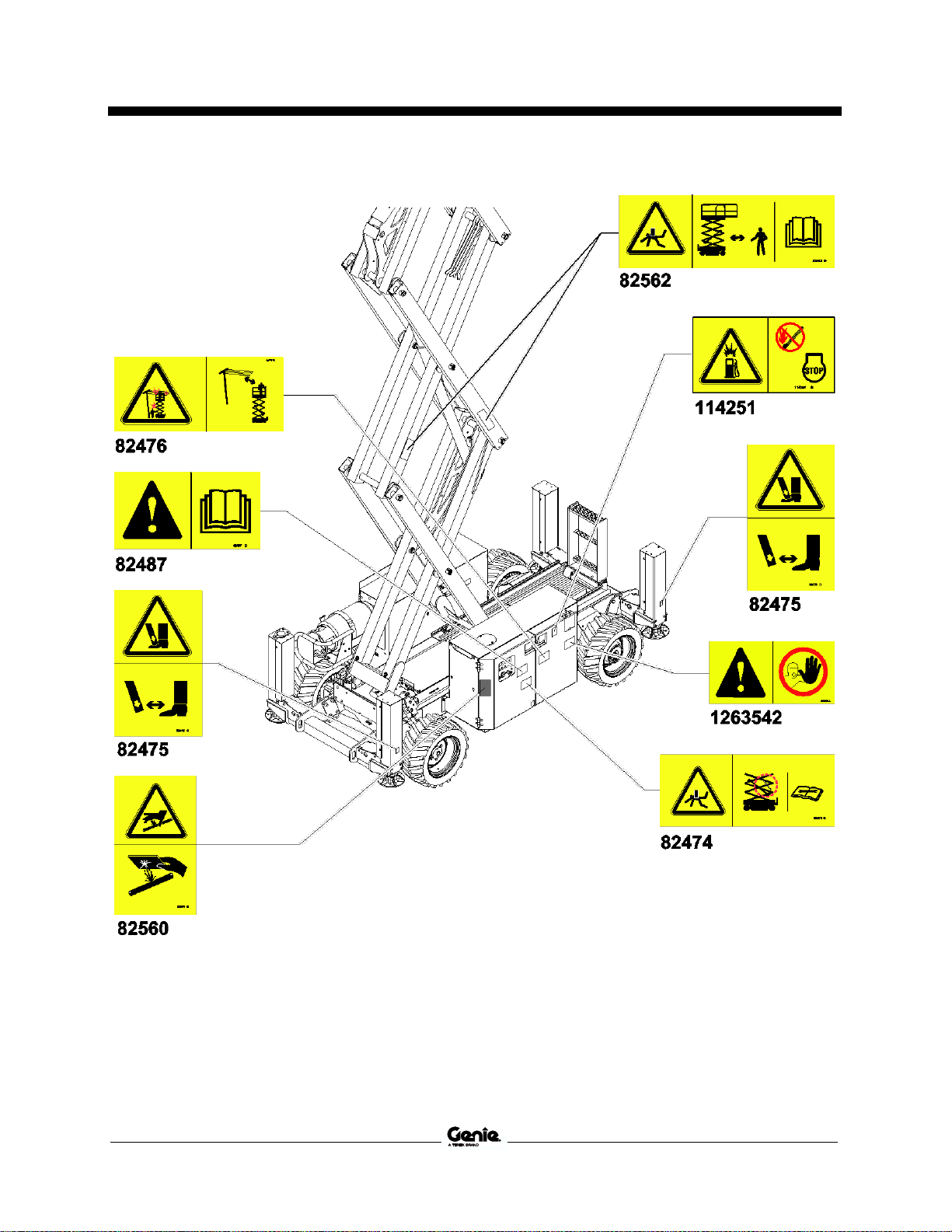

Be sure all decals are in place and legible.
Be sure the operator's, safety, and responsibilities
manuals are complete, legible, and in the storage
container located on the machine.

Operator's Manual Third Edition • First Printing
Work Area Safety
18 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1305657GT
Outrigger Safety
Tip-over Hazards
Do not lower the outriggers unless the machine is
on a firm surface. Avoid drop-offs, holes, unstable
or slippery surfaces and other possible hazardous
conditions.
Do not raise the platform unless the machine is
level. Do not set the machine up on a surface where
it cannot be leveled using only the outriggers.
Do not raise the platform unless all four outriggers
are properly lowered, the footpads are in firm
contact with the ground and the machine is level.
Do not adjust the outriggers while the platform is
raised.
Do not drive while the outriggers are lowered.
Battery Safety
Burn Hazards
Batteries contain acid. Always
wear protective clothing and
eye wear when working with
batteries.
Avoid spilling or contacting
battery acid. Neutralize battery
acid spills with baking soda
and water.
Do not expose the batteries or the charger to water
or rain during charging.
Explosion Hazards
Keep sparks, flames, and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
The battery tray should remain
open during the entire
charging cycle.
Do not contact the battery
terminals or the cable clamps
with tools that may cause
sparks.
Component Damage Hazard
Do not use any battery charger greater than 24V to
charge the batteries.
