TERRAIN VANROVE 04621V User manual

1
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
ARCHER BLIND ASSEMBLY INSTRUCTIONS
Part Number: 04621V
www.terrainoutdoor.com
[phone]

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
2
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
ARCHER BLIND USAGE INSTRUCTIONS AND WARNINGS
Thank you for your purchase of this Terrain Outdoor® Hunting Blind
product. To ensure your personal safety, please take a moment to
carefully read this Instruction Manual in its entirety before
attempting to set-up, install, remove and/or otherwise use this
Terrain Outdoor® Hunting Blind product(s). Failure to follow these
instructions may result in serious injury or death!
If you have any questions about the installation, removal, and/or
use of this product, or any other Terrain Outdoor® product(s) do
not hesitate to call one of our customer service representatives at
[phone] or feel free to visit us online at
www.terrainoutdoor.com. Our customer service representatives
will answer any questions you may have about any of the complete
line of Terrain Outdoor® products.
If you find damaged or missing parts in a newly purchased product,
please contact the manufacturer at [phone] for
replacements.
Please note that WARNING! Statements have been placed
throughout this Instruction Manual. These statements point out
important safety information and instructions, which, if not
followed could endanger the personal safety and/or property of
the operator(s). It is imperative that the operator(s) of this product,
or any other Terrain Outdoor® product(s) read and follow all the
instructions and warnings contained in this Instruction Manual
prior to attempting to use this Terrain Outdoor® product(s), or any
other Terrain Outdoor® product(s). Failure to comply with these
instructions and/or warnings may result in serious personal injury
or death!
WARNING! Failure to read and strictly comply with the instructions
contained in this Instruction Manual may result in serious injury or
death!
WARNING! Prior to each hunt, you must inform someone of your
hunting location, including the specific location of your blind and
the expected duration of your hunt. Failure to follow these
instructions may result in serious injury or death!
WARNING! The safe use and operation of this product(s) is the sole
responsibility of the user. It is also the sole responsibility of the
owner to provide any person(s) who borrow or purchase this
product(s) with these instructions. Failure to follow these
instructions may result in serious injury or death!
WARNING! Prior to each hunt, make sure that you have a signaling
device (e.g., mobile phone, radio, whistle, signal flare or Personal
Locator Device (PLD) in your possession and in an operable
condition. This device must be within easy access shall you
experience the need to contact emergency assistance. Failure to
follow these instructions may result in serious injury or death!
WARNING! This product(s) is designed for adult use only. No one
under the age of 16 shall attempt to use this or any other product(s)
without direct adult supervision. Failure to follow these
instructions may result in serious injury or death!
WARNING! DO NOT modify, fix/repair, alter, bend, cut, weld, drill,
or heat the blind in any way without explicit authorized and written
instructions from the manufacturer. Additionally, do not attach
anything to your blind without explicit authorized and written
instructions from the manufacturer. Failure to follow these
instructions may result in voided warranty, serious injury, or death!
WARNING! Never use any kind of fuel-burning products (heaters,
lanterns, etc.) inside this enclosure. Use of fuel burning products
can result in dangerous concentrations of carbon monoxide, a
colorless and odorless gas. Breathing carbon monoxide will cause
serious injury or death.
WARNING! Always use hearing protection when discharging
firearms, especially within an enclosed space.
WARNING! This product is not fireproof. The plastic will burn if it
comes into contact with an open flame or fuel source. Keep
product away from direct flame. Failure to follow these instructions
may result in serious injury or death!
WARNING! This product is for hunting purposes only! It is not to be
used as a camping tent or for any other function. Failure to follow
this warning may result in serious injury or death!
WARNING! Practice safe and proper firearms handling while using
this product. Keep firearm or weapon unloaded until seated in the
blind and no further movement is expected. Unload the firearm or
weapon prior to exiting the blind. Failure to follow this warning
may result in serious injury or death!
WARNING! Practice safe and proper firearms handling while using
this product. Keep firearm pointed in the direction of least
consequence with the safety ON in SAFE position at all times.
Failure to follow this warning may result in serious injury or death!
California Prop 65 Warning: This product may contain a chemical known
to the state of California to cause cancer, birth defects, or other
reproductive harm.
If you have any questions about the assembly, installation or
use of this product, or any other product, please do not
hesitate to call one of our customer service representatives at
[phone] and they will answer all questions you may
have about any of the complete line of products. Please have
the product model number (04621V) and component part
number ready before calling to better assist you.

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
3
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
PARTS LIST
Part # Description Qty
2020 Bolt (¼-20 x 1¼") 51
2021 Bolt (10-24 X ½) 50
2023 Bolt (10-32 X ¾) 23
3013 Washer (¼ID Rubber) 11
3014 Washer (¼ ID ⅝ OD) 51
6012 Nut (10-24 Nut) 50
6013 Wing Nut (¼-20) 51
6014 Nut (10-32 Lock Nut) 23
9000 Hinge (1 ⅜ X 1 ½”) 14
INS-TERRAIN-HANDLE Door Handle 1
INS-TERRAIN-TURN-BUTTON Window Latch 22
03867V-A Archer sidewall 4
04627V-A Door/Frame Assembly 1
04630V Roof Cap 1
03866V-C Roof Panels 5
INS-COMMON TAB PLEXIGLASS Window 1
INS-COMMON LIVING HINGE Window Hinge 1
INS-SHORT BOW TAB PLEXIGLASS 4
INS-SHORT BOW LIVING HINGE 4
INS-TERRAIN-LONG BOW WINDOW 4
SPECS
Size: 73”x73”x85” (LxWxH)
Weight: 128 lbs
Maximum Occupancy: One adult with gear
Color: Olive drab exterior, black interior
TOOLS NEEDED
Phillips Screw Driver
⅜” Socket Wrench OR Adjustable Crescent Wrench
STORAGE AND CARE
All Terrain Outdoor® hunting blinds are made with an
industrial grade UV Protected High Density Polyethylene
material. All components and hardware is resistant to sun,
moisture, and normal temperature fluctuation. This product has
a 1 year limited warranty against defects in materials and
workmanship.
To extend the life of this product, keep out of prolonged
exposure to sunlight in a shaded area. Keep in an area away
from high winds. Make sure that all windows and the door are
closed tightly when not in use.
To remove surface blemishes and stains use a wet rag and mild
detergent as needed. Rinse well. Bleach based cleaners may be
used sparingly on the wall, roof, and door panels to remove
stains - AVOID WINDOWS. Use only a non-abrasive cloth and a
cleaner labeled for use with Acrylic or Plexiglass to clean the
windows.

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
4
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
INCLUDED ITEMS AND
HARDWARE LIST
Check to make sure you have all the required parts and hardware. If
you find damaged or missing parts in a newly purchased product,
please contact the manufacturer at [phone] for replacements.
Part # Description Qty
2020 Bolt (¼-20 x 1 ¼") 51
2021 Bolt (10-24 X ½) 50
2023 Bolt (10-32 X ¾”) 23
3013 Washer (¼ID Rubber) 11
3014 Washer (¼ ID ⅝ OD) 51
6012 Nut (10-24 Nut) 50
6013 Wing Nut (¼-20) 51
Part # Description Qty
6014 Nut (10-32 Lock Nut) 23
9000 Hinge (1 ⅜ X 1 ½”) 14
INS-TERRAIN-HANDLE Door Handle 1
INS-TERRAIN-TURN-BUTTON Window Latch 22
03867V-A Archer Sidewall 4

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
5
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
Part # Description Qty
04627V-A Door/Frame Assembly 1
03866V-C Roof Panels 5
04630V Roof Cap 1
Part # Description Qty
INS-SHORT BOW TAB PLEXIGLASS 4
INS-TERRAIN-LONG BOW WINDOW 4
INS-SHORT BOW LIVING HINGE 4
INS-COMMON TAB PLEXIGLASS Window 1
INS-COMMON LIVING HINGE Window Hinge 1
INCLUDED ITEMS AND
HARDWARE LIST
Check to make sure you have all the required parts and hardware. If
you find damaged or missing parts in a newly purchased product,
please contact the manufacturer at [phone] for replacements

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
6
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG 2
FIG 1
STEP 1:
Attach (2)
Archer
sidewall [
03867
V
-
A
] panels
together using (5) Bolt ¼-20 x 1 ¼" [2020], (5) Washer ¼ ID ⅝
OD [3014], and (5) Wing Nut ¼-20 [6013].
NOTE: When assembling, be sure that the bolt is inserted from
the exterior and the washer and wingnut are from the
interior. Make sure window openings are all towards the top
of the assembly.
03867
V
-
A
03867
V
-
A
2020
3014,
6013
(4
x)
03867
V
-
A
DETAILED VIEW
(10x)
3014, 6013, 2020
STEP 2:
Repeat STEP 1 to attach the remaining
Archer sidewall [03867V-A].

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
7
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG 4
FIG 3
DETAILED VIEW
03867
V
-
A
03867
V
-
A
04627V
-
A
03867
V
-
A
STEP
3
:
Attach (1)
Door/Frame Assembly
[
0
04627V
-
A
]
panels to the assembly using (5) Bolt ¼-20 x 1 ¼" [2020],
(5) Washer ¼ ID ⅝ OD [3014], and (5) Wing Nut ¼-20
[6013].
STEP
4
:
Finish fastening the
Door/Frame Assembly
[04627V-A] panels to the assembly using (5) Bolt ¼-20 x
1 ¼” [2020], (5) Washer ¼ ID ⅝ OD [3014], and (5) Wing
Nut ¼-20 [6013].
NOTE: When assembling, be sure that the bolt is inserted
from the exterior and the washer and wingnut are from
the interior.
(
4
x)
03867
V
-
A
(10x)
3014, 6013, 2022
04627V
-
A
03867V
-
A
2020
3014,
6013

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
8
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG 5
STEP
5
:
Locate all 5 roof sections [3866V-C].
Lay each section so they overlap each other
with the holes lined up, small ribs inside large
ribs. Using a Phillips screw driver, attach the
roof section together at the Outside holes only,
using the 2022 bolts provided, the rubber
washers, and the wingnuts. Do not tighten all
the way.
FIG 6
(
x
5
)
2
0
2
0
,
3013, 6013
(x
5)
2020,
3013, 6013
STEP
6
:
Locate roof cap [04630]. Align
the roof cap over the center of the roof
assembly. This step will require standing
the roof up to attach it. With the roof on
its side, attach the roof cap with the black
bolts [2022], rubber washer [3013], and
wing nuts [6013]. Once all the bolts are in
place, tighten down.
DETAILED VIEW
2022,
3013
6013, not
shown

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
9
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
7
STEP
7
:
Fasten the
Roof
to the assembly using (4)
Bolt
¼-20 x ⅞" [2022], (4) Washer ¼ ID ⅝ OD [3014], and (4)
Wing Nut ¼-20 [6013]. Fasten only through the MIDDLE
HOLES on each side.
NOTE: When assembling, be sure that the bolt is inserted
from the exterior and the washer and wingnut are from
the interior. Make sure that the roof panel is resting ON
and OVER the sidewall panels.
6013, 3014
2022
DETAILED VIEW
Roof Support Note (optional): This product is not
designed for sustained snow load. If the product will be
unattended for any period of time through the winter
months we recommend a 2x4 support being placed in
the center of the structure. We recommend a 83"
length. Cut a 2x4 to this measurement. Lodge the
support between the floor and the roof when blind is
not in use. This will help support the roof under heavy
snowfall. NOTE: If your roof does collapse it can be
reset by disconnecting the roof and placing it on the
ground. Once it is on the ground, stand on the roof to
push the dent out and back into shape.

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
10
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
8
FIG
9
STEP
8
:
Finish fastening the Roof to the assembly with
(8) Bolt ¼-20 x ⅞" [2022], (8) Washer ¼ ID ⅝ OD [3014],
and (8) Wing Nut ¼-20 [6013]. Fasten through the holes
on the Roof and the slots on the wall/door panels.
NOTE: When assembling, be sure that the bolt is inserted
from the exterior and the washer and wingnut (NOT
SHOWN IN PICTURES) are from the interior.
DETAILED VIEW
(2x)
6013
, 3014
(NOT SHOWN)
2020
2020
STEP
9
:
Install the Door Handle [
INS-TERRAIN-HANDLE]
into the Door/Frame Assembly [04627V-A] panel. This
step does not require any additional hardware.
NOTE: When assembling, be sure the handle is in the
correct orientation as shown. The TERRAIN text faces up,
the LATCH faces towards the frame, and the WEATHER
COVER is on the exterior.
Interior Facing
Exterior Facing
LATCH:
Faces Frame

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
11
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
10
STEP
10
a
:
Install the Door Handle [
INS-TERRAIN-
HANDLE] into the Door/Frame Assembly [04627V-A]
from the exterior of the panel. Insert the tabs near the
latch on the Door Handle into the slot as shown. Slide
the partially installed handle towards the door frame.
STEP 10b: Push the back set of tabs on the Door Handle
through the slot. This is a tight fit, designed to be a snap fit.
The tabs are angled to assist with installation.
STEP
10
c
:
While applying pressure in on the handle to
keep the tabs in the slot, slide the handle towards the
door frame.
NOTE: While the handle is removable, it is designed to be
installed only once. Refrain from removing and
reinstalling the handle more than needed.
STEP 10a
STEP 10b STEP 10c
DETAILED VIEW
-
INTERIOR

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
12
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
11
6014
04627V-A
INS-TERRAIN-TURN-BUTTON
2023
STEP
11
:
Install (
2
)
Window Latches
[
INS-TERRAIN-TURN-
BUTTON] into the Door/Frame Assembly [04627V-A] and
(20) Window Latches into Common Sidewall Panels
[03867V-A]. Use (22) Bolts (10-32 X ¾”) [2023] and (22)
Nuts (10-32 Lock Nut) [6014].
NOTE: Install using Bolt and Window Latch from the
interior and the Nut from the exterior. Tighten just
enough to keep latches open or closed - DO NOT
OVERTIGHTEN.
Detailed View
For Each Side Panel:
(X5) 2023
(X5) 6014
(X5) INS-TERRAIN-TURN-BUTTON

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
13
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
1
2
STEP
12
a
:
Using 2 bolts (2021), a hinge, and 2 nuts
(6012) attach the hinge to the long window as shown
(RED IN PHOTO BELOW). Using 2 more bolts (2021) and
2 nuts (6012) attach the hinge to the blind wall (BLACK
IN PHOTO BELOW). Make sure the nuts are on the
outside of the blind wall and window as shown.
STEP 12b: Repeat the above step for all three hinges
on every tall window (4 windows total).
Detailed View

ATTENTION! DO NOT RETURN TO RETAILER. IF THERE ARE ANY MISSING OR BROKEN COMPONENTS
PLEASE CONTACT THE MANUFACTURER AT [phone]. REFERENCE BLIND MODEL: ARCHER 04621V AND
THE SPECIFIC COMPONENTS NAME FROM THE PARTS LIST.
14
READ THIS MANUAL IN ITS ENTIRETY BEFORE ASSEMBLING OR USING THIS PRODUCT.
FIG
14
FIG 13
Groove Facing UP
Detailed View

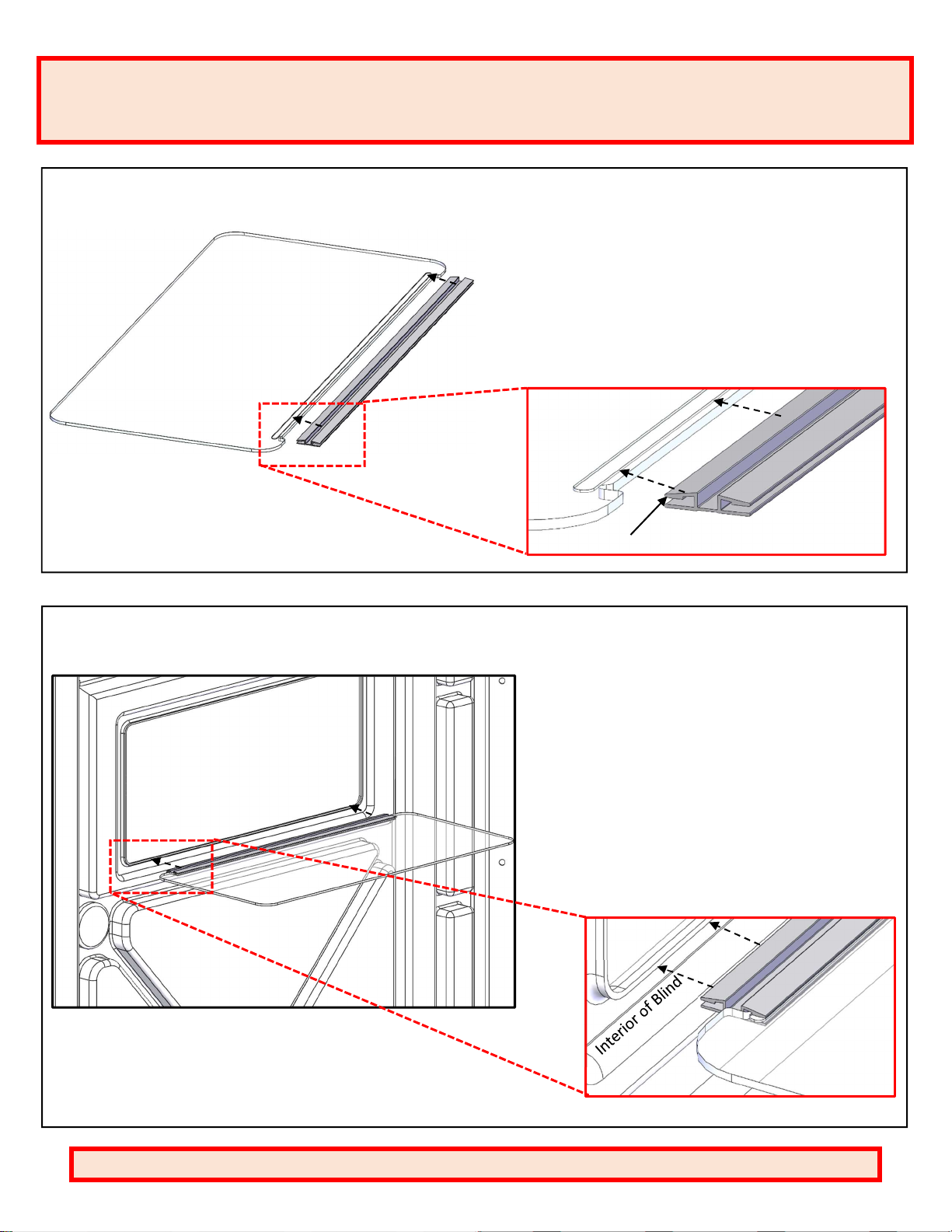

STEP
13
:
Attach (1
)
Windows [INS-COMMON TAB PLEXIGLASS]
to (1) Window Hinges [INS-COMMON LIVING HINGE]. Attach (4)
Small windows [INS-SHORT BOW TAB PLEXIGLASS] to (4) Short
window hinges [INS-SHORT BOW LIVING HINGE]. Groove in
Window must snap into place on tab of Window Hinge. If
installed correctly and fully, a small snapping noise can be heard.
Tab on Hinge
NOTE
:
Window Hinges may be loose in the box OR
connected to the wall/door panels.
STEP
14
:
Attach (1
)
assembled Window/Hinge to the
Door panel. Attach (4) assembled small
Window/hinges to the side walls. Install from the
interior of the blind, and keep the Tab on the Hinge
and the Groove on the Window facing UP. Press fully
over edge of window cut out. If installed correctly and
fully, a small snapping noise can be heard.
NOTE: Window is designed to fold open completely. If
Hinge binds on itself during opening or closing it is
installed incorrectly.
Detailed View
Groove and TAB
facing UP
