TerraTrike Rambler User manual

Assembly Guide
Pilot’s Handbook
Technical Illustration
&
Parts List
www.TerraTrike.com - 800.945.9910
4460 40th St SE. Grand Rapids, MI 49512 USA

Table of Contents
Assembly Guide - Pg 1 - 12
Pg 1 - Hubmount/Handle bar Installation
Pg 2 - Rear Wheel/Front Wheel Installation
Pg 3 - Brake Installation
Pg 4 - Boom Installation, X-seam setup, Alignment
Pg 5 - Tire Pressure, Alignment Continued
Pg 7 - Rear Derailleur Hanger Alignment, Installation & Adjust-
ment
Pg 8 - Shifter & Brake Cable Installation & Routing
Pg 9 - Seat Clamp, Chain Tube and Chain Installation
Pg 10 - Pedal Installation & Seat Installation
Pg 11 - Reector Installation & Seat Adjustment
Pg 12 - Handlebar Adjustment
Owners Information - Pg 13 - 14
Pg 13 - Welcome!, Unpackaging, Caution/Safety, Riding Tips
Pg 14 - Warranty Information
Technical Information - Pg 15 - 17
Pg 15 - Rambler Technical Drawing (Exploded), Part Numbers
Pg 16 - Rambler Seat Clamp Drawing (Exploded), Part Numbers
Pg 17 - Parts Lists for Technical Drawings
Pg 18 - X-Seam Settings
Pg 19 - 21 - Notes
Pg 22 - Company Information

Assembly Guide
Dark Grey = Installation/Adjustment
1
Washer
Washer
Hubmount
2
Apply grease to grey
bushings to make steer-
ing even smoother.
2
1
Hubmount Installation
Handlebar Installation
Wipe o grease where
handle bars clamp on.
Apply grease to hubmount axle
before sliding it up in to frame!
1
PLEASE NOTE: Make sure you’re greasing bolts before installing them.
Failure to do so can cause “galling” to occur (heat and friction will fuse (weld)
the fasteners together). Adjustment will be impossible and not covered under
warranty.
BEFORE YOU BEGIN ASSEMBLY, INSTALL DECAL PACKET

3
4
1
2
Rear Wheel Installation
Front Wheel Installation
Install axle bolts - tighten to 325 in. lbs.
Apply grease to quick
release skewer before
installing
Apply grease to hubmount
axle before installing wheel
2
Tire Pressure
Tire pressure is indicated on the side-wall of of each tire.
**TIRE PRESSURE SHOULD BE CHECKED BEFORE EACH RIDE.**

51
2
Tighten cap-screw until wheel doesn’t move. This makes brake cailper setup easier.
Loosen cap screw to desired steering resistance when finished.
Brake Caliper Installation & Setup
Proper setup: you should see day-
light on either side of the rotor with
bolt screws tightened down. See
below image for bolt location and
fastener layout.
Hubmount
M6 washers OR Fender stay
Caliper Bolts
3

6
Tie Rod Installation and Wheel Alignment
See Pg 6 for alignment/wheel spacing measurements.
RAMBLER 8 tie rod install above hubmount!!!
1
Temporarily turn to pg 20 for x-seam
setup. Setup boom for X-seam length.
See chart on Pg 19 for Boom length-to-x-
seam measurements.
7
Make rst wheel
parallel to frame.
Measure to center
of bottom bracket.
Boom Installation & Front Derailleur Setup (set stops)
Alignment
INSTALL TIE ROD FIRST
2
Apply a lot of
grease to
clamping
bolts and
tighten
securely!
Torque spec: 60-70 in. lbs.
Hubmount
“L” Bracket (computer
sensor mount)
RIGHT HAND
SIDE OF TRIKE
Hubmount
Loosen Hex nuts to rotate tie rod
Set Derailleur Stops
LEFT HAND
SIDE OF TRIKE
Rotate tie rod to change
wheel alignment after
installing the tie rod
mounting bolts
4
INFLATE TIRES BEFORE ALIGNING TRIKE

7 Cont.
See Next Page for Alignment/wheel spacing measurements

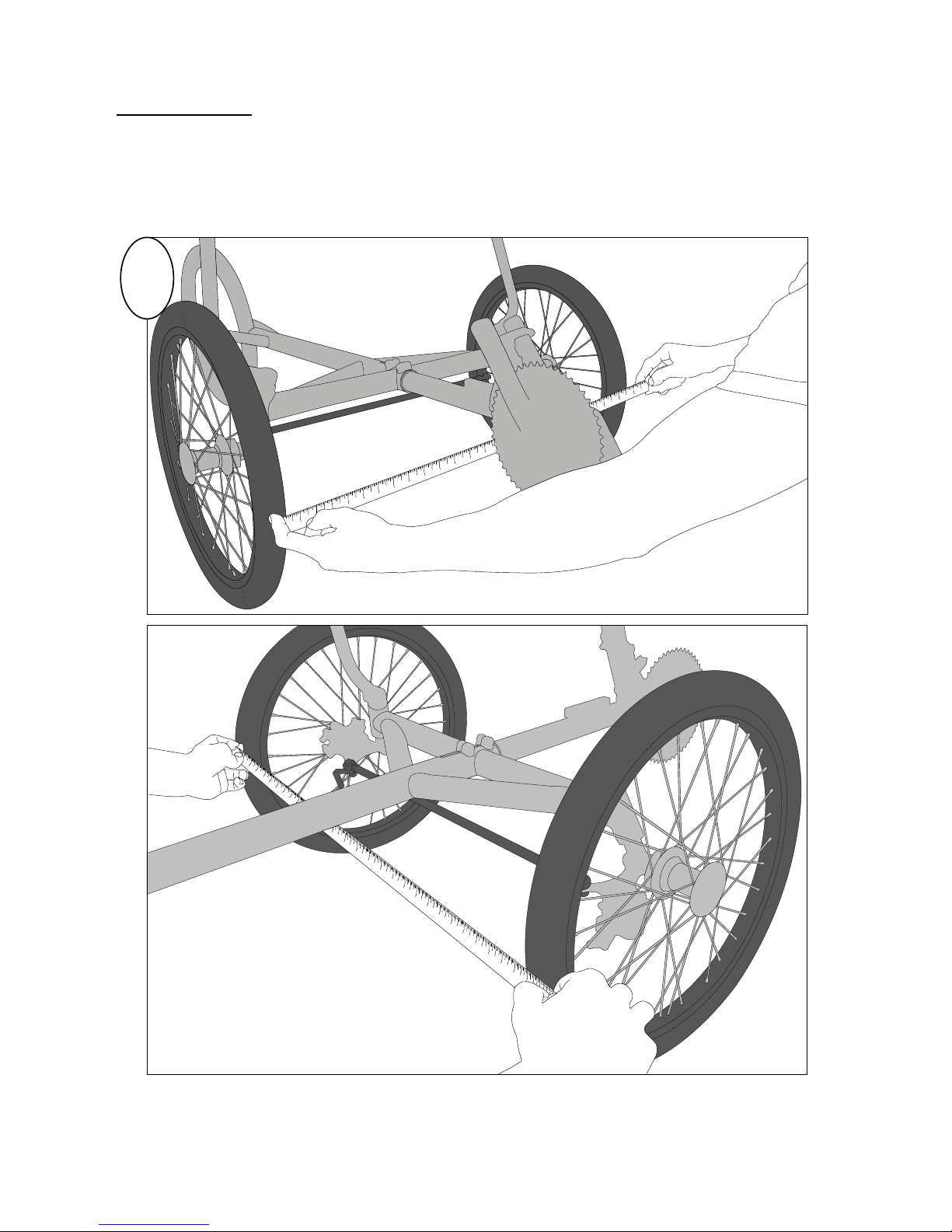

Make Second Wheel Parallel to First Wheel
Demonstration Picture - Measuring Front to Front
Demonstration Picture -
Measuring Back to Back
5
Tire Pressure
Tire pressure is indicated on the side-wall of of each tire.
**TIRE PRESSURE SHOULD BE CHECKED BEFORE EACH RIDE.**

7 Cont.
14 1/16”
or
357mm
29 3/4”
or
759mm
13 15/16 “
or
354mm
Make sure the rst wheel you chose to
align on pg 4 doesn’t move after being
aligned to frame. Do this by tightening the
cap screw in Step 2.
These measurements may vary slightly. Each
tire may have variances in it. It’s important to
make sure, however, each wheel is aligned
properly.
6
Tire Pressure
Tire pressure is indicated on the side-wall of of each tire.
**TIRE PRESSURE SHOULD BE CHECKED BEFORE EACH RIDE.**

8
9

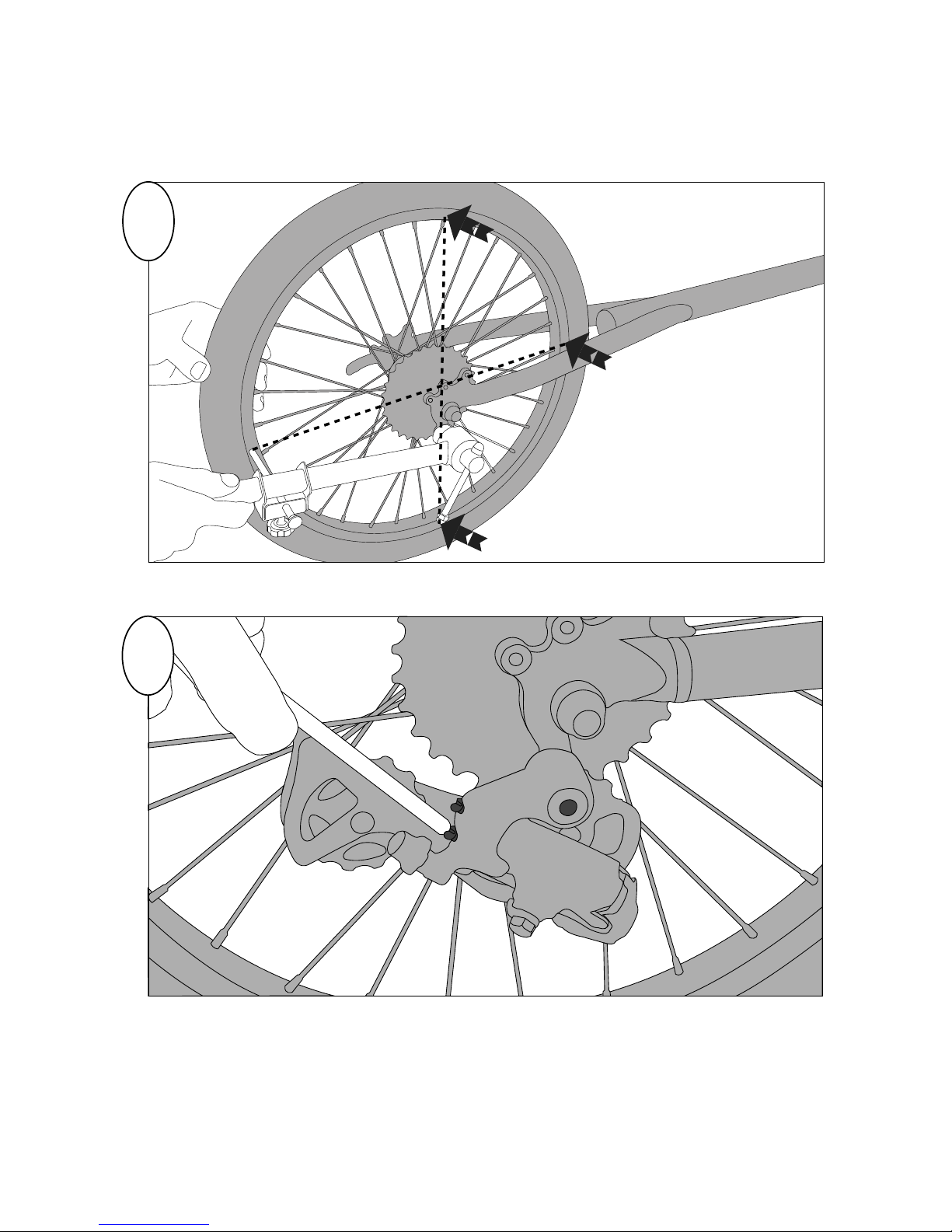

Conrm Derailleur Hanger Alignment & Rear Derailleur Installtion (If Equipped)
Set Rear Derailleur High & Low Stops
7

10

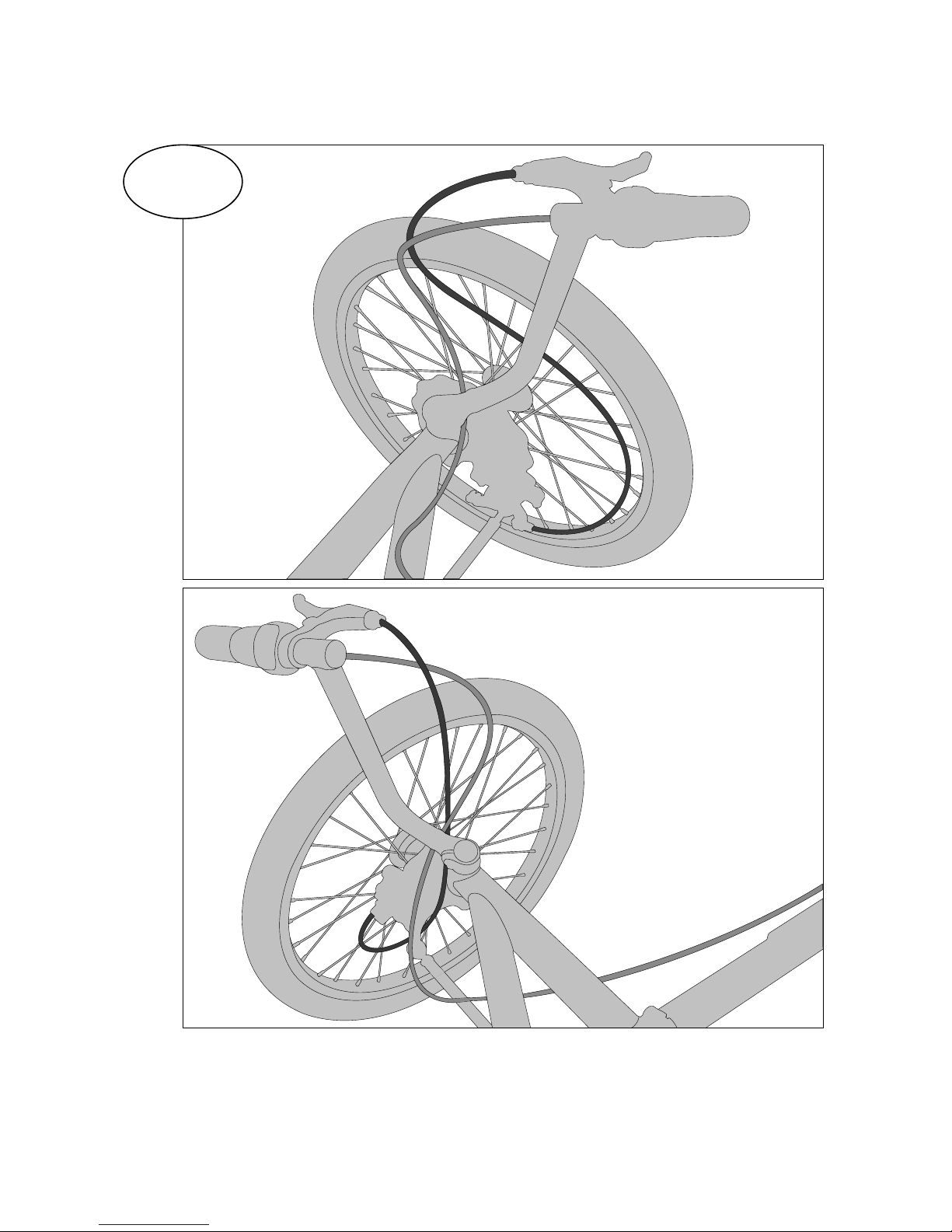

Cable Routing & Installation
Right Hand
Handlebar
Left Hand
Handlebar
8

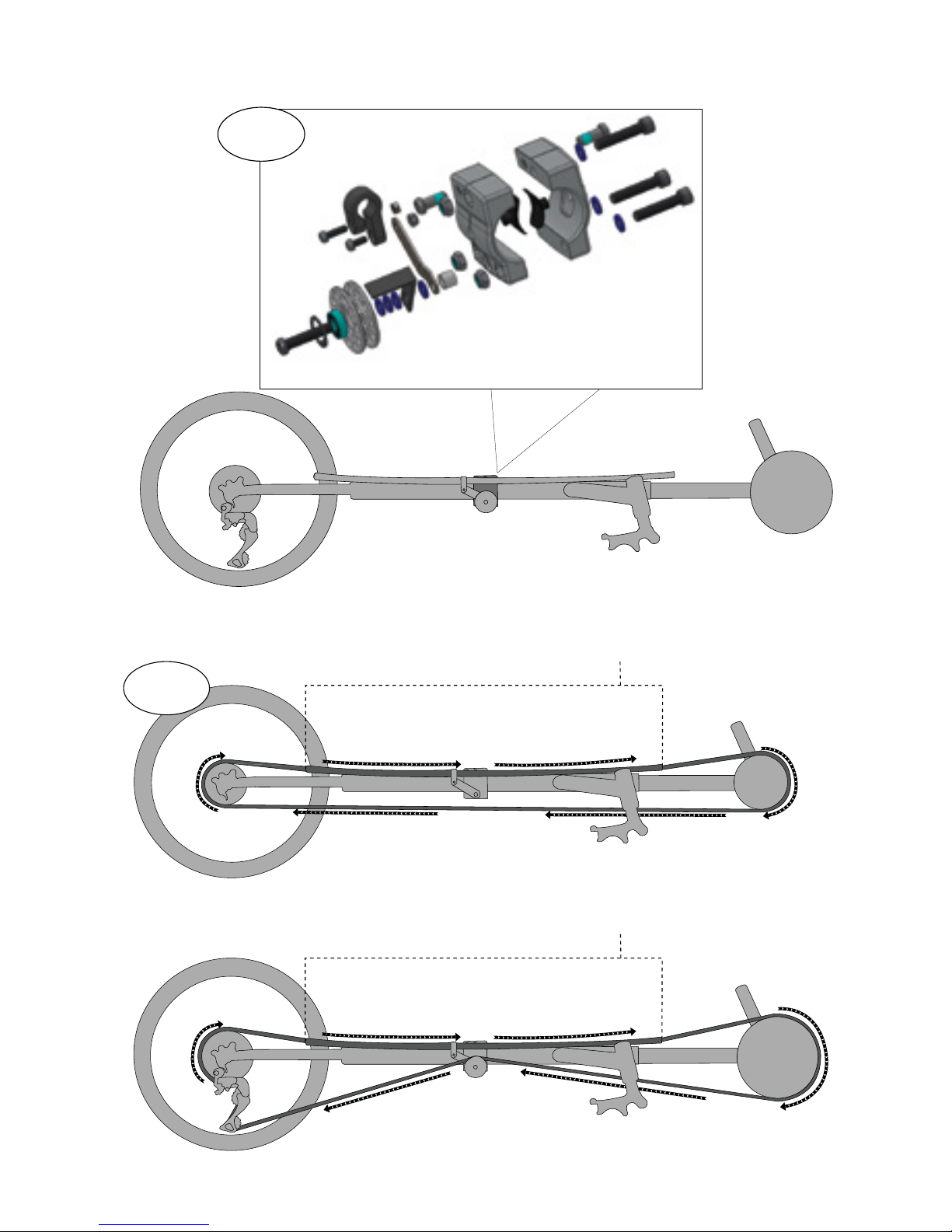

Seat Clamp Installation
Right side of Trike
Left side of Trike
11
Some parts omitted for clarity
9
Be sure to apply a generous
amount of grease to each
bolt before installation
Chain Tube Placement & Installation
Some parts omitted for clarity.
Don’t clamp chain tube yet!
Add the 7”packet of chain &
master link for the long size.
Chain Tube Placement & Installation
12
Add the 7”packet of chain &
master link for the long size.
Some parts omitted for clarity.
Don’t clamp chain tube yet!
Rambler 8 Speed
Rambler Base, Elite, Pro
CHAIN IS INSTALLED OVER THE TOP
OF THE TIE ROD WHEN RUNNING
UNDER THE TRIKE!

10
14
Attach seat to seat clamp with bolts (number 27)
illustrated in seat clamp technical drawing (pg 17).
Install seat on seat clamp/idler
assembly. Move to desired
position on main tube and
tighten seat clamp bolts and
chain tube clamp bolt.
Tighten Securely!
Use detent ring pins to secure
seat stays at preferred angle
of recline.
Seat Installation
Pedal Installation
13

Seating Position Adjustment
Your Rambler’s seat is adjustable on two different planes: fore/aft position at the base and the
incline/recline angle of the seat back.
Your seating position can adjust anywhere from 35-70 degrees depending on where the seat
bracket is located on the frame.
1) Fore/Aft Seat Position-
To move the base of your seat, loosen the two lower clamping bolts and the idler clamp bolt, move
the seat, and tighten the bolts. Your Rambler seat has approximately 9.5” of total fore/aft move-
ment on the main frame. MAKE SURE THAT THE SEAT IS CLAMPED SECURELY
2) Incline/Recline Position-
To adjust the incline/recline position (sitting up-right or laying back), pull the “seat stay pins” (num-
ber 5 in technical illustration) from the “seat stays” (number 4 in the technical illustration). You can
now adjust your angle of recline (seat back angle). When you have a seating position you feel
comfortable with, align the holes in the “seat stays” and reinstall your “seat stay pins” ***MAKE
SURE THE HOLES IN THE SEAT STAYS LINE-UP WHEN YOU REINSTALL YOUR SEAT STAY
PINS***
Seat Bracket
Rear frame section
1
2
15
Reector Installation
Front Reector
Rear Reector 11

12
Handlebar Adjustment
***HANDLEBAR ADJUSTMENT VIDEO AVAILABLE ONLINE - http://www.terratrike.com/manuals.php
Your Rambler handlebars are adjustable in two different ways:
Before you adjust your handlebars, it’s important to be seated on the trike while making this adjustment.
1) The stiffness/ease of steering can be adjusted - you can make your Rambler harder or easier to steer by
adjusting your “Top Cap Bolts” (number 22 in the technical illustration on pg 17).
2) They can rotate out and away from the rider - this gains a slightly wider riding clearance for wider people.
This is also ideal for indiviuals with longer arms and/or broad shoulders.
If you decide to adjust your Rambler’s handlebars, follow the below steps:
Top Cap Bolt Adjustment (Tighten or Loosen Steering “feel”):
1) Loosen the clamping bolt that secures your handlebar to the steering tube that runs through the frame.
2) Carefully loosen the cap screw bolt. This is what controls the stiffness of the steering.
***DON’T LOOSEN THE CAP SCREW BOLT TOO MUCH. You DON’T want your handle bars to feel wobbly***
Retighten the clamping screw to secure your handle bar, and test the feel.
1
2

Welcome to our growing Family!
First Things First...Please read the information below BEFORE you go riding. It discusses every-
thing from unpackaging your trike to trike maintenance to riding tips. We want our customers to
be safe and enjoy their trikes for years to come. Thank you for supporting our company, dealers
and families by choosing TerraTrike.
Unpacking
When your TerraTrike arrives, carefully unpack the contents and inspect for any damage that may
have occurred during shipping. Notify your delivery person of ANY damage on the outside of
the box. If anything is amiss, contact the TerraTrike Sales Ofce immediately at [phone].
Note: The tires may have little or no air in them. This is our normal shipping procedure to avoid
damage from extreme altitude uctuations.
It’s a good idea to atten and save all boxes and packing materials. You may need them if you
ever need warranty service or want to ship your TerraTrike.
Cautions/Safety
Stop! Make sure to read and understand this manual completely before riding your TerraTrike.
We want to keep you riding safely for endless miles and years to come. So, always follow these
safety precautions for each ride:
•Inspect your TerraTrike before each ride. Check the tires for proper pressure and any damage.
Ensure that the brakes are functioning at their full capacity.
•Please remember a helmet is your most important piece of safety equipment. Wear one!
•If you ride at night make sure you have a white headlight visible from a distance of at least 500
feet, and a red rear taillight.
•Look behind you! We strongly recommend the use of a rear view mirror. Also make sure to turn
your head and look before turning or changing lanes.
•Use caution when cornering. Learn to use safe speeds for negotiating corners and going down
hills.
•Lean into turns when cornering at speed. Your TerraTrike can be “rolled” if turned too sharply for
a given speed. Rule of thumb: rubber side down. :)
•The disc brakes and rotors will get very hot after braking. DO NOT touch them.
•Keep your feet securely on the pedals to prevent them from getting caught underneath your Ter-
raTrike. We recommend clipless pedals or Power Grip pedal straps.
•Brake evenly using both hands. Your TerraTrike is designed with front brakes only. You will
experience brake-steer if you brake only one side.
•Although your TerraTrike is suitable for riding on dirt roads if equipped with more rugged tires, it
is not designed for all-terrain, off-road use, or canyoneering.
•The unique look of your TerraTrike will attract much attention, so you’re more likely to be seen.
•Be sure you are not obstructed from view by other vehicles. Use of a ag is highly recommend-
ed.
•Remember, your rst line of defense is always your own common sense. Ride as if you are
invisible to motorists.
•Your TerraTrike is strong enough for most riding conditions. That is not a license to ride in a
hazardous or abusive manner! Anyone can damage their TerraTrike if they try hard enough. Use
common sense.
•Take care of yourself. We like our customers, and we want to keep them around.
Riding Tips
Shifting: Simply twist the shifter up or down to nd the desired gear. Sturmey Archer hubs should
be shifted when you ARE NOT pedalling. External drive trains (derailleur systems) require pedal-
13

•Steering: All of the steering parts tend to settle in after the rst 100 miles or so. This may require
some tightening of nuts and bolts.
•Cleaning: Your TerraTrike will operate for years to come if you keep it regularly cleaned and
lubed! Water and soap won’t hurt your TerraTrike, provided you dry and lubricate right after clean-
ing. If you need to wash the seat mesh, remove it from the seat frame, wash it in the gentle cycle
and let it air dry. If you ride in inclement weather, immediately clean and lube your TerraTrike
after your ride. Road salt, over time, will cause signicant damage to your TerraTrike. Clean it
off immediately! Likewise, salty air will corrode your TerraTrike. It’s a good idea to wax the frame
occasionally with a good quality car wax. We do use stainless steel nuts and bolts.
TerraTrike Lifetime Warranty
Lifetime Warranty
WizWheelz warrants to the original owner that all its trike frames, seat frames, and steering
components are free of defective materials and workmanship subject to the limitations contained
in this warranty. This warranty is limited to the lifetime of the original owner and is nontransfer-
able. The Edge model carries a 3 year warranty. Warranty is conditioned upon the trike being
purchased through and assembled by WizWheelz or an authorized WizWheelz dealer, operated
under normal conditions, and maintained properly. Warranty does not apply to paint/nish or com-
ponents attached to the frame. Attached components are subject to the warranty, if any, of their
original manufacturer. Warranty claims must be presented to the place where the product was
purchased whether that is an authorized WizWheelz dealer or the WizWheelz factory. Proof of
purchase must accompany all requests for warranty coverage. WizWheelz reserves the sole dis-
cretion to repair or replace any parts covered by this warranty. Replacement parts may be a newer
version than those originally purchased. Original owner shall be responsible for all labor, shipping,
and travel costs related to repair or replacement of warranted parts. This warranty does not apply
to normal wear and tear, or any defects, malfunctions, or failures that result from abuse, neglect,
improper assembly, improper maintenance, overloading past specied load limit, alterations (i.e.
cutting, spreading, drilling, welding, etc.), collisions, accidents, or misuse.
WizWheelz shall not be liable for any special, indirect consequential, incidental or other similar
damages suffered by the purchaser or any third party, including, without limitation, damages for
loss of prots or business or damages resulting from use or performance of the product, whether
in contract or in tort, even if WizWheelz or it’s authorized representative has been advised of the
possibility of such damages and WizWheelz shall not be liable for any expenses, claims, or suits
arising out of or relating to any of the foregoing.
14

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21
22
23
24
25
26
27
Technical Illustration
&
Parts List
15

13
5
1
2
3
4
6
7
8
9
10
11
12
14 15
16
17
18
See next page for complete parts lists
Seat Clamp
Technical Drawing
16

Item Rambler Part Descriptions Quantity
1 M5x25 Bolt - Attach seat stays to seat frame 2
2 M5 Lock Nut - Attach seat stays to seat frame 2
3 Upper Seat Stays 2
4 Lower Seat Stays 2
5 Seat Stay Pin 2
6 Chain Tube (36 Inches Long) 1
7 M5x12 Bolt w/2 M5 Flat Washers (2 bolts, 4 washers) 2/4
8 Rambler Frame 1
9 Cap Screw 2
10 Handle Bar Cap 1
11 Steering Bushings (20mm) 2
12 Steering Flat Washers 2
13 M8x30 Bolt 2
14 Tie Rod End (1 le hand, 1 right hand) 1 ea
15 M8 Lock-nut 2
16 Axle Bolt (socket plug) 2
17 Wheel/hub bearing (6804) 4
18 M8 Hex Nut 2
19 Wheel Hub 2
20 Hubmount 2
21 Tie Rod 1
22 M8x30 Bolt 2
23 Boom Sleeve 1
24 Boom 1
25 M5x12 Button head bolt 2
26 Handle Bar 2
27 M8x21 Pan Head Bolt 2
Item Rambler Seat Clamp Part Descriptions Quantity
1Seat Clamp 1
2Seat Clamp 1
3 Seat Clamp Pad 2
4 M8 Nut with Nylon Insert 3
5 M8x40mm bolt 3
6 M8 Flat Washer 3
7 Idler Spacer 2
8 13T Chain Guard 1
9 Chain Tube Bracket 1
10 13T Idler 1
11 Idler Wheel Bearing (6804) 1
12 Idler Bearing Snap Ring 1
13 M8x65mm Bolt 1
14 Chain Tube Bracket 1
15 M5 Flat Nut 1
16 M5 Nut with Nylon Insert 1
17 M5x12mm Screw 1
18 M5x18mm Screw 1
17

Measure to center of bottom bracket
Measure to front
edge of boom sleeve
Suggested Size Ranges X-Seam Range Boom Length Chain Length
Short 33”- 39” 11” 120”
Medium 36”- 43” 14.5” 128”
Long 39”- 45” 18” 134”
Suggested Size Ranges X-Seam Range Boom Length Chain Length
Short 33”- 39” 11” 129”
Medium 36”- 43” 14.5” 137”
Long 39”- 45” 18” 144”
8 SPEED RAMBLER
18
X-Seam Set-
BASE, ELITE & PRO RAMBLER
WARNING: The base of the seat can go back further then indi-
cated above. However, this will make for a more unstable ride.
The overall quality of the ride will descrease if the seat is not in
the proper position.
