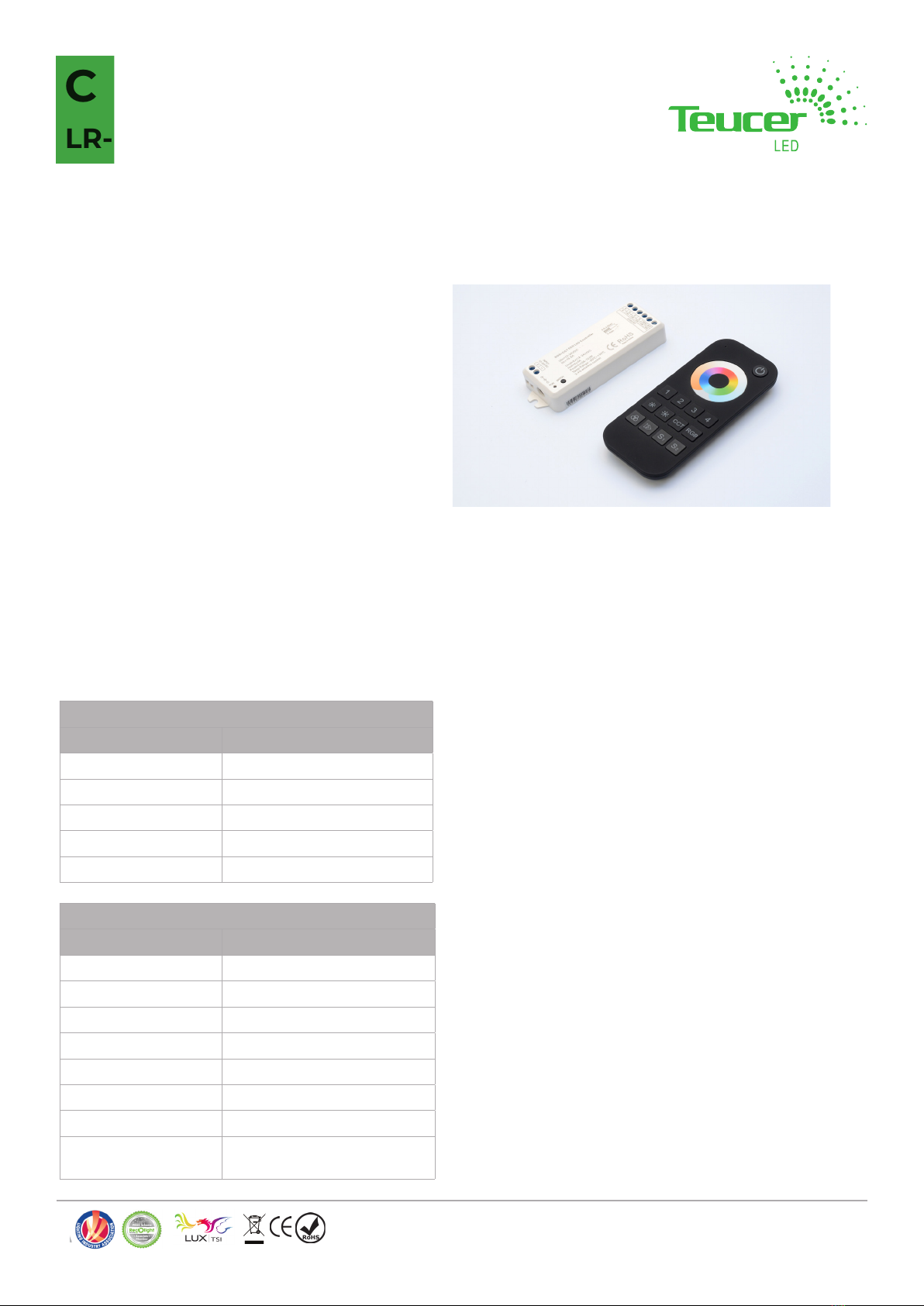

TEUCER LR-4RGBCCT Instruction manual

The LR-4RGBCCT remote enables one to control up to
4 zones of RGBCCT LED strips.
Featuring a touch colour wheel which offers smooth
and continuous colour changing options and enables
creation of colourful static and dynamic effects.
Product ImageProduct Description
Technical Specification
Controller
Order Code LR-4RGBCCT
Type RF Remote
Power 3V DC (2x AAA battery)
Operation Frequency 2.4GHz
Dimension 53x122x17mm (WxLxH)
Weight: 60g
Receiver
Order Code R5C
Type RF receiver
Operation Frequency 2.4GHz
Input Voltage 12-24VDC
Current 5x3A
Output 5X(36-72)W
Note Constant voltage
Dimension 38x114x20mm (WxLxH)
Operating temper-
ature
-20°C~+55°C
• Easy control of RGBCCT LED strips.
• Single zone, two, three and four zone control.
• 2.4GHz wireless technology, remote distance of up
to 30m.
• Operates with an LED indicator light for ease of use.
• Each remote can control one or more receivers.
• Control each zone separately or simultaneously
• Receiver auto-synchronization for play modes
• Auto-transmitting function to achieve greater
distances between receivers and the remote
• PWM dimming enables flicker-less dimming
• Built in 10 RGB play modes
Features
RF technology allows for greater flexibility when it comes
to controlling simple or complex lighting installations
without the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in
a ceiling , reducing the RF signal strength and therefore
the communication range.
In order to overcome these RF Signal restrictions we
suggest the following when synchronising our RF
controllers and receivers:
• Keep the distance within 10 meters from the
controller to the receiver. The remote can operate up
to 30mtrs if signal is uninterrupted by obstacles.
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
Recommendation
4 zones RF controller and receiver for RGBCCT LED strip
Controller and receiver
LR-4RGBCCT and R5C
www.teucerled.co.uk
V001V001

Receiver wiring diagram
Controller layout
CCT RGB
S1S2
124
3
ON/OFF button
LED indicator ON/OFF button LED indicator
RGB/CCT colour wheel
Zones
Increase/Decrease
RGB/CCT brightness
RGB/CCT colour presets
Recall/Save scene
Dynamic modes
Speed/Saturation
RGB+CCT LED strip
Power Supply
24VDC
Constant Voltage AC110-230V
WW
+
-
+
INPUT
12-24V DC
Uin=12-24VDC
Iin=15.5A
RG B+ CCT 5CH L ED C ontro ll er
Uout=5×(12-24)VDC
Iout=5×3A
Pout=5×(36-72)W
Temp Range: -20℃~+55℃
Made in China
OUTPUT
W4 +
+
2.4G wireless control RoHS
W5
W
0.5-1 .5mm2
6-8mm
4 zones RF controller and receiver for RGBCCT LED strip
Controller and receiver
LR-4RGBCCT and R5C
www.teucerled.co.uk
V001V001

Synchronising the remote to receiver
1) Ensure the receiver has power. Press the match button on the receiver. Indicator will
4) To restore to factory default settings and delete the allocated controller, press and
hold the match button longer than 5 seconds.
2) Choose the zone on the remote to allocate the receiver within 5 seconds after pressing
the match button. The indicator will stop flashing, and the controller will be synchronised.
3) Repeat the process to allocate zones for all receivers.
Macth key
+
-
+
INPUT 12-24VDC
Uin=12-24VDC
Iin=15.5A
RG B+ CCT 5CH L ED C ontroll er
Uout=5×(12-24)VDC
Iout=5×3A
Pout=5×(36-72)W
Temp Range: -20℃~+5 5℃
Made in China
OUTPUT
W4 +
+
2.4G wireless control RoHS
W5
0.5-1.5mm2
6-8mm
CCT RGB
S 1 S 2
124
3
Press the zone
you wish to allocate
4 zones RF controller and receiver for RGBCCT LED strip
Controller and receiver
LR-4RGBCCT and R5C
www.teucerled.co.uk
V001V001

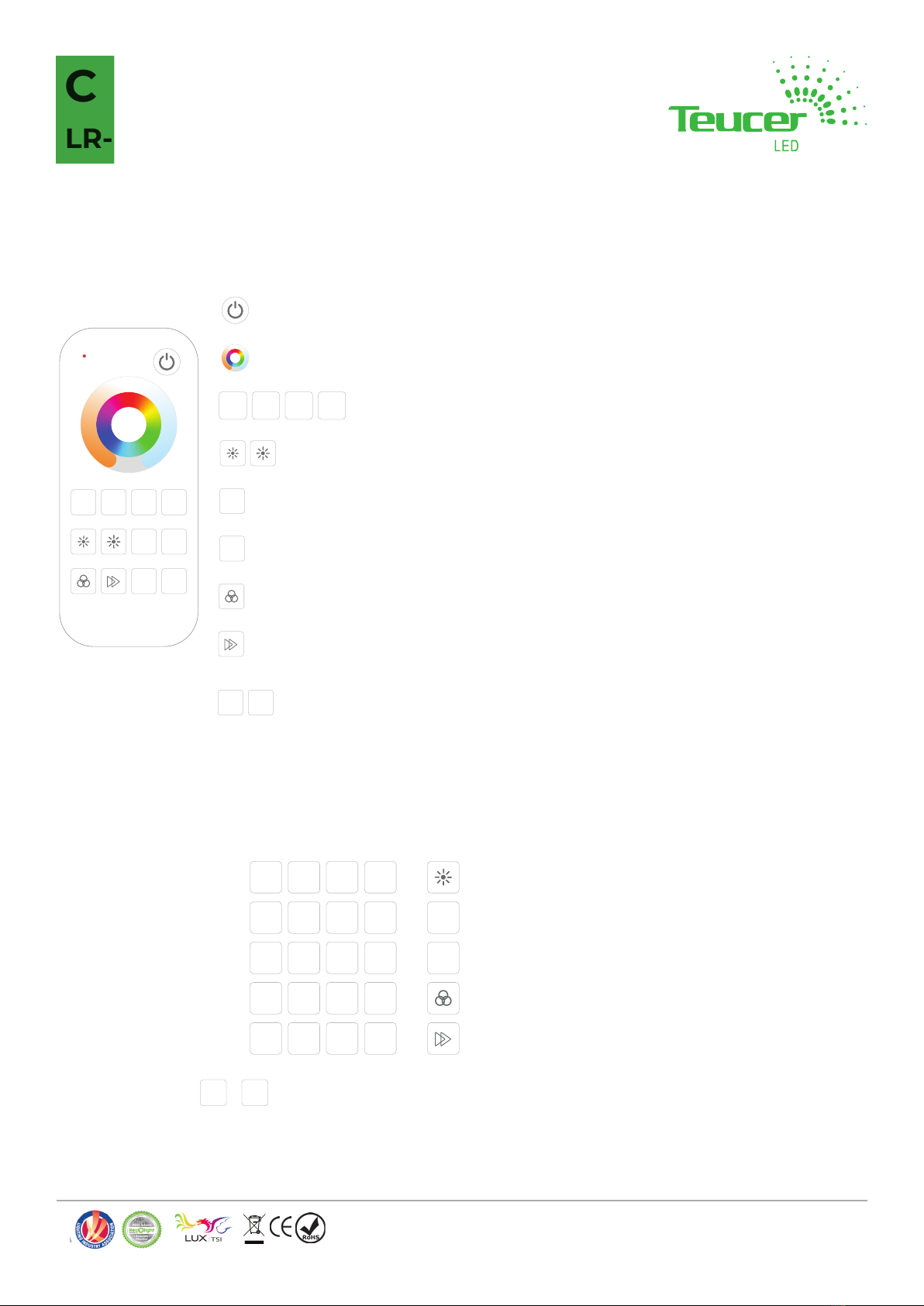

Controlling your LED strip
CCT RGB
S1S2
124
3
Press to turn ON/OFF all zones.
Touch the colour wheel to change RGB colour or CCT (WW/CW) colour in
selected zones. Press RGB or CCT button to switch between RGB and CCT wheel.
124
3Press to select and turn ON the desired zone.
Press and hold to turn off desired zone.
Press to Adjust RGB or CCT brightness in 10 levels steps.
Long press to increase or decrease brightness smoothly.
CCT Press to adjust colour temperature of WW/CW channel in 10 level steps.
Long press to adjust colour temperature of WW/CW channel smoothly.
Press to change 24 presetted RGB colours
RGB
Press to run dynamic play modes, press and hold to run automatic cycle mode.
In dynamic play modes press to adjust the speed of the dynamic mode.
For static RGB colour press to adjust 11 levels of saturation of the selected colour.
Press and hold to adjust 256 levels of saturation of the selected colour.
S1S2
Press and hold to save current colour state into S1/S2 scene.
Press to recall the S1/S2 scene. Scene positions are saved across all 4 zones.
Each zone can be set up to control single colour, tunable white (WW/CW), RGB, RGBW and RGBCCT (WW/CW)
LED strip.
RGB
CCT
124
3
124
3
124
3
124
3
124
3
+
+
+
+
+
Single colour
Tunable white (WW/CW)
RGB
RGBW
RGBCCT
Press and hold buttons for more than 2 sec to set the LED strip mode to RGB on Zone 1.
Indicator on the remote will turn green to confirm LED strip mode change.
RGB
1+
V001
4 zones RF controller and receiver for RGBCCT LED strip
Controller and receiver
LR-4RGBCCT and R5C
www.teucerled.co.uk
V001V001

Warranty
• Products must be installed and serviced by qualified electrician.
• Please ensure the receiver is mounted in a water proof enclosure if installed in an outdoor environment,
avoiding metallic enclosures.
• Always ensure products are mounted in areas with adequate ventilation to avoid overheating.
• Please ensure outputs of any power suppliers used in conjuction with this product comply with its working
voltage.
• Never install product whilst connected to power and double check connections before switching on to avoid
short circuits.
Safety
Should this product fail during the 3 year warranty
period it will be replaced free of charge, subject to the
correct installation of the original product in accordance
with applicable and appropriate electrical codes and
instructions provided by Teucer, as well as subsequent
return of the faulty unit. Teucer does not accept
responsibility for any installation costs associated with
the replacement of this product and Teucer reserves the
right to alter specifications without prior notice. Teucer
can offer 5 year warranty upon request. For further
information, please see our Terms and Conditions.
www.teucerled.co.uk/terms-and-conditions/
No. Name No. Name
1. RGB jump 6. RGB fade in and out
2. RGB smooth 7. RED fade in and out
3. 6 colour jump 8. GREEN fade in and out
4. 6 colour smooth 9. BLUE fade in and out
5. Yellow cyan purple
smooth
10. WHITE fade in and out
Dynamic play mode presets
Troubleshoot
Problem Cause Corrective
No light • No power.
• Wrong connection or unsecure con-
nection.
• Check the power.
• Check the connection.
Wrong Colour • Wrong connection of RGBW wires. • Re trace and reconnect
RGBW wires.
Uneven intensity
between front and
rear of the strip, with
voltage drop
• Output cable is too long.
• Cable diameter is too small.
• Overload beyond driver capability.
• Overload beyond receiver capability.
• Reduce cable or loop
supply.
• Change to a thicker
cable.
• Replace with a suitable
higher power driver.
• Add a power repeater.
No response
from the remote
• The battery has no power.
• Beyond controllable distance.
• The controller isn’t synchronised with
the remote.
• Replace battery.
• Reduce remote to receiv-
er distance.
• Re-sync the remote.
