Teufel rockster xs Manual

Technical Description and
Operating Instructions
Mobile Active
Bluetooth Outdoor Speaker
ROCKSTER XS

2• ROCKSTER XS
General Notes and Information
Notice
The information in this document may change
without prior notice and in no way constitutes
any liability on the part of Lautsprecher Teufel
GmbH.
No part of these instructions may be repro-
duced in any form or be broadcasted in any
way electronically, mechanically, by photocopy
or recording without the written permission of
Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
November 2015
Trademarks
® All trademarks are the property of their re-
spective owners.
Bluetooth®and the Bluetooth sym-
bol are trademarks of Bluetooth
SIG, Inc.
Contents
General Notes and Information ......................2
For Your Safety.................................................5
Control Elements and Connections ...............9
Charging the Rechargeable Battery ........... 11
Operation....................................................... 12
Protecting the Environment......................... 18
Technical Data .............................................. 18
Declaration of Conformity............................ 19

3• ROCKSTER XS
aptX®and the aptX symbol are trade-
marks of CSR plc or affiliated compa-
nies and may be registered in several
countries.
Original packaging
If you wish to exercise your eight-week right of
return, we ask that you be absolutely sure to
hold onto the packaging. We can only accept
the return of the speakers WITH THE ORIGINAL
PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following
information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with
the product) or on the order confirmation re-
ceived as a PDF document, e.g. 4322543
2. Serial number or batch number
Located on the back of the device,
e.g. serial no.: KB20240129A-123.
Thank-you for your support!
Contact
Please contact our customer service with any
questions, suggestions or criticism:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone: 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 / 300 930 930
E-Mail: [e-mail]
www.teufelaudio.com

4• ROCKSTER XS
Proper use
The ROCKSTER XS is designed for the playback
of music and speech from an external player.
The devices can be connected via Bluetooth or
AUX cable
The ROCKSTER XS is protected against splash
water and dust and may be used outdoors.
However, you must protect your ROCKSTER XS
against strong and persistent rain.
Only use the ROCKSTER XS as described in this
user manual. Any other use will be deemed as
not in accordance with the instructions and
may lead to physical damage or even injury of
persons.
The manufacturer accepts no liability for dam-
age
caused by improper use .
The ROCKSTER XS is only intended for private
use.
Before operating the ROCKSTER XS,
please first read the safety notes and
user manual carefully. Only in this way,
can you ensure that all functions are used in a
safe and reliable manner. Store the user manu-
al in a safe place and also be sure to pass it on
to any subsequent owner.
Product contents
1 × ROCKSTER XS
1 × Mains adapter DC 5 V/2.1 A
1 × USB cable (A plug to Micro B plug)
• Check that all items have been delivered and
that nothing is damaged. Should the delivery
be incomplete or damaged in any way, please
contact our customer service department
(see “Contact”).
• Do not operate a damaged device.

5• ROCKSTER XS
For Your Safety
Definition of terms
You can find the following signal terms in these
instructions:
WARNING
This signal term indicates a moderate
risk, which, if not avoided, may result
in death or severe injury.
CAUTION
This signal term indicates a low risk,
which, if not avoided, may result in
minor or moderate injury.
NOTICE
This signal term warns you of potential
damage.
Safety Notes
Read these instructions.
Follow all instructions.
WARNING
Risk of electric shock:
Improper electrical installation or ex-
cessive mains voltage may result in an
electrical shock.
–Only use attachments/accessories
specified by the manufacturer.
–Use only the supplied mains adapter.
Make sure that the mains voltage is
correct. More detailed information is
available directly on the mains adapter.
–Check the mains adapter regularly for
damage. Never use the mains adapt-

6• ROCKSTER XS
er, if its casing is defective or exhibits
other visible damage.
–Only use the mains adapter in indoor
areas, do not use it in moist areas
and protect it from drops of water or
splash water.
–Never open the unit’s housing of the
mains adapter or the ROCKSTER XS.
–Unplug this mains adapter during
lightning storms or when unused for
long periods of time.
Risk of explosion:
Batteries (particularly lithium batter-
ies) can explode if used improperly.
–Do not install the ROCKSTER XS near
any heat sources such as radiators,
heat registers, stoves, or other ap-
paratus (including amplifiers) that
produce heat.
Do not expose the ROCKSTER XS to
direct sunlight and do not dispose of
it in a fire.
–Only use the accessories/tools of
outfit (for example. Battery) indicated
offering from producer.
–Battery pack shall not be exposed to
excessive heat such as sunshine, fire
or the like.
–No naked flame sources, such as
lighted candles, should be placed on
the apparatus.
–Do not use this ROCKSTER XS near
water.
–If the housing is defective, stop using
the device and store it in an area that
is not accessible for children.

7• ROCKSTER XS
–Refer all servicing to qualified service
personnel. Servicing is required when
the ROCKSTER XS has been damaged
in any way, such as power-supply
cord or plug is damaged, liquid has
been spilled or objects have fallen
into the apparatus, the apparatus
has been exposed to rain, does
not operate normally, or has been
dropped.
–Only use the ROCKSTER XS under the
following conditions:
• Ambient temperature: max. 40 °C
• Maximum height above sea level:
2000 m
Risk of injury:
The ROCKSTER XS permanently gener-
ates magnetic fields that may interfere
with pacemakers and implanted defi-
brillators.
–Make sure that the ROCKSTER XS
and pacemaker/defibrillator are
always at a minimum distance of
10cm apart.
–Please contact your physician if you
have any questions on whether this
might affect the operation of your
implantable medical device.

8• ROCKSTER XS
CAUTION
An unsuitable location could lead to
damage.
–Do not use the ROCKSTER XS in envi-
ronments with a risk of explosion.
–Only use Bluetooth in locations where
wireless transmission is permitted.
Extended listening at high vol-
umes may lead to hearing loss.
–To avoid damage to health, avoid ex-
tended listening at high volumes.
–When the volume is set high, always
keep a certain distance from the de-
vice and never place your ear directly
on the speaker.
–If the signal source device is set
to full volume, it may produce very
high sound pressure. This may have
psychological consequences and also
cause physical injury. Children and
pets are particularly at risk. Set your
signal source device volume control
to a low setting before turning on the
power.

9• ROCKSTER XS
Control Elements and
Connections
햵햶햷
햴
햳햲
햲Blue LED (Bluetooth®LED).
햳Red LED (charging and power-LED).
햴On/Off switch.
햵USB type B micro jack to charge the re-
chargeable battery.
햶USB type A jack (for power supply and
to charge an external player, e.g. smart-
phone).
Notice: This function is only available
during operation with internal battery. If
the ROCKSTER XS charges itself, the USB
type A jack is deactivated.
햷AUX input jack (3.5 mm) for connecting an
external player via an audio cable with a
3.5 mm jack plug.

10 • ROCKSTER XS
햺햸햹
햻햽

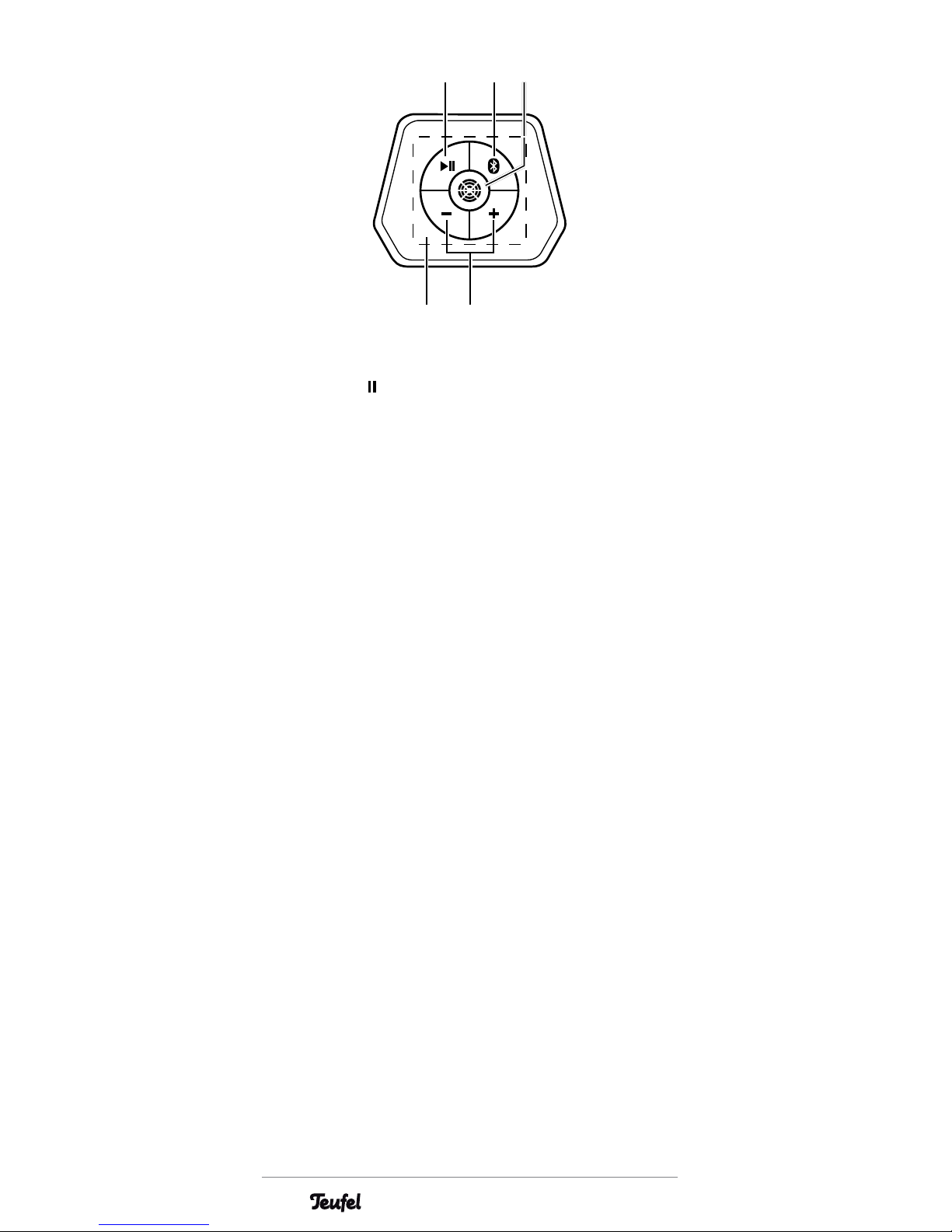

햸Pause ( ) and play (►)(in Bluetooth-mode
only).
Wake up from standby.
햹Activate Bluetooth pairing or disconnect
the Bluetooth connection (press and hold
for 3 s).
햺Outdoor mode on/off (higher maximum
volume, optimized for outdoor use).
When on, the LED below the button lights
up red).
햻Volume up (+) / volume down (–).
햽NFC contact zone

11• ROCKSTER XS
Charging the Rechargeable
Battery
햵
The rechargeable battery in your ROCKSTER XS
is charged via the USB cable. Charge it for ap-
prox. 3 h before first use.
• To charge the device, connect the USB jack
햵
with the USB jack of the enclosed USB charg-
er. Use the enclosed USB cable to do so.
• You can also charge using the USB jack of your
PC. However, this will significantly increase the
required charging time.
• The red LED 햳provides information on the
recharging status of the battery:
– LED pulses: The rechargeable battery is
being charged.
– LED is continuously illuminated: The
rechargeable battery has been fully
charged.
– LED blinks: The rechargeable battery has a
low charge level.

12 • ROCKSTER XS
Operation
Activating/deactivating
• Push the button 햴to switch the device
on and off. If the ROCKSTER XS has been
switched on, the red LED 햳will illuminate.
It will turn off when unit shuts down.
Tip: You should always turn off your
ROCKSTER XS when it is not in use to save
battery power.
Bluetooth®pairing
You can connect compatible devices, such as
most smartphones, with your ROCKSTER XS
via Bluetooth®(pairing). The audio output of
your smartphone is then played back by the
ROCKSTER XS.
You can connect 2 external players with the
ROCKSTER XS at the same time (see“Simulta-
neous pairing of two external players” on page
15).
1. Activate the Bluetooth function on your exter-
nal player (e.g. smartphone).

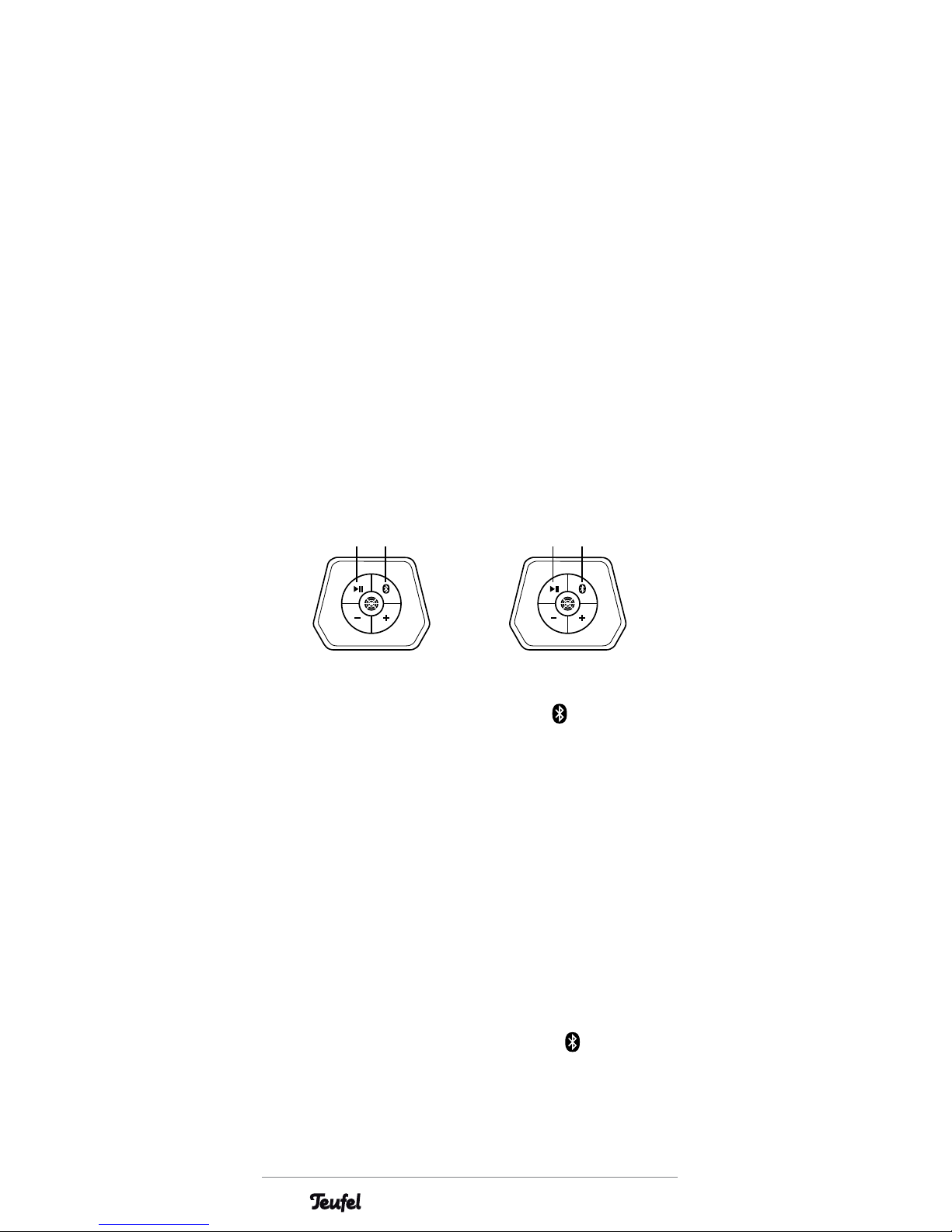

2. Push and hold the button 햹for approx. 3
seconds.
The blue LED 햲will now blink in blue until
pairing is complete (no more than 60 sec-
onds).
3. Let your smartphone search for Bluetooth
devices (you can find more information in
the instruction manual of your smartphone).
“Teufel ROCKSTER XS” should also appear
in the list of detected devices following the
scan.
4. Select “Teufel ROCKSTER XS” from the list of
detected devices.
If your external player requires the entry of a
PIN code, enter the PIN code “0000” set by
factory default.
Pairing is now complete and your
ROCKSTER XS is linked to the external player.

13• ROCKSTER XS
The blue LED 햲is now continuously illumi-
nated and your ROCKSTER XS will play back all
sounds that would otherwise be played by your
external player.
To terminate the Bluetooth connection, hold the
button 햹down for approx. 3 seconds.
Restoring the connection with a paired
external player
If your ROCKSTER XS was previously connected
to the external player, it is no longer necessary
to switch it to pairing mode to connect again.
Simply selecting it from the list of paired devic-
es is enough.

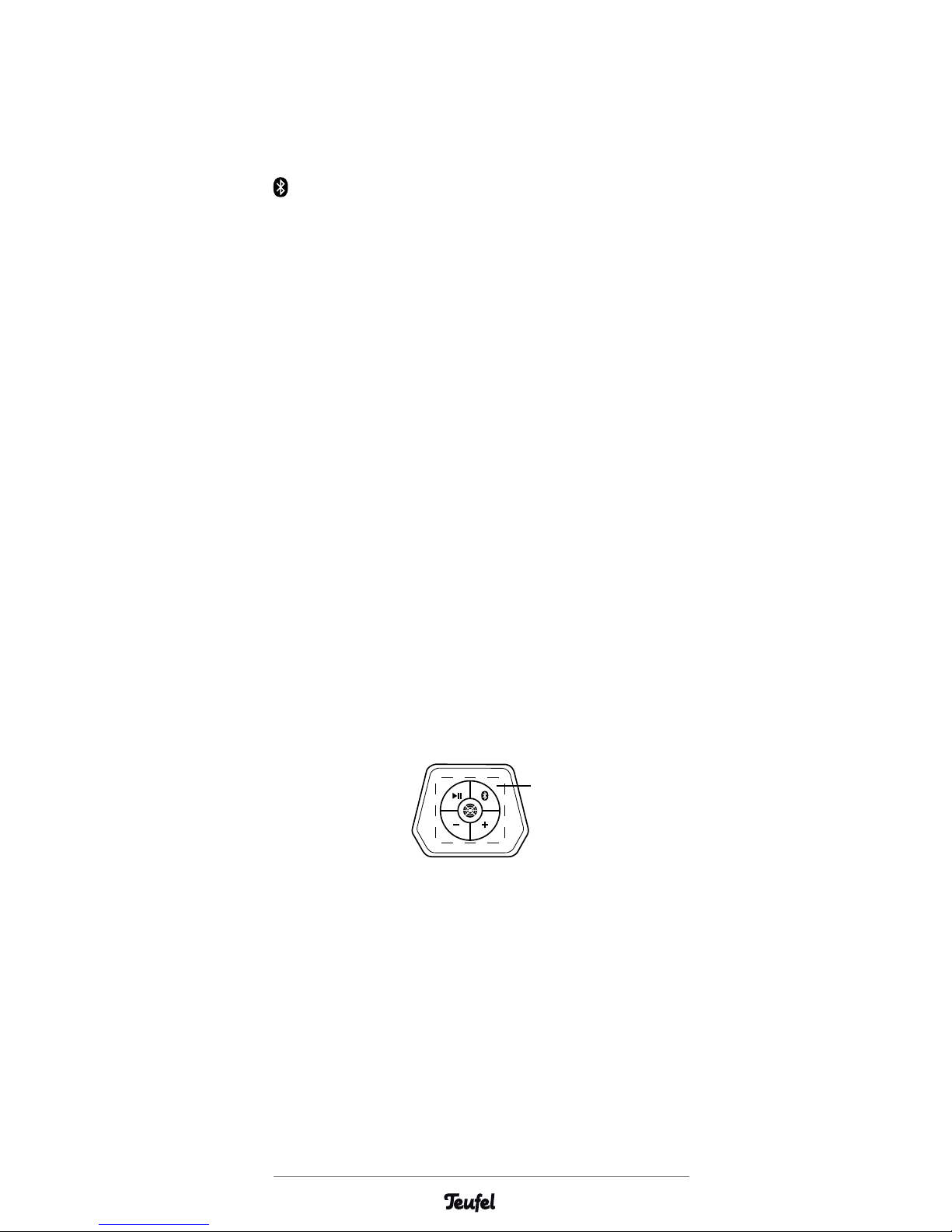

NFC
With NFC, you can quickly and comfortably es-
tablish a Bluetooth connection between a com-
patible external player and the ROCKSTER XS.
Notice: Only one external player can be con-
nected via NFC. If you want to connect another
external player, please proceed as described in
the chapter “Simultaneous pairing of two exter-
nal players” on page 15.
1. Make sure that the NFC function on your
external player has been switched on.
햽
2. Hold your external player close to the control
panel of the ROCKSTER XS (NFC contact zone
햽).
A Bluetooth connection will be established
between the two devices after a short time.
Notice: You may be asked to allow the NFC
connection. In this case, confirm the request
on your external player.

14 • ROCKSTER XS
Connection via AUX
As an alternative to Bluetooth®, you can also
connect your ROCKSTER XS to the headphone
jack of the external player via an AUX cable with
3.5 mm jack plugs, for example.
Select the cable connection if you do not wish
or are not allowed to use the Bluetooth function.
Please note:
• With some smartphones, Bluetooth®must be
switched off for transmission via AUX.
• A connection via AUX takes precedence over
Bluetooth®.
• The Play/Pause button 햸does not work with
this connection.
Other functions
When a call is received
If your ROCKSTER XS is connected with a
compatible smartphone via Bluetooth, music
playback will be muted when a call is received.
You can answer the call with your smartphone
and take the phone call as usual. After you
hang up, music playback will continue at the
previously selected volume.
Automatic deactivation
When the ROCKSTER XS is not in operation and
you do not push any button, the ROCKSTER XS
will switch to energy-saving mode after approx.
20minutes (the red LED 햳will only be slightly
lit).
After another 20 minutes of inactivity and
without user input, the ROCKSTER XS will auto-
matically switch off.
Push the Play/Pause button 햸to wake it up.

15• ROCKSTER XS
Interruption of connection
The Bluetooth connection will be cut if you are
outside of the range of your external player
with your ROCKSTER XS. The connection will be
re-established automatically when you are back
within range.
Simultaneous pairing of two external
players
Two external players can be paired with your
ROCKSTER XS at the same time. The exter-
nal player on which playback was last started
always has precedence.
1. Pair external player 1 with the ROCKSTER XS.
2. Pair external player 2 with the ROCKSTER XS
too.
3. Connect external player 1 again with the
ROCKSTER XS (select it from the list of paired
devices).
The audio output of your external players is then
emitted by the ROCKSTER XS.
If the ROCKSTER XS is connected with 2
external players, the blue LED 햲will pulse.

16 • ROCKSTER XS
Pairing of a second ROCKSTER XS
“Stereo Connect” via Bluetooth®
You can enjoy your music in stereo with a sec-
ond ROCKSTER XS. For this, you must first con-
nect the two ROCKSTER XS with one another.
Requirements:
• Before you activate the “Stereo Connect”
mode the ROCKSTER XS no. 1 must be con-
nected to the external player via Bluetooth®
or AUX cable.
• ROCKSTER XS no. 2 may not be connected
via Bluetooth®and the AUX input jack 햷
must be unplugged.
Using “Stereo Connect”
1. Connect the ROCKSTER XS no. 1 with the
external player via Bluetooth®or AUX.
햹햸 햹햸
ROCKSTER XS no. 1 ROCKSTER XS no. 2
2. On both ROCKSTER XS hold the button 햹
down at the same time and press the Play/
Pause button 햸for approx. 3 seconds.
If the two ROCKSTER XS are connected in
“Stereo Connect” mode, the blue LED 햲of
ROCKSTER XS no. 1 will pulse. The blue LED
of ROCKSTER XS no. 2 will be slightly lit.
ROCKSTER XS no. 2 will then immediately
play back the right stereo channel.
ROCKSTER XS no. 1 will play back the left
stereo channel.
To terminate the pairing of the two
ROCKSTER XS and to stop the “Stereo
Connect” mode, briefly push the button 햹
or switch the ROCKSTER XS off.
Notice: In “Stereo Connect” mode it is not
possible to connect two external players simul-
taneously

17• ROCKSTER XS
Cleaning & Maintenance
NOTICE
Risk of damage: Liquid can destroy the
electronics in your ROCKSTER XS! Using
unsuitable cleaning agents may dam-
age the housing.
–Make sure that no liquids penetrate
the device.
–Do not in any case use solvents or
abrasive cleaners.
To clean your ROCKSTER XS
• Turn the ROCKSTER XS off and remove all
cable connections before you start cleaning.
• Ideally, you can remove any dust or light dirt
with a dry microfibre cloth.
• You can wipe off more stubborn dirt with a
cloth which has been slightly dampened with
water. Make sure that no water can penetrate
into the housing case.
• Then immediately wipe the damp surfaces off
with a soft cloth without applying pressure.

18 • ROCKSTER XS
Protecting the Environment
Old devices must not be dis-
posed of with household waste!
If the device is no longer operational,
every consumer is required by law to
dispose of old devices separately from house-
hold waste, e.g. at a collection point run by the
communal authority/borough. This ensures that
old devices are recycled in a professional man-
ner and also rules out negative consequences
for the environment.
For this reason, electrical equipment is marked
with the following symbol.
Batteries and rechargeable
batteries do not belong in the
household waste!
Every consumer is required by law to bring all
batteries and rechargeable batteries, regardless
whether they contain harmful substances*) or
not, to a collection point run by the communal
authority or borough or to a retailer, so that
they can be disposed of in an environmentally
friendly manner.
Please only turn in batteries and rechargeable
batteries which are empty!
*) labelled with: Cd = cadmium, Hg = mercury,
Pb = lead
Technical Data
• Power supply: 5 V DC,
2.1 A max
• Battery: Li-Ion 7.4 V/4400 mAh
• Dimensions (L×W×H): 176 x 87 x 70 mm
You can find further technical data on our web-
site . Technical changes reserved!

19• ROCKSTER XS
2015
EG-Konformitätserklärung
EU-Declaration of Conformity
Hiermit bestätigen wir, dass das nachfolgend bezeichnete Gerät
den angegebenen-Richtlinien entspricht.
We herewith confirm that the appliance as detailed below complies with the
mentioned directives.
Artikelbezeichnung:
Article description:
ROCKSTER XS
Firmenanschrift:
Company address
Lautsprecher Teufel GmbH
Budapester Straße 44
D-10787 Berlin
Einschlägige EG-Richtlinien / Governing EU-directives / Directives CE concernées :
1. Elektromagnetische Verträglichkeit (EMV)
Electromagnetic compatibility (EMC)
2004/108/EC
2. Niederspannungs-Richtlinie
Low-voltage directive
2006/95/EC
3. Funkanlagen und Telekommunikationsendeinrichtungen
Radio and Telecommunication Terminal Equipment
R&TTE 1999/5/EC
4. Ökodesign – Richtlinie
Energy – Using – Product – Directive (EuP)
2009/125/EEC
5. Richtlinie zur Beschränkung der Verwendung
bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten
(Rohs- Richtline 2011/65/EC)
Harmonisierte EN-Normen / Harmonised EN-Standards
Der Artikel entspricht folgenden, zur Erlangung des CE-Zeichens
erforderlichen Normen:
The article complies with the standards as mentioned below which are necessary
to obtain the CE-symbol:
DIN EN 55013:2013
DIN EN 55020:2012
DIN EN 61000-3-2:2010
DIN EN 61000-3-3:2014
DIN EN 60065:2011
DIN EN 62133: 2013
DIN EN 62321: 2009
ETSI EN 301489-1
ETSI EN 300328 V 1.8.1:
Verordnung 1275/2008
Verordnung 0125/2009
Ausstellungsdatum / Date of issue: 09. Oktober 2015

Please contact our customer service with any
questions, suggestions or criticism:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone: 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No responsibility is assumed for the correct-
ness of this information.
Technical changes, typographical errors and
other errors reserved.
Manual No. 93462_GB_20151103
