Tevo LITTLE MONSTER User manual

Page 1 of 22
TEVO LITTLE MONSTER

Page 2 of 22
ASSEMBLY
BAG B-3-1
M6 x 20mm - 6
Rubber Stand - 6
BAG A-2-2
M5 x 15mm - 12
Extrusion 40 0 - 3
Base Plate - 1
X 3

Page 3 of 22
BAG A-10
Pre-Assembled
X 3

Page 4 of 22
BAG A-2-2
M5 x 15mm - 12
Top Plate - 1
X 3

Page 5 of 22
BAG A-
M4 x 10mm - 12
Motor bracket - 3
X 3
M3 x 6mm - 12
20T Pulley - 3
X 3

Page 6 of 22
X 3
X 3

Page 7 of 22
BAG A-2-1
Pre-Assembled
X 3

Page 8 of 22
BAG B-3-2
M5 x 20mm - 6
Spacer - 6
Bed Frame - 1
Heat Bed - 1
BAG A-9-1
M3 x 6mm - 6
Brass Standoff - 6
Optical Endstop - 3
X 3

Page 9 of 22
BAG A-7
M4 x 16mm - 12
Connecting Rod - 6
X 3

Page 10 of 22
BAG A-1
M5 x mm - 4

Page 11 of 22
BAG A-13
Extruder - 1
Belt - 3
Note: Pre-cut and insert PTFE tube into hotend making sure it is FULLY inserted.
X 3

Page 12 of 22
BAG A-3
M3 x 6mm - 4
Brass Standoff - 4
M3 x 6mm - 10

Page 13 of 22
BAG A-4
M4 x 10mm - 4
Power Supply Box - 1
BAG A-5
Note: Connect touch-screen ribbon cable to Aux 1 of main control board.

Page 14 of 22

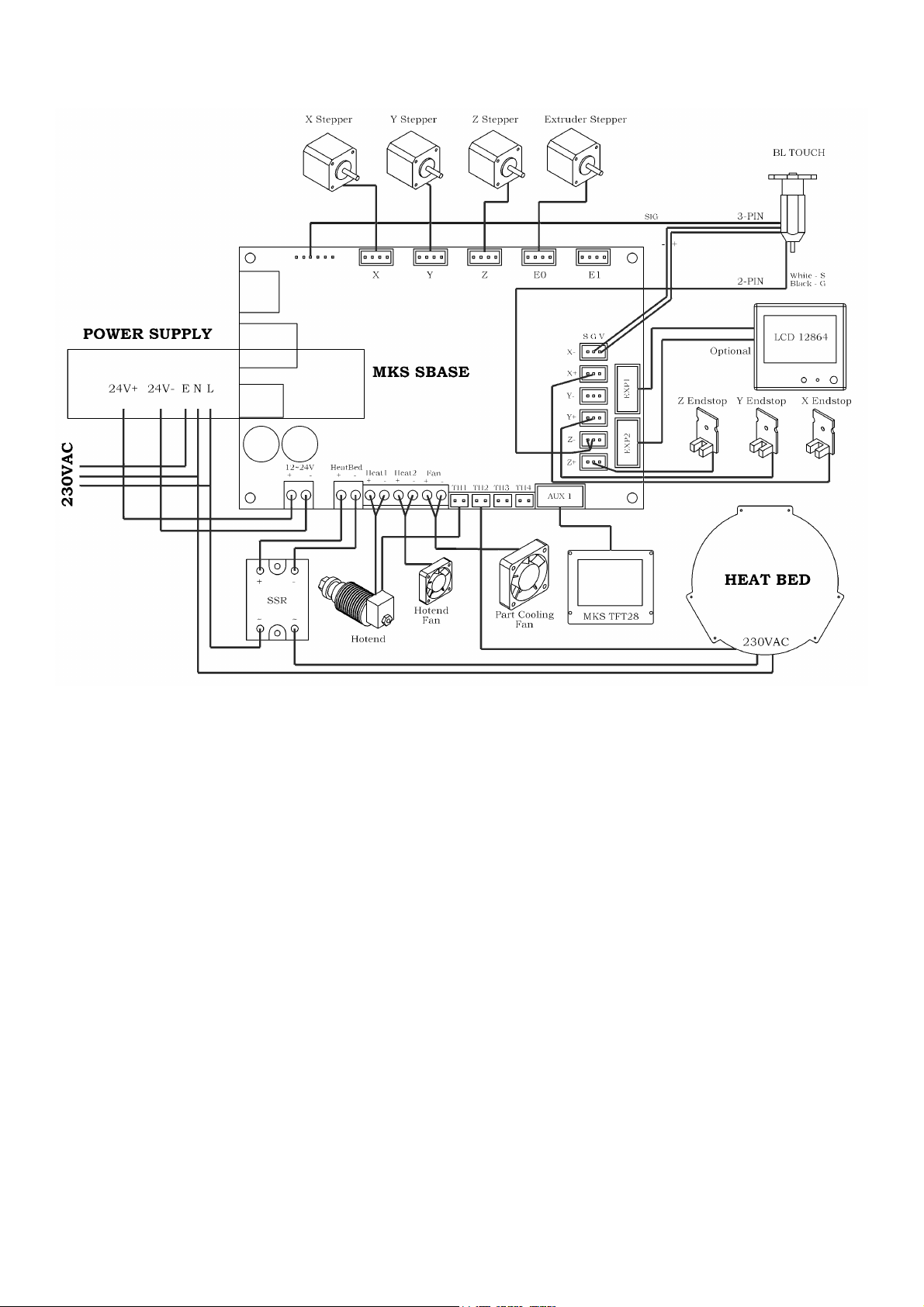

ELECTRICAL WIRING
1) Connect the 4-pins cable sockets from Power Supply box to Main Control Board box
2) Connect the 2-pins cable sockets from Power Supply box to Heat Bed connector
3) Connect the 2-pins white thermistor cable from Sbase TH2 to Heat Bed

Page 15 of 22
FIRST POWER ON & AUTO-CALIBRATION
Bed will heat up to 80ºC
Perform Auto-Axis Calibration
Perform Auto Bed Leveling
System Auto Reset

Page 16 of 22
TOUCH SCREEN OPERATIONS
MAIN MENU
SUB-MENU
Manual heat control of hotend & heat bed temperatures
Manual movements of all X,Y,Z axis

Page 17 of 22
Manual homing of all axis
Printing file selections
Manual filament extrusion & retract

Page 18 of 22
Part cooling fan manual control
Setup & Special functions
Additional BLTouch functions

Page 19 of 22
REPETIER HOST SETUP

Page 20 of 22
