texet TPA-2173 X-Duo User manual
USER GUIDE
PORTABLE SPEAKER
TPA-2173
X-Duo
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

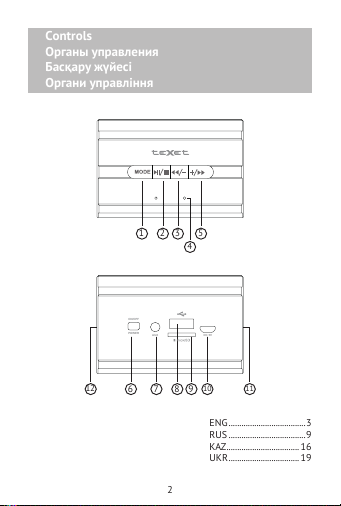

2
ontrols
1
6
2
7
3
8
5
10 11
9
4
12
ON/OFF
POWER DC 5VAUX
ENG ....................................3
RUS ....................................9
KAZ ..................................16
UKR .................................19
All manuals and user guides at all-guidesbox.com
3
PORTABLE SPEAKER
1 MODE: Button to select main functions
2 Pause/resume playback button
3 Volume-down/select previous le or station button
4 LED light
5 Volume-up/select next le or station button
6 ON/OFF: Power button
7 ANT/AUX: Line-in jack for external devices, such as MP3
players, PC tablets, smartphones, and mobile telephones
8 Interface for connecting USB ash drives
9 microSD: MicroSD card slot
10 DC 5V: Interface for charging and for connecting to a PC
11/12 Speakers
ENG
All manuals and user guides at all-guidesbox.com

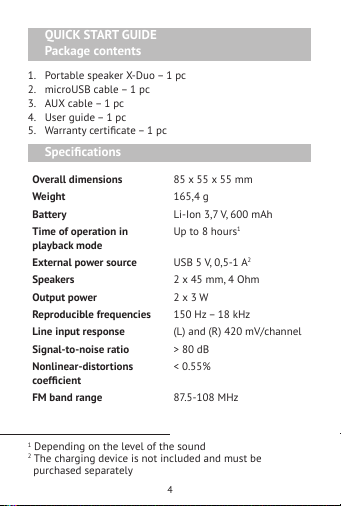

4
QUICK START GUIDE
Package contents
1. Portable speaker X-Duo 1 pc
2. microUSB cable 1 pc
3. AUX cable 1 pc
4. User guide 1 pc
5. Warranty certicate 1 pc
Specications
Overall dimensions 85 x 55 x 55 mm
Weight 165,4 g
Battery Li-Ion 3,7 V, 600 mAh
Time of operation in
playback mode
Up to 8 hours1
External power source USB 5 V, 0,5-1 2
Speakers 2 x 45 mm, 4 Ohm
Output power 2 x 3 W
Reproducible frequencies 150 Hz 18 kHz
Line input response (L) and (R) 420 mV/channel
Signal-to-noise ratio > 80 dB
Nonlinear-distortions
coefcient
< 0.55%
FM band range 87.5-108 MHz
1 Depending on the level of the sound
2 The charging device is not included and must be
purchased separately
All manuals and user guides at all-guidesbox.com
5
MP3 player
Supported formats MP3
Bitrate 32 320 kBps
External media memory
capacity (USB and microSD)
up to 32Gb
External media le system
format (USB and microSD)
FAT32
Working range -5 to + 40 °C
Switch the power button to the ON position to turn on the
X-Duo portable speaker. When switched on, the LED light will
turn blue.
Use the button to play/pause a le. Use the button
to select the previous/next le from external media or
to select the previous/next station. Press and hold the
button to adjust the volume.
Repeatedly press the MODE button to select a mode for the
X-Duo portable speaker (MP3 player, FM Radio, or AUX).
For improved radio reception, connect an audio cable to the
ANT/AUX interface. The cable will act as an external antenna.
To charge the battery, connect one end of the microUSB cable
to the DC 5V port. Plug the other end into a USB port on a
computer or into a USB wall charger.
All manuals and user guides at all-guidesbox.com
6
User Guide
Thank you for purchasing our portable speaker teXet TPA-
2173 X-Duo. Before you start operating the unit, please read
this manual to take full advantage of the portable speaker
and extend its life. Save this manual to refer to it in the future
if the need arises.
This manual contains information on the technical
characteristics of the device, controls of the portable speaker,
all functions and modes of operation.
Note: Due to continuous product improvement, we reserve
the right to modify the software, hardware, and specications
without prior notice to the end user. Current information is
always available on the website www.texet.eu
1. Start of operation
Switch the power button to the ON position to turn on the X-Duo
portable speaker. When switched on, the LED light will turn blue.
Press the MODE button repeatedly to select different modes
for the X-Duo portable speaker: MP3 player, FM, or AUX.
If an audio cable or microSD card is connected when the
X-Duo is switched on, then the MP3 player mode will start
automatically.
2. MP3 player operation
Insert a microSD card in the microSD slot or a USB ash drive
into the port. Playback will start automatically. During
playback, the X-Duo portable speakers LED light will slowly
ash blue. Use the button to select the previous/next
le. Files will be played sequentially by folder. Use the
button to pause or resume playback.
Press and hold the button to adjust the volume.
When switched on, the X-Duo portable speaker recalls all
All manuals and user guides at all-guidesbox.com
all-guidesbox.com
7
previous settings: volume level, current le.
Information about playing MP3 les from external media:
File system format for external media: FAT32
Maximum memory for external media: 32 Gb
3. FM radio mode
Press the MODE button repeatedly to choose the FM radio
mode. For improved radio reception, connect an audio cable
to the ANT/AUX interface. The cable will act as an external
antenna.
Use the button to select the previous/next station.
Press and hold the button to adjust the volume. Use the
button to mute/unmute the sound.
4. Connects to external audio devices
through the AUX input
Connect your external device (MP3 player, PC tablet,
smartphone, notebook, or mobile phone) to the AUX port
with an audio cable. Start playback on your external device.
Use the button to adjust the volume. Press the button
to turn the sound off/on during playback.
5. Rechargable battery
Connect any USB wall charger (5V, 0.5-1A) to the DC 5V port
using a microUSB cable. The LED light will turn red, indicating
that charging has begun. After the battery is charged, the LED
light will turn off. You can speed up charging by turning off
the X-Duo portable speaker.
6. Troubleshooting guide
1. Fails to turn off
Check the batterys charge level.
All manuals and user guides at all-guidesbox.com
8
2. Fails to charge
Make sure the charging cable is connected.
3. No sound
Check the volume level.
Make sure there are MP3 les on the external media.
Check the batterys charge level.
4. The les on the external media are unreadable
Check the le system format of the microSD card.
Check the microSD card for viruses.
5. The speaker emits static
Make sure that mobile devices are no more than 30 cm
away from the X-Duo portable speaker.
6. Bad radio reception
The best radio reception is next to a window.
Make sure the portable audio system is not too close to
any sources of interference, such as a nearby television or
mobile phone.
For improved radio reception, connect the universal cable
to the ANT/AUX port. The cable will act as an external
antenna
All manuals and user guides at all-guidesbox.com

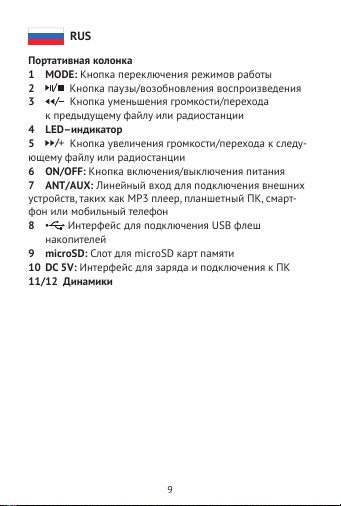

9
1 MODE:
2 /
3 /
4 LED
5 / -
6 ON/OFF: /
7 ANT/AUX:
, MP3 , , -
8 USB
9 microSD: microSD
10 DC 5V:
11/12
RUS
All manuals and user guides at all-guidesbox.com

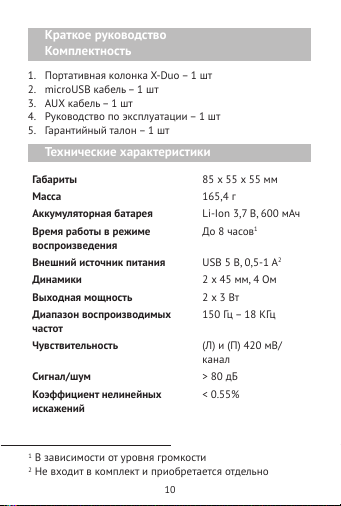

10
1. X-Duo 1
2. microUSB 1
3. AUX 1
4. 1
5. 1
85 x 55 x 55
165,4
Li-Ion 3,7 , 600
8 1
USB 5 , 0,5-1 2
2 x 45 , 4
2 x 3
150 18
() () 420 /
/ > 80
< 0.55%
1
2
All manuals and user guides at all-guidesbox.com
11
MP3
MP3
32 320 /
(USB microSD)
32
(USB microSD)
FAT32
-5 - +40 °C
X-Duo -
/
ON. LED-
.
/ .
/
.
.
X-Duo (MP3 , FM AUX)
MODE.
-
ANT/AUX.
.
microUSB DC 5V.
USB
USB .
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

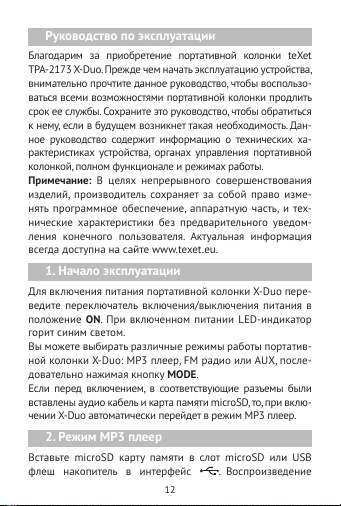

12
teXet
TPA-2173 X-Duo. ,
, -
. ,
, . -
-
,
, .
:
, -
, , -
-
.
www.texet.eu.
1.
X-Duo -
/
ON. LED-
.
-
X-Duo: MP3 , FM AUX, -
MODE.
,
microSD, , -
X-Duo MP3 .
2. MP3
microSD microSD USB
.
All manuals and user guides at all-guidesbox.com

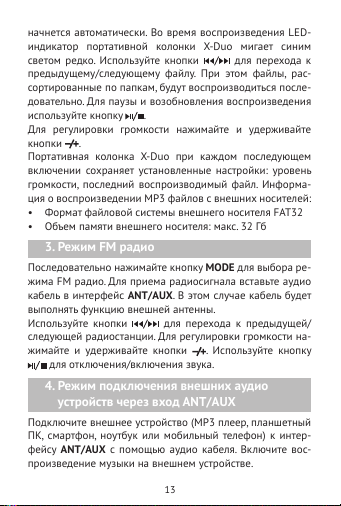

13
. LED-
X-Duo
.
/ . , -
, -
.
.
.
X-Duo
:
, . -
MP3 :
FAT32
: . 32
3. FM
MODE -
FM .
ANT/AUX.
.
/
. -
.
/ .
4.
ANT/AUX
(MP3 ,
, , ) -
ANT/AUX . -
.
All manuals and user guides at all-guidesbox.com
14
. -
/
.
5.
USB
(5 , 0,5-1 ) DC 5V
microUSB . LED -
, , .
LED- .
,
X-Duo.
6.
1.
2.
3.
MP3
4.
microSD
microSD
5.
,
30
X-Duo
All manuals and user guides at all-guidesbox.com
15
6.
,
,
ANT/AUX. -
.
All manuals and user guides at all-guidesbox.com

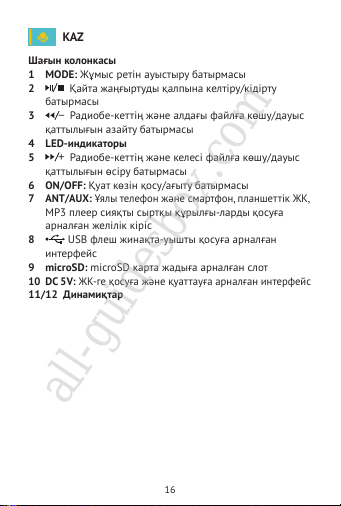

16
KAZ
1 MODE:
2 /
3 - /
4 LED-
5 - /
6 ON/OFF: /
7
ANT/AUX: , ,
3 -
8 USB -
9 microSD: microSD
10 DC 5V: -
11/12
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

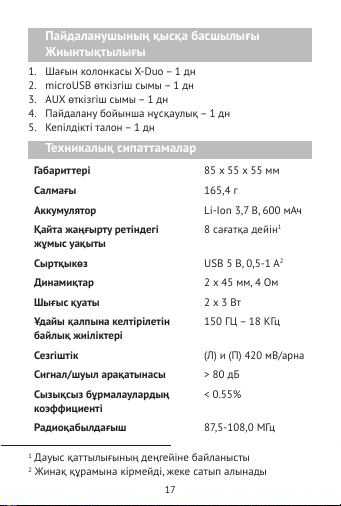

17
1. X-Duo 1
2. microUSB 1
3. AUX 1
4. 1
5. 1
i 85 x 55 x 55
165,4
Li-Ion 3,7 , 600
8 1
USB 5 , 0,5-1 2
2 x 45 , 4
2 x 3
150 18
() () 420 /
/ > 80
< 0.55%
87,5-108,0 M
1
2 ,
All manuals and user guides at all-guidesbox.com
18
MP3
MP3
MP3 32 320 /
(USB i microSD)
32
(USB i microSD)
FAT32
-5 - + 40 °C
X-Duo -
/ ON .
LED- .
/
/ .
.
X-Duo (MP3 , FM AUX)
MODE .
ANT/
AUX .
() .
DC 5V microUSB
. USB
- USB
.
All manuals and user guides at all-guidesbox.com

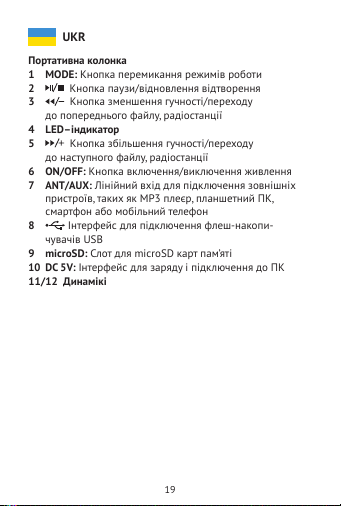

19
1 MODE:
2 /
3 /
,
4 LED
5 /
,
6 ON/OFF: /
7
ANT/AUX:
, MP3 , ,
8 --
USB
9 microSD: microSD
10 DC 5V:
11/12 i
UKR
All manuals and user guides at all-guidesbox.com
20
ic
1. X-Duo 1
2. microUSB 1
3. AUX- 1
4. 1
5. - 1
ii
85 x 55 x 55
165,4
Li-Ion 3,7 , 600
8 1
USB 5 , 0,5-1 2
i 2 x 45 , 4
2 x 3
150 18
() () 420 /
/ > 80
-
< 0.55%
87,5-108,0 M
1
2
All manuals and user guides at all-guidesbox.com
