THE RADIATOR COMPANY Extro User manual

Materials Aluminium
Connections ow and return.
Test pressure 24 Bar
Testing authority EN442
Maximum operating pressure 16 Bar
Maximum working temperature 90 ºC
Packaging Polystyrene protection in cardboard box
1
2
”
The Radiator Company
Units 13 - 14 Charlwoods Road
East Grinstead
West Sussex
RH19 2HU
All products must be inspected once removed from the packaging and The Radiator Company
notied within 28 days of delivery of any scratches, blemishes or other damage.
The Radiator Company will then replace the radiator.
Imperfect radiators should therefore not be tted and The Radiator Company will not accept
responsibility for replacement of scratched or damaged radiators once they have been tted. This
includes any consequential loss or cost of tting.
If The Radiator Company are not notied within 28 days of the date on the signed delivery note then
it will be deemed that The Radiator Company have fully complied with its obligations and claims will
not be considered.
Failure to comply with any of the above may invalidate any claims.
We recommend that after you check the product on delivery that it is stored in its packaging to
prevent damage prior to installation. The Radiator Company cannot accept responsibility for items
damaged after delivery.
Terms & Conditions
Guarantees & Liabilities
As we are not the manufacturers of this product we will take all reasonable endeavours to make
over to you the benet of any warranty or guarantee given by the manufacturer, which is usually ve
years on most of our range. (Copies of specic guarantees for any of our products are available on
request).
The guarantees in all cases are subject to the products being installed in accordance with British and
or European standards as well as these tting instructions. The guarantees in all cases are restricted
to the free of charge replacement or repair of the failed product only. Our liability will under no
circumstances extend beyond the repair or replacement of the product supplied by us. Claims
for either labour in replacement or damage to property are not admissible. Any goods that are
returned, in the event of a problem, will belong to The Radiator Company.
Technical Specications
Please read these instructions and terms and
conditions carefully prior to installation.
Failure to do so may invalidate the warranty
Extro
Fittings Instructions
If you have any questions please contact us on 01342 302250
www.theradiatorcompany.co.uk
If you have any questions please contact us on 01342 302250
www.theradiatorcompany.co.uk
5
Y
e
a
r
G
u
a
r
a
n
t
e
e
Y
e
a
r
G
u
a
r
a
n
t
e
e
THE
RADIATOR
COMPANY
EXT1.2
PLEASE NOTE: To reduce the possibility of noise caused by rapid heating and cooling
of aluminium radiators; adequate capacity for expansion must be provided within
the overall heating system. Systems using micro bore pipework must have adequate
pressure and flow rates for the number and style of radiators on the system.

Unpack & Inspect
1
You should have:
• 1 Radiator
• 4 Bracket Sleeves
• 4 Screws
• 4 Wall Plugs
• 4 Grub screws
Contents
2
Installing the Extro
3

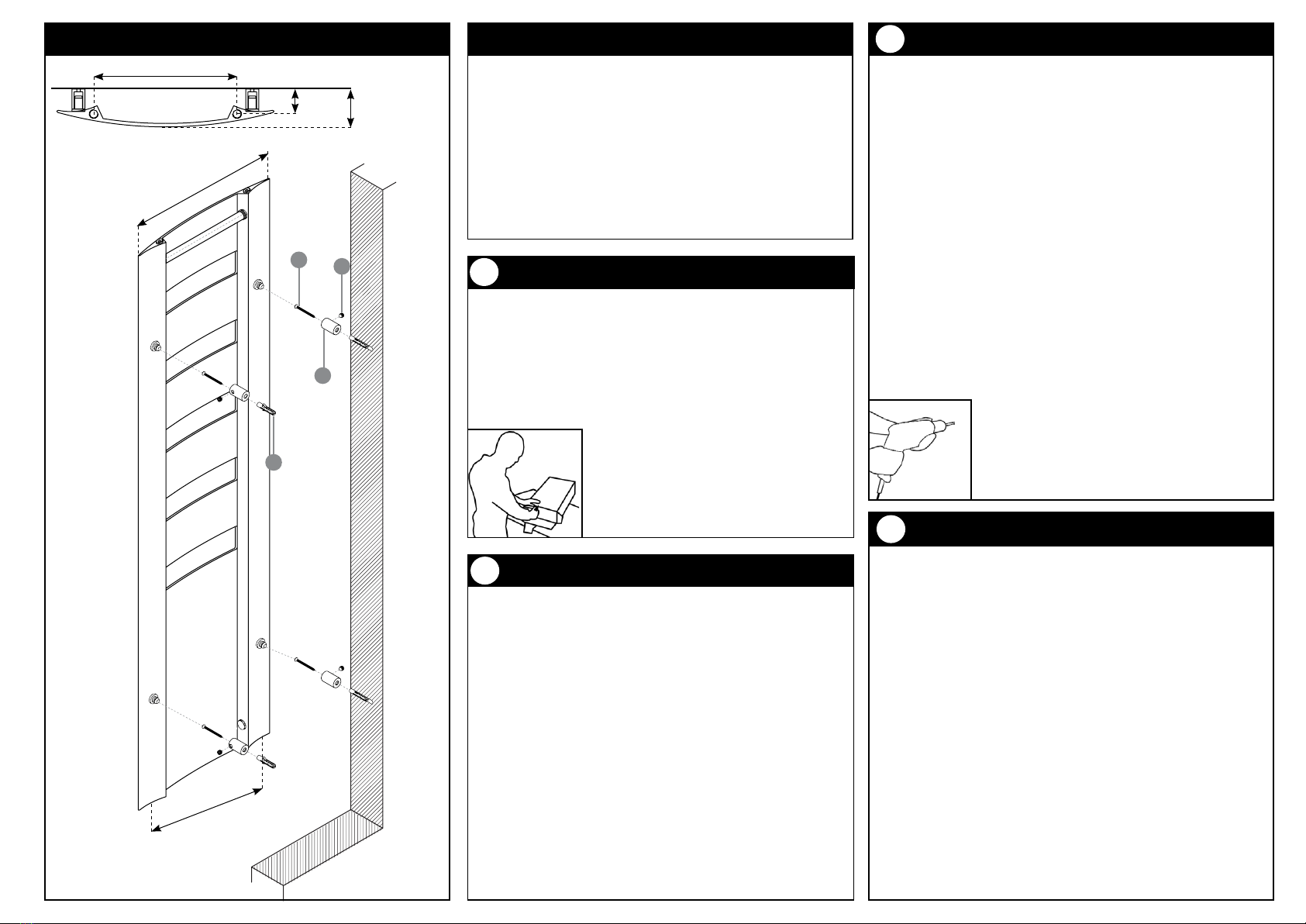

Diagrams of Extro
The Radiator Company prides itself on selecting products from
manufacturers who exercise tight quality control measures. We
only select models with excellent standards of welding and
brazing, as well as high quality nishes. All of our products are well
packaged and should reach you in perfect condition. Just in case
however, we offer a minimum 5-year no quibble guarantee for all
radiators and towel rails.
The Radiator Company must be notied of
any shortages or damage within 28 days of
delivery. For further information please see
terms and conditions on back page.
PLEASE NOTE :
It is essential that all brackets are level to ensure a
vertical alignment for connecting the pipework.
Pipe Centres
Pipe centres left to right
Pipe centres from wall
Depth from wall
Commission
4
Please Note:
In accordance with Part L1 2006 of the Building Regulations and
BS7593:1992 code of practice for the treatment of hot water
and central heating systems, we strongly recommend flushing
the heating system post installation of new radiators and then
adding the correct quantity and type of inhibitor for use with
your radiator and system to prevent corrosion. Damage caused to
systems not protected by a suitable inhibitor will not be covered by
manufacturer’s guarantee.
330mm
57mm
88mm
You will need:
• Flat-head & cross-head Screwdriver
• Tape Measure
• Electric Drill
• 2.5mm Allen Key
• Spirit Level
500
Please refer to the drawings opposite when tting.
1. Offer up the radiator to the wall and mark out the positions of the
top two brackets onto the wall.
2. Using suitable drill bits and plugs ‘A’ (or other depending on wall
type) hang the bracket sleeves ‘B’ by inserting the provided screws
‘C’ through the centre of the bracket sleeve ‘B’ into the wall plugs.
3. Hold up the radiator to ensure the positions are correct, if they are
mark out the positions on the wall for the bottom two brackets.
4. Repeat step 2 for the bottom brackets.
5. With all the bracket positions checked, and bracket sleeves ‘B’
hung, hang the radiator by slotting the bracket studs (already xed)
into the bracket sleeves. To secure, insert the provided Grub Screws
‘D’ into the side of the bracket sleeves, and tighten using an Allen
Key.
A
B
CD
330
(Pipe Centres)
The airvents and blanking plugs are already xed to the radiator and are
suitable for the standard underneath connections.
Please Note: The supplied wall plugs and screws may not be suitable for
your wall type. Please ensure appropriate ttings are used dependant on
your wall type.
57 88
330
