The World Models Manufacturing 42% ULTIMATE User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
Requires : 150 cc gasoline engine,
6-channel radio w/ 17 servos.
* Specifications are subject to change without notice.*
Specifications
INSTRUCTION MANUAL
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
42%
42%
98 in / 2490mm
3300 sq in / 213 sq dm
38-40/ lbs / 17250-18160 g
104 in / 2640mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA

Apply thread locker
P. 3 -14
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
3mm
I N D E X
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P. 14
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual comprise of the following : -
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
1
2
3
P.1
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts. but will not extend to the parts that are good before
gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.

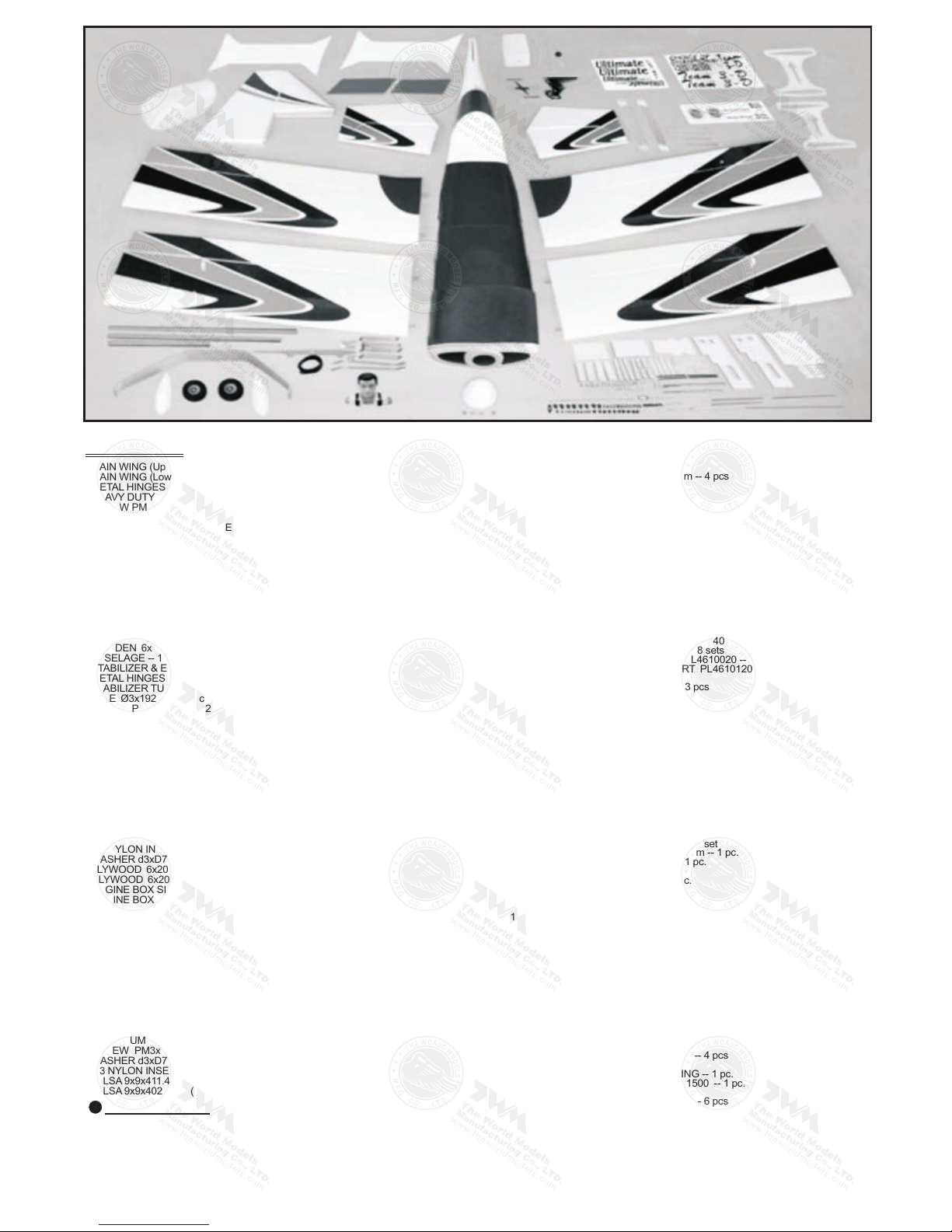

Parts List
P.2
* PURPLE COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 201 BLACK
TOUGHLON STL 561 PEARL PURPLE
TOUGHLON STL 370 SILVER
* YELLIOW COLOR SCHEME:
TOUGHLON STL 100 WHITE
TOUGHLON STL 201 BLACK
TOUGHLON STL 330 CADMIUM YELLOW
TOUGHLON STL 370 SILVER
COVERING:--
1. MAIN WING (Upper Wing) -- 1 pair
MAIN WING (Lower Wing) -- 1 pair
METAL HINGES -- 32 pcs
2. HEAVY DUTY SERVO HORN PL4120300 -- 4 sets
SCREW PM4x50mm -- 4 pcs
M4 NYLON INSERT LOCK NUT -- 4 pcs
HEAVY DUTY HORN BRACKET PL4112400 -- 4 sets
HEAVY DUTY CLEVIS PL4112200 -- 8 sets
SWIVEL CLEVIS HORN FAIRING PL4610010 -- 4 sets
PUSHROD Ø2.5x100mm w/Threads (For Aileron) -- 4 pcs
WOODEN 6x10x21mm (For Aileron Servo Stand) -- 8 pcs
3. HEAVY DUTY SERVO HORN PL4120300 -- 4 sets
SCREW PM4x50mm -- 4 pcs
M4 NYLON INSERT LOCK NUT -- 4 pcs
HEAVY DUTY HORN BRACKET PL4112400 -- 4 sets
HEAVY DUTY CLEVIS PL4112200 -- 8 sets
SWIVEL CLEVIS HORN FAIRING PL4610010 -- 4 sets
PUSHROD Ø2.5x100mm w/Threads (For Aileron) -- 4 pcs
WOODEN 6x10x21mm (For Aileron Servo Stand) -- 8 pcs
4. FUSELAGE -- 1 pc.
STABILIZER & ELEVATOR -- 1 set
METAL HINGES -- 6 pcs
STABILIZER TUBE Ø22x514mm -- 1 pc.
WIRE Ø3x192mm -- 1 pc.
SCREW PWA3x14mm -- 2 pcs
SCREW PM4x65mm -- 4 pcs
M4 NYLON INSERT LOCK NUT -- 4 pcs
HEAVY DUTY SERVO HORN PL4120350 -- 4 sets
HEAVY DUTY HORN BRACKET PL4112400 -- 4 sets
HEAVY DUTY CLEVIS PL4112200 -- 8 sets
SWIVEL CLEVIS HORN FAIRING PL4610010 -- 4 sets
PUSHROD Ø2.5x65mm w/Threads (For Elevator) -- 2 pcs
PUSHROD Ø2.5x118mm w/Threads (For Elevator) -- 2 pcs
WOOD 6x10x21mm (For Elevator Servo Stand) -- 8 pcs
5. VERTICAL FIN & RUDDER -- 1 set
METAL HINGES -- 5 pcs
6. TAIL GEAR WITH SPRING ABSORBER 25-40LBS PL3410022 -- 1 set
7. SCREW PM3x16mm -- 8 pcs
M3 NYLON INSERT LOCK NUT -- 8 pcs
WASHER d3xD7mm -- 16 pcs
PLYWOOD 6x20x123mm (F8A) -- 4 pcs
PLYWOOD 6x20x205mm (F8B) -- 4 pcs
ENGINE BOX SIDE PLATE 8x127x573.4mm (F8R) -- 1 pc.
ENGINE BOX SIDE PLATE 8x127x581mm (F8L) -- 1 pc.
FIRE WALL 12x159.6x164mm (F9) -- 1 pc.
UPPER PLATE 3x159x221mm (F9A) -- 1 pc.
LOWER PLATE 3x159x230mm (F9B) -- 1 pc.
BALSA 9x9x213mm (F9C) -- 2 pcs
BALSA 9x9x221mm (F9D) -- 2 pcs
BALSA 9x9x109mm (F9E) -- 2 pcs
BALSA 9x9x109mm (F9F) -- 1 pc.
BALSA 9x9x109mm (F9H) -- 1 pc.
BALSA 9x9x70mm (F9I) -- 2 pcs
BALSA 9x9x90mm (F9J) -- 2 pcs
WOOD 6.6x25x210mm (F10) -- 4 pcs
BALSA 10x10x143mm (F63C) -- 1 pc.
8. CENTER WING CABANE -- 1 set
ALUMIMUM PLATE -- 2 pcs
SCREW PM3x16mm -- 6 pcs
WASHER d3xD7mm -- 12 pcs
M3 NYLON INSERT LOCK NUT -- 6 pcs
BALSA 9x9x411.4mm (F63A) (For Fuselage) -- 2 pcs
BALSA 9x9x402.3mm (F63B) (For Fuselage) -- 2 pcs
9. MAIN LANDING GEAR -- 1 set
SOCKET HEAD SCREW M6x20mm -- 4 pcs
AXLE SHAFT Ø5x47mm -- 2 pcs
SCREW PA3x12mm -- 4 pcs
SCREW PM3x16mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
COLLAR Ø5.1mm w/set screw -- 4 sets
M8 NYLON INSERT LOCK NUT -- 2 pcs
MAIN WHEEL Ø128mm PL31113127 -- 2 pcs
WHEEL PANTS -- 1 pair
ALUMINUM PLATE -- 2 pcs
10. PUSHROD Ø2.5x180mm w/Threads (For Rudder) -- 2 pcs
PUSHROD M3x35mm w/Threads (For Rudder) -- 2 pcs
HEAVY DUTY SERVO HORN PL4120300 -- 2 sets
HEAVY DUTY SERVO HORN PL4120600 -- 1 set
SCREW M4x130mm -- 1 pc.
SCREW PM2.5x30mm -- 1 pc.
M2.5 NYLON INSERT LOCK NUT -- 1 pc.
M4 NYLON INSERT LOCK NUT -- 2 pcs
HEAVY DUTY HORN BRACKET PL4112400 -- 2 sets
HEAVY DUTY CLEVIS PL4112200 -- 8 sets
SWIVEL CLEVIS HORN FAIRING PL4610020 -- 1 set
SWIVEL CLEVIS HORN SUPPORT PL4610120 -- 1 set
11. SCREW PM3x30mm -- 3 pcs
M3 NYLON INSERT LOCK NUT -- 3 pcs
WIRE Ø1.5x600mm -- 2 pcs
WIRE Ø1.5x500mm -- 2 pcs
COLLAR Ø3.6mm w/set screw -- 4 sets
COPPER TUBE d5xD6.4x10mm -- 4 sets
PLATE(For Stays) 1.5x10x60mm -- 1 pc.
PLATE(For Stays) 1mm -- 6 pcs
12. FUEL TANK 1500cc (Gasoline Fuel) PL1121500G -- 1 set
FUEL TANK HOLD DOWN PLATE 3x130x239mm (F15A) -- 1 pc.
PLYWOOD 6x37x71.5mm (For Throttle Servo) -- 1 pc.
SOCKET HEAD SCREW M3x12mm -- 2 pcs
WASHER d3xD7mm -- 2 pcs
SPONGE 10x80x200mm -- 1 pc.
CABLE TIE 400mm -- 2 pcs
13. BLIND NUT M6 -- 4 pcs
SOCKET HEAD SCREW M6x50mm -- 4 pcs
WASHER d6xD15mm -- 4 pcs
LINKAGE CONNECTOR Ø2.1mm -- 1 set
THROTTLE PUSHWIRE Ø1.2x800mm -- 1 pc.
PLASTIC TUBE d2xD3x600mm -- 1 pc.
14. SPONGE 10x80x200mm -- 1 pc.
15. WING TUBE Ø22x865.5mm -- 1 pc.
SCREW PM3x22mm -- 1 pc.
SCREW PA3x22mm -- 1 pc.
WASHER d3xD7mm -- 2 pcs
16. WING TUBE Ø22x817mm -- 1 pc.
SCREW PM3x22mm -- 1 pc.
SCREW PA3x22mm -- 1 pc.
WASHER d3xD7mm -- 2 pcs
17. PLYWOOD (OUTER WING CABANES) -- 1 pair
PLYWOOD 3x536.6x597.4mm (Wing Incidence Angle Template) -- 2 pcs
FLYING WIRE ASSEMBLY -- 1 set
WIRE Ø1.5x8000mm -- 1 pc.
WOODEN ANTI-VIBRATION DOWEL Ø8x120mm -- 4 pcs
18. CANOPY -- 1 pc.
COCKPIT -- 1 pc.
110MM PILOT (Gold/Blue) PC101110E -- 1 pc.
SCREW PM3x25mm -- 4 pcs
SCREW PWA2.3x12mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
19. COWLING -- 1 pc.
TRANSPARENT DUMMY COWLING -- 1 pc.
PLATE (WHITE) Ø150mm PH22W1500 -- 1 pc.
SCREW PWA3x12mm -- 6 pcs
SILICON GROMMET d2.5xD8.5mm -- 6 pcs
20. DECALS -- 1 set

Aileron Servo Lead Aileron Servo Lead
1Main Wing
Main Wing (Lower)
Bottom View
Replace CA hinges by metal hinges. Glue the metal hinges to
wing and aileron by epoxy.
Main Wing (Upper)
P.3
Aileron Servo
2
Bottom View
(Upper Wing)
Bottom View
Outer wing cabane mounts
Heavy Duty
Clevis
M2 Nut
PM2x8mm
Wood
6X10X21mm
Pushrod PM4x50mm
M4 Nylon Insert Lock Nut
PM2x8mm
M2 Nut
Heavy Duty
Clevis
PA1.7x8mm
3.7mm
Drill and tap the swivel
clevis horn locations for
M4 machine screw.
M4 Tap
Heavy Duty Horn Bracket
PM 2 x 8 mm
M2 Nut
PL4120350
M4 Nylon Insert Lock Nut
PM4x50mm Screw 4
4

P.4
Stabilizer & Elevator
A=A
A
A
Replace CA hinges
by metal hinges.
Glue the metal
hinges to stabilizer
and elevator by
epoxy.

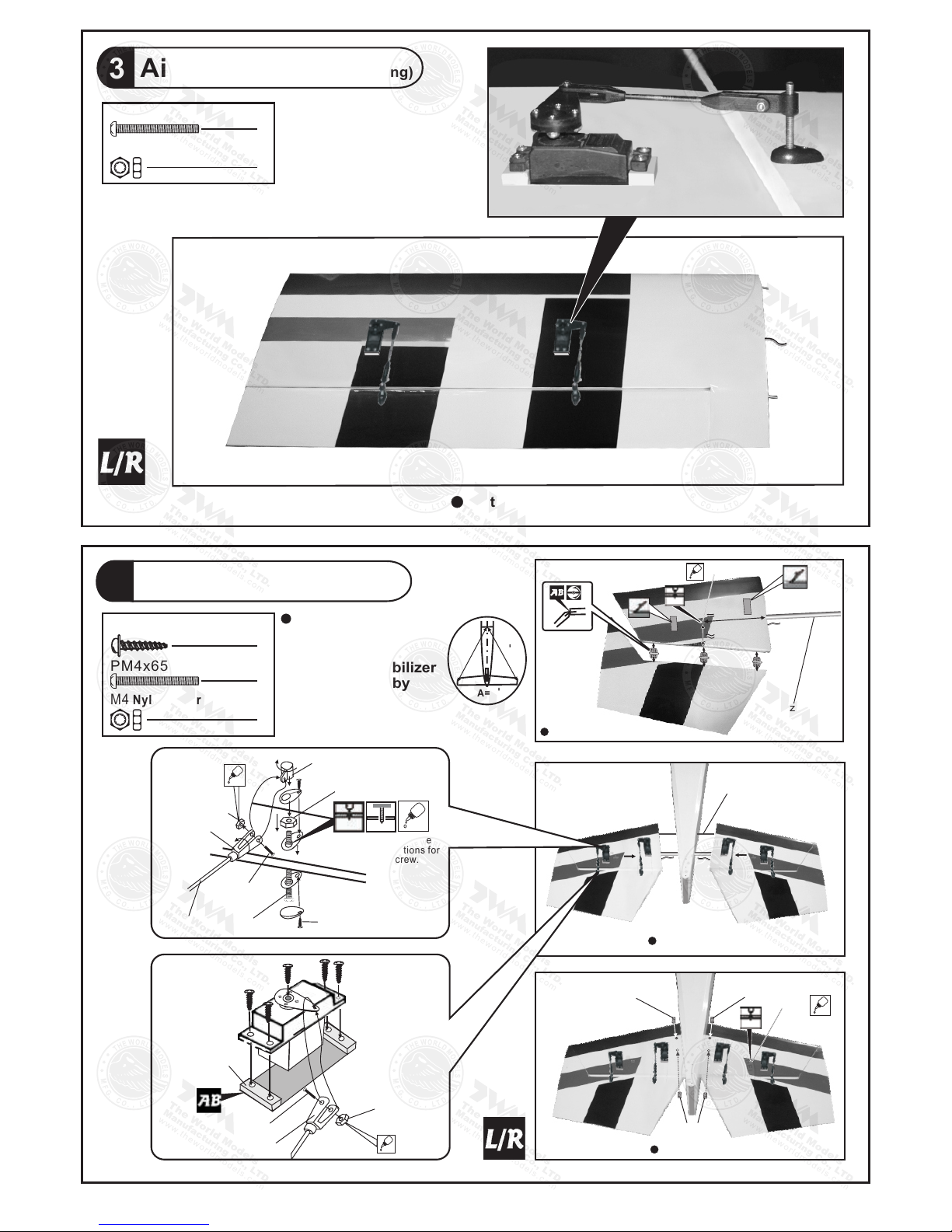

3Aileron Servo (Lower Wing)
Similar installation as upper wing.
Bottom View
4
2
4
Stabilizer Tube
Ø22x514mm
2mm
203mm
76mm
Bottom View
PWA3x14mm
Bottom View
Wire Ø3x192mm
Bottom View
M3x6mm
set screw
M3x6mm
set screw
M3x6mm
set screw
PWA3x14mm
2mm
M4 Nylon Insert Lock Nut
PM4x50mm Screw 4
4
M4 Nylon Insert Lock Nut
PM4x65mm Screw 4
4
PWA3x14mm Screw
Pushrod PM4x65mm
M4 Nylon Insert
Lock Nut
PM2x8mm
M2 Nut
Heavy Duty
Clevis
PA1.7x8mm
3.7mm
Drill and tap the swivel
clevis horn locations for
M4 machine screw.
M4 Tap
Heavy Duty Horn
Bracket
Wood
6x10x21mm
M2 Nut
PM2x8mm
Heavy Duty
Clevis

5Vertical Fin & Rudder
Completed
B B'
B=B'
Replace CA hinges by metal
hinges. Glue the metal hinges
to vertical and rudder by epoxy.
Tail Landing Gear
6
P.5
Bottom View
PWA2.5 x 12mm
PA3.5 x16mm
1mm
COPPER PLATE
1.5mm
PA3.5x16mm Screw 4
4
PWA2.5x12mm Screw

P.6
7Engine Box
F8' (8x127x563mm) F8(8x127x571mm)
F10
F8A
F8B
Completed
Use epoxy to
glue all parts
together.
Please note
right thrust
angle of
firewall.
F10
M3 Nylon
Insert Lock Nut
PM3x16mm
M3 Nylon Insert Lock Nut
PM3x16mm Screw
16
d3xD7mm Washer
d3xD7mm
Washer
8
8
0
F9
F9A
F9B
F10 F10
F8A
F63C
F9J
3
F9D
F8L
F9H
F9F
F9C
F9E
F8R
F9
F9E
F8B
F9J

P.7
9Main Landing Gear
Aluminum
Plate
M6x20mm SOCKET HEAD SCREW
4
4
PM3x16mm Screw
PA3x12mm
M6x20mm
SOCKET HEAD SCREW
Bottom View
8Wing Cabane
1 A
1 A
1 A
2 A
2
A
2B
2B
d3xD7mm
Washer
PM3x16mm
d3xD7mm
Washer
M3
Nylon Inert Lock Nut
d3xD7mm
Washer d3xD7mm
Washer
d3xD7mm
Washer
d3xD7mm
Washer
M3 Nylon Inert Lock Nut
F36A
F36B
M3 Nylon Insert Lock Nut
PM3x16mm Screw
12
d3xD7mm Washer
6
PM3x16mm
PM3x16mm
Ø5x54.5mm Axle Shaft
2
M8 Nylon Inert Lock Nut
2
Ø5x54.5mm
M8 Nylon
Inert Lock Nut
4
d3xD7mm Wa s h e r
4
PA3x12mm Screw
PM3x16mm
d3xD7mm
Wa s h e r
5.1mm Collar
4
5.1mm Collar
Wheel 128mmØ
5.1mm Collar
6
M6x20mm
Socket Head Screw

P. 8

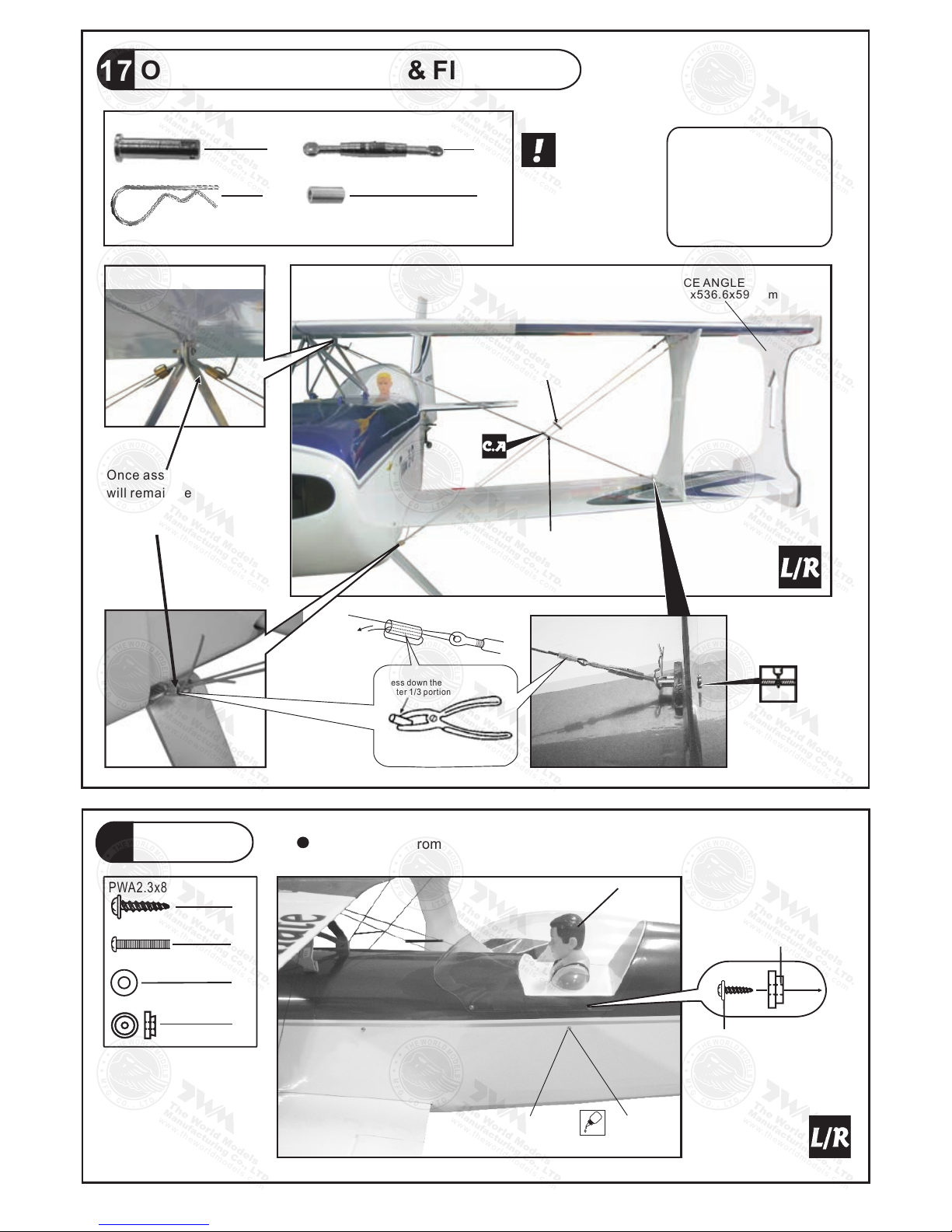

Flying Wire
11
Copper Tube
Press down the center
1/3 portion
10 Rudder Pushrod
M4 Nylon Insert Lock Nut
1
2
M4x130mm Screw
3mm
3mm
D3.6mm
M3
d5xD6.4x10mm
M3x3mm
Set Screw
M3
PM 3x30mm
PM 3x30mm
4
3mm Set Screw
4
d3.6mm Collar
PM 3x30mm Screw
3
3
M3 NYLON INSERT LOCK NUT
Bottom View
M4 Nylon Insert Lock Nut
2
2
PM2x10mm Screw
M4
M4 Nylon Inser t
L o c k Nut
PA1.7x8mm
M4 Tap
3.7mm
Drill and tap the swivel
clevis horn locations for
M4 machine screw.
PM2x8mm
1mm
M2 Nut
1mm
Heavy Duty Clevis
PM2x8mm
PM2x8mm
M2 Nut
M2 Nut
Heavy Duty Clevis
Bottom View
PM2x10mm
M2 Nut
M2.5
PM2x10mm
PM2 x 0mm.5 3
Completed

P.9
13 Engine
F9
Center line of firewall
Engine thrust line
10mm
F9A
Fuel Tank
12
63mm
14 Radio Equipment
Install and arrange the receiver and battery as shown in the diagram.
Sponge
Front
d3xD7mm
Washer
Fuel Tank
1500cc
Sponge to cushion
fuel tank.
Plywood 3x130x239mm (F15A)
Tongue
Cable Tie
2
d3xD7mm Washer
2
M3x12mm
M6x50mm SOCKET HEAD SCREW
4
M6 Blind Nut
4
d6xD15mm Washer
4
M3x12mm SOCKET HEAD SCREW

P.10
3
Main Wing
(Lower)
15
Note : It is recommended that the wing tube stays with the left wing. Removal of the wings could be achieved by
removing the right wing machine screw, the right wing then the left wing with wing tube. If removal of wing tube
from left wing is also required, it is recommended that instead of applying self-tapping screw in step 3, you pre-
tap with M3 thread cutter and apply M3 machine screw.

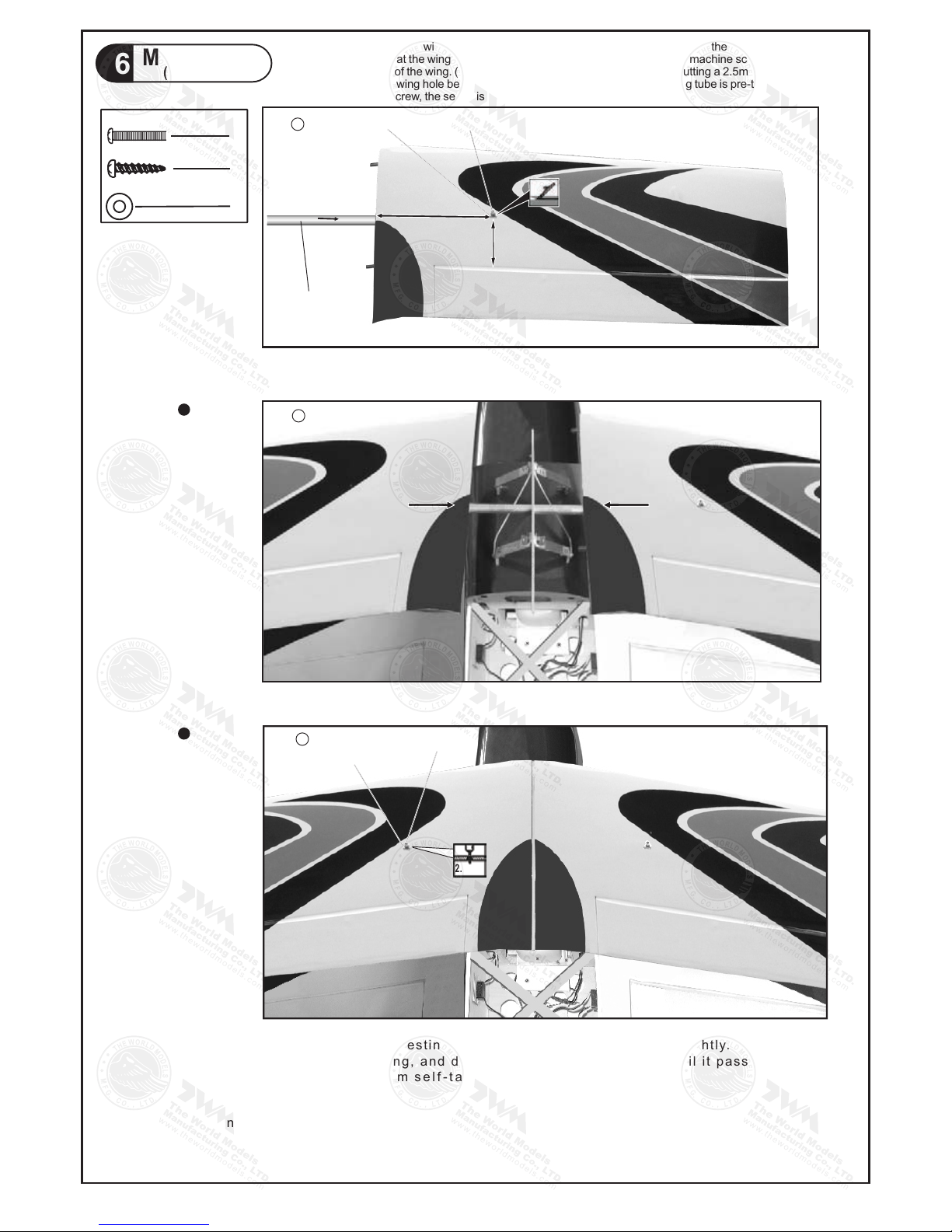

Step 1. Insert the aluminum wing tube (Ø22x865.5mm) with the pre-drilled hole end into the right wing (lower).
Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the
pre-drilled hole on top of the wing. (Please confirm the alignment of the hole by putting a 2.5mm diameter rod
through the pre-drilled wing hole before applying the screw.) The hole on the wing tube is pre-thread, do not
over tighten the PM3 screw, the set up is for future removal of the wing.
Wing Tube
Ø22x865.5mm
≈255mm
Main Wing (Lower)
1
Step
≈165mm
Step 2. Install the right wing to the fuselage by inserting the wing tube (now attached to the right
wing) through the fuselage, then install the left wing.
Ste p 3. M ake s ure t he win g s are resti ng aga inst the f uselag e tigh tly. Loc ate t he pre- drill ed 2 mm hole at
top of lef t win g, and dril l alo ng with 2.5 m m d rill bit unt i l i t p asses thr ough the w i n g t u b e . A p p l y t h e
PA 3 x 2 2 m m s e l f - t a p p i n g s c r e w.
d3 x D7mm Washer
PM3x22mm Screw
1
2
PA3x22mm Screw
1
PM3x22mm
d3 x D7mm
Washer
Top View
Top View
2
Step
PA3x22mm d3 x D7mm
Washer
Left Right
3
Step
2.5mm

P.11
3
(Upper)
Main Wing
16
2.5mm
Top View
Left Right
Wing Tube
Ø22x817mm
Note : It is recommended that the wing tube stays with the left wing. Removal of the wings could be achieved
by removing the right wing machine screw, the right wing then the left wing with wing tube. If removal of wing
tube from left wing is also required, it is recommended that instead of applying self-tapping screw in step 3,
you pre-tap with M3 thread cutter and apply M3 machine screw.
1
2
3
Step
Step
Step
Step 2. Install the right wing to the center wing cabane by inserting the wing tube (now attached to the
right wing) through the cabane, then install the left wing.
Ste p 3. Make sure the w ings are r esting again st the cente r wing cabane tight ly. Loc ate t he pre -
dri lled 2mm ho le at top of l eft w ing, a nd dri ll alo ng wit h 2.5m m dril l bit until i t pass es thr ough the
w i n g t u b e . A p p l y t h e PA 3 x 2 2 m m s e l f - t a p p i n g s c r e w.
≈164mm
≈380mm
d3 x D7mm Washer
PM3x22mm Screw
1
2
PA3x22mm Screw
1
PM3x22mm
d3 x D7mm
Washer
PAx22mm
d3 x D7mm
Washer
Top View
Step 1. Insert the aluminum wing tube (Ø22x817mm) with the pre-drilled hole end into the right wing (upper).
Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the
pre-drilled hole on top of the wing. (Please confirm the alignment of the hole by putting a 2.5mm diameter rod
through the pre-drilled wing hole before applying the screw.) The hole on the wing tube is pre-thread, do not
over tighten the PM3 screw, the set up is for future removal of the wing.

17 Outer Wing Cabanes & Flying Wire
Cut slot to fit wire and install
the dowels so they run parallel
with the fuselage sides. Glue the
dowels to the wires using CA.
8
16
8
6mm
ANTI-VIBRATION DOWEL
Outer wing cabane
should fit to the
outside of outer
wing cabane mounts.
Press down the
center 1/3 portion
With the wing incidence
angle template still in place,
position the side cabanes,
mark and drill the side
cabane mounts and fasten
with PM3x18mm screw and
nut.
8
P.12
18 Canopy
First insert the grommet to the canopy then apply screw.
PM3x25mm
d3xD7mm
Washer
PLYWOOD 3x536.6x597.4mm
WING INCIDENCE ANGLE TEMPLATE
d3 x D7mm Washer
4
PWA2.3x8mm Screw
4
4
d1.5 x D6.5 mm
Silicon Grommet
PM3x25mm Screw
4
PWA2.3x8mm
Pilot
d1.5xD6.5mm
Silicon Grommet
Once assembled, wire
will remain permanently
attached to center cabane
and fuse bracket.

P.11
3
(Upper)
Main Wing
16
2.5mm
Top View
Left Right
Wing Tube
Ø22x817mm
Note : It is recommended that the wing tube stays with the left wing. Removal of the wings could be achieved
by removing the right wing machine screw, the right wing then the left wing with wing tube. If removal of wing
tube from left wing is also required, it is recommended that instead of applying self-tapping screw in step 3,
you pre-tap with M3 thread cutter and apply M3 machine screw.
1
2
3
Step
Step
Step
Step 2. Install the right wing to the center wing cabane by inserting the wing tube (now attached to the
right wing) through the cabane, then install the left wing.
Ste p 3. Make sure the w ings are r esting again st the cente r wing cabane tight ly. Loc ate t he pre -
dri lled 2mm ho le at top of l eft w ing, a nd dri ll alo ng wit h 2.5m m dril l bit until i t pass es thr ough the
w i n g t u b e . A p p l y t h e PA 3 x 2 2 m m s e l f - t a p p i n g s c r e w.
≈164mm
≈380mm
d3 x D7mm Washer
PM3x22mm Screw
1
2
PA3x22mm Screw
1
PM3x22mm
d3 x D7mm
Washer
PAx22mm
d3 x D7mm
Washer
Top View
Step 1. Insert the aluminum wing tube (Ø22x817mm) with the pre-drilled hole end into the right wing (upper).
Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the
pre-drilled hole on top of the wing. (Please confirm the alignment of the hole by putting a 2.5mm diameter rod
through the pre-drilled wing hole before applying the screw.) The hole on the wing tube is pre-thread, do not
over tighten the PM3 screw, the set up is for future removal of the wing.

17 Outer Wing Cabanes & Flying Wire
Cut slot to fit wire and install
the dowels so they run parallel
with the fuselage sides. Glue the
dowels to the wires using CA.
8
16
8
6mm
ANTI-VIBRATION DOWEL
Outer wing cabane
should fit to the
outside of outer
wing cabane mounts.
Press down the
center 1/3 portion
With the wing incidence
angle template still in place,
position the side cabanes,
mark and drill the side
cabane mounts and fasten
with PM3x18mm screw and
nut.
8
P.12
18 Canopy
First insert the grommet to the canopy then apply screw.
PM3x25mm
d3xD7mm
Washer
PLYWOOD 3x536.6x597.4mm
WING INCIDENCE ANGLE TEMPLATE
d3 x D7mm Washer
4
PWA2.3x8mm Screw
4
4
d1.5 x D6.5 mm
Silicon Grommet
PM3x25mm Screw
4
PWA2.3x8mm
Pilot
d1.5xD6.5mm
Silicon Grommet
Once assembled, wire
will remain permanently
attached to center cabane
and fuse bracket.

P.13

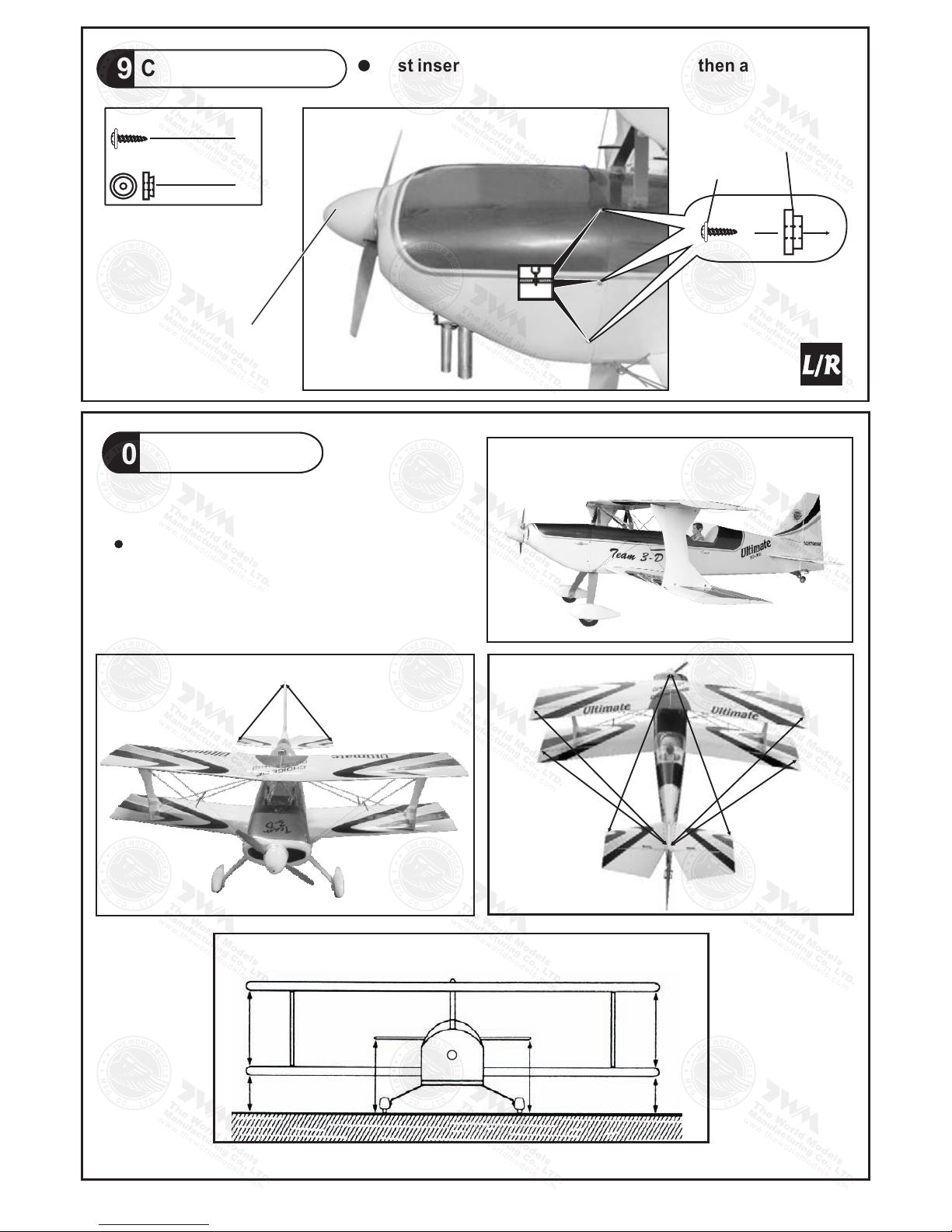

20 Wing Setting
BB'
CC'
DD'
A=A' B=B' C=C' D=D' E=E' F=F'
F F'
G=G'
G G'
E E'
3
19
Cowling & Spinner
First insert the grommet to the cowling then apply screw.
AA'
d2.5xD8.5mm
Silicon Grommet
1.5mm
Spinner
Ø150mm
d2.5 x D8.5 mm Silicon Grommet
6
6
PWA3x12mm Screw
PWA3x12mm
Adjust the wing and fuselage configuration as
shown in the diagrams.

175mm
6.89in.
22 C.G.
P.14
21 Control Throws
Important Safety Precautions
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is
absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by gasoline
engine, using a more powerful engine does not mean better performance. In fact, over
powered engine may cause severe damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never get
too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
# Check and re-tighten up all factory assembled screws, use thread locker if applicable.
150cc-200cc
Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
Elevator
Rudder
Ailerons
85mm
85mm
40mm
30mm
30mm
40mm
The ideal C.G. position is at center of top wing .
You can check the C.G. by hanging the plane with wire
around the top wing tube. Unscrew the right wing
bolt will leave a gap for the wire. In order to obtain
the C.G. specified, add weight to the fuselage or
move the battery position. Check the C.G. before
flying.
tube
A151RPO12910907

A151RPO12910907
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Warbirds
Scale
Sports
Trainer
DuctedFan Pattern
Funfly
Electric
Glider
Boat
Accessories
Covering
(Lightex / Toughlon)
