Therabody RecoveryAir JetBoots User manual

1

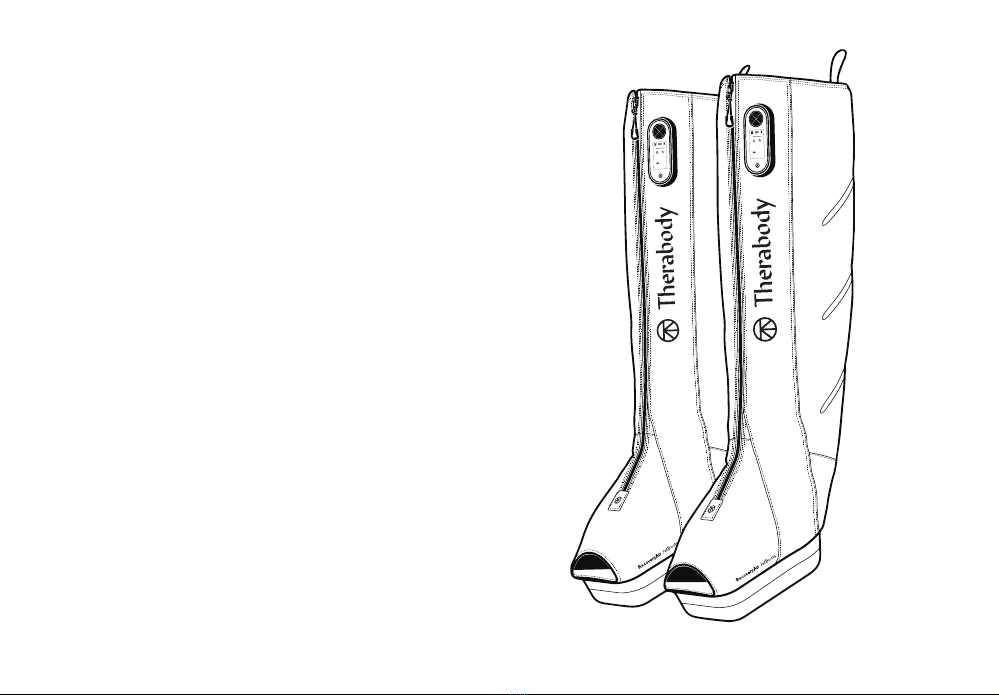

RecoveryAir JetBoots
Your RecoveryAir JetBoots come with two
compression boots, each with integrated pumps.
Plus a 36W charger, a splitter charging cord, and
a carrying pouch.
Fully wireless compression boots.
Integrated Pneumatic Compression System
See Warnings on pg. 10 for
important safety instructions.

2
Getting started
1. To get started, put your boots on and get into a comfortable position.
2. Once ready, turn ON the RecoveryAir JetBoots integrated pump, by pressing the power button.
3. After your boots are ON and have automatically paired, you can adjust the pressure and time
settings can be adjusted directly from the integrated pumps before your treatment begins. More
settings can be made from the Therabody app. (If your boots are not automatically paired, see
section Troubleshooting on page 17.)
4. Use your JetBoots at the same time as a pair or independently of each other.
Prepare your treatment
1. After turning on and pairing your RecoveryAir JetBoots, you are ready to choose your
program settings.
2. Access two preset program options when connected to the Therabody app: Recover and
Warm-up.
3. Once you have chosen your desired program, use the Pressure button to adjust the
pressure setting.
4.Then, toggle through the time options using the Time button, to set your desired treatment
time (20min, 40min, 60min, or continuous).
5.Once you have selected the treatment options that are right for you, press start, relax, and
you’ll be on your way to recovery in no time.

3
Buttons
Start/Pause/Stop Button
Time Button
Power Button
Feature Callouts
Pressure Button

4
Indicators
Bluetooth Indicator
Indicator turns ON only when connected to
the App
Battery Indicator
3 fully lit bars to indicate battery life
Paired Indicators
No indicator: Boot has not been paired
1 Paired Indicator:
Boot is paired but was not able to connect with
the other boot
2 Paired Indicator : Boots are paired and
connected
Warning Indicator
Indicator lights up solid ON or blinking
when a device malfunction is detected
Time Setting
4 time intervals
(20, 40, 60, and continuous)
Additional time options available
via the Therabody app
Pressure Setting
Adjustable Pressure Range
(25-100 mmHg) in increments of
25 mmHg. Adjustable pressure
changes via the Therabody app
in increments of 5 mmHg
Settings (Adjustable Range)

5
Smart Features
The RecoveryAir JetBoots also connect to the Therabody
app via Bluetooth, giving you control of your session from
the convenience of your smartphone.
Not only can you easily access the Recover and Warm-up
treatment options, but you can also adjust the pressure
and time.
Scan the QR code
to get started.
75

6
RecoverAir JetBoots Programs
About negative gradient for all programs:
The RecoveryAir JetBoots’ unique true negative gradient of pressure sequentially travels up
the limb from the foot toward the heart in four internal overlapping chambers. The spiraling
overlap of chambers safely maximizes circulation.
• The pressure can be the same in two consecutive chambers, but the pump won’t
allow a back chamber to have a higher pressure than a front chamber.
• ●The minimum pressure level of each chamber is 20 mmHg.
Recover and Warm-Up preset programs
• Access the Recover and Warm-Up preset programs via the Therabody app.
• The Recover program is the perfect go-to when experiencing fatigue, tension,
or soreness brought on by your everyday activities or post workout.
• The Warm-Up program is recommended for use before workout.
• The only difference between the two programs is the default pressure level and
treatment time.
Sequential inflation cycle
Both the Recovery and Warm-Up preset programs use the Sequential inflation cycle.
• ● A directional massage is applied, starting at the base of the treated area, and
progresses upwards towards the torso and then releases.
• Starting with Chamber 1, once the inflating chamber has reached its preset pressure
level, the pressure level for that chamber is held and the next chamber begins inflating.

7
Charging the RecoveryAir JetBoots
You can use your JetBoots while they are charging. Also, you can charge one of the boots at
the time directly with the power adapter.
1. After turning off the integrated pump, locate
the power charging port found at the front
right side of the foot of the boot.
2. Connect one side of the splitter to the
charging port.
3. Do the same for the second boot.
4. Connect the other end (female end) of the
splitter to the power adapter and connect
the other side to a wall power outlet.
5. Charging is complete when all 3 LED lights
of the LED battery indicator are lit.

8
Superior, hygienic design
It’s important to take proper care of your RecoveryAir JetBoots compression boots because
the longer they last, the longer you will feel the benefits. Each boot has non-porous medical
grade material that helps fight bacteria and provide a resistant surface. Our internal overlapping
chambers provide a smooth surface to clean, this means no wiping under chamber flaps where
bacteria can build up. This also means, no smells.
How to Clean
Here are simple steps to cleaning your RecoveryAir JetBoots:
1. Unzip the boots completely and lay them on a flat surface.
2. Take a disinfectant wipe or spray, and gently clean the inside of the boots. Avoid any oil
based cleaning product.
3. Once you have cleaned your garment, make sure to fully dry the surface by hanging them
up or wiping them down.
4. We also recommend you wipe down the exterior of the pump to reduce surface
contaminants. Avoid using sprays or soaking wet wipes on the back of the pump due to
the air vents. Clean with caution.
What it is and why it’s important:
We use medical-grade material covering the internal chamber to help reduce the potential for
microbial growth and moisture retention. Whether you are an individual, or a clinic, our boots
are designed to help limit the potential for bacterial transmission.

9
Traveling with your RecoveryAir JetBoots
Important Safety Information
The RecoveryAir JetBoots’ components are all packed into a sleek, compact design for
on-the-go recovery, making traveling even more convenient.
When traveling with your RecoveryAir JetBoots, we recommend:
• ●Pack your boots, including the integrated pump, in the provided carrying pouch and
simply fold to fit into your travel bag or carry on luggage.
• ●The integrated pump eliminates the need to pack the pump separately.
Read all instructions before using the RecoveryAir JetBoots for the first time.
Warning
• This system is intended for use by people in good health. This system is not recommended for people who
have heart problems, or vascular problems, have a condition requiring the use of any medical device, or
have any condition that may affect their normal well-being.
• ●If you are, or may be, pregnant, consult with your physician before use.
• Do not use this system over insensitive or numb areas, or in the presence of poor circulation. Do not use if
you have been diagnosed with blood clots, deep vein thrombosis or phlebitis. This system should not be
used over swollen or inflamed areas or skin eruptions. Do not use in the presence of unexplained calf pain.
• Consult your physician prior to use.

10
Important Safety Information
Safety Warnings and Precautions
Warning:
• Explosion Hazard: Do not use the RecoveryAir JetBoots in the presence of flammable gases, including
flammable anesthetics.
• Electric Shock Hazard: Do not allow liquid to enter any part of the RecoveryAir JetBoots pump. Do not
immerse in water or liquid. To clean, follow instructions found on page 8.
• Electric Shock Hazard: To prevent electric shock, do not open the pump. Do not attempt to service the pump
yourself. All repairs should be performed only by Therabody trained and authorized service personnel. Service
by unauthorized personnel will void any warranty.
• Stop using the system if there is any change in RecoveryAir JetBoots’ performance.
• Do not modify any part of the RecoveryAir JetBoots.
• The RecoveryAir pneumatic compression system includes small parts that could cause choking in children.
• Keep away from children and pets.
• ●Do not inflate the garment without wearing it over the intended body area or with open zippers. Doing so can
damage the garment.
• Do not apply excessive force to the garment straps. Do not use the straps for any purpose other than intended by the
manufacturer. Use of excessive force and/or misuse shall void the manufacturer’s warranty.
• Do not stand or walk while wearing the garment.
• Disconnect the pump from the electrical outlet before cleaning and let it dry completely before reconnecting it
to the electrical outlet.

11
Caution
• Do not operate the RecoveryAir JetBoots while operating a vehicle.
• Do not store or transport the RecoveryAir JetBoots beyond the specified temperature, humidity, and
atmospheric pressure range.
• Do not use the RecoveryAir JetBoots beyond the specified temperature range: 10 to 30°C (50 to 86°F).
• Do not use the RecoveryAir JetBoots beyond the specified humidity range: 30%rH–75%rH, noncondensing.
• ● Only use the RecoveryAir JetBoots up to 3000m above mean sea level.
• To prevent any damage to the RecoveryAir JetBoots, keep it away from dust, lint, and dirt. Keep away from
sources of heat or moisture.
• To prevent any damage to equipment, use only accessories, detachable parts, and materials described in this
User Manual.
• While in use, place the pump on a horizontal firm surface only. Do not place the pump on a bed, blanket,
mattress, pillow, or soft furniture. Do not cover the pump.
• The equipment is to be installed and put into service according to the EMC information provided in Chapter 11 -
EMC Manufacturer Declarations.
• Portable and mobile RF communication equipment might affect the equipment.
• For indoor use only.
• Use only the DC power adapter provided with the pump.
• The massage sensation should be pleasant and comfortable. If you experience pain or discomfort during or after
the massage or if there is onset of bruising or irritation during or after the massage, discontinue use and consult
your physician.
• Do not hand or machine wash. Surface wipe only.
• Do not allow liquid to get into the air inlets.
• Do not use bleach.
• Do not dry clean.
• Do not wring, iron, tumble, or force heat dry.
Important Safety Information

12
Labels
The following labels and symbols appear on the pump, garments and/or packaging.
Label Description Location
IP 22 Degree of protection against ingress of water On garment label
Read instructions before use On garment label
Read instructions before use (for China only) On garment label
Class III equipment
(only in the EU per IEC60335-2-32)
Equipment relying on limitation of voltage to
extra-low-voltage (ELV) values as provision
for basic protection and with no provision for
fault protection.
On garment label
(only in the EU)

13
Label Description Location
Read instructions before use On garment label
Level of protection type BF applied part On garment label
Double insulation On DC power adapter
Direct current On garment label
Therabody, Inc.
6100 Wilshire Blvd. Suite 200
Los Angeles, CA 90048
On garment label
Date of Manufacture On garment label

14
Label Description Location
UDI :
(01) 00810036056908
(10)
(21)
2143
00001
Unique Device Identication (UDI)
On garment label and
package, and garment
bag and package
Separate collection for waste electrical and
electronic equipment On garment label
In accordance with Directive 2014/35/EU
electrical equipment designed for use within
certain voltage limits, and Directive 2014/30/
EU electromagnetic compatibility
On garment label
Serial number of the console On console base
Fragile, handle with care On package
Keep dry On package and
console base.

15
Label Description Location
This side Up On package
Keep away from sunlight On package
Transportation & storage humidity limitation On package
Transportation & storage atmospheric
pressure limitation On package
Transportation & storage temperature
limitation On package

16
Label Description Location
Do not wash On garment tag
Do not dry-clean On garment tag
Do not tumble dry On garment tag
Do not bleach On garment tag
Do not iron On garment tag

17
Indications for Use
RecoveryAir is indicated for the temporary relief of minor muscle aches and pains, and for the temporary increase
in circulation to the treated areas in people who are in good health. RecoveryAir simulates kneading and stroking
of tissues by using an inflatable garment.
Note
• The pump is “multi-voltage” and can be used for travel.
• An appropriate socket adapter must be used in countries with incompatible wall outlets.
• Use only RecoveryAir garments with the RecoveryAir pump.
• When immediate garment deflation is necessary, disconnect the garment hose bundle from the pump to
immediately deflate the air pressure in the garment.
Troubleshooting
Symptom Possible Cause Corrective Action
The pump is not working. No electricity Inspect the electrical wall outlet.
DC power adapter Verify that the DC power adapter
cable is connected to the DC adapter
socket on the console, and the DC
power adapter is connected to the
100-240 Volt wall outlet.
DC power adapter cable Examine the cable for any defects.
The Status Indicator is On in yellow Malfunction Contact Therabody.
The pump starts working and stops
immediately.
The air cannot move through the
garment hose.
Examine hoses for kinks, twists and
folds.

18
Symptom Possible Cause Corrective Action
One garment inflates but the second
one does not.
The second garment does not receive
air.
Examine its hoses for kinks, twists and
folds.
The pump stops working, the Status
Indicator turns On in yellow.
Hose is not connected properly to
garment or pump, or prong plug is
not inserted into unused air outlet.
Examine and fasten all air connections.
When treating only one limb, always
plug the unused air outlet with the
prong plug provided with the pump.
If all air connections are OK and the
problem persists, contact Therabody.
The pump works at a very low
pressure, regardless of the pressure
set by the user.
Defective garment Replace garment and check again.
Internal malfunction Contact Therabody.
An irregular noise. Pump transferring vibrations to a
surface
Make sure the pump is standing even-
ly on all four of its bumpers.
Internal malfunction Contact Therabody.
Boots are not automatically paired. Boots were not pre-paired. If your boots are not automatically
paired, press the pressure and time
buttons at the same time and hold
both for 5 seconds to enable the pair-
ing of the two boots.

19
Warranty
For full warranty information, please visit www.therabody.com/warranty. To request a copy of the warranty by mail, you
may send a request to the following address:
Therabody - WarrantyAttn: Customer Service
6100 Wilshire Blvd.,
Los Angeles, CA 90048
Please note, this is not a return address or a retail location. No products or packages will be accepted at this location.
Reporting adverse events to FDA
MedWatch is the Food and Drug Administration’s (FDA) program for reporting serious reactions, product quality
problems, therapeutic inequivalence/failure, and product use errors with human medical products, including drugs,
biologic products, medical devices, dietary supplements, infant formula, and cosmetics.
If you think you or someone in your family has experienced a serious reaction to a medical product, you are encouraged to
take the reporting form to your doctor. Your health care provider can provide clinical information based on your medical
record that can help the FDA evaluate your report. However, we understand that for a variety of reasons, you may not
wish to have the form filled out by your healthcare provider, or your health care provider may choose not to complete the
form. Your health care provider is not required to report to the FDA. In these situations, you may complete the Online
Reporting Form yourself.
You will receive an acknowledgement from the FDA when your report is received. Reports are reviewed by FDA staff. You
will be personally contacted only if we need additional information.
Submitting adverse event reports to FDA
Use one of the methods below to submit voluntary adverse event reports to the FDA:
