Thermo Scientific Compact Digital Rocker User manual

User Manual
Compact Digital Rocker
Compact Digital Waving Rotator
Operation Manual 9240-11-016

Thermo Scientific
MANUAL NUMBER
0 -- 12/3/13 Original ccs
REV ECR/ECN DATE DESCRIPTION By
Preface
Magnetic Stirrer i
Important Before using this product, read this entire operation manual carefully. Users should
follow all of the operational guidelines contained in this manual and take all necessary safety
precautions while using this product. Failure to follow these guidelines could result in potentially
irreparable bodily harm and/or property damage. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. Thermo Fisher Scientific is committed to a continuing
program of product development and improvement, and reserves the right to change information, such as
specifications, appearance, and dimensions, described in this document without notice. Thermo makes no
representations or warranties with respect to this manual. In no event shall Thermo be held liable for any
damages, direct or incidental, arising out of or related to the use of this manual.
No part of this manual may be reproduced or transmitted in any form or by any means, including
photocopying, recording, or using information storage and retrieval systems, for any purpose other than the
purchaser's own use, without the express written permission of the manufacturer.
Any other product names and services identified in this manual are trademarks or registered trademarks of their
respective owners. No such use, or the use of any trade name, is intended to convey endorsement or other
affiliation with Thermo Fisher Scientific.
©2013 Thermo Fisher Scientific. All rights reserved.

Thermo Scientificii Magnetic Stirrer
Preface
This manual contains important safety and operation information. You must carefully read, understand, and
follow all the instructions in this manual prior to operating this instrument. Keep this manual in a safe place
nearby for reference and make it easily available to all users.
1) This manual highlights DANGER/WARNING/CAUTION/NOTICE alerts to prevent injury or property
damage and also to achieve optimum performance of your instrument.
(2) These alerts are classified into four types in this manual depending on the importance and the risk levels as
described below:
3) The claim which is out of the quality guarantee published by the Manufacturer is out of Manufacturer’s
responsibility.
4) The damage which is from unexpected fault or damage of user by Acts of God is out of Manufacturer’s
responsibility.

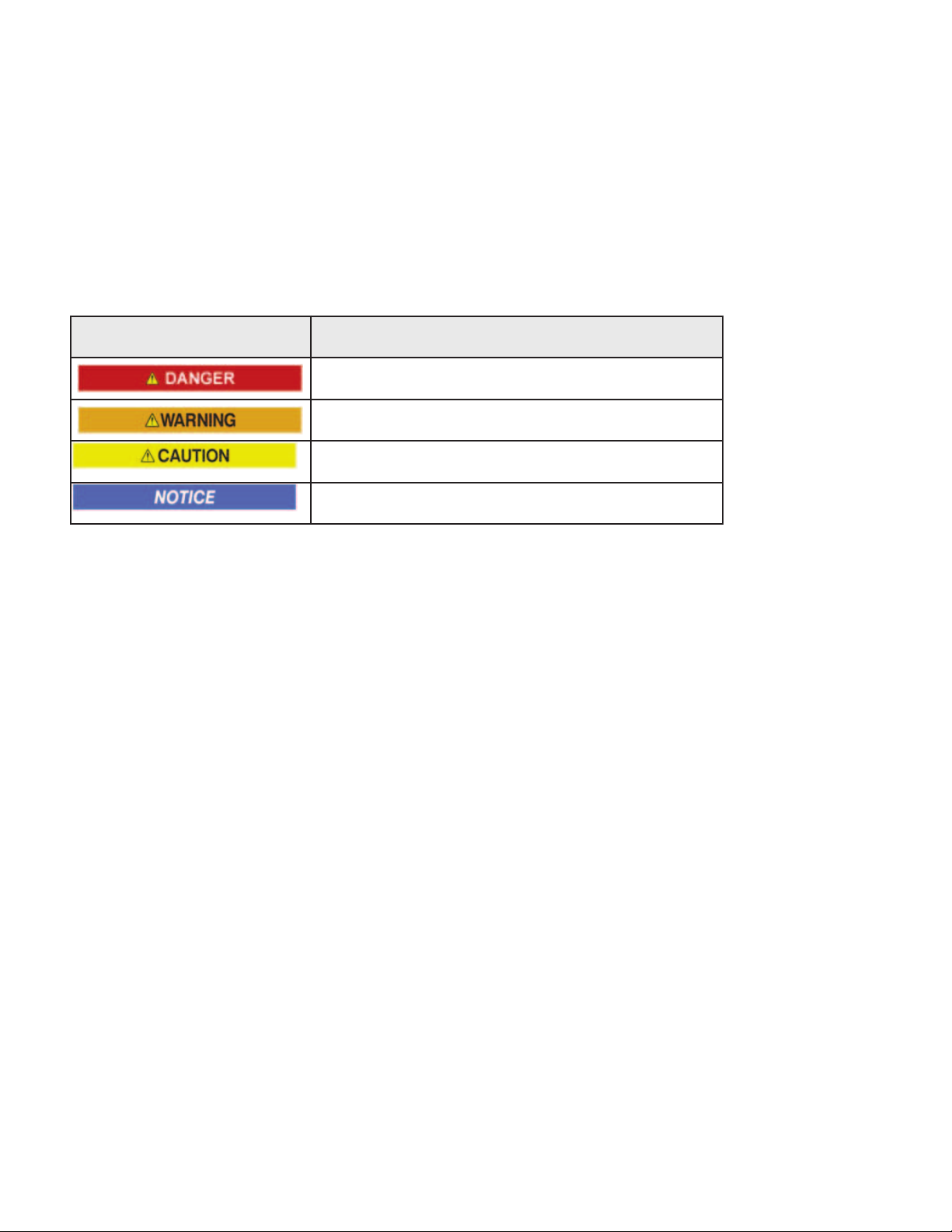

Symbols Meaning
Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Ignoring this warning could cause serious injury or even death.
Ignoring this caution could cause injury or property damage.
Ignoring this notice could cause operational problems.

Thermo Scientific Magnetic Stirrer iii
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermoscientific.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Page
Thermo Fisher Scientific
401 Millcreek Road, Box 649
Marietta, OH 45750
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
International customers, please contact your local Thermo Scientific distributor.
Sales Support
Service Support
www.unitylabservices.com

Magnetic Stirrer ivThermo Scientific
Table of Contents
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Functional Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Checking Instrument Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Installation Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Fixing Feet and Keeping Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Tray Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Connecting to the Mains Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

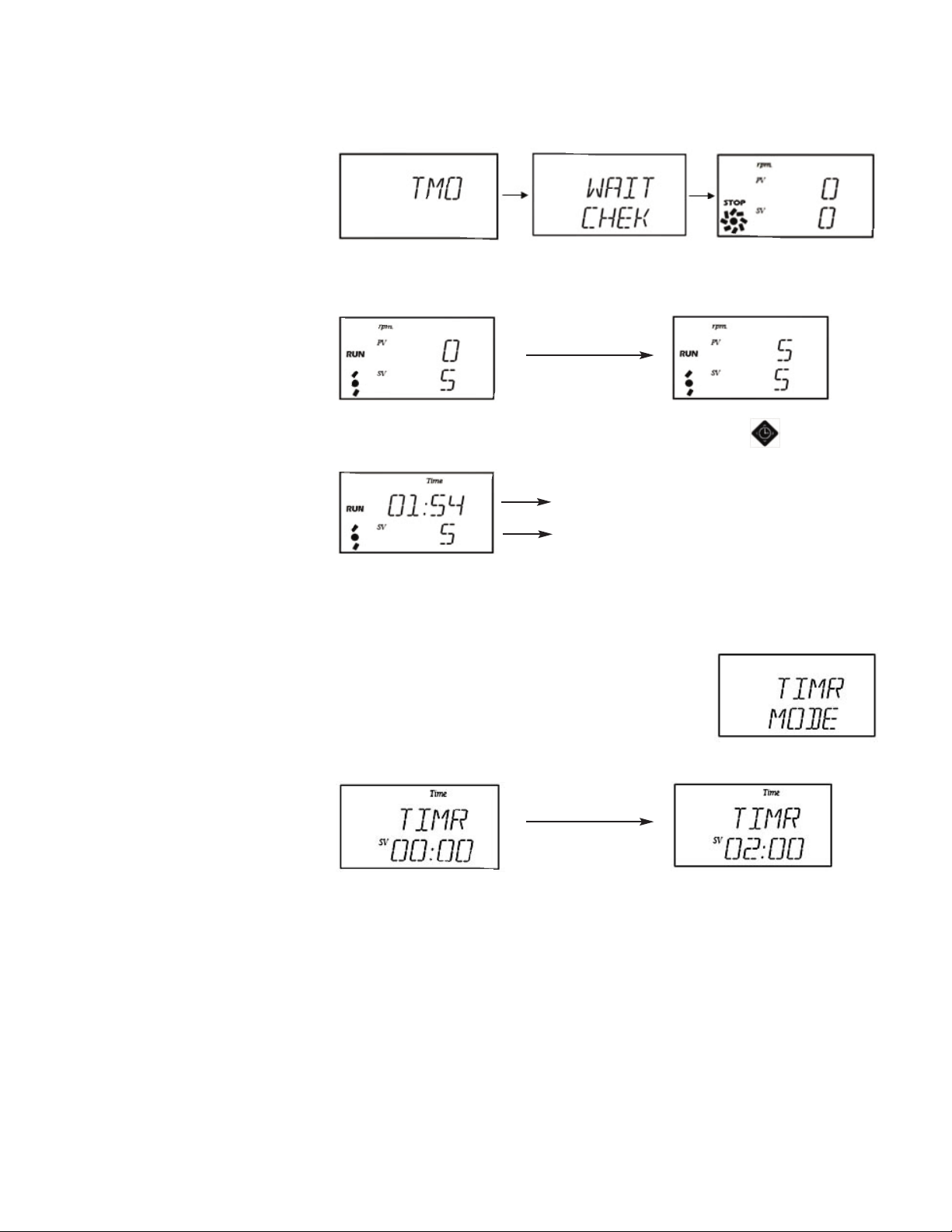

Start and Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
How to Set the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Stop Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
How to Adjust Shaker Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Cleaning of Tray and Unit Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Keeping Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Error Message on DIsplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 8
Section 7
Section 9

Magnetic Stirrer 1-1Thermo Scientific
Section 1 Warnings and Cautions
Ignoring the following warnings could cause serious injuries or even fatal
accidents.
Check and connect properly -the voltage, phase and capacity of power
supply on the ID plate before installation.
Power supply must be properly grounded. Abnormal grounded connection
causes serious damage. Grounded connection must not be on the water
pipe and gas pipe.
Use correct and provided power code.
Power cord: Wall outlet with grounded terminal power cord 250V 7A.
Do not install the product in the place that the gas could leak out. Do not
use in a place that has industrial oil smoke and metallic dust. It causes
fire or electric shock.
Do not use the machine near places where explosion can occur due to
organic evaporating gases.
Explosive materials: Acid, Esther, Nitro compound
Inflammable materials: salt peroxides, inorganic peroxide, salt acids.
Check equipment for permissible environmental conditions when used
inside Temp. & Humid. Chamber or Incubator. It can be cause of fire or
trouble by shaker electricity, electronic, and damage of motor.
Shaker Permissible environmental condition; Temperature 2°C to 60°C,
Maximum relative humidity 80%.
Wear your personal protective equipment in accordance with the hazard
category of the medium to be processed. Splashing liquids, projectile
parts, body parts, hair, clothing and jeweler getting caught.
Unplug, when there is strange sound, smell and smoke from the product.
Stop operating and request service.
Keep out of the direct sunlight. It may influence that product life and
operation properly.
Do not use the machine at places where moisture is high and flooding can
be happened.
Do not assemble, repair, modify on your own. The product may not work
well and electric shock change the efficiency of the product. Also this
will void the warranty.

1-2 Magnetic Stirrer Thermo Scientific
Section 1
Warnings and Cautions
Indicates a hazardous situation which, if not avoided, may result in minor or
moderate injury.
Do not put heavy things on the power line. Do not put the machine on
the line. It may take off the wire coating and cause electric shock or fire.
Do not touch it with wet hands and put the main plug correctly. It may
cause the electric shock or injuries.
Install power outlet near instrument for convenience.
Do not install the stirrer near machinery generating high frequency noise.
Avoid installed from high frequency- welding machine, sewing machine,
and mass SCR controller.
Do not inject any liquid and inflammable things inside of product.
Do not pure water or put liquid on the top of the product when cleaning.
Intercept the main power immediately and request the service when water
may be in the product.
Do not let the product take any strong shock or vibration. It causes
abnormal operation or trouble. It may deteriorate the ability of the
product and not obtain correct results.
Do not sprinkle insecticide or flammable spray on the product. Use
smooth cloths. Cleaning with solvent can cause fire and deformity.
Power off while product cleaning.
It may cause the electric shock or fire.
Disconnect the power plug if some sounds and burning smell, smokes
occur. And request service.
Do not let the product take shock by falling down. It will cause wrong
operation and malfunction.

Magnetic Stirrer 2-1Thermo Scientific
Section 2 Functional Descriptions
Compact Digital Rocker / Compact Digital Waving Rotator is commonly
used for mixtures, homogenizing and various hybridization,
immunocytochemistry reaction or gel staining / destaining process and
over biotechnology.
(1) The Compact Digital Waving Rotator/Compact Digital Rocker is
designed to be user safe in laboratories with convenient and easy to
follow features.
(2) The shaker is suitable to use low speed (Compact Digital Rocker:
5rpm, Compact Digital Waving Rotator: 8rpm) for sensitive response
or test.
(3) User can easily choose the instruments rotating speed (Compact
Digital Rocker: 5~100 rpm, Compact Digital Waving Rotator: 8~100
rpm) for their own purposes.
(4) The controller display uses VFD (Vacuum Fluorescent Display). It is
easy to indicate stirrer set up and operating condition.
(5) Operator-friendly tilt angle can be set for their own purpose tests.
- Compact Digital Rocker : Tilt 7 ~ 13° adjustable
- Compact Digital Waving Rotator : Tilt 0 ~ 13° adjustable
(6) If the angle is set at 0° on waving shaker, it can be used as small orbital
shaker.
(7) Designed for convenient use of experiment chamber (incubator, oven
and etc).
(8) User can easily indicate equipment operating time. Also convenient
timer setting. (1 min to 99 hour 59 min).
(9) The tray has the efficient size to be used with 6 well-plates and can be
separated from main body to maintain in clean condition.
(10) Optional 3 different non-slip mats series. (Refer to Accessories
section.)
Features

2-2 Magnetic Stirrer Thermo Scientific
Section 2
Functional Descriptions
Construction
(1) Non-slip pad: Non-slip pad protect sliding of glassy flask and baker etc.
(Optional 3 different non-slip mats series. (See Accessories section.)
(2) Tray: to be placed sample or carried.
(3) Rubber bands: to fix and tie the sample. (See Accessories section.)
(4) VFD panel & Controller: The panel indicates product setting and
control condition.
(5) Touch Button: to choose RPM or TIMER individually, operating by
orange and green LED lamp
(6) Dial Knob: to set a shaking speed / timer and start / stop.
(7) Power switch: the main ON/OFF switch and supplying power of the
product.
[Waving Rotator back] [Rocker back]
(8) Foot: to prevent from slippery and support main body
(9) Socket: Connect the power cable on the socket.
9
8

Magnetic Stirrer 3-1Thermo Scientific
Section 3 Installation
Check to see if there is any damage in the instrument packaging before
unpacking. Then unpack the instrument carefully. Inspect to see that the
instrument was not damaged during transportation.
Check the instrument components supplied in the package after
unpacking. If a noticeable issue or an omission is found, immediately
notify your local Thermo Scientific dealer’s Service Department.
▪Temperature: 2°C ~ 60°C
▪Relative Humidity: RH 10% ~ 80%
▪Maximum Altitude: Up to 2000m
• The unit should be located away from naked flame sources, direct sunlight.
It can cause a malfunction or lower the function.
• Place the unit onto a table as far as possible when in use and keep
suitable distance from other instruments.
• Do not place the unit near other laboratory equipment which can be readily
influenced, even by weak motor vibration.
Checking Instrument
Components
BASIC COMPONENT QUANTITY/ RECEIVED DESCRIPTION
Operating Manual 1/OK -
Main unit 1/OK -
Power cord 1/OK -
Dimpled mat 1/OK -
Rubber bands 2/OK -
Installation
Environment

3-2 Magnetic Stirrer Thermo Scientific
Section 3
Installation
Fixing Feet and
Keeping Balance
STEP 1: Gently press the feet on the table.
STEP 2: Check that the shaker is level.
Install the provided tray with main body as follows. It can be used by
installing non-slip pad as necessary.
STEP 1: Put the protrusions of tray into the 4 holes of main body.
STEP 2: Check if the tray is fitted perfectly.
Connect the electric power to the unit according to the following process.
STEP 1: Switch off the main switch before connecting AC power cable.
STEP 2: Connect the power cable to the socket located on the unit back.
• Use only the power cord supplied with unit.
Tray Installation
Rubber band
Silicone pad or Sticky pad
Tray
Connecting the
power cable Power switch
Connecting to the
Mains Power Supply

Magnetic Stirrer 4-1Thermo Scientific
Section 4 Operation
(1) VFD (Vacuum Fluorescent Display):
Check status of unit on display.
rpm : Just indication below PV and SV show RPM.
Time: Run time or Indicating Timer mode.
PV: Current RPM
SV: Setting RPM
Run: It indicates the unit works.
Stop: It indicates the unit stops.
Rem’n: It shows remaining time during Timer mode operation
(2) RPM button: It indicates that the unit works. RPM can be verified
during Timer mode operation.
Compact Digital Rocker
Compact Digital Waving Rotator
(3) TIME button : Timer and Run time can be verified
(4) Dial knob : RPM setting, Input time, or stop the unit

(1) Turn on the switch at the right bottom of the unit.
[Booting] [Stand by]
(2) Dial the knob and set the desired RPM.
(3) Run time can be verified during shaking if you press
button.
Display returns to previous display about after 10 seconds.
(4) You can stop the unit if you rotate or press the dial knob.
(1) Press button when the unit stops.
(2) Time input display shows when you press the dial knob.
* Input Hour/Min : Hour blinks during setting.
STEP 1: Input hour by rotating dial knob to right or left direction.
STEP 2: Press dial knob 1 time.
STEP 3: Input minute by rotating dial knob to right or left direction.
STEP 4: Press dial knob 1 time. Display moves to next mode (RPM
setting)
4-2 Magnetic Stirrer Thermo Scientific
Section 4
Operation
Start and Stop
How to Set the Timer
Run Time
Turn right
Current rpm

Magnetic Stirrer 4-3Thermo Scientific
Section 4
Operation
(1) Input RPM by dialing the knob. Press dial knob 1 time to save set
value and unit starts shaking. Remaining time and set value (RPM) shows
on display.
(2) Shaking stops and alarms when the time is terminated. If you press dial
knob or touch button, display returns to stand by status.
Timer function can stop as follows;
STEP 1 : Press the dial knob.
STEP 2 : Choose STOP YES by rotating the dial
knob to the clockwise.
STEP 3 : Press the dial knob.
• Stop button does not work during timer function. Please, read carefully Stop
Timer Mode section before using timer function.
• RPM can be set from 5 rpm.
• If Timer button is pressed during timer setting, the unit returns to Stand by
display. Time and RPM can be set if Timer button is pressed again.
How to Set the Timer
(continued)
Stop Timer Mode
Turn right
Push Button
Push Button

Compact Digital Rocker
There is an adjustable angle screw under platform at the rear. Range of
angle is 7° to 13°.
STEP 1: Rotate 1 round of adjustable screw to clockwise.
STEP 2: Move the screw to set desired angle.
STEP 3: Rotate the screw to anti clockwise to fix the angle.
Compact Digital Waving Rotator
STEP 1: Lift up the tray with your hands.
STEP 2: Rotate the screw at the center with screwdriver or coin to set the
desired angle.
4-4 Magnetic Stirrer Thermo Scientific
Section 4
Operation
How to Adjust Shaker
Angle
ÁÀ ÎÀ
Angle adjustment part
Angle adjustment part

Magnetic Stirrer 5-1Thermo Scientific
Section 5 Maintenance
Remove any contaminant by cleaning the unit with a wet soft cloth.
Keep the unit clean always by cleaning the unit with a dry soft cloth.
• Do not soak the product in the water to clean.
(1) Unplug the instrument from the main power.
(2) Clean the instrument with a soft cloth neatly.
(3) Store in a dry place after packing.
Classification
Inspection cycle
Daily Weekly
General
Power cord
- Inspect power cord connection at unit and receptacle. ●
- Inspect power cord for wear, cracks or cuts. ●
Cleanness for the surface of the unit. ●
Body unit
Controller display checking ●
Controller function ●
Motor on/off checking ●
Attachment connection checking ●
Cleaning of Tray and
Unit Body
Keeping Product

Section 6 Troubleshooting
Magnetic Stirrer 6-1Thermo Scientific
Electrical Trouble Causes Solution
The unit does not turn on
Incorrect electric power
Compare power source and voltage on
the ID plate and make sure they are
the same. ID plate is found on the back
of unit.
Power failure or circuit breaker
shuts down
Find out the causes of power failure
and recovery in case of circuit breaker
shuts down.
Main plug not seated properly. Check the electrical cord connection
at the unit to ensure it is fully seated.
Socket / plug / main power line
might be cut
If the socket / plug / main power line
are cut, request service.
Reagents spill into the unit, and
break the circuit inside the unit Request service.
Room circuit breaker trips
often when the unit is
turned on or running
Too many plugs connect at the
same time
1. Check the circuit breaker size along
with the voltage and current supplied
to it.
2. Check that several similar units are
inserted together, if so, you should not
use overly.
VFD display does not
illuminate
Power interruption Check for power interruption
Main plug is not inserted
correctly
Check electrical cord connection at
the unit to ensure it is fully seated.
Button doesn’t work Power interruption Check for power interruption
Button switch has damage Request service.

6-2 Magnetic Stirrer Thermo Scientific
Section 6
Troubleshooting
Electrical Trouble Causes Solution
The unit does not turn on
Incorrect electric power
Compare power source and voltage on
the ID plate and make sure they are
the same. ID plate is found on the back
of unit.
Power failure or circuit breaker
shuts down
Find out the causes of power failure
and recovery.
Main plug not seated properly. Check the electrical cord connection
at the unit to ensure it is fully seated.
Check the electrical cord connec-
tion at the instrument to ensure it
is fully seated
If the socket / plug / main power line
are cut, request service.
PCB is damaged by reagent Request service.
Room circuit breaker trips
often when the unit is
turned on or running
Too many plugs connect at the
same time
1. Check the circuit breaker size along
with the voltage and current supplied
to it.
2. Check that several similar units are
inserted together, if so, you should not
use overly.
Product internal circuit problem Request service
No VFD
Power failure Check for power interruption
Main plug is not seated
properly
Check electrical cord connection at
the unit to ensure it is fully seated.
Button doesn’t work Power failure Find out causes of power failure and
recovery.
Button switch is damaged Request service.

Magnetic Stirrer 6-3Thermo Scientific
Section 6
Troubleshooting
Error Message on
DIsplay
Symptom Cause Action
OVER
LOAD
Overloaded by the amount of
work overload on the motor Use in a fixed range of uses.
Motor driver board problem Request service.
Average life of motor ends Request service.
WARN
KEY In the key of button pressed Request service in case
symptoms remain.
MOTR
CHEK
Motor driver board problem
(communication part) Request service.
Bad wiring connection
between the motor driver and
motherboard
Request service.
If buzzer rings
with no display. Sub CPU problem Request service.

Section 7 Accessories
Magnetic Stirrer 7-1Thermo Scientific
Item Component Cat. No. Size (mm / inch)
Rubber Mat
Tray
88880101
276 X 276 / 10.84 X 10.84
Sticky pad 250 X 250 / 9.84 X 9.84
Dimpled Mat
Tray
88880102
276 X 276 / 10.84 X 10.84
Silicone pad 250 X 250 / 9.84 X 9.84
Universal Harness
Tray
88880103
276 X 276 / 10.84 X 10.84
Sticky pad 250 X 250 / 9.84 X 9.84
Rubber bands (6ea) -
Rubber bands Rubber band 88880105 -
