Thermo Scientific CLINIConic 30 x 15 User manual

Visit us online to register your warranty:
thermofisher.com/labwarranty
Thermo Scientific
CLINIConic™30 x 15
Instruction Manual
50121050-d• 07/ 2020

WEEE Conformity
This product is subject to the regulations of the EU Waste Electrical & Electronic
Equipment (WEEE) Directive 2012/19/EU. It is marked by the following symbol:

Thermo Scientific 75003623 CLINIConic 30 x 15 i
T
Preface .......................................................................................................................................iii
Scope of Supply ........................................................................................................................iii
Precautions ...............................................................................................................................iii
Chapter 1 Rotor Specifications ..............................................................................................................1-1
Technical Data ........................................................................................................1-2
Chapter 2 Accessories .............................................................................................................................2-1
Chapter 3 AutoLock™.............................................................................................................................3-1
Rotor Installation .....................................................................................................3-2
Removing the Rotor .................................................................................................3-3
Chapter 4 Rotor Loading ..........................................................................................................................4-1
Before a Run ............................................................................................................4-2
Proper Loading .........................................................................................................4-2
Improper Loading ....................................................................................................4-2
Maximum Loading ...................................................................................................4-3
Cycle Counter ..........................................................................................................4-4
Chapter 5 Maintenance and Care ..........................................................................................................5-1
Cleaning Intervals .....................................................................................................5-2
Cleaning ...................................................................................................................5-2
Disinfection ..............................................................................................................5-3
Decontamination .....................................................................................................5-4
Table of Contents
Autoclaving .............................................................................................................. 5-5
Service of Thermo Fisher Scientific .......................................................................... 5-5
RCF-Values ...............................................................................................................A-1
Chemical Compatibility Chart ..............................................................................B-1

Thermo Scientific 75003623 CLINIConic 30 x 15 iii
P
Preface
Before starting to use the rotor, read through the instruction manual carefully and follow the
instructions.
The information contained in the instruction manual is the property of Thermo Fisher Scientific; it is
forbidden to copy or pass on this information without explicit approval.
Failure to follow the instructions and safety information in this instruction manual will result in the
expiration of the seller’swarranty.
Scope of Supply
If any parts are missing, please contact the nearest Thermo Fisher Scientific representative.
Precautions
In order to ensure safe operation of the CLINIConic™30 x 15, the following general
safety regulations must be followed:
•Do not remove the magnet at the rotor bottom;
•Do not use rotors which show any signs of corrosion and/or cracks;
•Use onlywith rotors that have been loaded properly;
•Never run the rotor with missing stainless steel tube holders;
•Never overload the rotor;
•Use only accessories which have been approved by ThermoFisher Scientific. Exceptions to this
rule are commercially available glass or plastic centrifuge tubes, provided they have been approved
for the speed or the RCF value of the rotor.
Article Number Quantity Check
75003623 CLINIConic™30 x 15 1
50121050 Instruction Manual 1
70009824 Anti-corrosion oil 1
76003500 Rubber seal grease 1

Preface
iv 75003623 CLINIConic 30 x 15 Thermo Scientific
•Please observe the safety instructions.
Please pay particular attention to the following aspects:
•Rotor installation: Check that the rotor is locked properly into place before operating the
centrifuge.
•Always balance the samples.
Maximum sample density at maximum speed: 1.2g
m
l
------
This symbol refers to general hazards.
ATTENTION means that material damage could occur.
WARNING means that injuries or material damage or contamination could occur.
This symbol refers to biological hazards.
Observe the information contained in the instruction manual to keep yourself and your
environment safe.

Thermo Scientific 75003623 CLINIConic 30 x 15 1-1
1
Rotor Specifications
Contents
•“Technical Data” on page 1-2

1-2 75003623 CLINIConic 30 x 15 Thermo Scientific
1Rotor Specifications
Technical Data
Technical Data
Table 1-1. 230 V,50 / 60 Hz ventilated
Centrifuge Multifuge X1 Megafuge 16
Catalog # 75004210 75004230
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 30 / 35 30 / 35
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
99
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Table 1-2. 230 V,50 / 60 Hz refrigerated
Centrifuge Multifuge X1 R Megafuge 16R
Catalog # 75004250 75004270
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 30 / 35 30 / 35
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Megafuge 8
75007211
4.7
50,000
30 x 30
4,400
3,030
14.0 / 8.5
37
16 / 27
14
no
121
Megafuge 8R
75007214
4.7
50,000
30 x 30
4,400
3,030
14.0 / 8.5
37
25 / 30
no
121

1 Rotor Specifications
Technical Data
Thermo Scientific 75003623 CLINIConic 30 x 15 1-3
Table1-3. 120 V,60 Hz ventilated
Centrifuge Multifuge X1 Megafuge 16
Catalog # 75004211 75004231
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 40 / 40 40 / 40
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
99
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Table1-4. 120 V,60 Hz refrigerated
Centrifuge Multifuge X1 R Megafuge 16R
Catalog # 75004251 75004271
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 40 / 40 40 / 40
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Megafuge 8
75007210
4.7
50,000
30 x 30
4,400
3,030
14.0 / 8.5
37
18/ 26
14
no
121
Megafuge 8R
75007213
4.7
50,000
30 x 30
4,400
3,030
14.0 / 8.5
37
25 / 30
no
121

1-4 75003623 CLINIConic 30 x 15 Thermo Scientific
1Rotor Specifications
Technical Data
Table 1-5. 230 V,50 / 60 Hz ventilated
Centrifuge Sorvall Legend X1 Sorvall ST 16
Catalog # 75004220 75004240
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 30 / 35 30 / 35
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
99
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Table 1-6. 230 V,50 / 60 Hz refrigerated
Centrifuge Sorvall Legend X1R Sorvall ST 16R
Catalog # 75004260 75004380
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 30 / 35 30 / 35
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Sorvall ST 8
75007201
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
16 / 27
no
121
Sorvall ST 8R
75007204
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
25 / 30
no
121
3,030
14
3,030

1 Rotor Specifications
Technical Data
Thermo Scientific 75003623 CLINIConic 30 x 15 1-5
Table1-7. 120 V,60 Hz ventilated
Centrifuge Sorvall Legend X1 Sorvall ST 16
Catalog # 75004221 75004241
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 40 / 40 40 / 40
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
99
aerosol-tight no no
permissible temperature range
autoclavable °C
121 121
Table1-8. 120 V,60 Hz refrigerated
Centrifuge Sorvall Legend X1R Sorvall ST 16R
Catalog # 75004261 75004381
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 40 / 40 40 / 40
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Sorvall ST 8
75007200
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
18 / 26
no
121
3,030
14
Sorvall ST 8R
75007203
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
25 / 30
121
3,030
no

1Rotor Specifications
Technical Data
1-6 75003623 CLINIConic 30 x 15 Thermo Scientific
Table 1-9. 100 V,50 / 60 Hz ventilated
Centrifuge Sorvall Legend 1X Sorvall ST 16
Catalog # 75004223 75004243
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 45 / 40 45 / 40
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
99
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Table 1-10. 100 V,50 / 60 Hz refrigerated
Centrifuge Sorvall Legend X1R Sorvall ST 16R
Catalog # 75004263 75004383
Weight empty [kg] of rotor 4.7 4.7
max. cycle number 50,000 50,000
Maximum permissible load [g] 30 x 30 30 x 30
maximum speed nmax [rpm] 5,650 5,650
maximum RCF value at nmax 4,997 4,997
max. / min. radius [cm] 14.0 / 8.5 14.0 / 8.5
Pitch angle [°] 37 37
Accel. / braking time [s] 45 / 40 45 / 40
aerosol-tight no no
permissible temperature
range autoclavable °C
121 121
Sorvall ST 8
75007202
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
18 / 26
no
121
3,030
14
Sorvall ST 8R
75007205
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
30 / 30
121
3,030
no

1 Rotor Specifications
Technical Data
Thermo Scientific 75003623 CLINIConic 30 x 15 1-7
Table1-11. 230 V,50 / 60 Hz ventilated
Centrifuge Thermo Scientific SL 16
Catalog # 75004000
Weight empty [kg] of rotor 4.7
max. cycle number 50,000
Maximum permissible load [g] 30 x 30
maximum speed nmax [rpm] 5,650
maximum RCF value at nmax 4,997
max. / min. radius [cm] 14.0 / 8.5
Pitch angle [°] 37
Accel. / braking time [s] 30 / 35
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
9
aerosol-tight no
permissible temperature range
autoclavable °C
121
Table1-12. 230 V,50 / 60 Hz refrigerated
Centrifuge Thermo Scientific SL 16R
Catalog # 75004030
Weight empty [kg] of rotor 4.7
max. cycle number 50,000
Maximum permissible load [g] 30 x 30
maximum speed nmax [rpm] 5,650
maximum RCF value at nmax 4,997
max. / min. radius [cm] 14.0 / 8.5
Pitch angle [°] 37
Accel. / braking time [s] 30 / 35
aerosol-tight no
permissible temperature
range autoclavable °C
121
Thermo Scientific SL 8
75007221
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
16 / 27
14
no
121
3,030
Thermo Scientific SL 8R
75007224
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
25 / 30
no
121
3,030

1Rotor Specifications
Technical Data
1-8 75003623 CLINIConic 30 x 15 Thermo Scientific
Table 1-13. 120 V,60 Hz ventilated
Centrifuge Thermo Scientific SL 16
Catalog # 75004001
Weight empty [kg] of rotor 4.7
max. cycle number 50,000
Maximum permissible load [g] 30 x 30
maximum speed nmax [rpm] 5,650
maximum RCF value at nmax 4,997
max. / min. radius [cm] 14.0 / 8.5
Pitch angle [°] 37
Accel. / braking time [s] 40 / 40
sample heating at nmax [°C] referred to
ambient temperature of 23 °C, running
time 60 minutes
9
aerosol-tight no
permissible temperature
range autoclavable °C
121
Table 1-14. 120 V,60 Hz refrigerated
Centrifuge Thermo Scientific SL 16R
Catalog # 75004031
Weight empty [kg] of rotor 4.7
max. cycle number 50,000
Maximum permissible load [g] 30 x 30
maximum speed nmax [rpm] 5,650
maximum RCF value at nmax 4,997
max. / min. radius [cm] 14.0 / 8.5
Pitch angle [°] 37
Accel. / braking time [s] 40 / 40
aerosol-tight no
permissible temperature range
autoclavable °C
121
Thermo Scientific SL 8
75007220
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
18 / 26
14
no
121
3,030
Thermo Scientific SL 8R
75007223
4.7
50,000
30 x 30
4,400
14.0 / 8.5
37
25 / 30
no
121
3,030

Thermo Scientific 75003623 CLINIConic 30 x 15 2-1
2

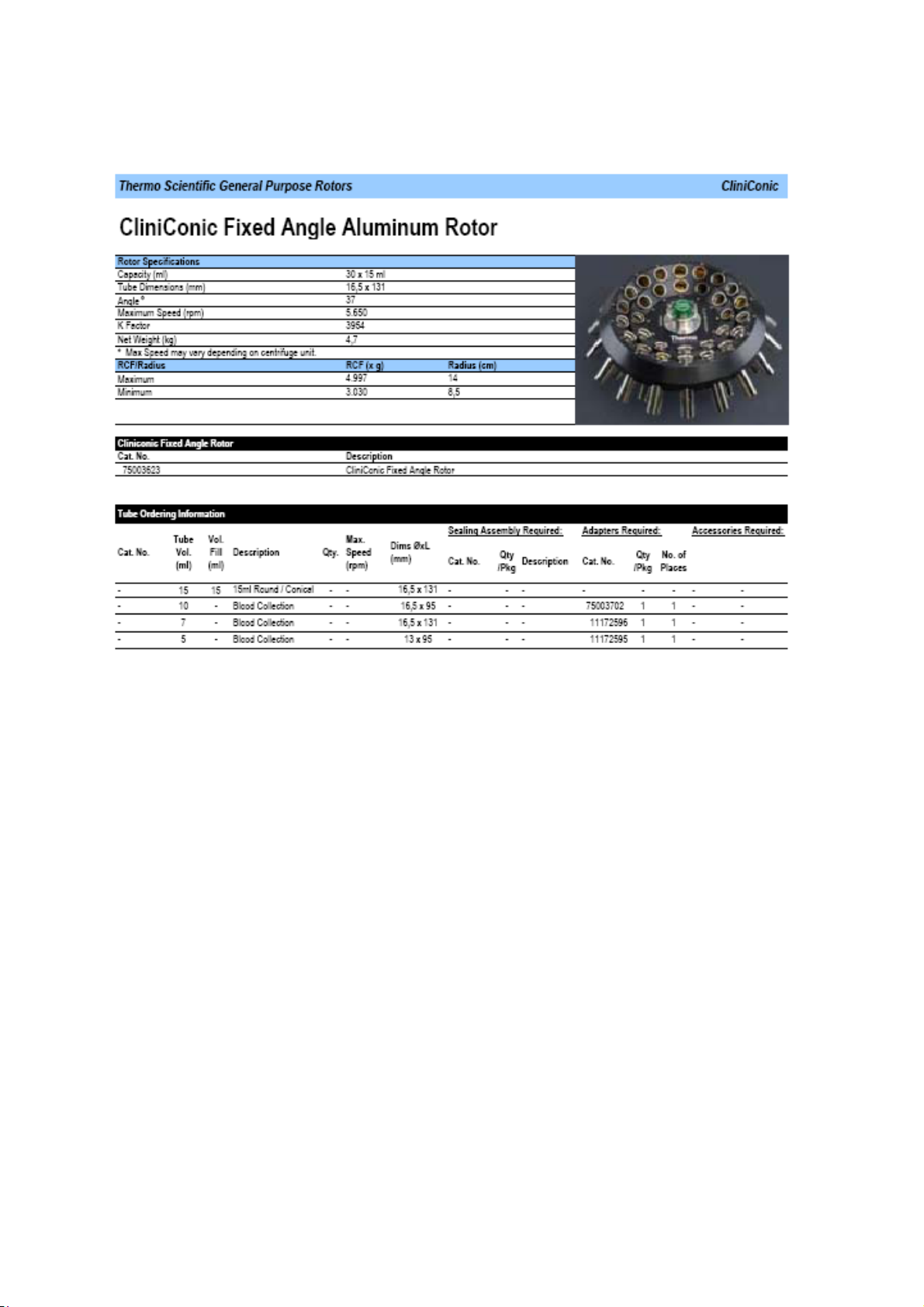

Accessories
Contents
•“Rotor data”on page 2-1
•“Accessories”on page 2-1

2Accessories
2-2 75003623 CLINIConic 30 x 15 Thermo Scientific

Thermo Scientific 75003623 CLINIConic 30 x 15 3-1
3
AutoLock™
Contents
•“Rotor Installation” on page 3-2
•“Removing the Rotor” on page 3-3

3AutoLock™
Rotor Installation
3-2 75003623 CLINIConic 30 x 15 Thermo Scientific
Rotor Installation
This rotor is equipped with an AutoLock™-system.
This system isused toautomatically lock the rotor to the motor shaft. The rotor does not have to be
bolted onto the motor shaft.
Proceed as follows:
1. Open the lid of the centrifuge and if necessary remove any dust, foreign objects or residue from
the chamber.
AutoLock™and O-ring must be clean and
undamaged.

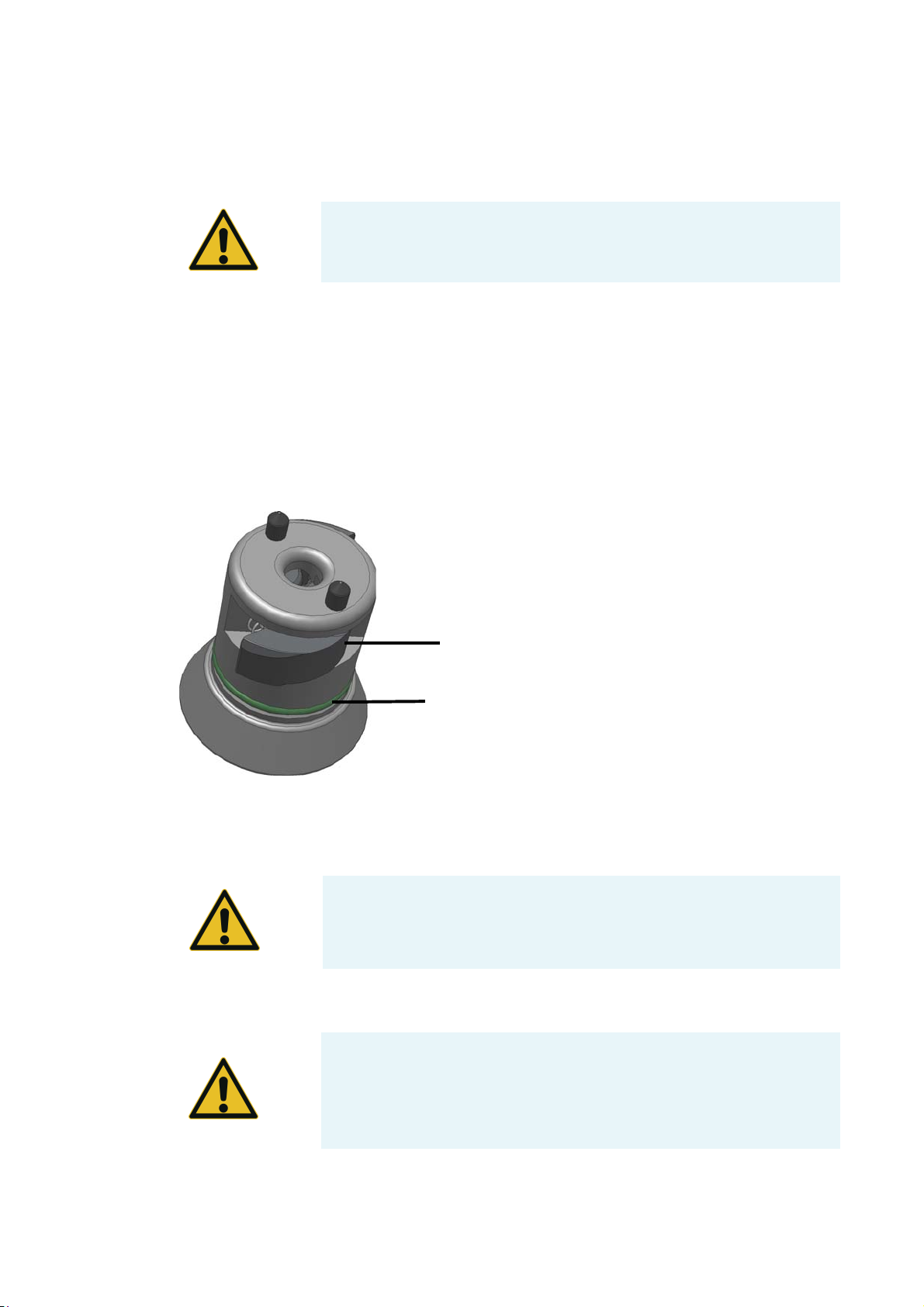

Figure 3-1. AutoLock™
2. Hold the rotor over the shaft and let it slide slowly down the shaft.
The rotor clicks automatically into place.
3. Check if the rotor is properly installed by lifting it slightly on the handle. If the rotor can be
pulled up, then it must be reclamped to the shaft.
CAUTION
Unapproved or incorrectly combined accessories can cause serious damage to the
centrifuge.
CAUTION
Do not force the rotor onto the motor shaft.
If the rotor is very light, then it may be necessary to press it onto the shaft with a small
amount of pressure.
WARNING
If the rotor cannot be properly locked in place after several attempts, then the
AutoLock™ is defective and you are not permitted to operate the rotor.
Check for any damage to the rotor: Damaged rotors must not be used!
Keep the hub area clear of objects.
AutoLock™
O-ring

3 AutoLock™
Removing the Rotor
Thermo Scientific 75003623 CLINIConic 30 x 15 3-3
4. Close the centrifuge lid.
Removing the Rotor
To remove the rotor, proceed as follows:
1. Open the centrifuge lid.
2. Grab the rotor handle with both hands and press against the green AutoLock™key.At the same
time, pull the rotor directly upwards with both hands and remove it from the motor shaft. Make
sure not to jam the rotor while doing this.
CAUTION
Check that the rotor is properly locked on the shaft before each use by pulling its
handle.
Be sure to check all seals before starting any aerosol-tight applications.
See the information in the rotor instruction manual.
Figure 3-2. Handling the AutoLock™
