thomann free solo PT User manual

free solo PT
UHF wireless system
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
28.11.2013

Table of contents
1 General notes............................................................................................................................................... 5
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 11
4 Installation and starting up................................................................................................................ 13
4.1 General information........................................................................................................................ 13
4.2 Receiver............................................................................................................................................... 15
4.3 Transmitter......................................................................................................................................... 19
5 Connections and operating elements........................................................................................... 21
5.1 Receiver............................................................................................................................................... 21
5.2 Transmitter......................................................................................................................................... 29
6 Operating.................................................................................................................................................... 34
6.1 Receiver............................................................................................................................................... 34
6.2 Transmitter......................................................................................................................................... 37
7 Troubleshooting...................................................................................................................................... 42
Table of contents
free solo PT
3

8 Technical specifications....................................................................................................................... 45
8.1 Transmitter......................................................................................................................................... 45
8.2 Receiver............................................................................................................................................... 48
9 Protecting the environment.............................................................................................................. 49
Table of contents
UHF wireless system
4

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
free solo PT
5

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General notes
UHF wireless system
6

2 Safety instructions
This device is intended to be used for the wireless transmission of audio signals from micro‐
phones or instruments to amplifiers or active speakers. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
free solo PT
7

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety
Safety instructions
UHF wireless system
8

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
NOTICE!
Risk of fire due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Safety instructions
free solo PT
9

NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Safety instructions
UHF wireless system
10

3 Features
The UHF Wireless System is especially suited for professional audio transmission, for example
at events, on rock stages and concert podiums, in theatres, musicals and discos.
Your UHF Wireless System free solo PT is comprised of the following components:
n9.5" diversity receiver
– Two antennas for optimum reception quality
– Automatic frequency scanning
– Infrared interface for the transfer of the frequency selection from the receiver to the
transmitter
– Very high sensitivity at very high Signal-to-Noise Ratio
– Adjustable Squelch
– Outputs: XLR, 1/4" phone socket
– Mounting brackets for mounting in a 19" rack
– Operating voltage supply: DC 12 V , a suitable power supply is included
nTransmitter: battery powered bodypack transmitter
Features
free solo PT
11

The system operates with pre-programmed frequency groups and one configurable frequency
group (user bank). The following table shows the available pre-programmed groups and the
number of pro-programmed frequencies. One channel is available in the configurable fre‐
quency group.
Model Pre-programmed fre‐
quency groups Number of available channels
the t.bone free solo PT 600 MHz (item no. 296201) 14 15
the t.bone free solo PT 740 MHz (item no. 296203) 3 12
the t.bone free solo PT 823 MHz (item no. 296204) 8 8
the t.bone free solo PT 863 MHz (item no. 296206) 1 3
the t.bone free solo PT 1.8 GHz (item no. 323196) 16 12
Features
UHF wireless system
12

4 Installation and starting up
4.1 General information
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
Installation and starting up
free solo PT
13

nThis device utilizes frequencies that are not harmonized within the European Union (EU)
and therefore may only be used in certain EU member states. In all European countries, the
frequencies used for the transmission of audio signals are strictly regulated. Before you
start, make sure the frequencies are allowed in the respective country and check whether
the operation must be reported to the appropriate authority.
nMake sure that transmitter and receiver are both tuned to the same channel.
nNever set multiple transmitters to the same channel.
nMake sure that there are no metal objects between the transmitter and receiver.
nAvoid interference from other radio or in-ear systems.
Notes on wireless transmission
Installation and starting up
UHF wireless system
14

4.2 Receiver
An XLR chassis socket serves as signal output on the receiver. Drawing and table indicate the
XLR pin assignment (balanced wiring).
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
XLR connection for signal
output on the receiver
Installation and starting up
free solo PT
15

A 1/4" phone socket (TS) serves as signal output on the receiver. Drawing and table indicate
the pin assignment of a suitable plug.
1 Signal
2 Ground, shielding
The device is 19" rack mountable, it occupies 1 rack unit (RU). Necessary mounting material is
enclosed.
Phone plug for signal output on
the receiver
Rack mounting
Installation and starting up
UHF wireless system
16

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
First, connect the power supply to the receiver and then plug the power adapter into the
power outlet.
Connecting the power supply
Installation and starting up
free solo PT
17

Attach the supplied antennas to the rear panel of the receiver. To improve transmission quality
and to adapt to the spatial conditions the antennas are rotatable and swivelling.
If the space for the direct mounting of the antennas on the unit is not sufficient, for example,
because of restricted space in the rack, you can use the optional coaxial cable to mount the
antennas separated from the unit. For larger configurations with up to four receivers, the
usage of the optional antenna distributor is appropriate.
Connect one of the audio outputs of the receiver to your mixing console or amplifier. Make
sure that only one of both output is used at a time. Otherwise, malfunction may occur.
Mounting antennas
Audio connection and starting
up
Installation and starting up
UHF wireless system
18

4.3 Transmitter

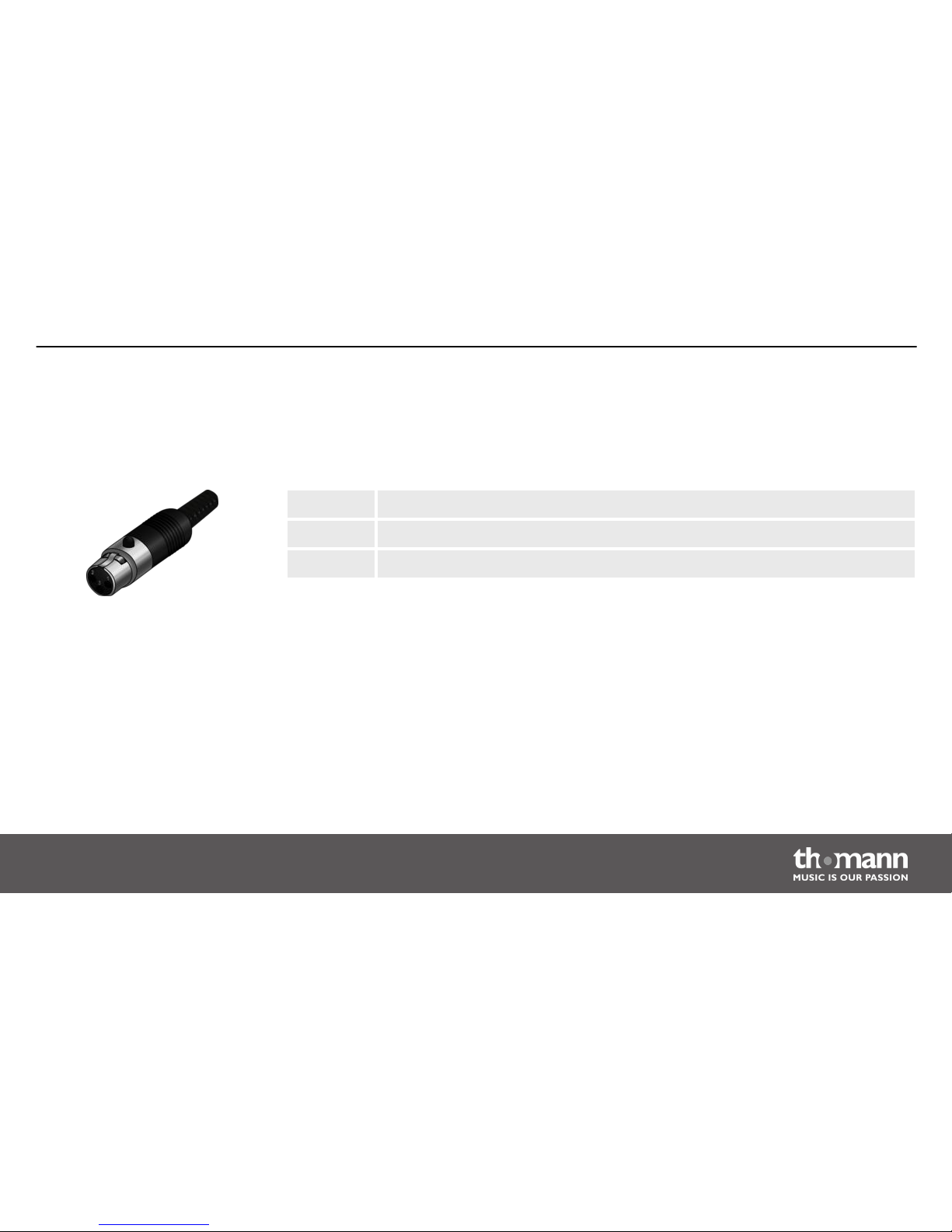

A mini XLR chassis plug serves as signal input on the transmitter. Drawing and table indicate
the mini XLR pin assignment.
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
Slide the cover of the battery compartment into arrow direction to open it. Insert the batteries
respecting the correct polarity. Close the battery compartment and turn the transmitter on.
The ‘LOW BATT’ LED briefly lights up.
Mini XLR connection for signal
input on the transmitter
Inserting batteries into the
transmitter
Installation and starting up
free solo PT
19

nMake sure that the transmitter is switched off.
nConnect the microphone or instrument cable to the input of the transmitter (mini XLR
chassis plug).
nTurn on the transmitter and test the transmission with the microphone or the instrument.
If necessary, adjust the gain of the transmitter and the levels on your mixer or your amp.
Connecting a microphone or
instrument to the transmitter
Installation and starting up
