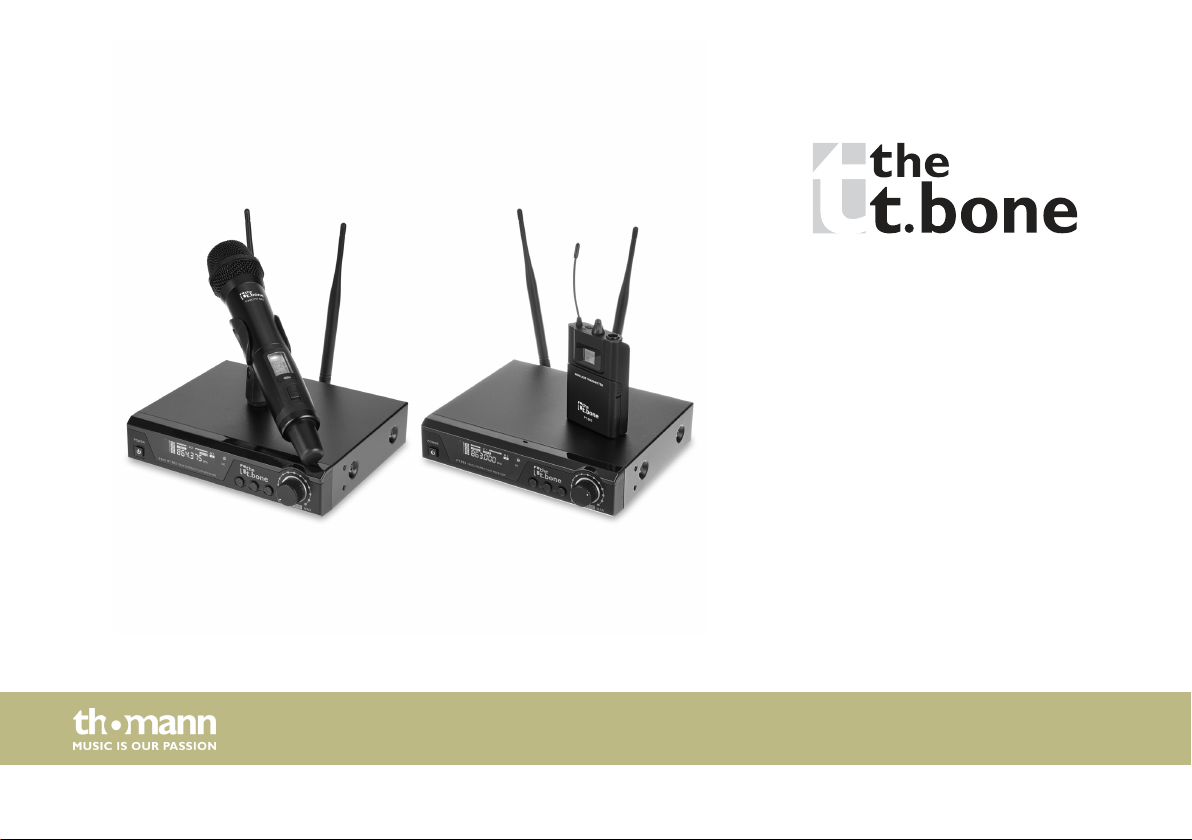

thomann the t.bone freeU HT User manual

freeU HT, freeU PT
UHF wireless system
user manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
25.01.2022, ID: 405079, 405080, 405081, 405082, 405083, 405084 (V7)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 9
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 18
4.1 General Information........................................................................................................................ 18
4.2 Receiver............................................................................................................................................... 19
4.3 Handheld microphone................................................................................................................... 21
4.4 Bodypack transmitter..................................................................................................................... 22
5 Connections and controls................................................................................................................... 23
5.1 Receiver............................................................................................................................................... 23
5.2 Handheld microphone................................................................................................................... 30
5.3 Bodypack transmitter..................................................................................................................... 33
Table of contents
freeU HT, freeU PT
3

6 Operating.................................................................................................................................................... 36
6.1 Receiver............................................................................................................................................... 36
6.2 Handheld microphone................................................................................................................... 40
6.3 Bodypack transmitter..................................................................................................................... 41
7 Technical specications....................................................................................................................... 44
7.1 Receiver............................................................................................................................................... 44
7.2 Handheld microphone................................................................................................................... 47
7.3 Bodypack transmitter..................................................................................................................... 50
8 Plug and connection assignment.................................................................................................... 53
9 Troubleshooting...................................................................................................................................... 56
10 Protecting the environment.............................................................................................................. 59
Table of contents
UHF wireless system
4

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
freeU HT, freeU PT
5

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
UHF wireless system
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
freeU HT, freeU PT
7

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 8.
Instructions
Cross-references
General information
UHF wireless system
8

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
freeU HT, freeU PT
9

2 Safety instructions
This device is intended to be used for the wireless transmission of audio signals from micro‐
phones or instruments to ampliers or active speakers. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
UHF wireless system
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC
outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do
so could result in damage to the device and possibly the user. Unplug the external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce the risk of electric shock or re.
NOTICE!
Radio interference
This device emits electromagnetic signals. This can cause interference due to overlapping radio waves. Do not use the device in
locations where the use of wireless devices is prohibited.
Safety instructions
freeU HT, freeU PT
11

NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
Safety instructions
UHF wireless system
12

3 Features
The UHF wireless system is particularly suitable for professional audio transmission, for
example, at events, on rock stages and in concert halls, theatres, musicals or night clubs.
Item no. Name Frequency band
405081 the t.bone freeU HT 600 606 MHz…630 MHz
405079 the t.bone freeU HT 823 823 MHz…832 MHz
405083 the t.bone freeU HT 863 863 MHz…865 MHz
UHF Wireless System freeU HT
Features
freeU HT, freeU PT
13

The UHF Wireless System freeU HT is comprised of the following components:
n9.5" Diversity receiver
– Two antennas for optimum reception quality
– Infrared interface for sending the frequency selection from the receiver to the trans‐
mitter
– Outputs: XLR, 1/4" jack socket
– solid metal housing, 9.5" rack mountable (1 RU)
– Power supply: 12 V
nTransmitter
– battery powered handheld super cardioid microphone
nAccessories included
– Two antennas
– Power adapter
– Installation kit for the rack mounting
– Microphone holder
The system operates with pre-programmed frequency groups. The following table shows the
number of available pre-programmed groups and the number of pre-programmed frequen‐
cies in each group.
Features
UHF wireless system
14

Item no. Name Pre-programmed fre‐
quency groups
Available channels
per group
405081 the t.bone freeU HT 600 10 10
405079 the t.bone freeU HT 823 10 10
405083 the t.bone freeU HT 863 4 4
Item no. Name Frequency band
405082 the t.bone freeU PT 600 606 MHz…630 MHz
405080 the t.bone freeU PT 823 823 MHz…832 MHz
405084 the t.bone freeU PT 863 863 MHz…865 MHz
UHF Wireless System freeU PT
Features
freeU HT, freeU PT
15

The UHF Wireless System freeU PT is comprised of the following components:
n9.5" Diversity receiver
– Two antennas for optimum reception quality
– Infrared interface for sending the frequency selection from the receiver to the trans‐
mitter
– Outputs: XLR, 1/4" jack socket
– solid metal housing, 9.5" rack mountable (1 RU)
– Power supply: 12 V
nTransmitter
– battery powered bodypack transmitter
nAccessories included
– Two antennas
– Power adapter
– Installation kit for the rack mounting
– Instrument cable
The system operates with pre-programmed frequency groups. The following table shows the
number of available pre-programmed groups and the number of pre-programmed frequen‐
cies in each group.
Features
UHF wireless system
16

Item no. Name Pre-programmed fre‐
quency groups
Available channels
per group
405082 the t.bone freeU PT 600 10 10
405080 the t.bone freeU PT 823 10 10
405084 the t.bone freeU PT 863 4 4
Features
freeU HT, freeU PT
17

4 Installation and starting up
4.1 General Information
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
UHF wireless system
18

nThis device utilizes frequencies that are not harmonized within the European Union (EU)
and therefore may only be used in certain EU member states. In all European countries, the
frequencies used for the transmission of audio signals are strictly regulated. Before you
start, make sure the frequencies are allowed in the respective country and check whether
the operation must be reported to the appropriate authority.
For more information, please visit: http://www.thomann.de.
nMake sure that transmitter and receiver are both tuned to the same channel.
nNever set multiple transmitters to the same channel.
nMake sure that there are no metal objects between the transmitter and receiver.
nAvoid interference from other radio or in-ear systems.
4.2 Receiver
The unit has been designed for rack mounting in a standard 9.5" rack; it occupies one rack unit
(RU). The included rack angles have been designed for the mounting of a receiver in a 19” rack.
It occupies one rack unit.
Notes on wireless transmission
Rack mounting
Installation and starting up
freeU HT, freeU PT
19

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
First, connect the power adapter to the receiver and then plug the power adapter into the
power outlet.
Attach the included antennas to the rear panel of the transmitter. To improve the transmission
quality and to adapt to the spatial conditions they are rotatable and swivelling.
In case the space provided on the device for direct assembly of the antennas is not sucient,
for example because the space on the rack is narrow, you can use the optionally available
coaxial cable to assemble the antennas separately from the device.
Connect the power supply
Attaching the antennas
Installation and starting up
UHF wireless system
20
