Tibo TI1000 User manual
User Guide
TI 1000 5.1 Speakers
Turn it back on
Please read this user manual carefully before using your TI 1000 5.1 Speakers and retain for future reference.
2
Turn it back on
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 5
INCLUDED IN THE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LOUDSPEAKER POSITIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
WALL MOUNTING SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SUBWOOFER CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
AV AMPLIFIER CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3
Turn it back on
A triangle with a
lighting symbol draws
the user’s attention to
“dangerous voltage”
without insulation in the cabinet,
which may be high enough to
entail a risk of an electric shock.
A triangle with an ex-
clamation mark draws
the user’s attention to
important instructions
for use and maintenance in the ac-
companying manual, which should
be studied and adhered to.
The symbol for a
CLASS II (double
insulation) product.
Safety precautions
Warning:
To minimise the risk of re or electric shock, do not expose the unit to liquid or moisture. Do not open the cabinet
as it contains dangerous voltages. Only qualied technicians are allowed to carry out repair and service of this
system.
If the plug of the power cord needs to be replaced. It is important that the replacement is identical to the plug that
needs to be replaced, or that the new plug has been recommended by the manufacturer.
Caution:
To avoid electric shock, it is important to insert the plug correctly into the wall outlet.
Warning:
It is important that you read and observe both the instructions in this manual and the instruction on the unit.
Keep this manual for safe future reference. This unit was designed and manufactured with a view to providing
maximum safety for the user. Incorrect use of the unit may cause an electric shock or re. The protection devices
built into this unit will protect the user if the procedures below are observed in connection with installation, use
and repair. This unit is fully electronic and contains no parts that can be repaired by the user.
Important safety instructions
Read the manual
After unpacking the unit, please read the manual care-
fully and observe all the instructions given.
Power supply
Only the power supply indicated on the rating plate
must be used for this unit. If you are not sure which
power supply you have, please contact your local
dealer.
Earthing or polarisation
If the plug cannot be inserted properly into the
socket, or if the plug does not t, the unit must not be
used in your country.
Heat
Do not place the unit near sources of heat such as
radiators, ovens or other units that produce heat.
Water and moisture
The unit must not be placed close to water, such
as bathtub, wash basin, kitchen sink or washing
machine, in a damp cellar or close to a swimming
pool, etc.
Cleaning
Unplug the unit before cleaning. Do not use liquid
detergents and aerosol cleaning agents. Use a dry
clean cloth.
Power cords
Wiring must be organised to prevent people from step-
ping on the cables and to avoid pinching by objects
placed on or beside them. Take special care around
sockets and plug boxes and where the power cords
leave the unit.
Lightning
Unplug the unit for additional protection during storms
or when the unit is not used for prolonged periods.
This will prevent damage to the unit from lightning and
power surges.
SAFETY
4
Turn it back on
Important safety instructions
SAFETY
Penetration of objects and liquid
Never push any foreign objects through the openings into the unit, as they may touch dangerous voltage points
or short-circuit parts and cause re or an electric shock. Do not spill liquid onto the unit.
Accessories
Do not place the unit on unstable surfaces such as a trolley, stand, tripod, shelf or table. The
unit may fall and cause serious injury to persons or damage to the unit. Use only trolley, stand,
tripod, shelf or table that is very stable or provided with the unit. The unit must be installed in
accordance with the manufacturer’s instructions and by means of installation equipment recom-
mended by the manufacturer. If the unit is placed on a trolley, the trolley must be moved very
carefully. Sudden stops, unnecessary force and uneven surfaces may cause the trolley to turn
over.
Loads
Do not place heavy loads on the unit and do not step on it. The load may fall and cause serious injury to persons
or damage to the unit.
Damage
Unplug the unit and contact qualied technicians in the following cases:
A. If the power cord or the plug is damaged.
B. If liquid has been spilled on the unit or objects have
fallen into the unit.
C. If the unit has been exposed to liquid or moisture.
D. If the unit does not work properly after adhering to the instructions in the operation manual. Only the settings
described in the operation manual must be made as incorrect setting may result in damage and often will
make it difficult for a qualied technician to make the unit work properly again.
E. If the unit has been dropped or damaged in any other way.
F. When the operation of the unit changes drastically, the unit requires service.
Service
Do not attempt to carry out any service work by yourself. By opening or removing the cover, you will be exposed
to dangerous voltage or other hazards. Any service work should be carried out by qualied technicians.
Recycling
If at any time in the future you need to dispose of this product please note that waste electrical
products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Approval
This product complies with European Low Voltage and Electromagnetic Compatibility Directives
when used and installed according to this instruction manual.
5
Turn it back on
Important safety instructions
SAFETY
Overloading
Do not overload wall outlets or extension cords as this can result in the risk of re or
electric shock. Overloaded AC outlets, extension cords, frayed power cables, damaged
or cracked wire insulation, and broken plugs are dangerous. They may result in electric
shock or re hazard. Periodically examine the power cable - if its appearance indicates
damage have it replaced by your service technician.
Heat dispersion
Leave at least 10 cm of space between the top, back and sides of the unit
and the wall or other components for proper ventilation.
Plug tting instructions (UK only)
The cord supplied with this appliance is factory-ted with a UK mains plug
ted with a 5-amp fuse inside. If it is necessary to change the fuse, it is im-
portant that a 5-amp fuse is used. If the plug needs to be changed because
it is not suitable for your socket, or becomes damaged, it should be cut off
and an appropriate plug ted following the wiring instructions below. The plug
must then be disposed of safely, as insertion into a mains socket is likely to

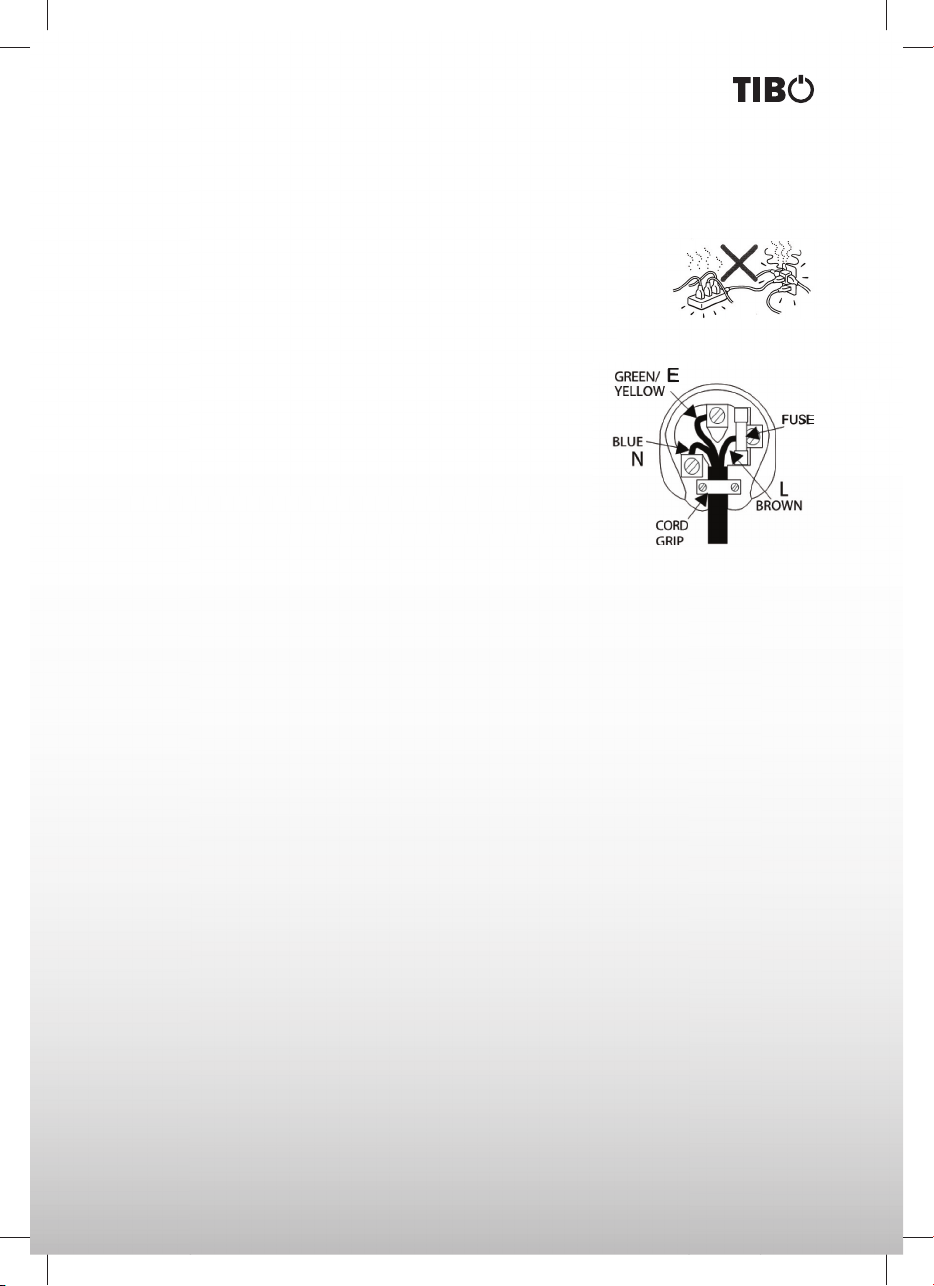

cause an electrical hazard. Should it be necessary to t a 3-pin BS mains
plug to the power cord, the wires should be ted as shown in this diagram.
The colours of the wires in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug. Connect them as follows: The wire which is coloured BLUE must be con-
nected to the terminal which is marked with the letter ‘N’ or coloured BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked with the letter ‘L’ or coloured RED. The wire which is coloured
GREEN/YELLOW must be connected to the terminal which is marked with the letter ‘E’ or coloured GREEN.
If a standard 13-amp (BS 1363) plug is used, a 5-amp fuse must be ted or, if any other type of plug is used, a
5-amp fuse must be ted, either in the plug or adaptor, or on the distribution board.
6
Turn it back on
Please save your packaging as you will need this in the event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your
item in the event of warranty/service repair is in it’s original box/packaging.

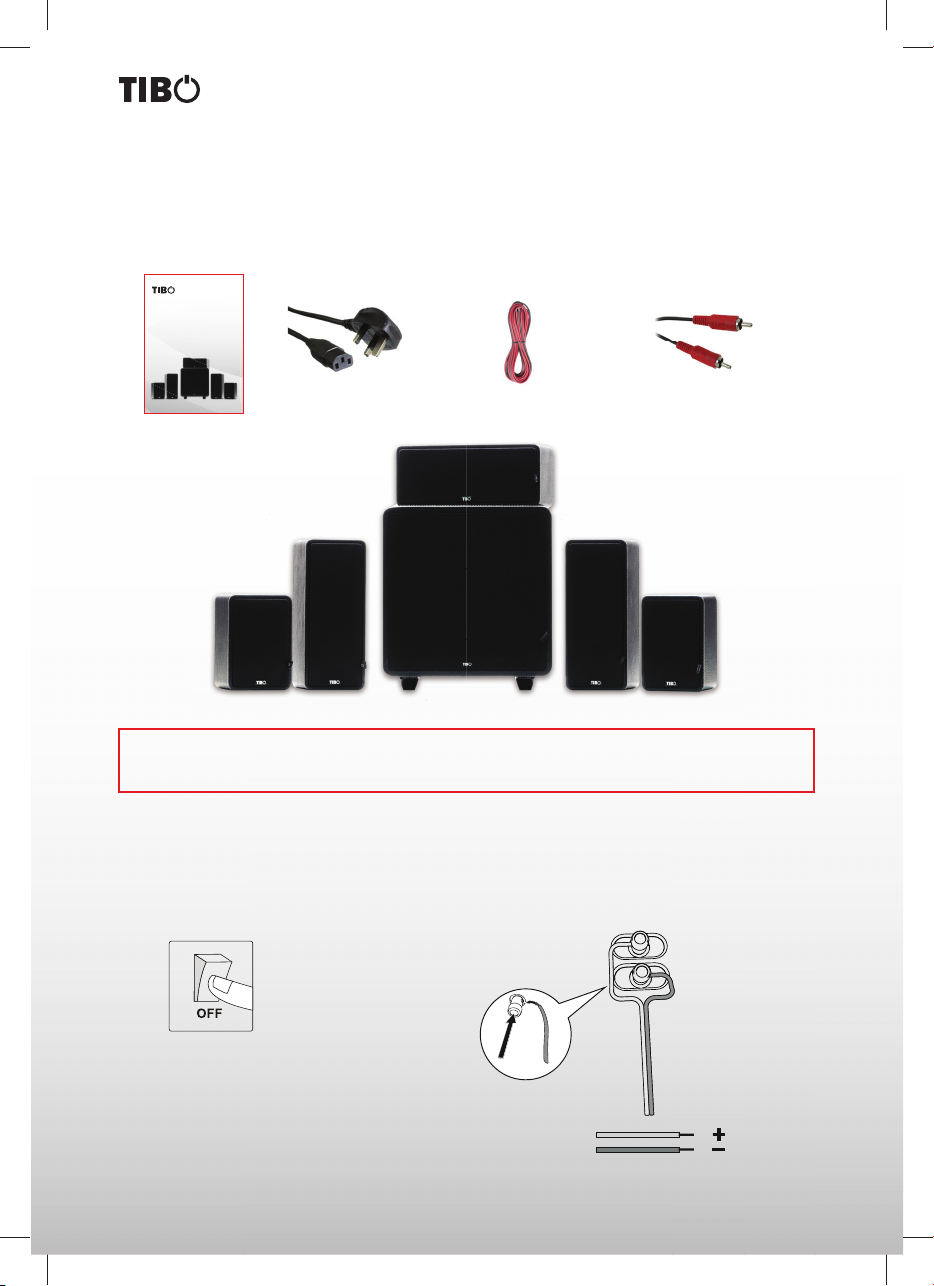

INCLUDED IN THE BOX
Accessories
Included with the TI1000 5.1 Speakers are the following accessories:
1 x User Manual
1 x Centre Speaker
1 x Front Speaker 1 x Front Speaker
1 x Surround Speaker 1 x Surround Speaker
1 x Subwoofer
1 x Mains Plugs
User Guide
TI 1000 5.1 Speakers
Turnit back on
Pleaseread this user manual carefully before using your TI 1000 5.1 Speakers and retain for future reference.
Turn off all equipment Installation
SETUP
1 x 5m RCA Cable1 x 25m Speaker Cable
1
x
Centre
Speaker
1 x Front S
p
eaker 1 x Front S
p
eake
r
r
ound
Sp
eaker 1 x Surround
S
1
x
S
ubwoofer
7
Turn it back on

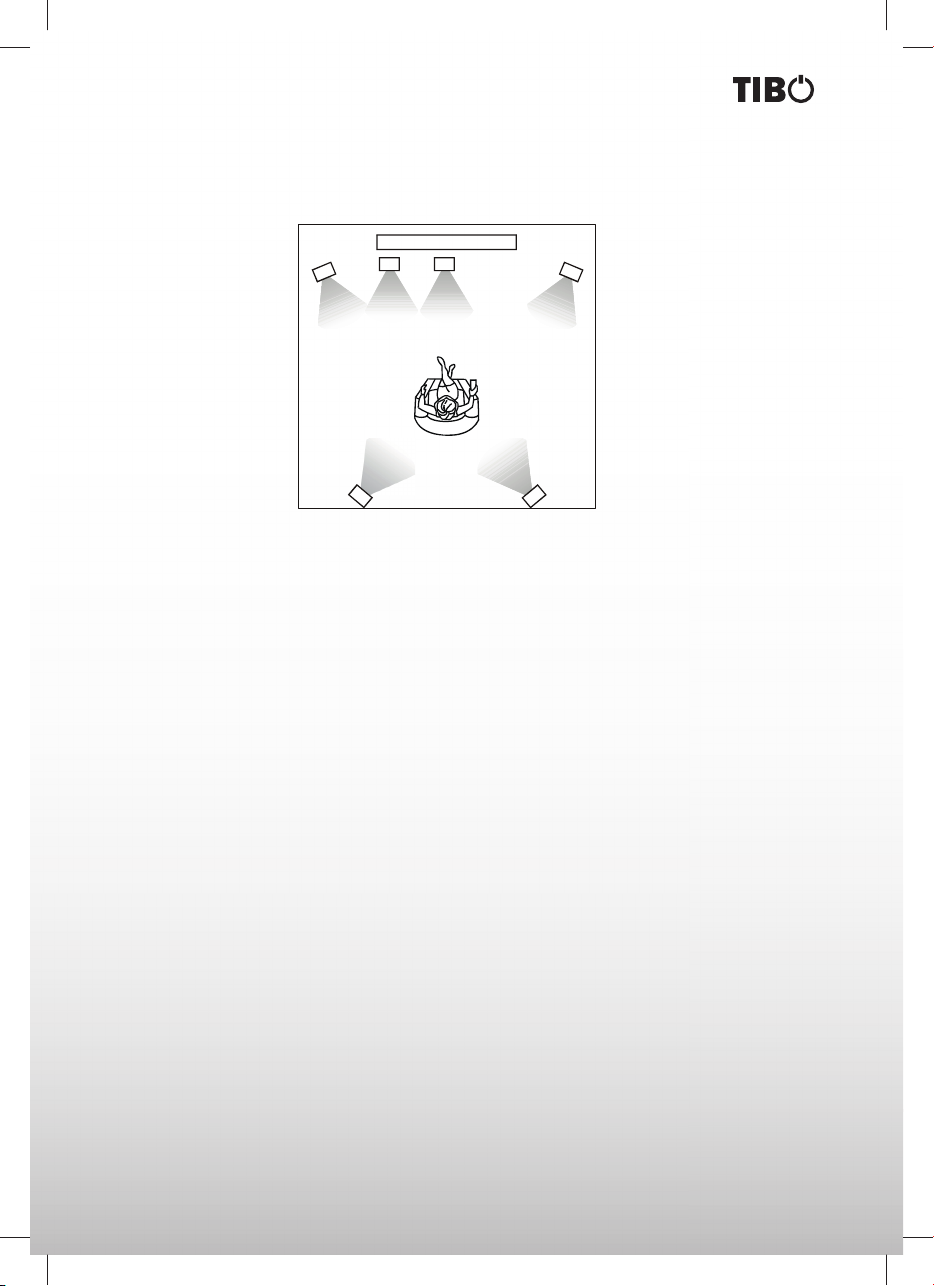

Standard speaker setup for surround sound
1. TV or Screen 2. Front Left Speaker 3. Subwoofer
4. Centre speaker 5. Front Right Speaker 6. Surround Left Speaker
7. Surround Right Speaker 8. Listening Position
Standard speaker setup for surround sound
1. Front Right and Left speakers - These are the main speakers providing the front stereo effect of the sound
image.
2. Centre speaker - Produces a rich sound image by serving as a sound source for the front right and left speak-
ers and enhancing the sonic movement.
3. Surround Right and Left speakers - Adds three-dimensional sonic movement and produces environmental
sound associated with the background and effect sound for each scene.
4. Subwoofer - Produces powerful and heavy bass.
Important points regarding speaker placement
Front Right, Left speakers and Centre speaker
Place these three speakers all at the same height.
Place each speaker so that it is aimed at the location of the listener’s ears when at the listening position.
Place left and right speakers at the same distance from the listening position.
Subwoofer
Ideally a subwoofer should always be located in front of the listening position between the Front Left and Right
speakers. Since all rooms vary, experiment with the placement of your subwoofer for the best overall sound im-
age (placing a subwoofer in the corner of a room often helps to disperse the sound).
Surround Left and Right Speakers
Place these two speakers all at the same height.
Place each speaker so that it is aimed at the location of the listener’s ears when at the listening position.
Place left and right speakers at the same distance from the listening position.
LOUDSPEAKER POSITIONING
1
8
5
234
6
7
8
Turn it back on
Mounting of this unit to the wall should be carried out by qualied technicians. Install in an appropriate location
only afterchecking wall structure and durability for accident prevention. Also make sure there are no cables nor
pipes in the wall before drilling. Consult a qualied builder if in any doubt as to the structural integrity of the wall.
TIBO can accept no responsibility for damage to equipment whilst assembling or mounting this unit.

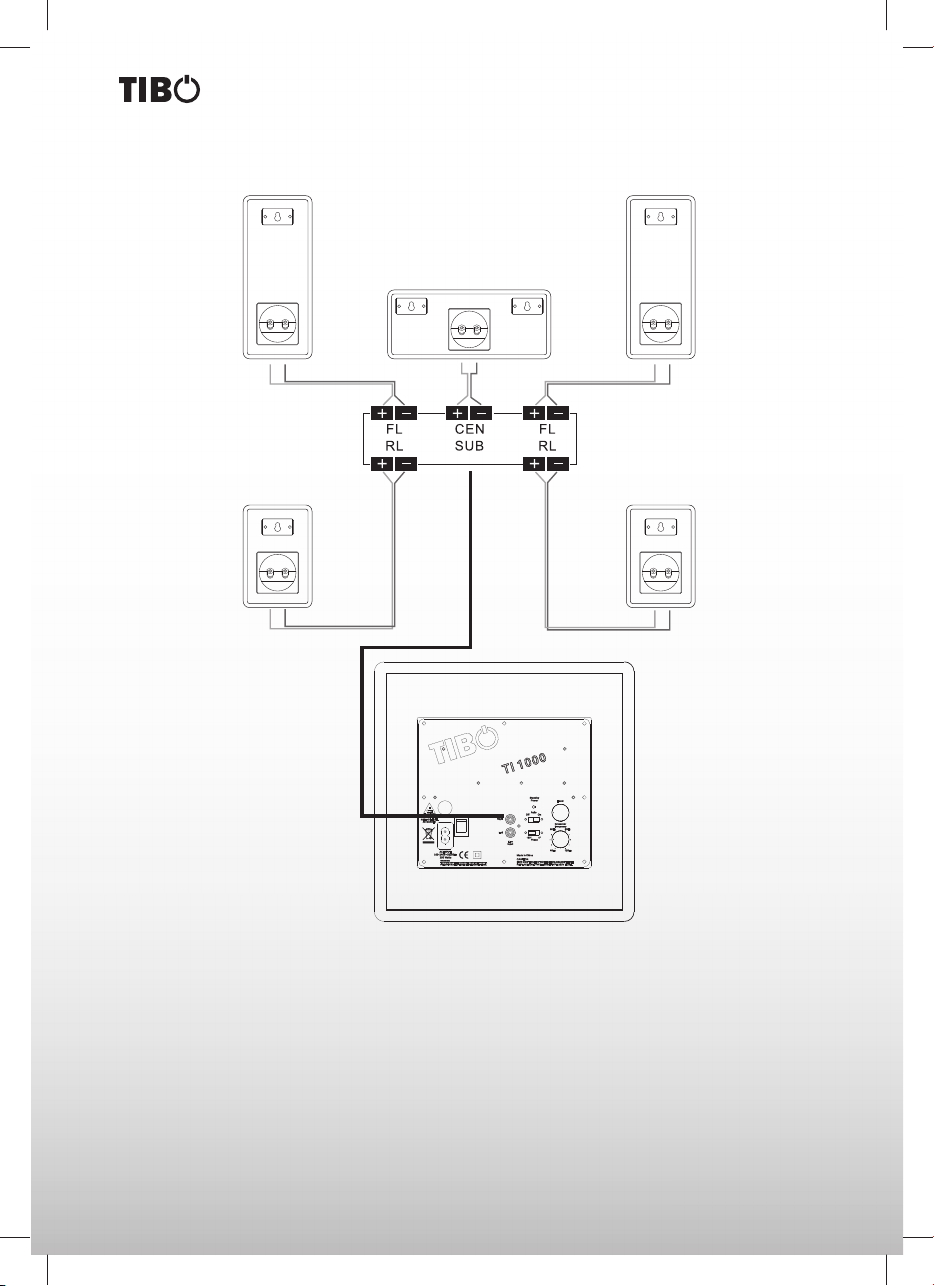

CONNECTIONS
WALL MOUNTING SPEAKERS
9
Turn it back on

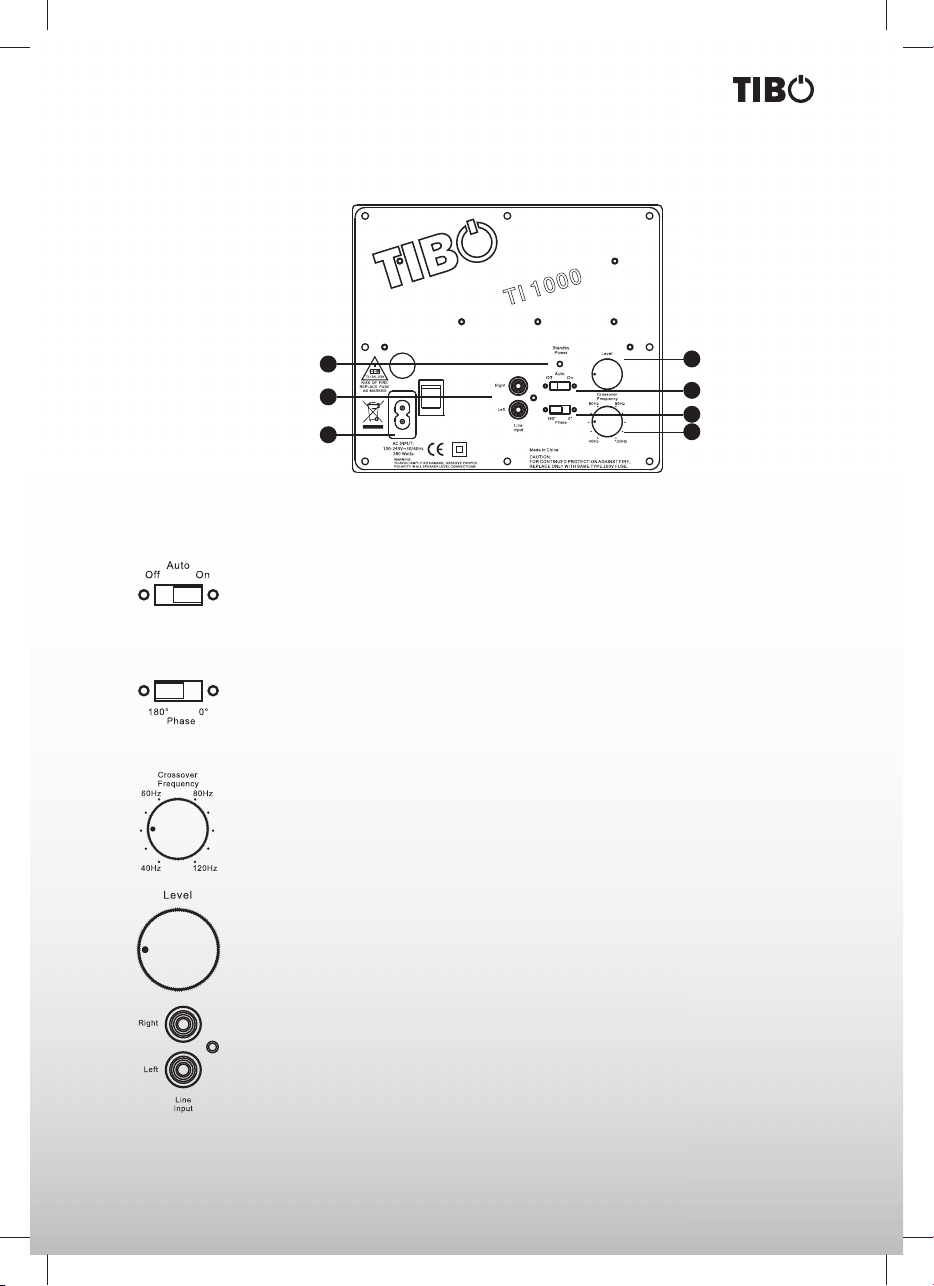

1. Sensitivity
2. Phase
3. Crossover
4. Level
5. Status
6. Line Input
7. AC Power Input
With this switch set to AUTO (1), when not in use the Subwoofer shuts down to save power
and switches on when it senses a signal. This can be over-ridden by switching to ON or
OFF.
The Phase Switch (2) changes the phase of the Subwoofer so that it works in phase
with the rest of the speakers in the system. Place the Subwoofer more than 1 metre away
from the front speakers and switch the phase between 0° and 180°. When the Subwoofer
sounds louder and fuller then it is in phase.
The Crossover control (3) changes the frequency at which the Subwoofer starts to work.
It is recommended that the crossover point is set to the ‘AV‘ setting on the dial when used
with the TI 1000 5.1 System. If you are using the Subwoofer with a non TIBO system then
you change the crossover point to suit your system.
The Level Control (4) increases or decreases the volume of the Subwoofer in relation
to the other speakers in the system. Start with the volume at 0 on the dial then turn it up
slowly until you can hear it. The Subwoofer should be heard as part of the overall sound
and not overpower the rest of the system. There is no rule for setting the volume on the
Subwoofer so experiment with different music and lms to set it to your tastes.
The Line Input-LFE (6) is TIBO prefered AV connection to the amplier. Using the cable
provided, connect this to the Subwoofer output on your AV amplier or DVD. Use R and L if
your amplier output is split left and right.
SUBWOOFER CONTROLS
5
6
73
2
1
4
10
Turn it back on
SPECIFICATION
AV AMPLIFIER CONFIGURATION
Front LCR Satellite speaker
»Enclosure Type: 2-way bass reex enclosure.
»Enclosure Material: MDF with Leather.
»Low Frequency (woofer): 2pcs x 3inch (7.62cm) glass
ber cone Long Throw.
»High Frequency (tweeter): 0.75inch (1.9cm) silk dome
with Neodymium magnet.
»Power Handling: 15 - 100W.
»Frequency: 95Hz - 20Khz.
»Sensitivity: 85dB @ 2.83V (Free Space).
»Impedance: 6 ohm.
»Overall Dimensions: (HxWxD) 101 x 241 x 101mm.
»Weight (Net): 1.48Kg.
Rear LR Satellite speaker
»Enclosure Type: 2-way bass reex enclosure.
»Enclosure Material: MDF with Leather.
»Low Frequency (woofer):
3inch glass ber cone Long Throw.
»High Frequency (tweeter): 0.75inch (1.9cm) silk dome
with Neodymium magnet.
»Power Handling: 15 - 70W.
»Frequency: 110Hz - 20Khz.
»Sensitivity: 83dB @ 2.83V (Free Space).
»Impedance: 6 ohm.
»Overall Dimensions: (HxWxD) 151x101x101mm.
»Weight (Net): 0.92Kg.
8inch (20.32cm) active subwoofer
»Enclosure Type: Sealed Enclosure.
»Enclosure Material: MDF with Leather.
»Low Frequency (woofer):
8inch High-Excursion Driver.
»Power: 100V-240V 50/60Hz.
»Power Handling: 150W Class-D.
»Frequency: 35Hz - 200Hz.
»Overall Dimensions:
(HxWxD) 271x271x271 (Excluding feet).
»Weight (Net): 6.6Kg.
* Design and specications are subject to change without notice.
Front Speakers Small
Centre Speakers Small
Surround Speakers Small
Subwoofer Yes
Subwoofer Frequency 30Hz - 220Hz
All speakers must be set to Small in the AV Amplier menu. Failure to congure your system correctly may result
in damage to the speakers.
11
Turn it back on
CONTACTS
Tibo Ltd.
DSV House,
Maidstone Road,
Milton Keynes
MK10 0AJ
United Kingdom
tel.: +44 (0) 845 2711 906
e-mail: info@tibo-electronics.com
Proof of purchase (attach your receipt here).
Turn it back on
www.tibo-electronics.com
Table of contents
Other Tibo Speakers manuals
