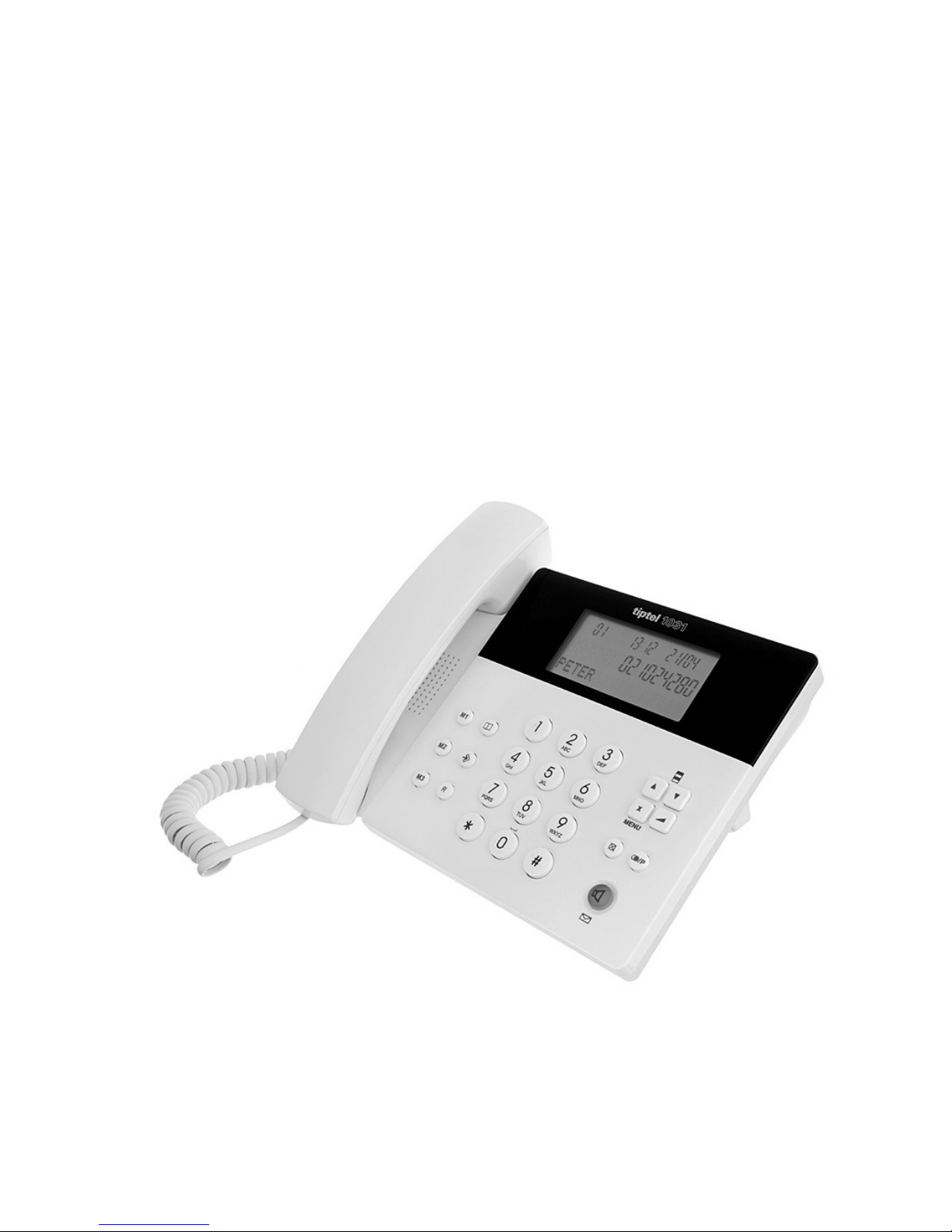

TIPTEL 1030 User manual

Manual (en)
Feature Phone
with hands-free operation
and telephone book
tiptel 1030
tiptel 1031
tiptel

Contents
3
Contents
Contents ..........................................................................................................3
Safety notices..................................................................................................5
Product features..............................................................................................6
Scope of delivery ........................................................................................ 6
Button allocation .............................................................................................7
Installation .......................................................................................................9
Function setup.................................................................................................10
Set the Language........................................................................................ 10
Set the Contrast ..........................................................................................10
Set Year, Date and Time............................................................................. 10
PABX prefix ................................................................................................. 10
Set the Ring Melodies.................................................................................11
Set the Ring Volume ................................................................................... 11
Set Flash Time ............................................................................................ 11
Set Pause Time........................................................................................... 11
Set DTMF or Pulse Mode............................................................................ 11
Operation.........................................................................................................12
Make a Call ................................................................................................. 12
Answer a Call ..............................................................................................12
End a call .................................................................................................... 12
Switching between handset and speakerphone mode ............................. 12
Microphone mute........................................................................................ 12
Flash (R-key) / Transfer a call..................................................................... 12
Pre-dial ........................................................................................................ 13
Pause .......................................................................................................... 13
Redial / Auto redial......................................................................................13
Speed Dial Memories ................................................................................. 13
Caller ID list ................................................................................................. 14
Phone Book ................................................................................................ 14
Reset complete device back to factory settings ........................................ 15
Factory settings........................................................................................... 15

Contents
4
Appendix..........................................................................................................16
Troubleshooting.......................................................................................... 16
Power failure ............................................................................................... 17
Technical data............................................................................................. 17
Warranty...................................................................................................... 17
Guarantee ................................................................................................... 18
Declaration of conformity............................................................................ 18
Disposal ...................................................................................................... 18

Safety notices
5
Safety notices
Please observe the following very closely when setting up, connecting and using
the telephone:
Only plug the connection cables into sockets designated for this use.
Lay the connection cables such that they do not pose any risk of accidents.
Connected cables must not be subjected to excessive mechanical stress.
Set up the device away from electrical interference.
Only connect accessories that are permitted for this device.
Never open up the device yourself. Do not use sharp or metallic objects to touch
the plug contacts.
Only use a soft, damp cloth to clean the device. Do not use chemicals or abrasi-
ve cleaners.
Protect the device from damp, dust, liquids and vapours.
Do not expose the device to direct sunlight.
Do not use the device in potentially explosive atmospheres.
Only use the original telephone connector cable.

Safety notices
6
Product features
Commercial grade high-quality speakerphone
LCD displays phone numbers, date and time
Hands free (half duplex)
Message Waiting Indication (FSK)
60 caller ID memories (caller list)
Last 16 dialed numbers review and redial
FSK/DTMF caller ID available
135 phone book entries
Auto redial function
LCD contrast adjustable
Transfer function (R-key for use with a PABX)
Mute function
16 melodies selectable for ringing
Pause time 1.2/2.4/3.6s adjustable (for use with a PABX)
Flash time adjustable: 100ms, 200ms, 300ms, 400ms, 600ms, 900ms
Supports both pulse and tone (DTMF) dialing
Redial key
Volume: 8 levels adjustable for speakerphone and ringer
4 levels adjustable for handset receiver
Scope of delivery
Telephone device with coil cord and handset
Telephone connection cable
Telephone socket adapters (some country versions only)
Manuals in German and English language
(more languages are available at http://www.tiptel.com/)

Button allocation
7

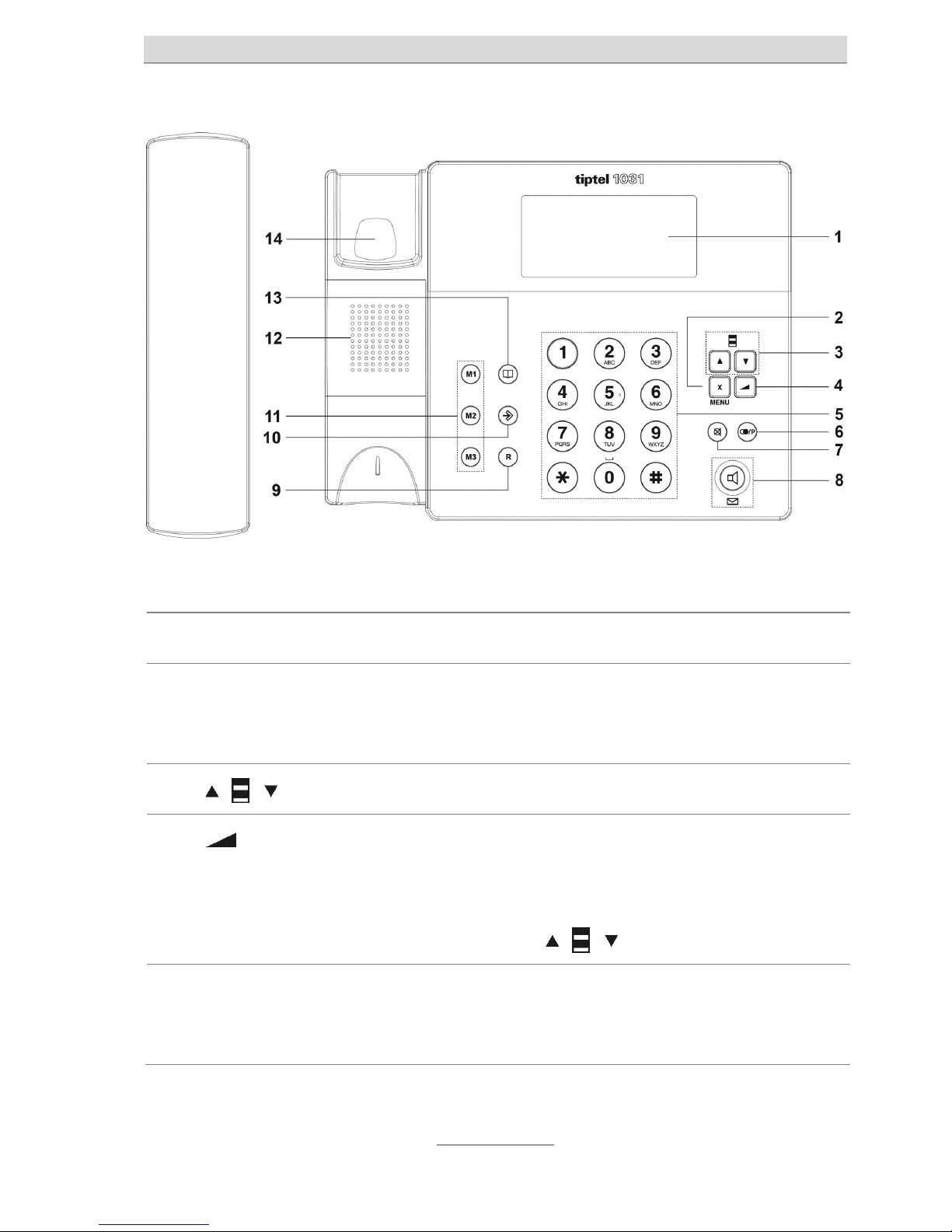

Button allocation
1 LCD Display Displays the phone number, date and time and other information.
2
X
/ MENU a. Press to delete or edit the phone book and one-touch memories.
b. Press for min. 3 secs to enter the main function settings.
c. In main function settings press to enter and confirm the data.
3 Review incoming call list, select and scroll through settings
4 a. In on-hook status press for min. 3 secs to adjust the ringer volume.
b. While using the speakerphone press to adjust the speakerphone
volume.
c. While using the handset press to adjust the handset volume.
Volume may be changed using keys.
5 0 – 9, *, # a. Dialing keys.
b. While editing phone book used for letters as well, 0 for space, * for
symbols.

Button allocation
8
6 / P a. In on-hook status press to review the outgoing number.
b. In off-hook status press to dial the last dialed number.
c. Insert a pause of 1.2 / 2.4 or 3.6 secs while editing the phone book or
pre-dialing a number.
7 Press to mute the line (microphone mute).
8 a. Press for handsfree dialing and speak without lifting up the handset.
b. Indicator will light up when the unit is in use (off-hook).
c. Indicator will flash when the unit has a new call.
d. Indicator will flash when the unit receives message waiting signals.
9 R a. For PABX use, Recall, used to transfer calls
b. On public lines: initiate functions on the public telephone line
10 Press to store telephone numbers in the one-touch memories.
11 One-Touch
speed dial
memories
(M1-M3)
Phone numbers may be stored for speed dialing.
12 Speaker Used for hands-free calls, used for ringer as well
13 Press to enter the phone book operation.
14 Hook switch Press to end a call, handset on/off-hook

Installation
9
Installation

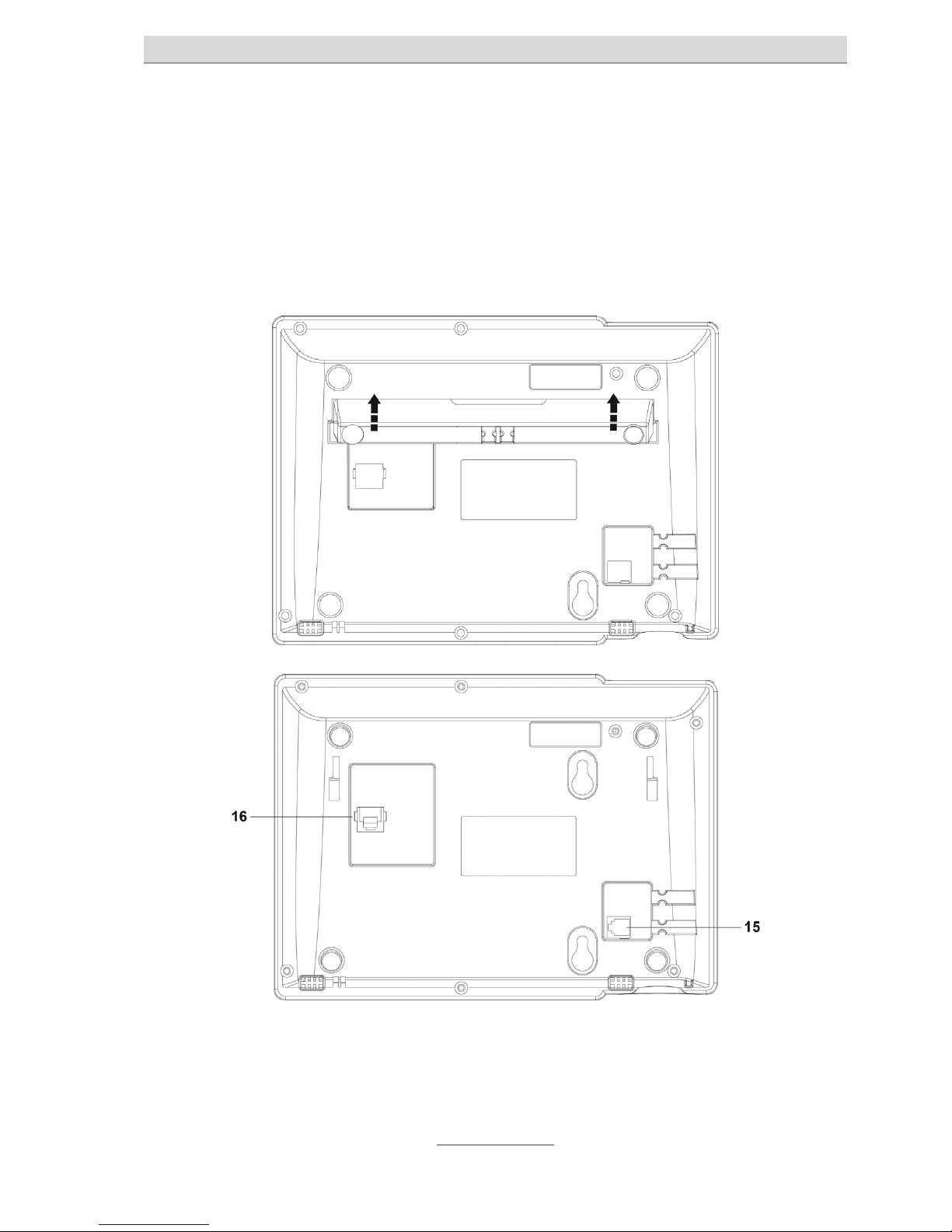

1. Connect one end of the coil cord to the jack of the handset (15), connect the
other end to the jack of the base unit.
2. Plug one end of the flat cable to the line jack (16) of this phone, plug the other
end to the telephone wall socket.
3. Fit the stand supplied (as shown). Ensure the stand audibly clicks into place.
The phone can be used with and without the stand.

Function Setup
10
Function setup
Every function setup is available by using just a single key. In on-hook status, press
X/MENU for a minimum of 3 seconds to enter the function menu. Pressing the very
same key X/MENU repeatedly will show the different functions available one after
another. Please, refer to the list below for setting up each function. You may escape
the setting menu going off-hook for a second.
Set the Language
In on-hook status, press and hold X/MENU for 3 seconds to enter LANGUAGE
SETUP. Press to select the language. Press X/MENU to confirm.
Set the Contrast
After set up the LANGUAGE, press X/MENU to access LCD CONTRAST setup.
LCD will display SETTING CONTRAST (The default setting is 4.) Press to
select the contrast (1-5). Press X/MENU to confirm.
Set Year, Date and Time
After set up the LCD CONTRAST, press X/MENU to access the YEAR, DATE and
TIME setup. The digits of the year will flash. Press to select the year.
Press X/MENU to confirm. Then digits of the month will flash. Press to
select the month and press X/MENU to confirm. Use the same method to set up
the date and time (maybe set automatically by the network operator or PABX).
PABX prefix
After set up the YEAR, DATE & TIME, press X/MENU to access PABX prefix setup.
The first digit will flash. Press to select the digit and press X/MENU to
save selection. Use the same method to continue setting other digits.
When the phone is operated behind a PBX, PABX prefix can be set for dialing out-
side phone numbers and a pause will be added automatically between the Ext. No.
and the phone number you dialed. E.g.: If you set up the Ext. No. as 0 and dial from
the phone book, the number stored as 0021024280 will be practically dialed as 0,
pause, 021024280 (see: Set Pause Time).
