TIPTEL Ergophone 12 User manual

Operating instructions (en)
Ergonomic number dialler,
clear layout, easy to operate
Ergophone 12
tiptel

Safety notices
3
Safety notices
Please observe the following notices very closely when setting up,
connecting and operating the Ergophone 12:
Only connect the connection cables to sockets designated for
this use.
Install the connection cables in a safe manner. Connected cables
must not be subjected to excessive mechanical stress.
Set up the device far from electrical interference.
Only connect accessories which are permitted with this device.
Never open up the device yourself. Do not allow the plug con-
tacts to touch sharp or metallic objects.
Only clean the device with a soft, damp cloth. Do not use chemi-
cals or abrasive cleaners.
Protect the device from damp, dust, liquids and vapours.
Do not expose the device to direct sunlight.
Do not use the device in potentially explosive atmospheres.
Only use the original telephone connection cable.

Controls
4
Controls
To put a photograph onto a key, simply remove the Perspex
glass cover, put your chosen photograph in and re-attach the
Perspex glass cover.

Contents
5
Contents
Safety notices ...........................................................................3
Controls.....................................................................................4
Contents ....................................................................................5
Service.......................................................................................6
Scope of delivery .................................................................. 6
Setting up.............................................................................. 6
Connecting ........................................................................... 6
Direct dial mode........................................................................8
Saving phone numbers ........................................................ 8
Making a call with direct dial keys........................................ 9
Numeric keypad mode .............................................................10
Toggling to numeric keypad mode ...................................... 10
Making a call with numerical keys........................................ 10
Default setting...........................................................................11
Setting up the default setting................................................ 11
Appendix ...................................................................................12
Service .................................................................................. 12
Guarantee ............................................................................. 12
CE sign ................................................................................. 14
Ecological information .......................................................... 14
Troubleshooting.................................................................... 15
Technical specifications ....................................................... 16
Index ..........................................................................................17

Service
6
Service
Scope of delivery
Included in the packaging of your Ergophone 12 are:
Ergophone 12
Connection cables
Operating instructions
Setting up
Your Ergophone 12 has been manufactured for normal conditions of
use. Solvents in furniture lacquers, wood oils and paint preservatives
may corrode the device feet. Device feet altered in this way may then
leave stains on furniture.
Therefore always use a non-slip base, especially with new or recent-
ly treated furniture.

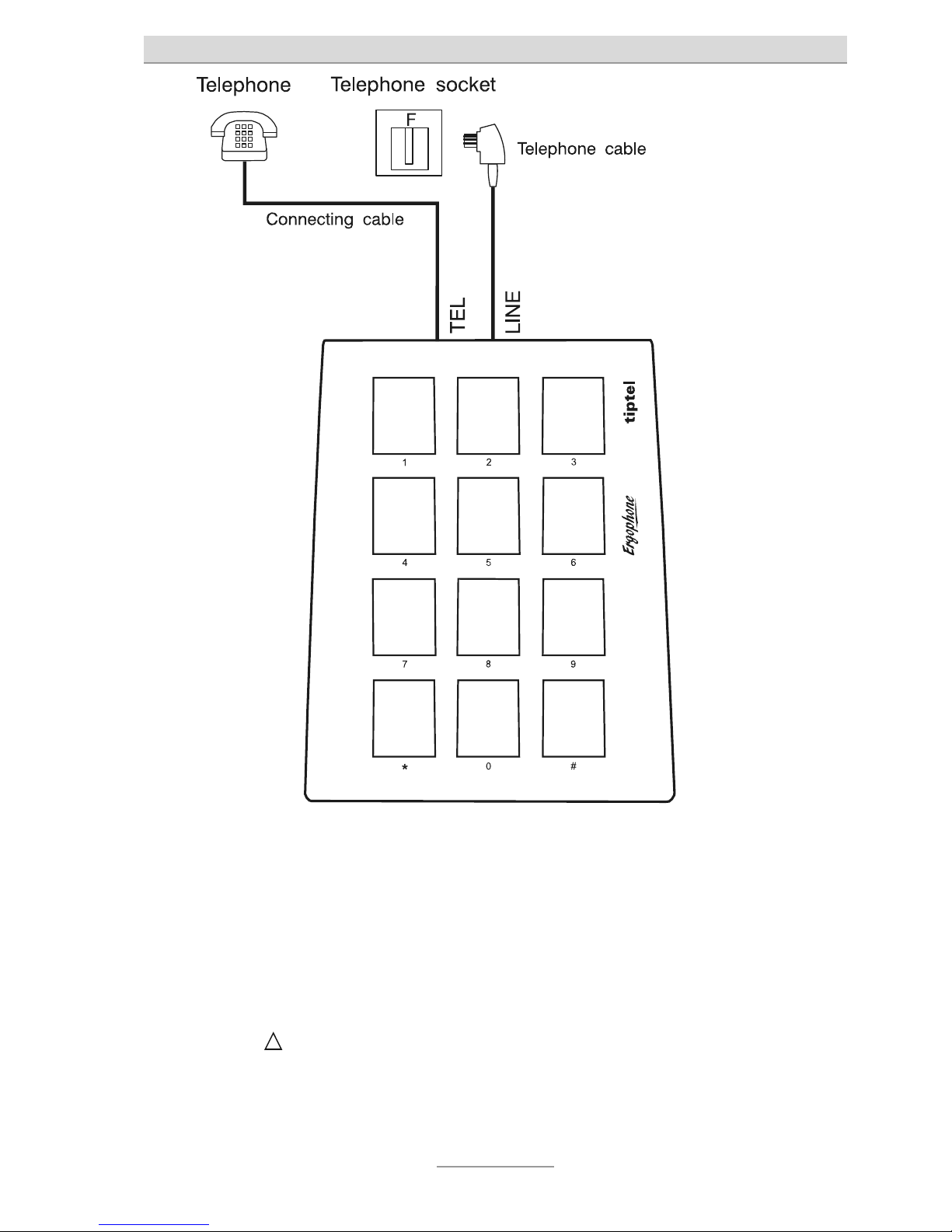

Connecting
You must attach all necessary cables before you can start using
your Ergophone 12.
1Disconnect the existing telephone cable from the telephone
and insert the free connector into the "LINE" jack.
2Insert the connection cable provided into the telephone with
one
connector and into the "TEL" jack with the other connector.

Service
7
This is on the assumption that the telephone's connections are
a normal pair of telephone cable connections. This is the case if
the telephone complies with regulations TBR21 or ETSI ES 203
021. In the event that the "earth" and "alarm" contacts are used
on your telephone socket, you must only use a two-core tele-
phone cable.
Alternatively, you may insert the dialler as an accessory unit into the
"N" jack or " " (Austria). Please use a standard plug adaptor (not in-
cluded in the scope of delivery).

Direct dial mode
8
Direct dial mode
Saving phone numbers
Your Ergophone 12 can save up to twelve phone numbers which
can be selected using the direct dial keys. A phone number can be
up to twenty digits long.
In order to supply the appliance with electricity, it is first necessary to
lift the telephone receiver.
Lift the telephone receiver, which
should be plugged into the "TEL" con-
nection of your Ergophone 12.
Y
ou will hear the dial tone.
Press and hold the desired direct dial
key on the Ergophone 12 for six se-
conds.
Y
ou will hear a beep. The Ergophone 12
is now in input mode.
Y
our Ergophone 12's direct dial keys
now serve as the numerical keys for
t
he input of the desired phone num-
ber. Enter all digits in sequence.
The appropriate digit is denoted below
t
he key on the telephone.
When you have finished inputting the
number, press the direct dial key,
which is denoted by the hash key
(#).
A confirmation beep then sounds.
Now replace your telephone receiver.
In special situations (e.g. when connecting the Ergophone 12 to
telephone switchboard substations), it may be necessary to in-
sert a dialling pause after the outside line prefix (e.g. "0"). To in-
sert a dialling pause, press the dial key (denoted by the star key
*) in input mode.

Direct dial mode
9
Making a call with direct dial keys
Lift your telephone receiver.
Y
ou will hear the dial tone.
Press and hold the desired direct dial
key on the Ergophone 12.
This will dial the saved number. You will
t
hen be connected.
The direct dial keys are transparent and allow space for labels
or pictures up to 23.5 x 32 mm.

Numeric keypad mode
10
Numeric keypad mode
Toggling to numeric keypad mode
You may also use your Ergophone 12 as a telephone keypad. The
direct dial keys are used as numerical keys for this purpose.
Lift your telephone receiver.
Y
ou will hear the dial tone.
Press and hold the direct dial keys
designated by the star (*) and hash
(#) keys together for six seconds.
Y
ou will hear a beep. The device has
now switched to numeric keypad mode.
Replace the receiver.
To switch back to direct dial mode, simply repeat the operating
steps described above.
In addition, if need be you can label your direct dial keys with
the corresponding digit. The appropriate digit is denoted below
the key on the telephone.
Making a call with numerical keys
Lift your telephone receiver.
Y
ou will hear the dial tone.
Press the desired digit on the Ergo-
phone 12.
The digit you press will be dialled.
